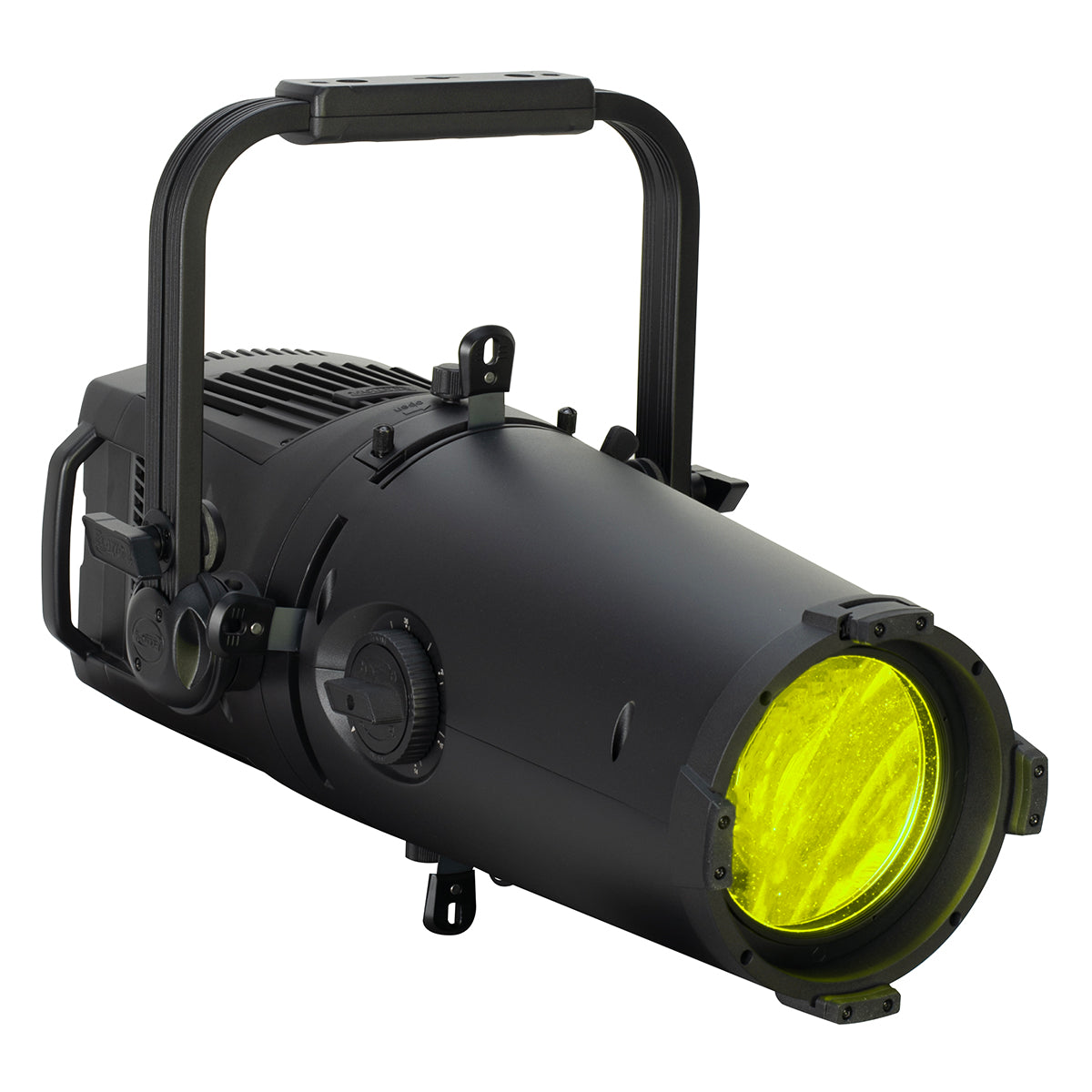

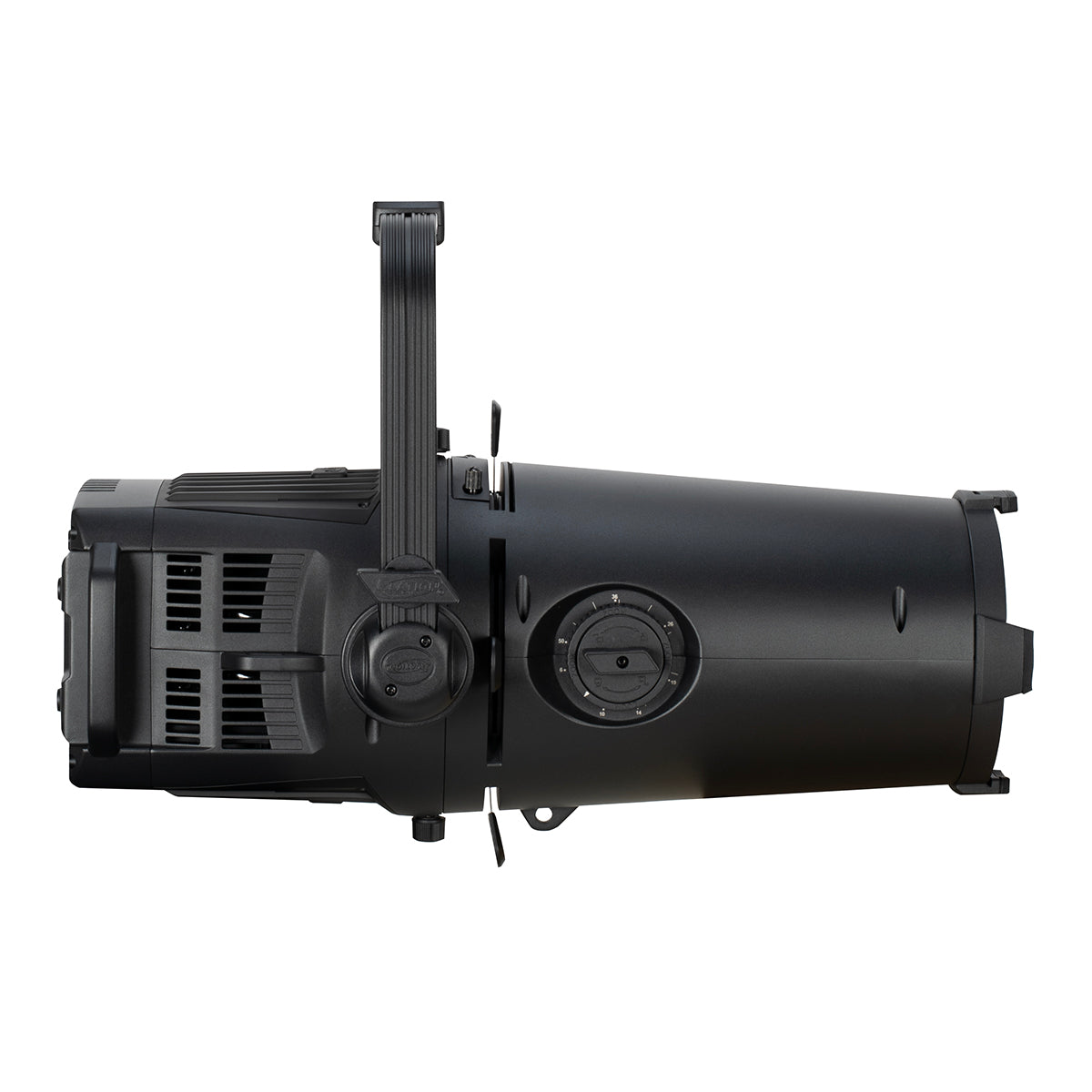

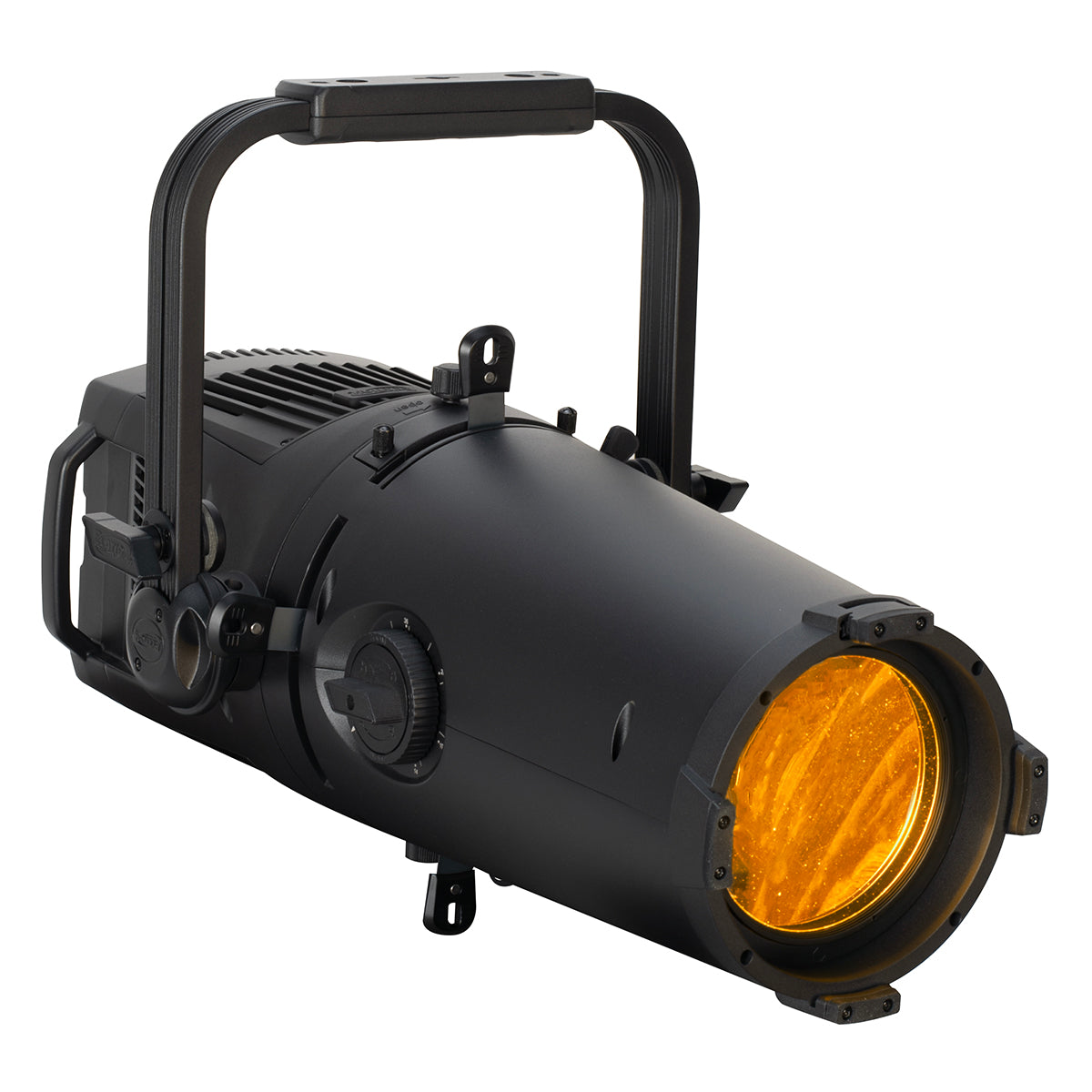

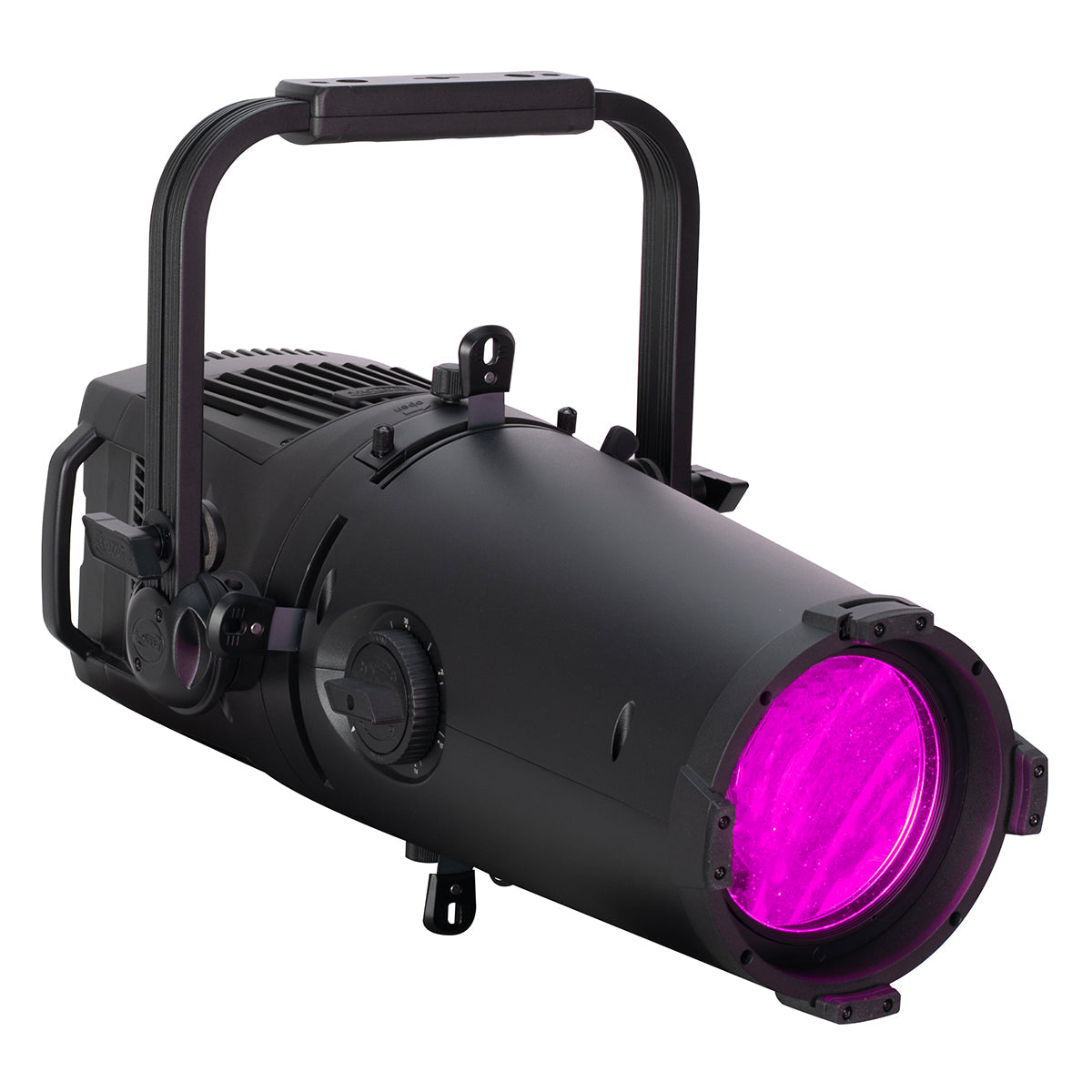

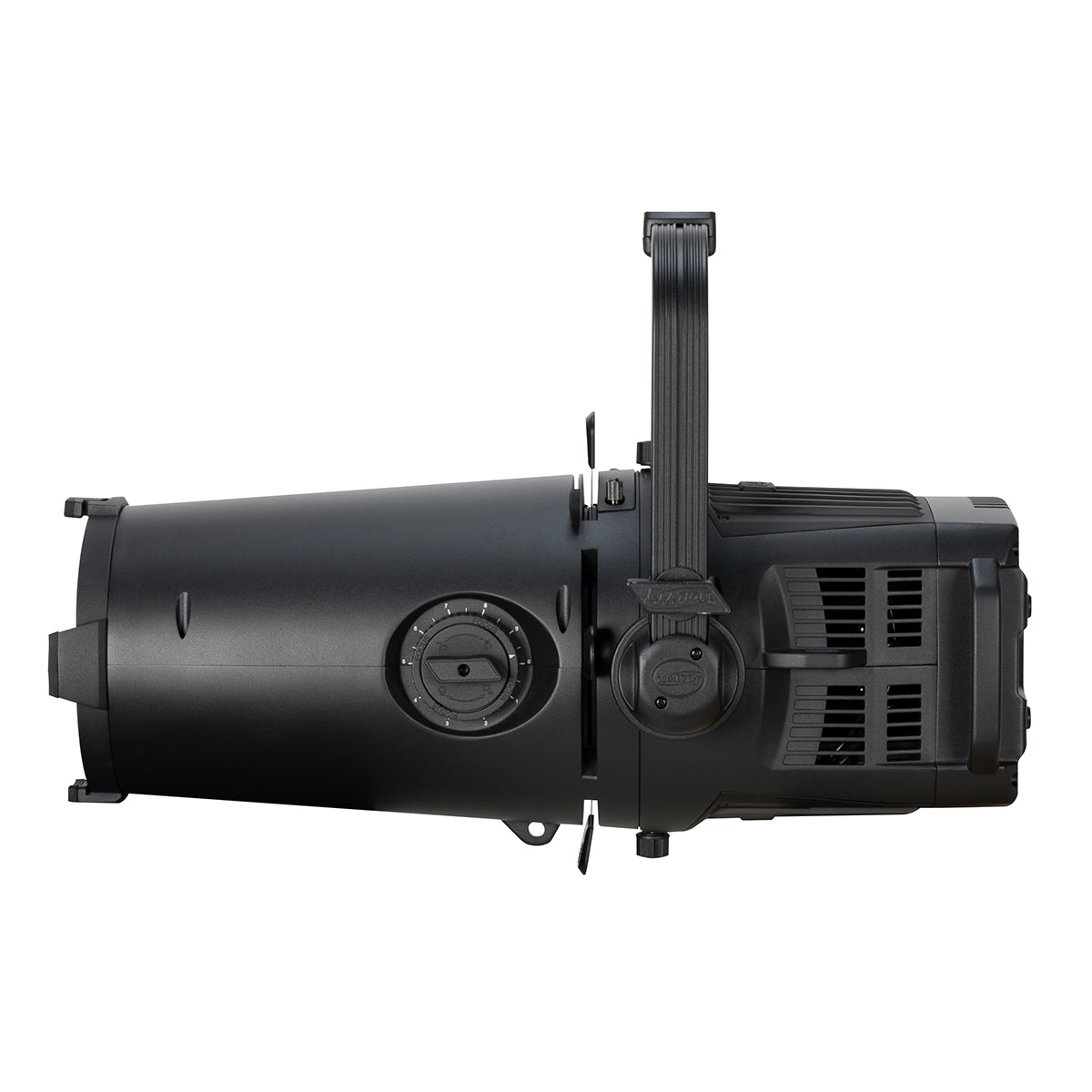

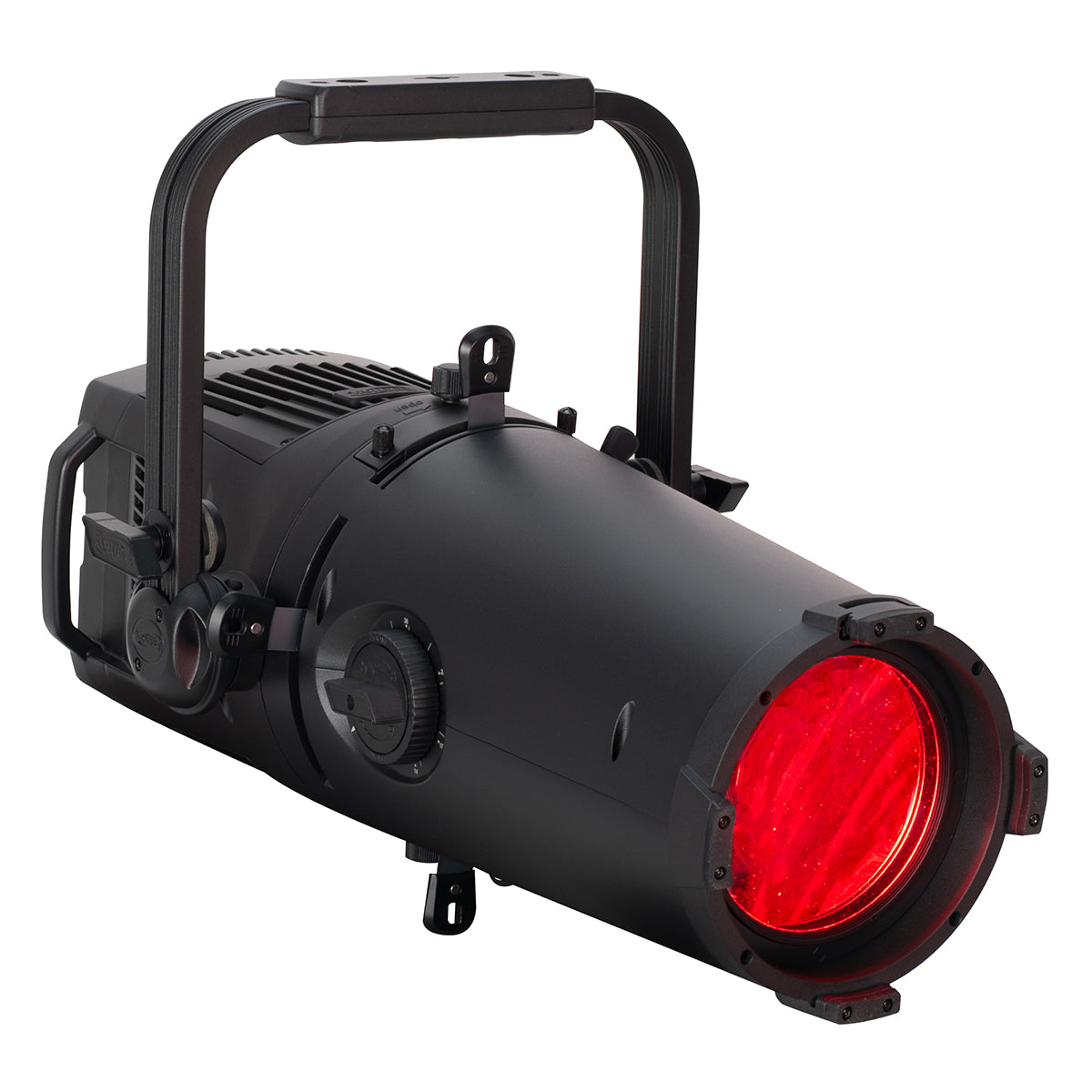

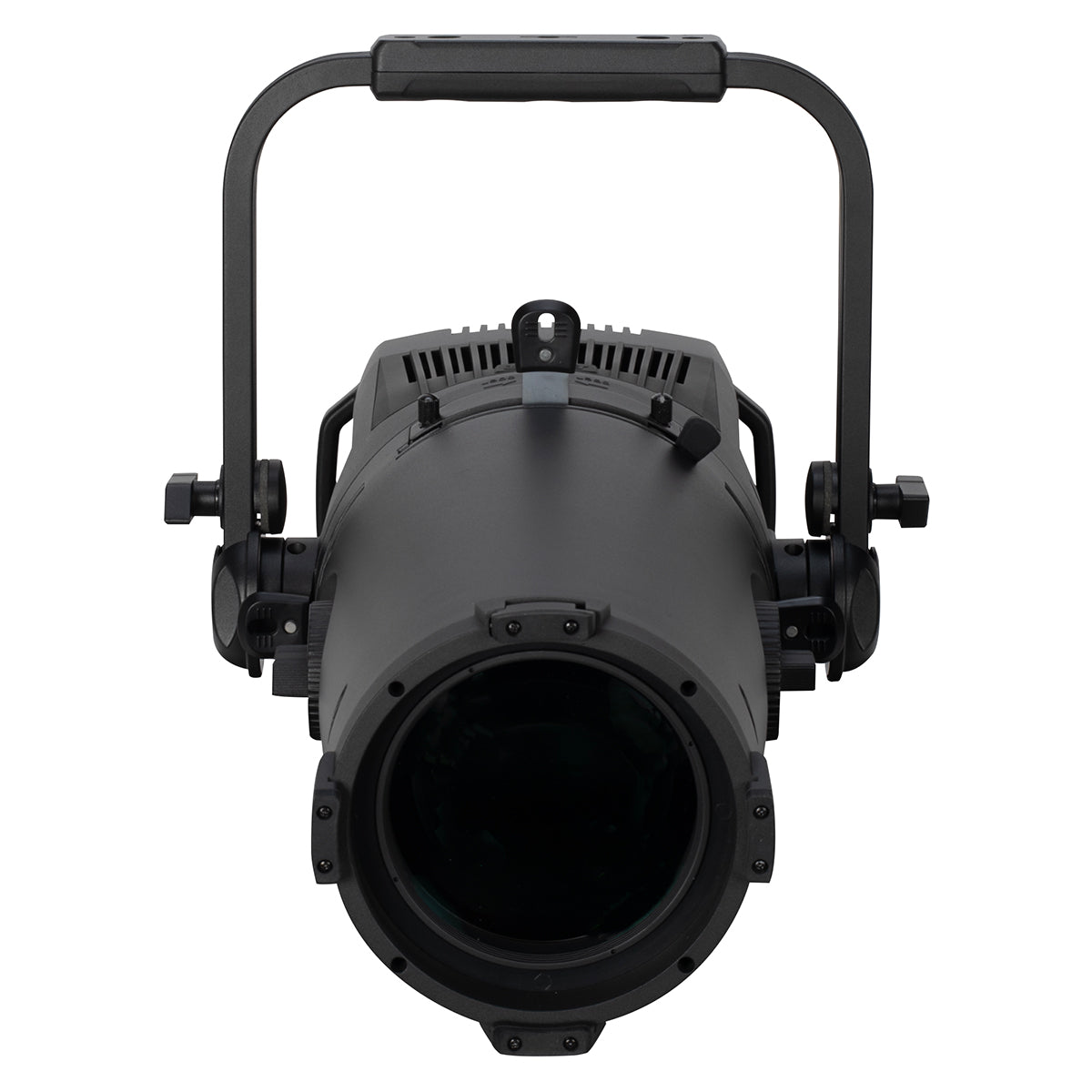

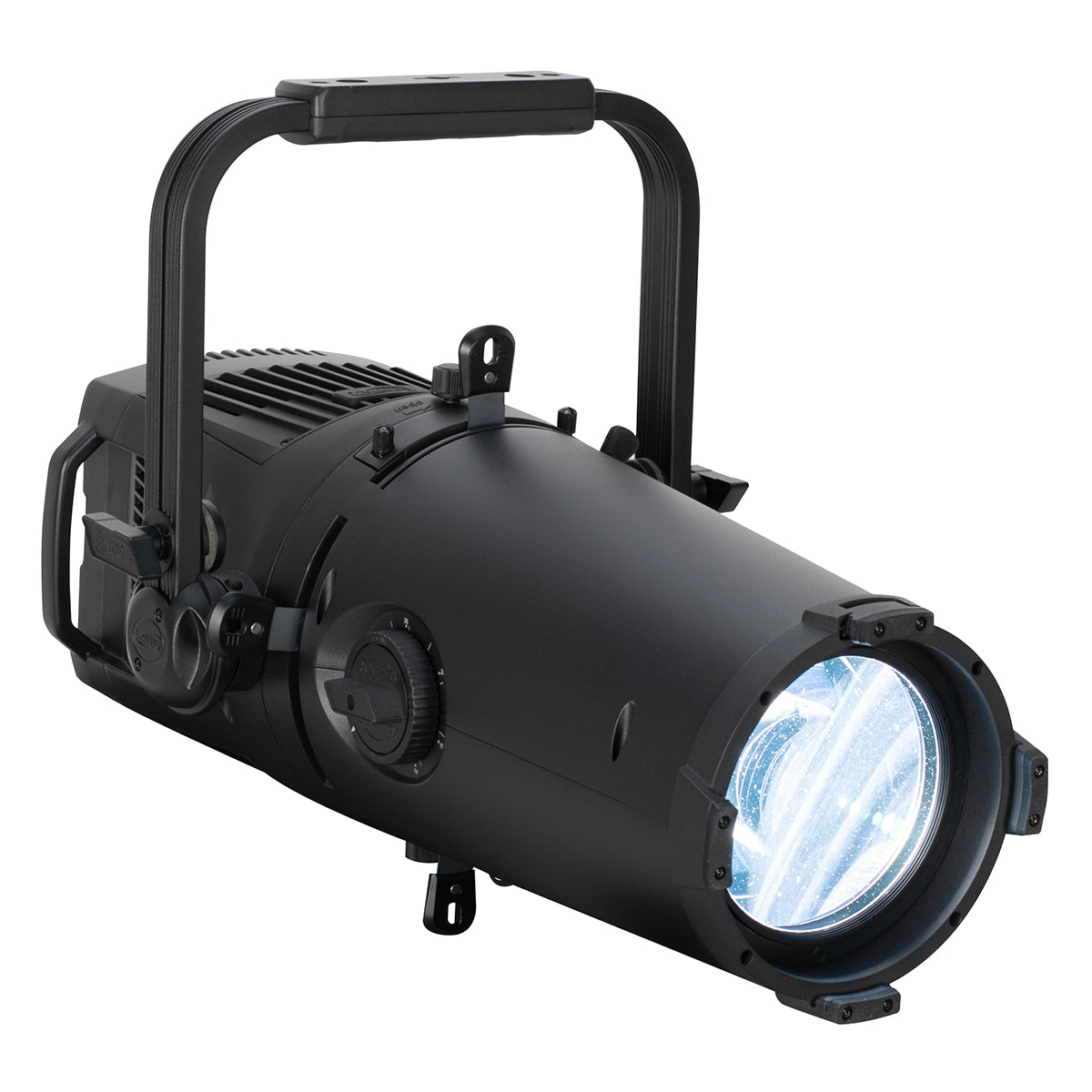

KL PROFILE FC

Features

  • Compact Zooming Ellipsoidal
  • Extended Color RGBMA LED Engine, 93.5 CRI
  • Exceeding 10.000 lumens
  • Integrated Rotating Gobo Slot
  • Full Blackout Manual Framing System
  • Wide Zoom Range from 6° to 50°
  • 7.5” Front Accessory Holder
  • Includes 7.5" Gel Frame

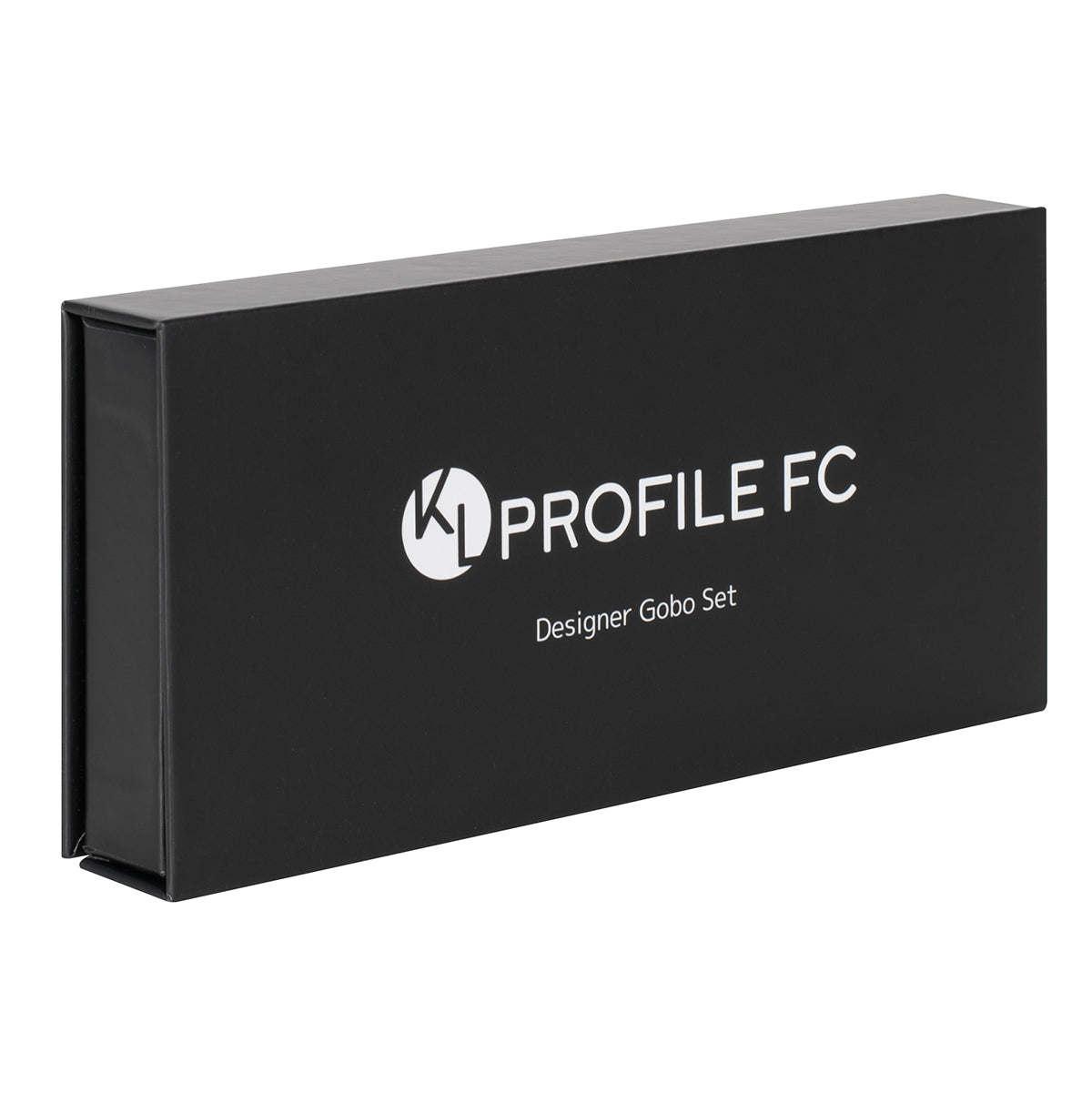

  • Designer Gobo set with 10 high-resolution glass gobos

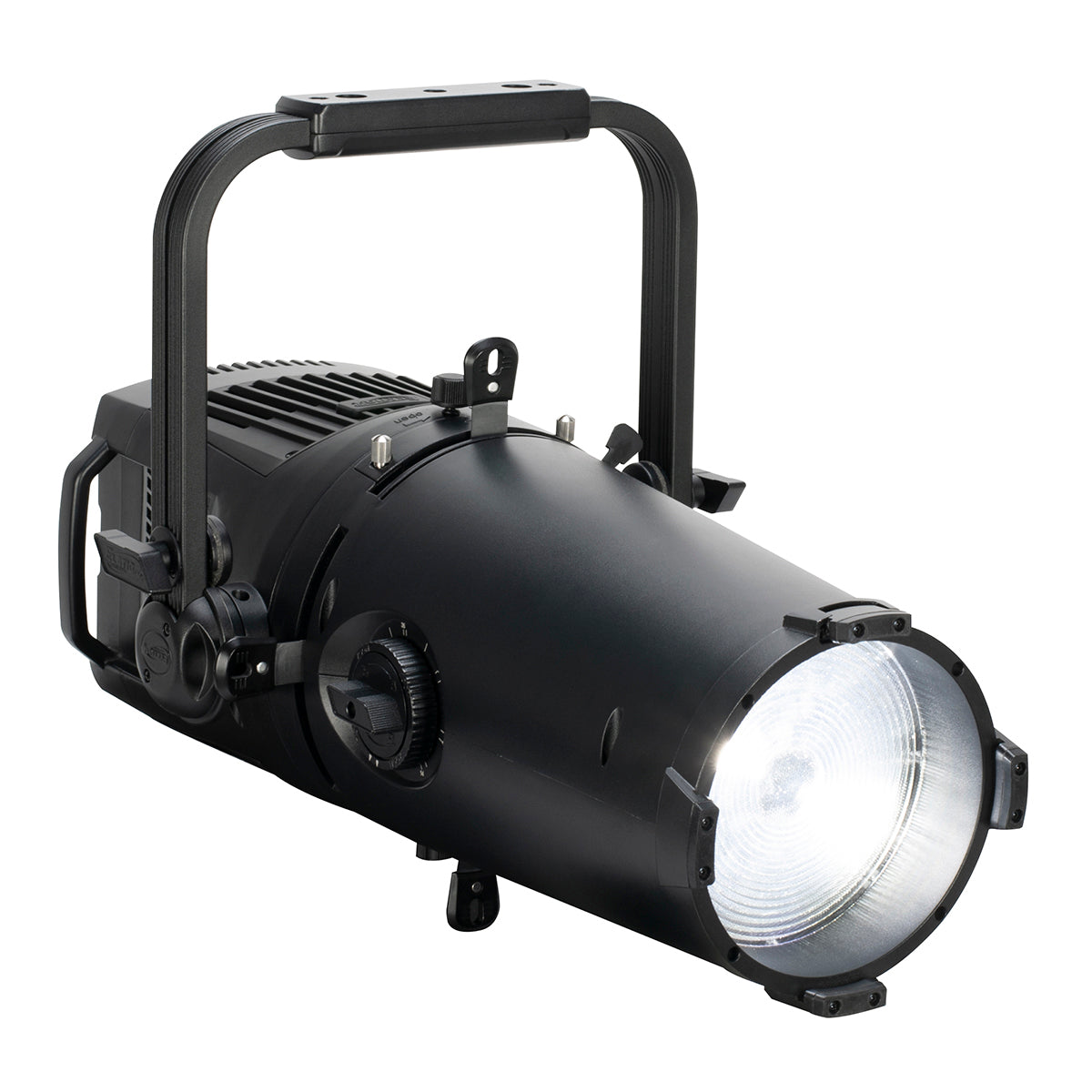

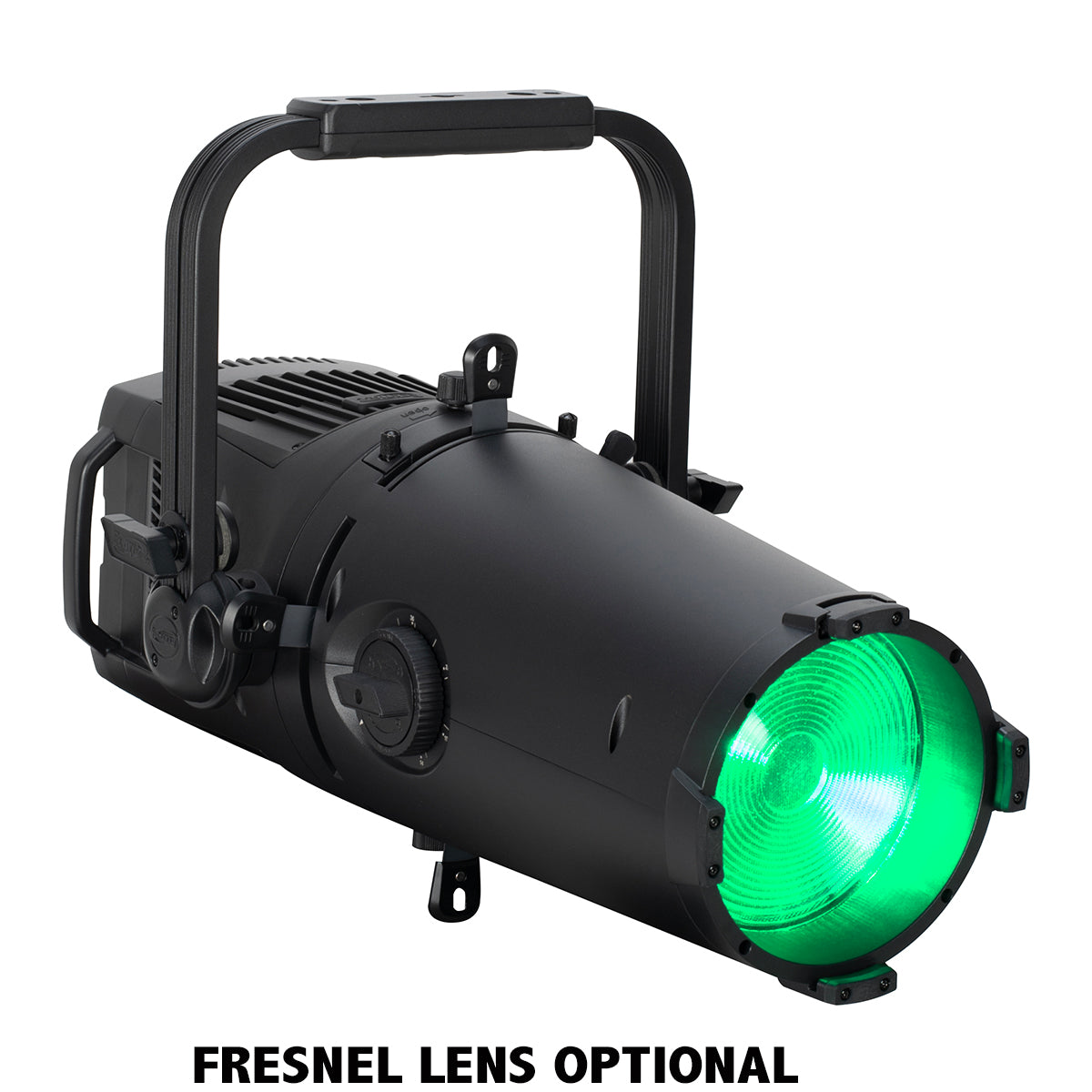

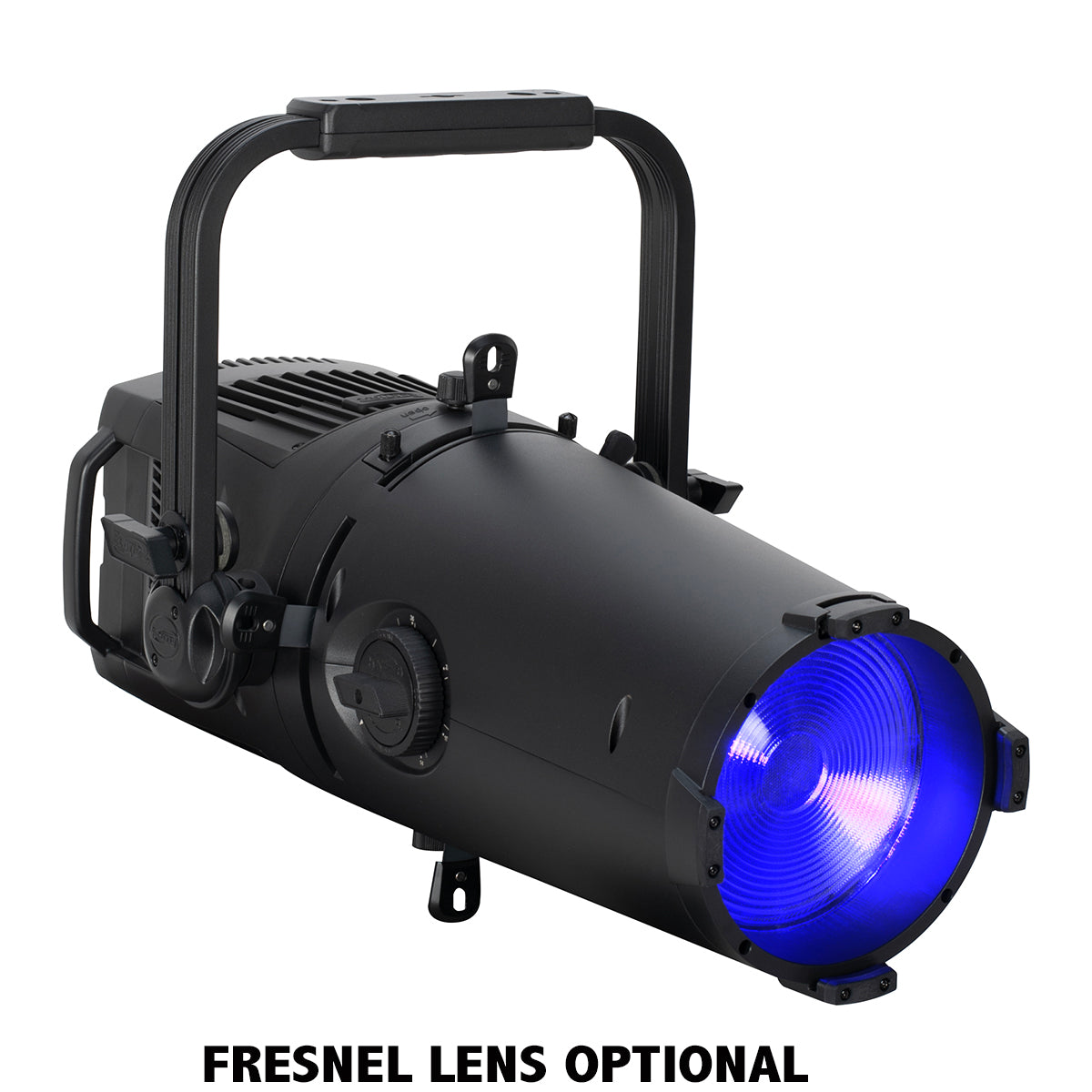

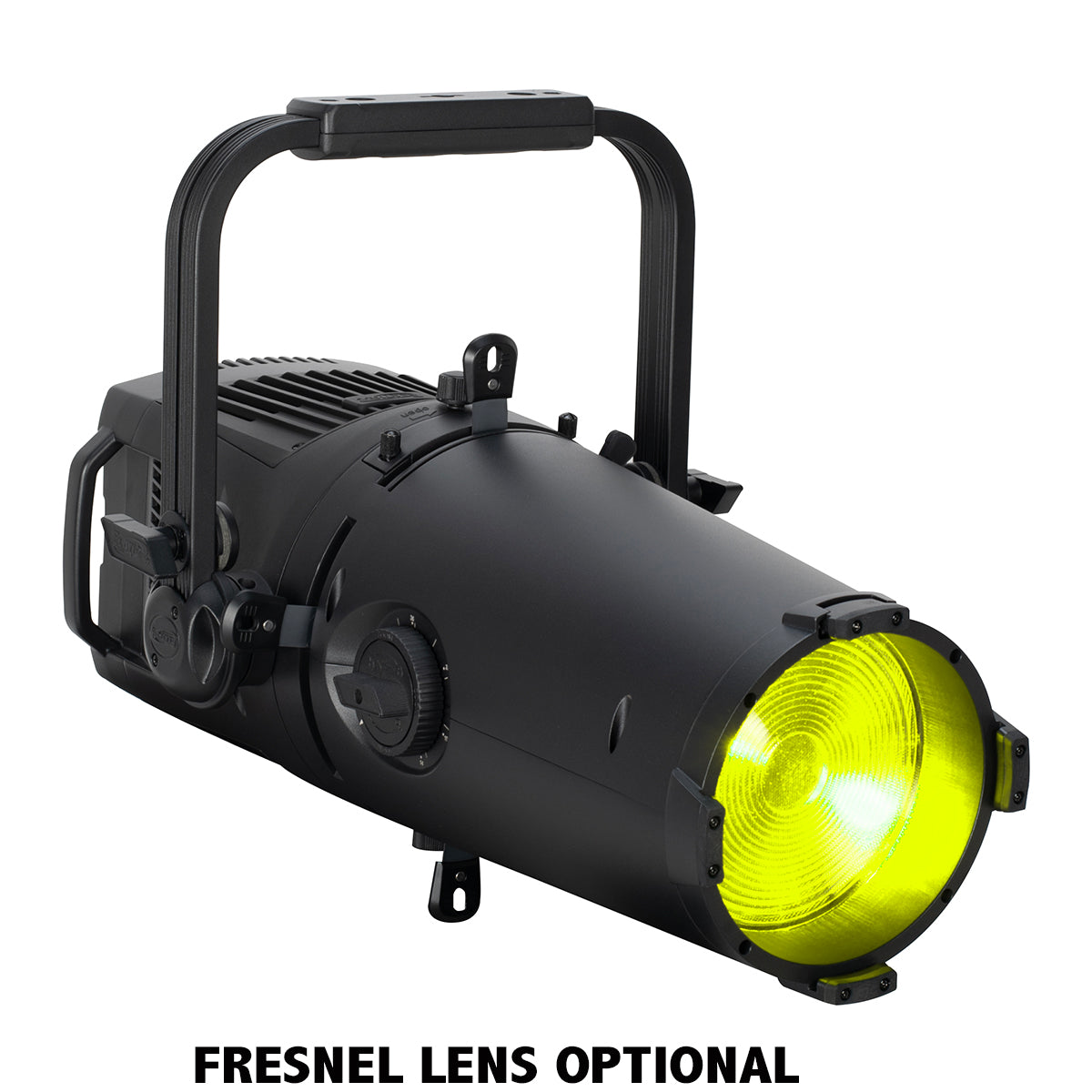

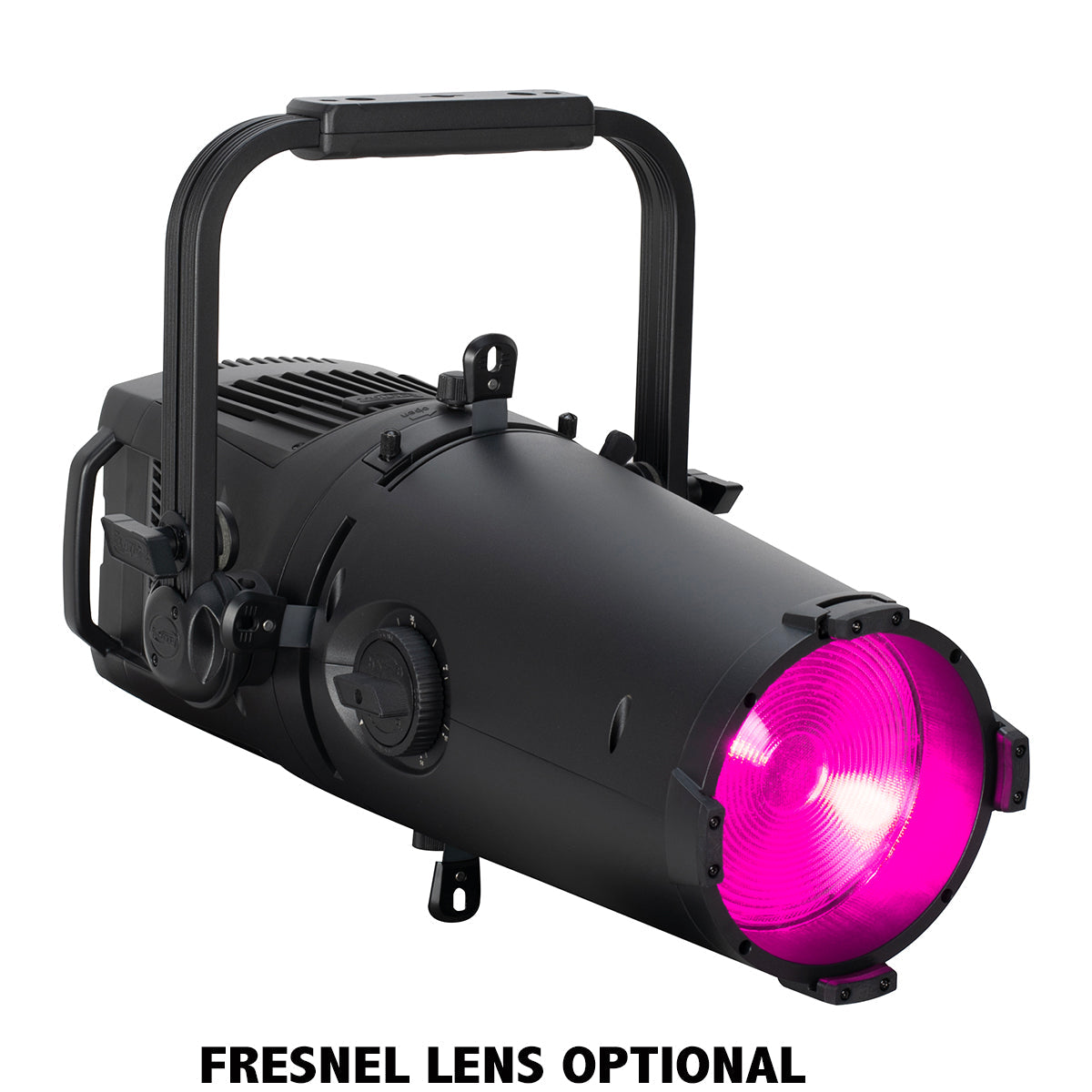

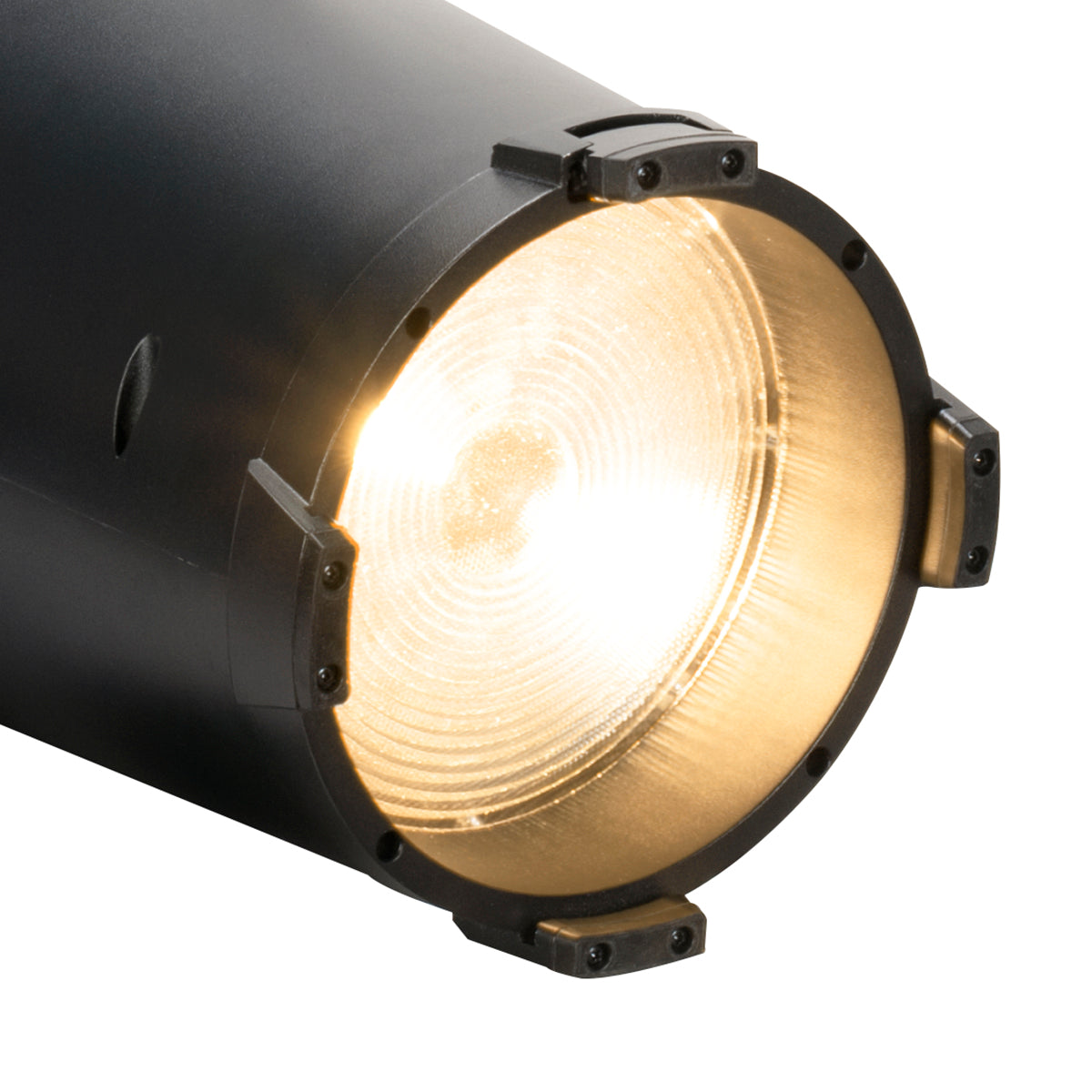

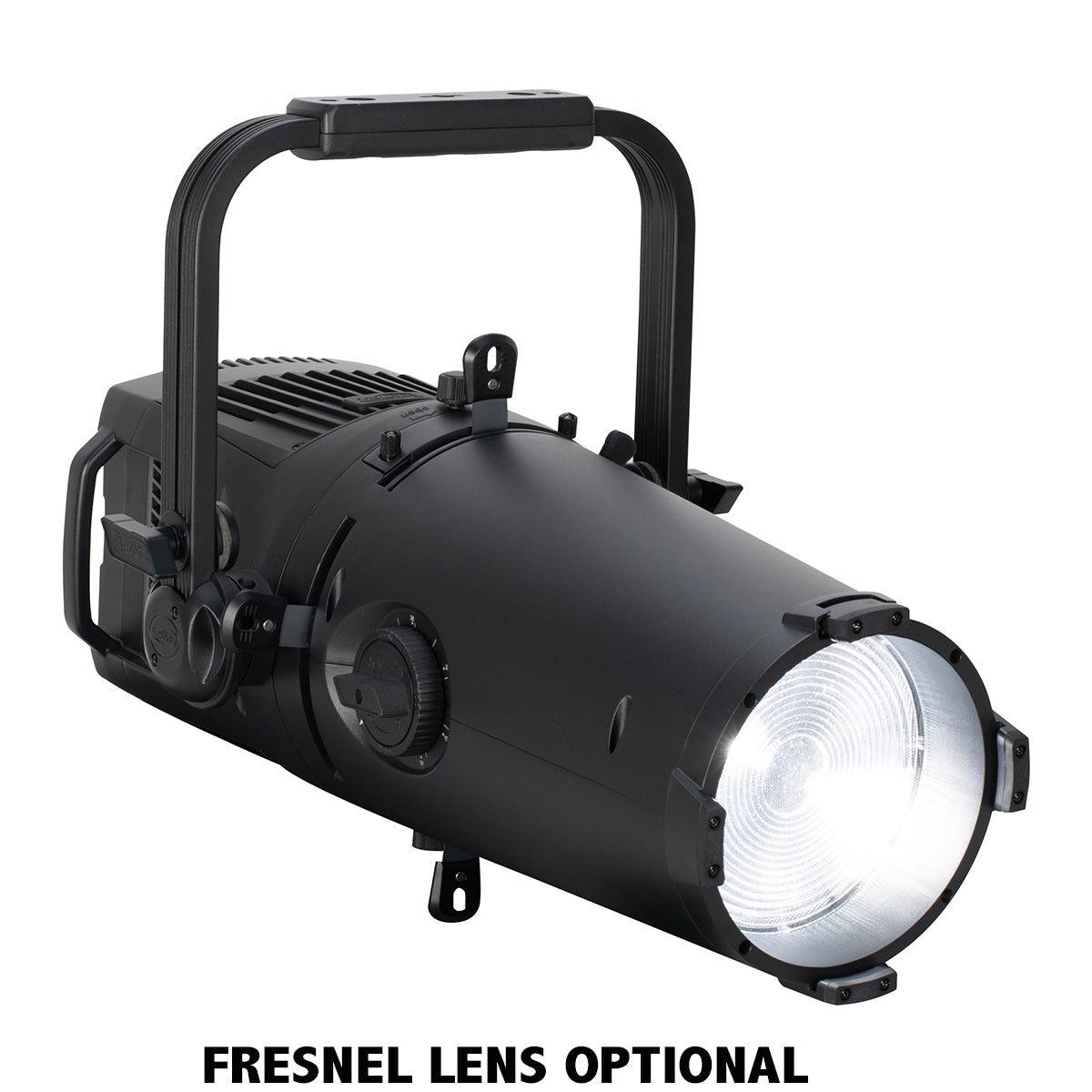

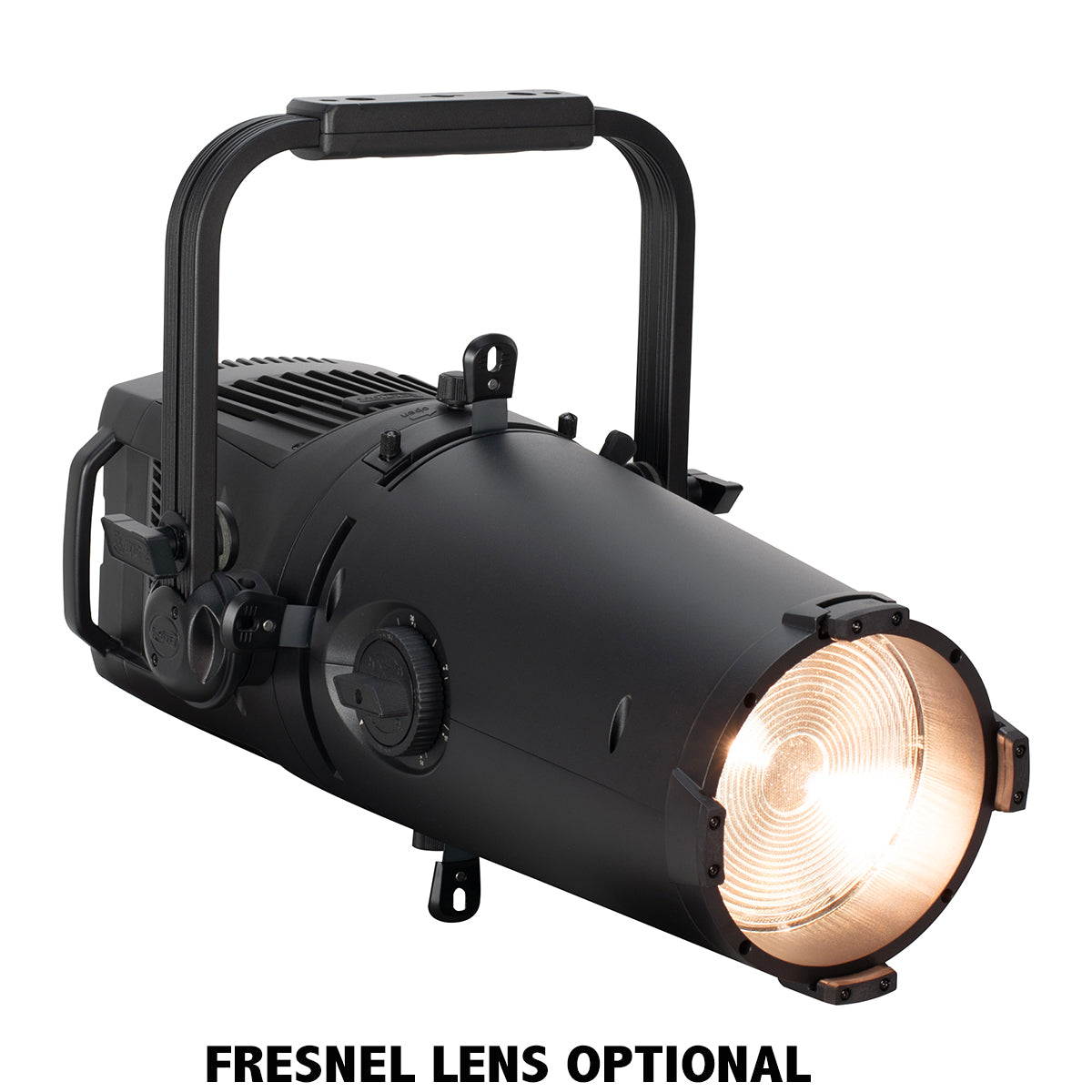

  • Optional Fresnel Wash Lens Conversion Kit

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

DMX/ RDM Traits

CAD File

Test Results

Related Categories

Specifications

SOURCE

305W 6,500K RGBMA LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.


PHOTOMETRIC DATA

10,600 Total Lumen Output

CRI 93.5

Zoom Range 6° - 50°

Beam Angle 5.9° - 45.6°

Field Angle 6.6° - 50°


EFFECTS

Manual Locking Zoom, Focus

4 Manual Rotating Full Blackout Framing Blades

Manual Barrel Rotation

Integrated Manual Iris

Variable 16-bit Dimming Curves


COLOR

RGBMA Color Array

CMY and RGB Emulation Modes

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book


GOBOS

1x 16bit Rotating / Indexing Interchangeable Glass Gobo


CONTROL / CONNECTIONS

8 DMX Channel Modes (1/5/12/21) CMY(10/17)  RGB(10/17)

DMX Adjustable LED Frequency

DMX, RDM Protocol Support

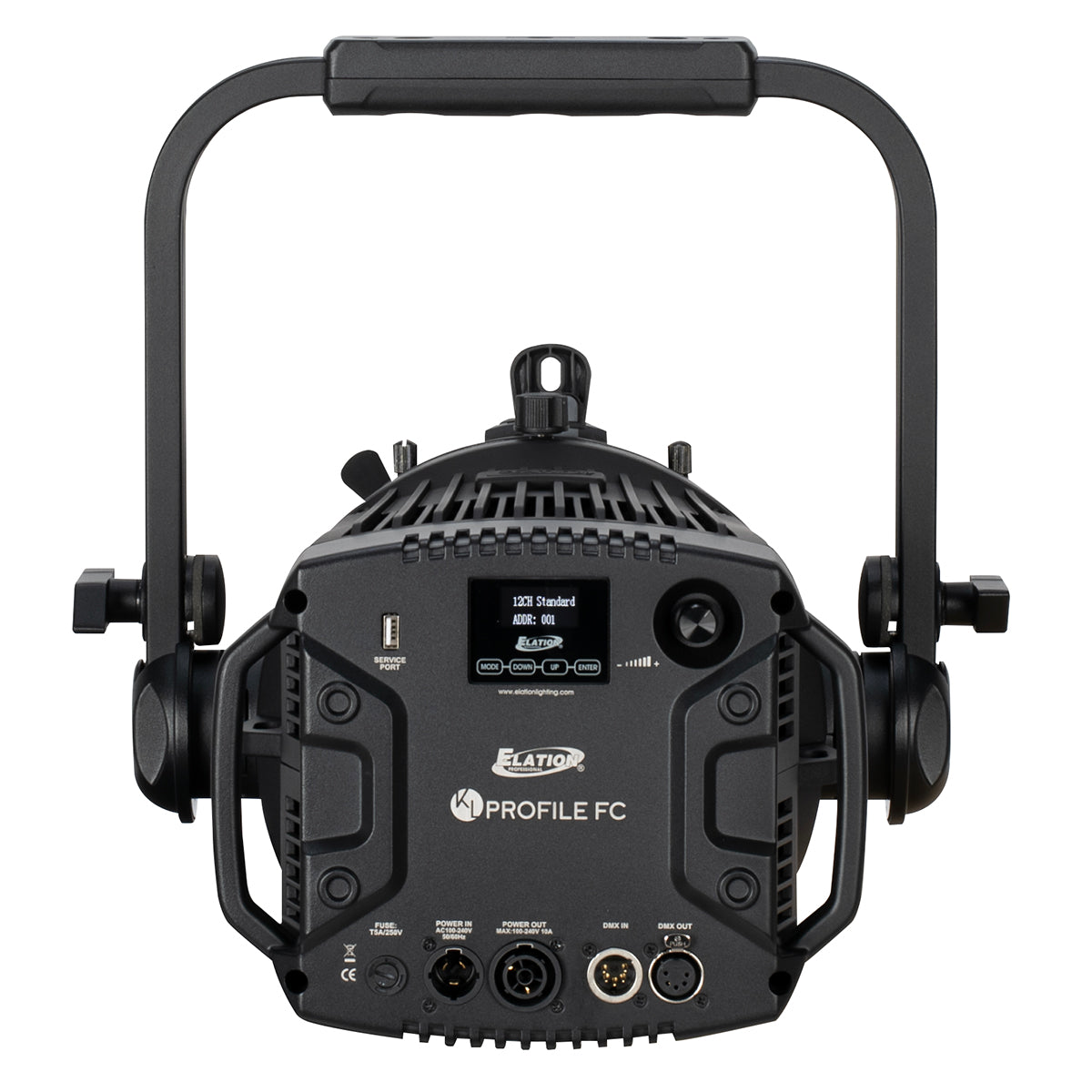

4 Button Touch Control Panel

Encoder Control for Standalone Operation

Full Color 180° Reversible LCD Menu Display

5pin DMX In/Out

IP65 Locking Power In/Out

Elation’s E-FLY™ Internal Wireless DMX Transceiver


SIZE / WEIGHT

Length: 25.1” (637.6mm)

Length (Yoke 0°): 27.6” (701.0mm)

Width: 15.4” (390mm)

Height: 13.6” (345.0mm)

Height (Fixture Body): 11.0” (279.0mm)

Height (Yoke 90°): 18.4” (466.5mm)

Weight: 35.2lbs (15.9kg)

7.5” Front Accessory Slot


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

358W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 1124.1


OPTIONAL ACCESSORIES

#8050000053 - Omega Bracket


APPROVALS / RATINGS

CE | cETLus | IP20


FIRMWARE UPDATES

Current Version: V1.04

Click HERE for software update


Specifications and documentation are subject to change without notice.
