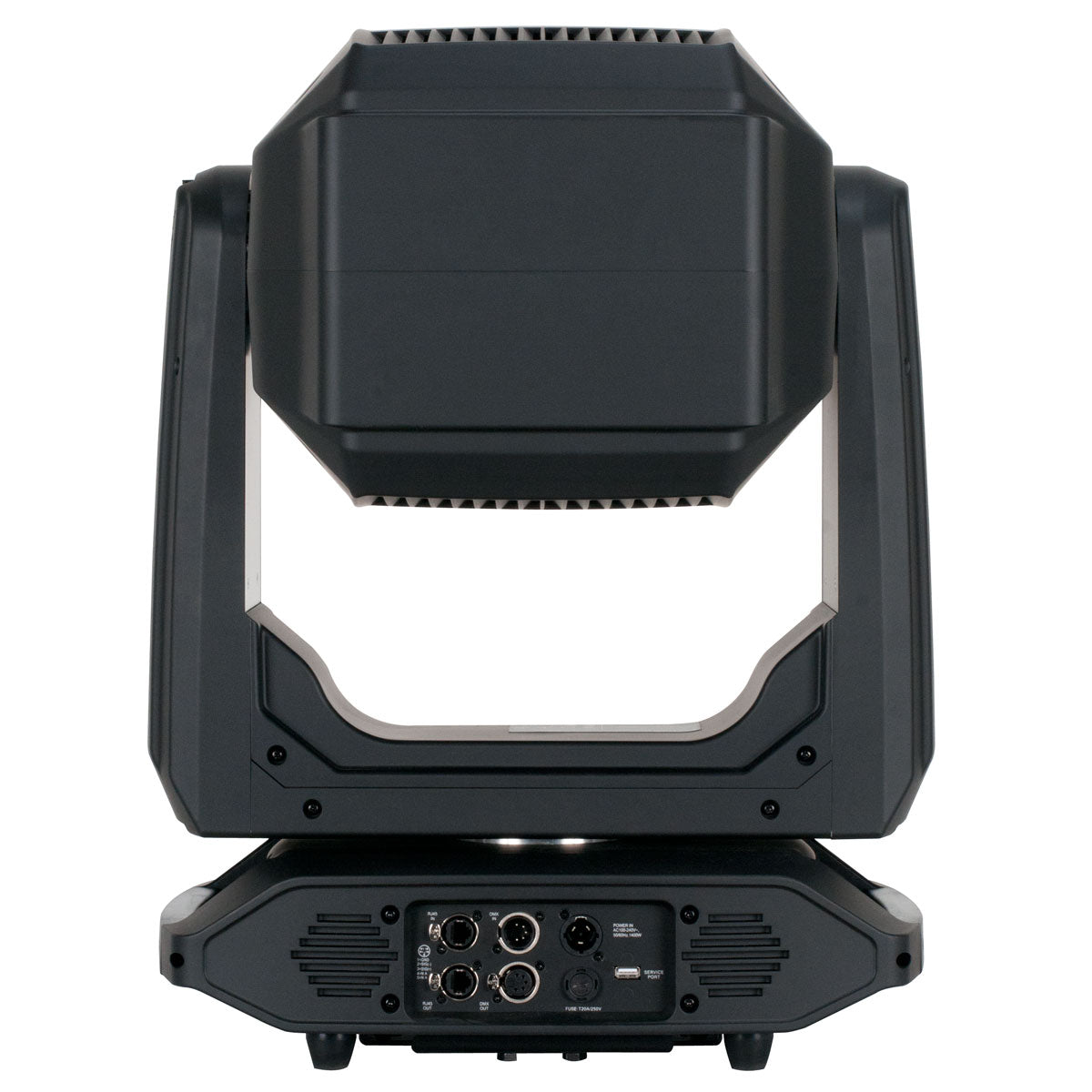

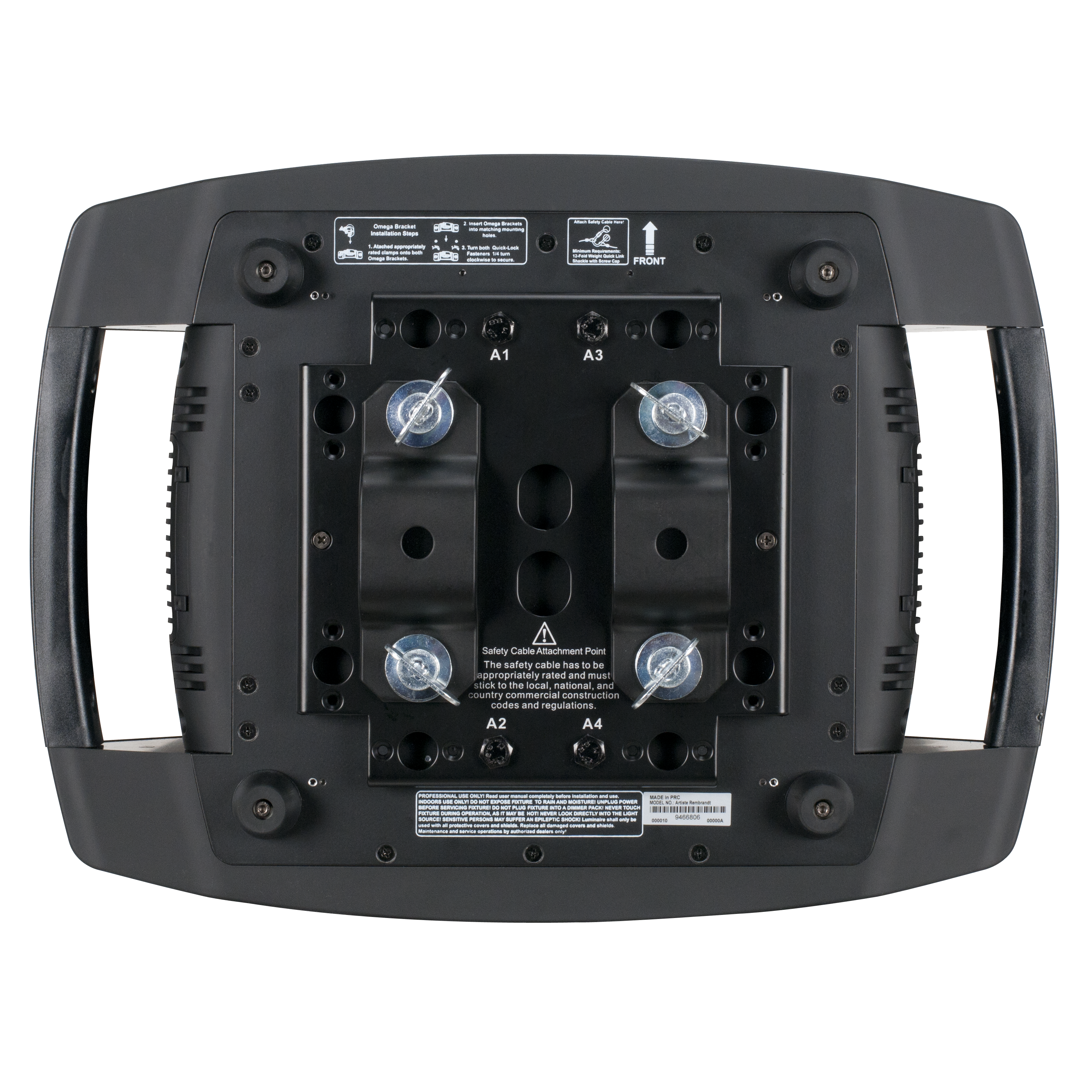

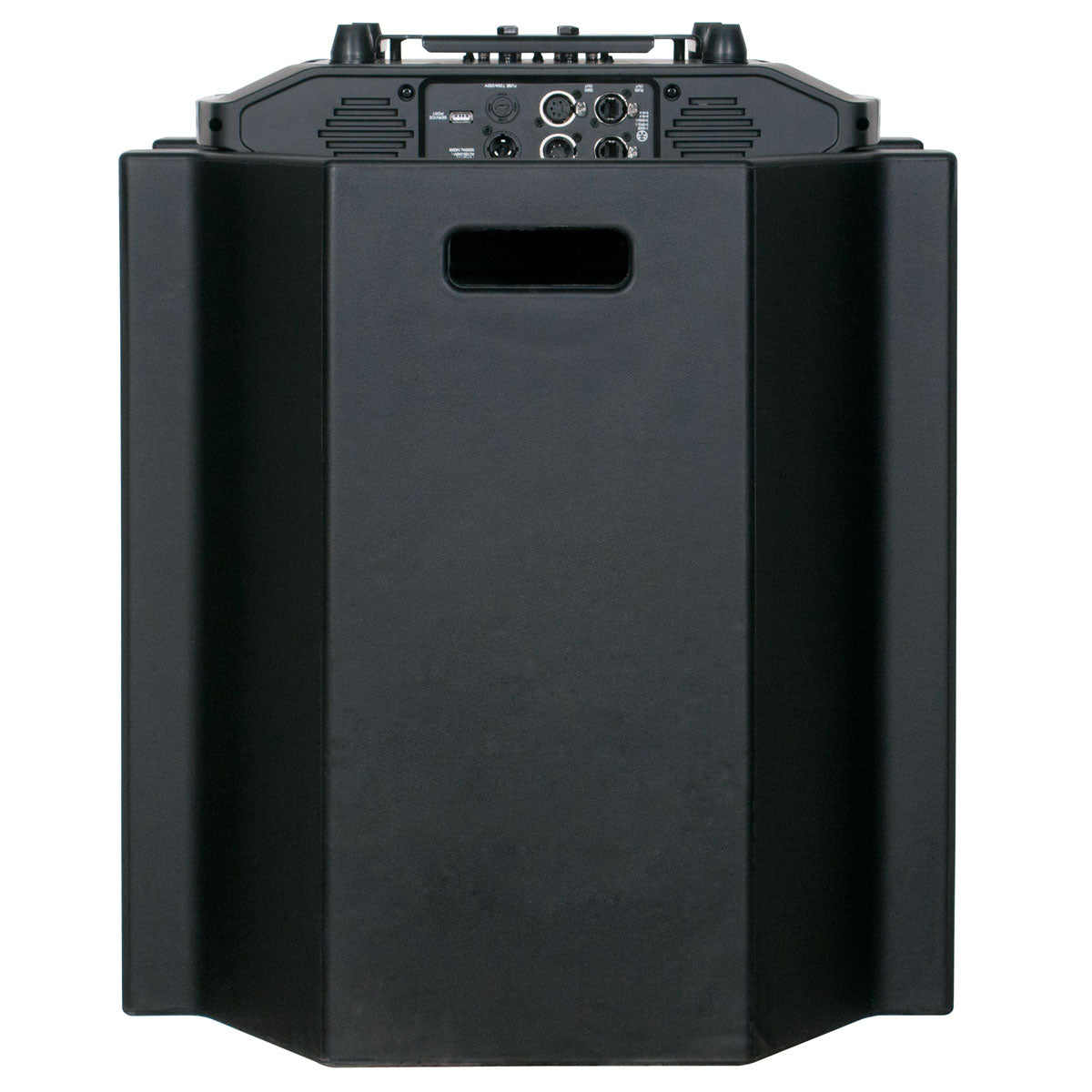

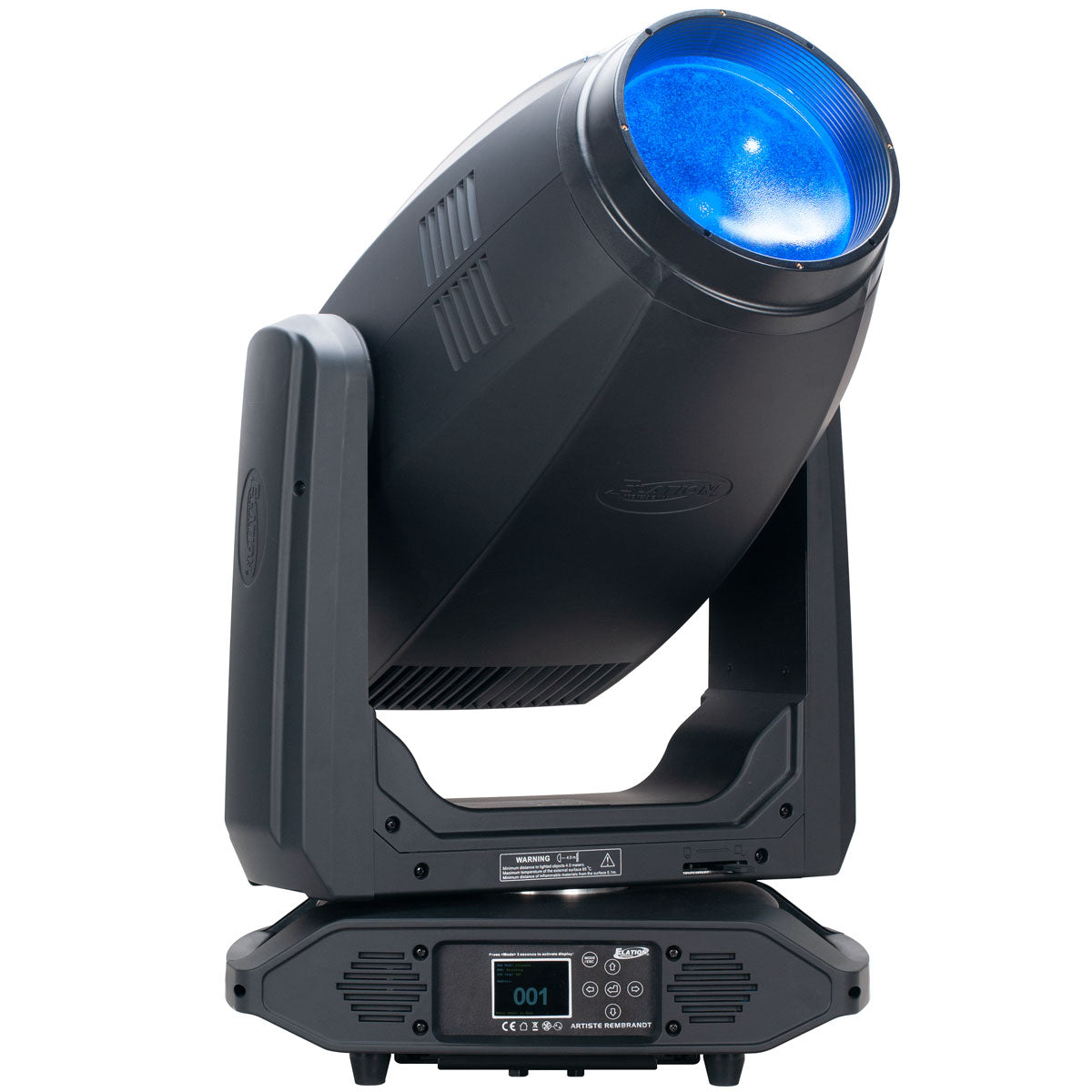

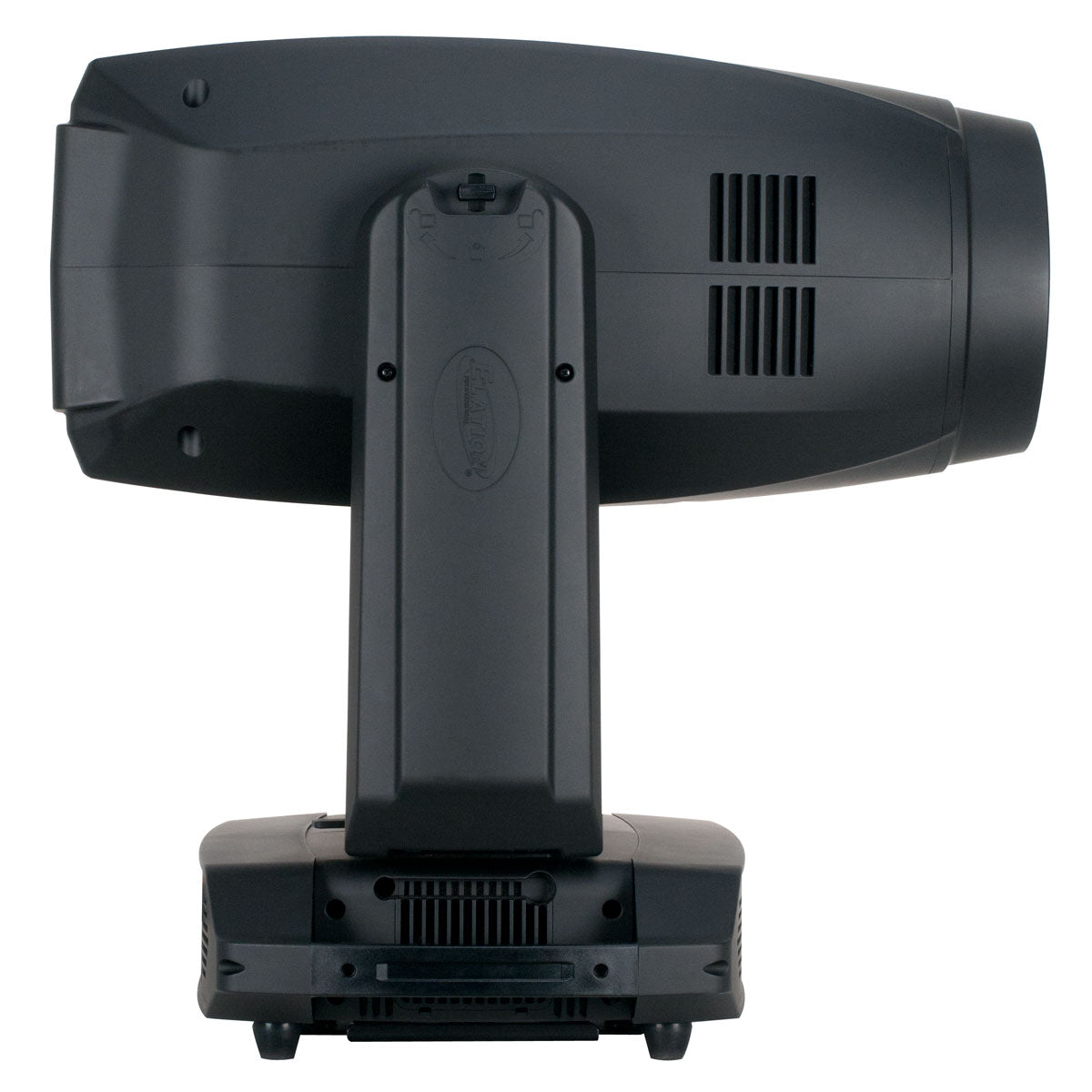

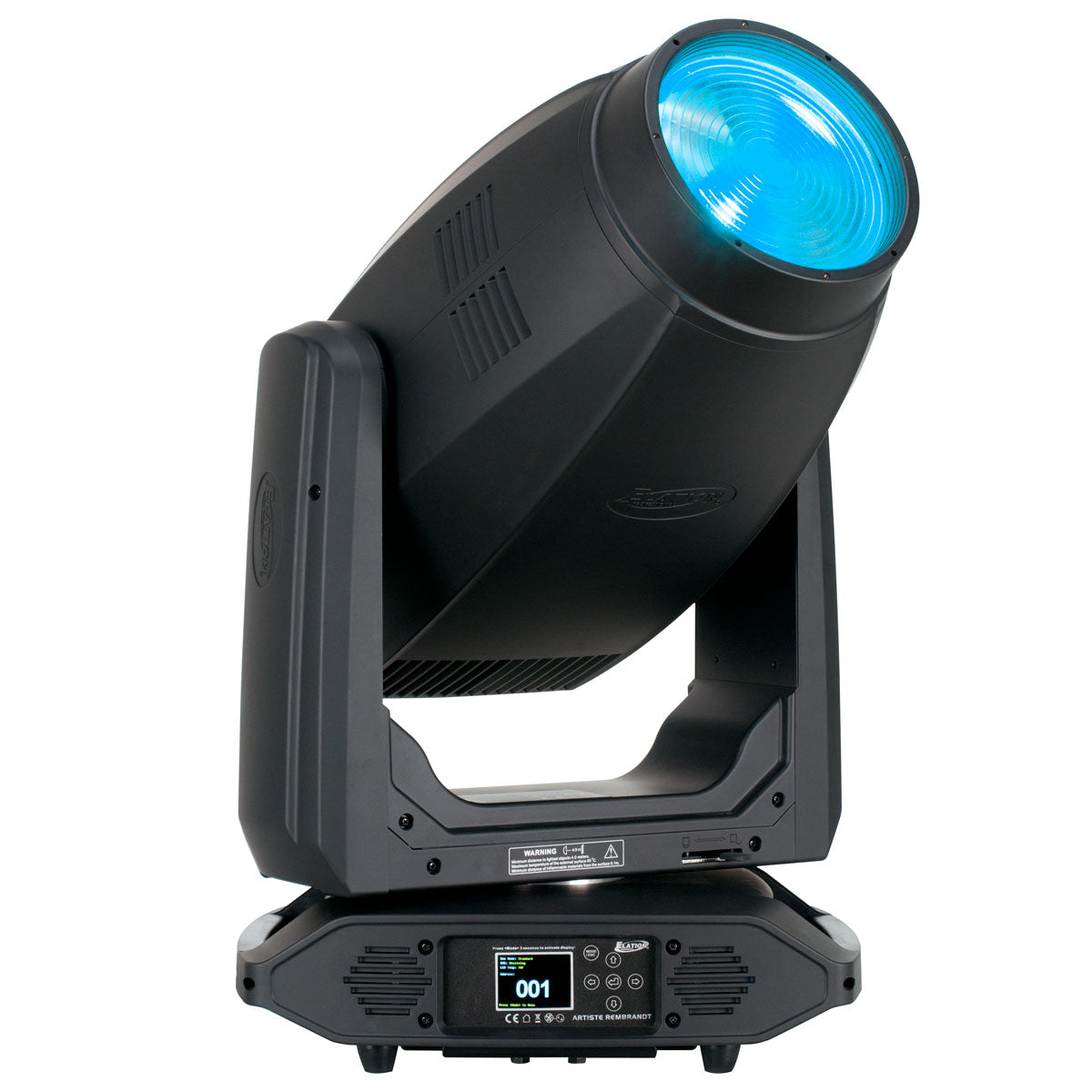

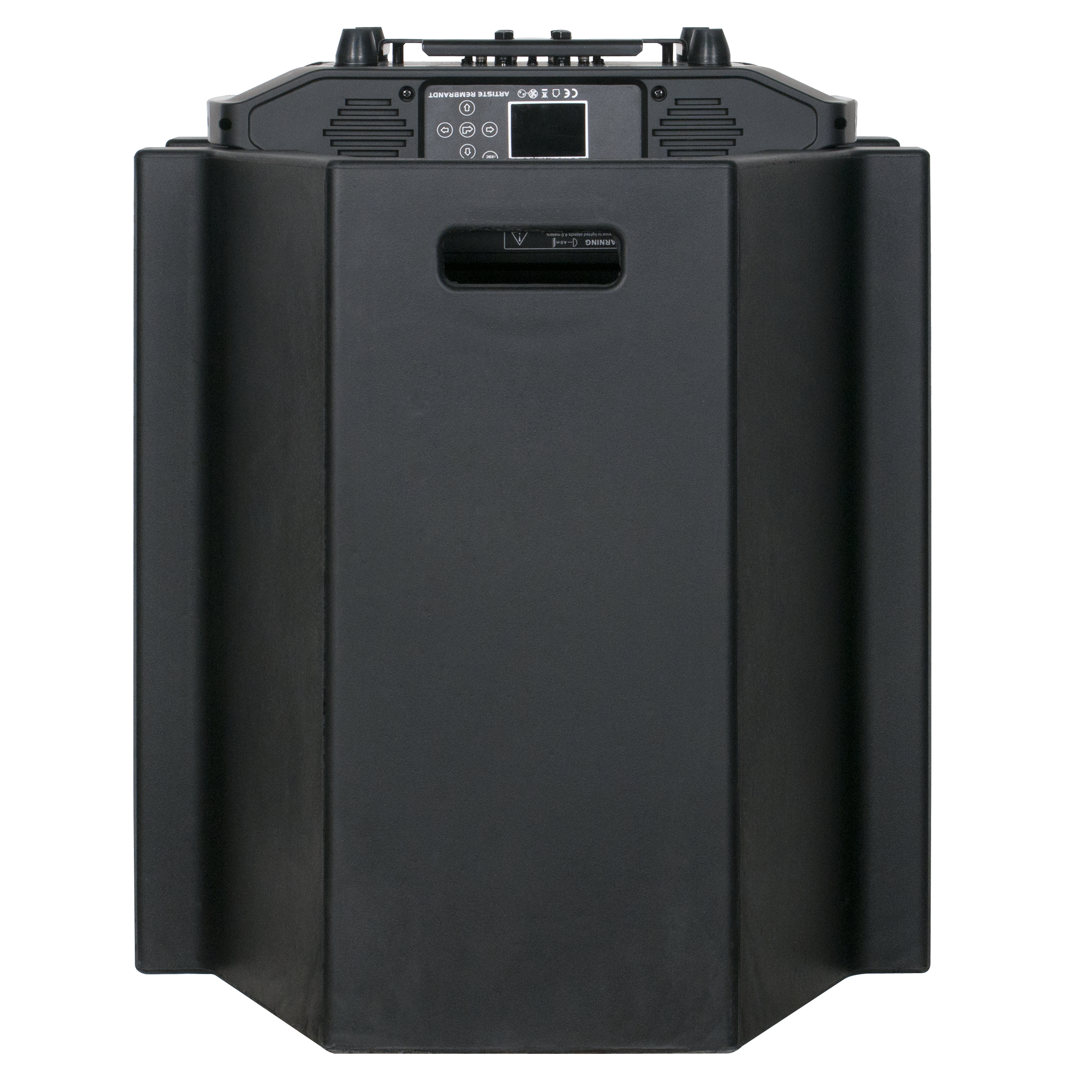

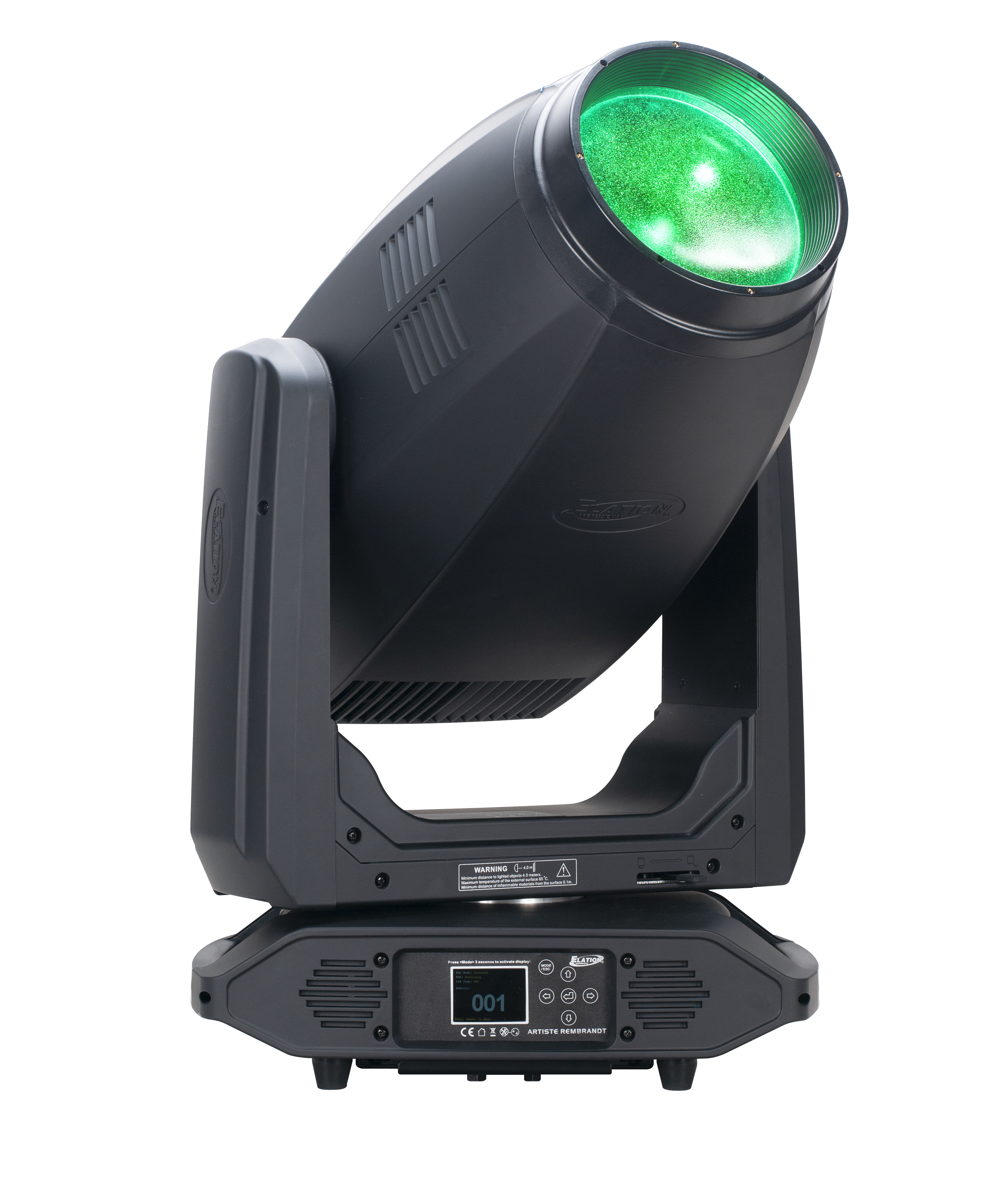

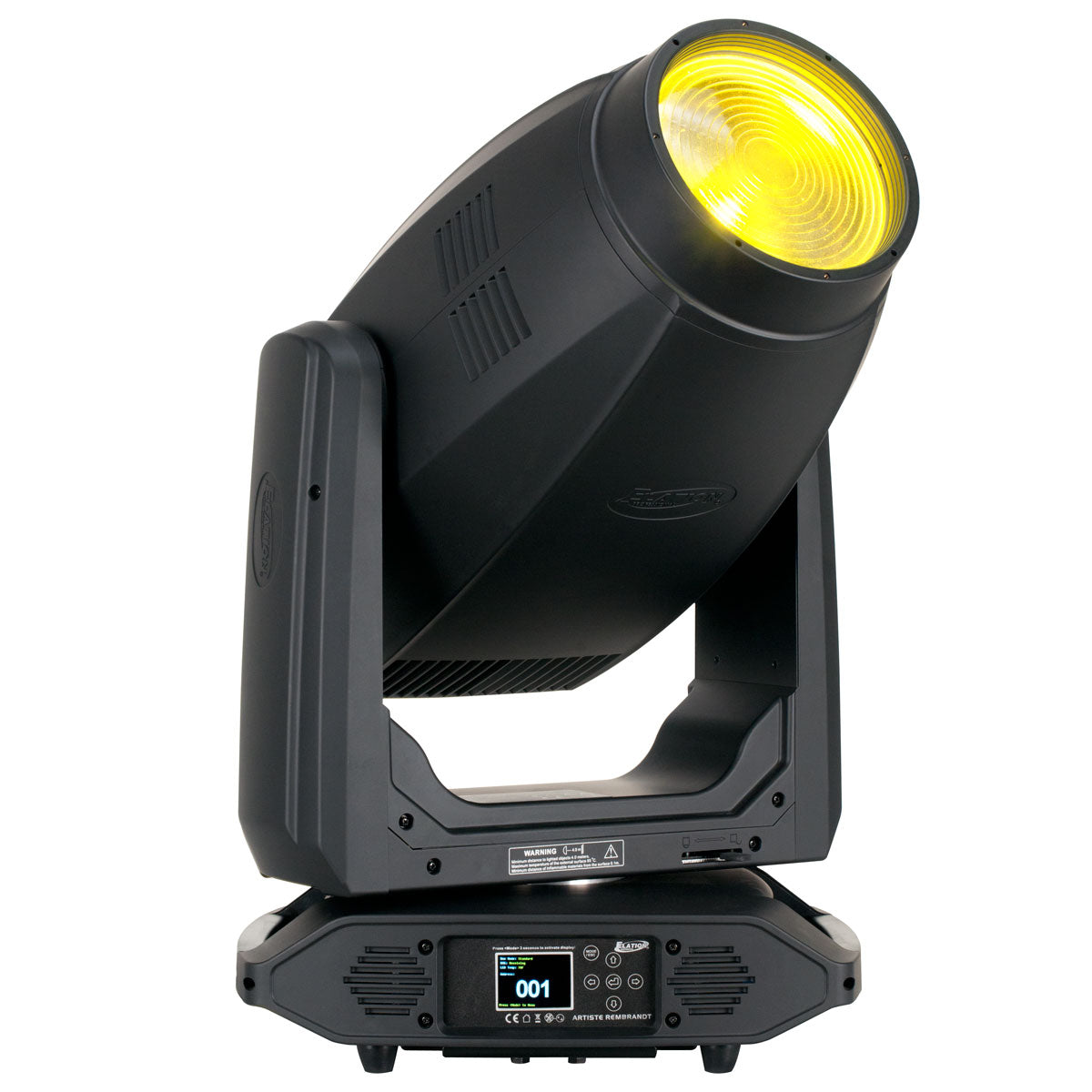

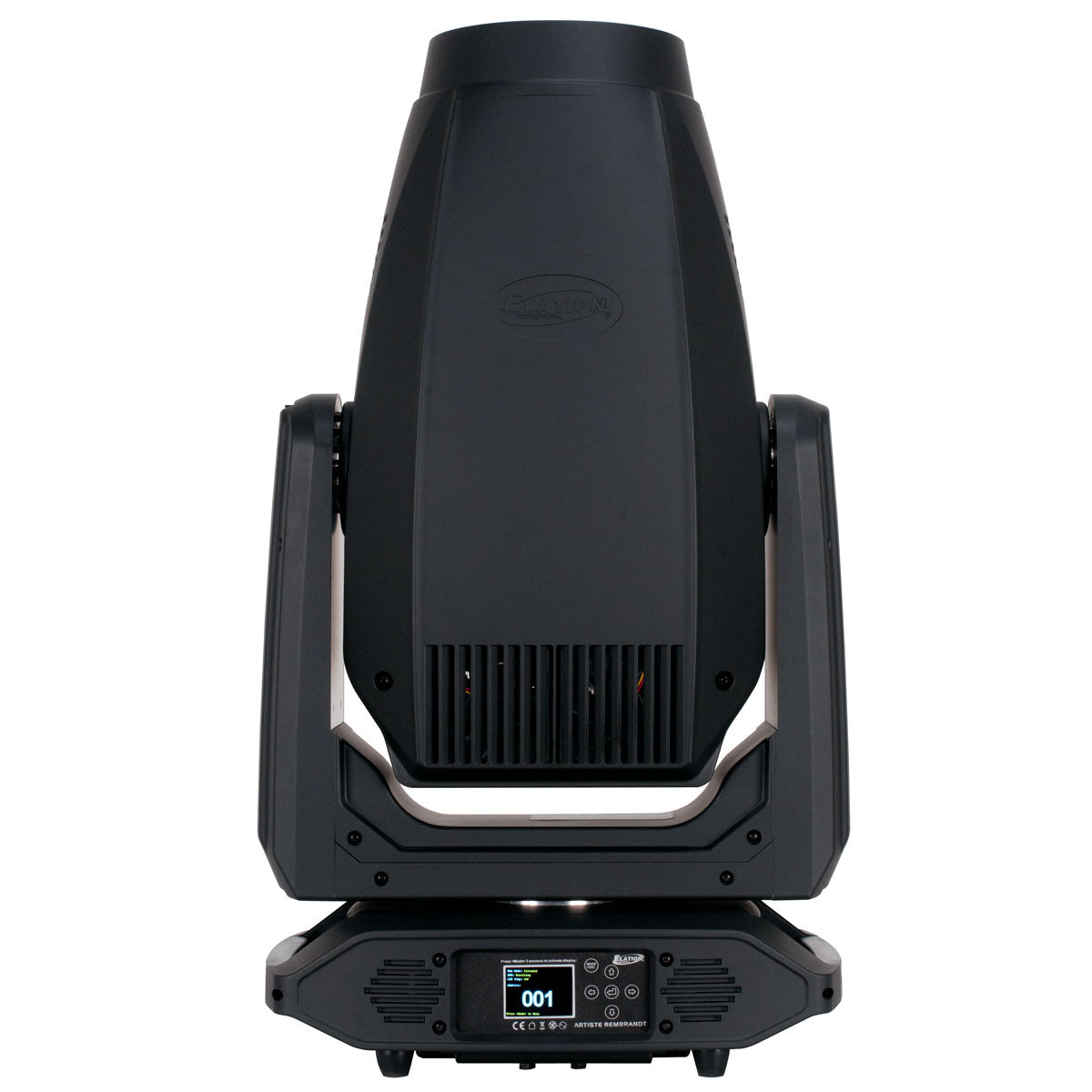

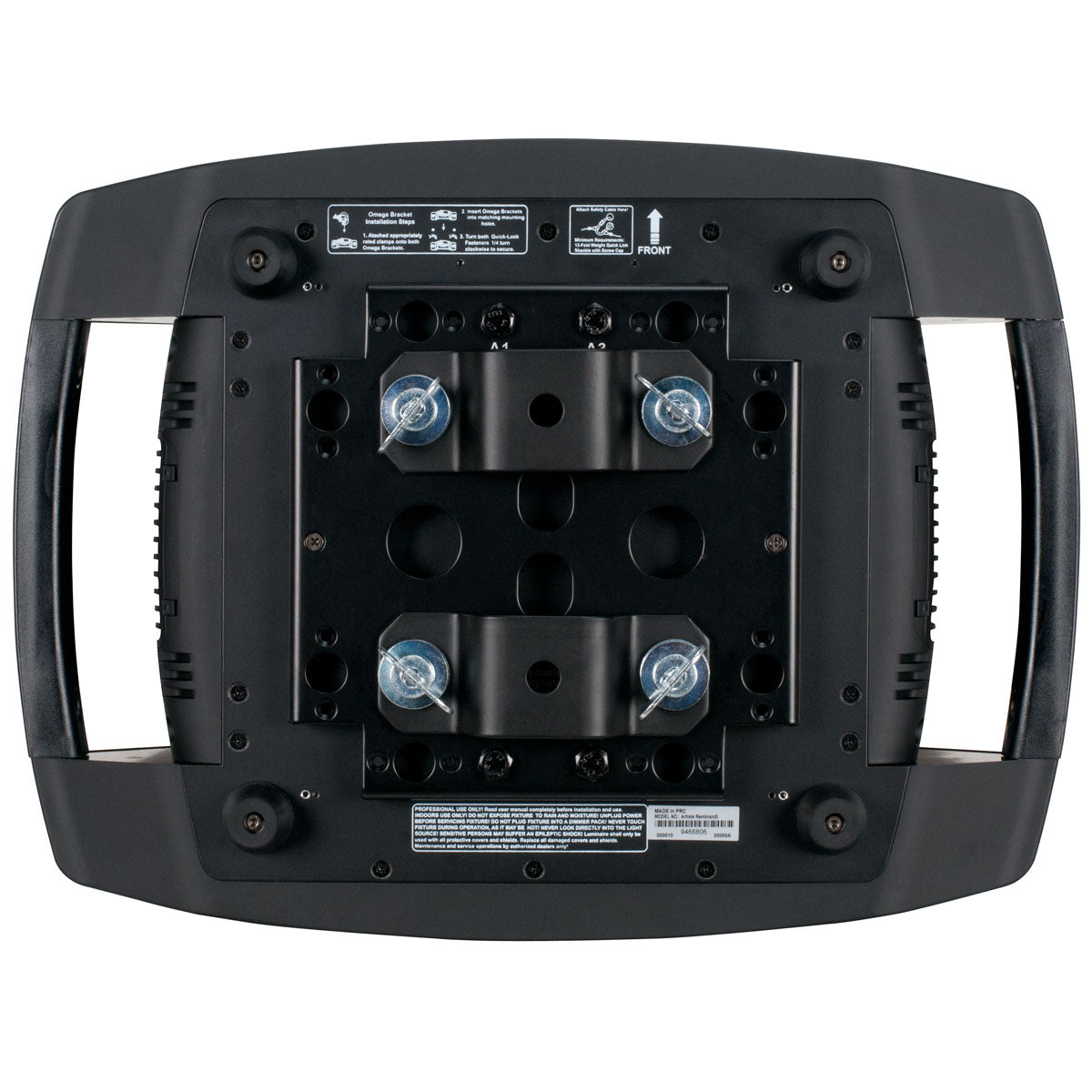

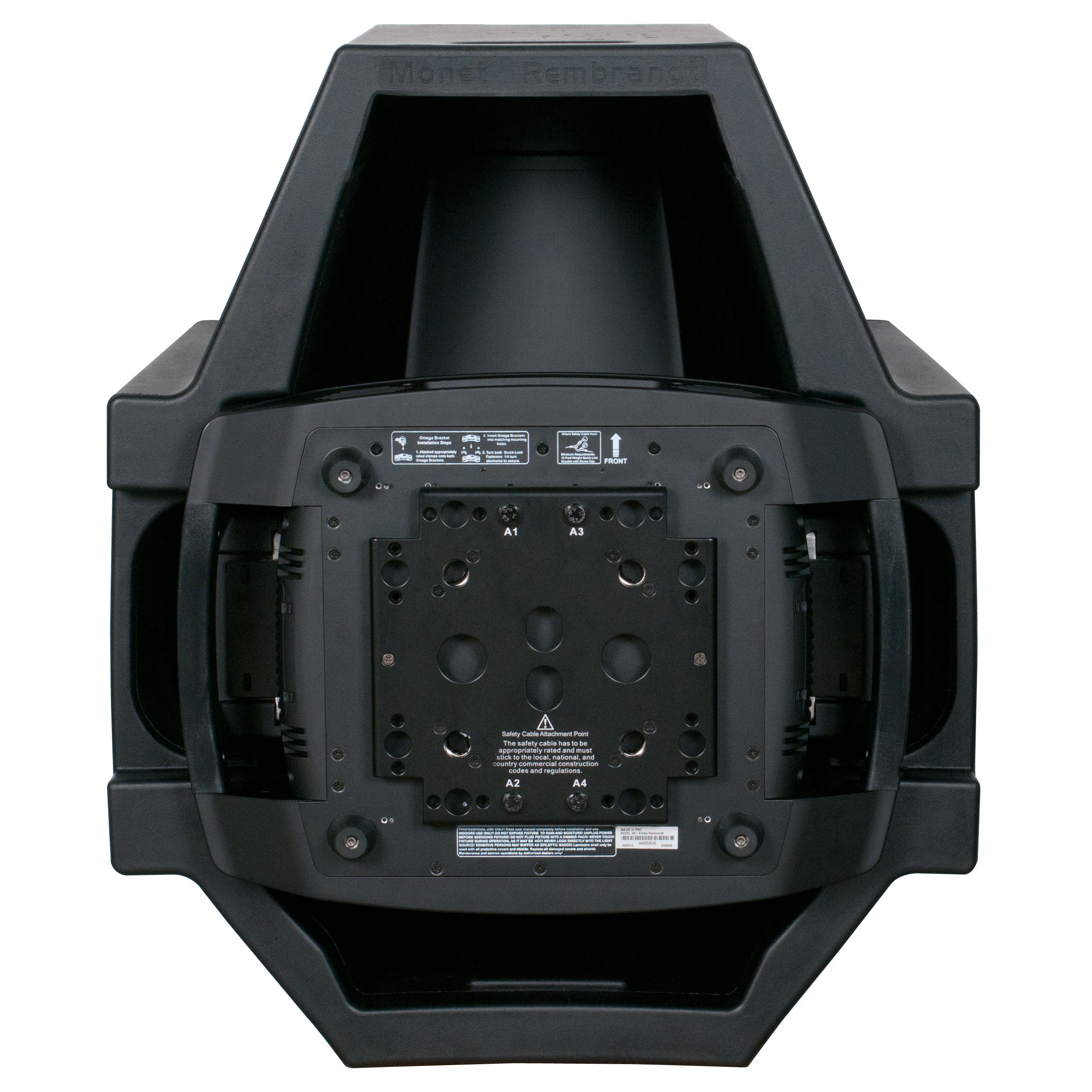

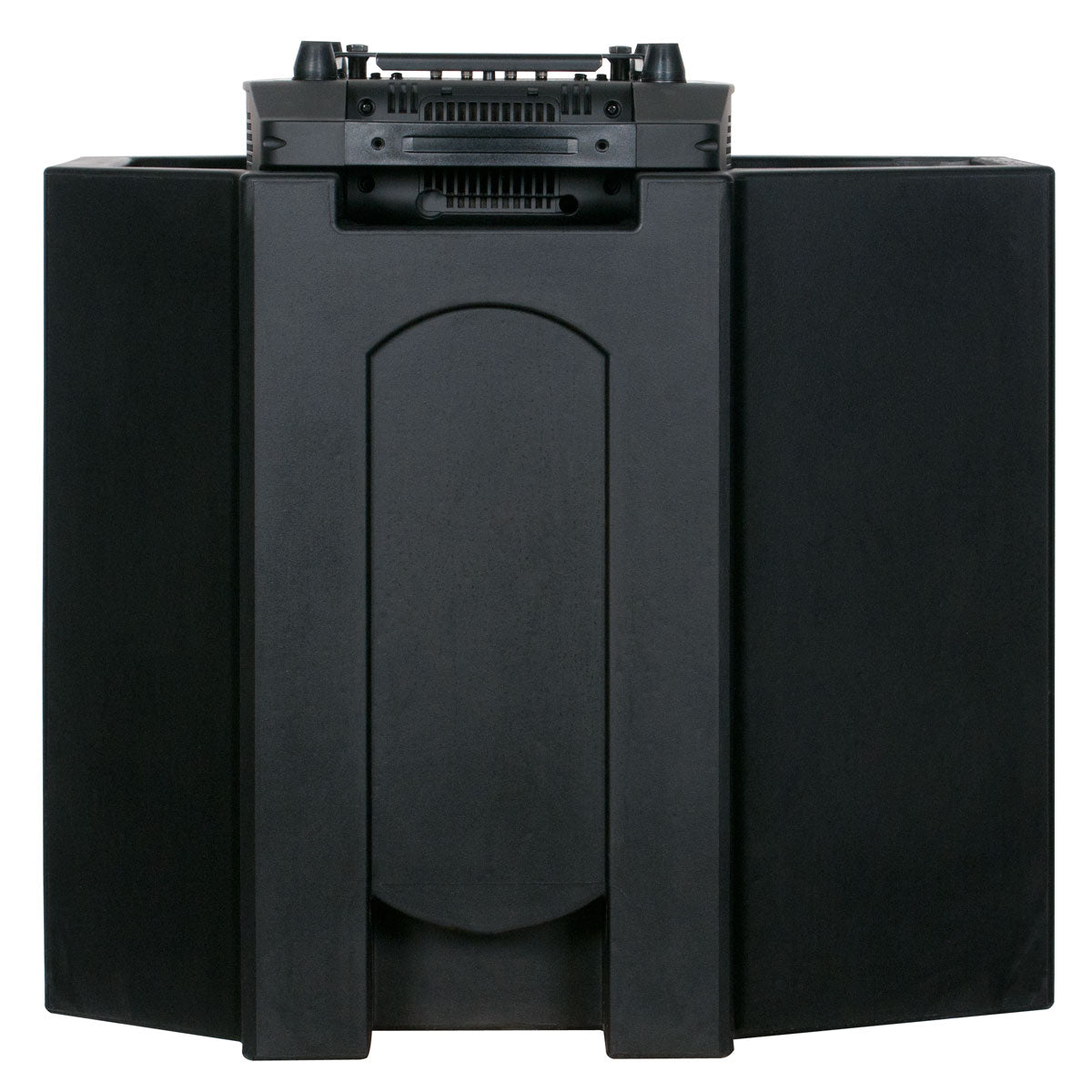

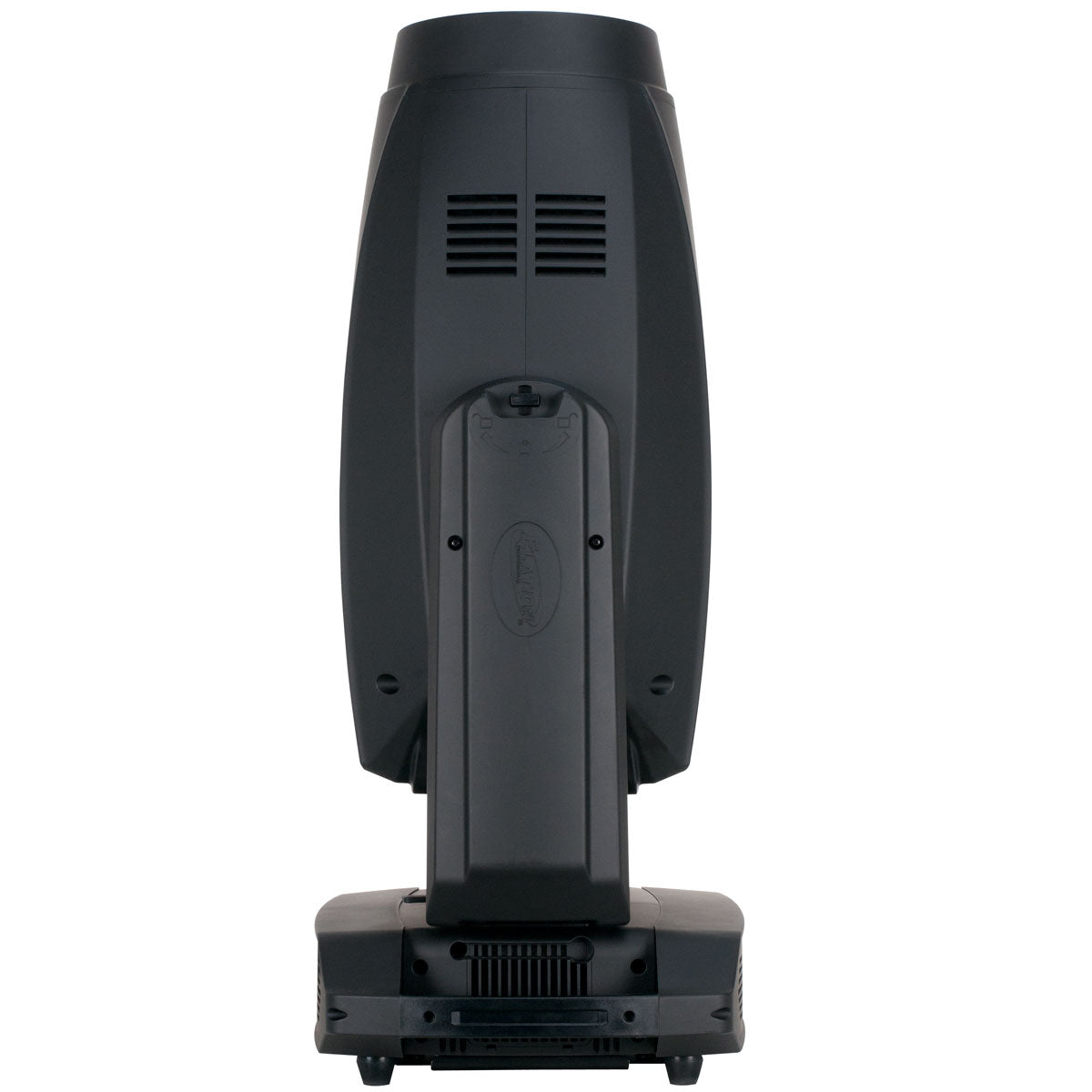

Artiste Rembrandt
950W Peak Field LED Framing Wash Fixture with SpectraColor
Artiste Rembrandt is a professional-grade lighting solution. Providing up to 51,000 lumens from its efficient 950W 6,500K LED engine, the Rembrandt is the ideal fixture for any application requiring superior wash output, bright and powerful beams, and quiet operation, as well as stunning colors. Rembrandt integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich saturated primaries.
Related Products
Artiste Rembrandt
Specifications
SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (85+ with HCRI filter)

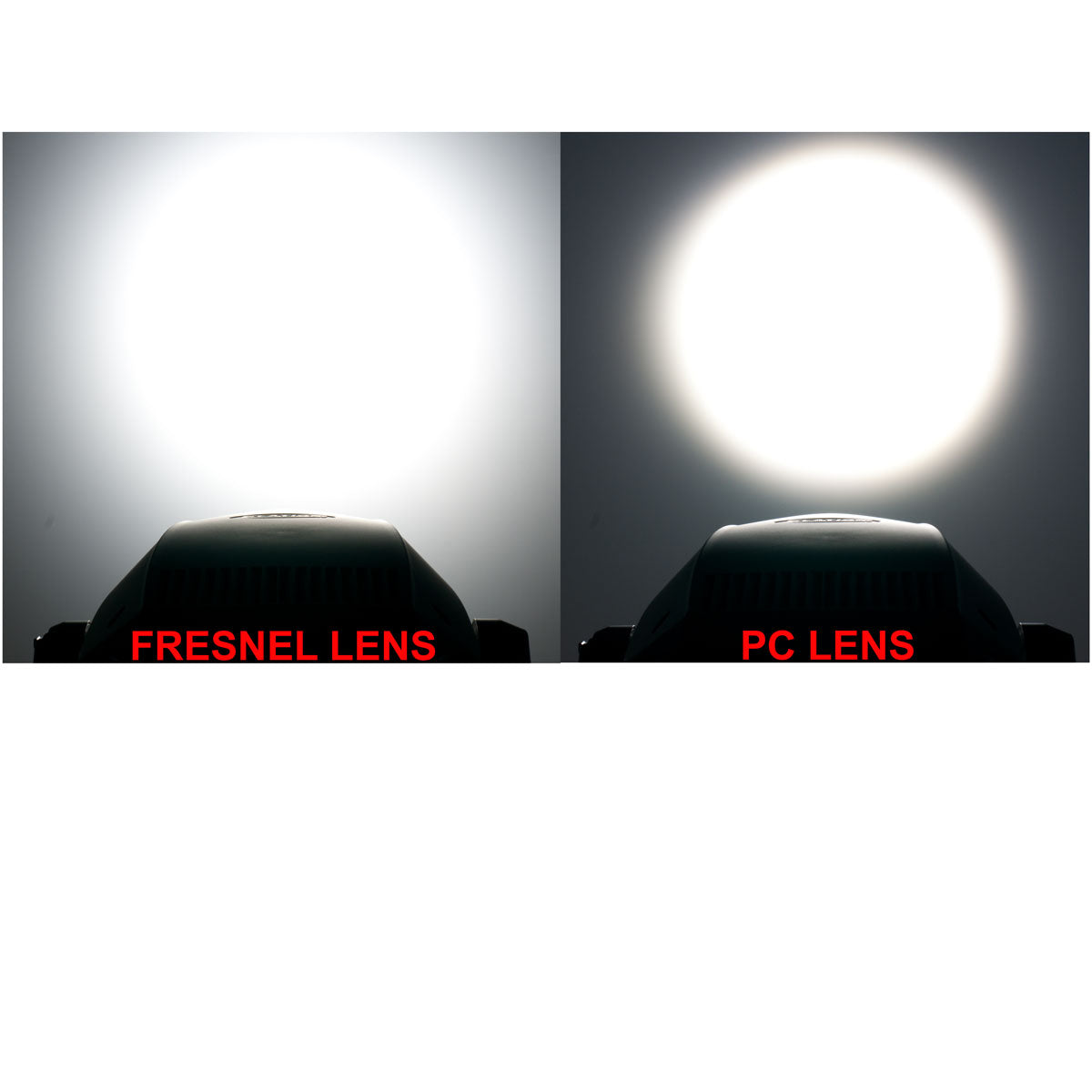

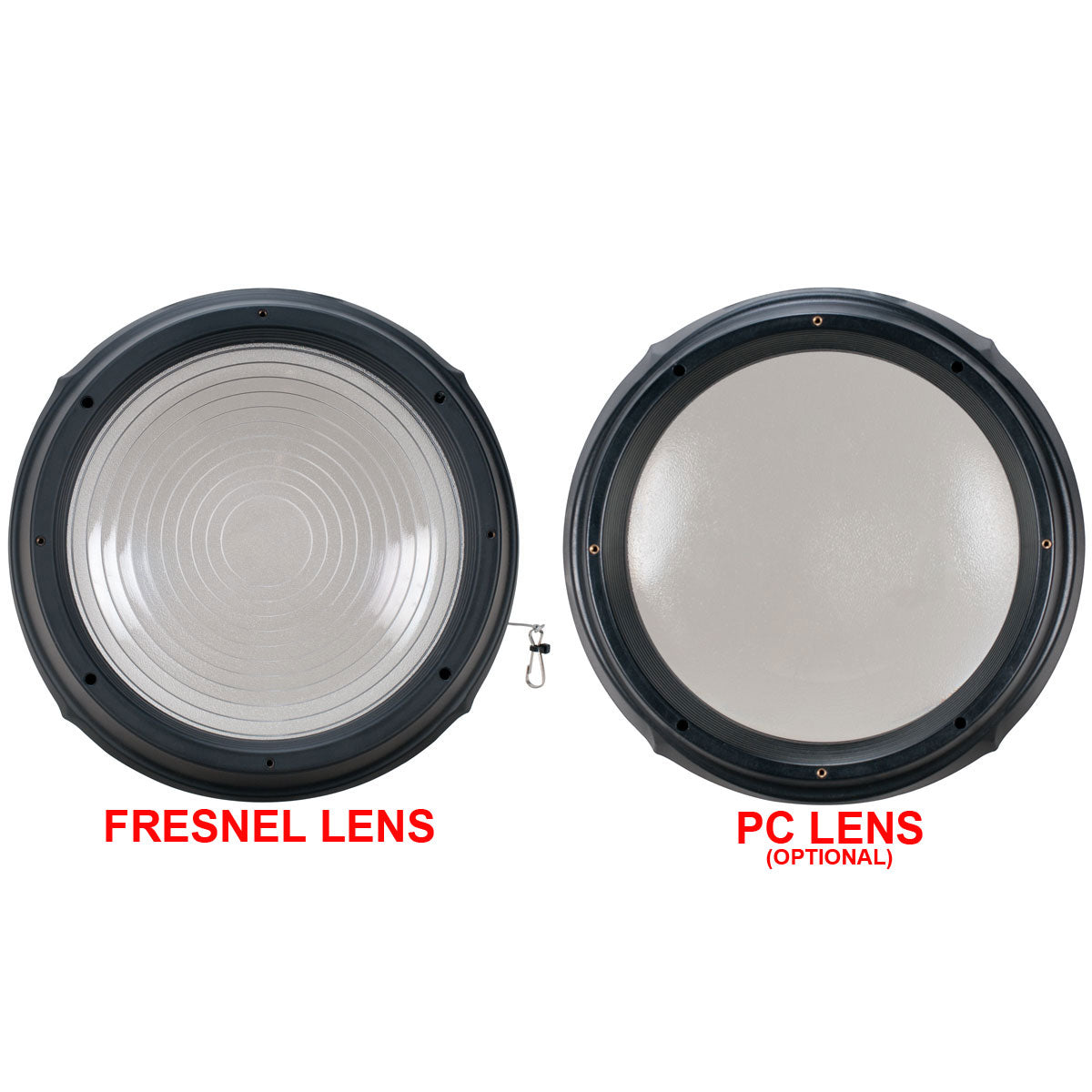

Fresnel
Zoom Range 11° - 55°
Beam Angle 6.1° - 43.1°
Field Angle 51.9° - 64.9°
PC (optional)
Zoom Range 8° - 50°
Beam Angle 6.5° - 45°
Field Angle 10.8° - 75.7°
EFFECTS
Motorized Zoom (Fresnel)
4 Full Blackout Framing Blades
360° Framing Index - Continuous Framing Rotation
2 Bi-Directional Animation Wheels
2 Variable Frost Filters (Medium, Heavy)
High Speed Iris
Focus Edge Control
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
SpectraColor CMY + RGB color mixing array
6 Dichroic Colors including High CRI Filter, UV
Linear CTO Color Correction
CONTROL / CONNECTIONS
2 DMX Channel Modes (35/59 Ch.)
16-bit Pan, Tilt, and Dimming Control
DMX, RDM, Art-NET, and sACN Protocol Support
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking 5pin XLR DMX, RJ45 Ethernet, and Power
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.5 in. (471mm)
Width: 13.1 in. (334mm)
Vertical Height (Fresnel Lens): 31.7 in. (805mm)
Vertical Height (optional PC Lens): 31.3 in. (795mm)
Center Spacing (Fresnel Lens): 30.4 in. (773mm)
Center Spacing (Optional Lens): 29.2 in. (741mm)
Weight: 94.7lbs. (43 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 4433
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:
ARPCL1- PC Lens
FIRMWARE UPDATES
Current Version: V1.4.0
Click HERE for software updates
Specifications and documentation subject to change without notice.
Downloads
Brochure
Cad drawing
- Artiste Rembrandt - 3D CAD Drawing
- Artiste Rembrandt - 2D Cad Drawing - With Fresnel Lens
- Artiste Rembrandt - 2D Cad Drawing - With PC Lens
Dimensional drawings
Dmx traits
Photometrics
Specification sheet
User manual
Vectorworks symbols
Generic
Artiste Rembrandt Parts & Service
Our Artiste Rembrandt Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Artiste Rembrandt. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Artiste Rembrandt Parts & ServiceHow do they compare?
Find the option that is right for you and your production.
51000
17000
950
500
8° - 55°
6° - 53°
6.1° - 43.1°
6.3° - 53.7°
20
20
94.7 lbs
40.89 lbs
1300
609
18.5 x 13.1 x 31.7
13.8 x 16.1 x 21.7
