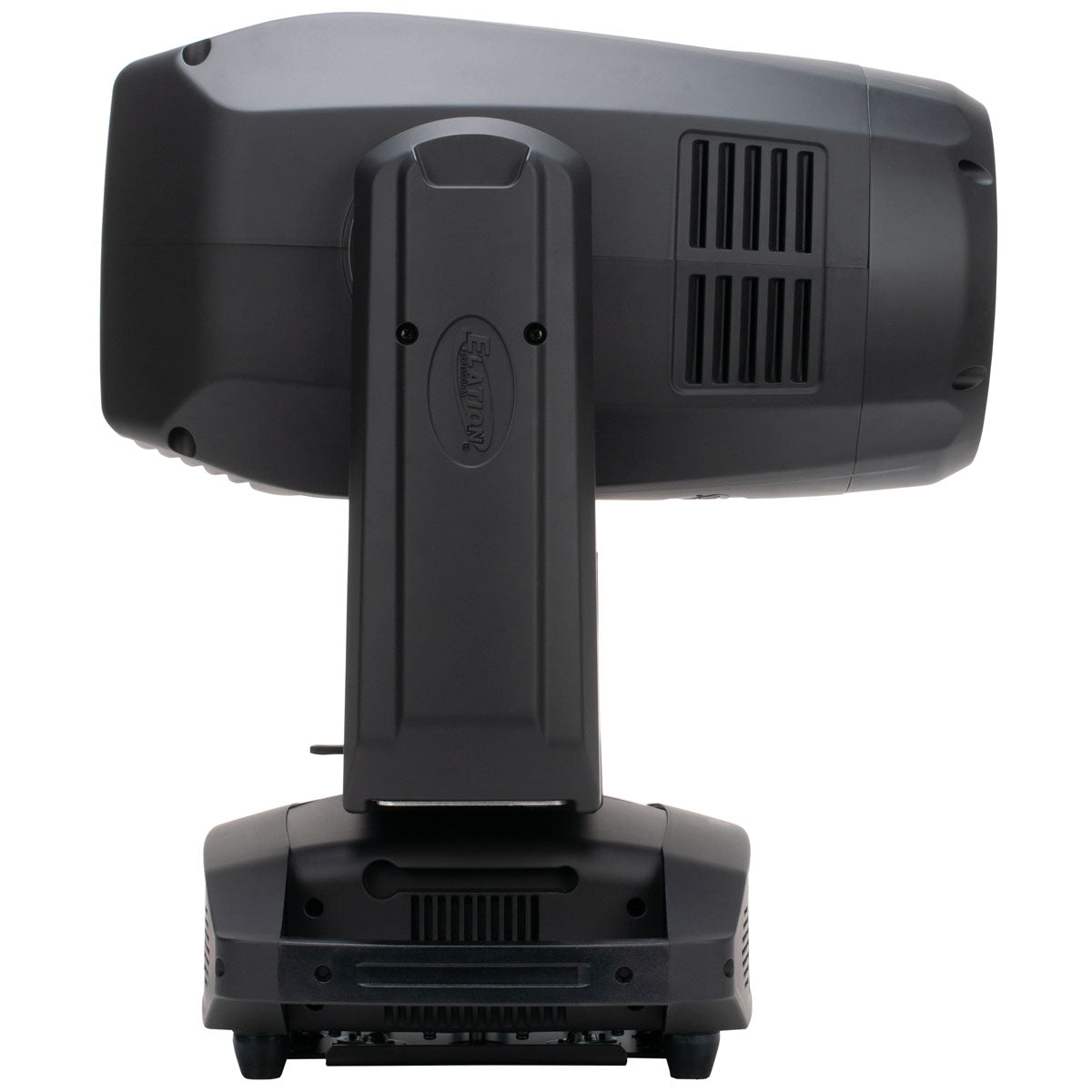

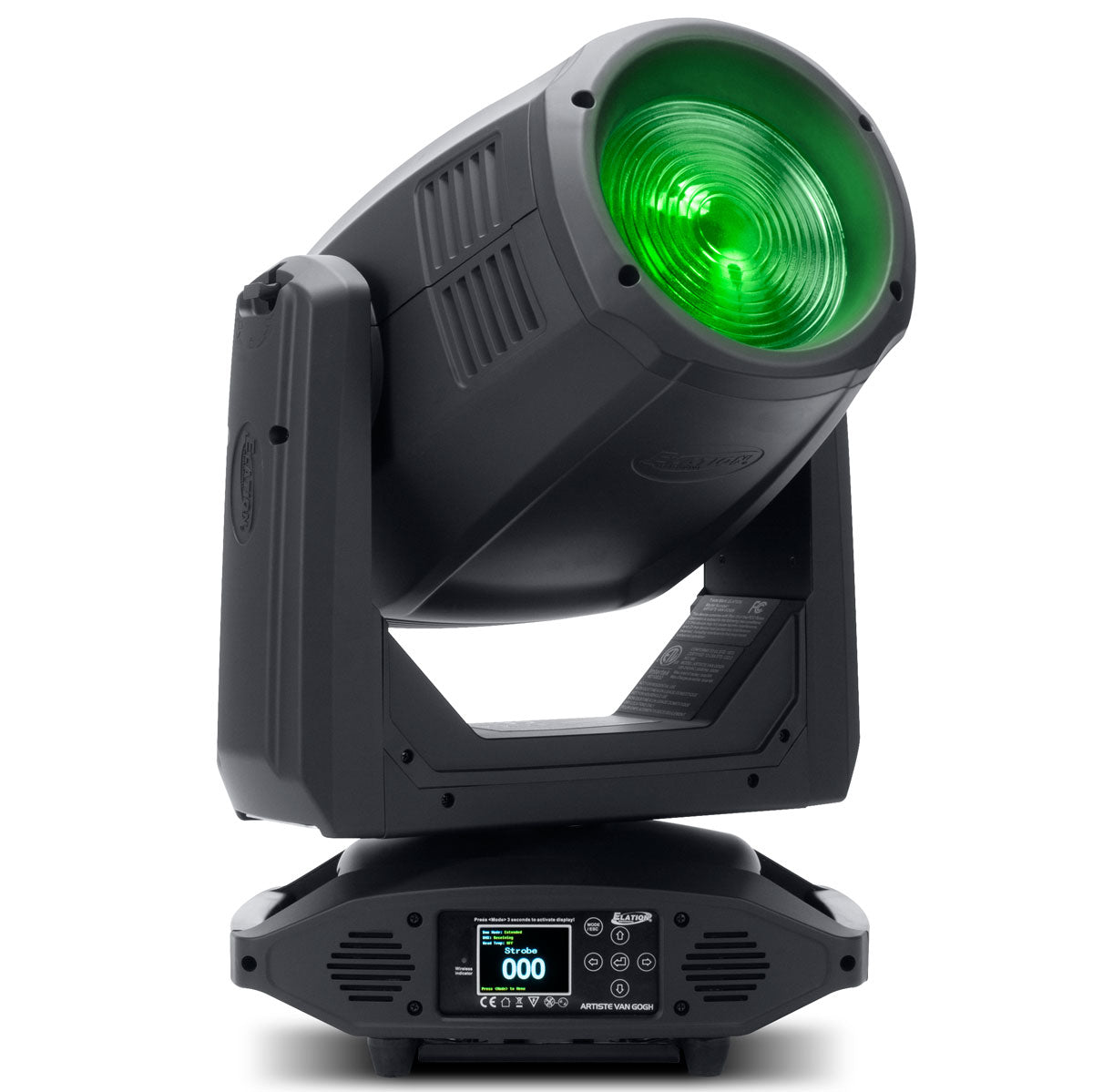

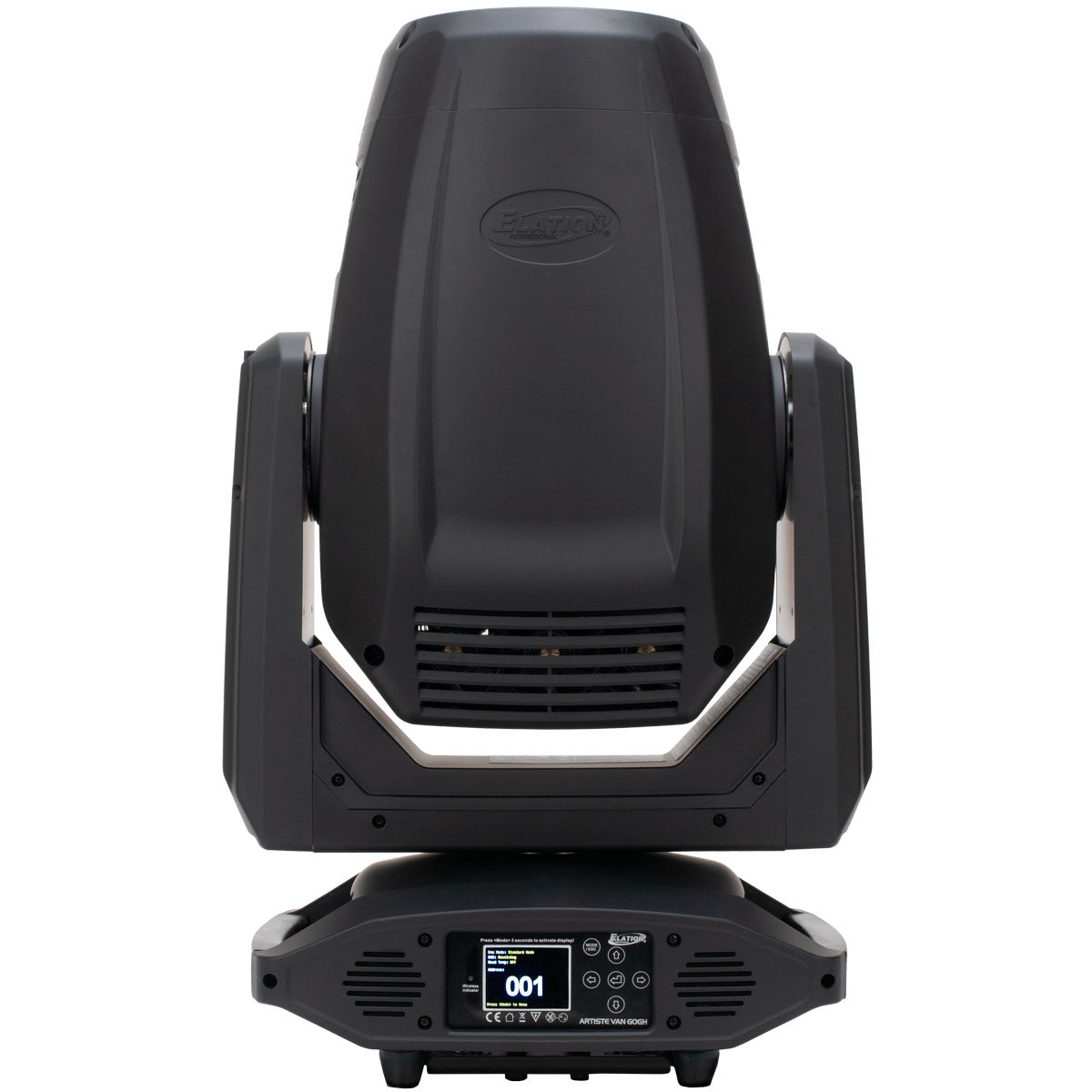

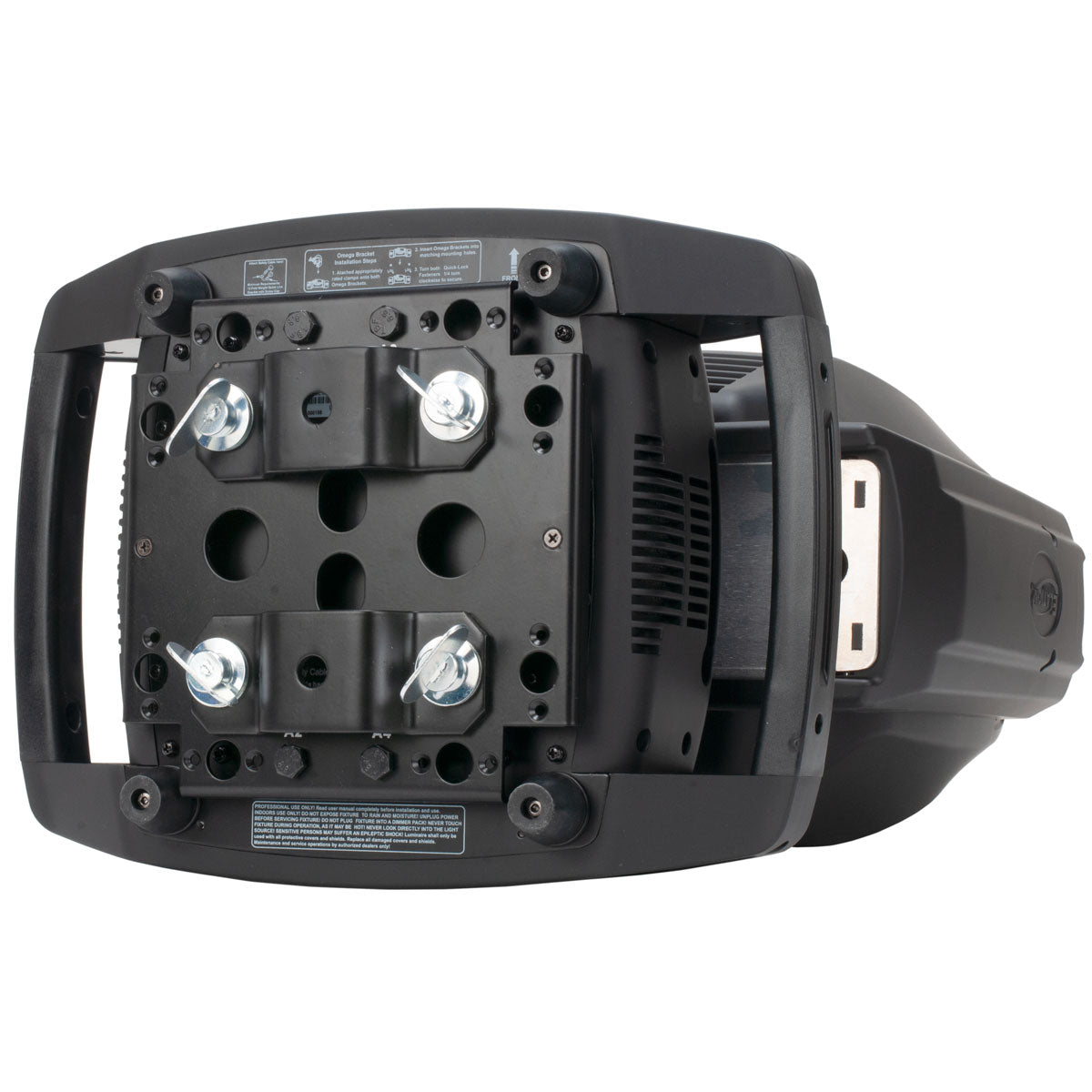

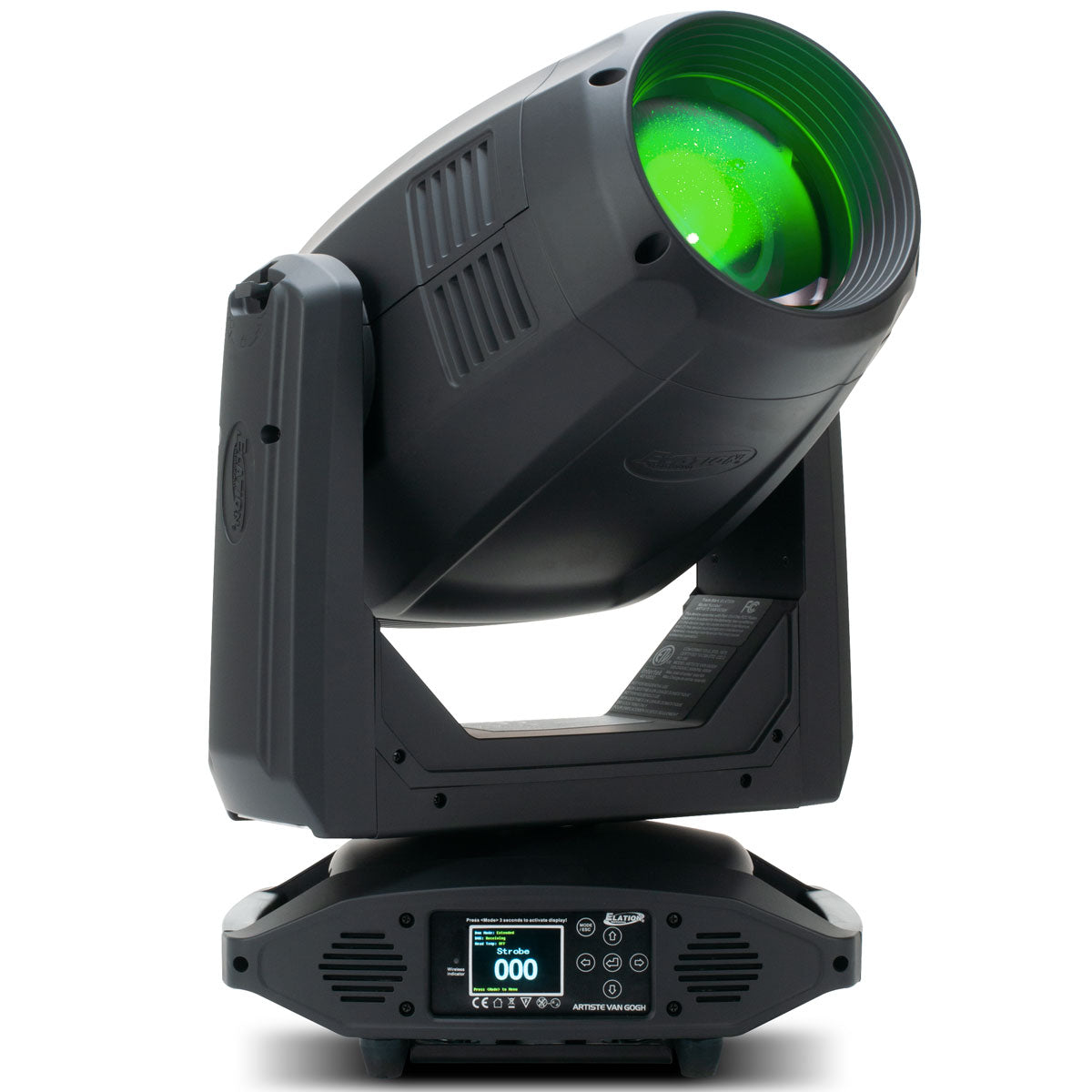

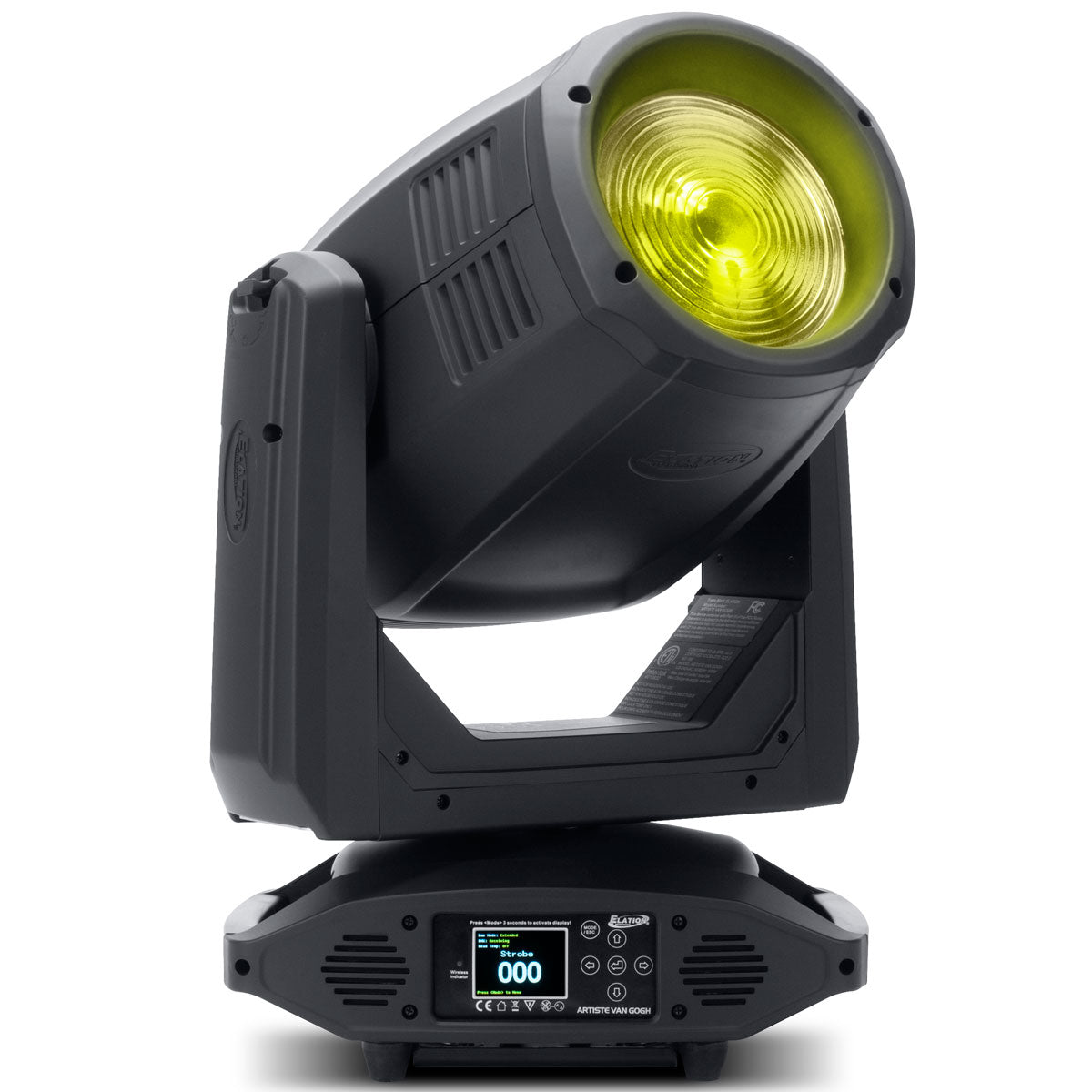

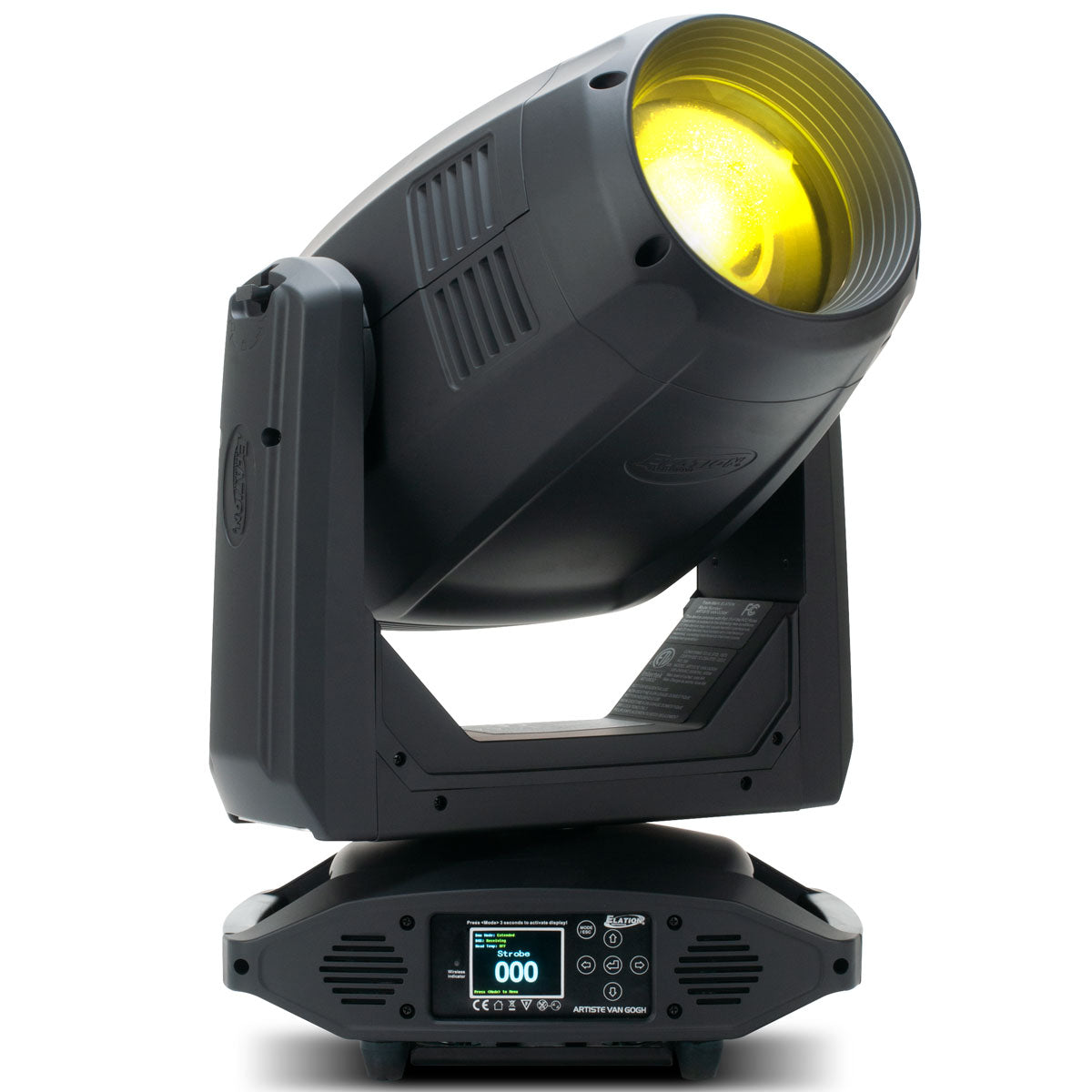

ARTISTE VAN GOGH
380W Cool White LED Wash Fixture with CMY
Artiste Van Gogh is a professional-grade lighting solution. It is an ideal partner to the Profile fixtures in Elation’s Artiste fixture range. Due to its high 91 color rendering index and its whisper quiet operation it is ideally suited for Television, Theater and Corporate Events, or any application where powerful and even coverage is desired. Illuminating objects and people with precise color reproduction is the perfect application for the Artiste Van Gogh.

ARTISTE VAN GOGH
The Artiste Van Gogh™ is a compact powerful framing Wash fixture with outstanding light quality. It is an ideal partner to the Profile fixtures in Elation's Artiste fixture range.
Providing up to 16.000 total lumens from its efficient 380W 6,500K LED engine allows the fixture to be utilized in many applications. Due to its high 91 color rendering index and its whisper quiet operation it is ideally suited for Television, Theater and Corporate Events, or any application where powerful and even coverage is desired. Illuminating objects and people with precise color reproduction is the perfect application for the Artiste Van Gogh. A 16bit CMY color system with a seamless CTO filter offers the designer a wide color range from subtle pastels to vibrant primaries. A seven position color wheel is provided for additional effects and includes a dedicated UV filter.
An integrated 4 blade barn door system allows for precise light control and beam shaping. The entire barn door assembly is indexable allowing the Van Gogh's beam shaping system to be usable at any angle. With its wide zoom range and included interchangeable PC or Fresnel lens options, the Van Gogh is flexible for any distance and desired fields from concentrated light beams to wide and smooth washes. The additional frost filter can be added at any time for an extra layer of output smoothing.

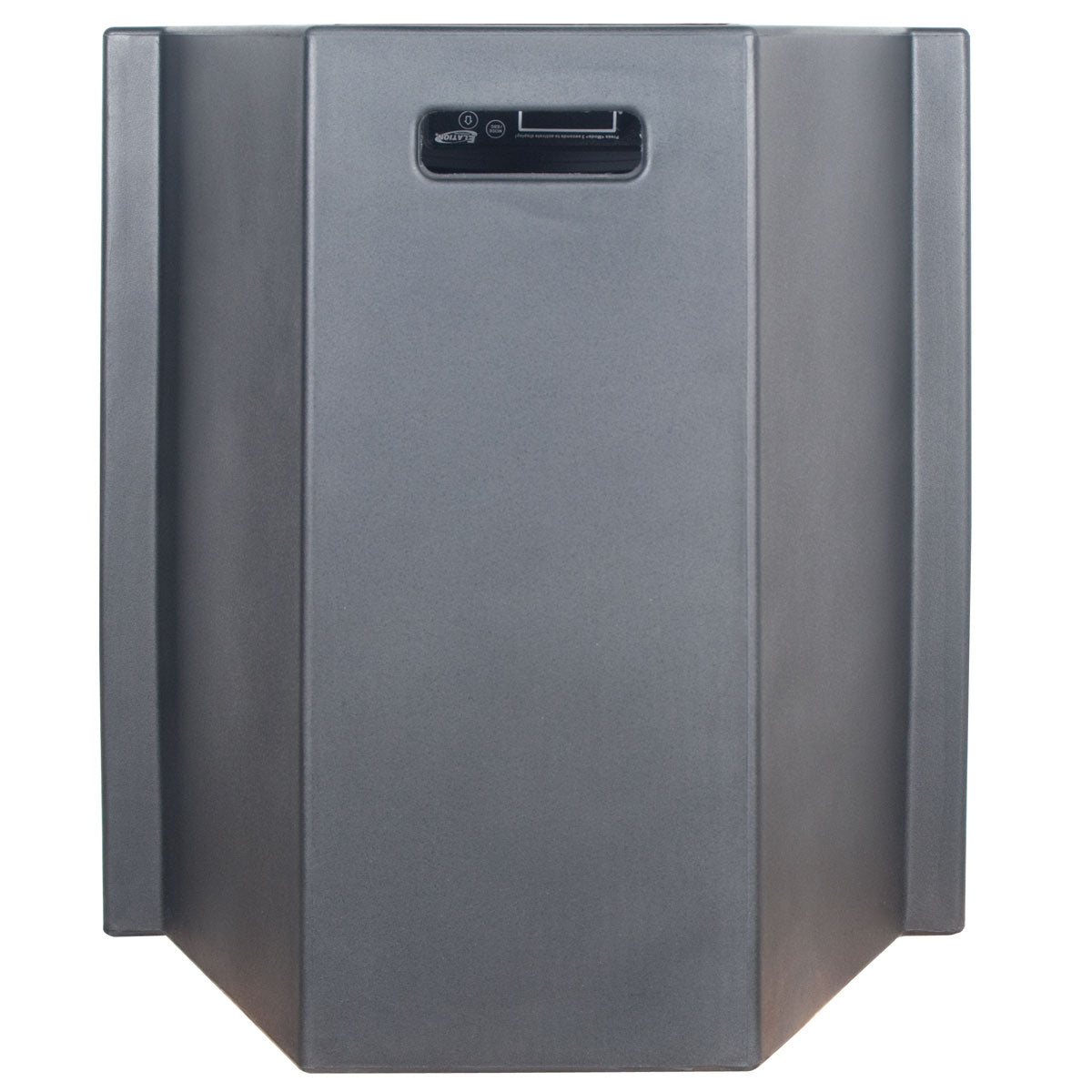

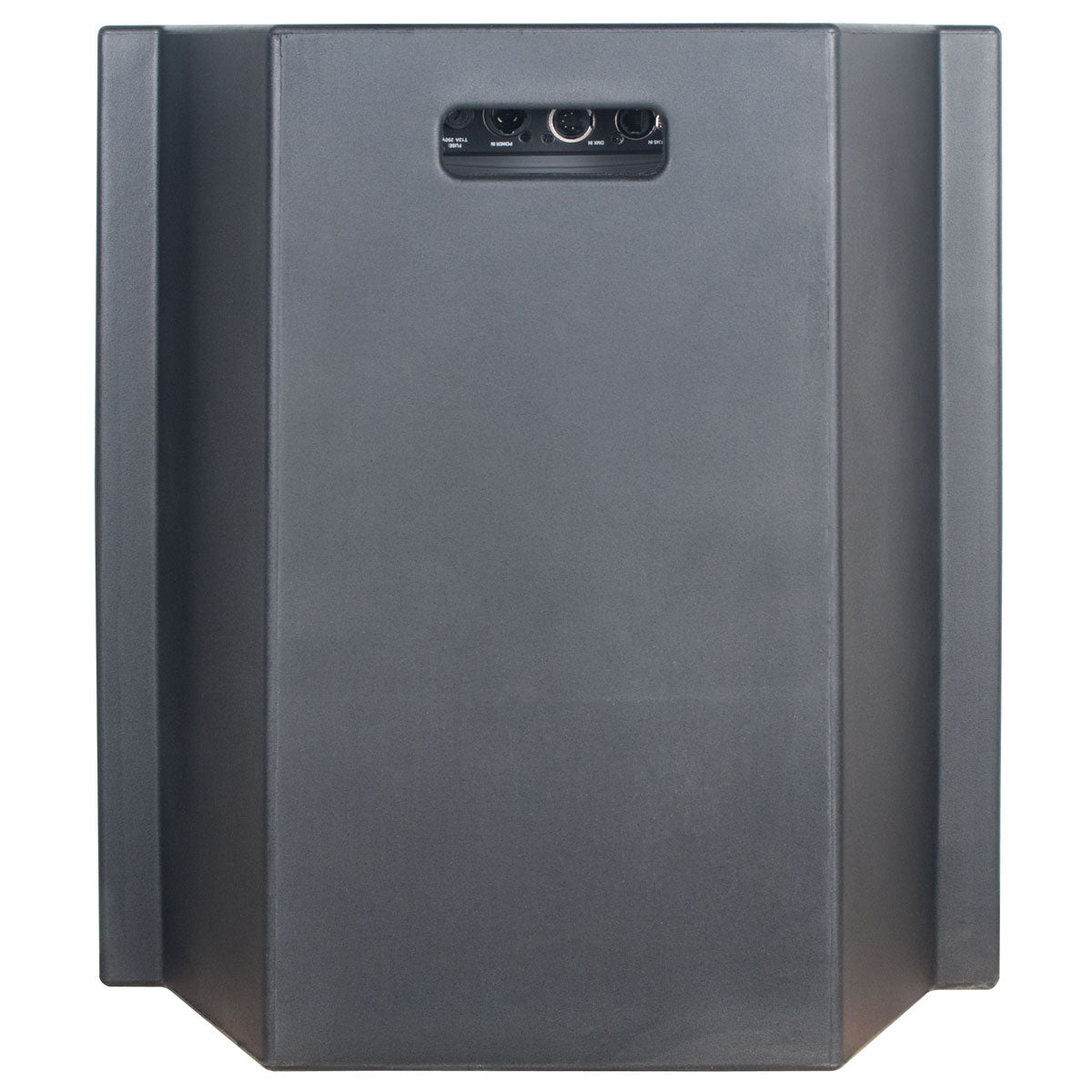

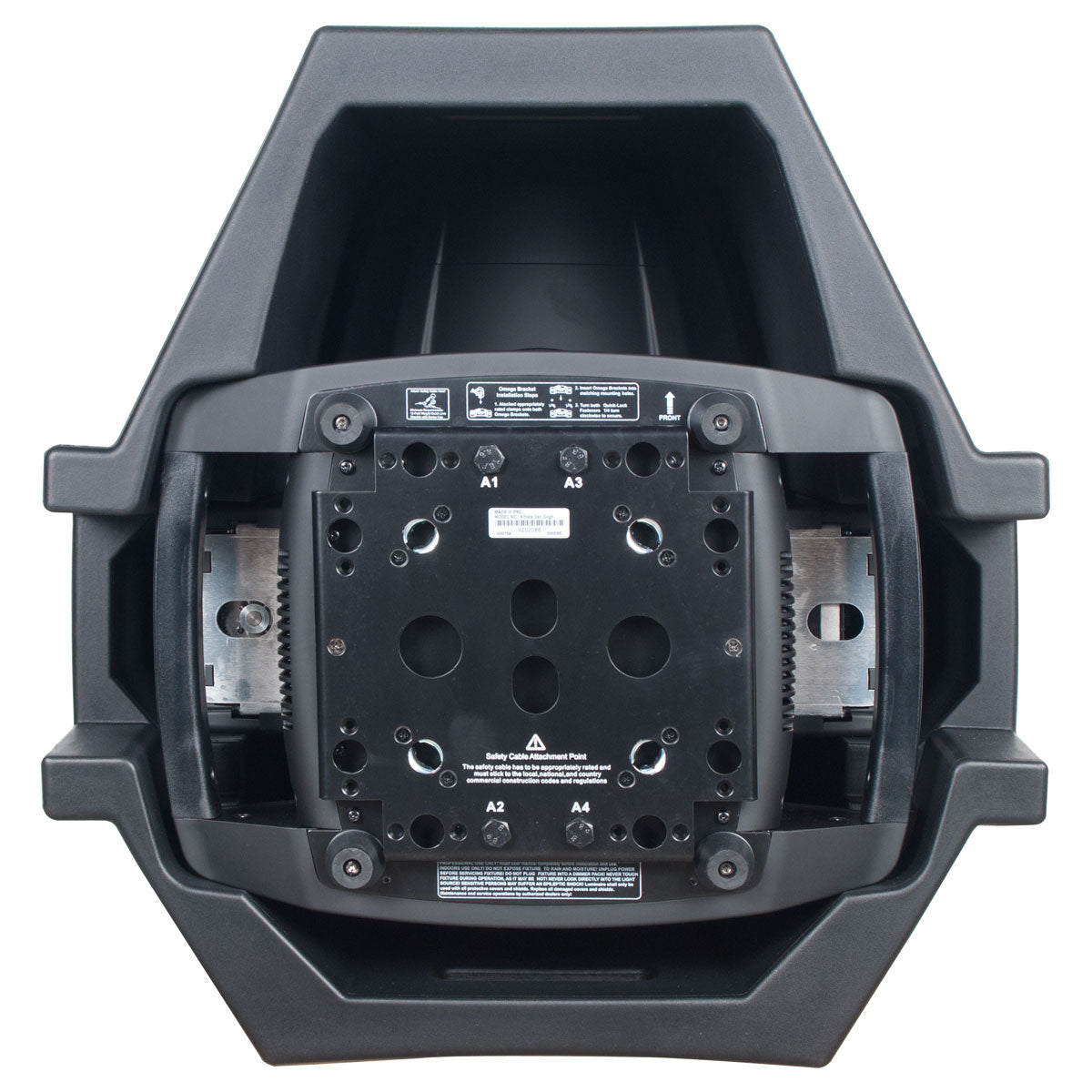

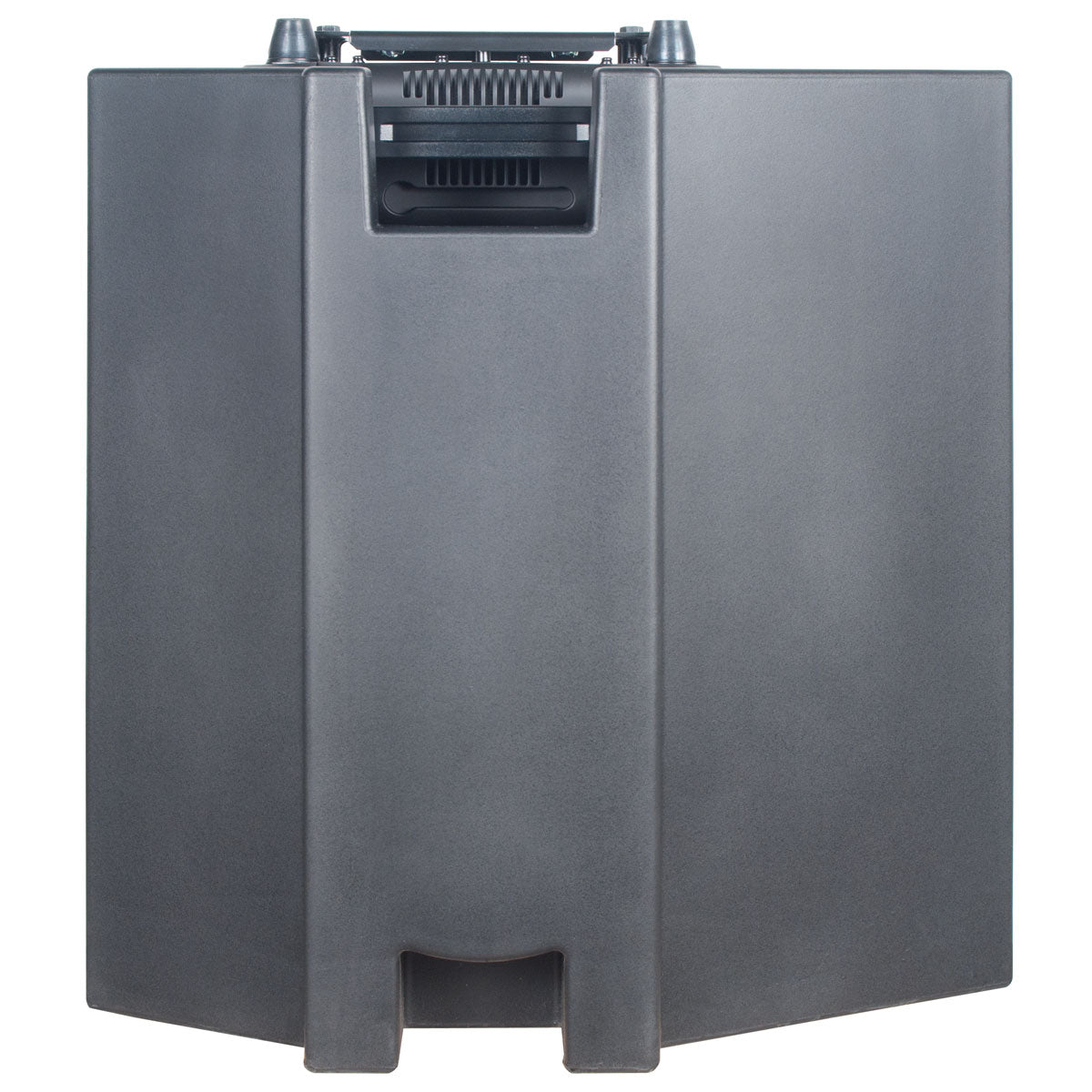

The Artiste Van Gogh™ fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.
- High Output Bright White LED Engine with excellent color rendition
- CMY and CTO color mixing
- 7 Position Color Wheel

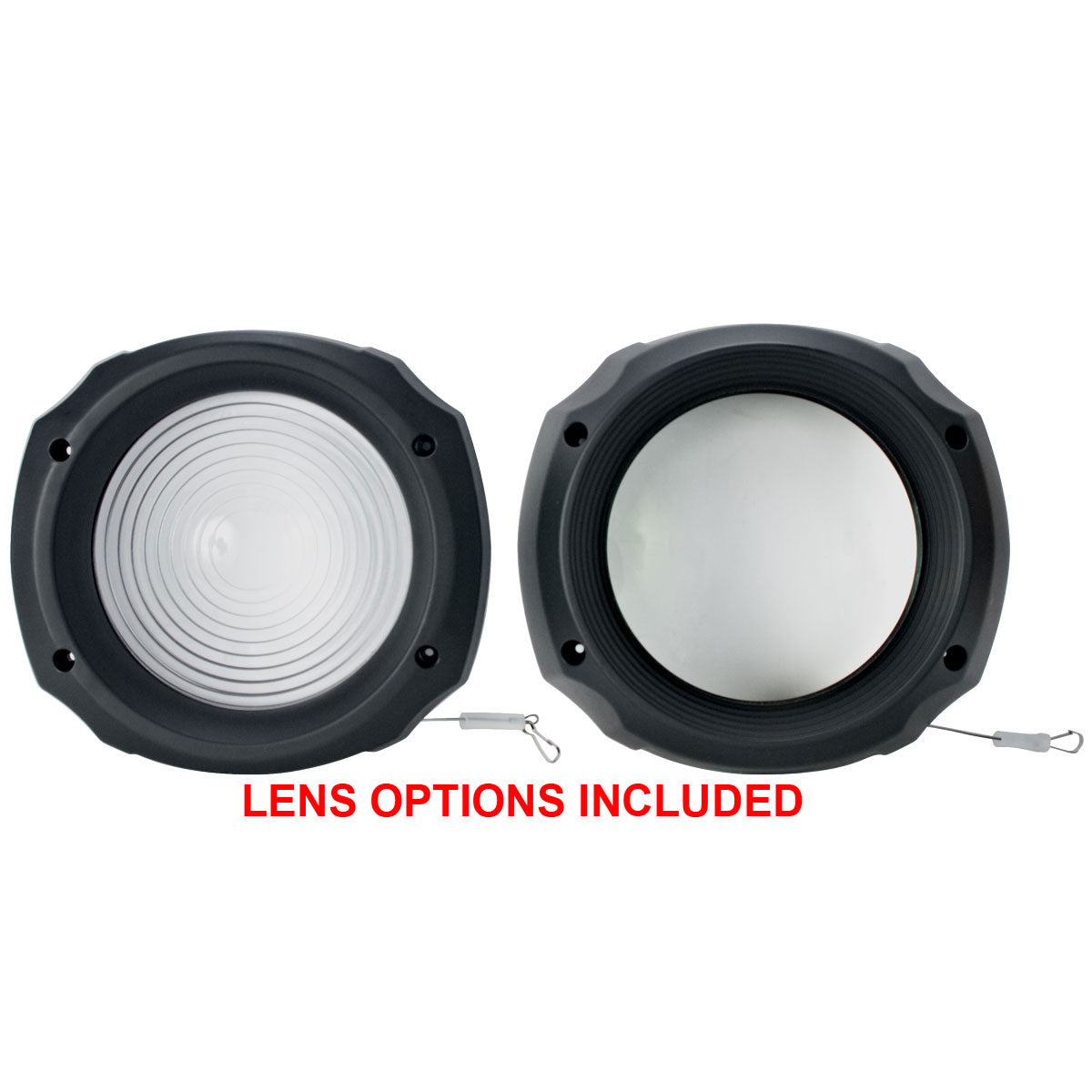

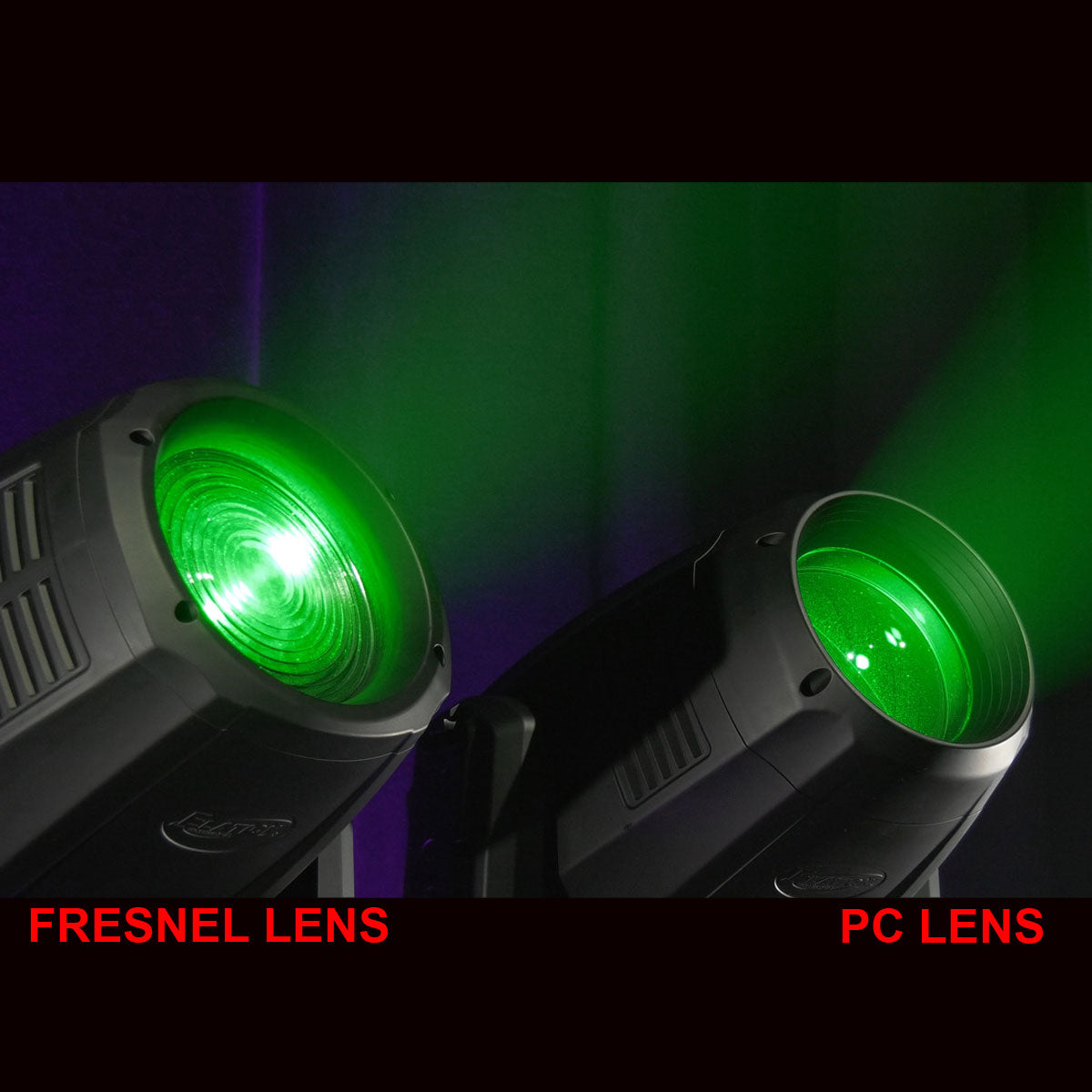

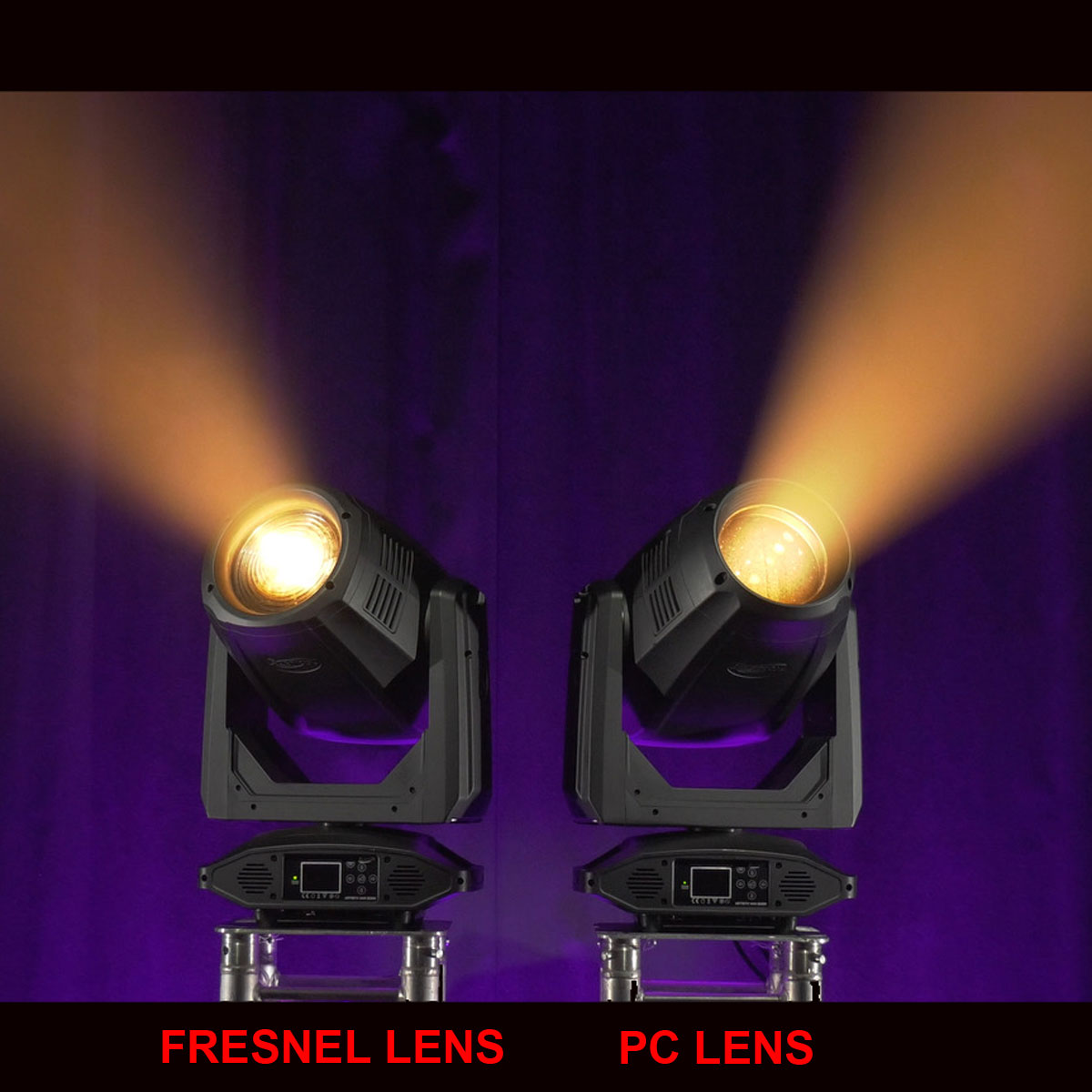

- Interchangeable PC and Fresnel Lens options included for even washes and powerful illumination
- Internal indexable barn door system for beam shaping and light control at any angle
- Seamless Frost Filter
- Silent and Cool Operation
Specifications
SOURCE
380W 6500K LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
16,000 Total Output Lumen
CRI 91
Fresnel Lens
Zoom Range 11° - 66°
Beam Angle 7.5° - 45.2°
Field Angle 16.5° - 68.2°
PC Lens
Zoom Range 7° - 55°
Beam Angle 5.6° - 43.2°
Field Angle 7.1° - 58°
EFFECTS
Motorized Zoom
CMY + CTO Color Mixing
7 Position Fixed Color Wheel including UV
4 Independent Barn Doors
Barn Door Index Adjustment
Frost Filter
Remote Focus Adjustment
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 260°
CONTROL / CONNECTIONS
2 DMX Channel Modes (22 / 36 Channels)
DMX Adjustable Refresh Rate (900 -25000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net, sACN Protocol Support

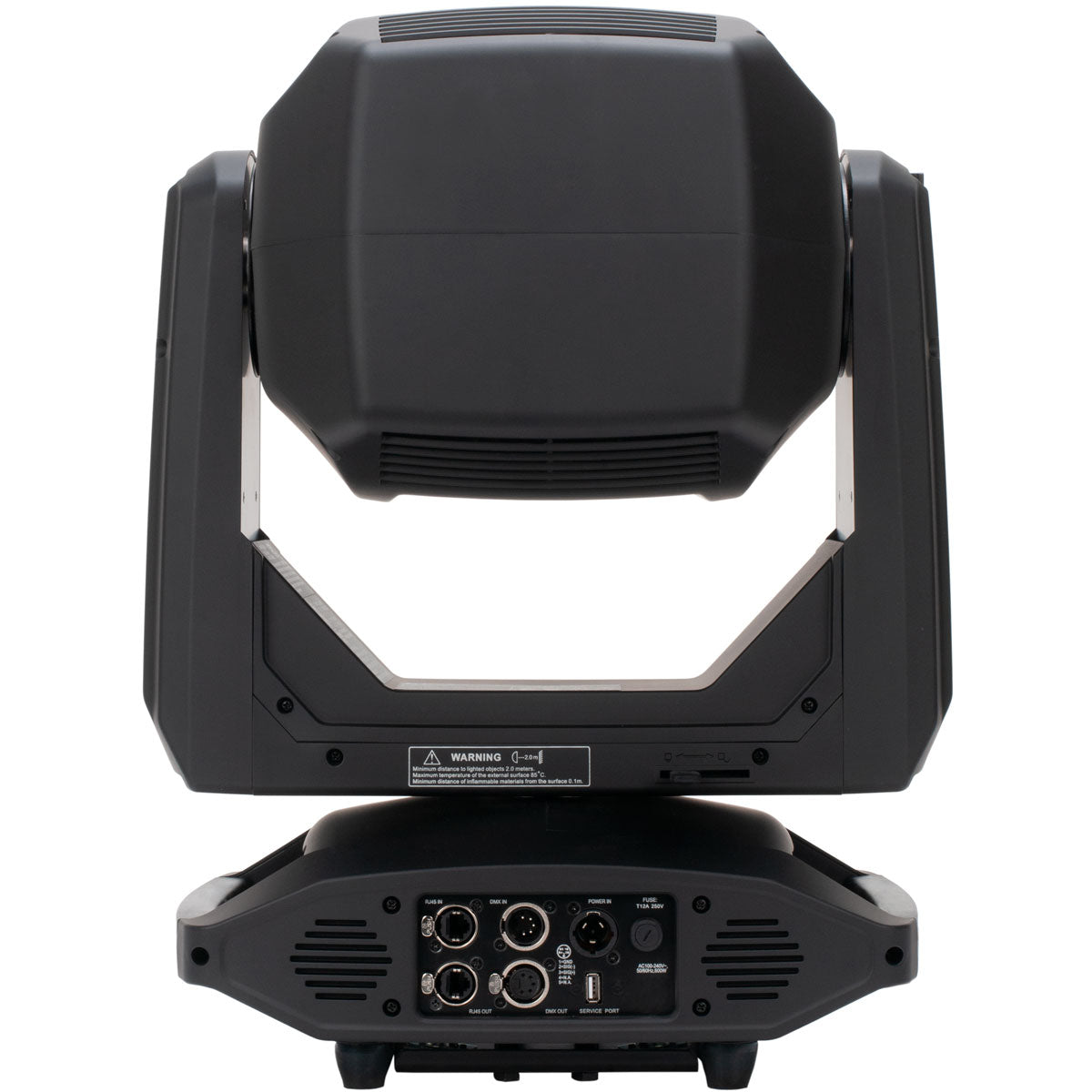

Locking 5pin XLR DMX, RJ45 Ethernet, and Power
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.73 in (399.6mm)
Width: 17.61 in (447.3mm) (Fresnel Lens)
Height: 26.34 in (669.mm)
Center Spacing: 24.0 in (609mm)
Weight: 62.8 lbs. (28.5kg)
ELECTRICAL
AC 100-240V 50/60Hz
600W Max Power Consumption
BTU/hr (+/- 10%) 2046
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.3.3
Click HERE for software updates
Specifications and documentation subject to change without notice.
