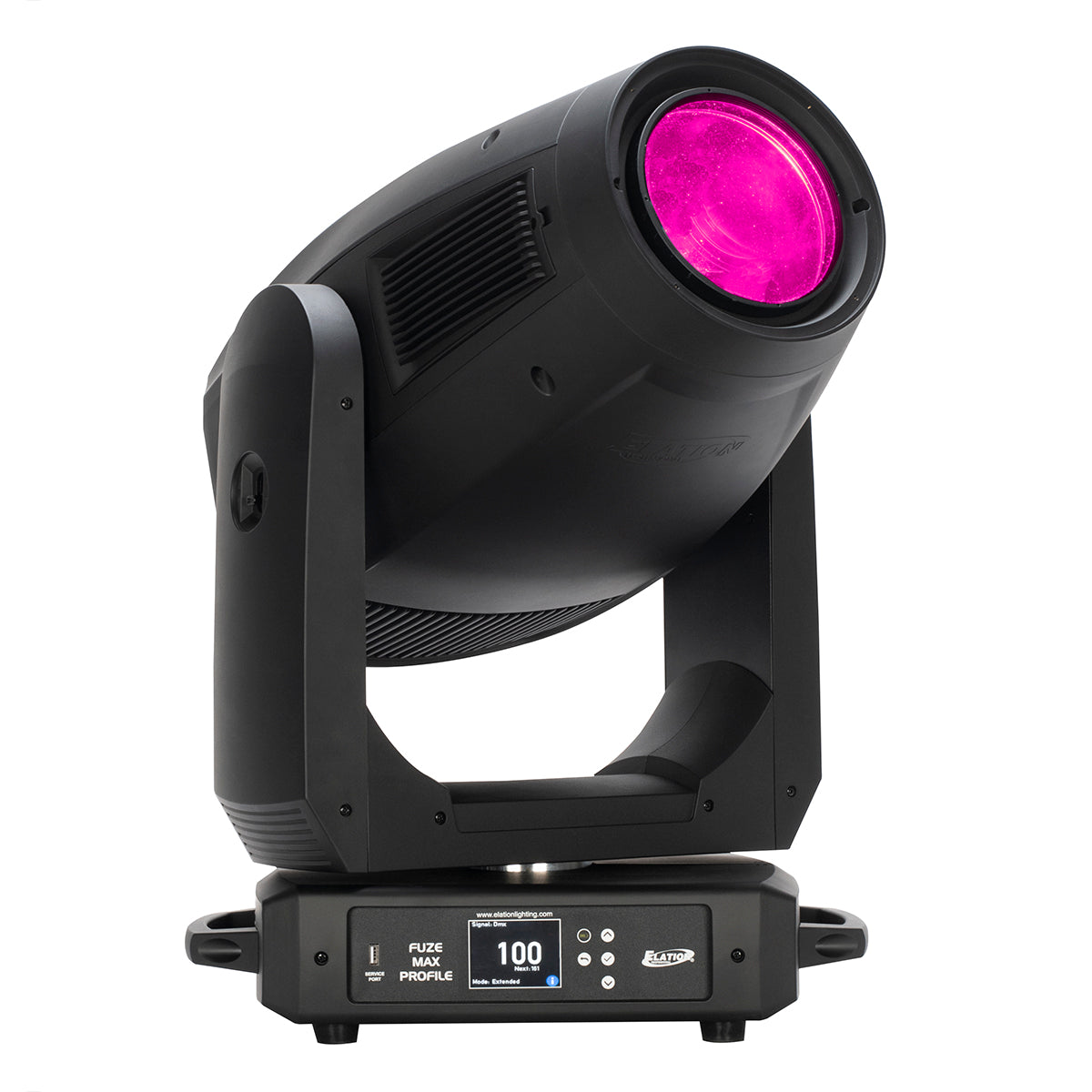

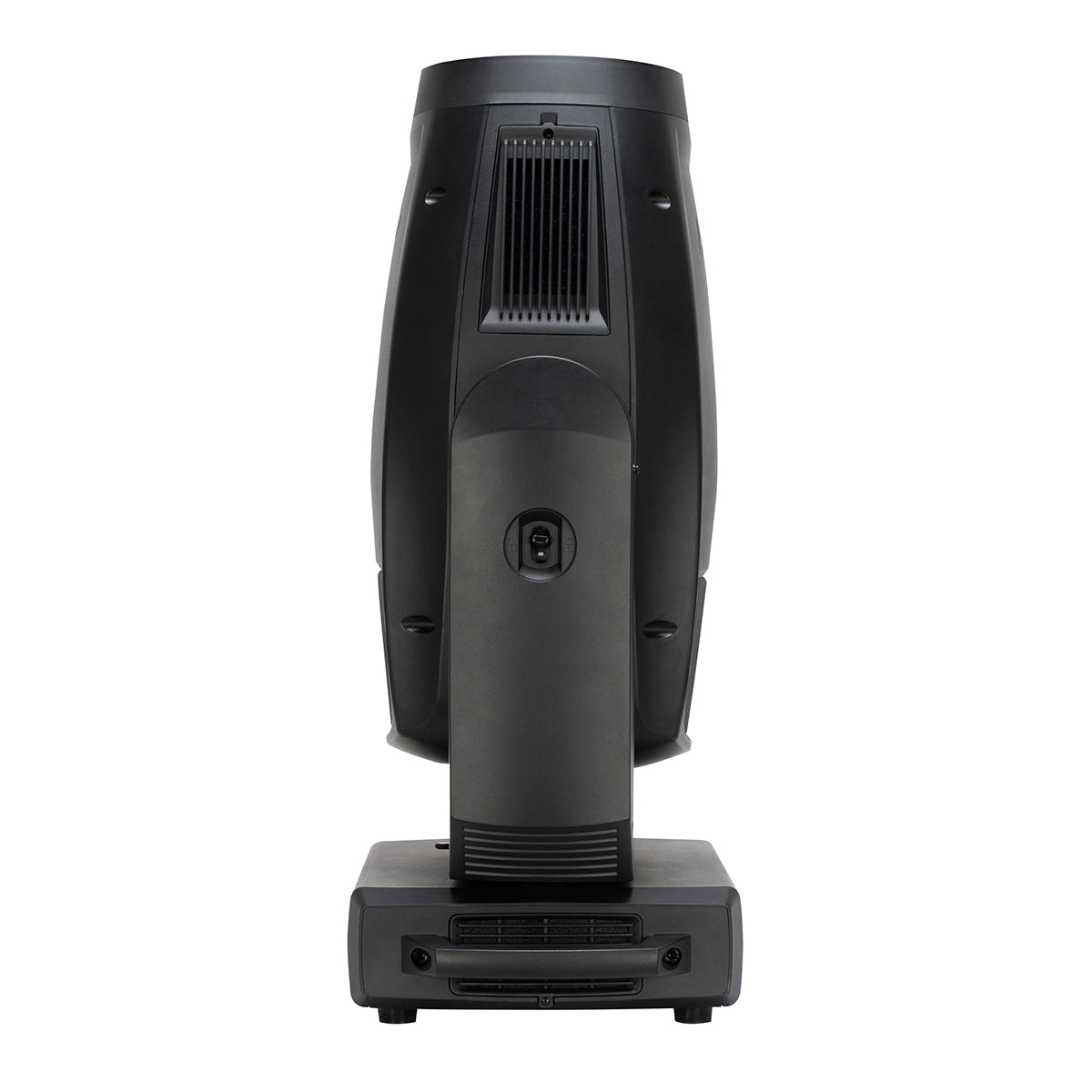

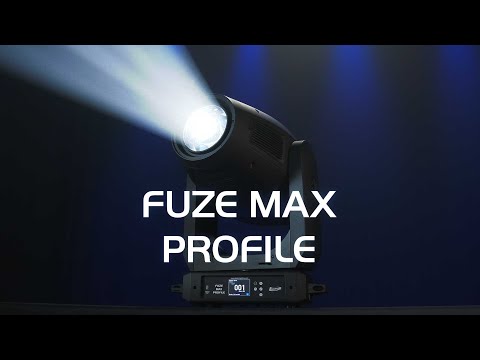

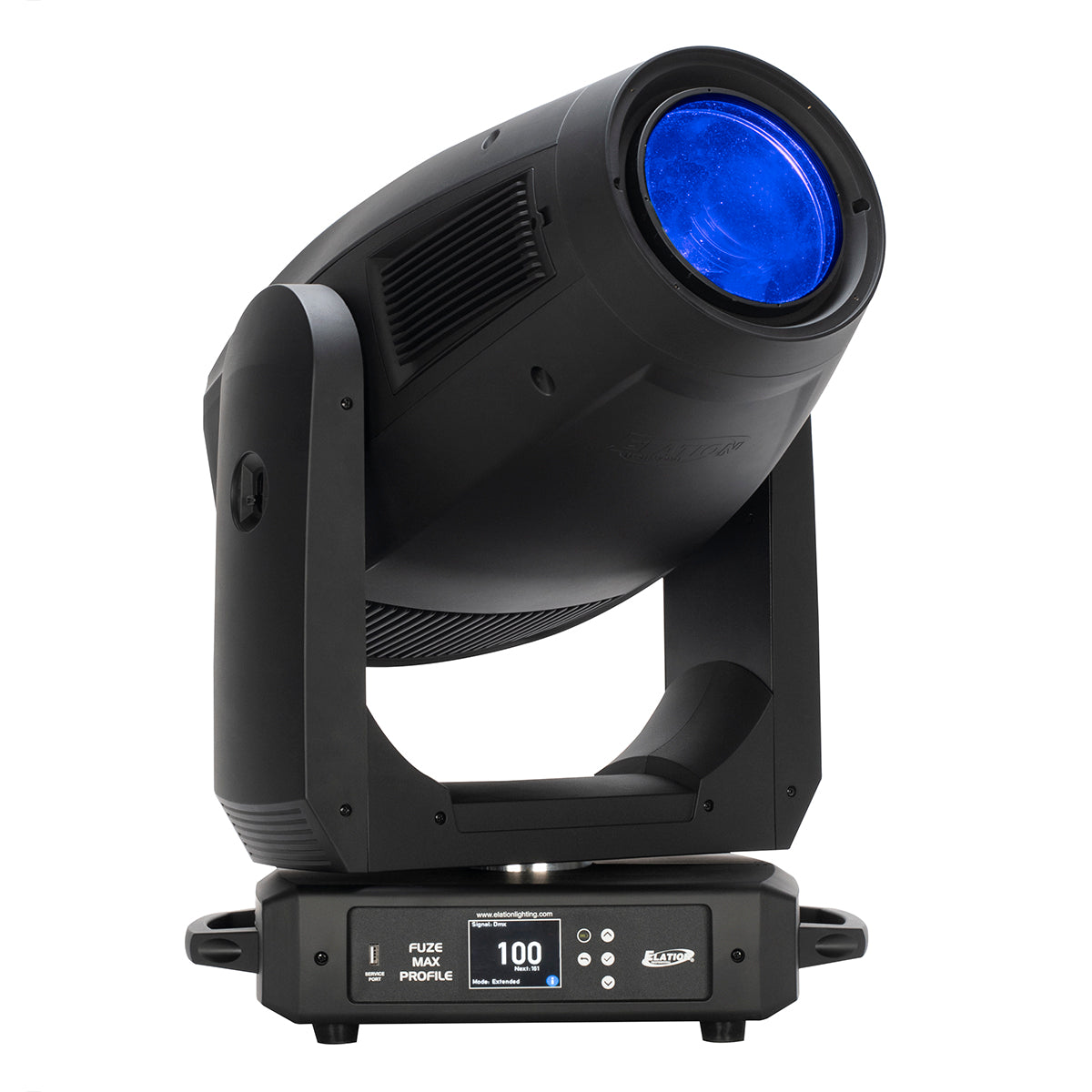

FUZE MAX PROFILE
800W Full Spectrum RGBMA LED Framing Profile Fixture
FUZE MAX PROFILE is a professional-grade lighting solution. The FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required.
Related Products
FUZE MAX PROFILE

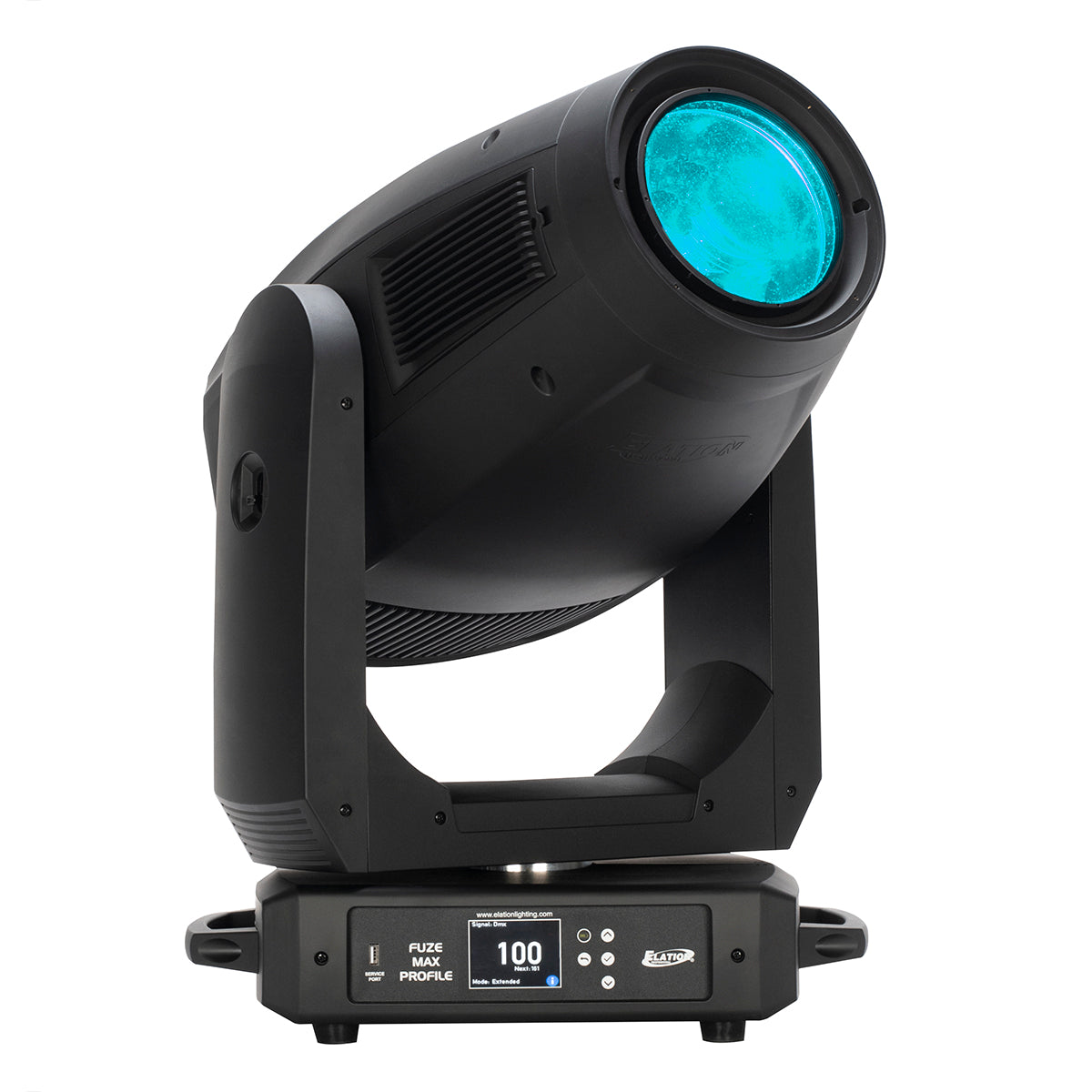

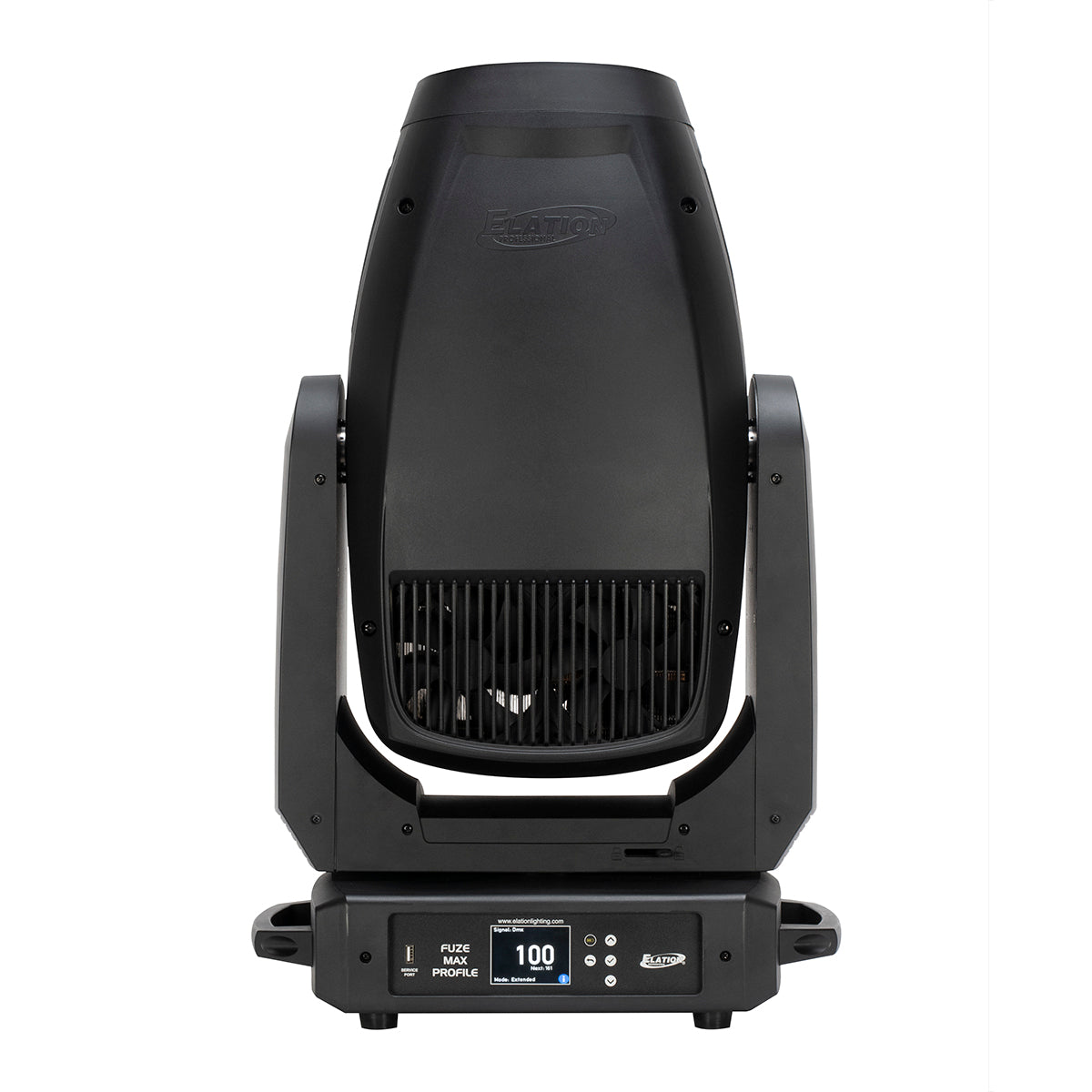

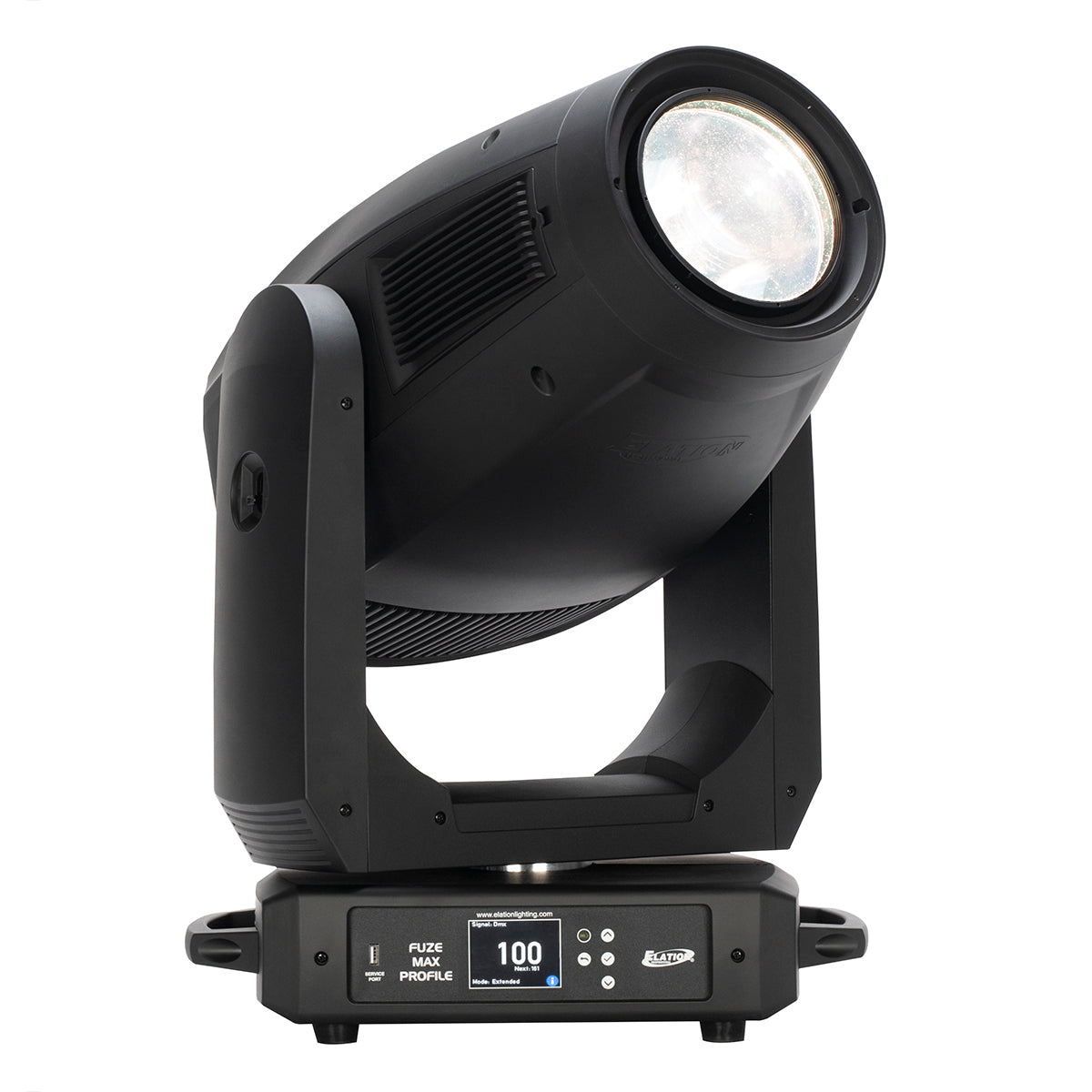

The FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.
- Full Spectrum 800W RGBMA LED Engine
- Precise dynamic whites from 2400 - 8500K
- Instant color changes, Natural color transitions
- Rich and intense primary colors
- Rotating and Fixed Gobos plus Animation Wheel
- Full Blackout Framing System
- Iris, Prism, and Dual Frost
- Wide Zoom Range from 7° to 53°
- Large 140mm front aperture
Specifications
SOURCE
800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
21.000 Total Lumen Output
CRI 92
Zoom Range 7° - 53°
Beam Angle 6.6° - 50.3°
Field Angle 7.8° - 55°
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60° Index
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Interchangeable Glass Gobos
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

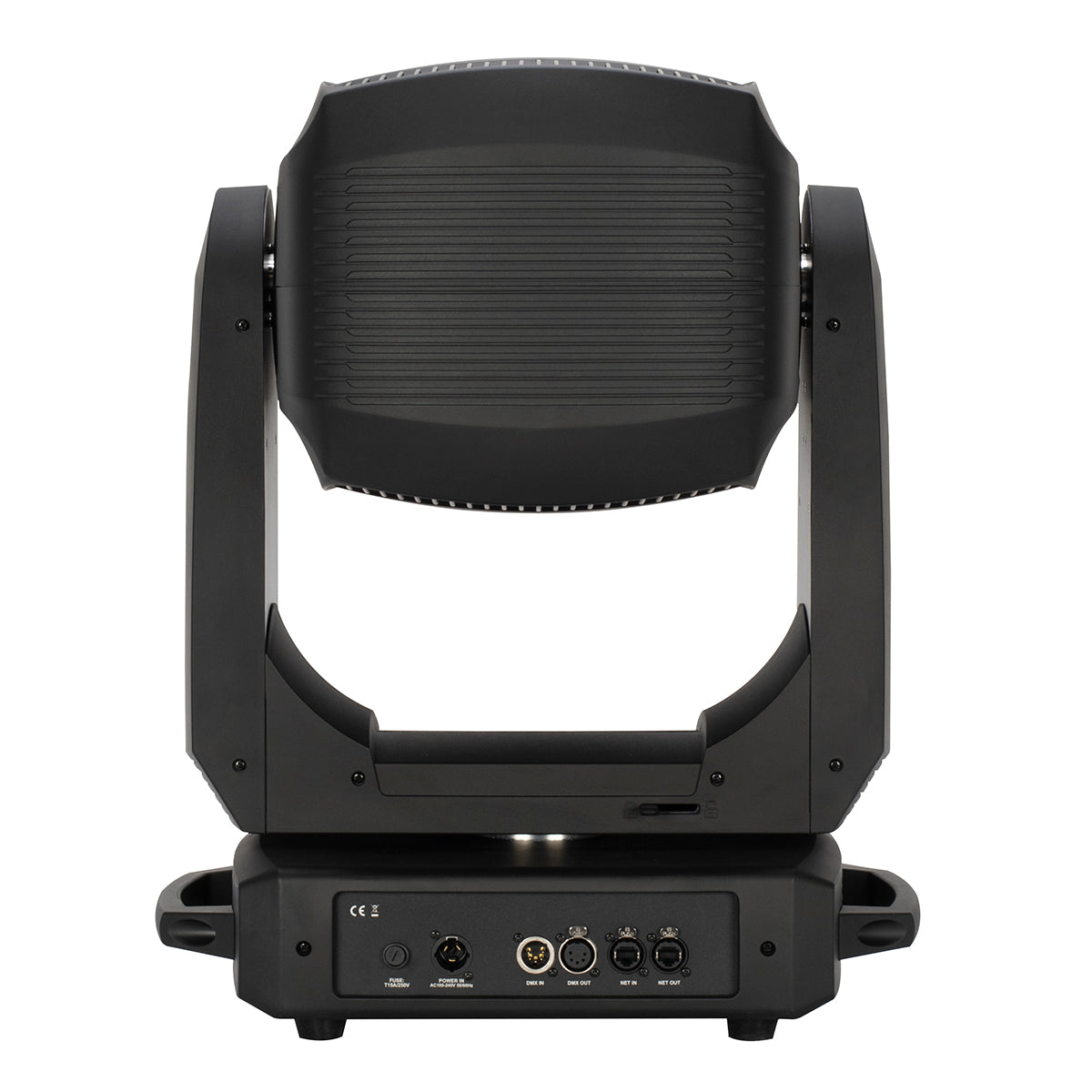

5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.19” (462mm)
Width: 21.26" (540mm)

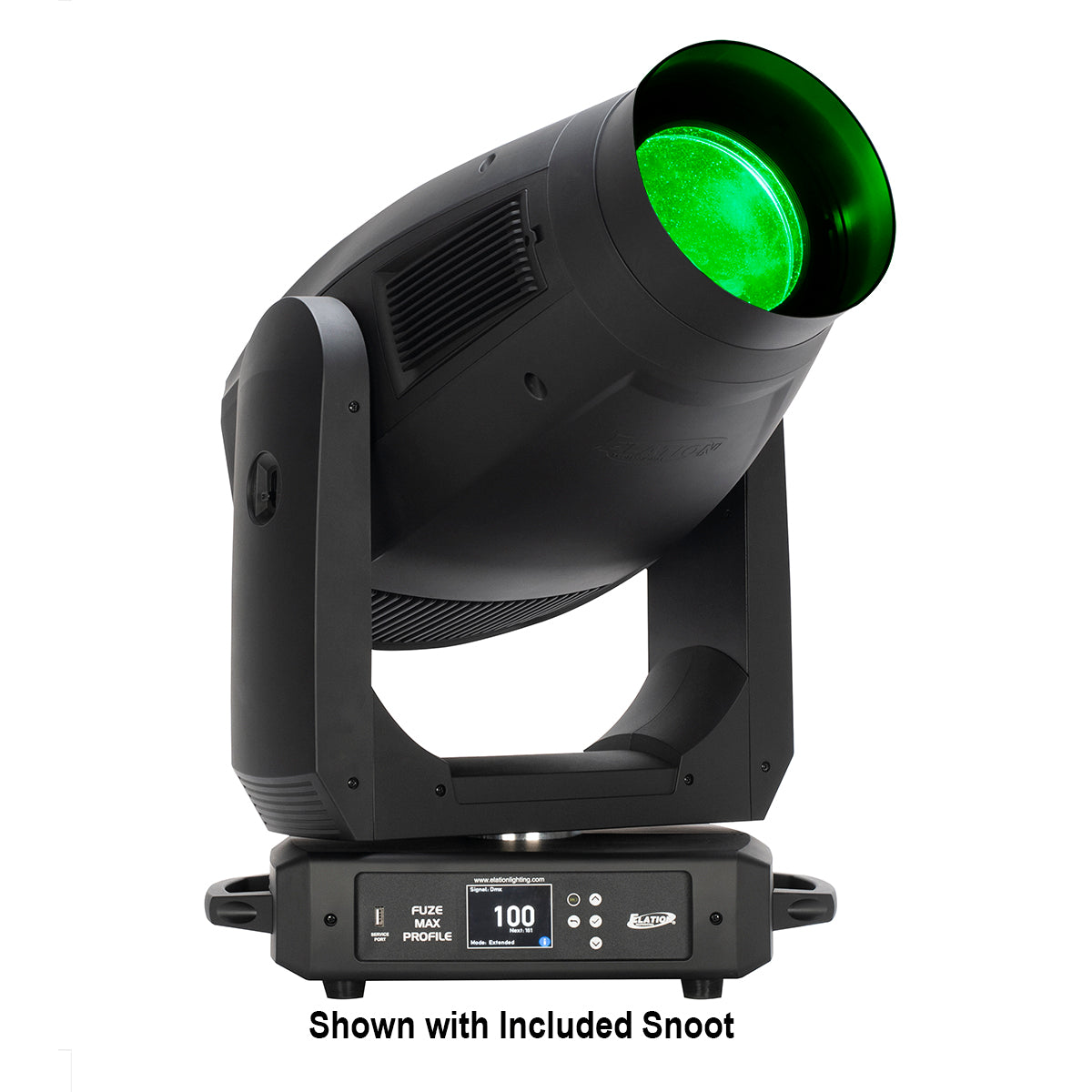

Width with Snoot: 23.2" (590mm)
Vertical Height: 28.3" (719mm)
Vertical Height with Snoot: 30.4" (771mm)
Center Spacing (no snoot): 26.1in (662mm)
Center Spacing (with snoot): 29.8in (757mm)
Weight: 76.3 lbs. (34.6kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1126W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 3839.66
OPTIONAL ACCESSORIES
7030100797 - Snoot
APPROVALS / RATINGS
CE | cETLus | IP20 | FCC
FIRMWARE UPDATES
Click HERE for software update
Specifications and documentation subject to change without notice.
