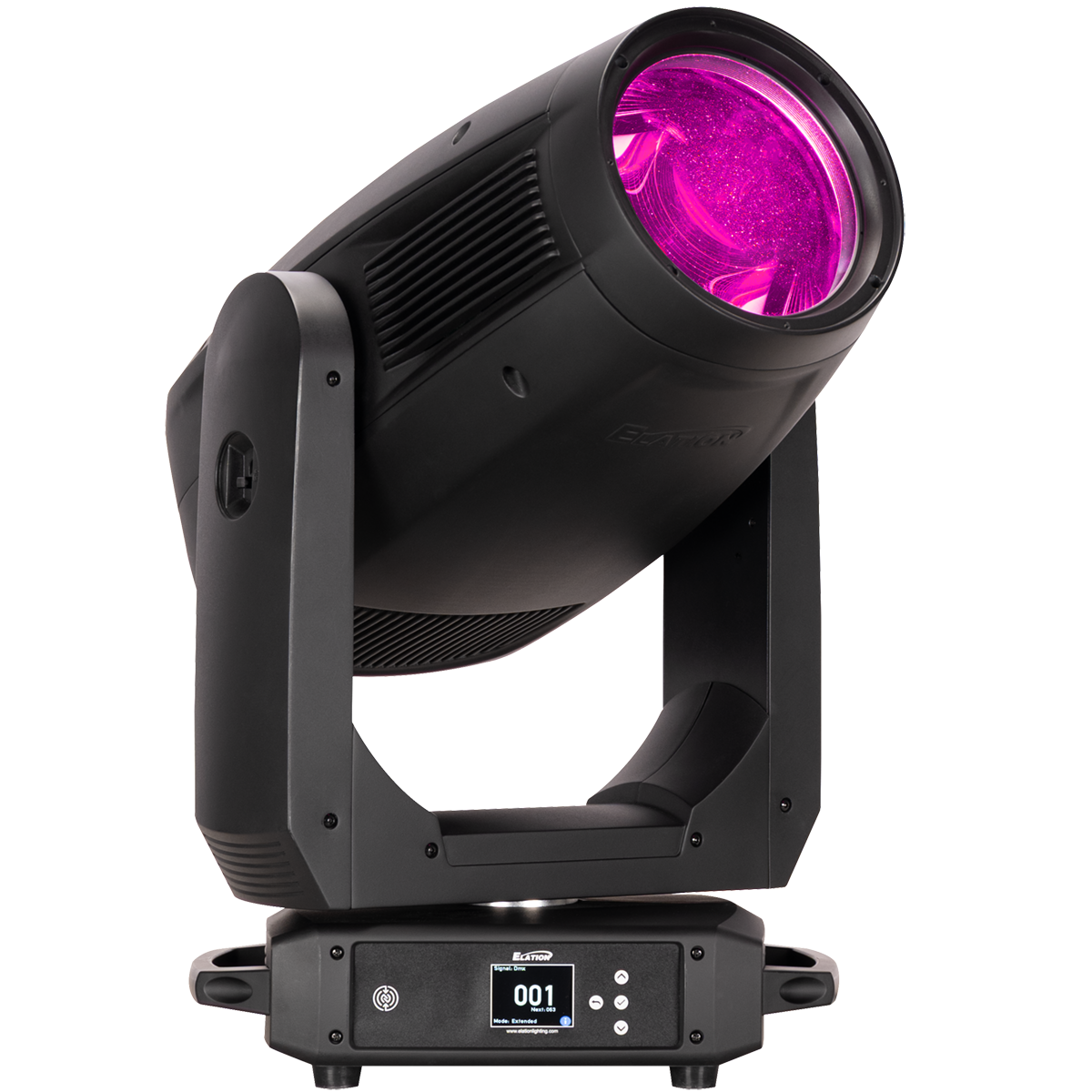

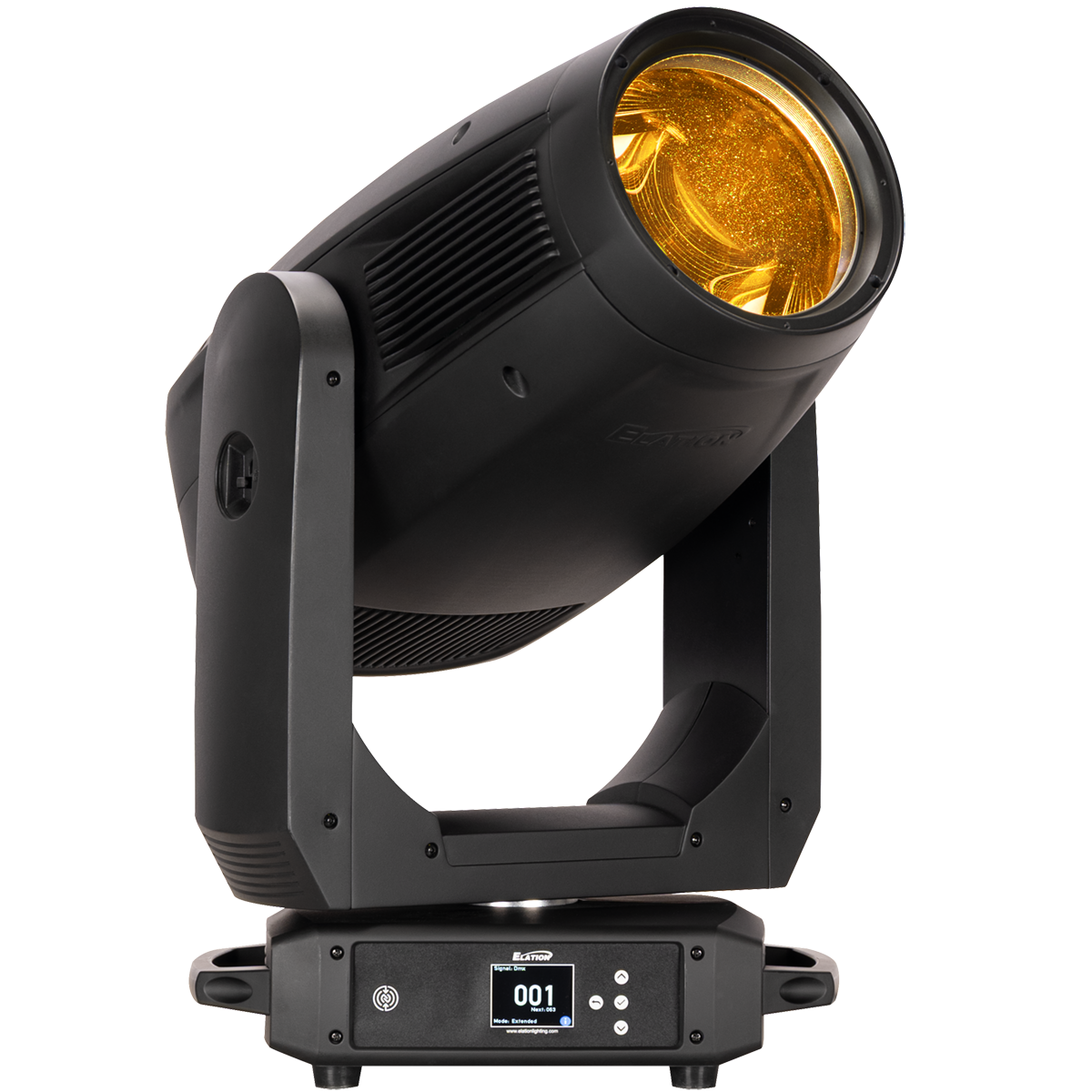

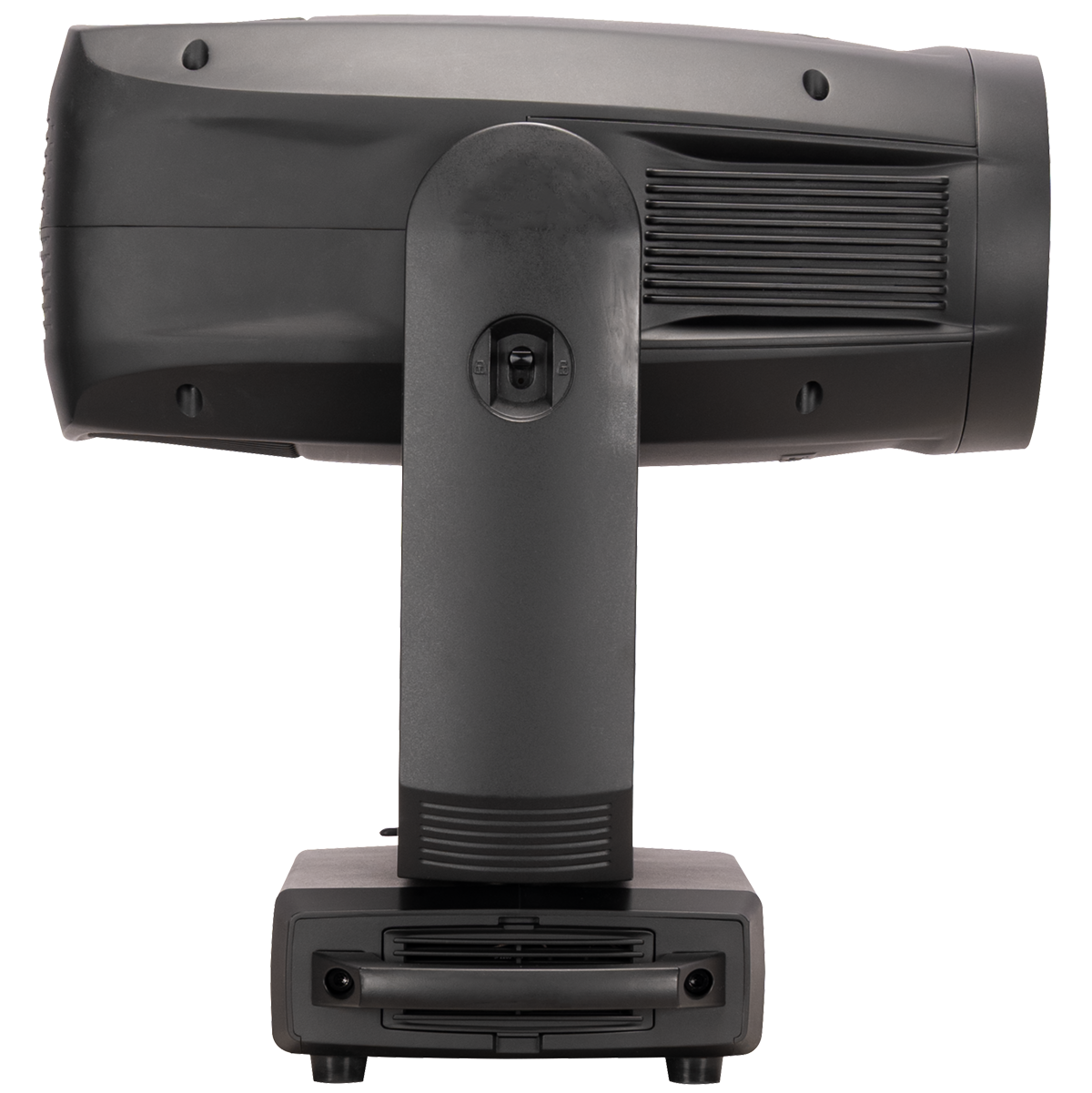

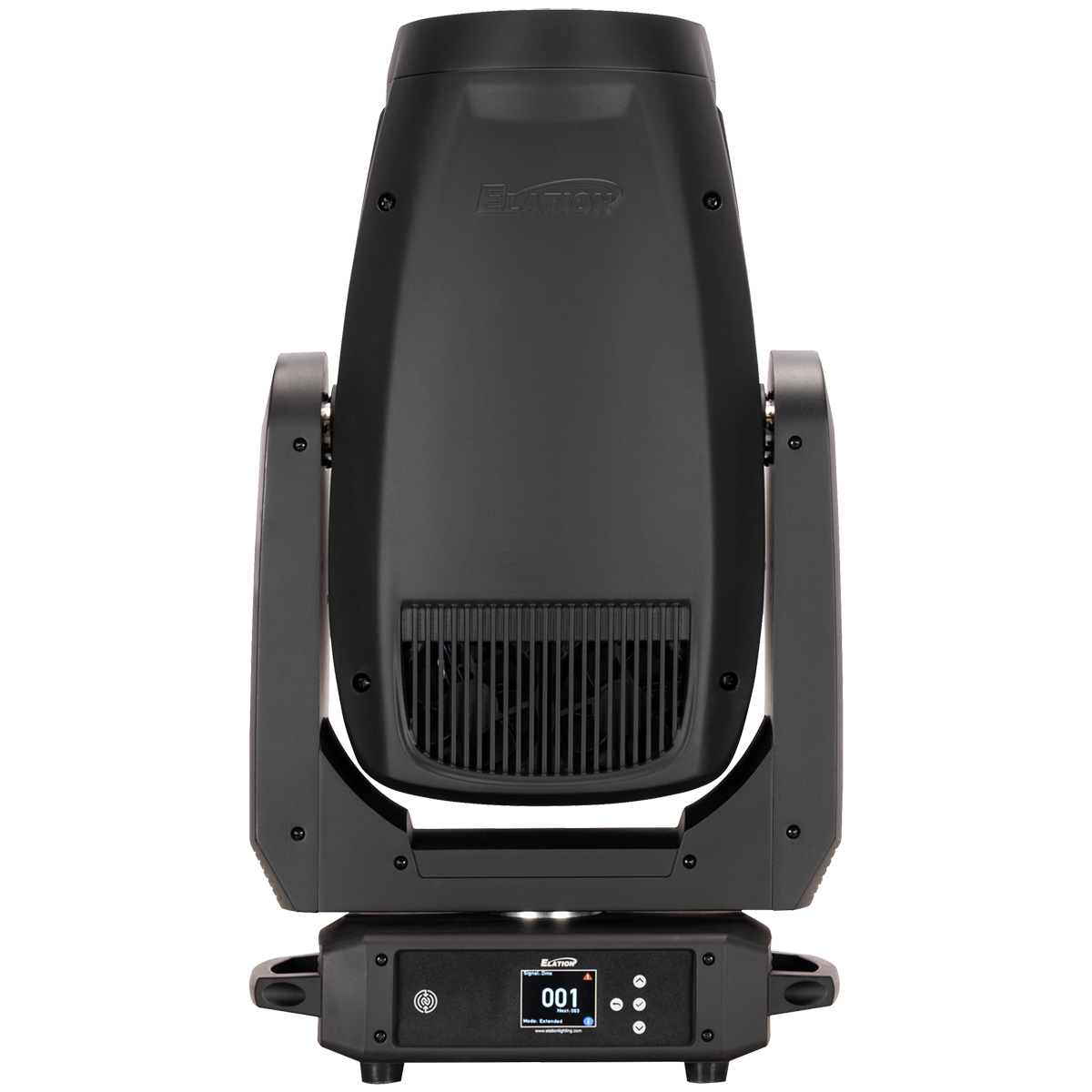

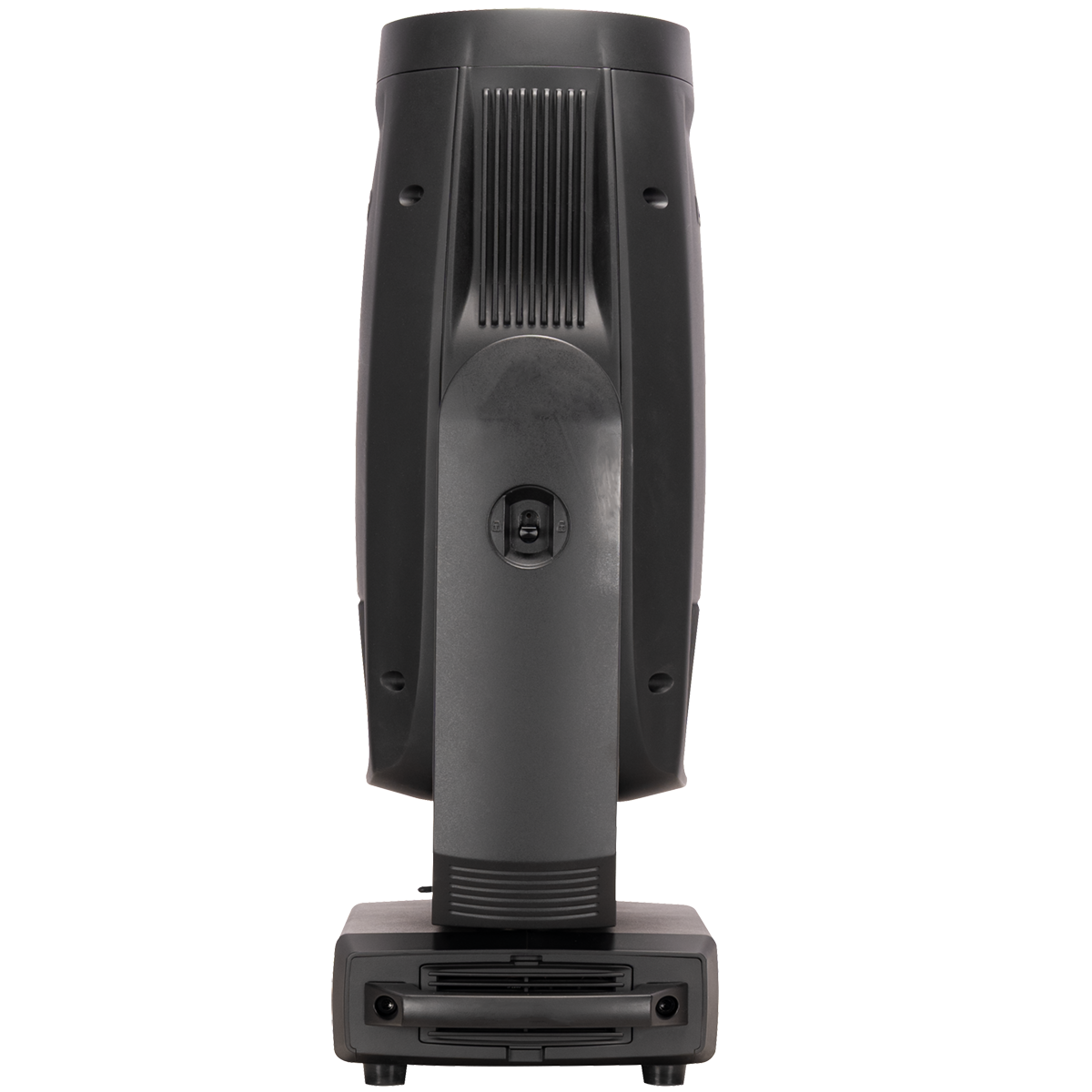

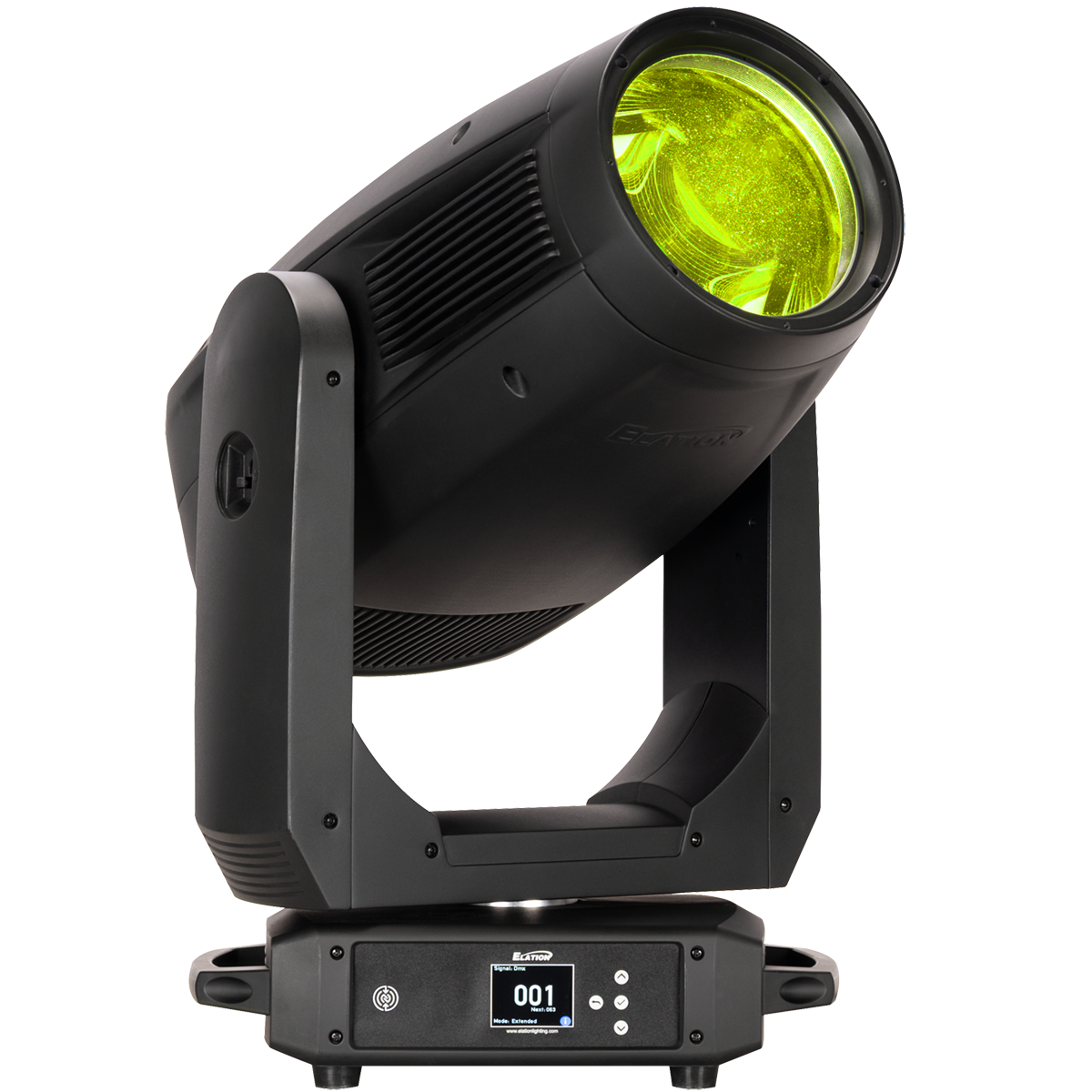

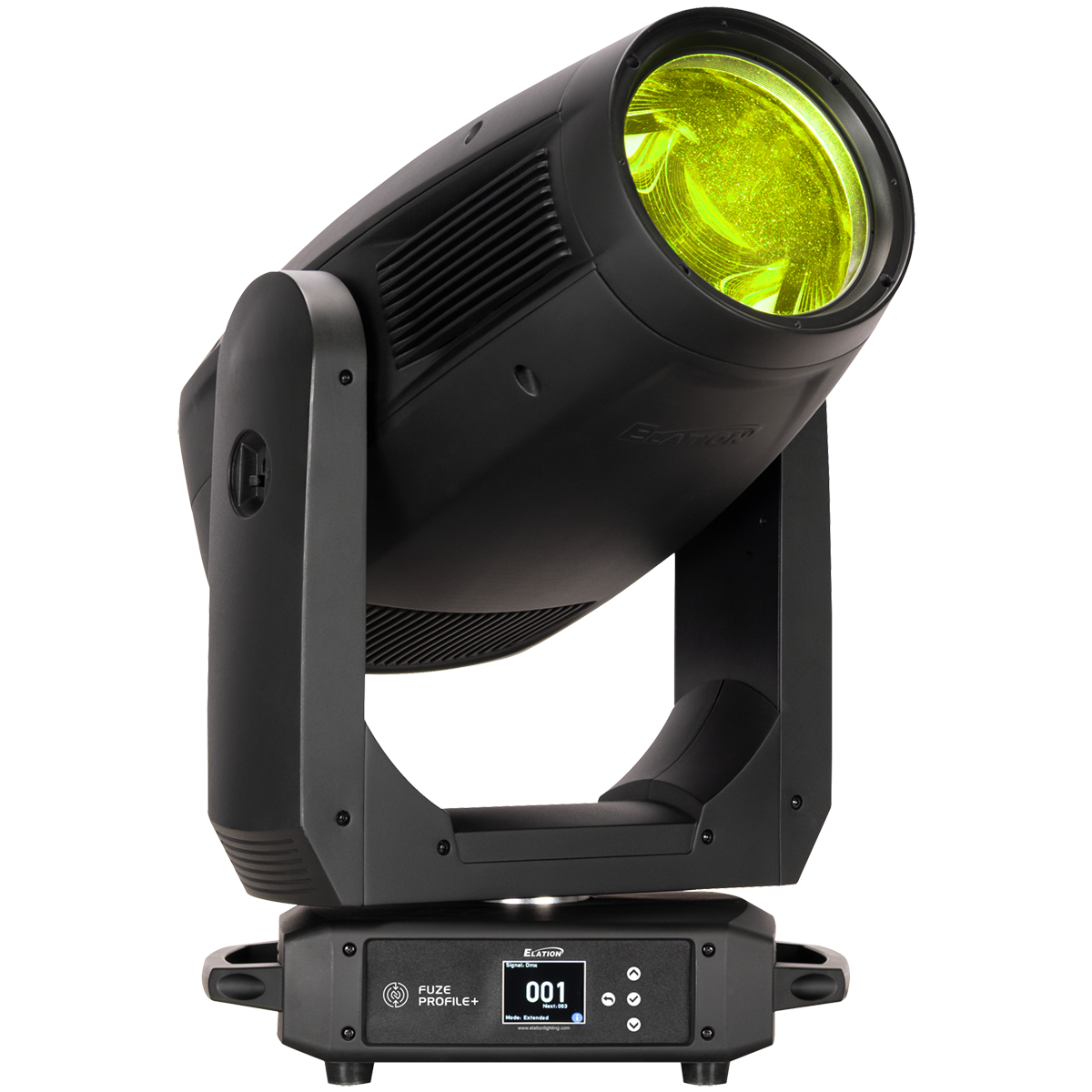

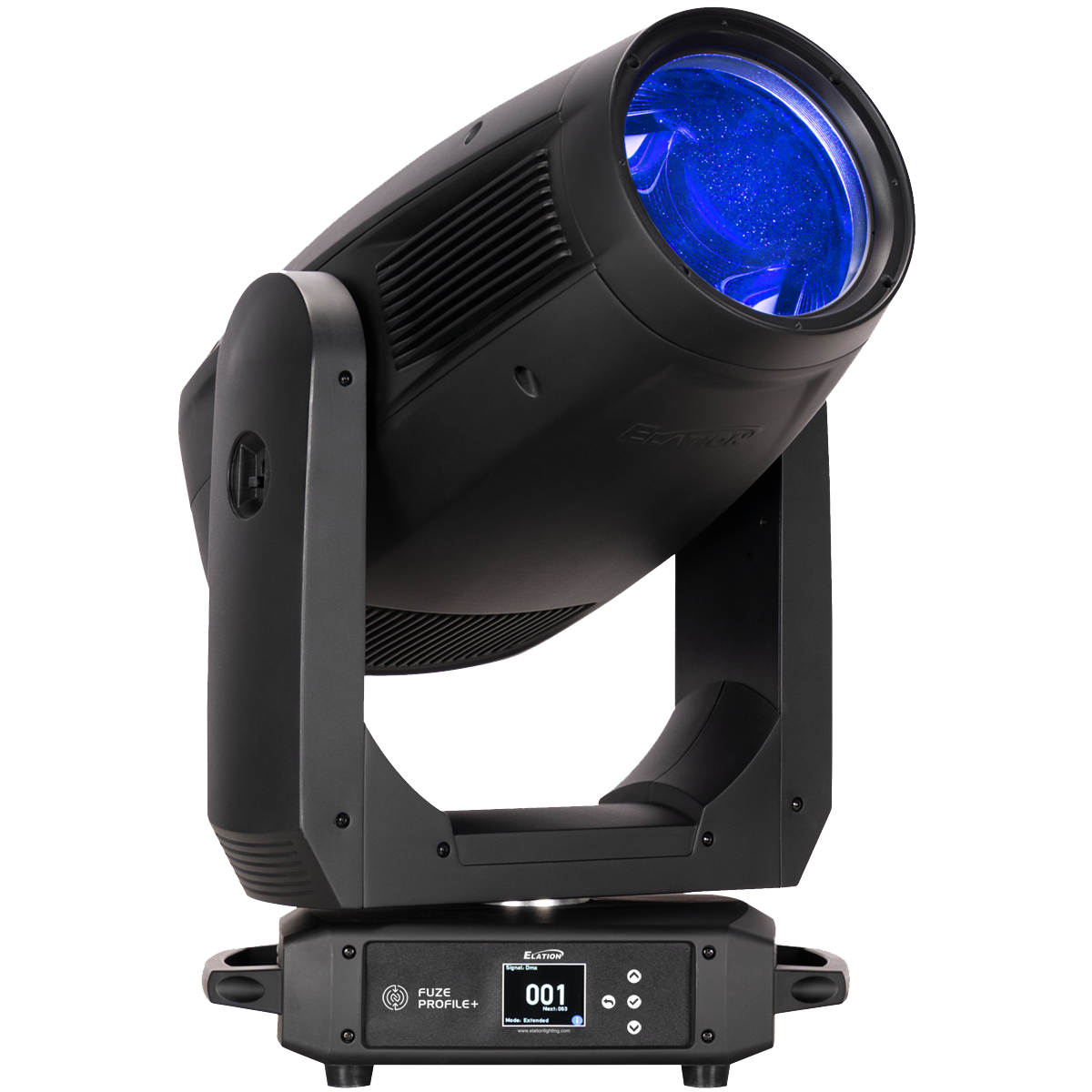

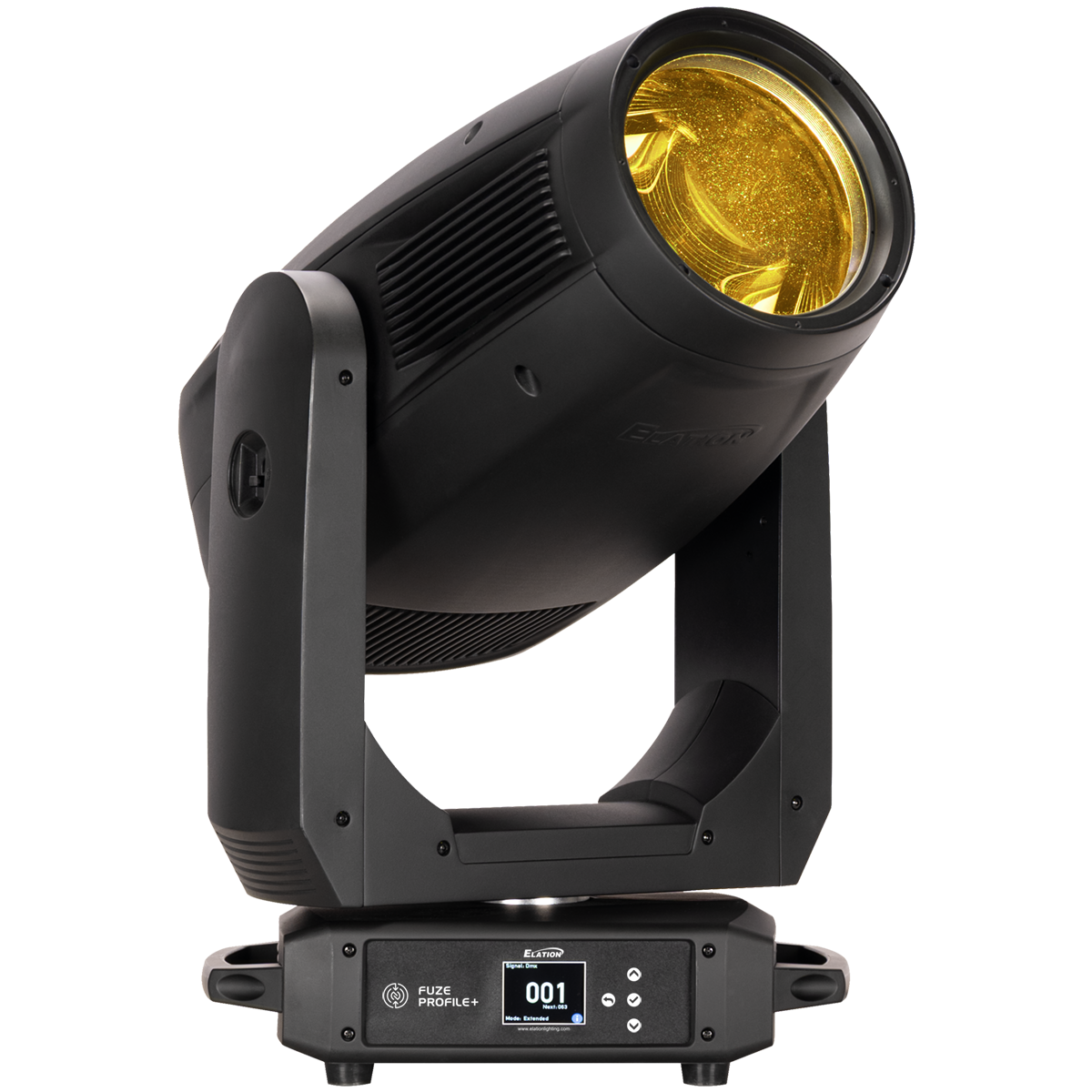

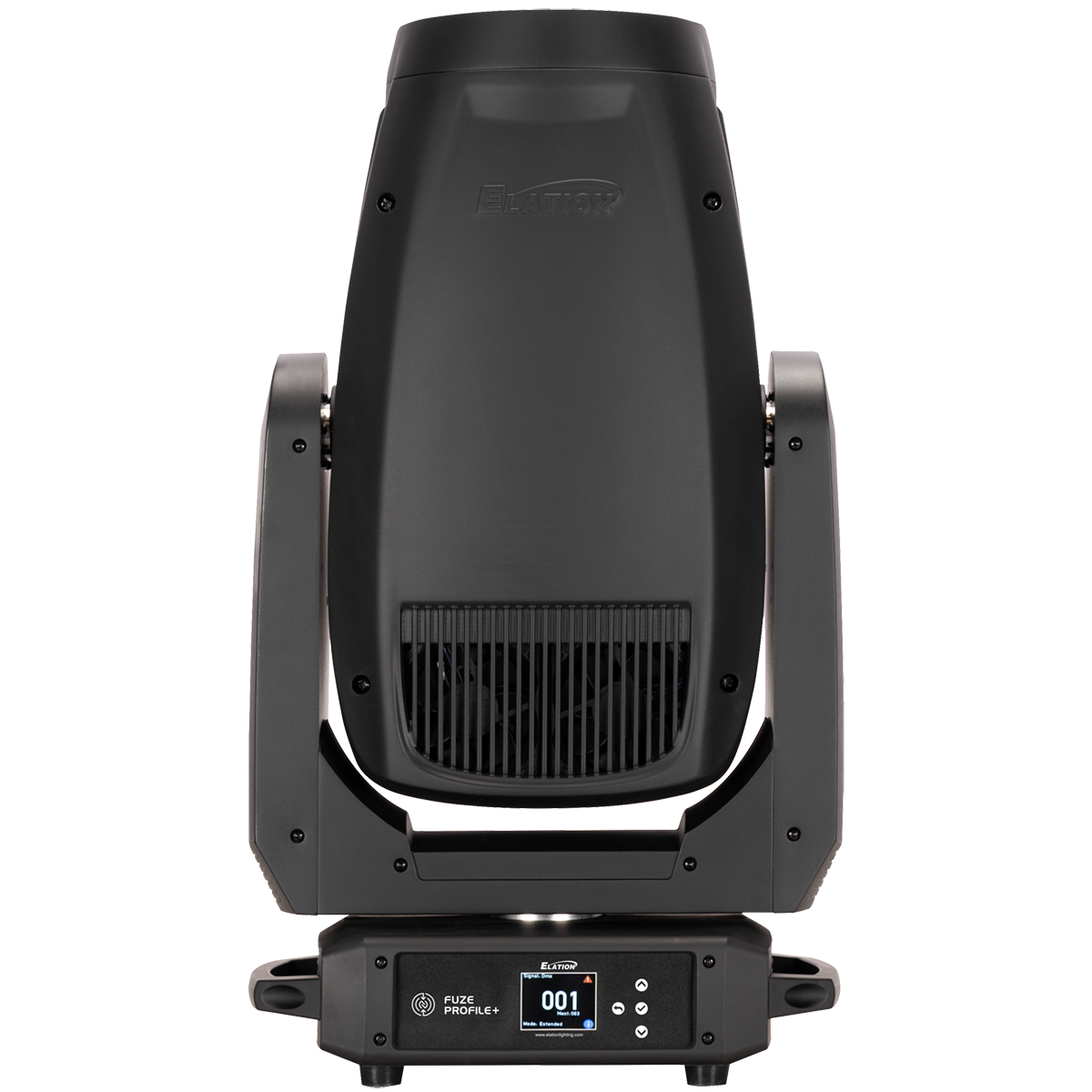

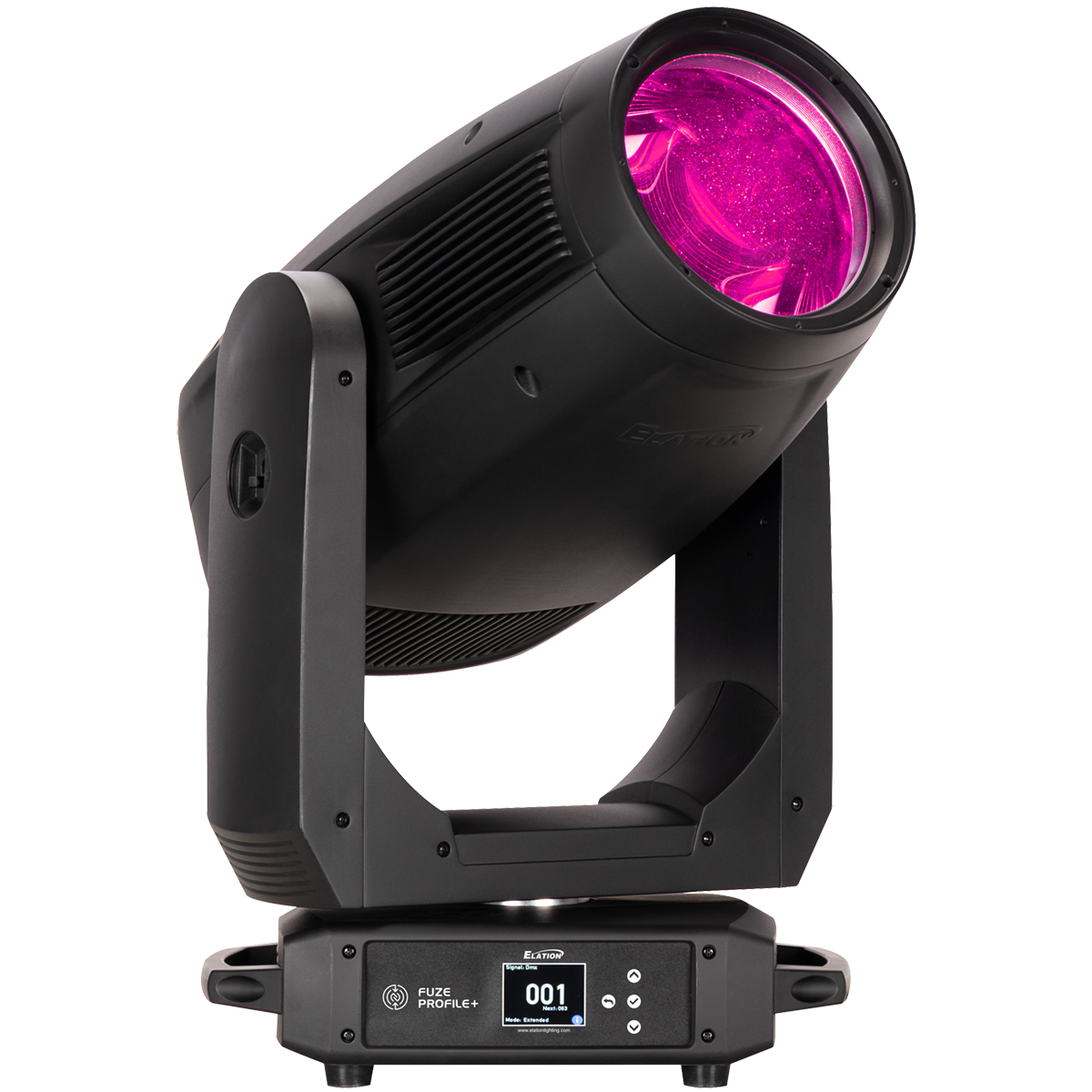

FUZE PROFILE+

Name: FUZE PROFILE+
Brand: Elation Lighting
SKU: FUZ321
Availability: InStock

Delivering confident, reliable illumination, FUZE PROFILE+ pairs powerful output with refined color quality. Advanced RGBMA color mixing, 92 CRI, and Virtual CCT produce natural skin tones, accurate whites, and consistent color across every look. A robust 500W LED engine delivers 12,700+ lumens of punchy output—cutting through demanding environments while preserving the nuanced color rendering required for theatrical, broadcast, and live-event applications.

UPC: 810008266601

SKU: FUZ321

Related Products

FUZE PROFILE

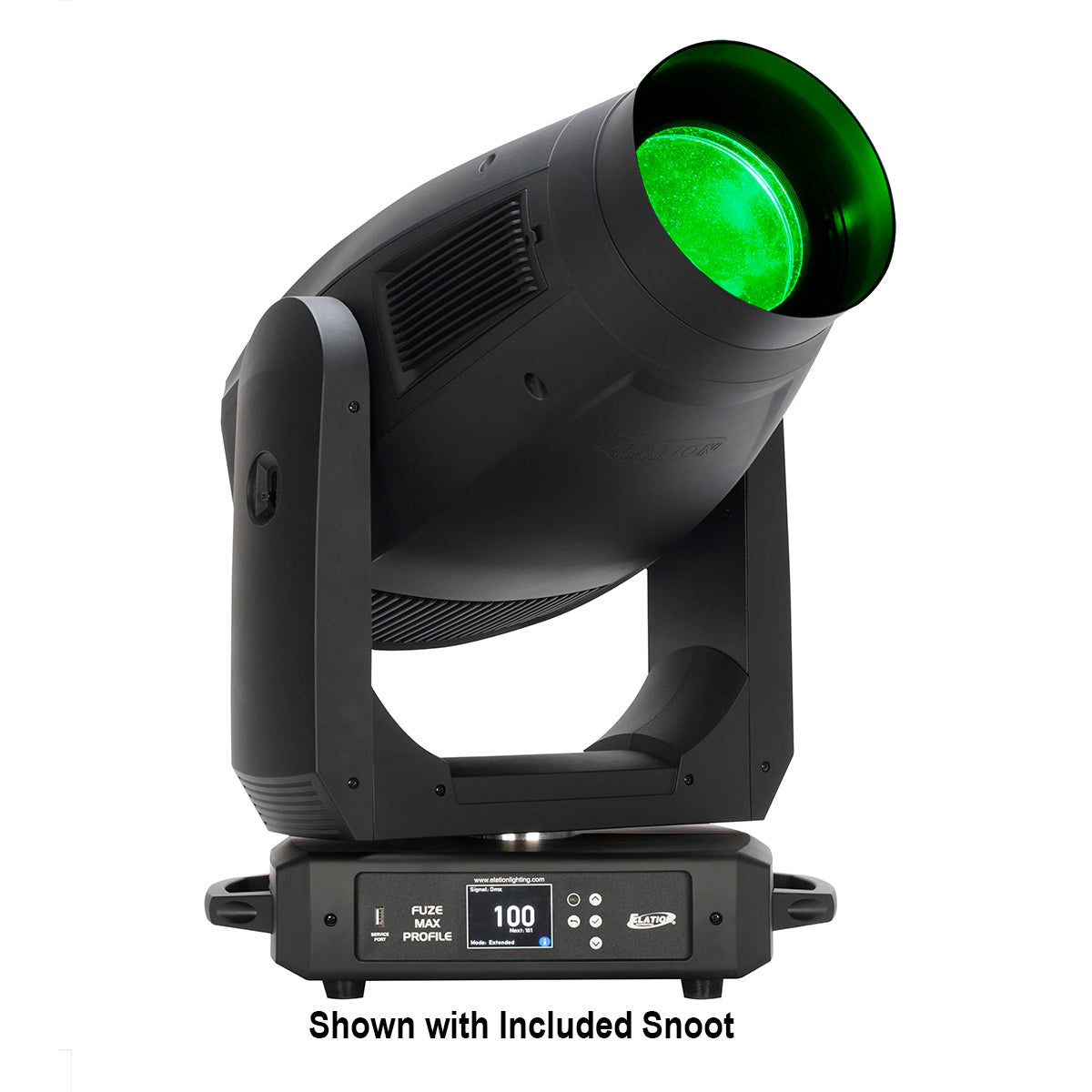

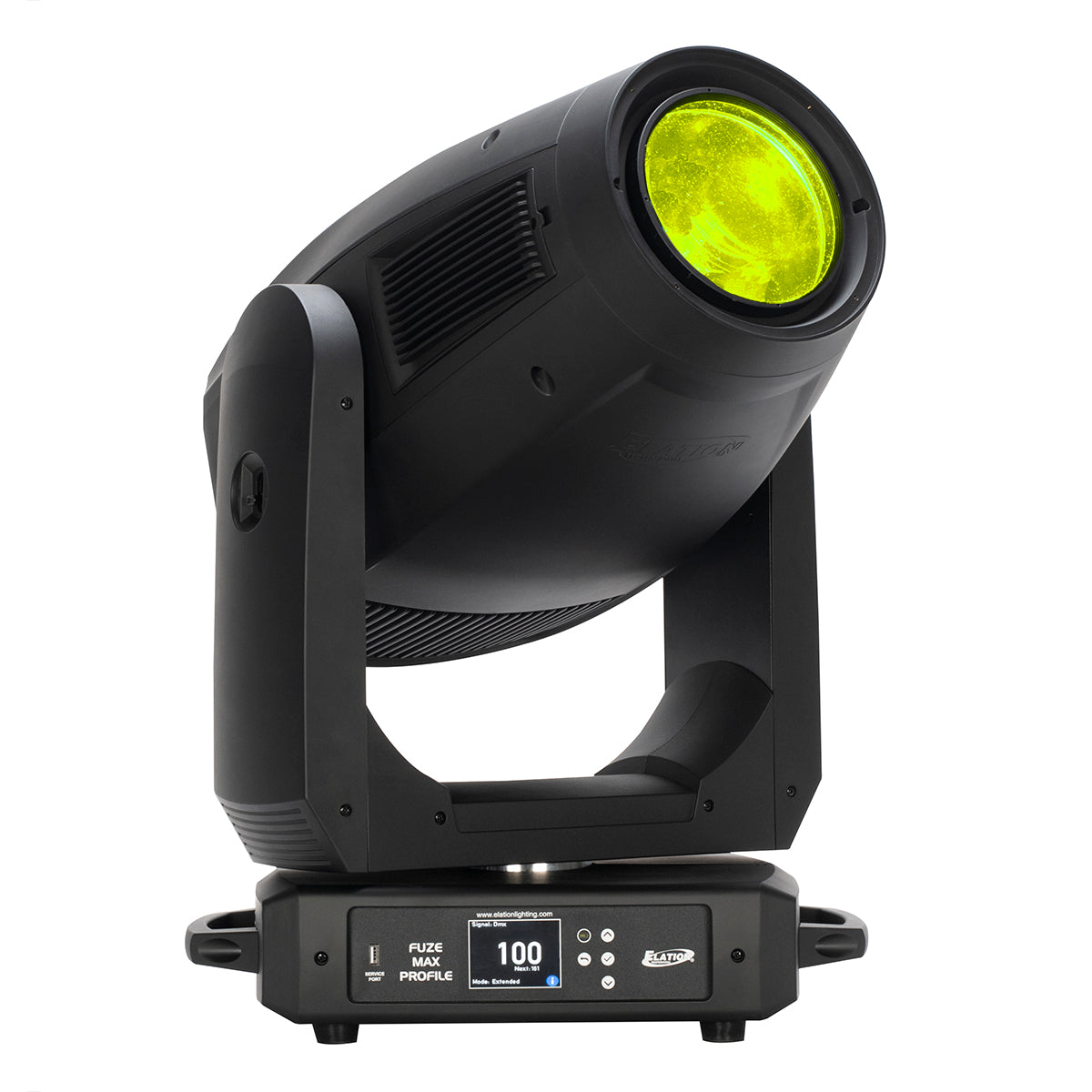

FUZE MAX PROFILE

FUZE PROFILE+

The FUZE PROFILE+ is the next evolution of the industry-trusted FUZE Series, combining the line’s most in-demand features into one compact, production-ready profile.

Delivering confident, reliable illumination, FUZE PROFILE+ pairs powerful output with refined color quality. Advanced RGBMA color mixing, 92 CRI, and Virtual CCT produce natural skin tones, accurate whites, and consistent color across every look. A robust 500W LED engine delivers 12,700+ lumens of punchy output—cutting through demanding environments while preserving the nuanced color rendering required for theatrical, broadcast, and live-event applications.

Designed for precision and creative control, FUZE PROFILE+ offers clean framing, a wide 4°–54° zoom range, and a true full-blackout framing system with no light spill. Rotating and fixed gobos, an animation wheel, and integrated tools including an iris, two prisms, and dual variable frosts add depth, motion, and texture—supporting everything from tight highlights to soft, immersive washes.

Compact and versatile, FUZE PROFILE+ transitions easily between touring, rental, and installed environments. A sub-30kg build, an interchangeable front Fresnel lens, multiple fan modes, and the familiar FUZE platform ensure fast setup, quiet operation, and consistent workflows—so designers can focus on bold, confident lighting.

Extended color RGBMA LED Engine, 92 CRI

Rotating and Fixed Gobos plus Animation Wheel

Full Blackout Framing System

Iris, 2x Prism, and 2x Variable Frost

Wide Zoom Range from 4° to 54°

Interchangeable Front Lens with Fresnel option

Specifications

SOURCE

500W 6,000K RGBMA LED Engine

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA

12,740 Total Lumen Output

CRI 92

Zoom Range 4° - 54°

EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades, +/- 60 Index

2 Variable Frost Filters (Light Heavy)

4-Facet Linear Round Rotating Prisms

Motorized Iris with Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

Pan Angle: 540°

Tilt Angle: 270°

COLOR

RGBMA Color Array

CMY Emulation

16bit Fully Variable CCT 2400K - 8500K

Green/Magenta Shift
Dim-to-warm Fade

Virtual Gel Swatch Book

GOBOS

1x 7 Rotating / Indexing Interchangeable Glass Gobos

1x 8 Fixed Glass Gobo

Bi-Directional Animation Wheel

CONTROL / CONNECTIONS

7 DMX Channel Modes (RGBMA 40 / 59) (RGB 38 / 55)(CMY 38 / 55) Fuze Profile Emulation Mode (38)

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency

DMX, RDM, Art-Net sACN Protocol Support

Aria x2 Wireless Device Management

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

16 Bit Resolution Adjustable Movement

NFC on bottom and front of fixture base

Hibernation Mode (Power Save)

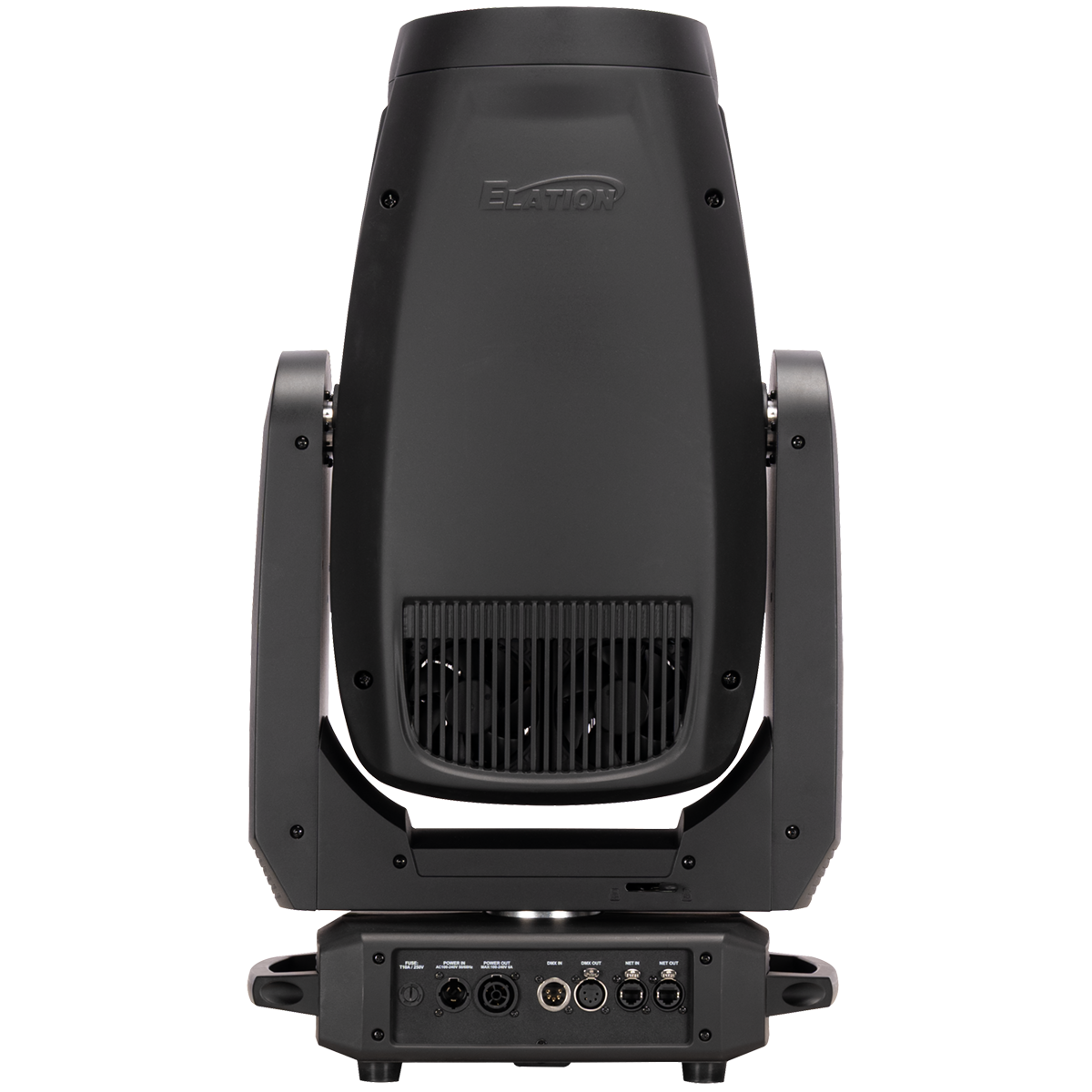

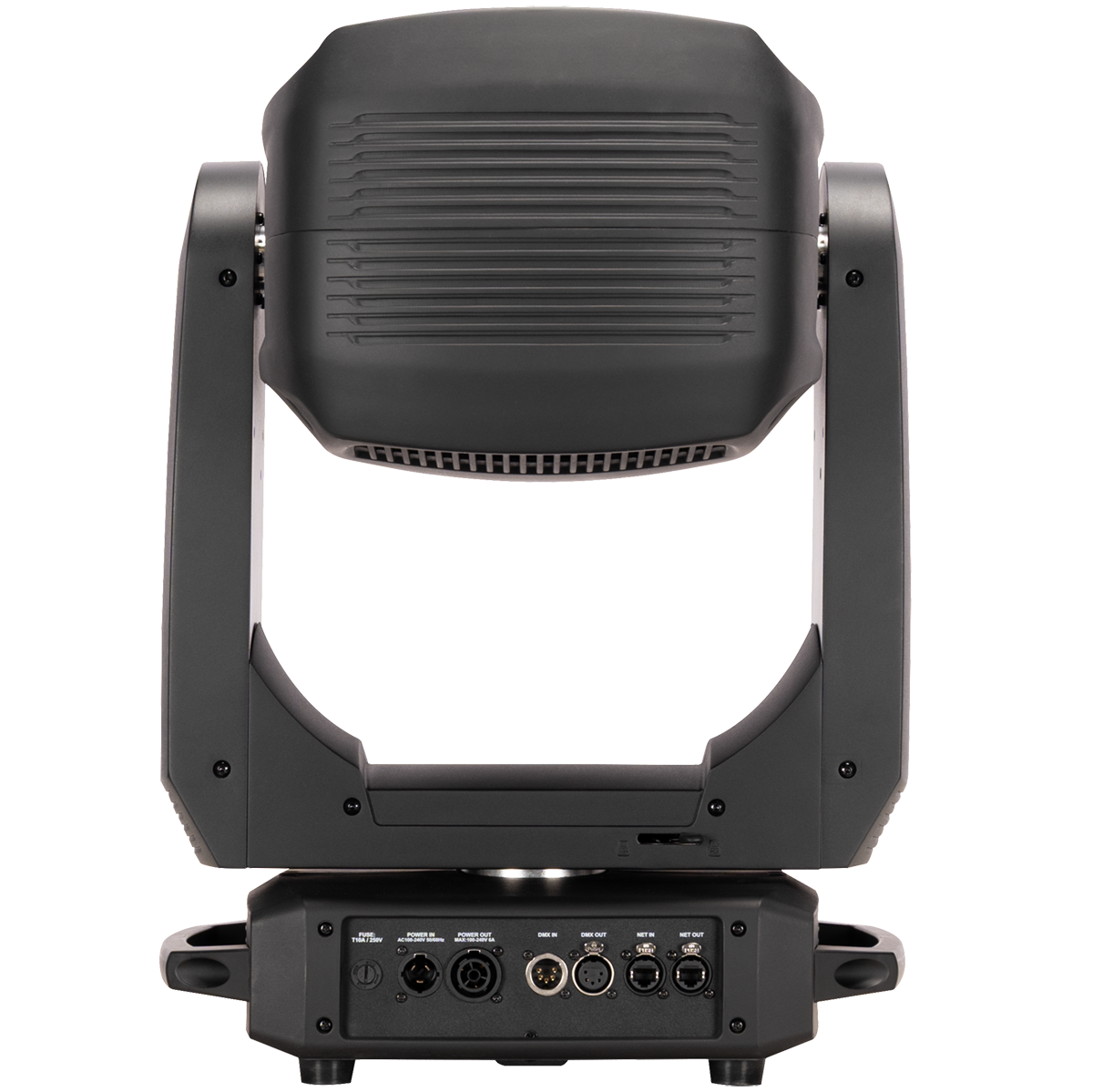

5pin DMX In/Out

Locking RJ45 Ethernet In/Out

Locking Power Cable In/Out

SIZE / WEIGHT

Length: 16" (408mm)

Width: 10.1" (256mm)

Vertical Height: 27.8" (705mm)

Weight: 63.9 lbs (29kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

781W Max Power Consumption

Power Thru Capacity: 9A (1 unit @110V; 2 units @240V)

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 2663.21

INCLUDED ITEMS

Omega Brackets (x2)

Locking Power Cable

Safety Cable

Snoot

OPTIONAL ITEMS

Fresnel Lens (FUZ325)

APPROVALS / RATINGS

IP20
