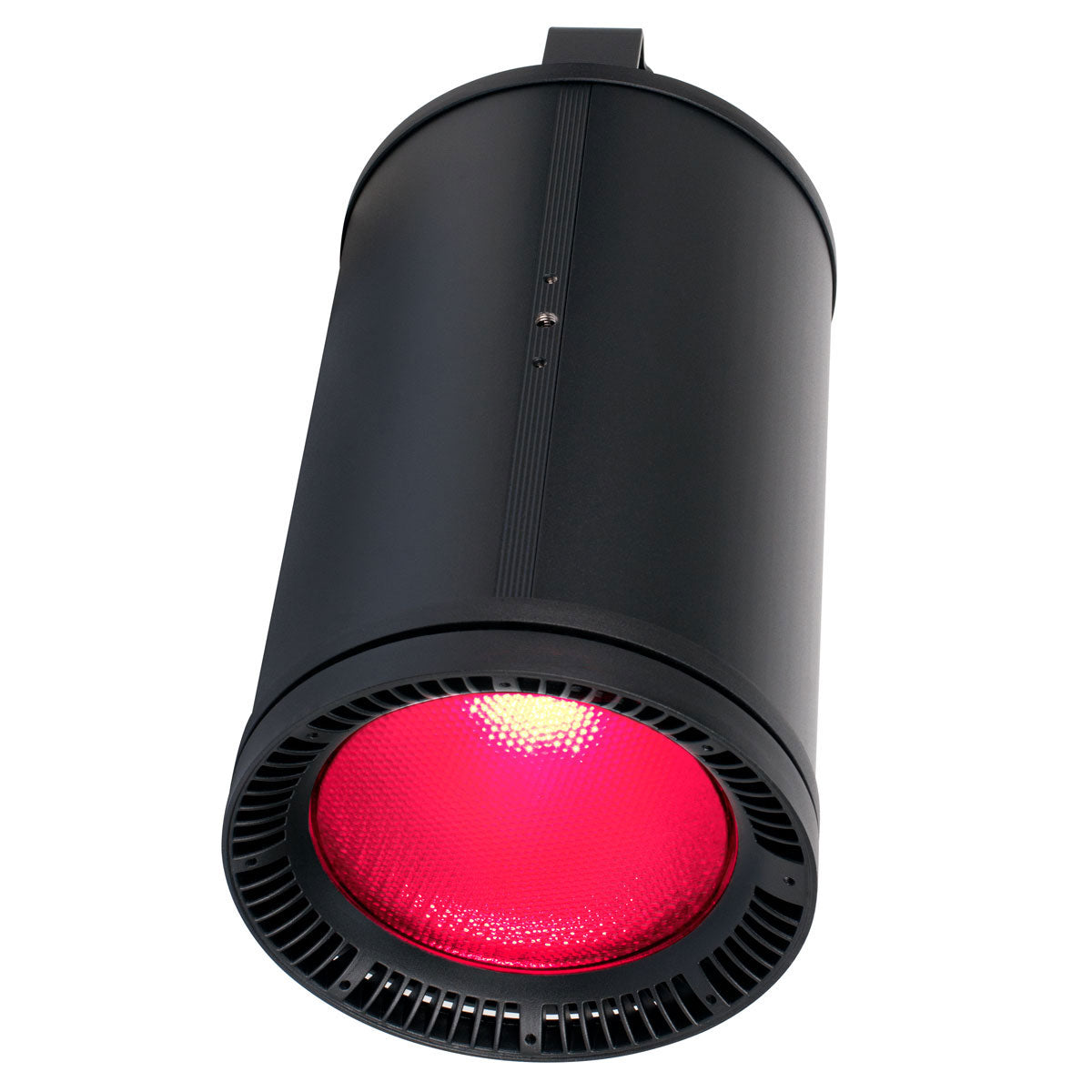

FUZE PENDANT (HW)
230W Full Spectrum RGBWL LED House Light Pendant Fixture, Hardwired for 277V

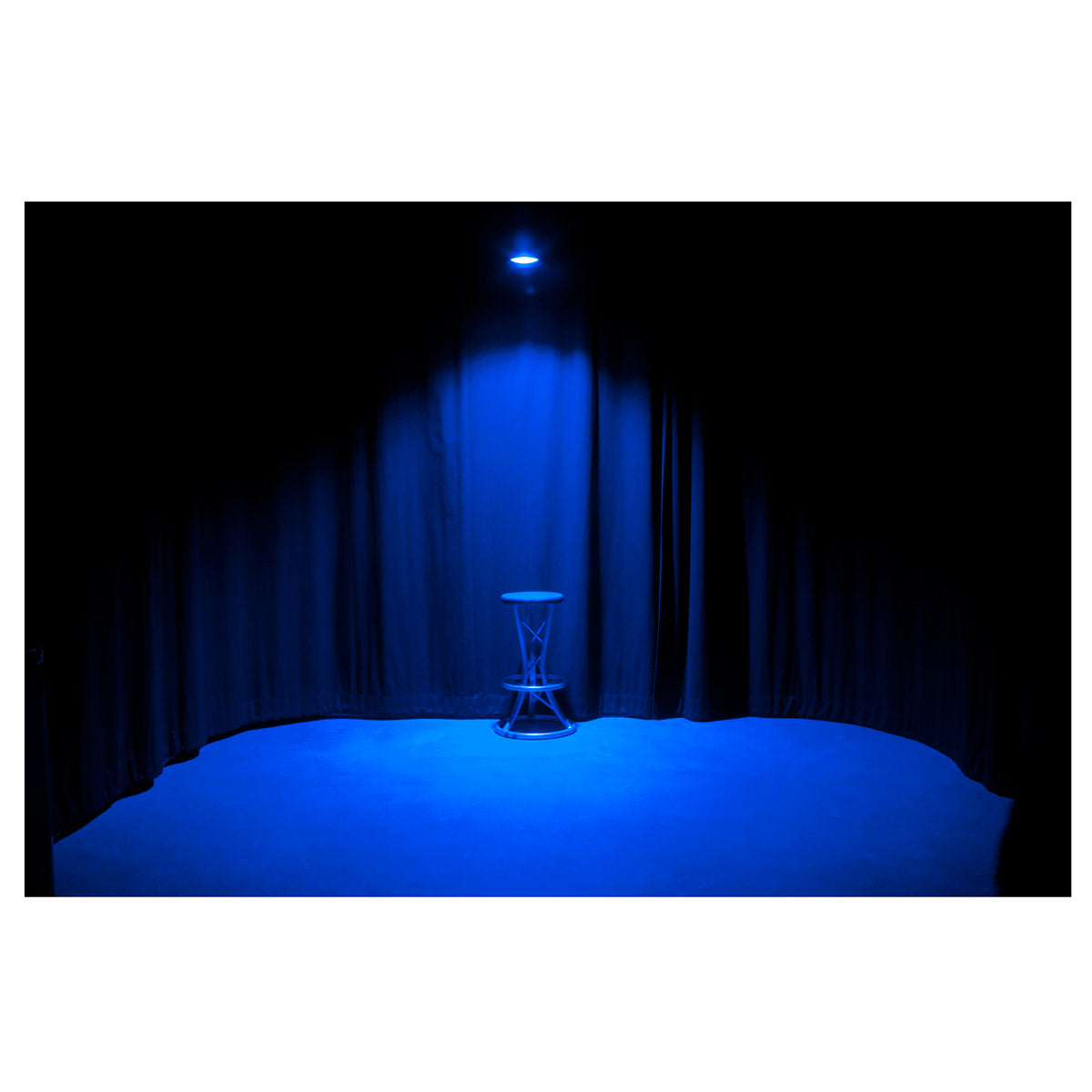

FUZE PENDANT (HW) is a professional-grade lighting solution. The FUZE PENDANT™ (HW) provides powerful illumination for a variety of house and area lighting applications. At up to 11,000 lumens, the FUZE PENDANT (HW) is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces.
Related Products
FUZE PENDANT (HW)

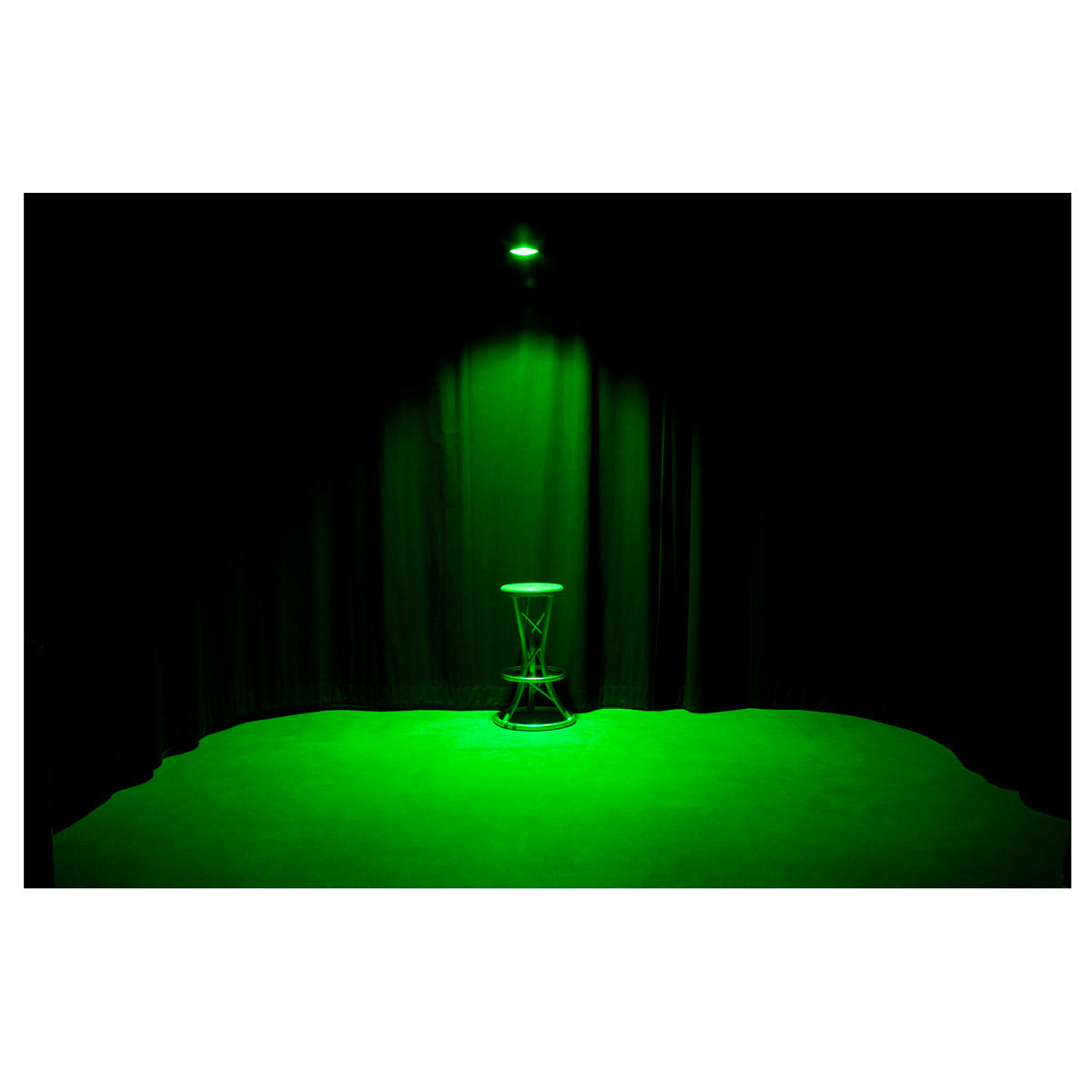

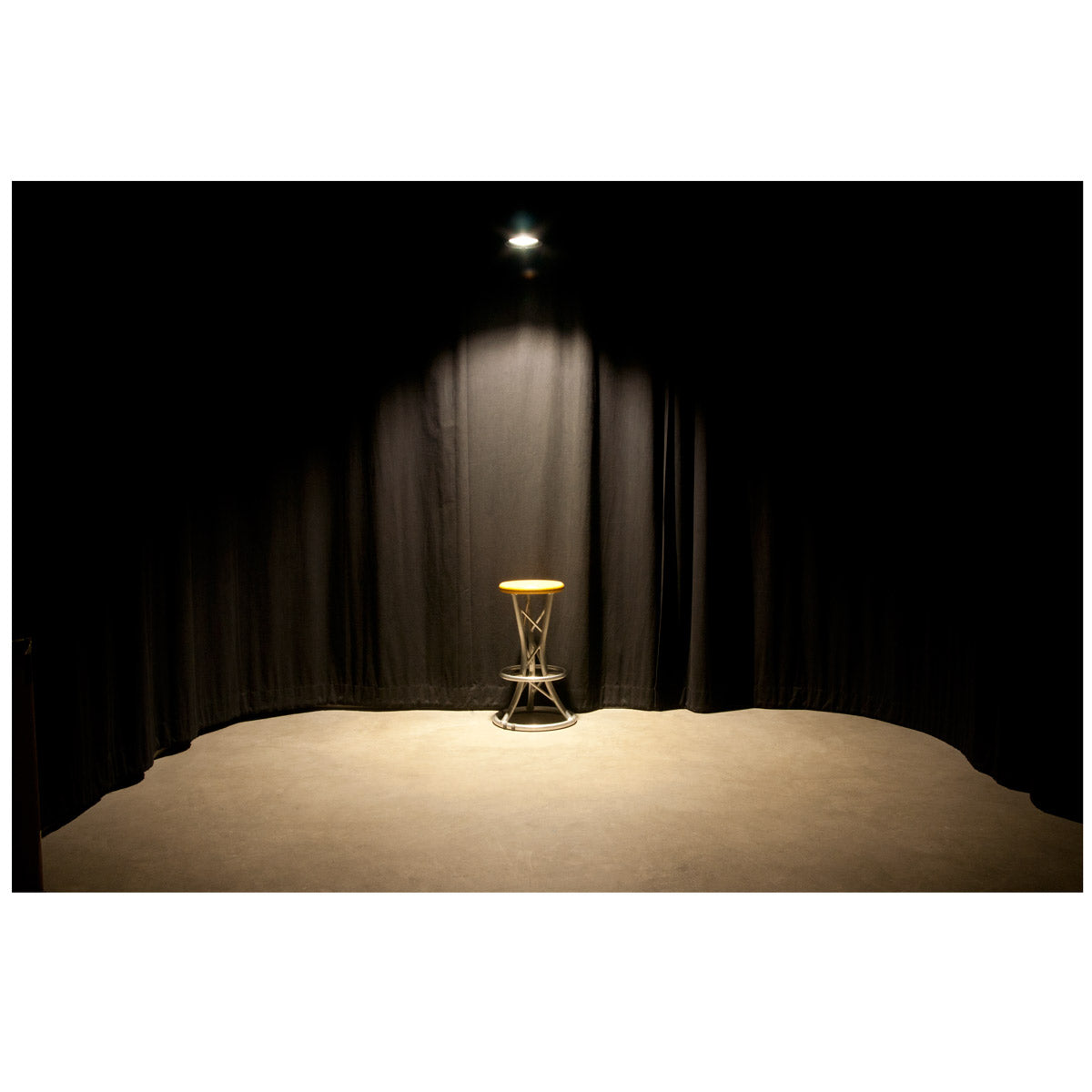

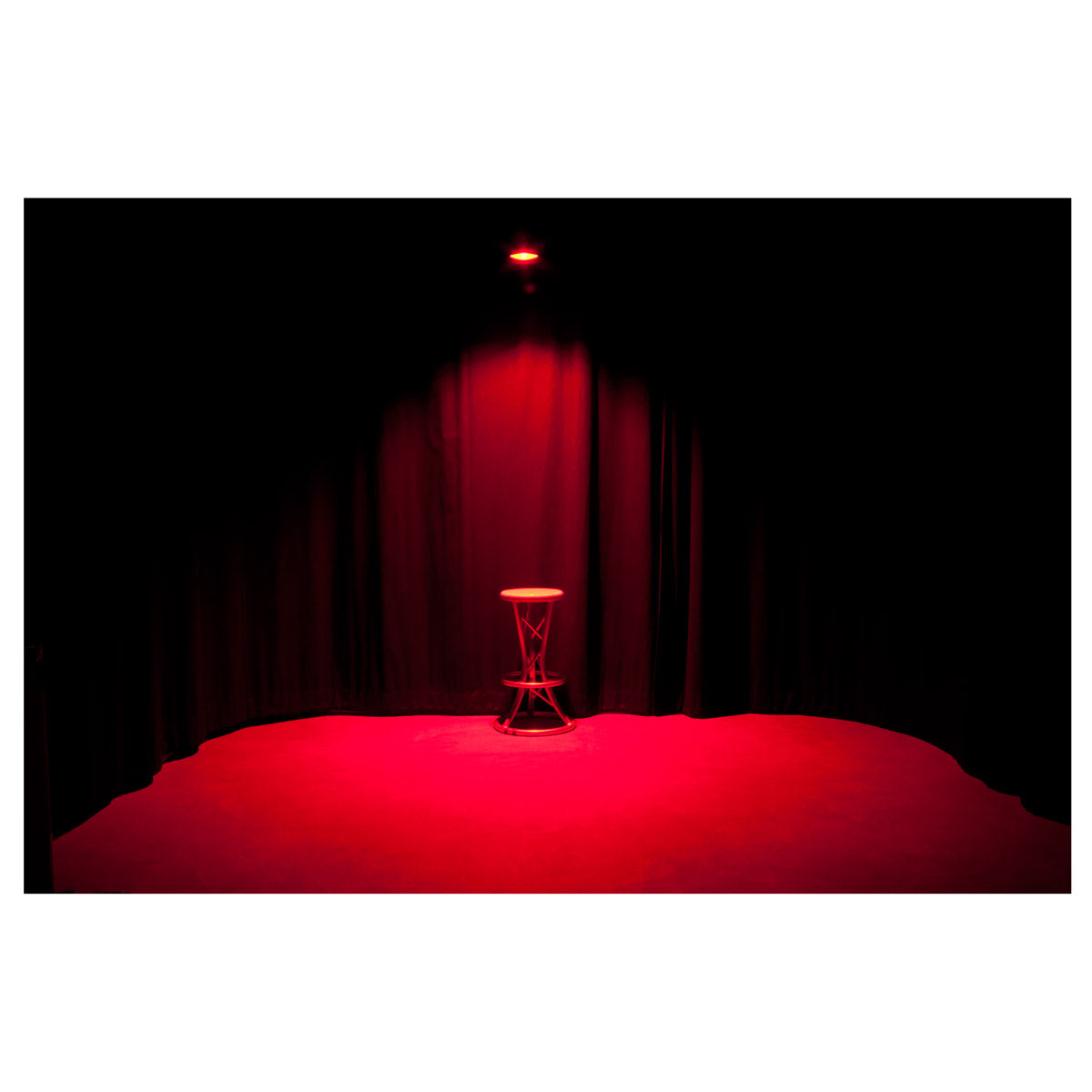

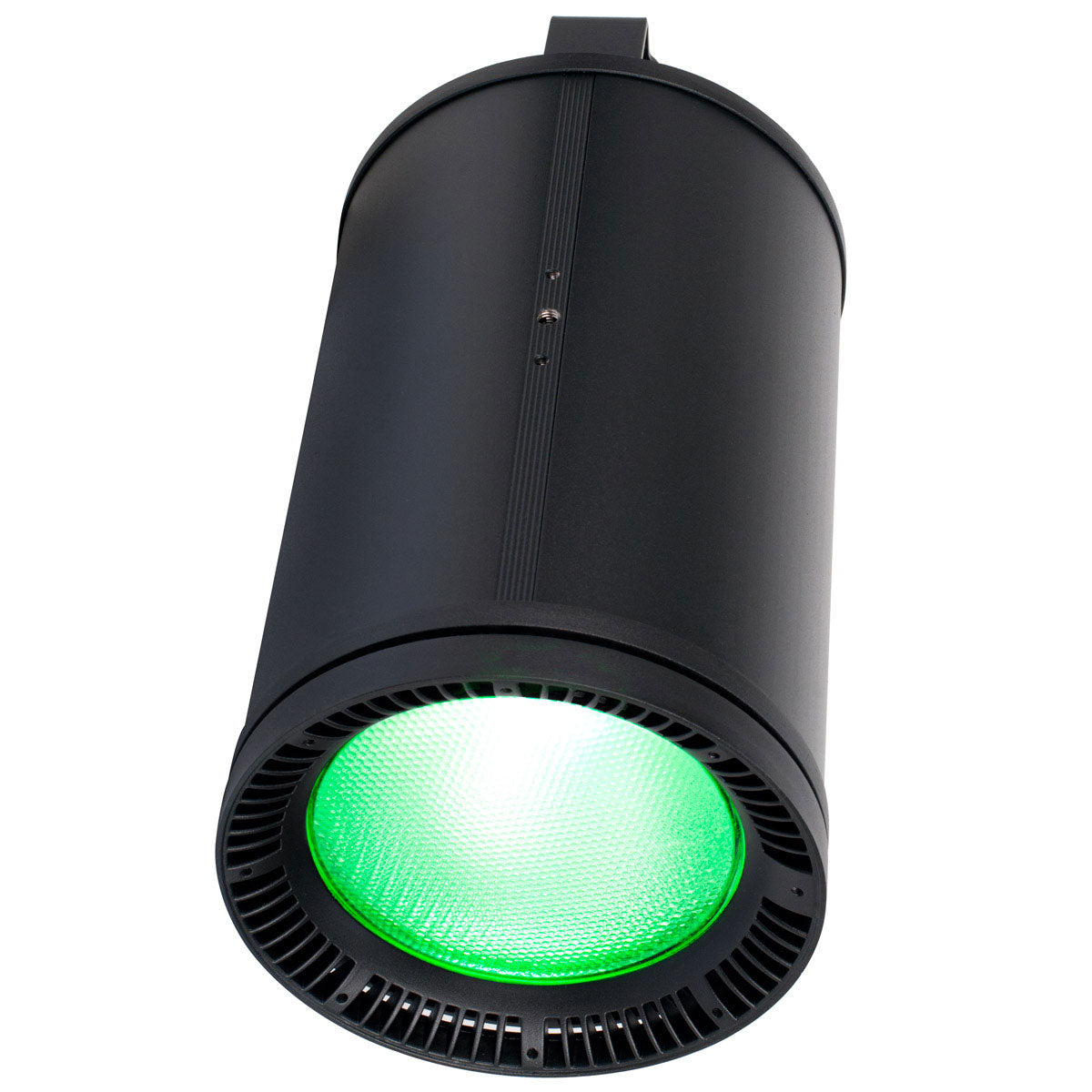

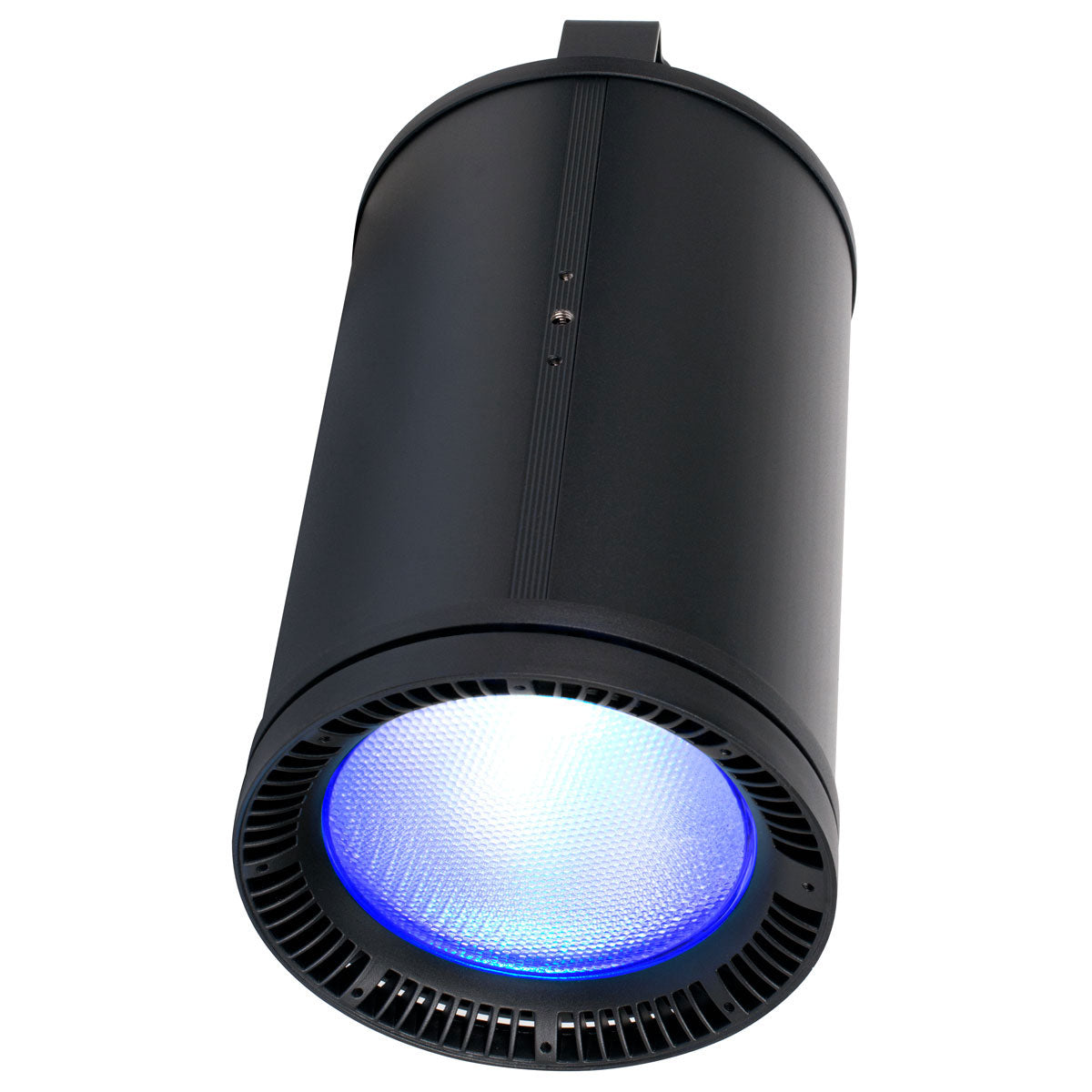

The FUZE PENDANT™ (HW) provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT (HW) is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.
Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50°, 85° or 100° optional) allow for precise light distribution. Hardwired power, industry standard DMX connections, plus included terminal block connections, DMX, emergency battery input and 0-10V control are available to support the fixture for any power systems up to 277V.
- Full Spectrum 230W 5in1 LED Array
- 2400 - 8500K Color Temperature
- CRI 90 @ 3,200K
- 11,000 Total Lumen Fixture Output
- 45° Lens Included
- Optional 25°, 40°, 50°, 85° and 100° Lenses Available
- Compact Fanless Design
- DMX, RDM, 0-10V and E-FLY Wireless Support
- 48V Emergency Battery Input
- Hardwired power input up to 277V

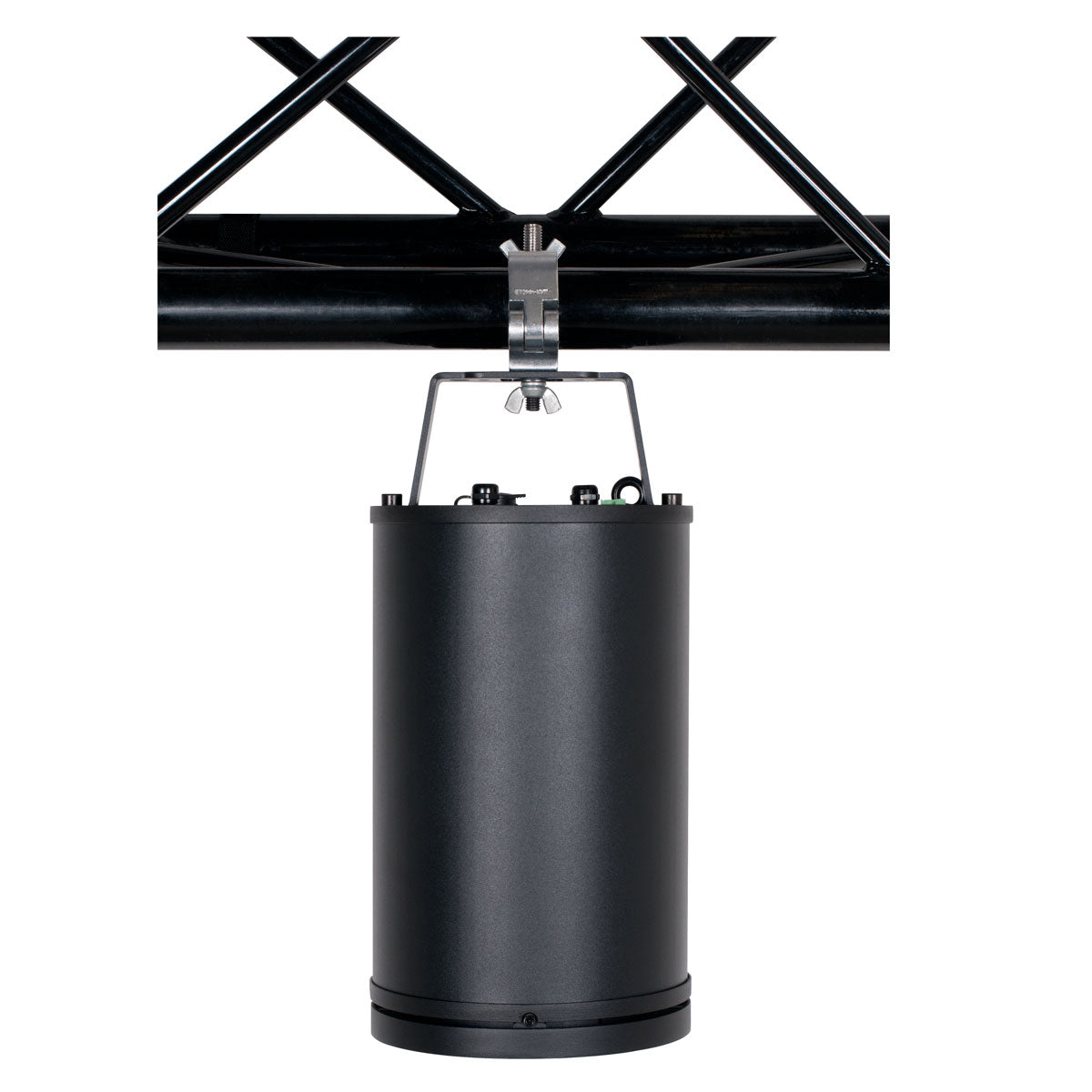

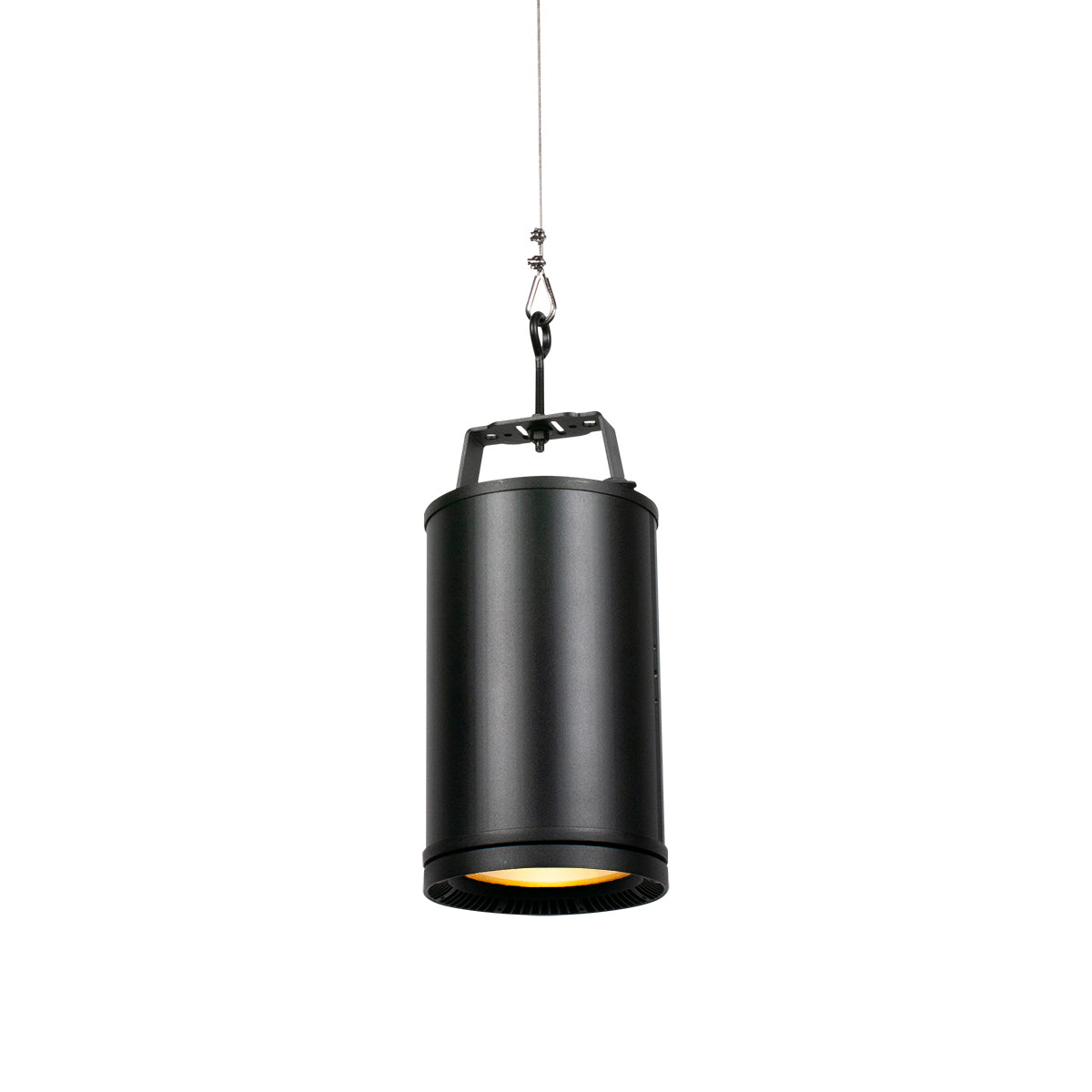

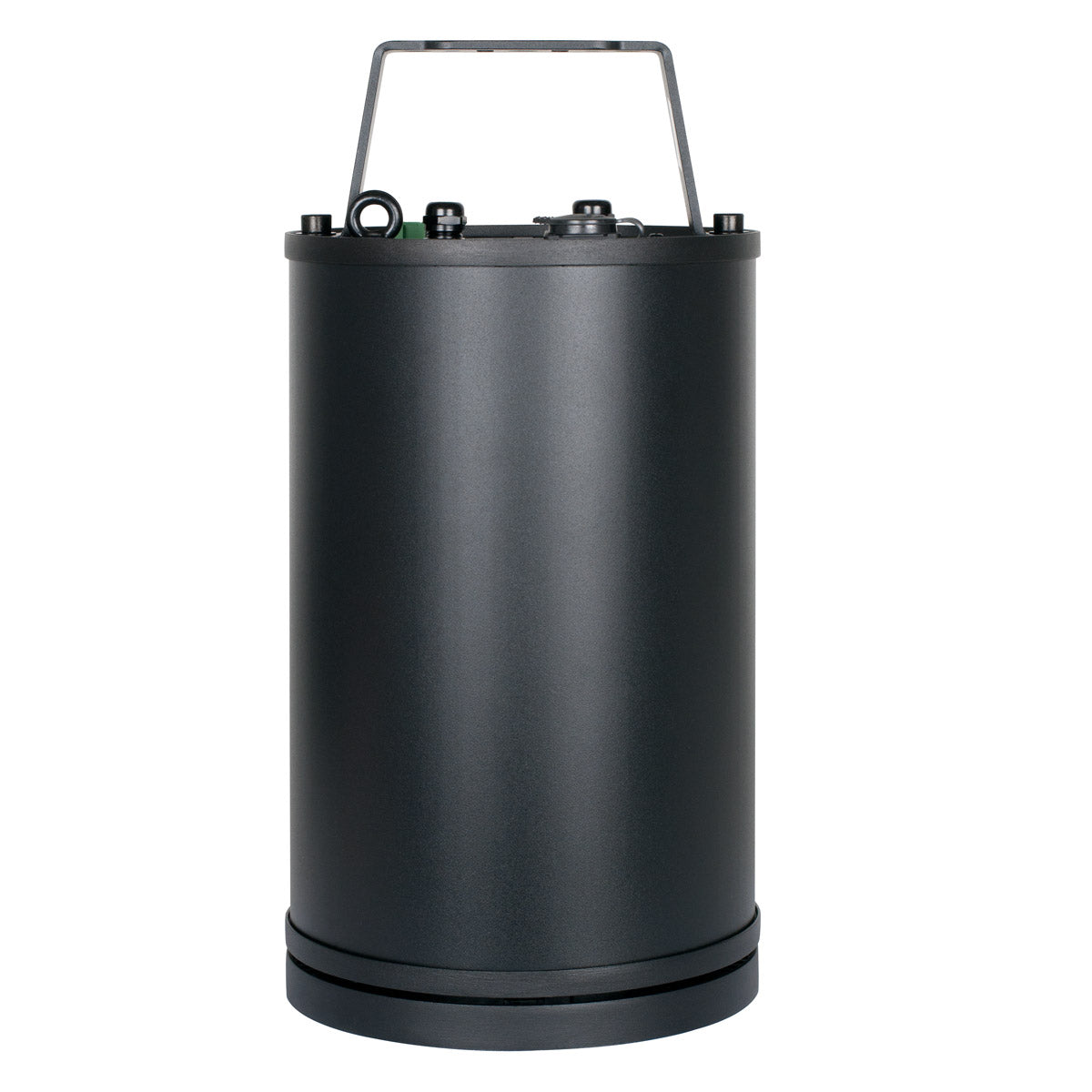

- Pendant Bracket (included)
- Optional Yoke or Recessed Ceiling Mount Kits Available
- Optional Half and Full Snoot Kits Available
Specifications
SOURCE
230W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
11,000 Total Lumen Fixture Output
CRI 90 @ 3,200K
45° Lens Included
EFFECTS
Variable CCT 2400K - 8500K
Virtual Color Swatch Book
Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI HSI Extended Control Options
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX and Menu adjustable LED Refresh Rate Frequency

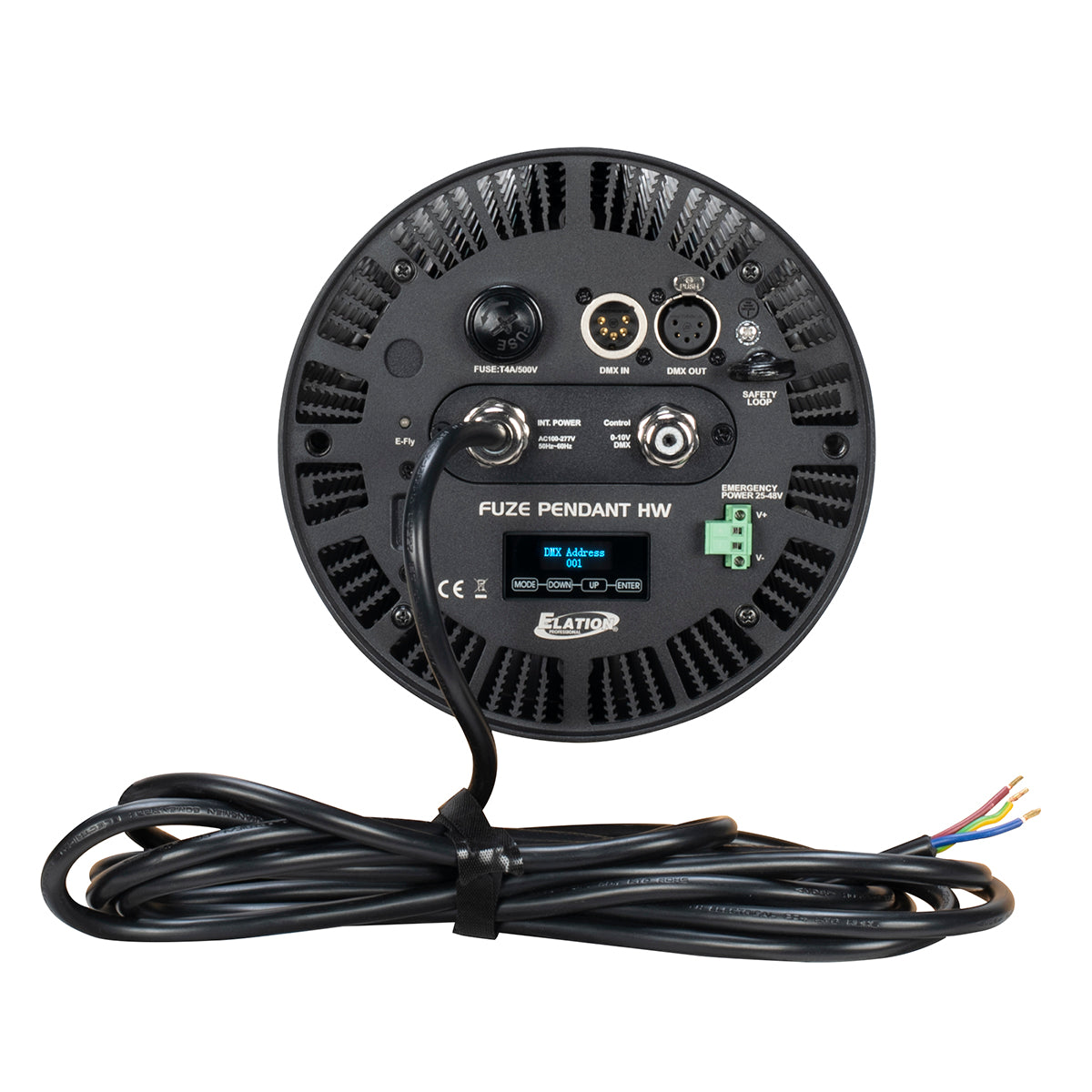

CONTROL / CONNECTIONS
8 DMX Channel Modes
Standalone and Primary, Secondary Modes
RDM (Remote Device Management)
0-10V Dimming (Current-Sink)
E-FLY™ Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and OLED Menu Display
Locking 5pin XLR Connector In/Out
5m Power cable preinstalled (12-24 AWG (4.0 - 0.25 mm2)
5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)
2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)
SIZE / WEIGHT
Length: 12.5" (318mm)
Diameter: 7.8" (197mm)
Weight: 15.8lbs. (7.2 kg)
ELECTRICAL / THERMAL
AC 100-277V - 50/60Hz
Max Power Consumption 230W
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:
FPL25- 25° Lens
FPL40- 40° Lens
FPL50- 50° Lens
FPL100- 100º Lens
FPCMK- Ceiling Mount Kit
FPYMK- Yoke Mount Kit
FPHS- Half Snoot
FPFS- Full Snoot
FIRMWARE UPDATES
Current Version: V1.09
Click HERE for software updates
Specifications and documentation subject to change without notice.
