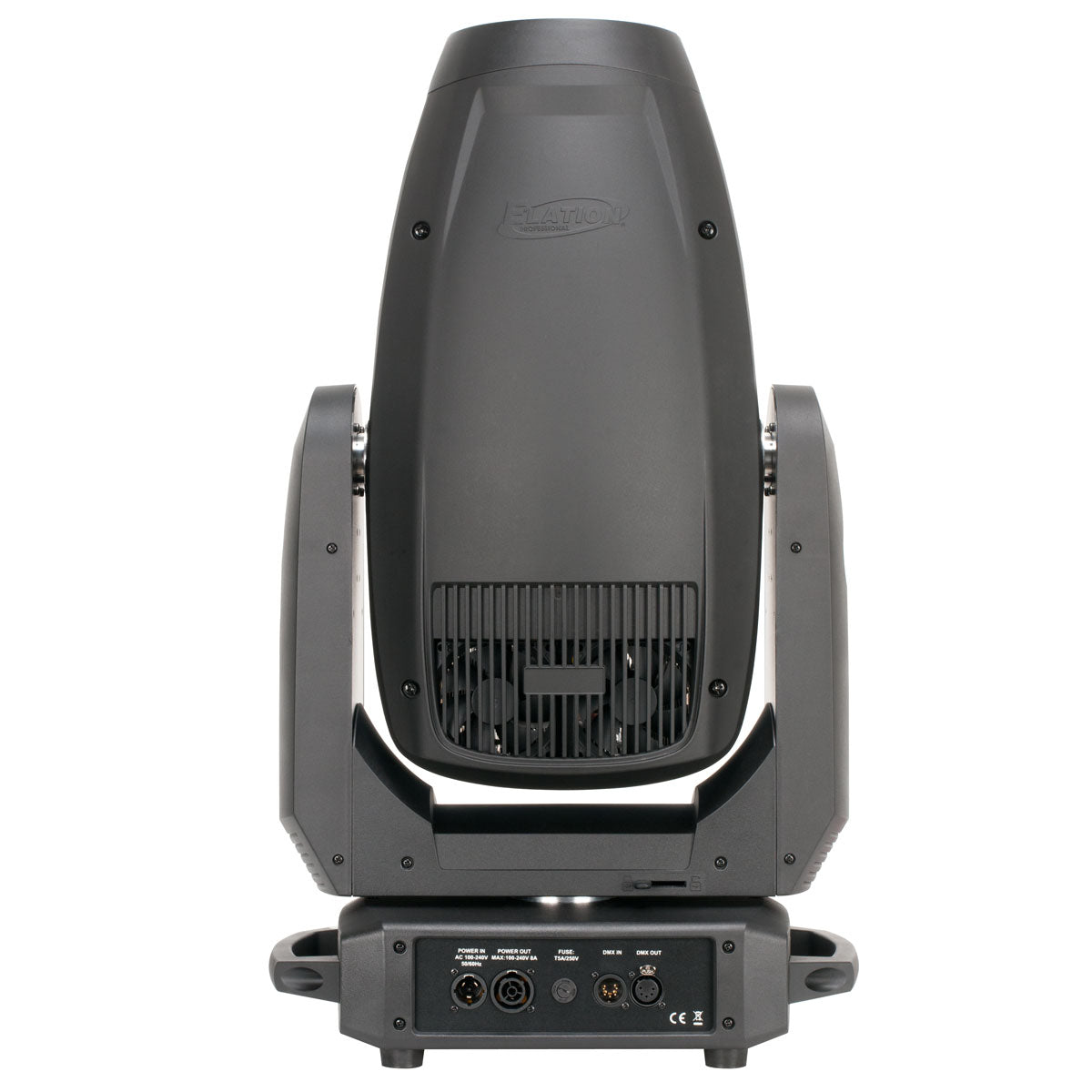

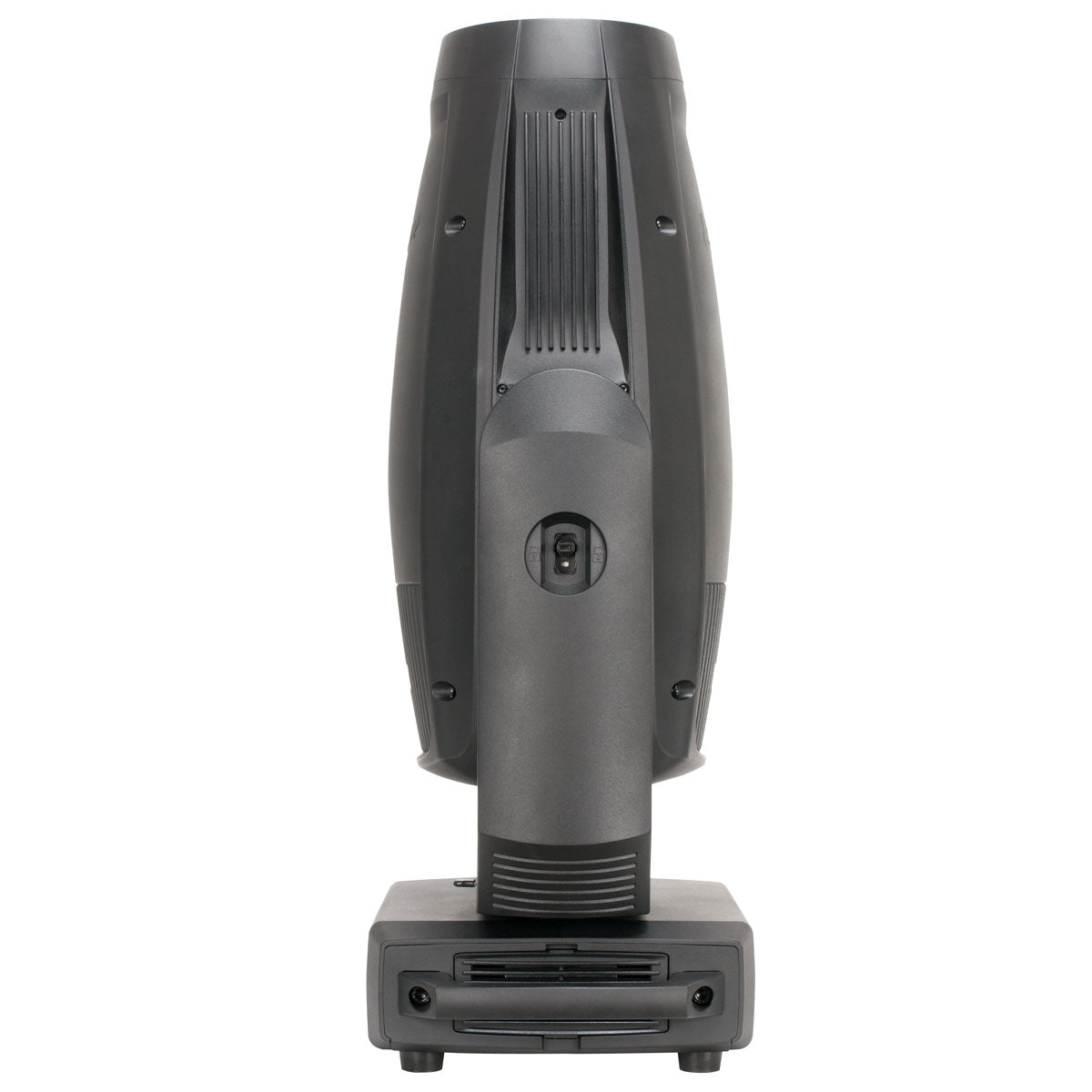

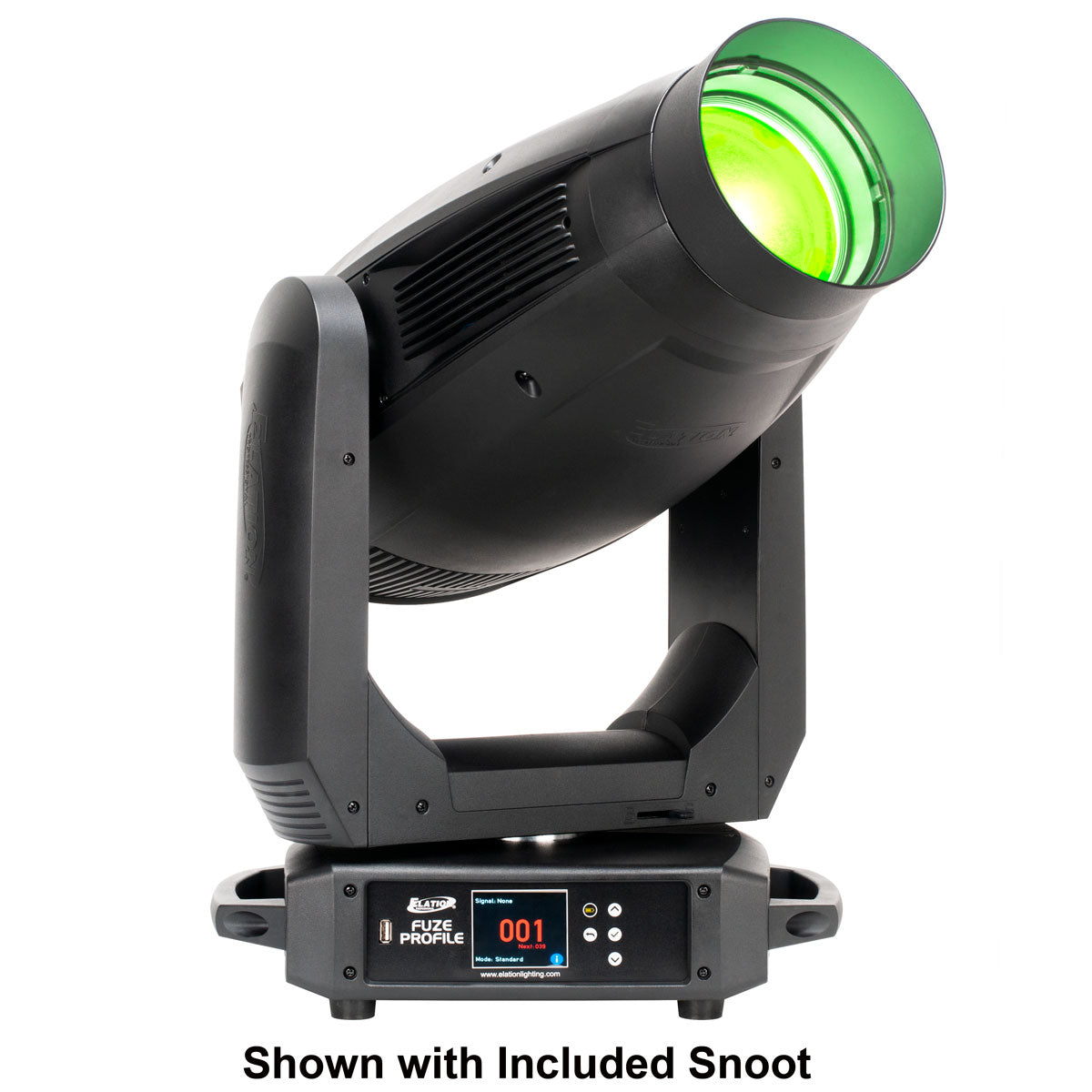

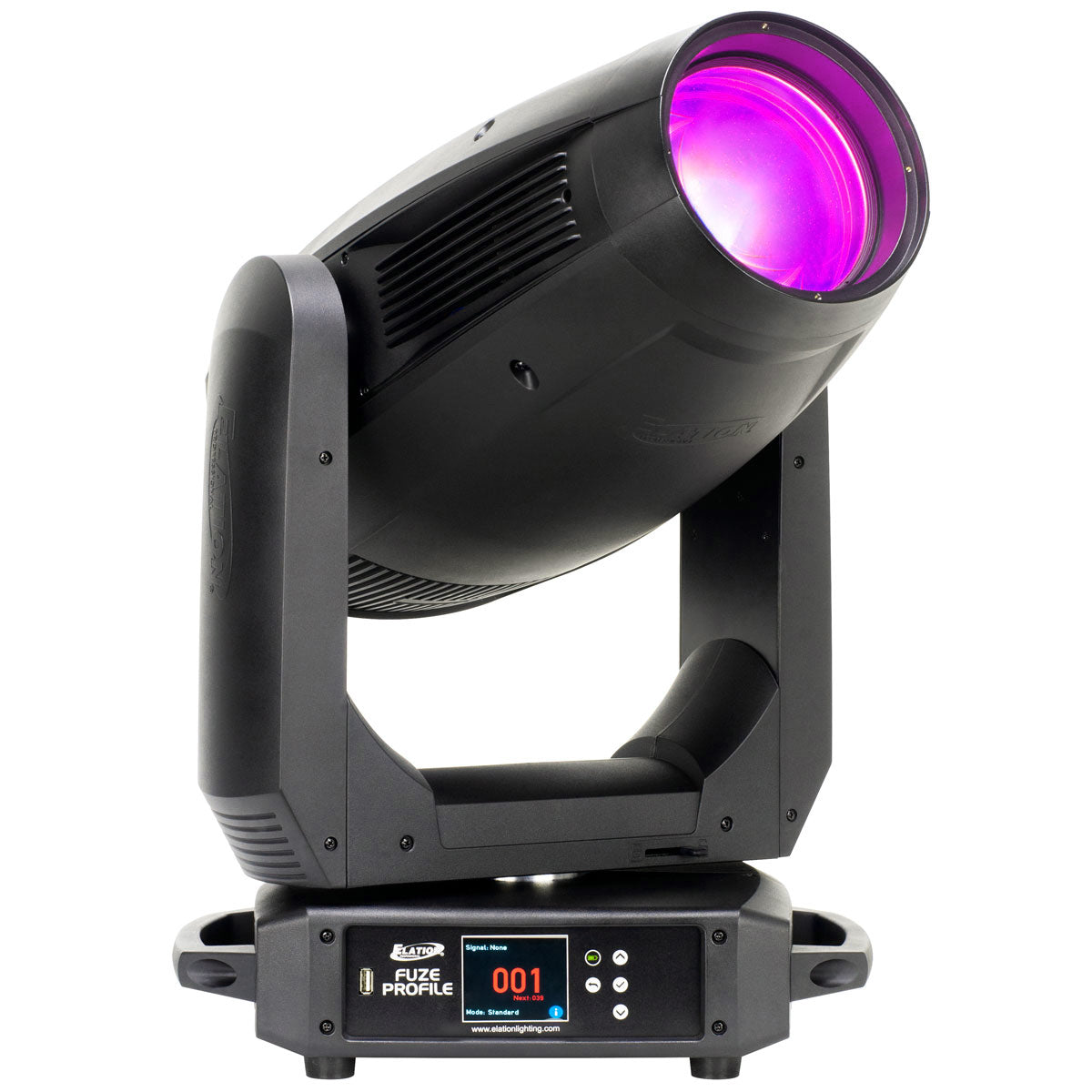

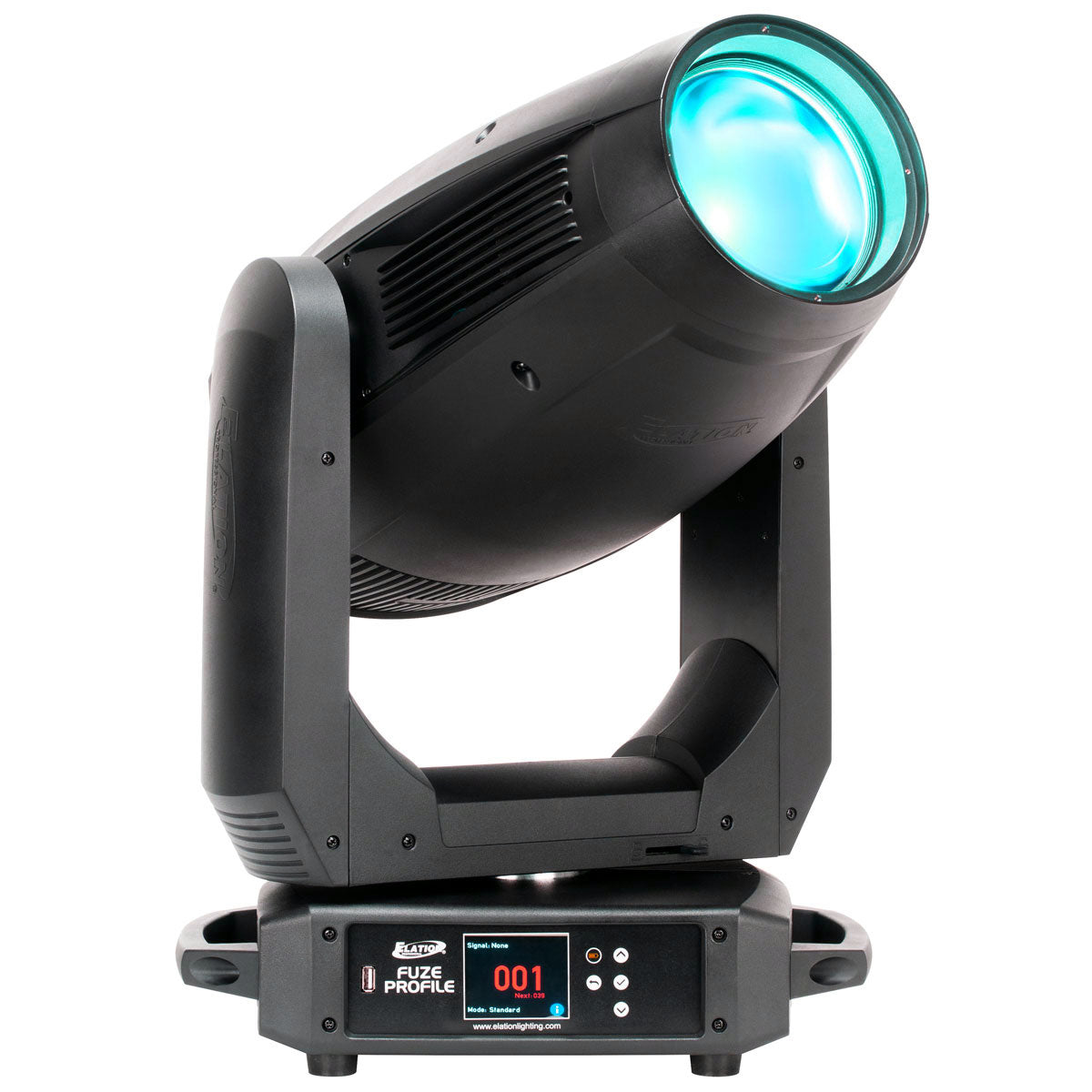

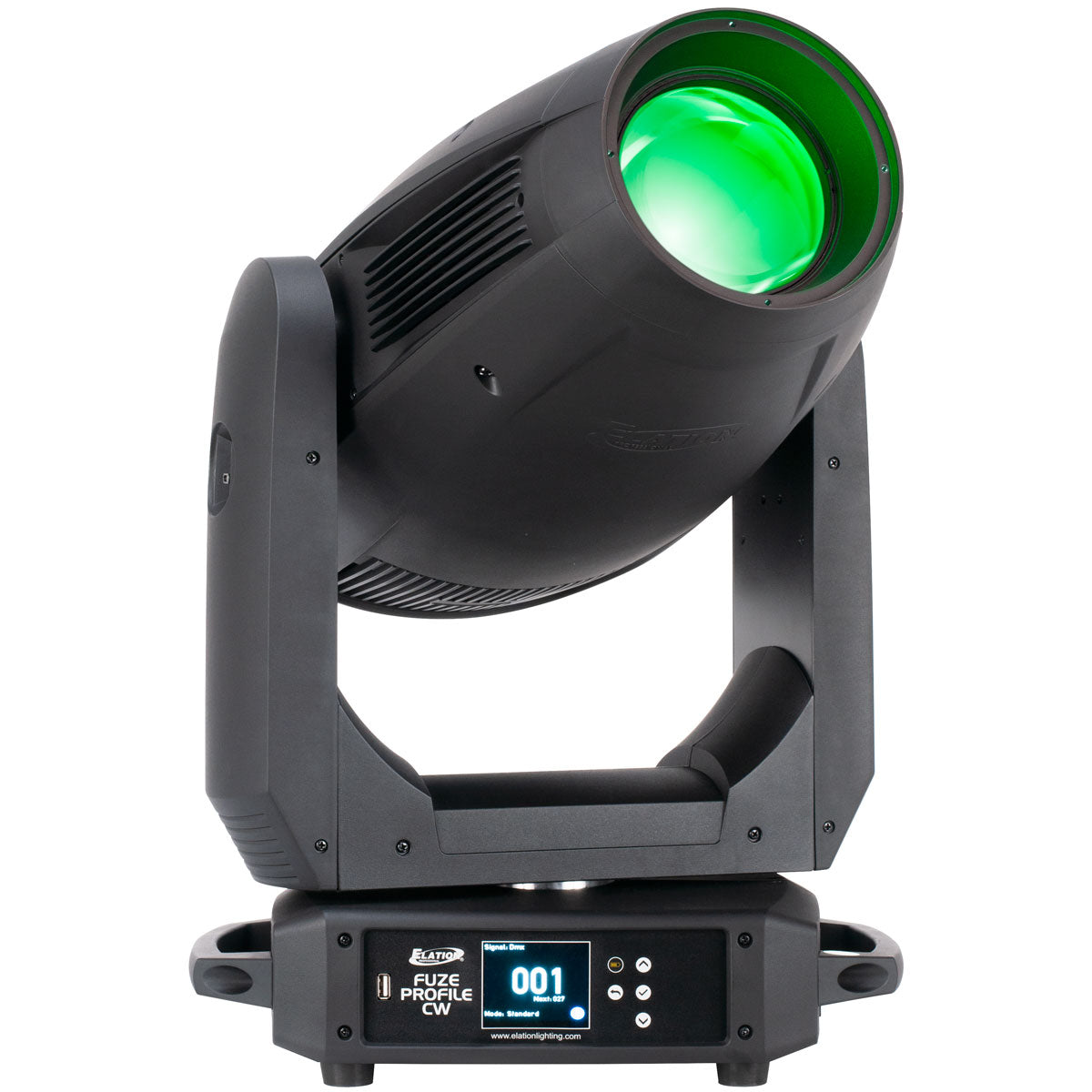

FUZE PROFILE
305W Full Spectrum RGBMA LED Framing Profile Fixture
FUZE PROFILE is a professional-grade lighting solution. The FUZE PROFILE ™ is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The FUZE PROFILE is designed for any application where fully automated ellipsoidal fixture with outstanding and impactful color range and quality is required.

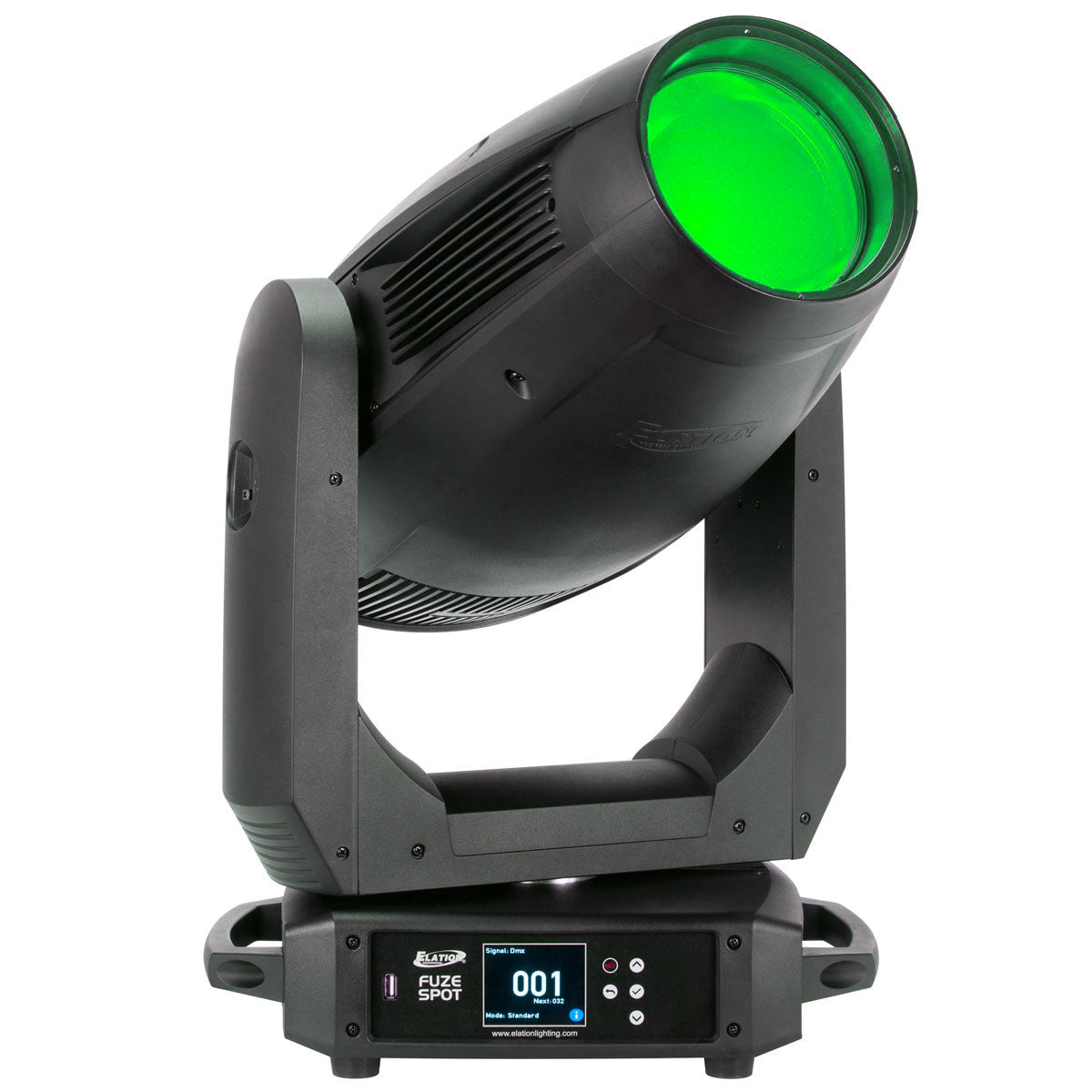

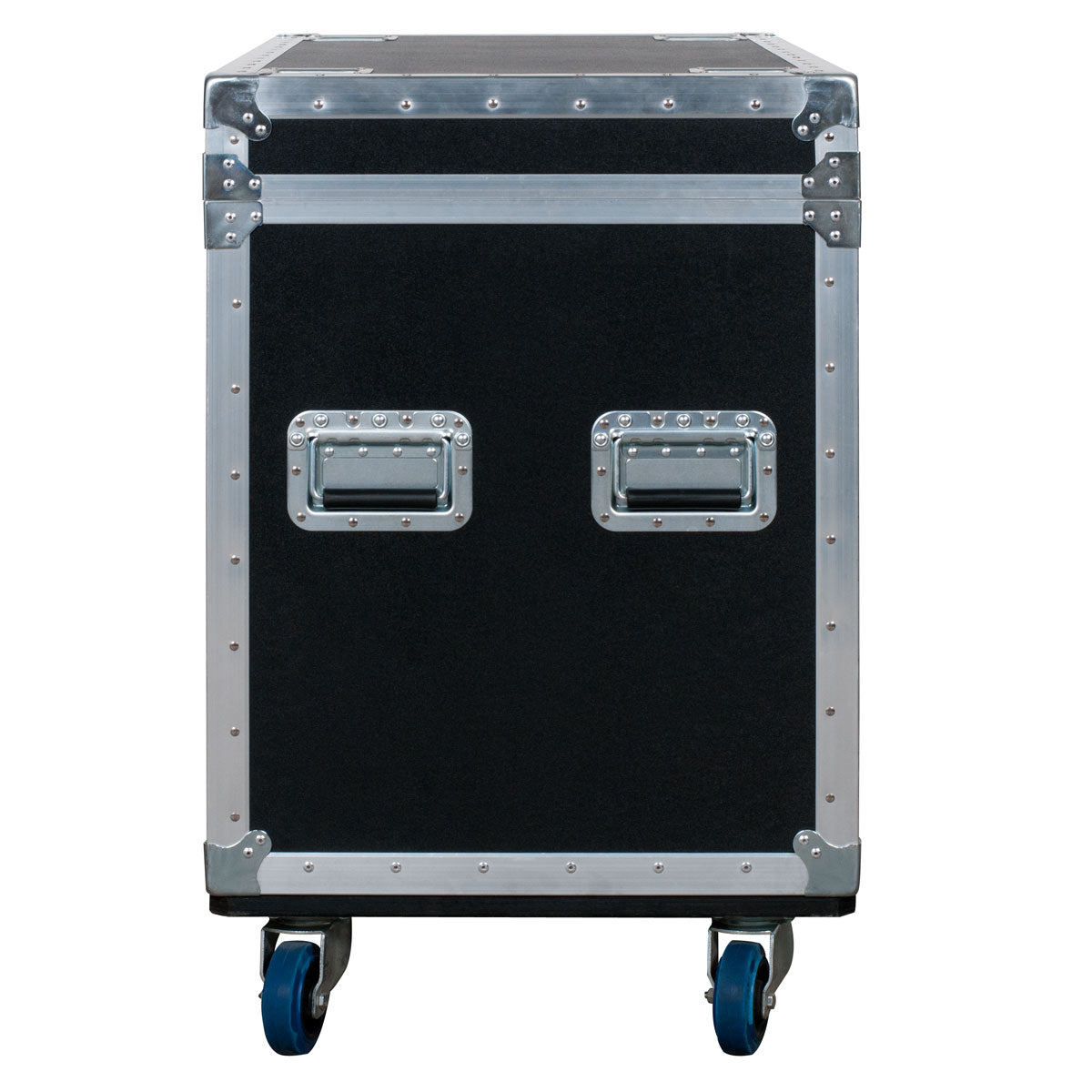

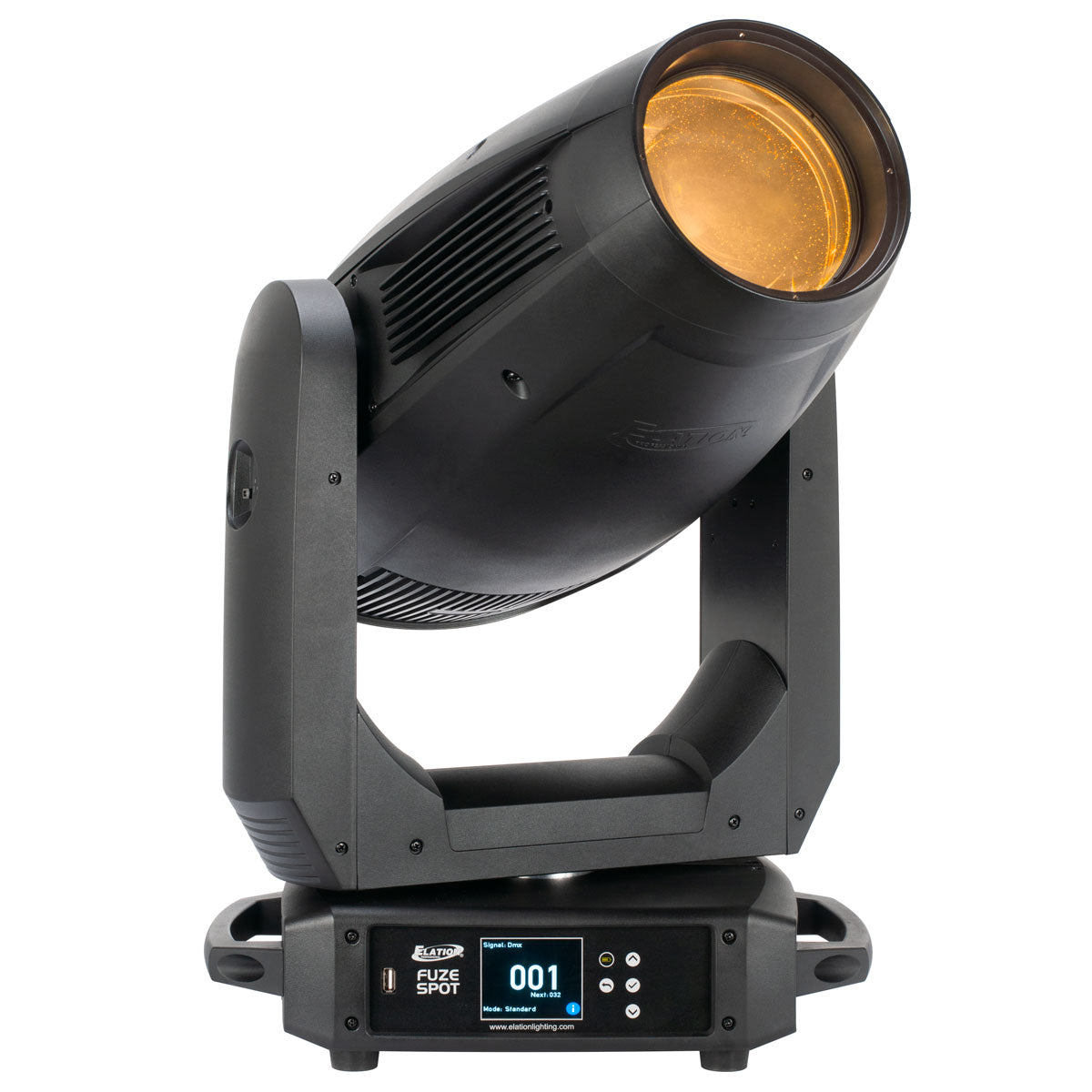

Related Products

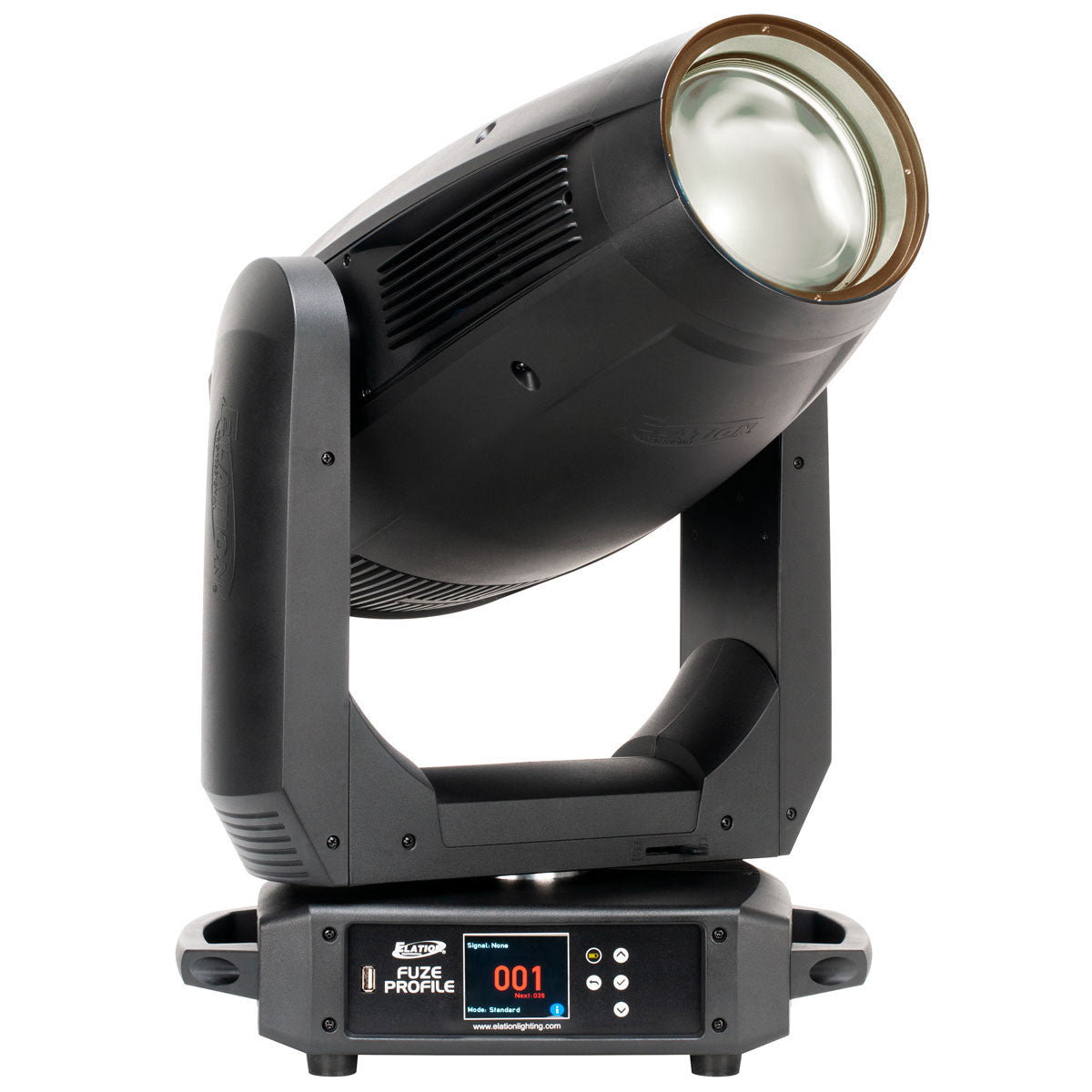

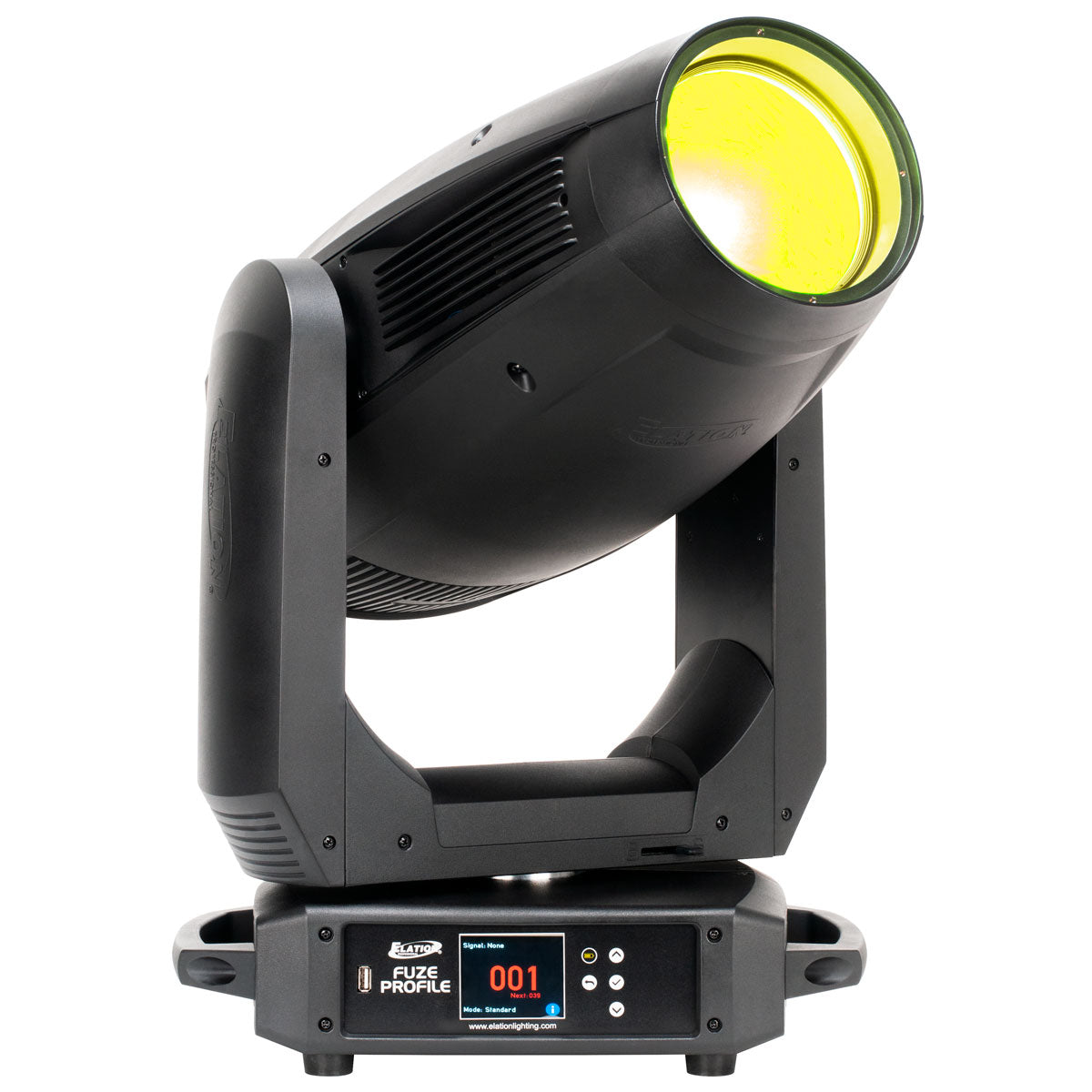

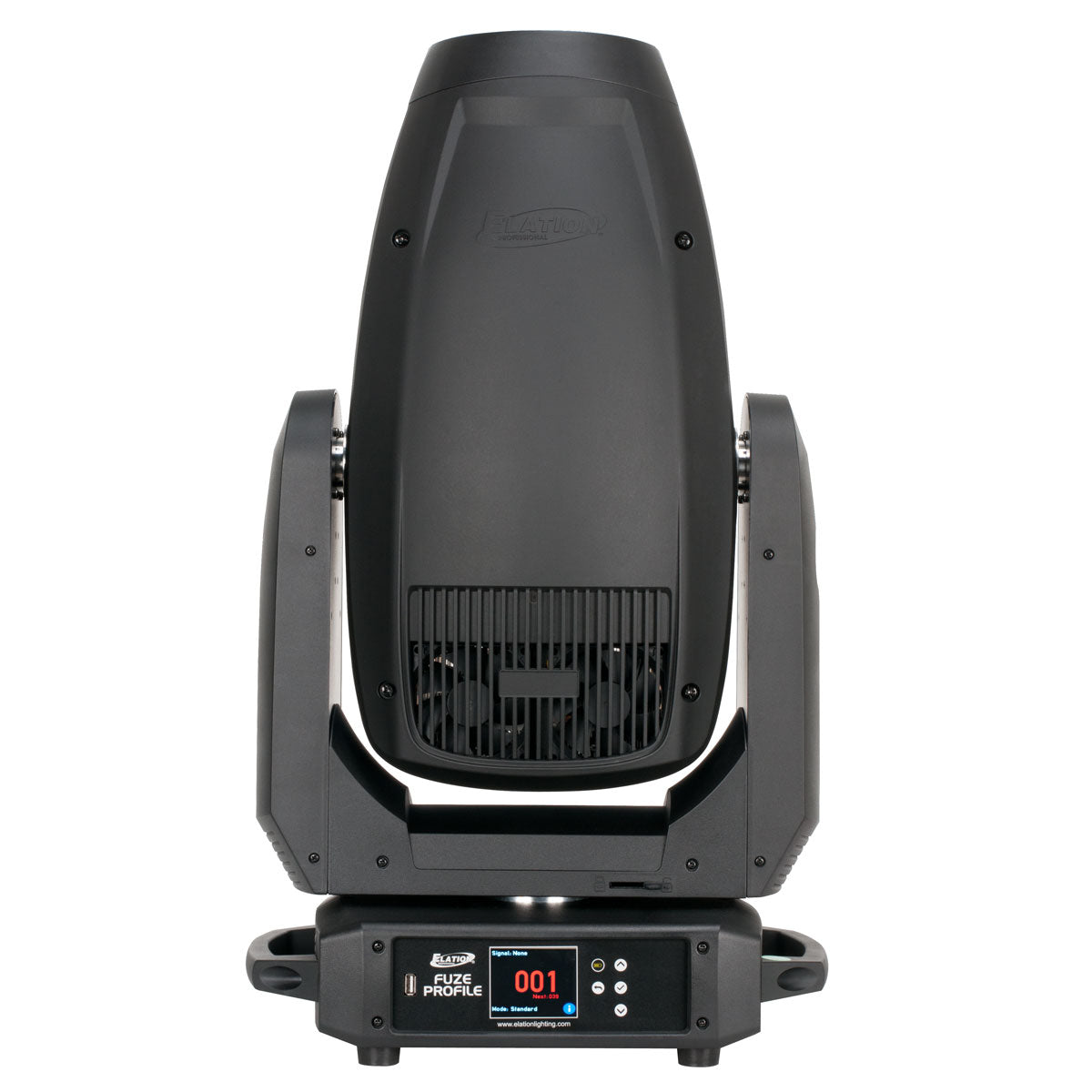

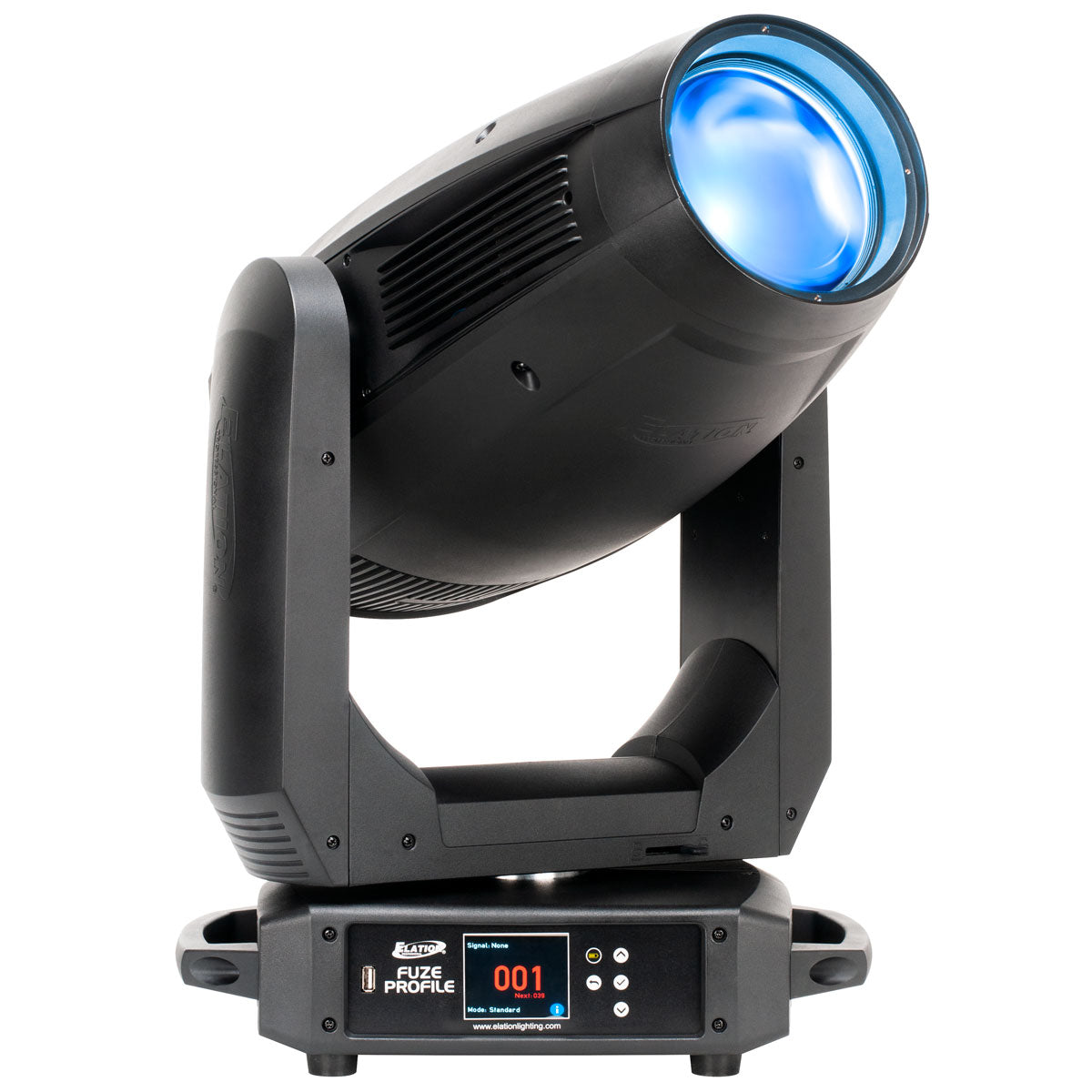

FUZE PROFILE
The FUZE PROFILE ™ is an automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE PROFILE is designed for any application where fully automated ellipsoidal fixture with outstanding and impactful color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.
- Extended color RGBMA LED Engine, 92 CRI
- Rotating and Fixed Gobos plus Animation Wheel
- Full Blackout Framing System
- Iris, Prism, and Frost
- Wide Zoom Range from 7° to 42°
Specifications
SOURCE
305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
PHOTOMETRIC DATA
10,100 Total Lumen Output
CRI 92
Zoom Range 7° - 42°
Beam Angle 7.5° - 39.9°
Field Angle 8.6° - 44.2°
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades, +/- 60 Index
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 270°
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
GOBOS
1x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel
CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement

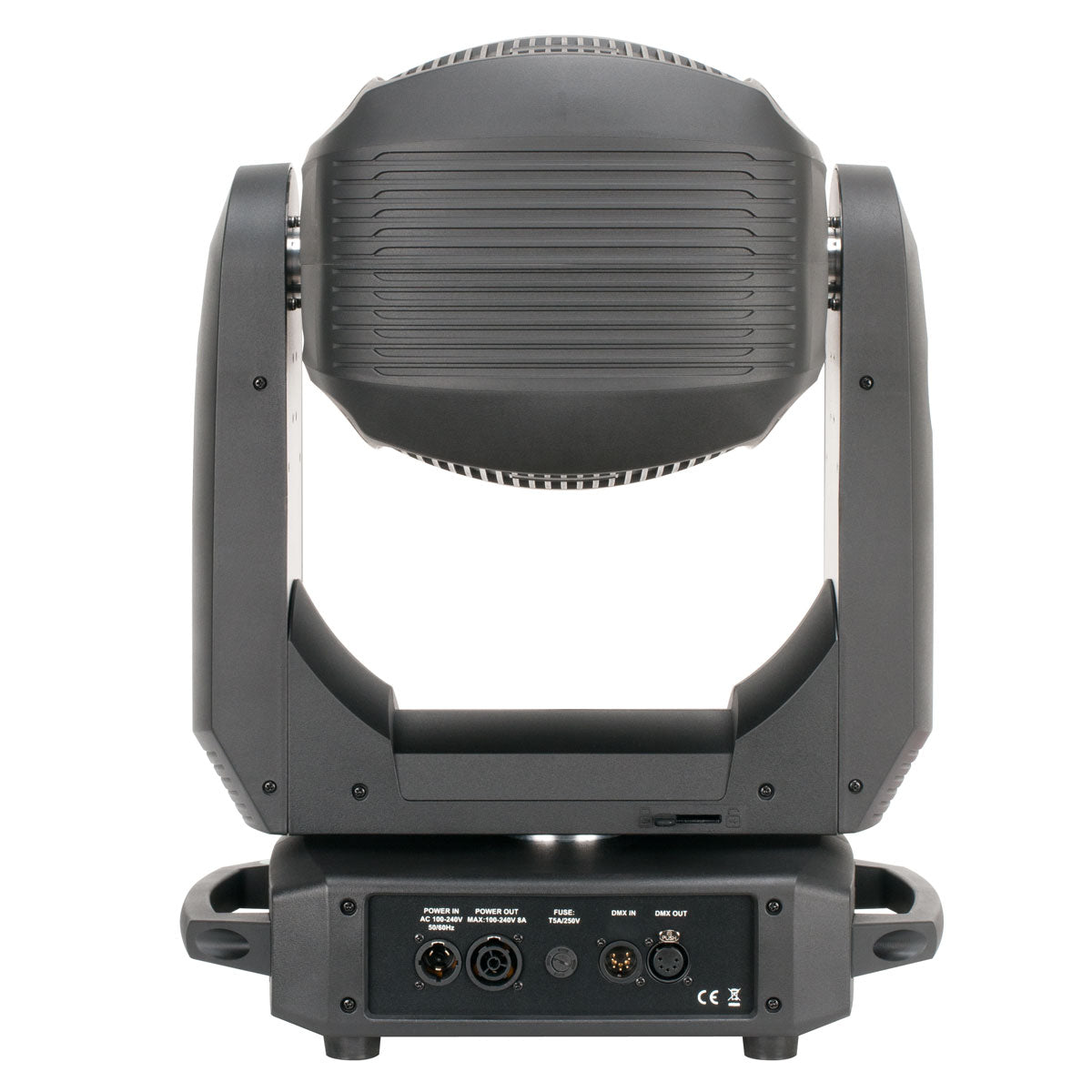

5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.0” (407mm)
Width: 10.1" (256mm)
Vertical Height: 27.4" (698mm)
Weight: 55.1 lbs. (25kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
540W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 1841
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.0.15
Click HERE for software updates
Downloads
Cad drawing
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
Generic
How do they compare?
Find the option that is right for you and your production.
10100
12135
15000
305W
300W
400W
7° - 42°
4.5° - 38°
3° - 53°
7.5° - 39.9°
4.6° - 38.2°
20
20
20
55.1 lbs
45.9 lbs
50.0 lbs
540W
432W
600W
16 x 10.1 x 27.4
14.3 x 9.2 x 23.4
14.3 x 9.2 x 25.14
