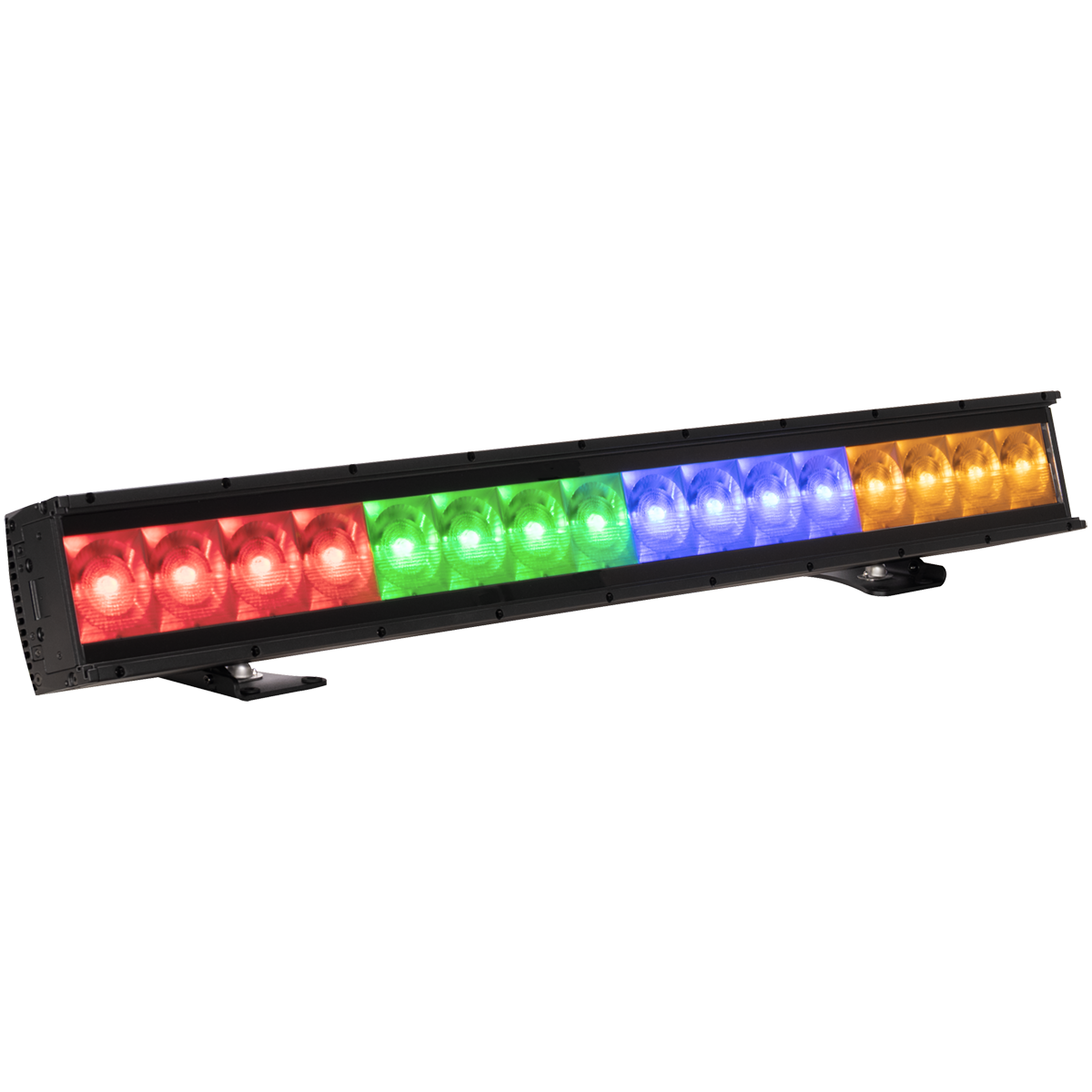

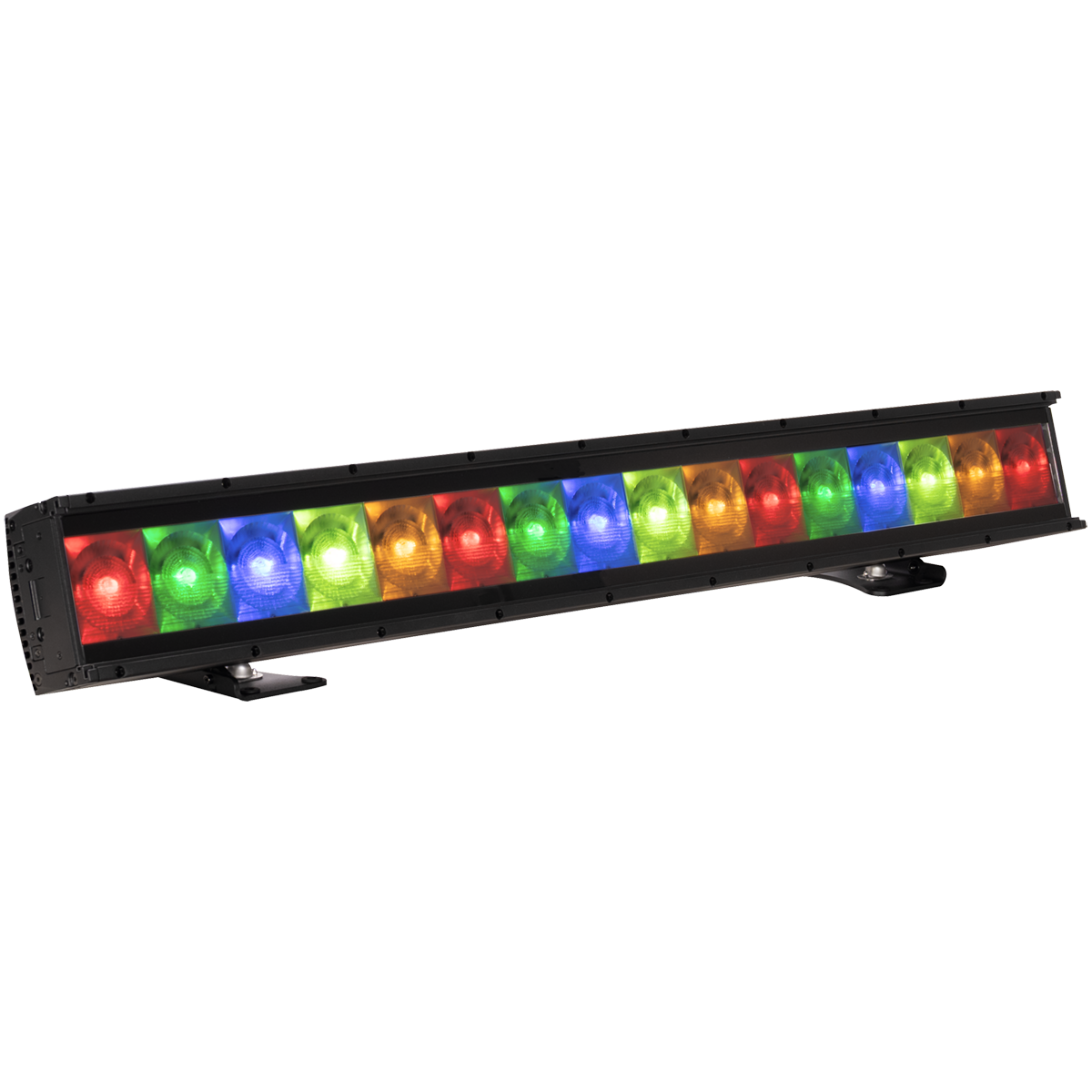

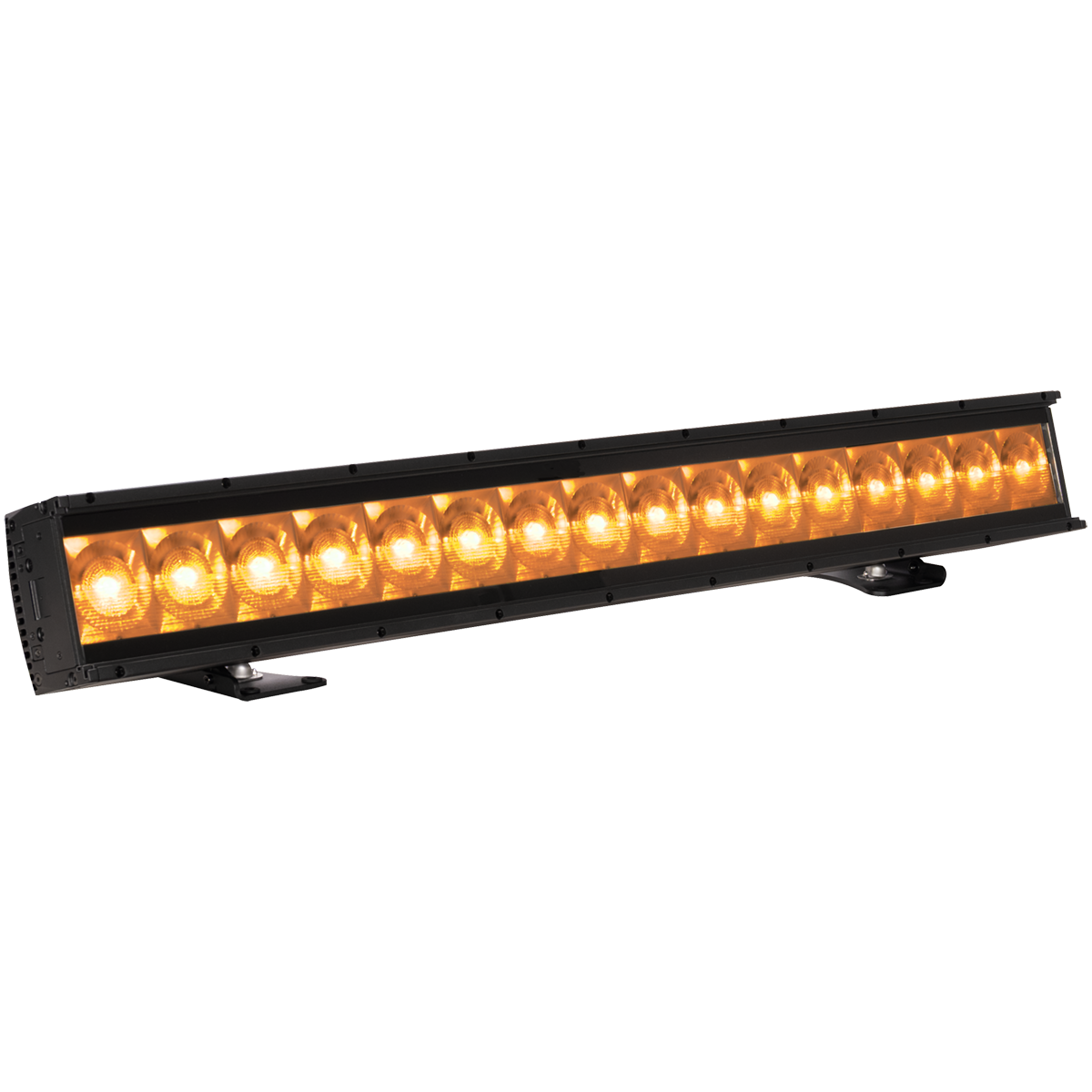

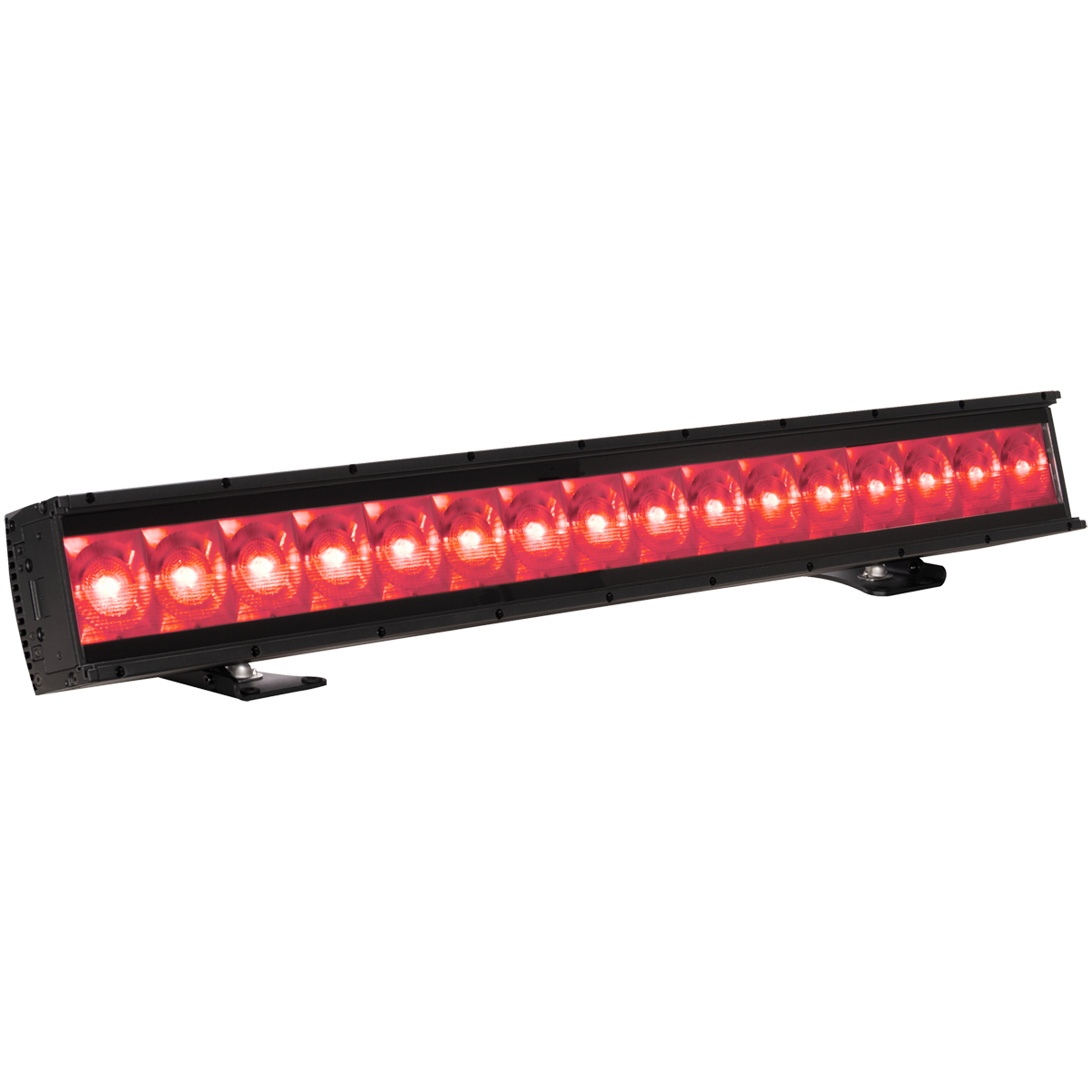

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 46,500 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio.

UPC: 810008266267SKU: KLB248

Replaced By

Related Products

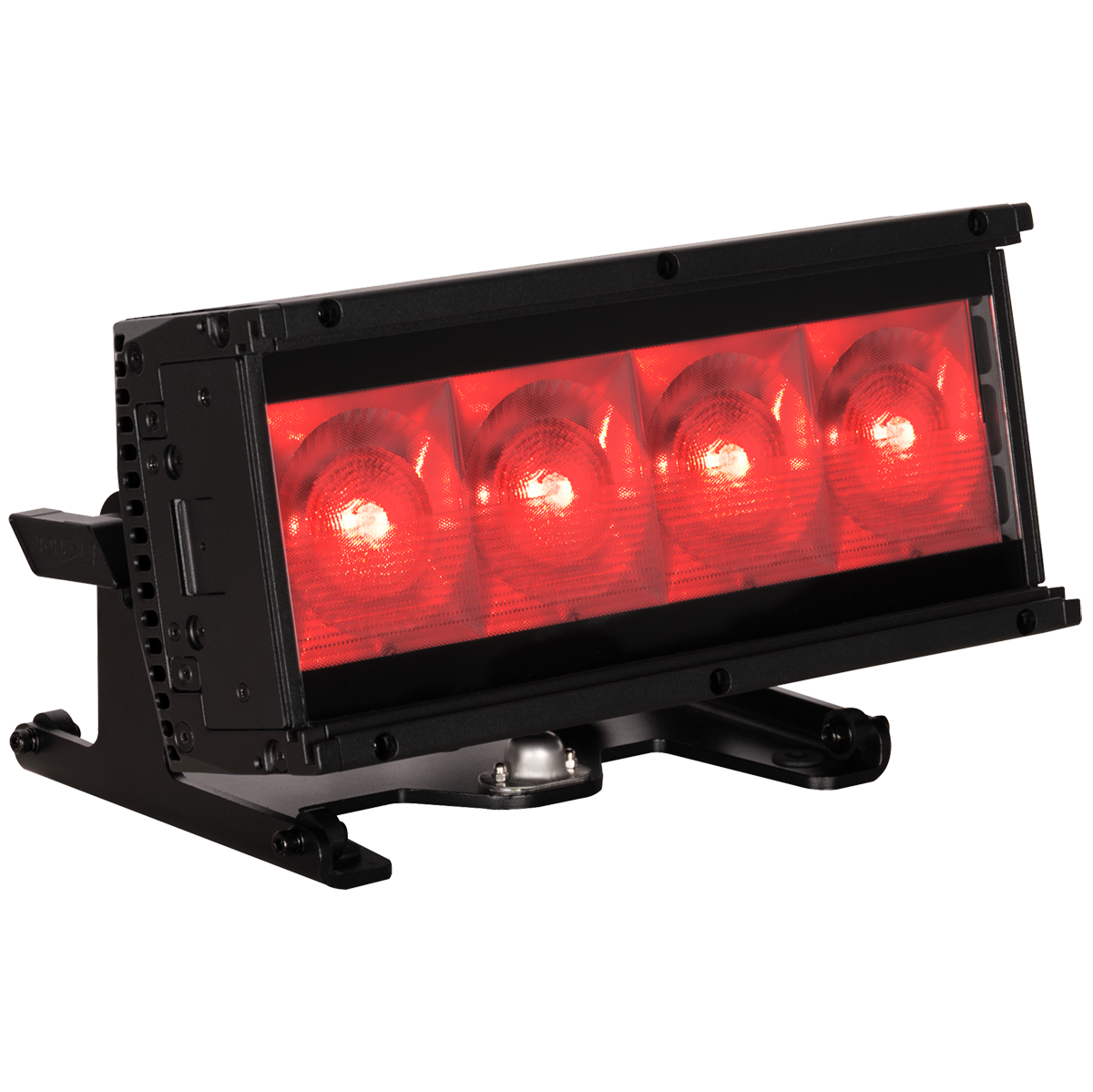

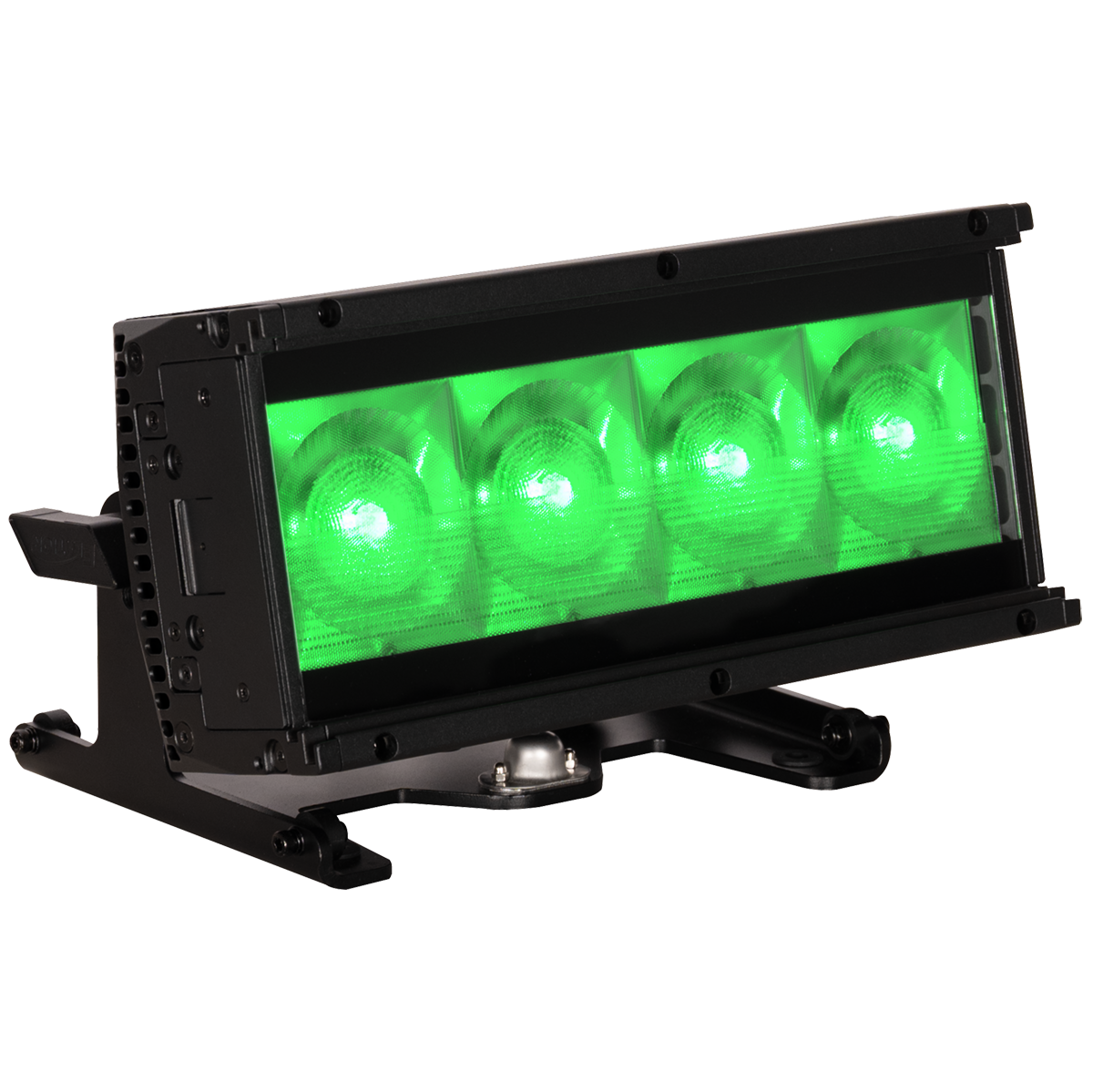

KL Batten 12KL Batten 12
KL Batten 12

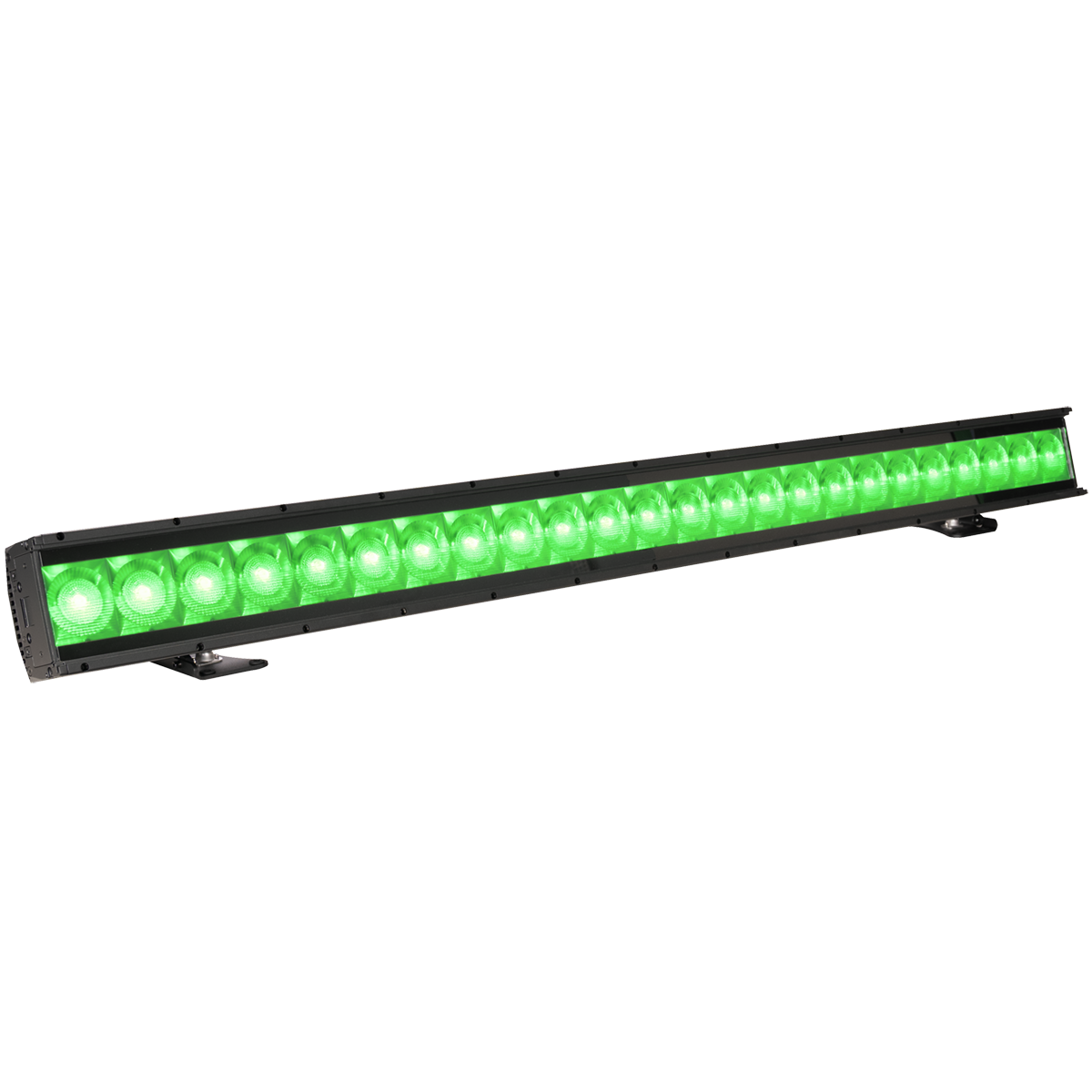

KL BATTEN 72KL BATTEN 72
KL BATTEN 72

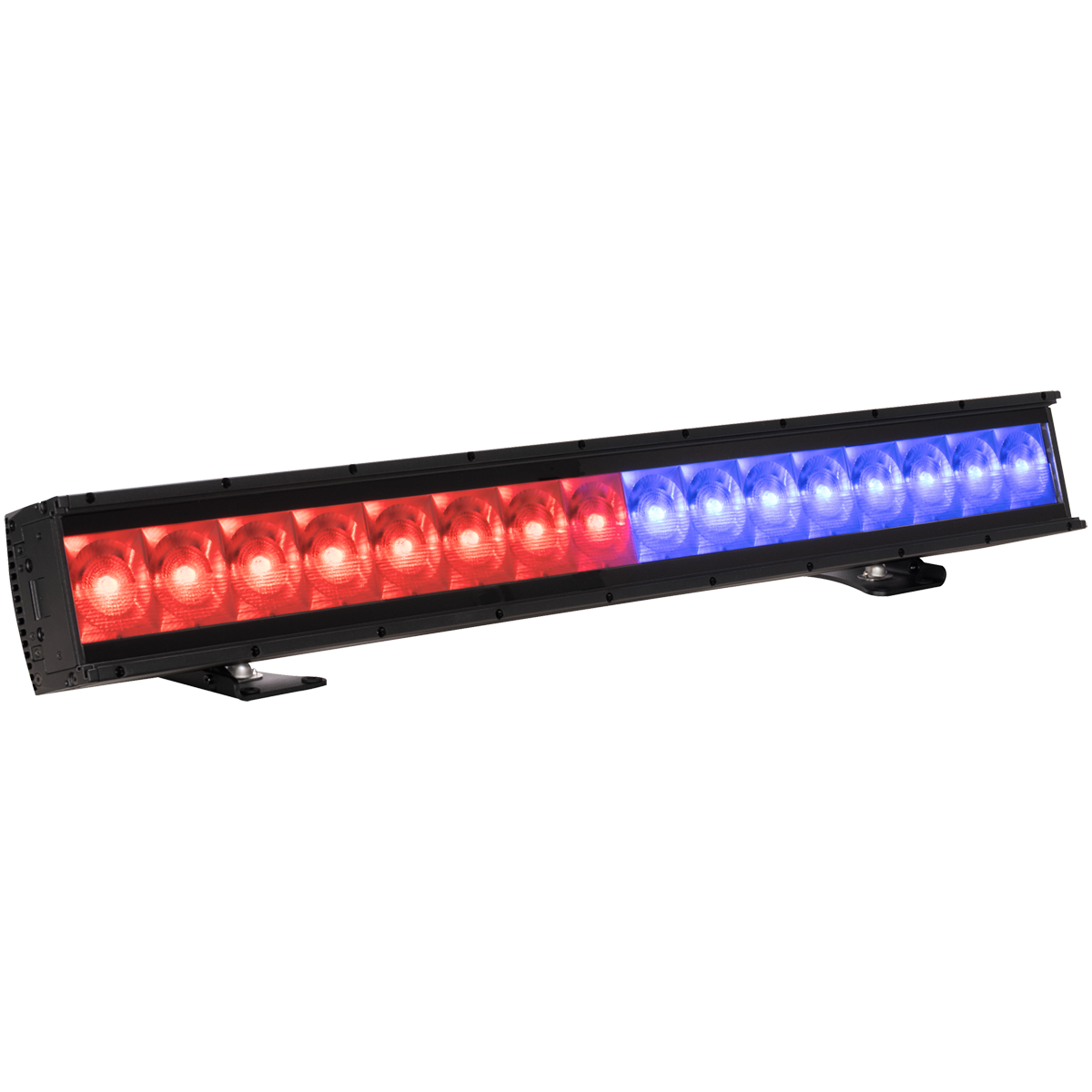

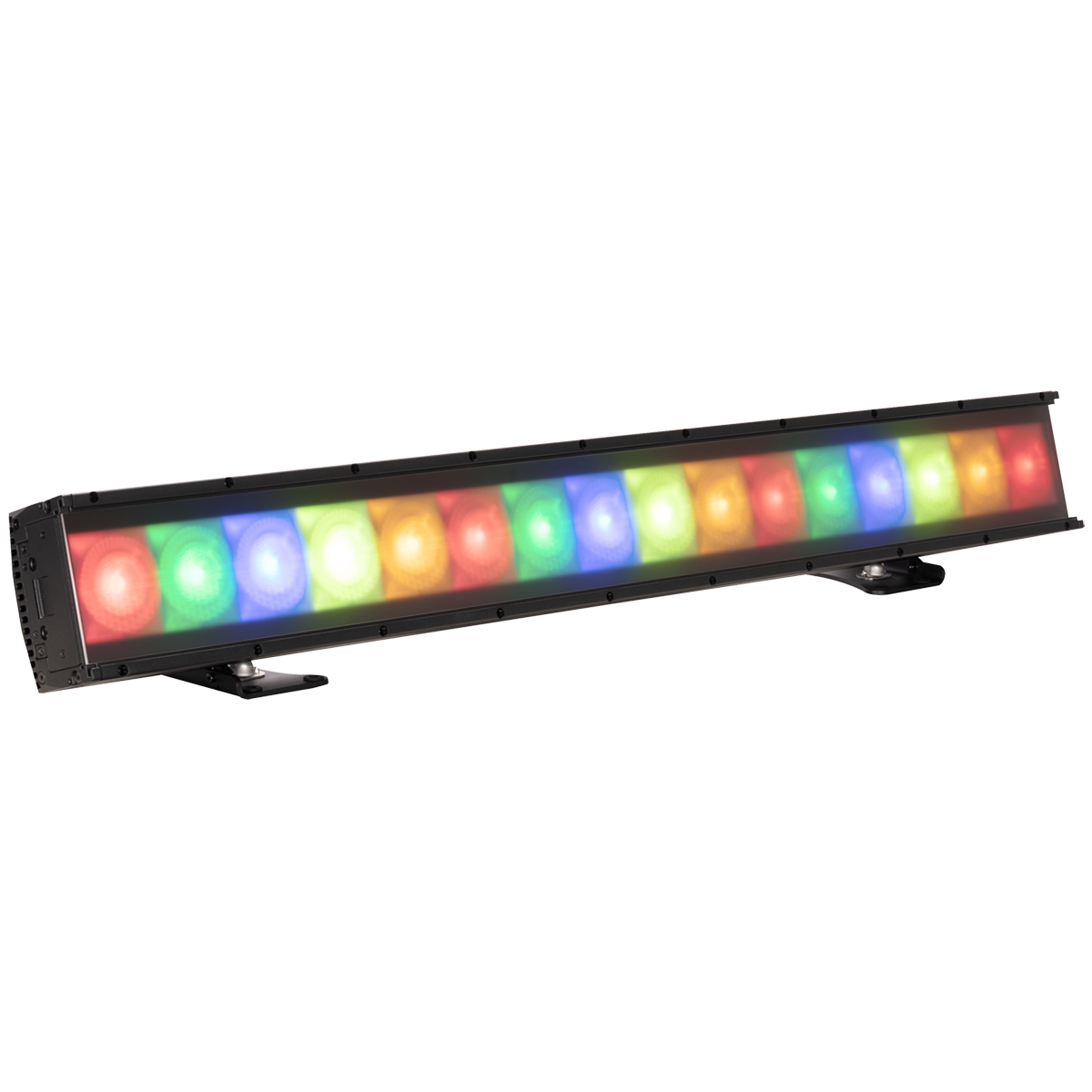

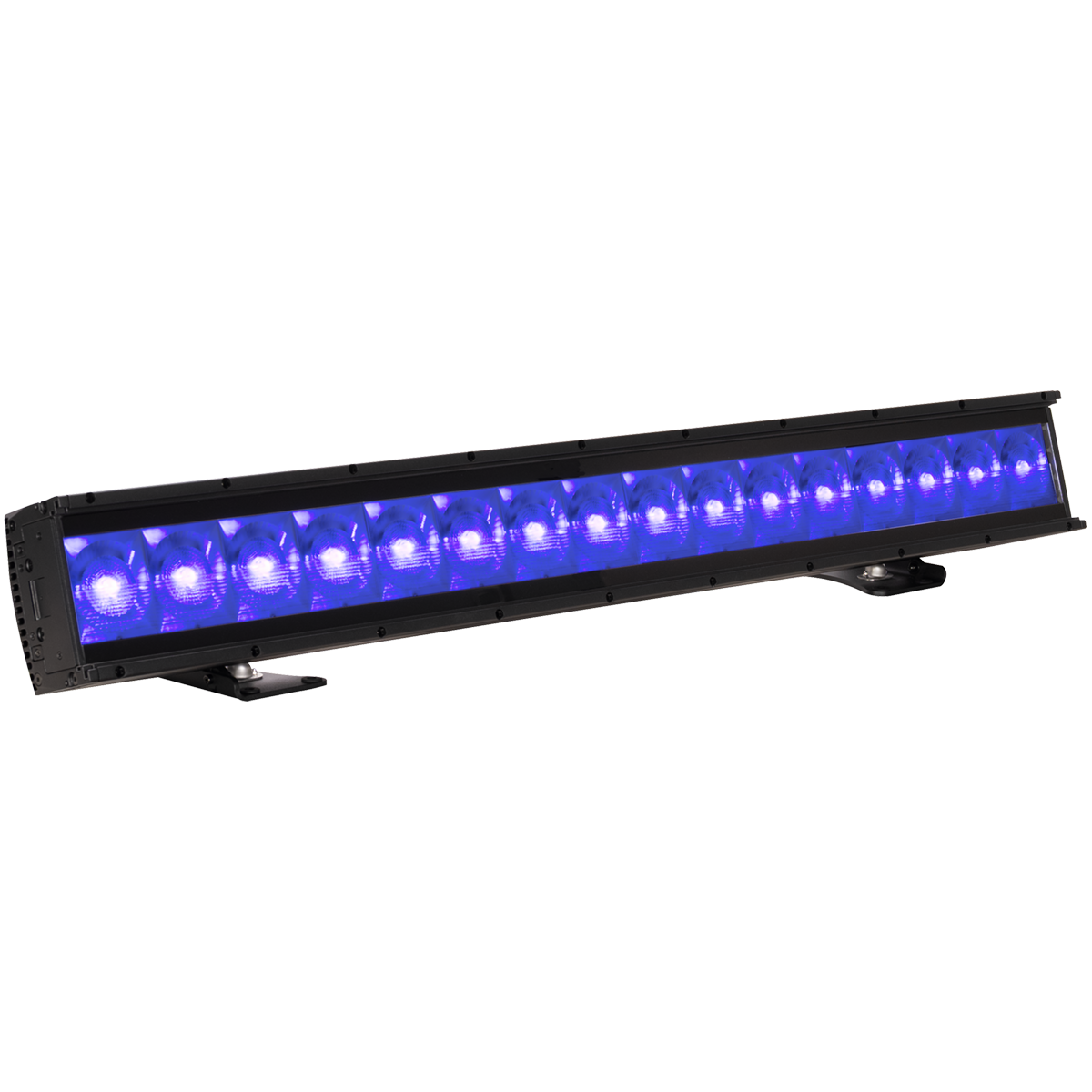

KL BATTEN 48

Perfect for the grandest stage and the great outdoors, the powerful KL BATTEN 48 delivers over 46,500 lumens of smooth, even light. The RGBMA LED engine and its homogeneous beam produces natural, full-spectrum light, with a high CRI that looks good on stage and in the studio.

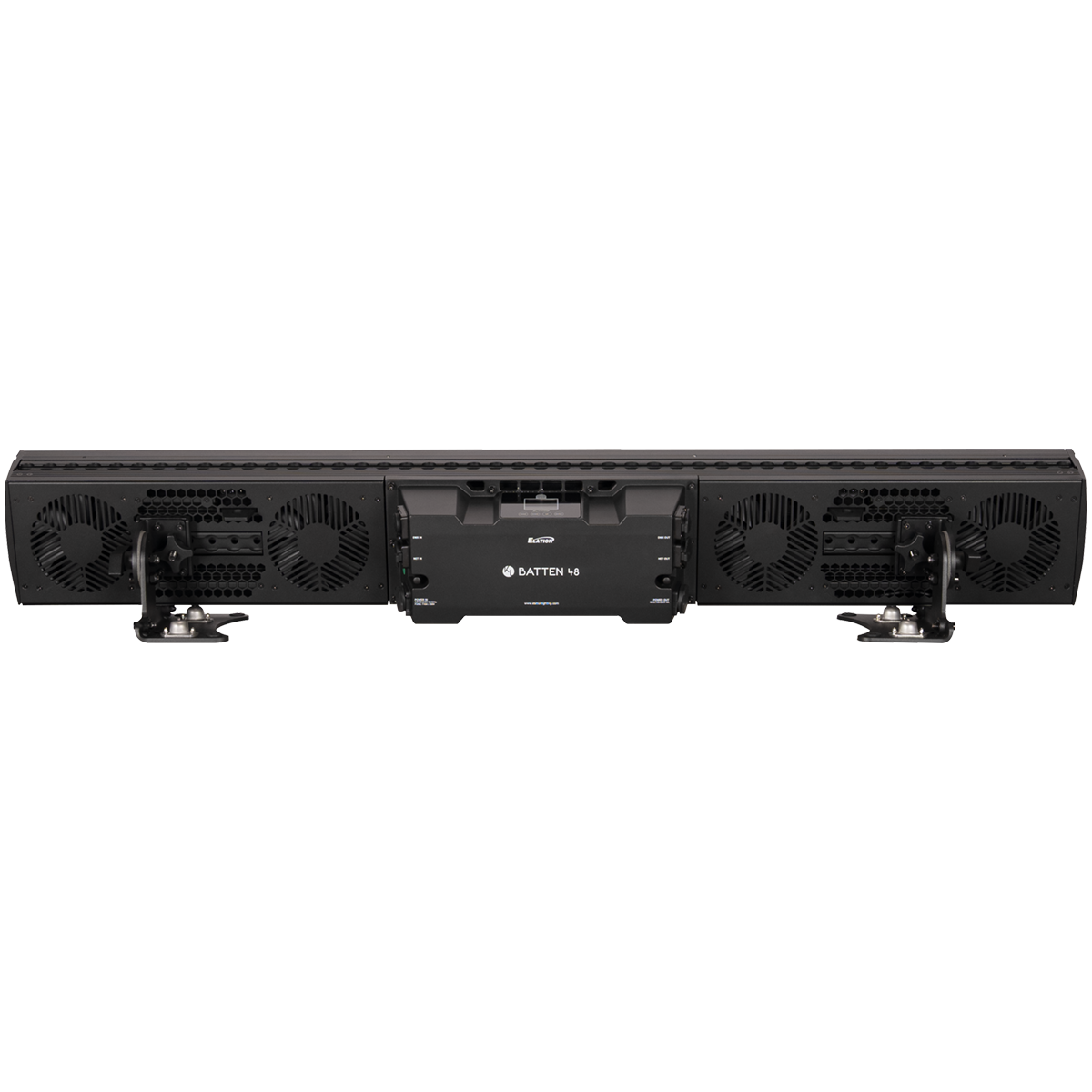

Its adaptable L-Track design makes mounting simple, while seamless control options and quiet cooling ensure professional performance in any environment.
Paired with IP-65 protection, it’s the dependable, full-spectrum workhorse that keeps creative intent intact from rehearsal to showtime.

(16) 100W RGBMA LED Array
46,744 Total Fixture Lumen Output (Sphere)
Full Pixel Control
Integrated Lens and Accessory Slots
Art-Net & sACN Support

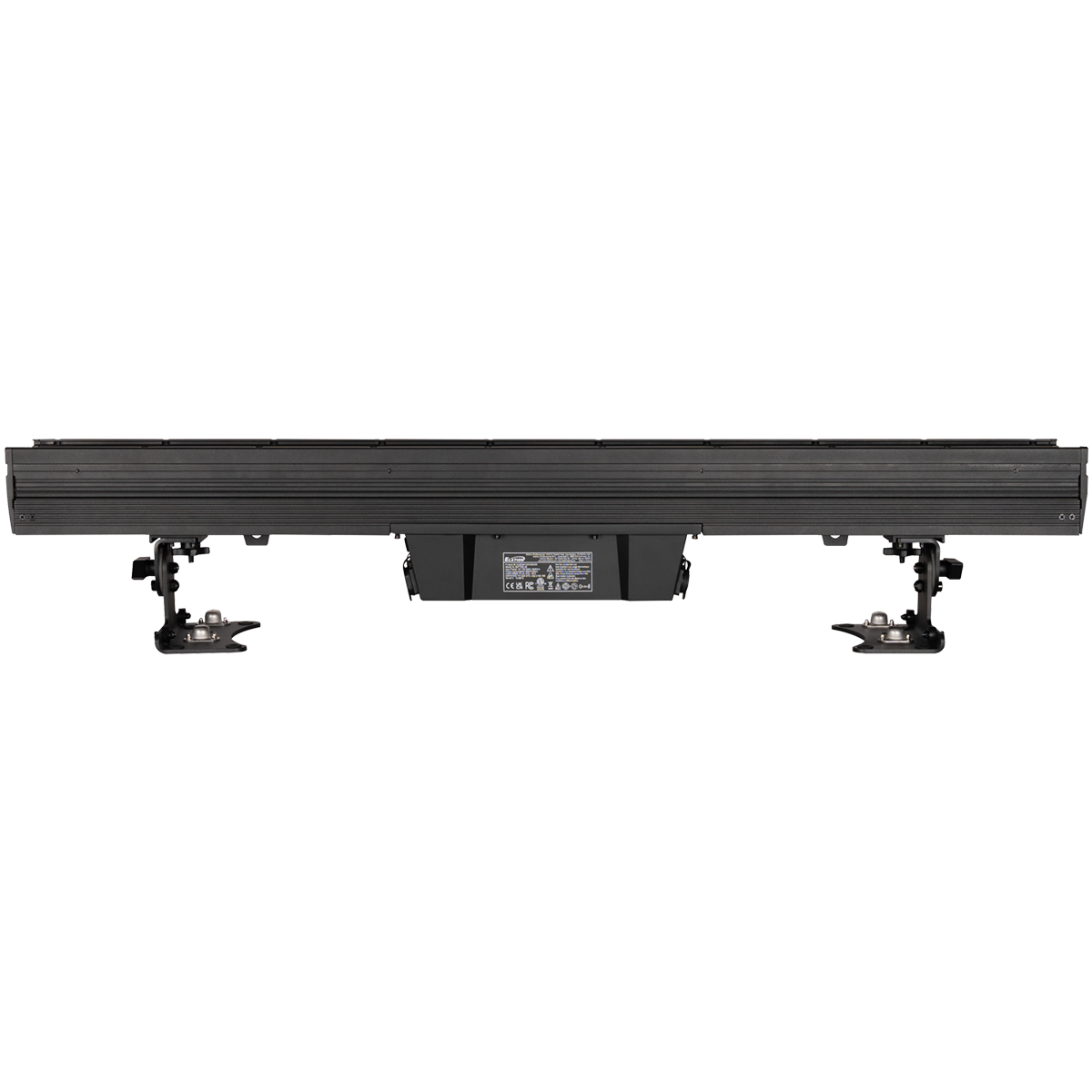

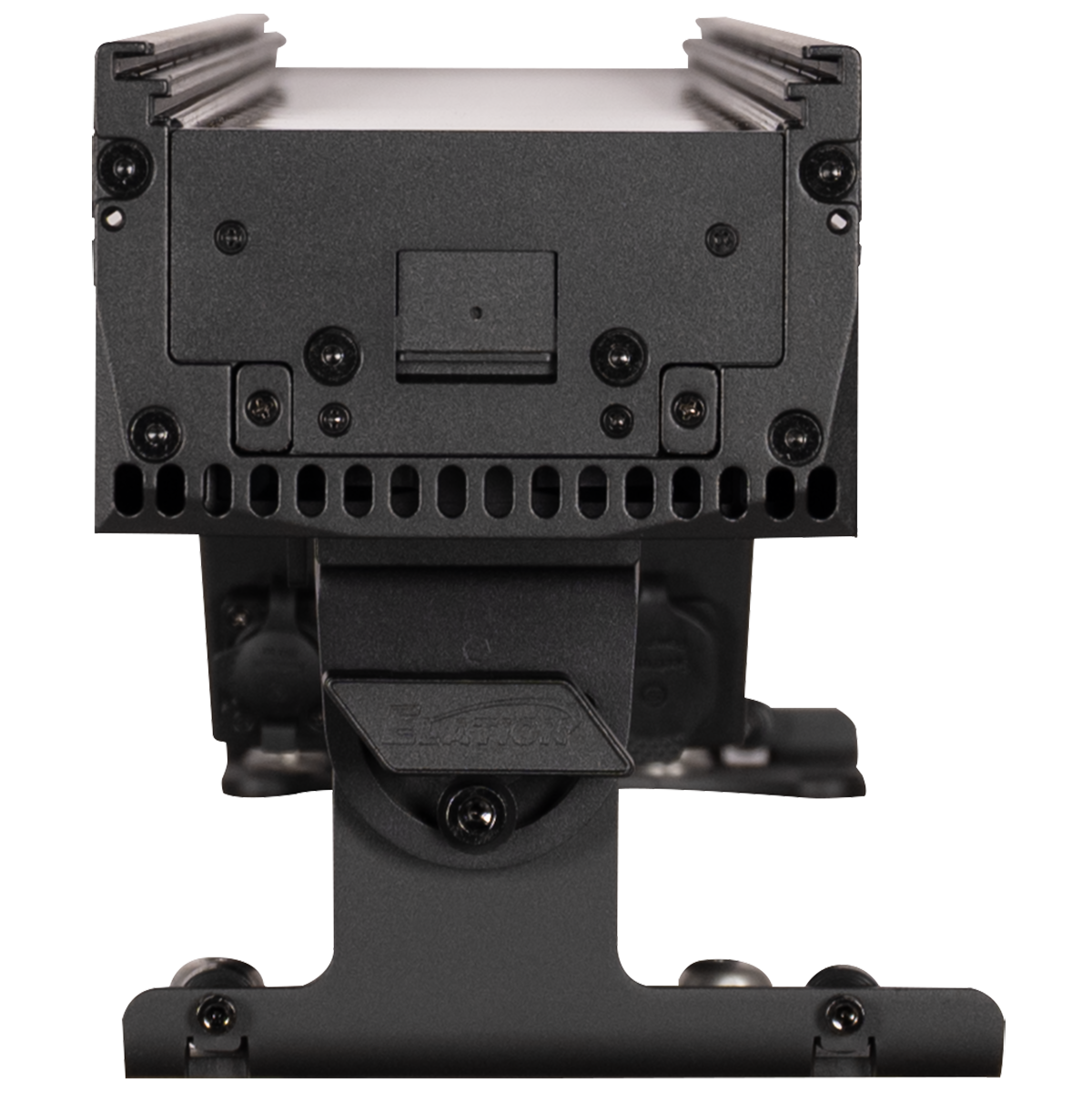

Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

Specifications

SOURCE

(16) x 100W RGBMA LEDs

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

46,744 (Integrating Sphere)

CRI- 94.9

TLCI- 95


Beam Angle: 62° x 21°
Field Angle: 79° x 51°


EFFECTS

Full Pixel Control

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves


COLOR

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

34 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 48ch, 64ch-A, 64ch-B, 160ch, 104ch, 186ch)

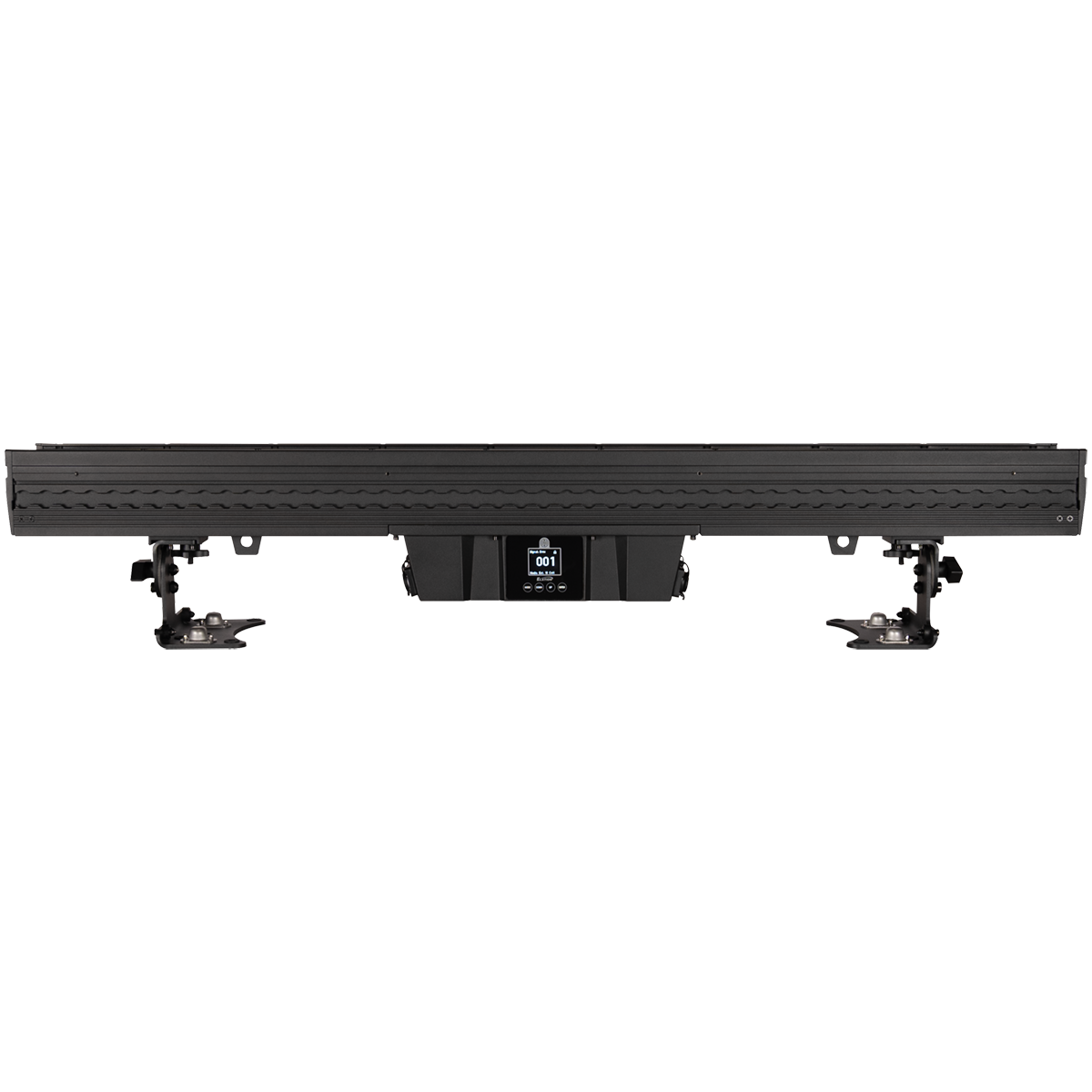

4 Button Control Panel, Color LED Display

RDM (Remote Device Management)

Aria x2 Wireless Device Management

NFC Configuration

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net & sACN)

IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 47.7" (148mm)

Width: 5.8" (148mm)

Vertical Height: 8.5” (217mm)

Weight: 43 lbs / 19.5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

800W Max Power Consumption

Power Thru Capacity: 4A ( 0 units @110V; 1 unit @240V)

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 2,728

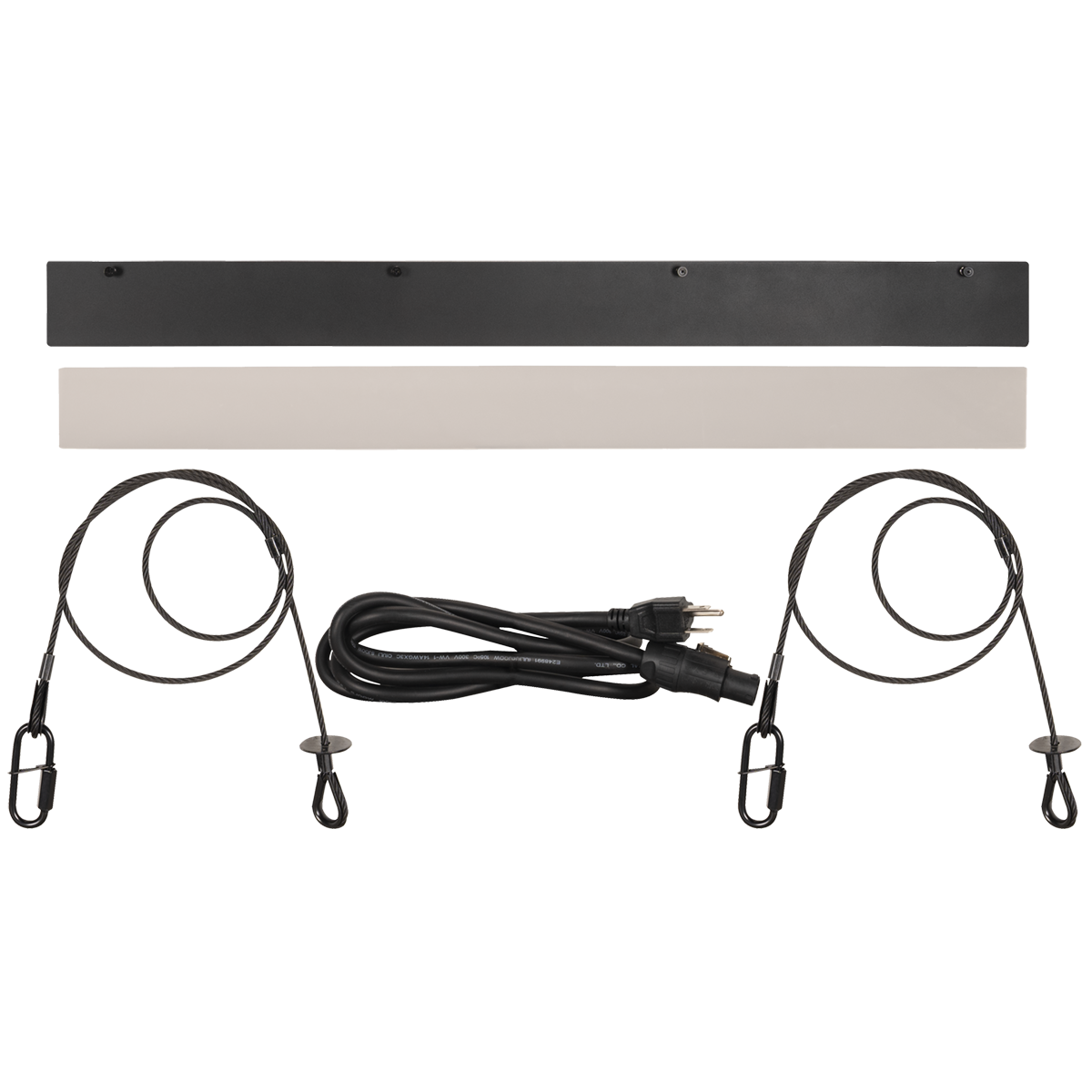

INCLUDED ITEMS

Glare Shield

Border Light Filter

2x Safety Cable

IP65 Locking Power Cable


OPTIONAL ITEMS

Omega Bracket (Qty.2)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)


APPROVALS / RATINGS


FIRMWARE UPDATE

Current Update:


Specifications and documentation subject to change without notice.
