Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.

UPC: 810008266250SKU: KLB112

Replaced By

Related Products

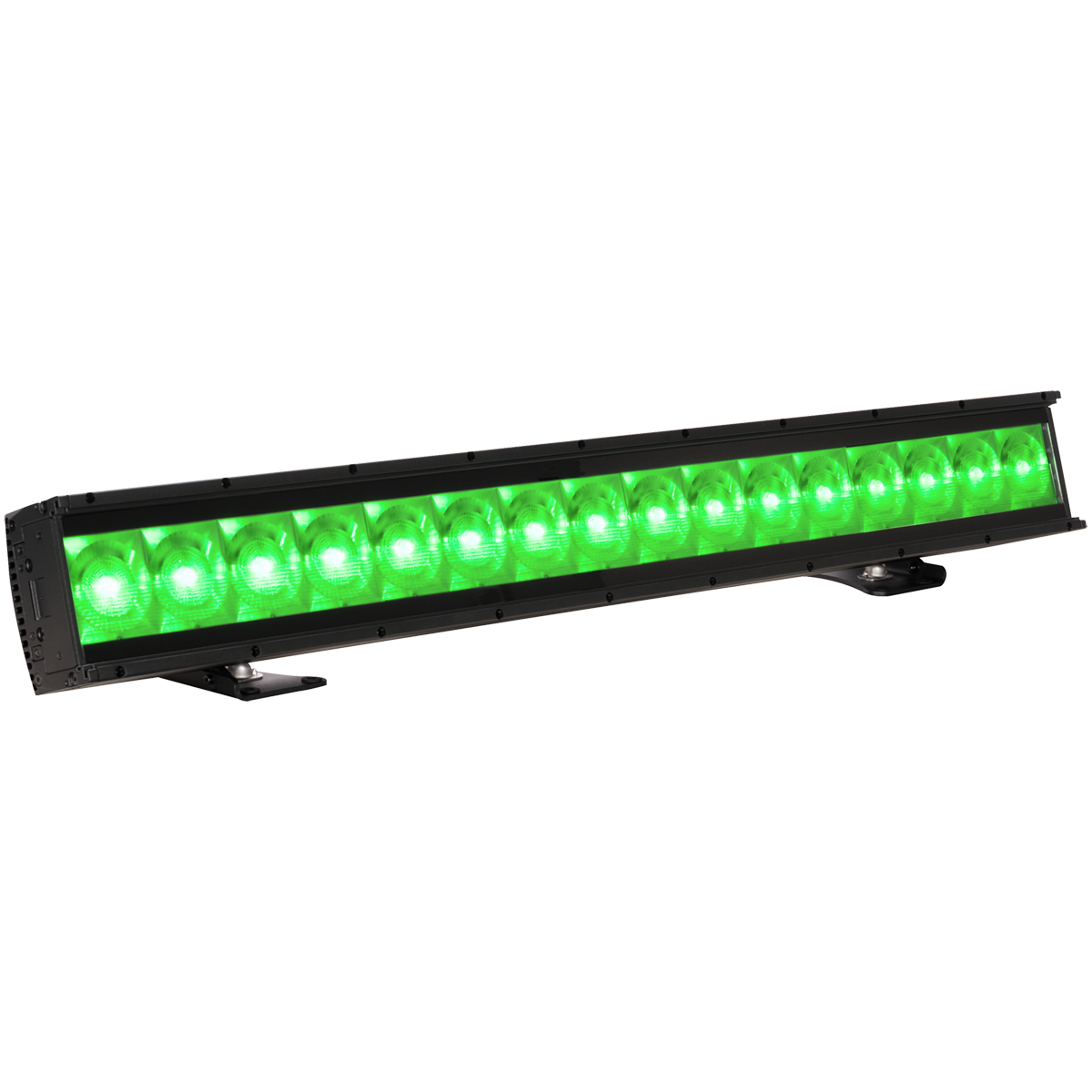

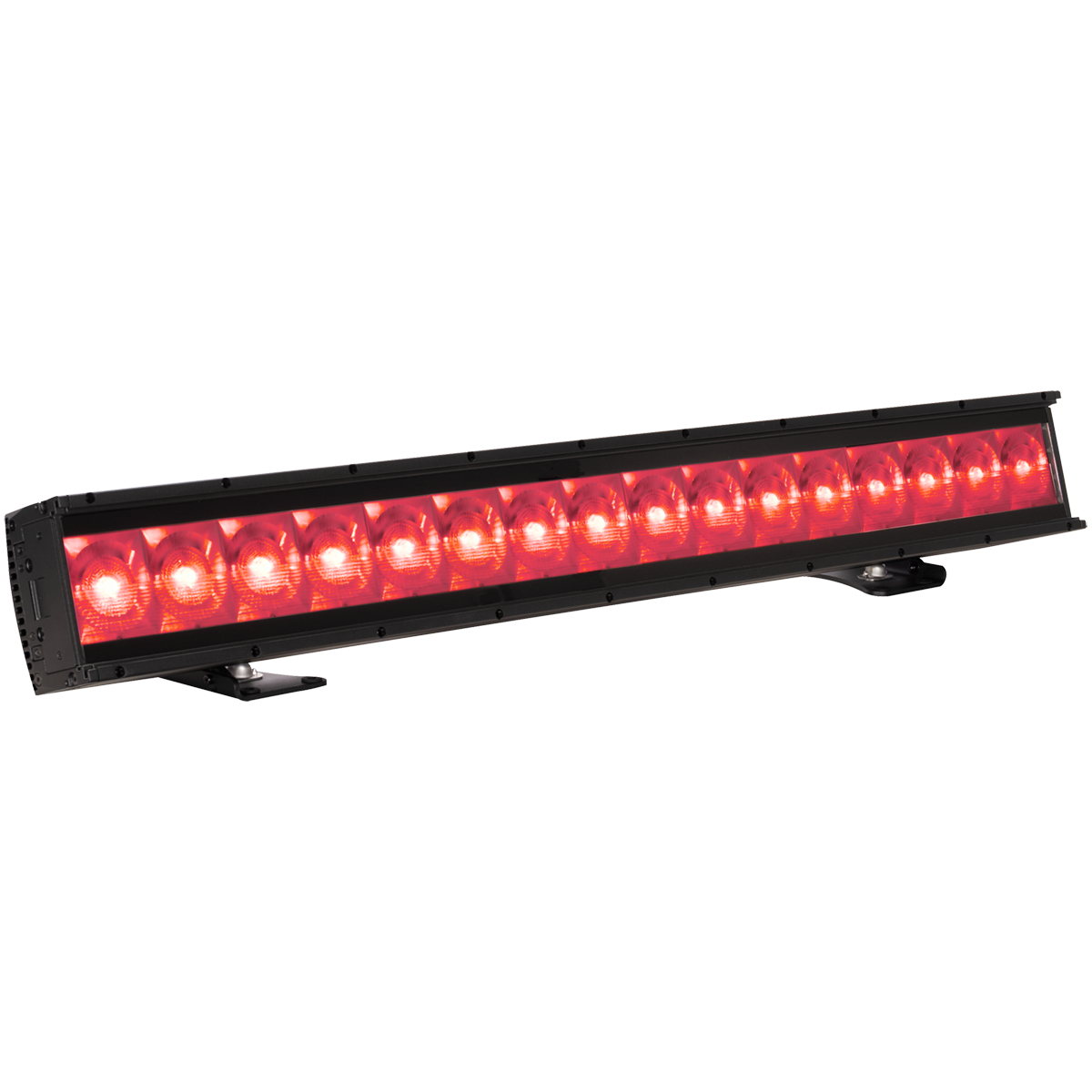

KL BATTEN 48KL BATTEN 48
KL BATTEN 48

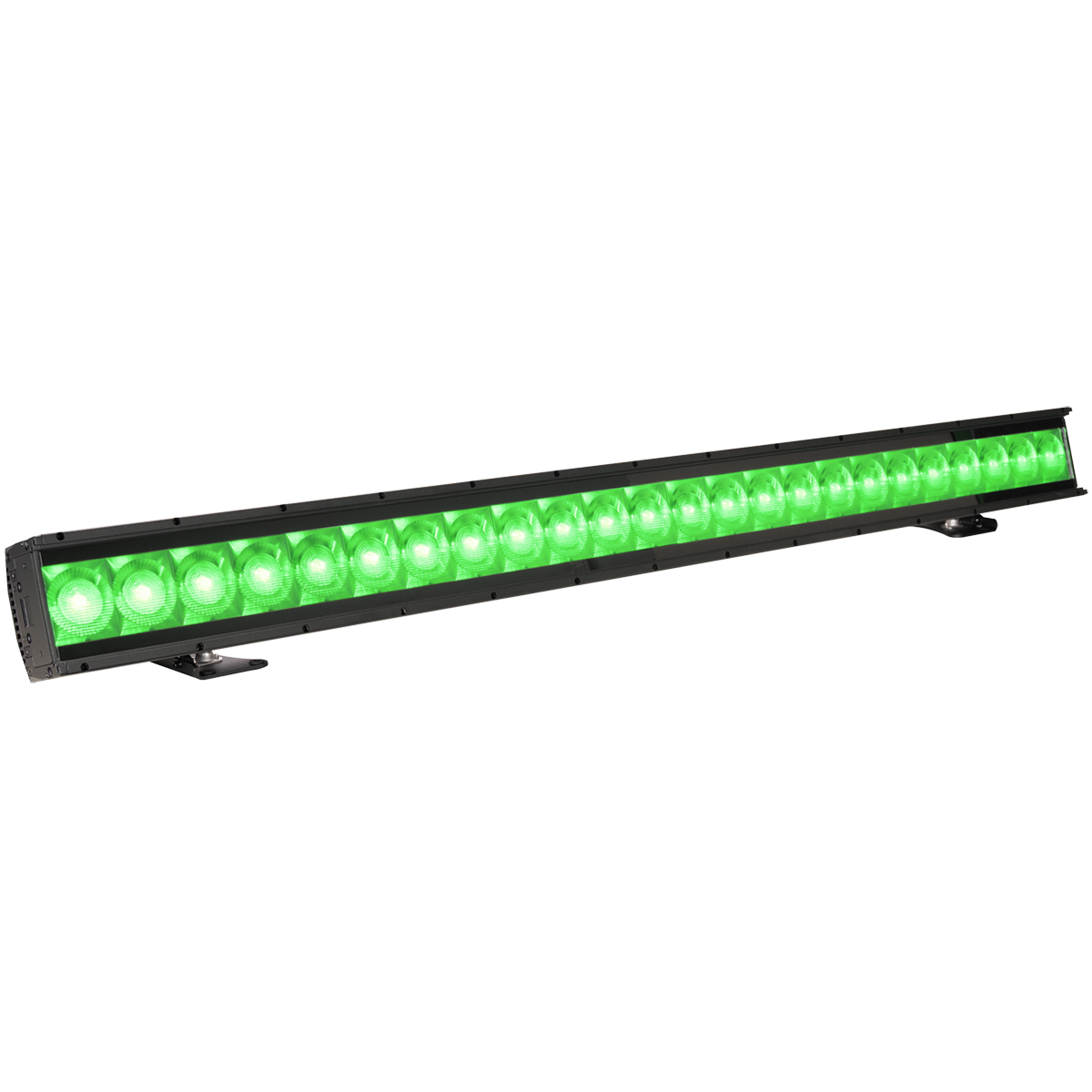

KL BATTEN 72KL BATTEN 72
KL BATTEN 72

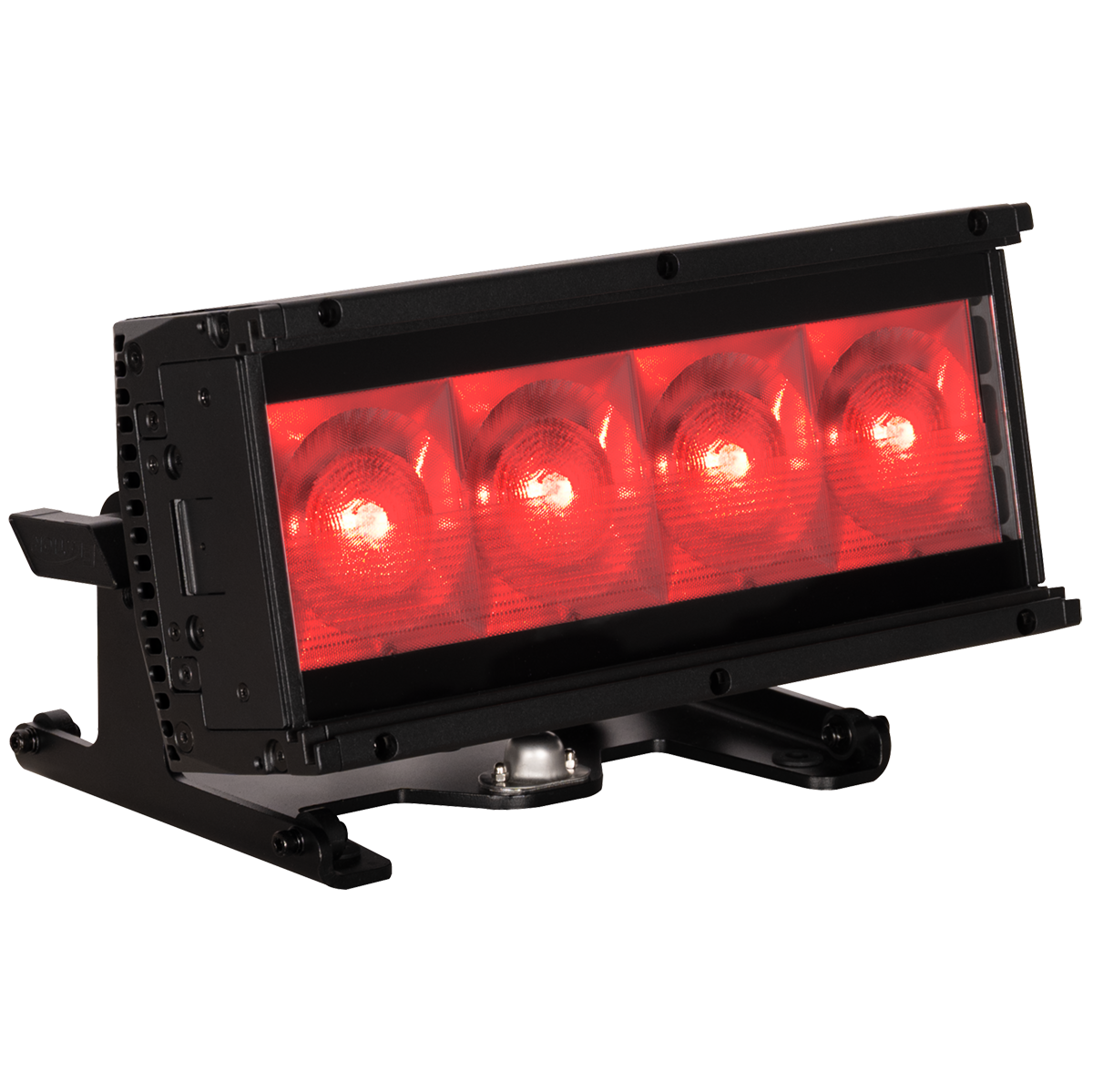

KL Batten 12

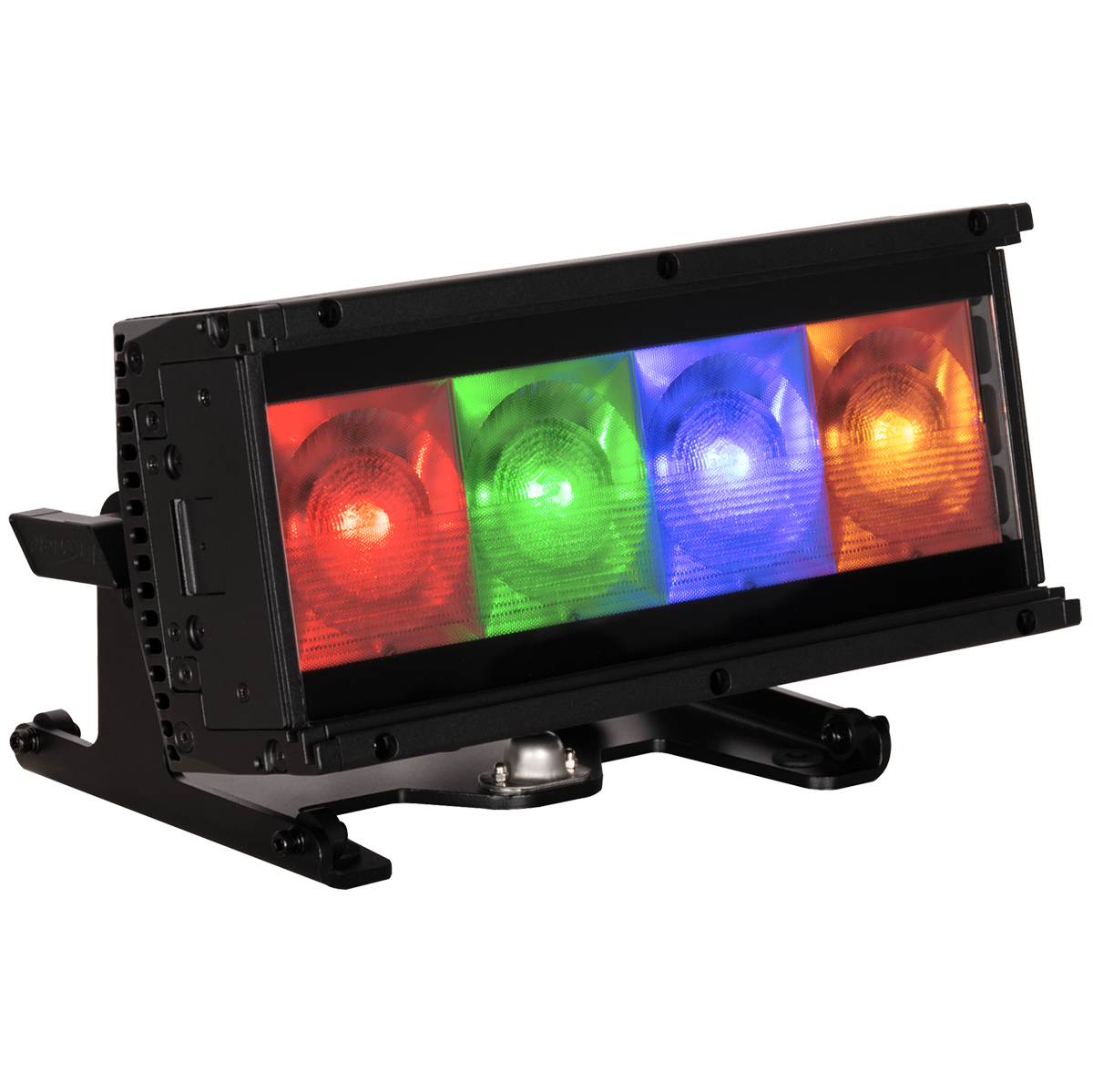

Delivering rich, full-spectrum color and over 10,500 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design.
Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.
An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.

(4) 100W RGBMA LED Array
10,981 Total Fixture Lumen Output (Sphere)

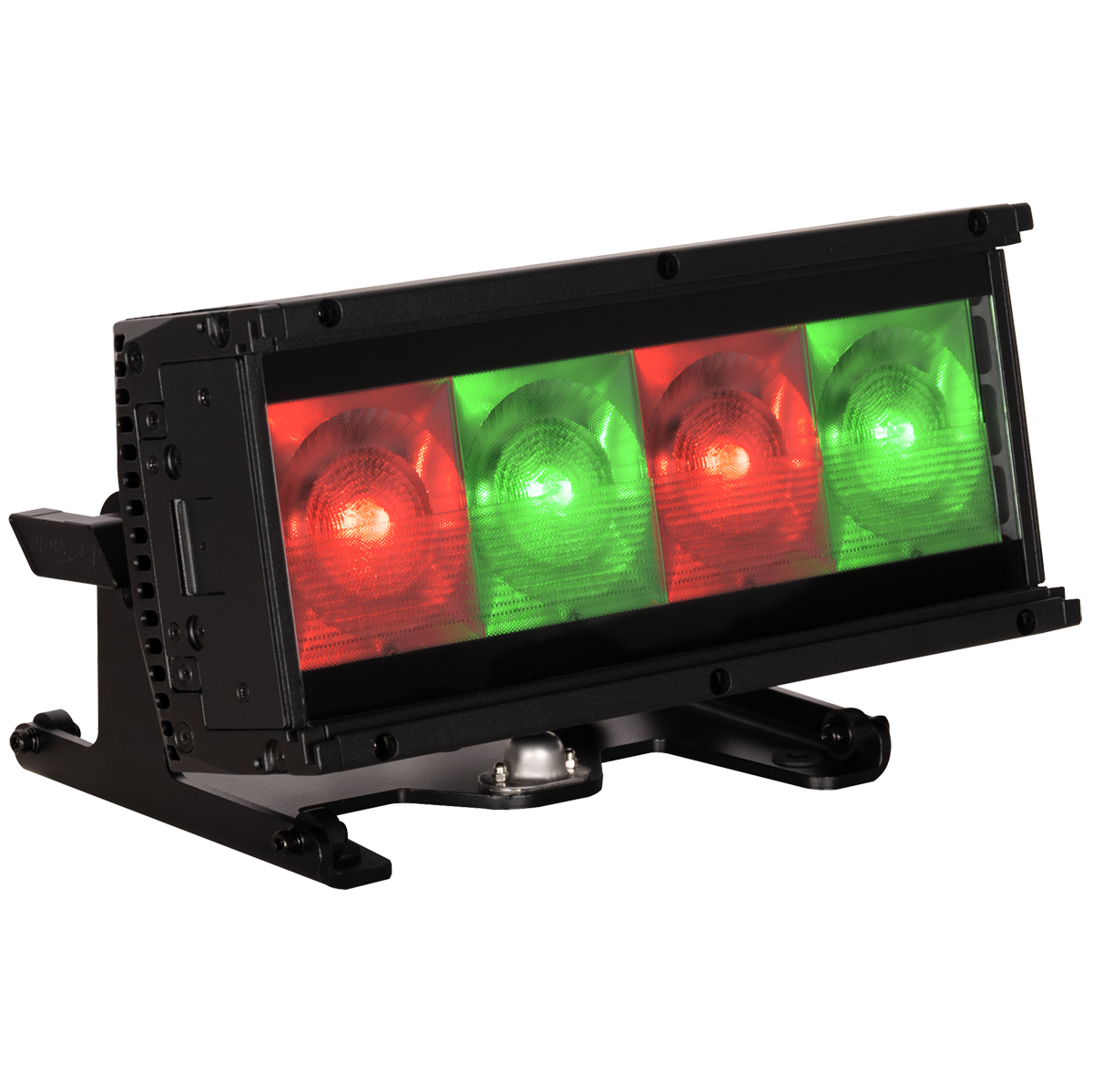

Full Pixel Control
Integrated Lens and Accessory Slots
Art-Net & sACN Support
Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

Specifications

SOURCE

(4) x 100W RGBMA LEDs

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

10,981 (Integrating Sphere)

CRI- 94.9

TLCI- 95


Beam Angle: 22° x 20°
Field Angle: 44° x 42°


EFFECTS

Full Pixel Control

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves


COLOR

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

22 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch)

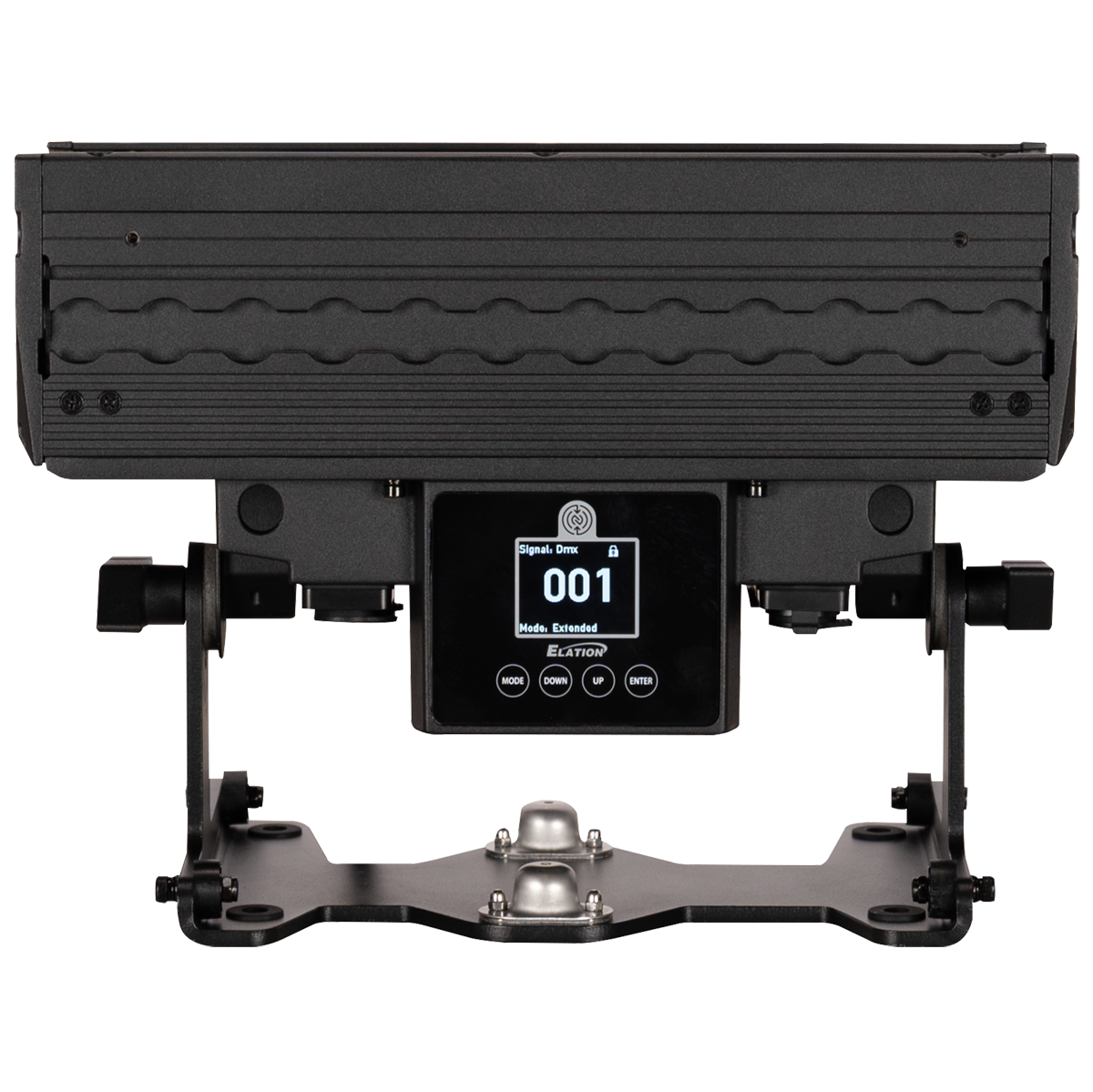

4 Button Control Panel, Color LED Display

RDM (Remote Device Management)

Aria x2 Wireless Device Management

NFC Configuration

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net & sACN)

IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 12.6" (321mm)

Width: 5.8" (148mm)

Vertical Height: 8.5” (217mm)

Weight: 14.7 lbs / 6.65kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

200W Max Power Consumption

Power Thru Capacity: 11A ( 6 units @110V; 13 units @240V)

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 682

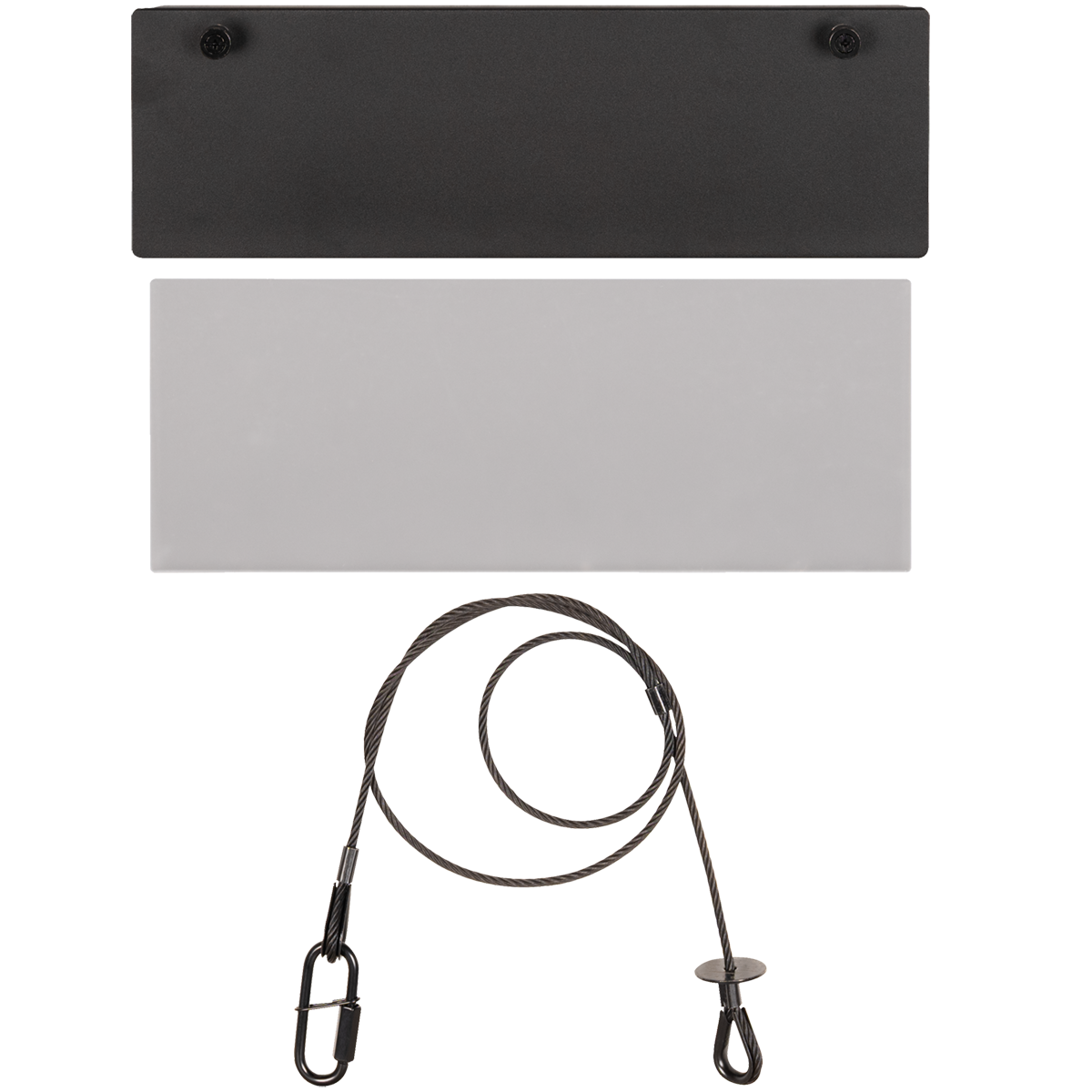

INCLUDED ITEMS

Glare Shield

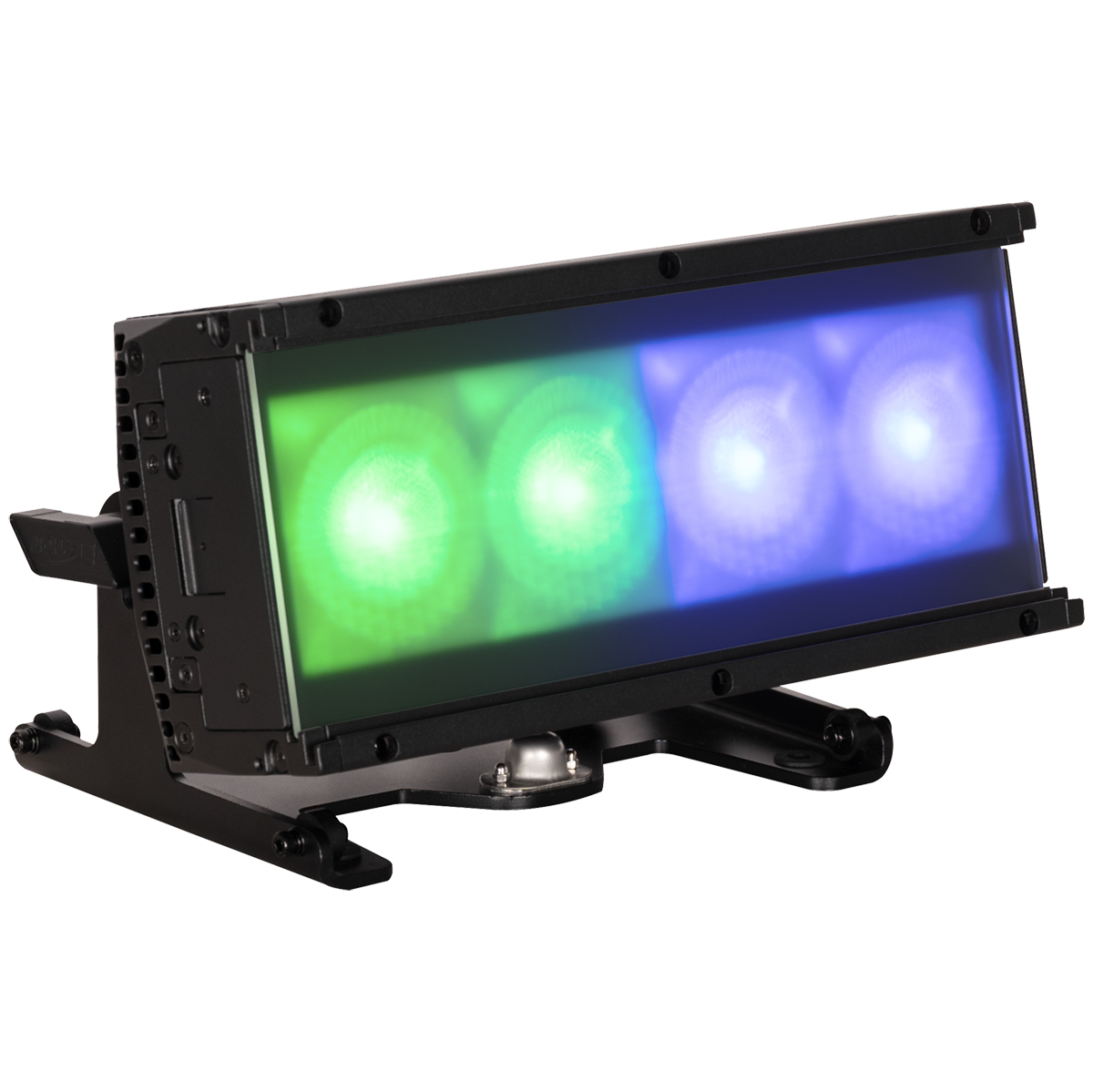

Border Light Filter

Safety Cable

IP65 Locking Power Cable


OPTIONAL ITEMS

90deg Slotted Omega Bracket (OB-107-90B) (Qty.1)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)


APPROVALS / RATINGS


FIRMWARE UPDATE

Current Update:


Specifications and documentation subject to change without notice.
