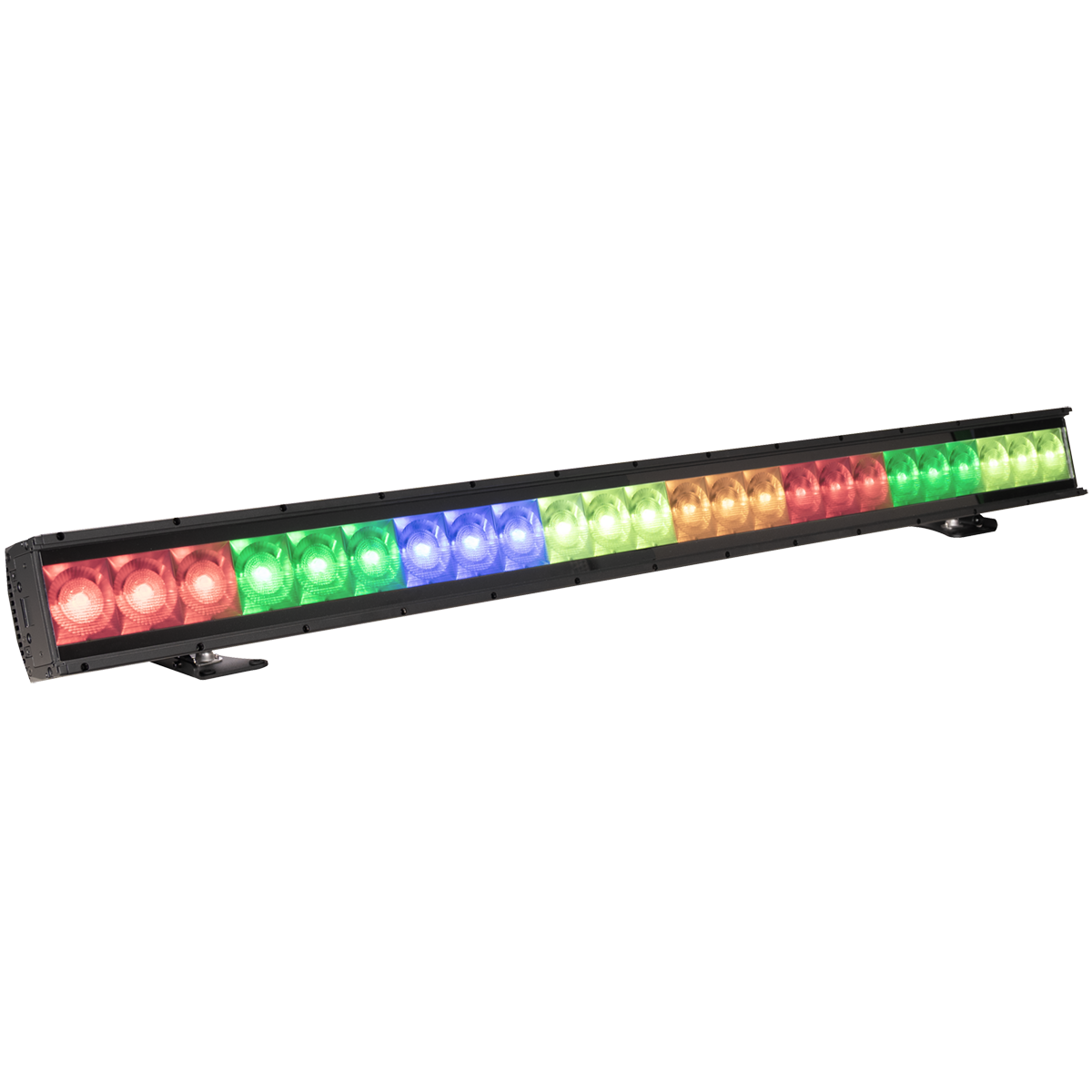

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 71,250 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.

UPC: 810008266274SKU: KLB372

Replaced By

Related Products

KL Batten 12KL Batten 12
KL Batten 12
KL BATTEN 48KL BATTEN 48
KL BATTEN 48

KL BATTEN 72

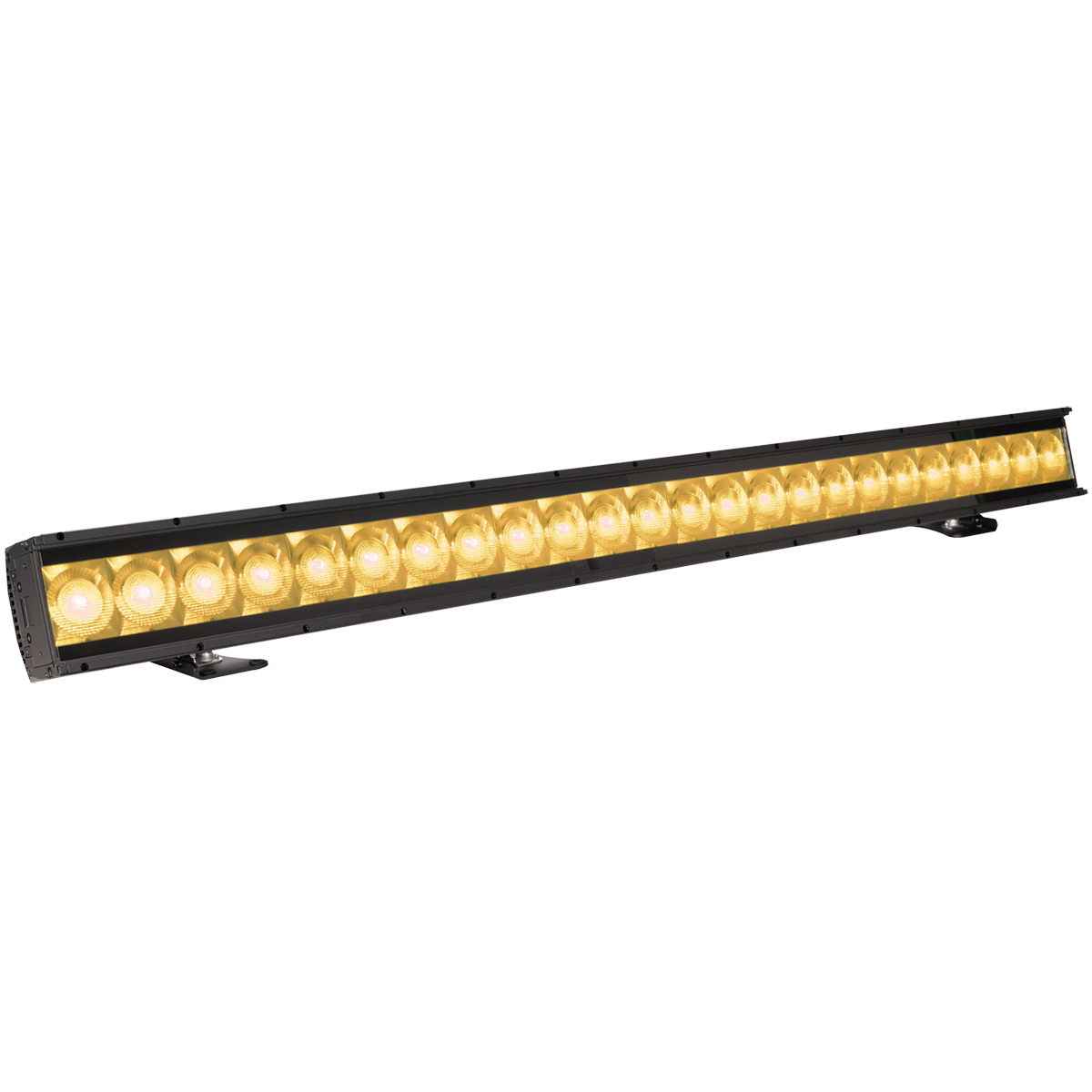

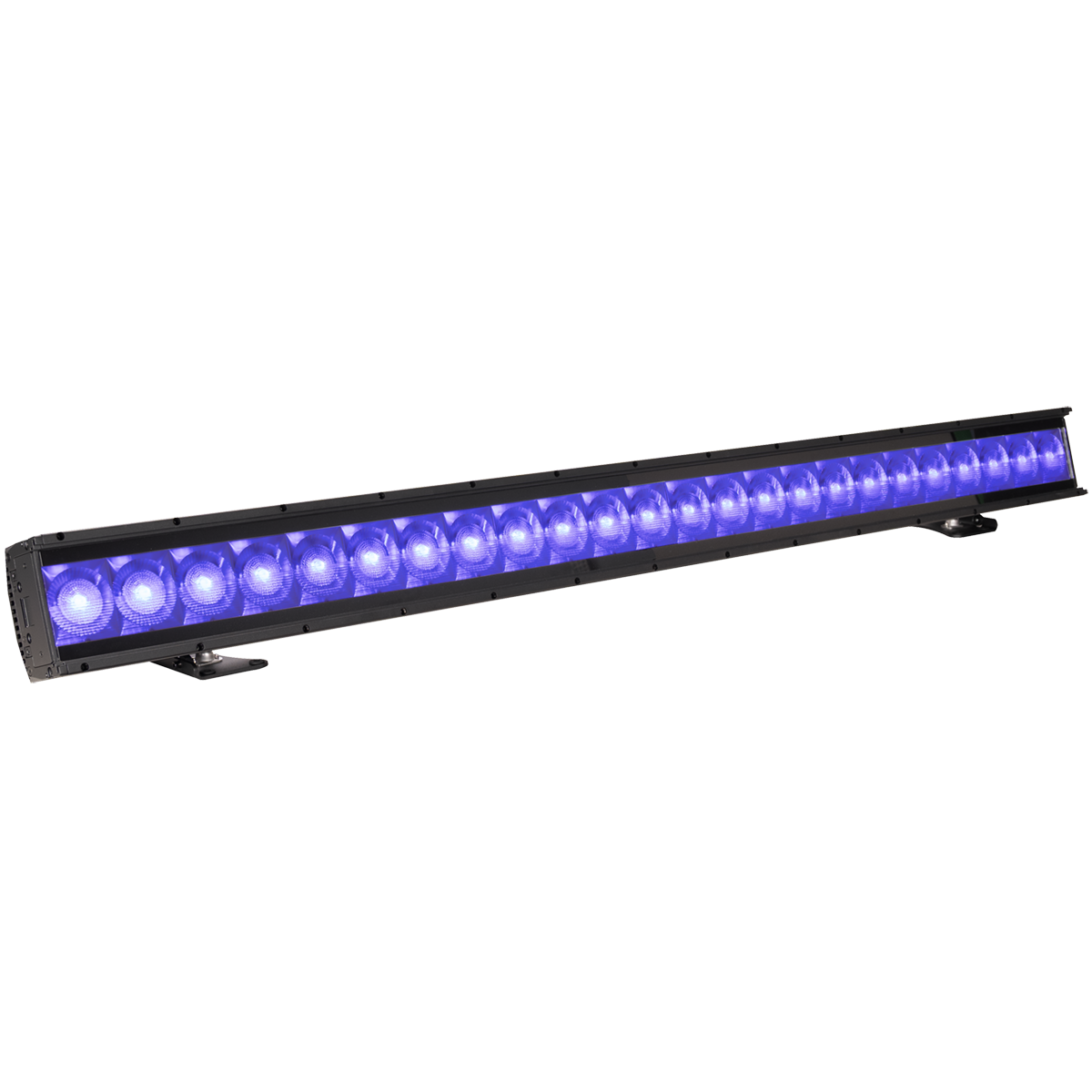

The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output.
Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 71,250 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.
A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects.
For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.

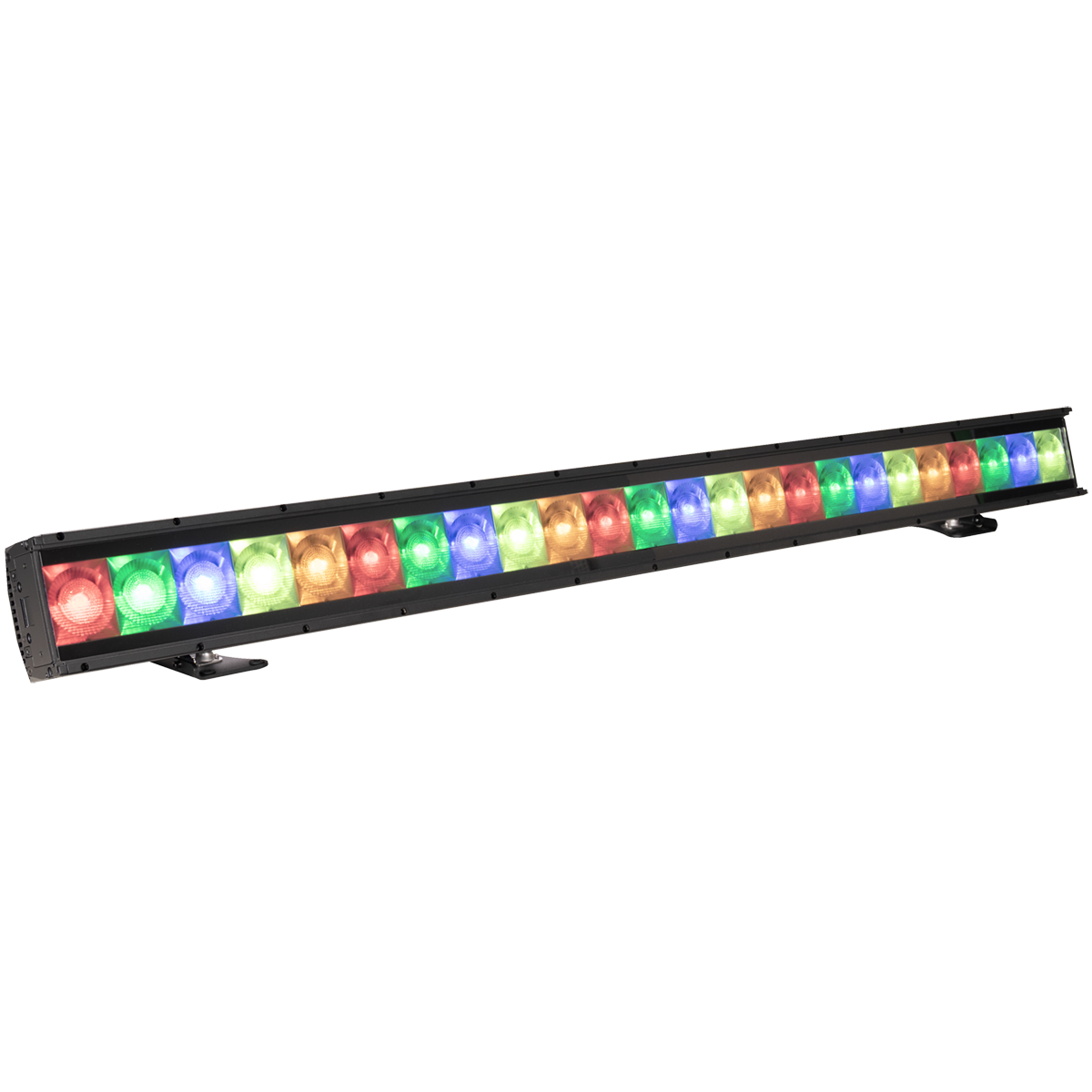

(24) 100W RGBMA LED Array
71,347 Total Fixture Lumen Output (Sphere)

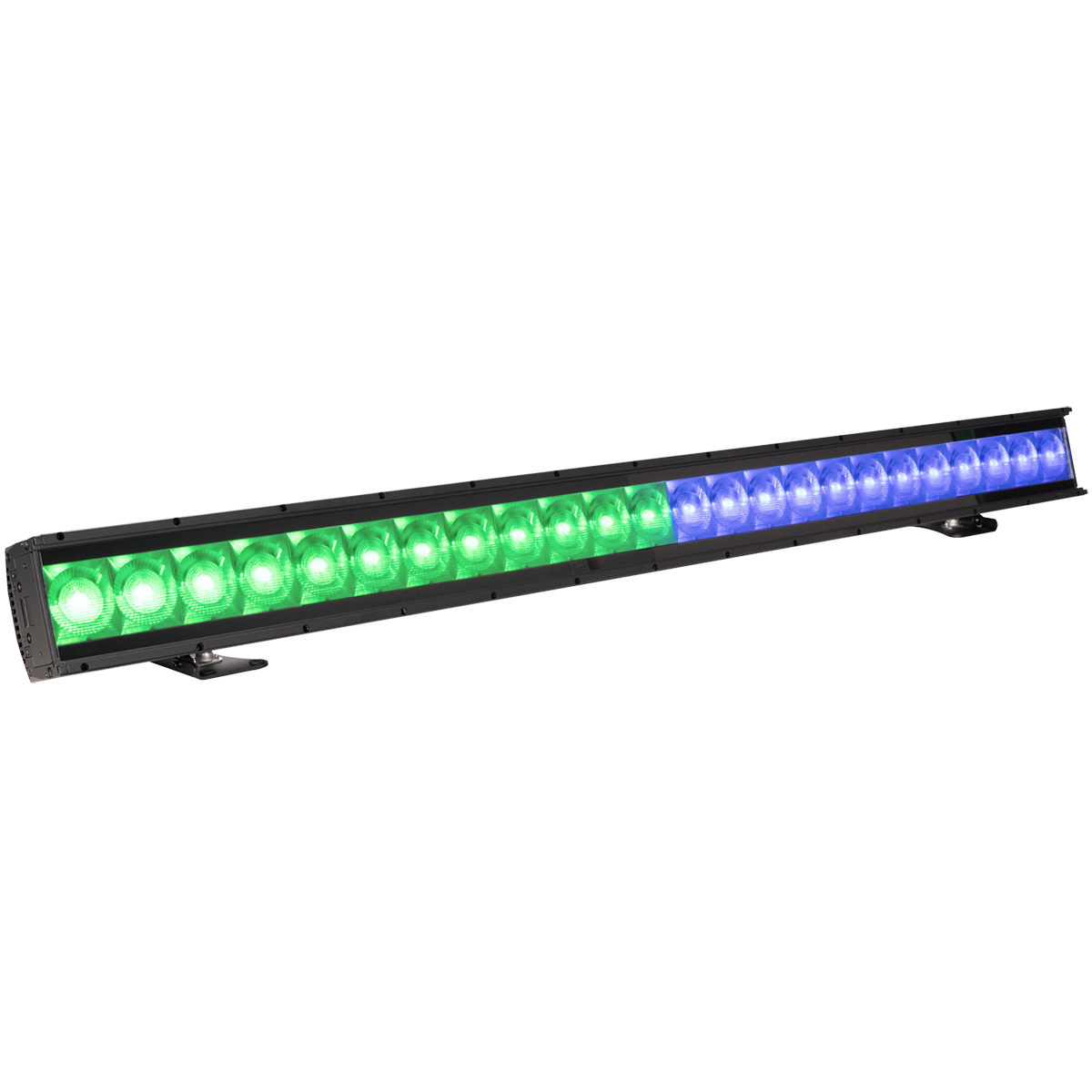

Full Pixel Control

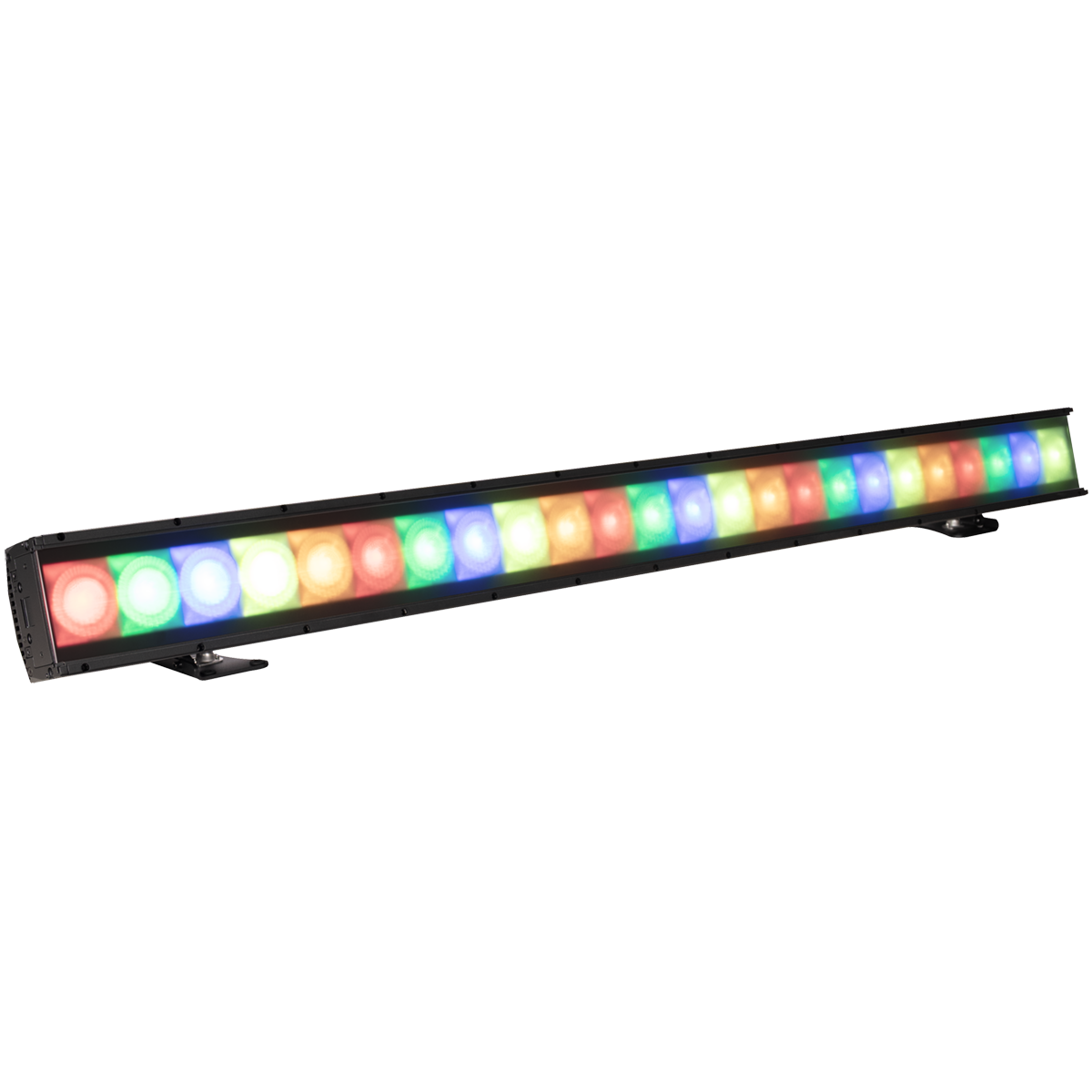

Integrated Lens and Accessory Slots
Art-Net & sACN Support

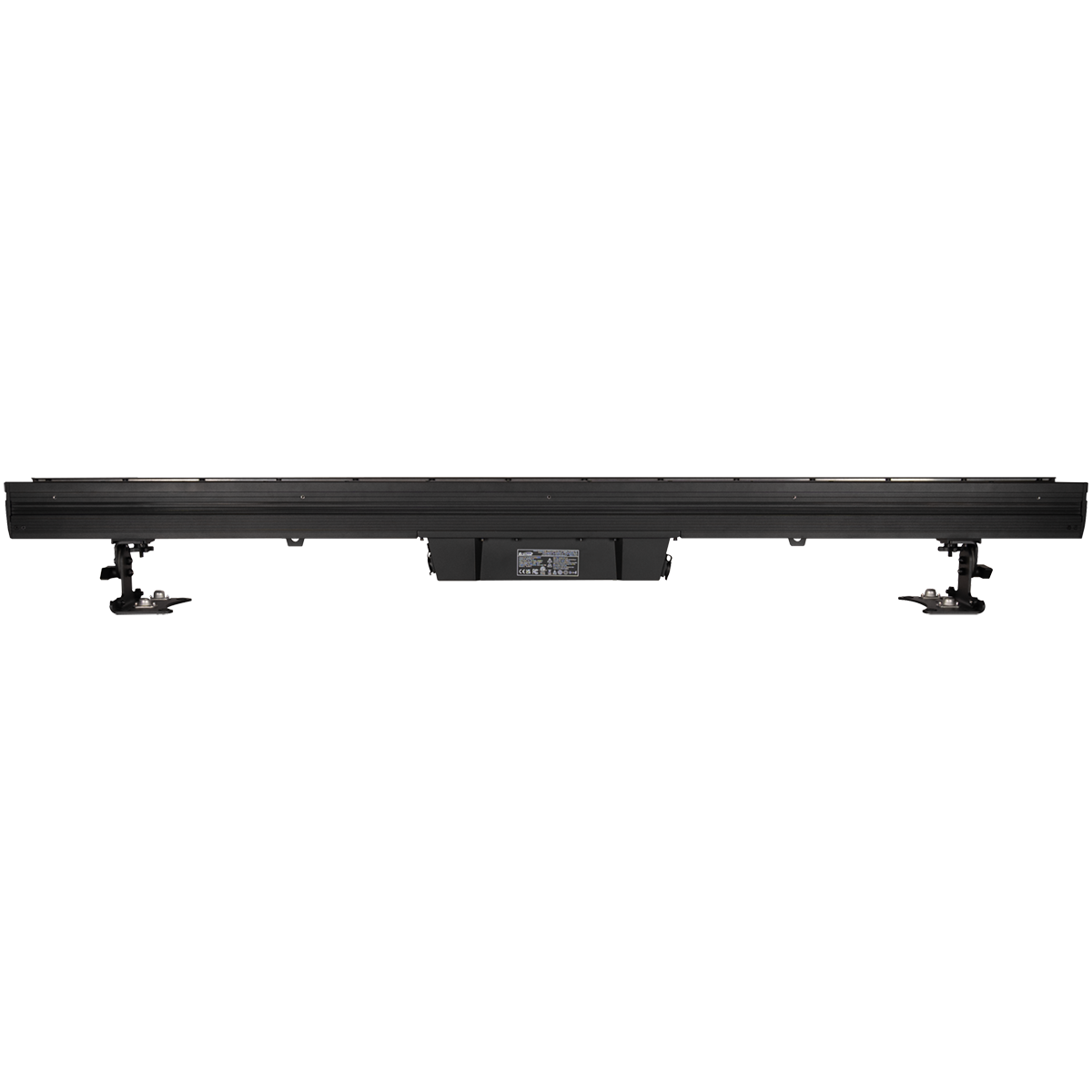

Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated

Specifications

SOURCE

(24) x 100W RGBMA LEDs

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

71,347 (Integrating Sphere)

CRI- 94.9

TLCI- 95


Beam Angle: 82° x 22°
Field Angle: 97° x 53°


EFFECTS

Full Pixel Control

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves


COLOR

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book


CONTROL / CONNECTIONS

52 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch, 24ch, 32ch-A, 32ch-B, 80ch, 56ch, 96ch, 36ch, 48ch-A, 48ch-B, 120ch, 80ch, 142, 72ch, 96ch-A, 96ch-B, 240ch, 152ch, 174ch)

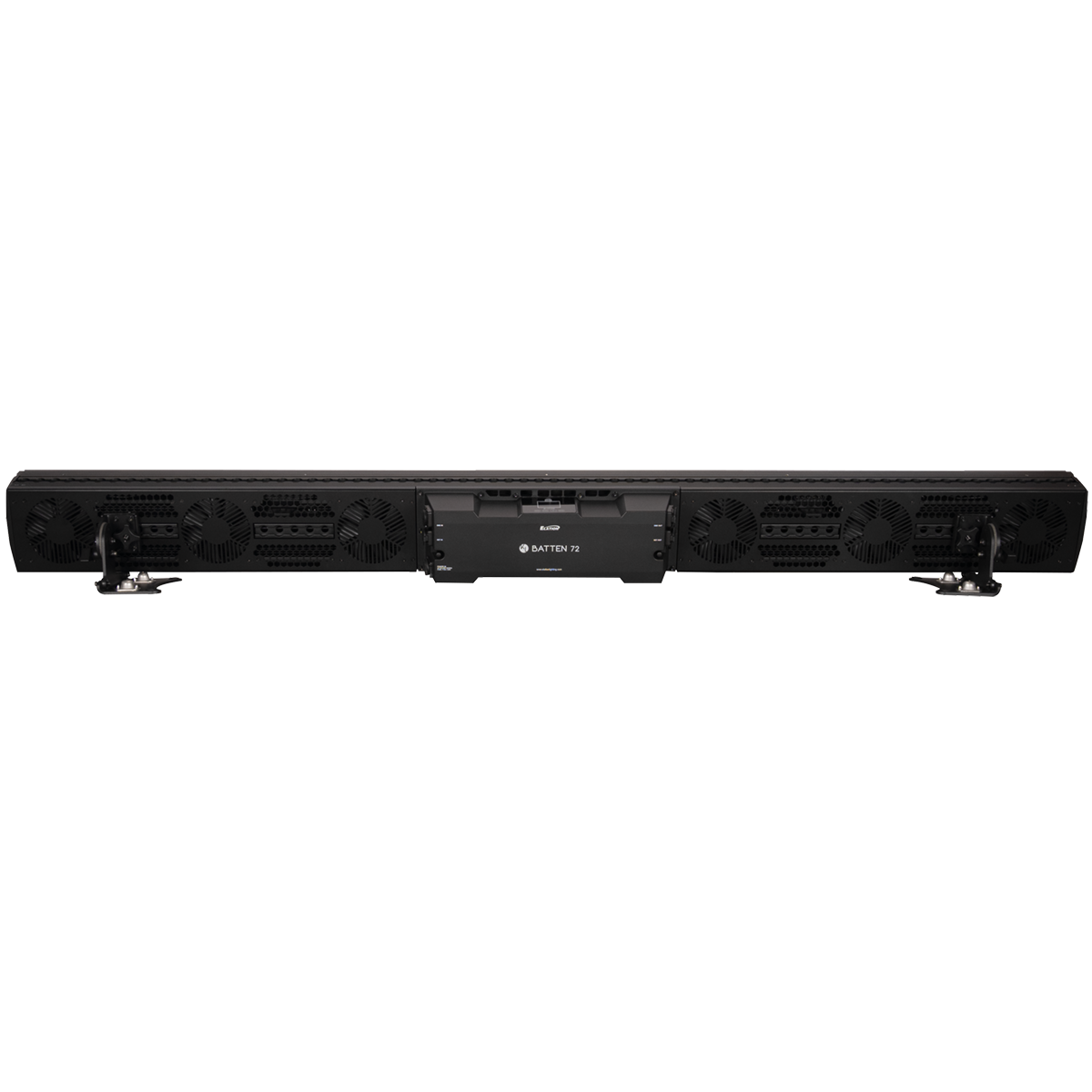

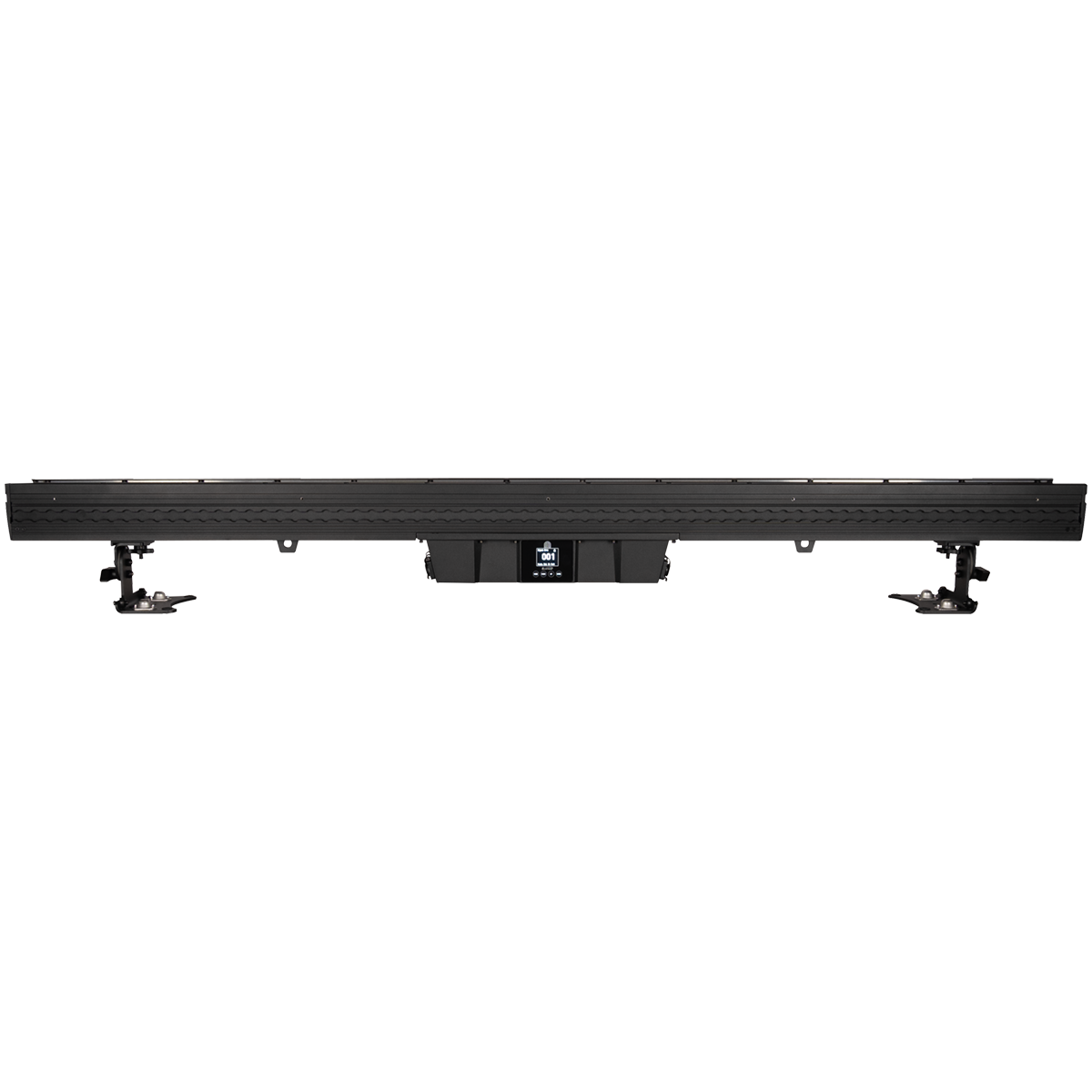

4 Button Control Panel, Color LED Display

RDM (Remote Device Management)

Aria x2 Wireless Device Management

NFC Configuration

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net & sACN)

IP65 Locking Power Cable In


SIZE / WEIGHT

Length: 71.1" (148mm)

Width: 5.8" (148mm)

Vertical Height: 8.5” (217mm)

Weight: 60.4 lbs / 27.4kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

1200W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 4,092

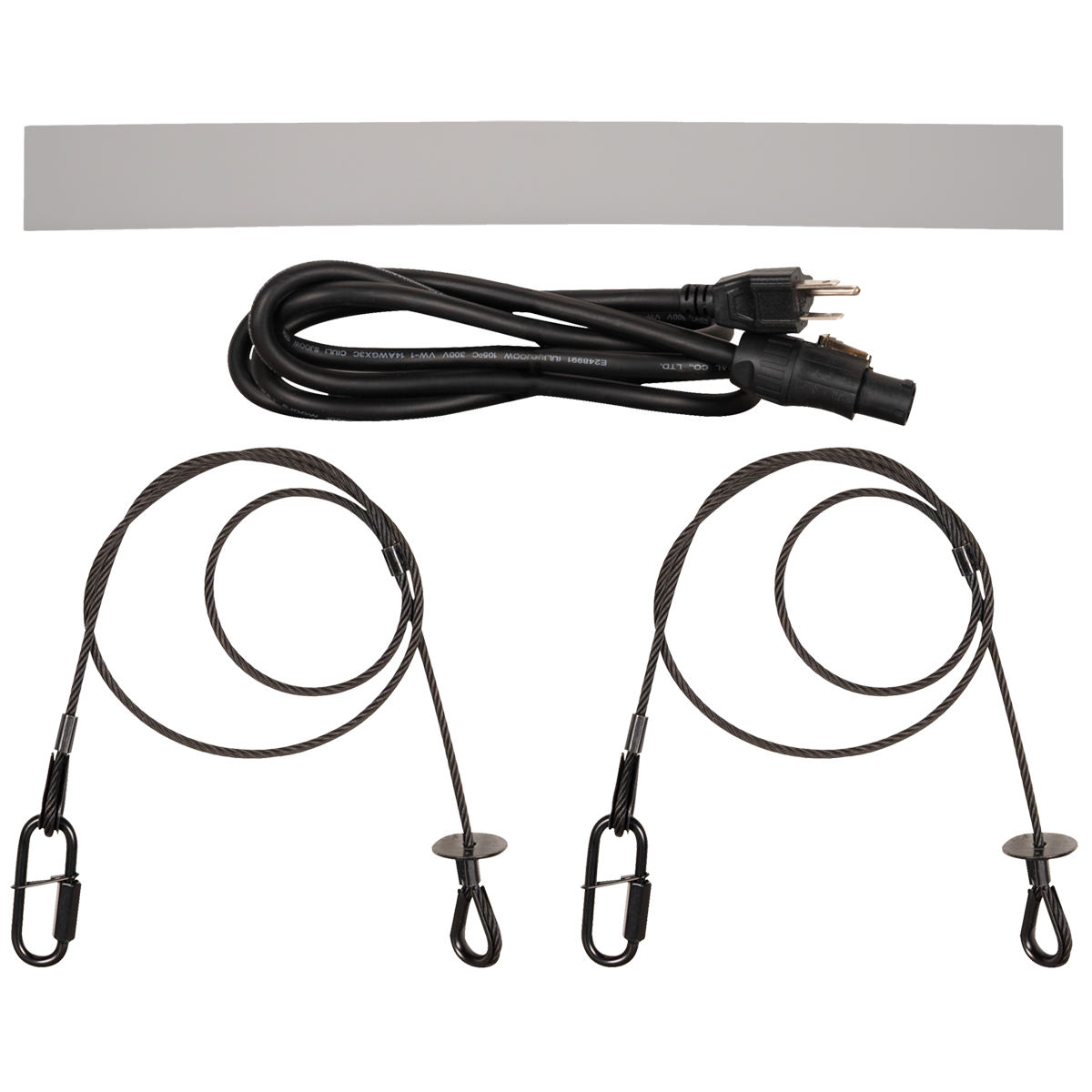

INCLUDED ITEMS

Glare Shield

Border Light Filter

2x Safety Cable

IP65 Locking Power Cable


OPTIONAL ITEMS

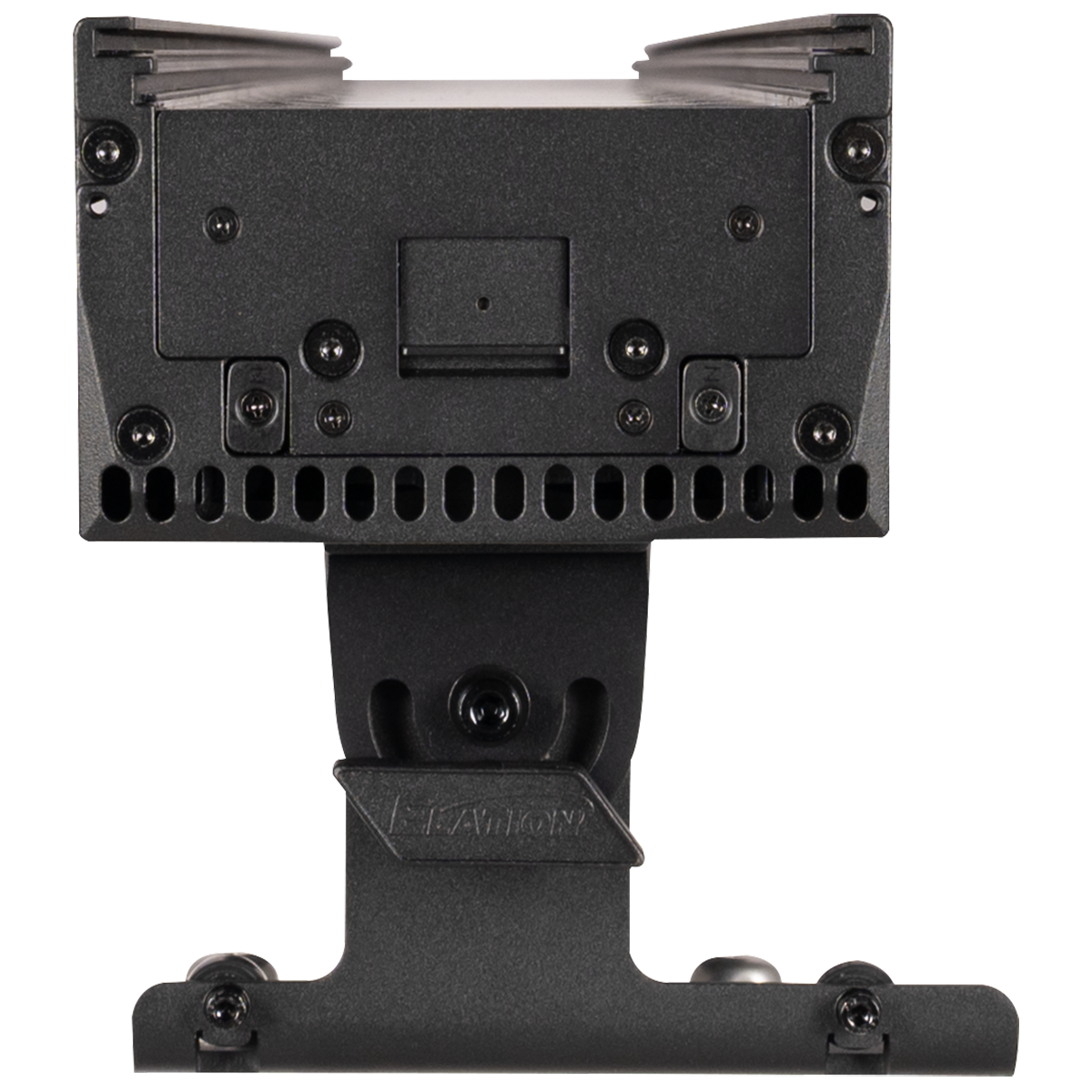

Omega Bracket (Qty.2)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)


APPROVALS / RATINGS


FIRMWARE UPDATE

Current Update:


Specifications and documentation subject to change without notice.
