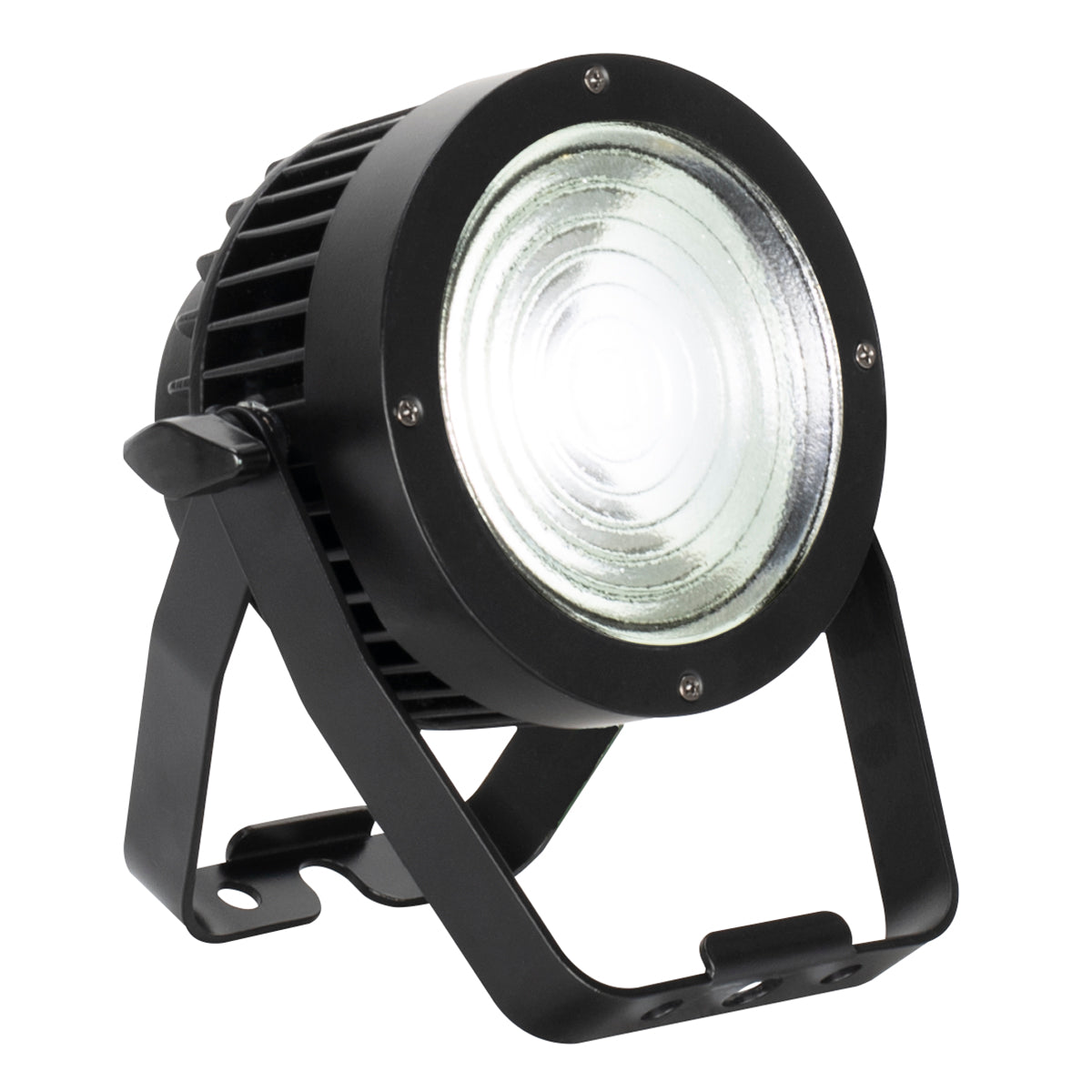

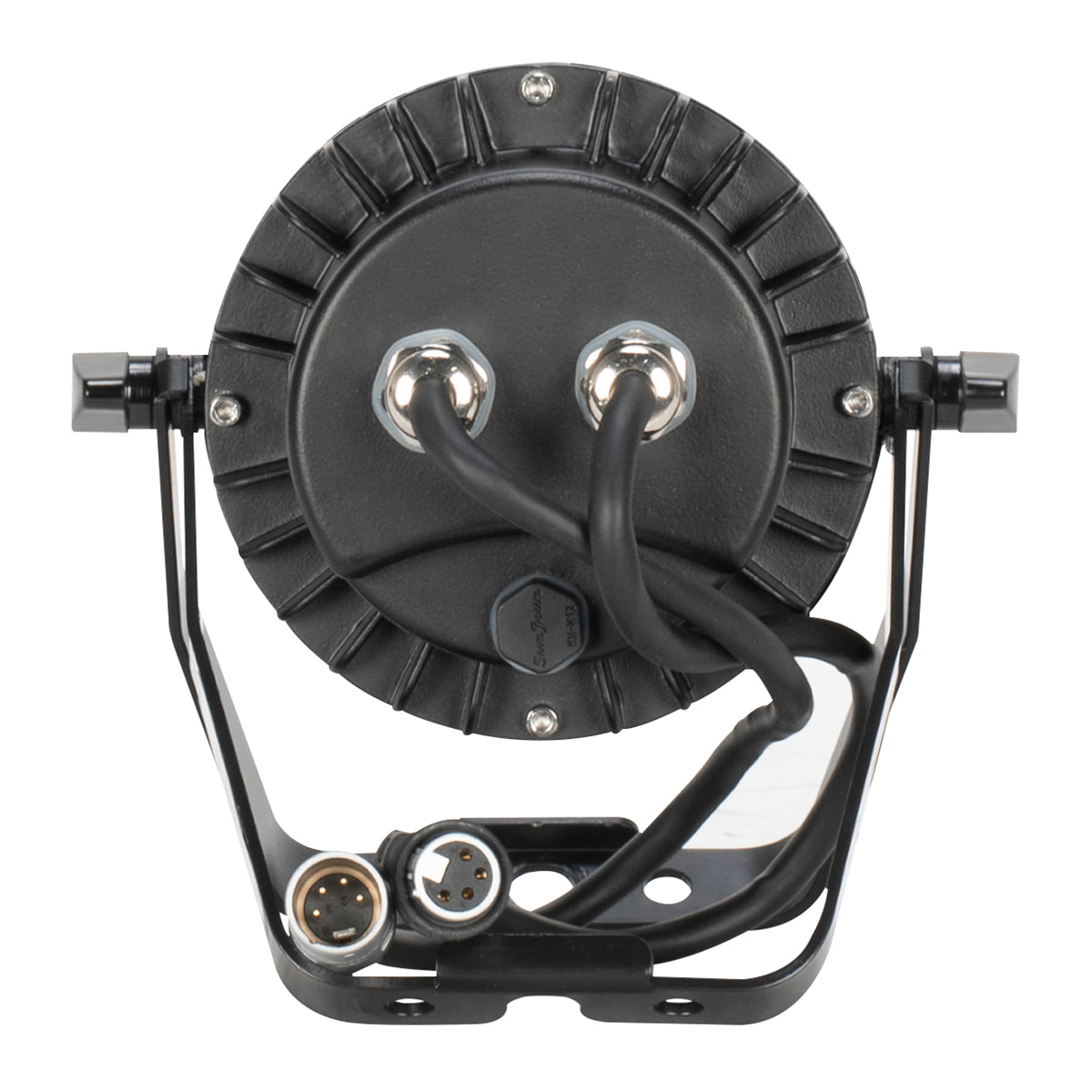

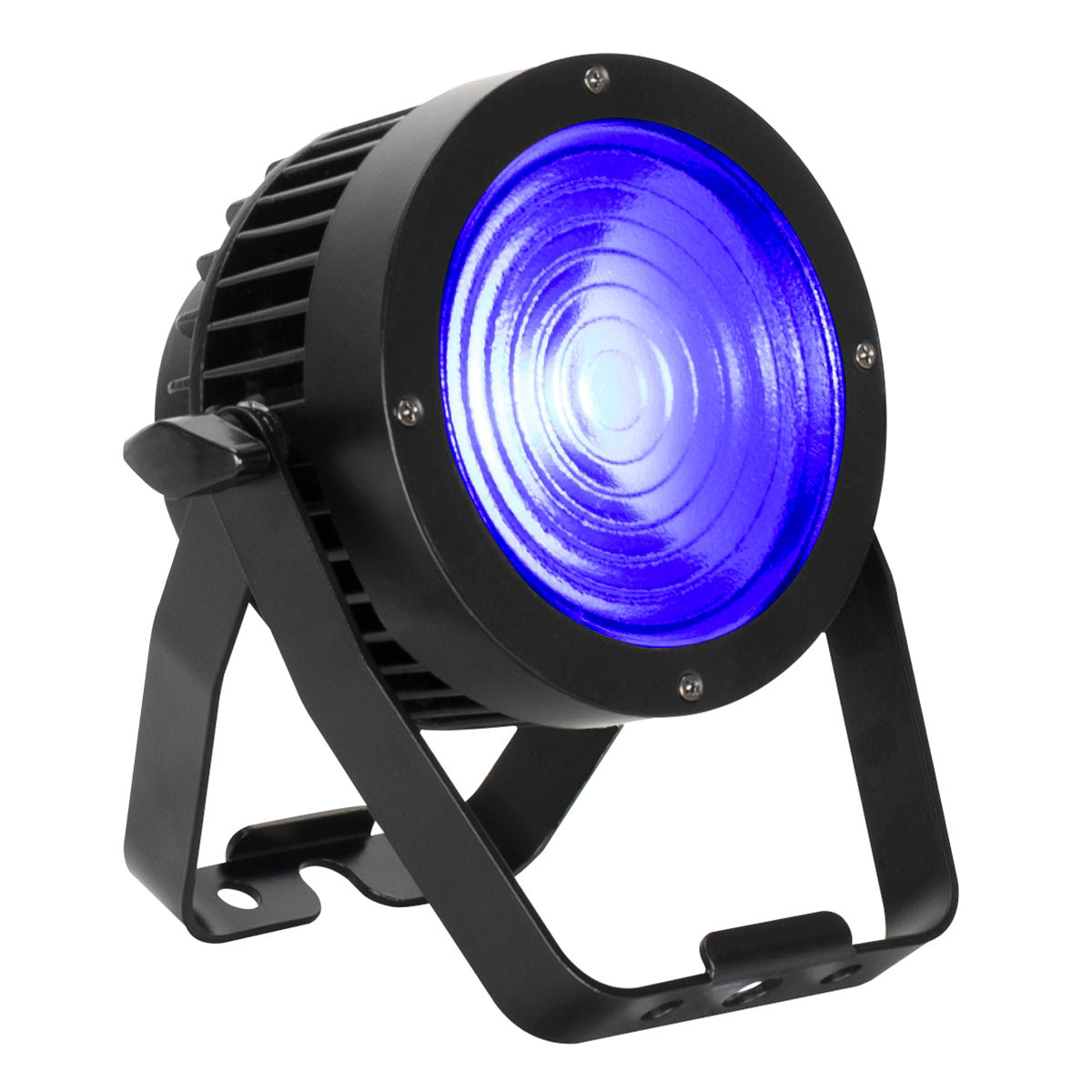

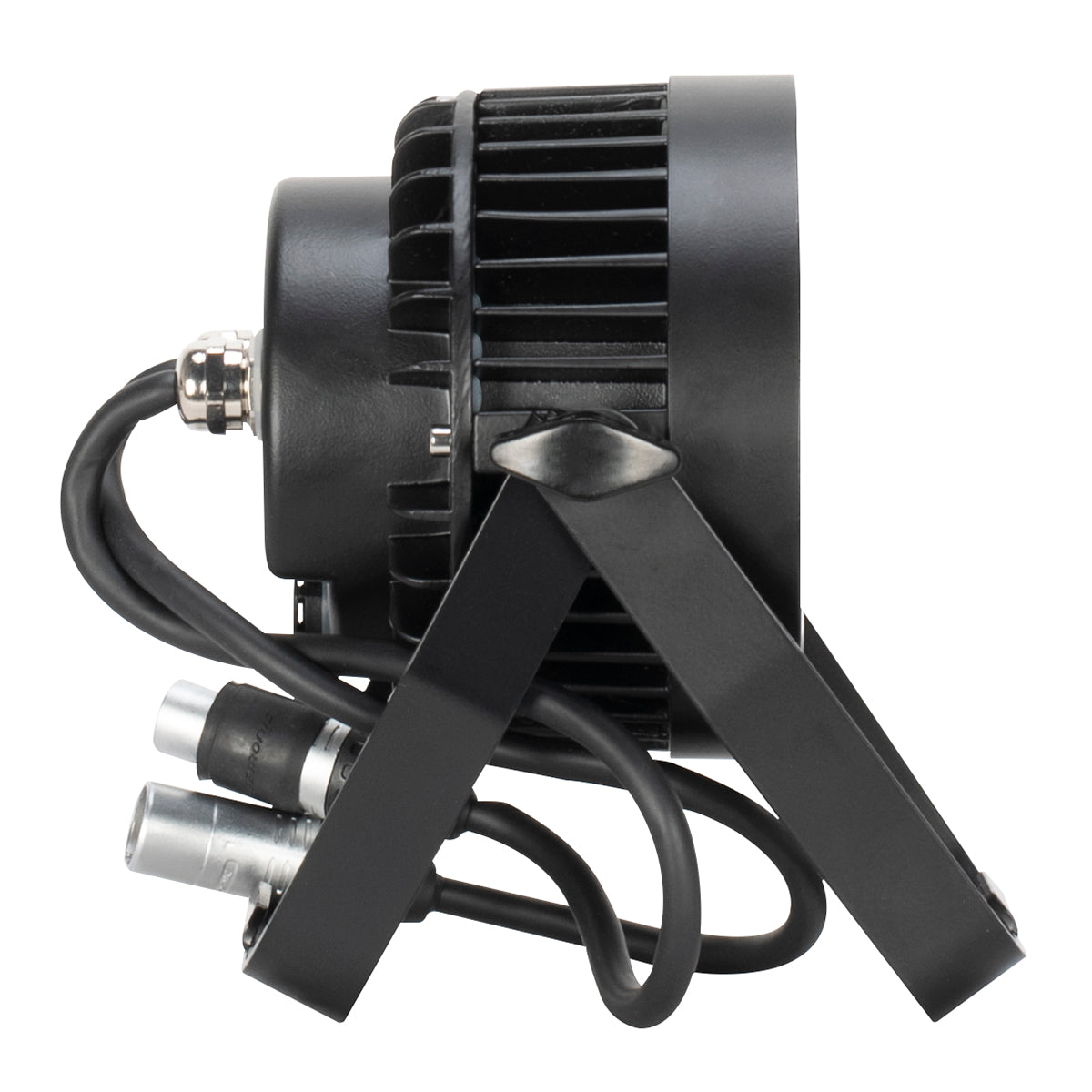

PIXEL WASH 40IP is a professional-grade lighting solution. The PIXEL WASH 40IP is a lightweight, outdoor IP65 rated LED wash / effect par fixture featuring 4 in 1, 10-watt RGBW LED’s, a PWM (pulse width modulation) of 44,000Hz for flicker free operation for broadcast, TV, and film applications, a beam angle of 32° and a field angle of 60°. This unit features two integrated 4pin power/data in and out whips with locking connectors.

UPC: 810008263754SKU: PIX672
Request Demo or Quotation

Related Products

PIXEL DRIVER 1000IPPIXEL DRIVER 1000IP
PIXEL DRIVER 1000IP
PIXEL DRIVER 170IPPIXEL DRIVER 170IP
PIXEL DRIVER 170IP
PIXEL AMP 200PIXEL AMP 200
PIXEL AMP 200

PIXEL WASH 40IP

The PIXEL WASH 40IP is a lightweight, outdoor IP65 rated LED wash / effect par fixture featuring 4 in 1, 10-watt RGBW LED’s, a PWM (pulse width modulation) of 44,000Hz for flicker free operation for broadcast, TV, and film applications, a beam angle of 32° and a field angle of 60°. This unit features two integrated 4pin power/data in and out whips with locking connectors.

The PIXEL WASH 40IP can be combined together with PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP, PIXEL TAPE 16IP and PIXEL TAPE 40IP, in any combination, to create a versatile pixel-mapped display. Optional power/data cables extensions are available in various lengths ranging from 2 to 50 feet (sold separately). Easy and versatile control options are handled by the PIXEL DRIVER 170IP™ (sold separately), which provides simple RGBW DMX512 control, and PIXEL DRIVER 1000IP™ (sold separately), which provide simple on-board manual LED color / intensity control, and full pixel mapping control via Kling-Net, Art-Net and sACN protocols.

Outdoor IP65 Rated 4 in 1, 10-watt RGBW Led’s 44,000Hz PWM for Flicker Free Operation Integrated 4pin power/data in and out whips 32° Beam Angle 60° Field Angle 120° Optional lens available

Specifications

SOURCE
4 in 1, 10W RGBW LEDs
Beam Angle: 32°
Field Angle: 60°
PWM (Pulse Width Modulation): 44,000Hz

CONNECTIONS
Seetronic 4pin Power/Data In/Out

CONTROL
For use with PIXEL DRIVER 170IP, PIXEL DRIVER 1000IP and PIXEL DRIVER 4000 V3

SIZE / WEIGHT
Length: 5.2” (133mm)
Width: 7.0” (177mm)
Height: 6.6” (167mm)
Weight: 3.5 lbs. (1.56kg)

ELECTRICAL
Input: DC24V
Max Power Consumption: 40W

TEMPERATURE
Max Ambient Temperature: 113°F (45°C)
Min Ambient Temperature: -4°F (-20°C)

COOLING
Convection Cooled

APPROVALS
cETLus | FCC | CE | IP65

INCLUDED ITEMS
120° Frost Lens and Magnet attachment assembly
Safety Cable for magnet attachment assembly

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Dimensional drawings

Dmx traits

Photometrics

Specification sheet

User manual
