RDM 645
RDM 645 is a professional-grade lighting solution. The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation. The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
Related Products
RDM 645
The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
- Key Features
- (6) Locking RJ45 Ethernet DMX outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
- For technical details and documentation of NETRON devices please visit
- https://obsidiancontrol.com/netron
Specifications

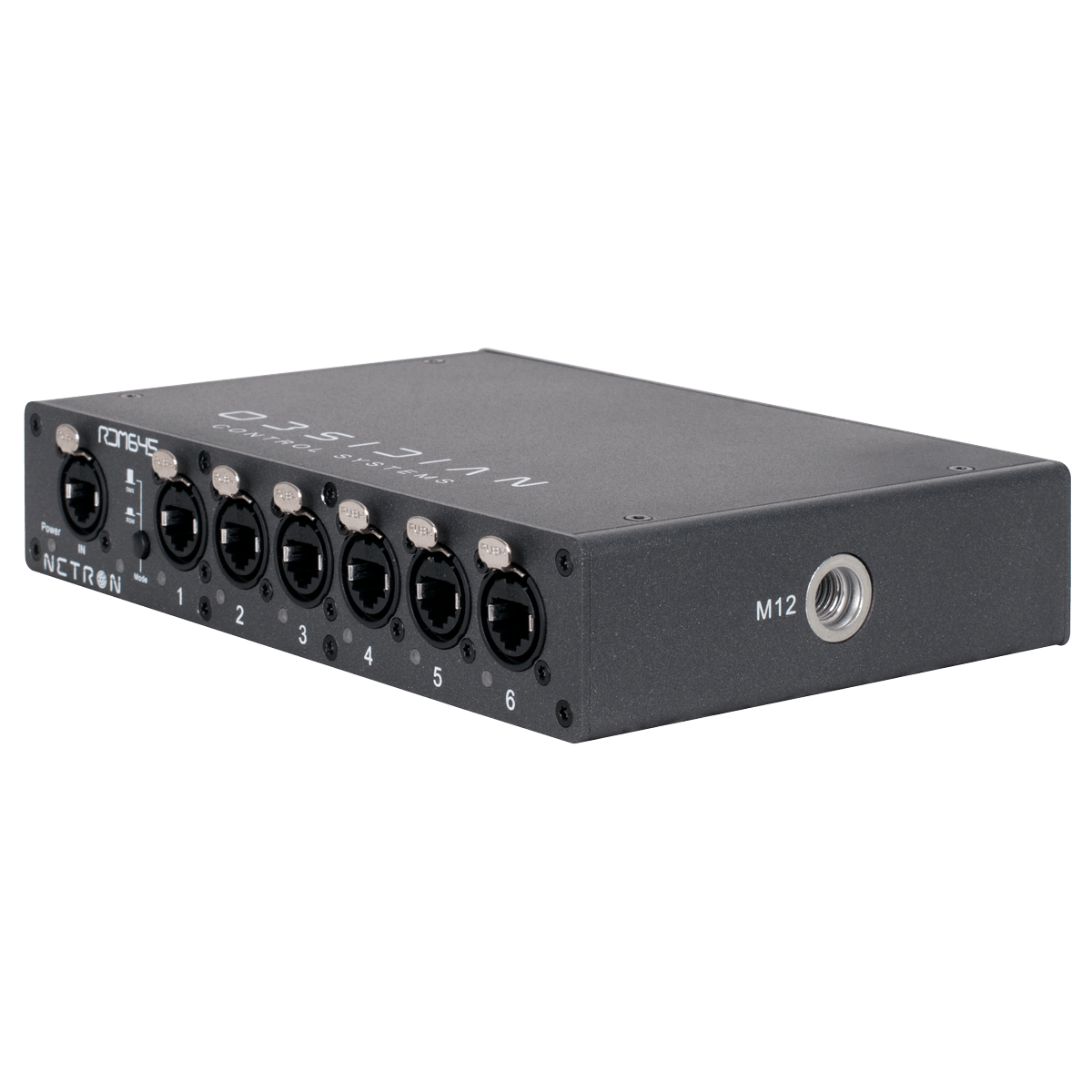

Truss-mount (M10 or M12 mounting hole)

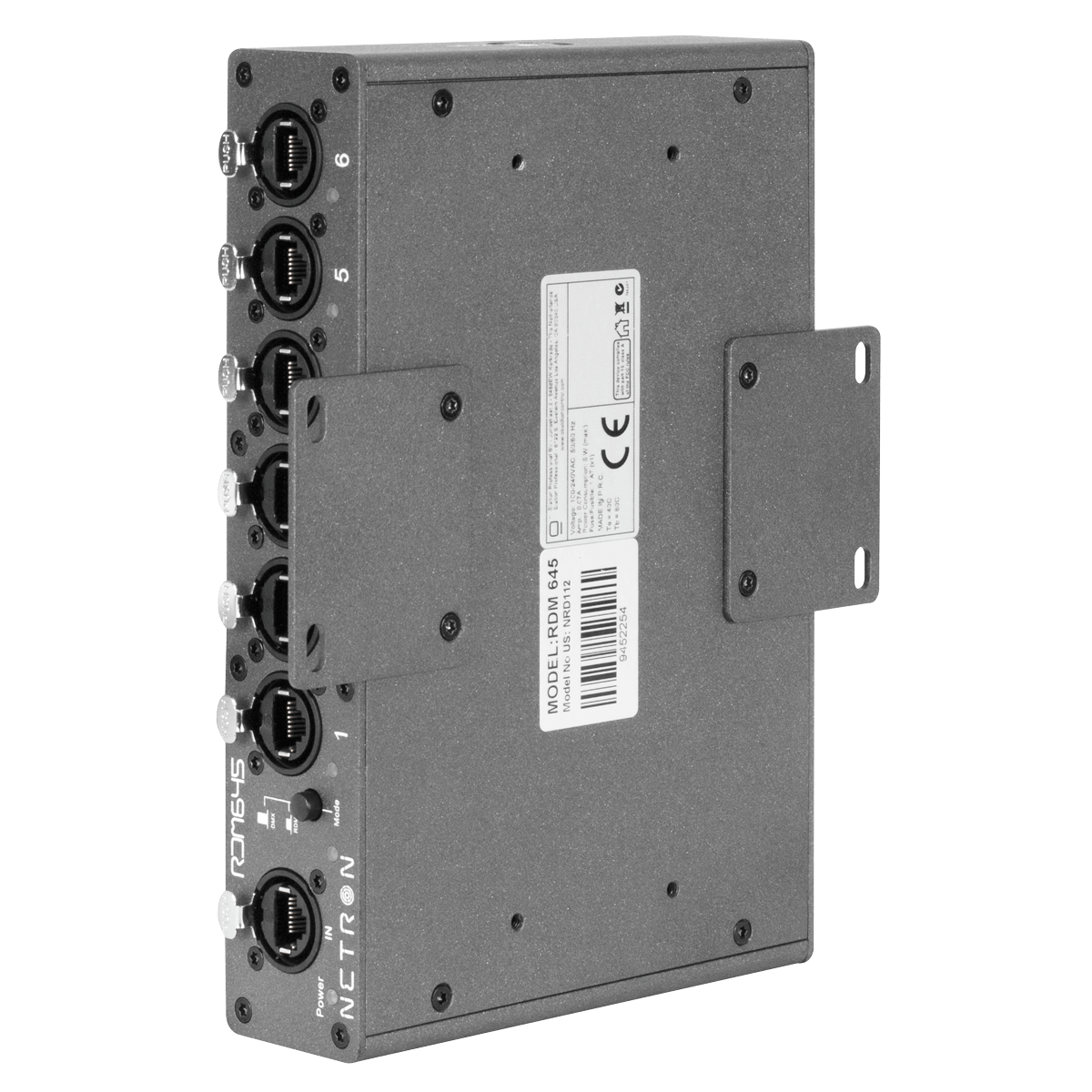

Wall-mount horizontal or vertical (included)

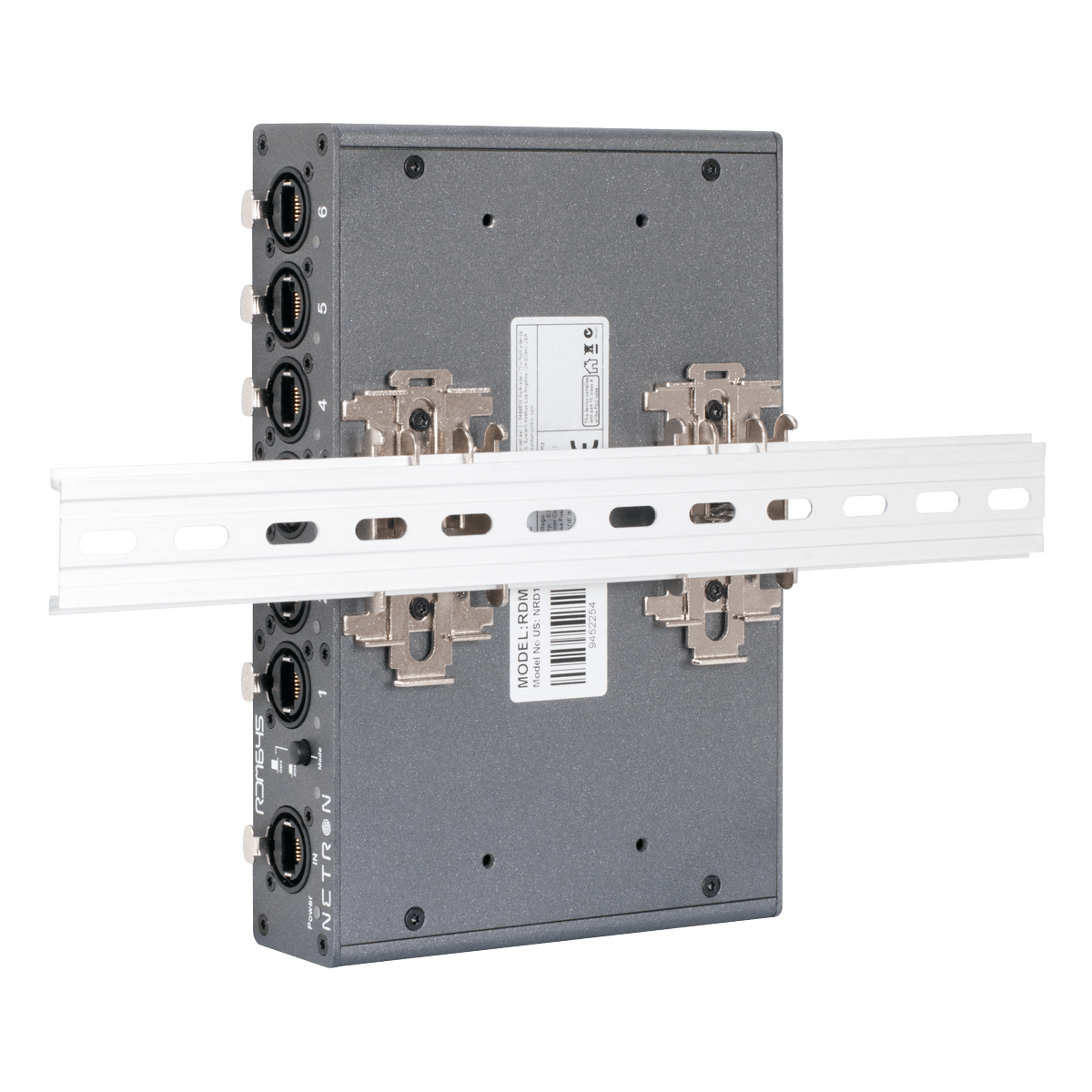

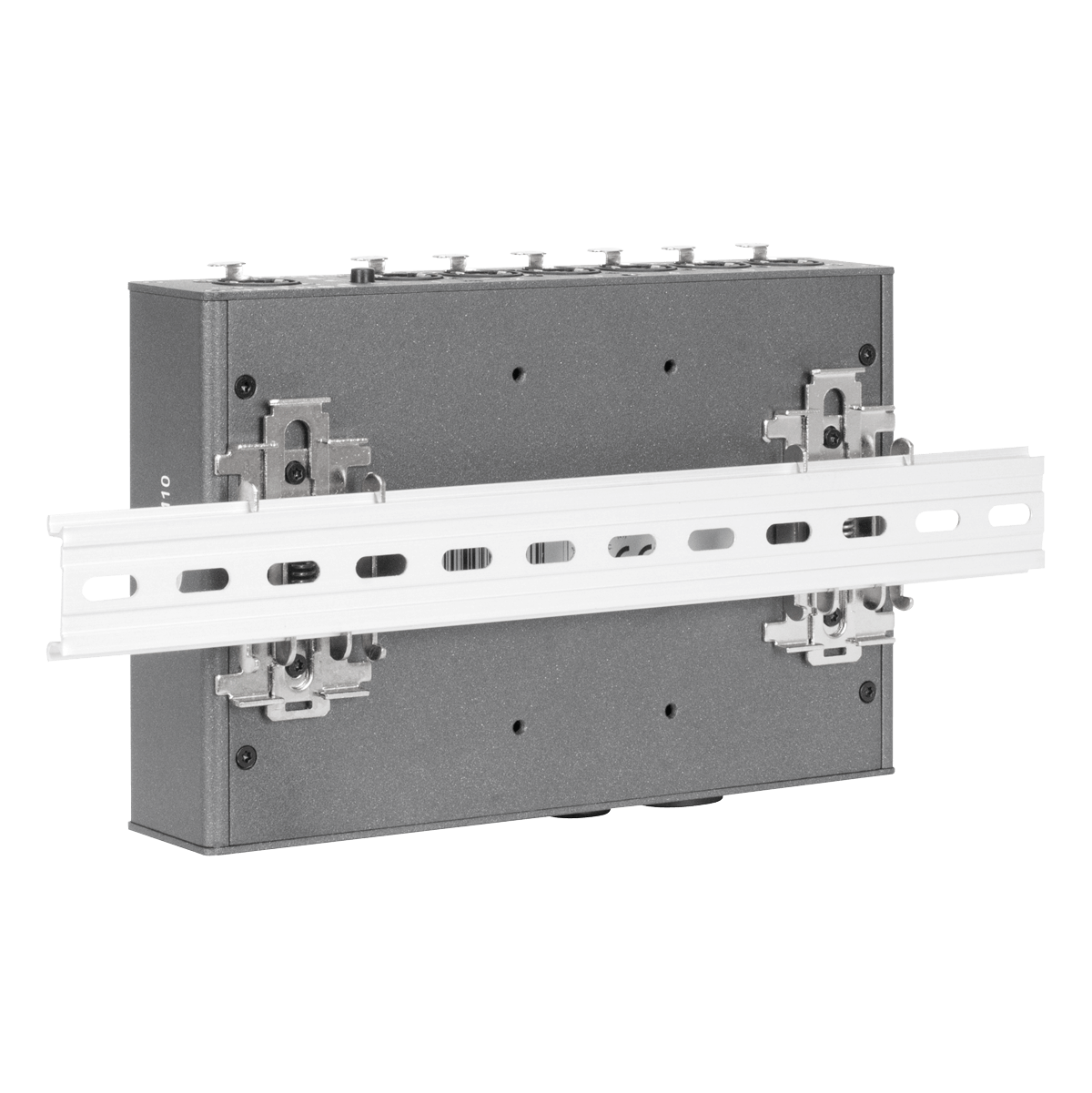

DIN Rail horizontal or vertical (included)

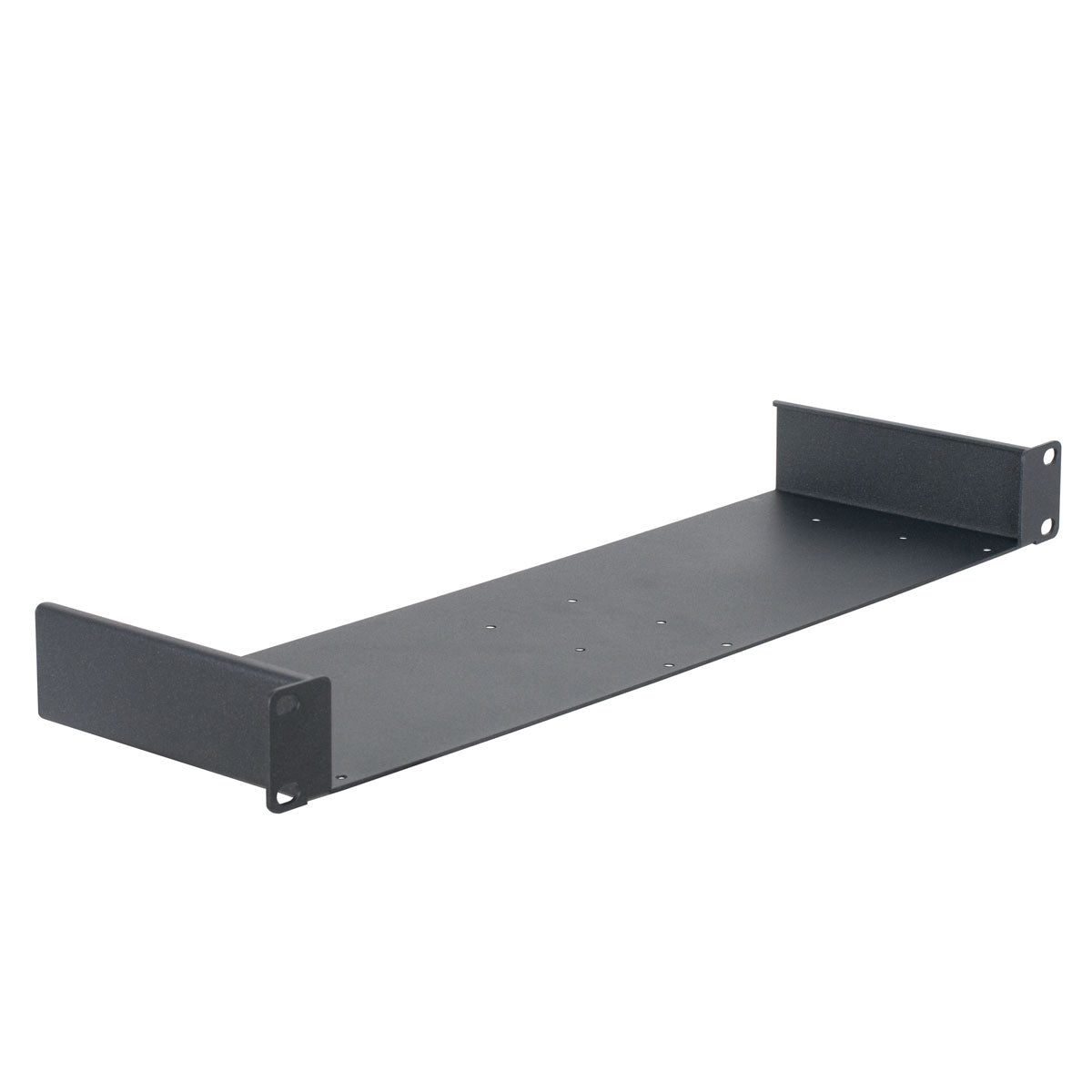

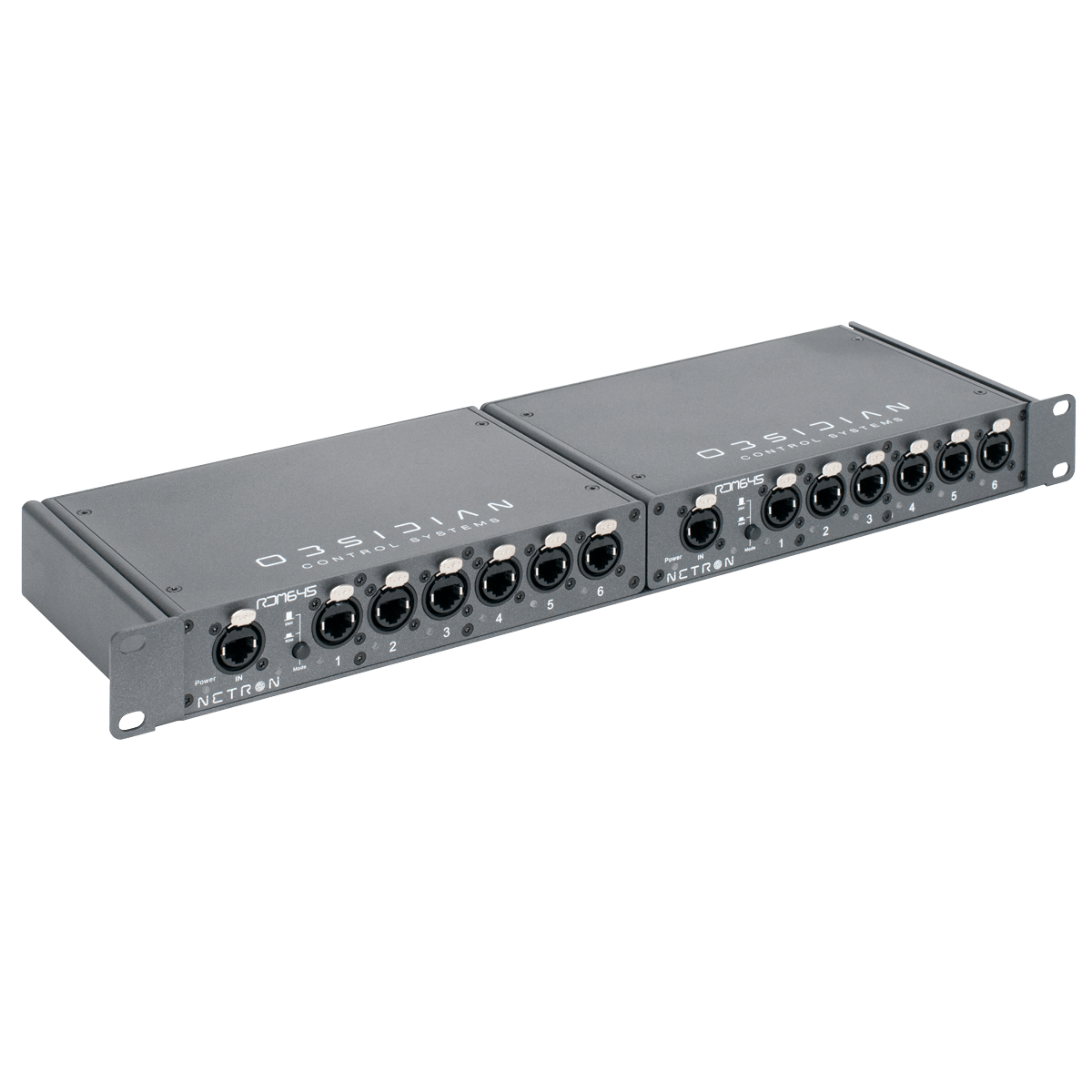

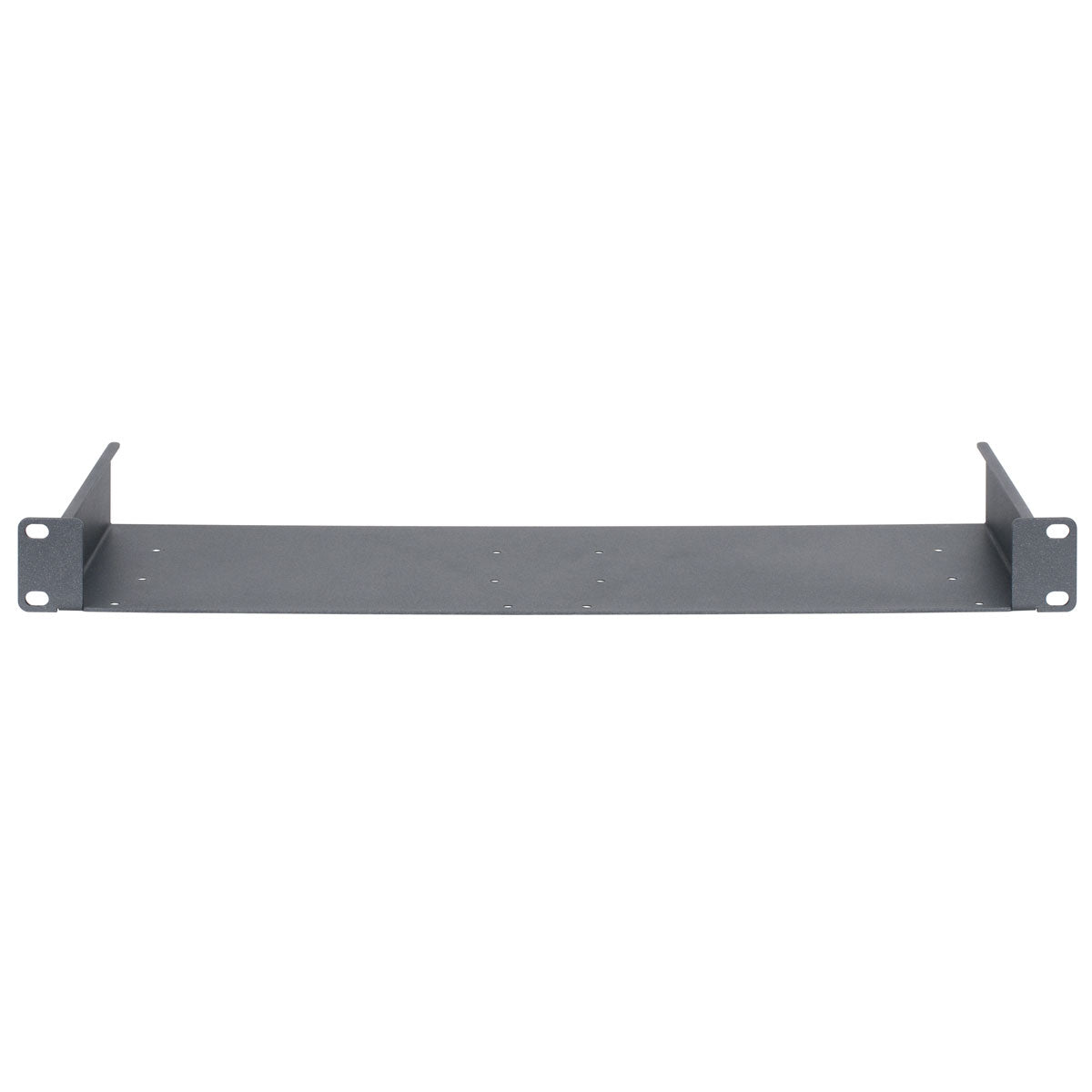

Rack-mount option (requires NET Shelf)
Locking RJ45 Ethernet DMX Input
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
RDM Enable
Locking RJ45 Ethernet DMX Input (parallel with front)
Locking RJ45 Ethernet DMX Through
Terminate
Locking Power In/Thru
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
(2) Wallmount plates
(2) DIN-Rail clamps
Downloads
Installation guide
Specification sheet
