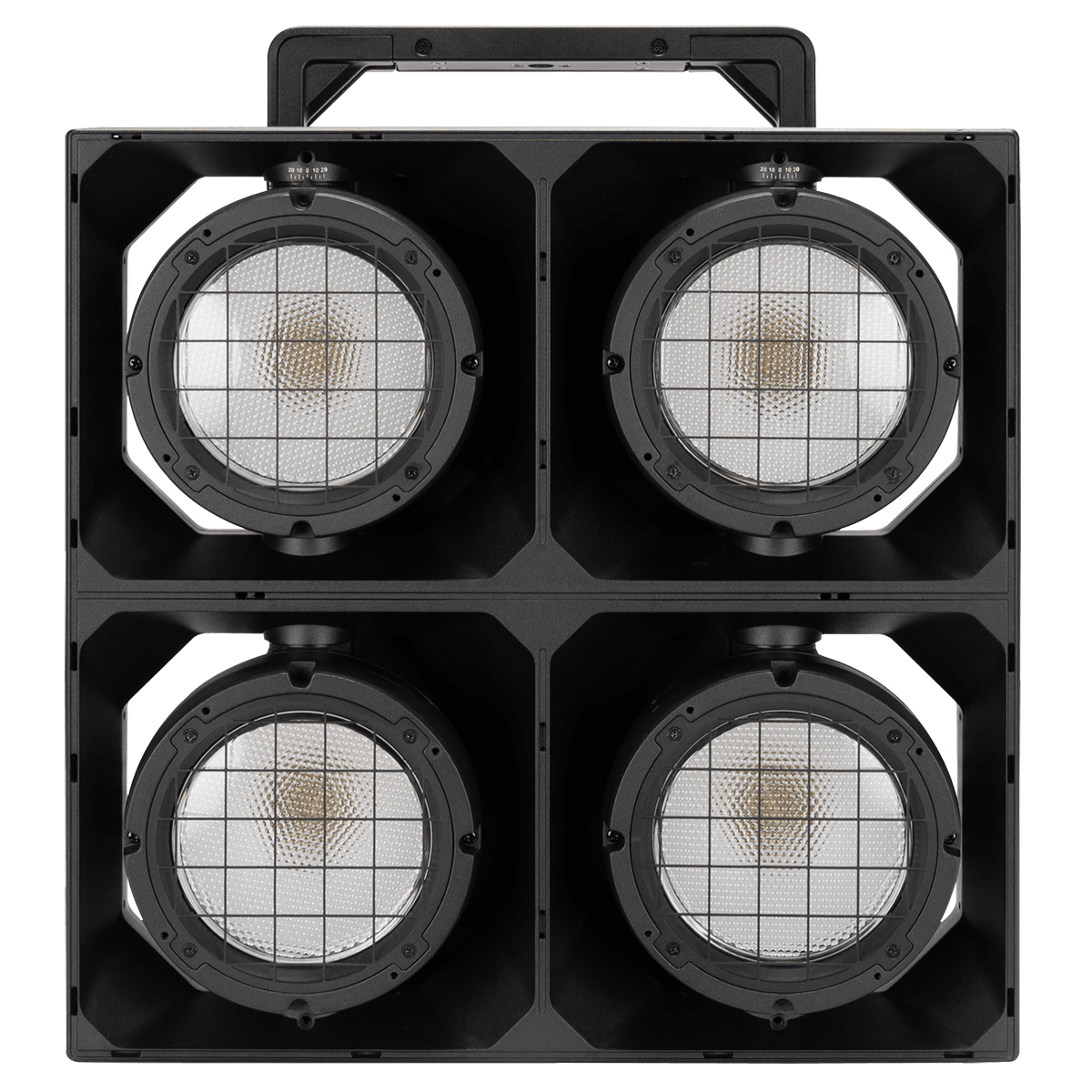

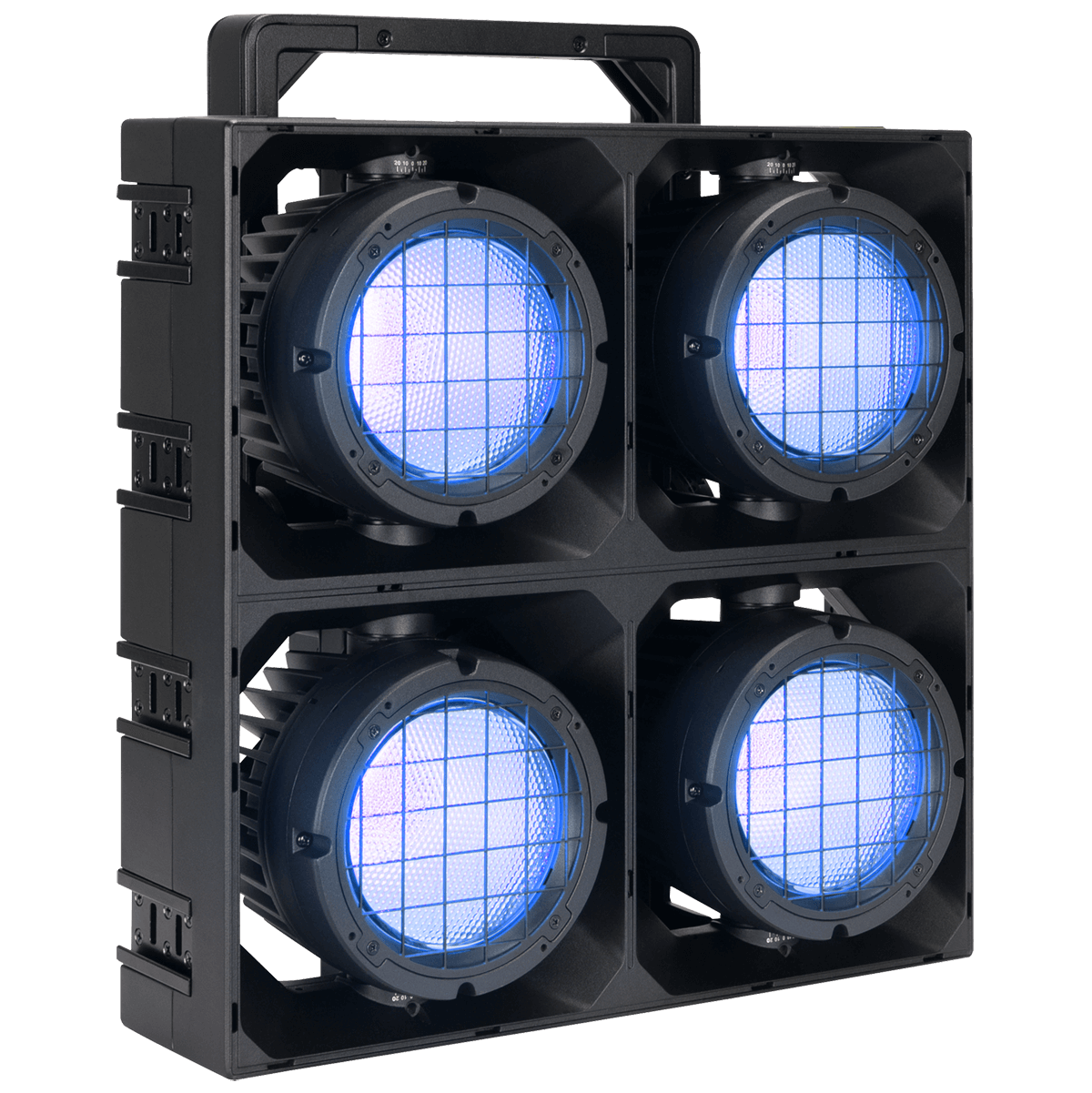

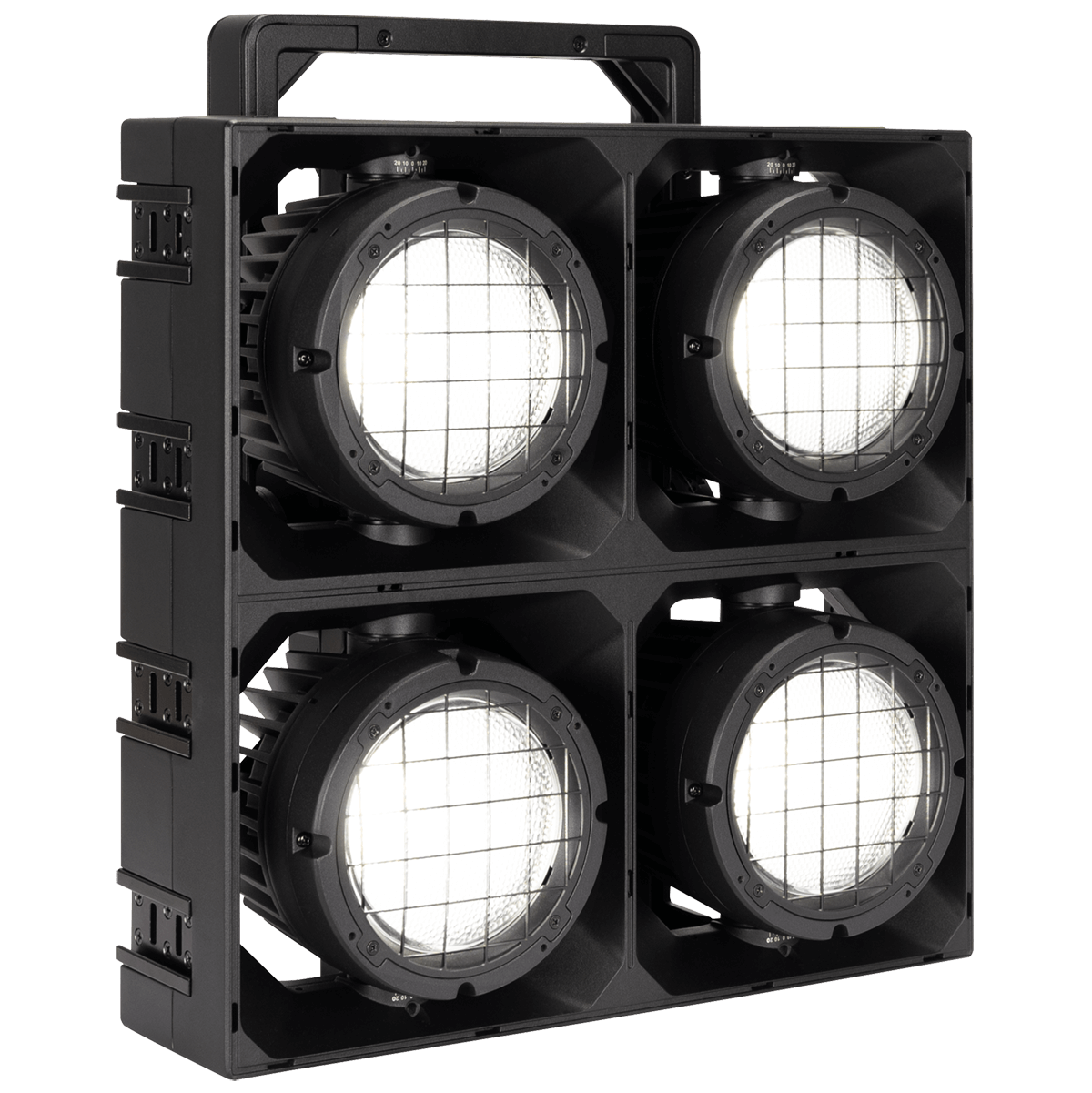

4x 350W RGBLAW LED Blinder IP65

Introducing the SŌL IV BLINDER, the most versatile addition to the SŌL Series yet, featuring a grid of four fixtures in a single modular housing. Like the SŌL I and SŌL II, the SŌL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.

UPC: 810008265000SKU: SOL401

Related Products

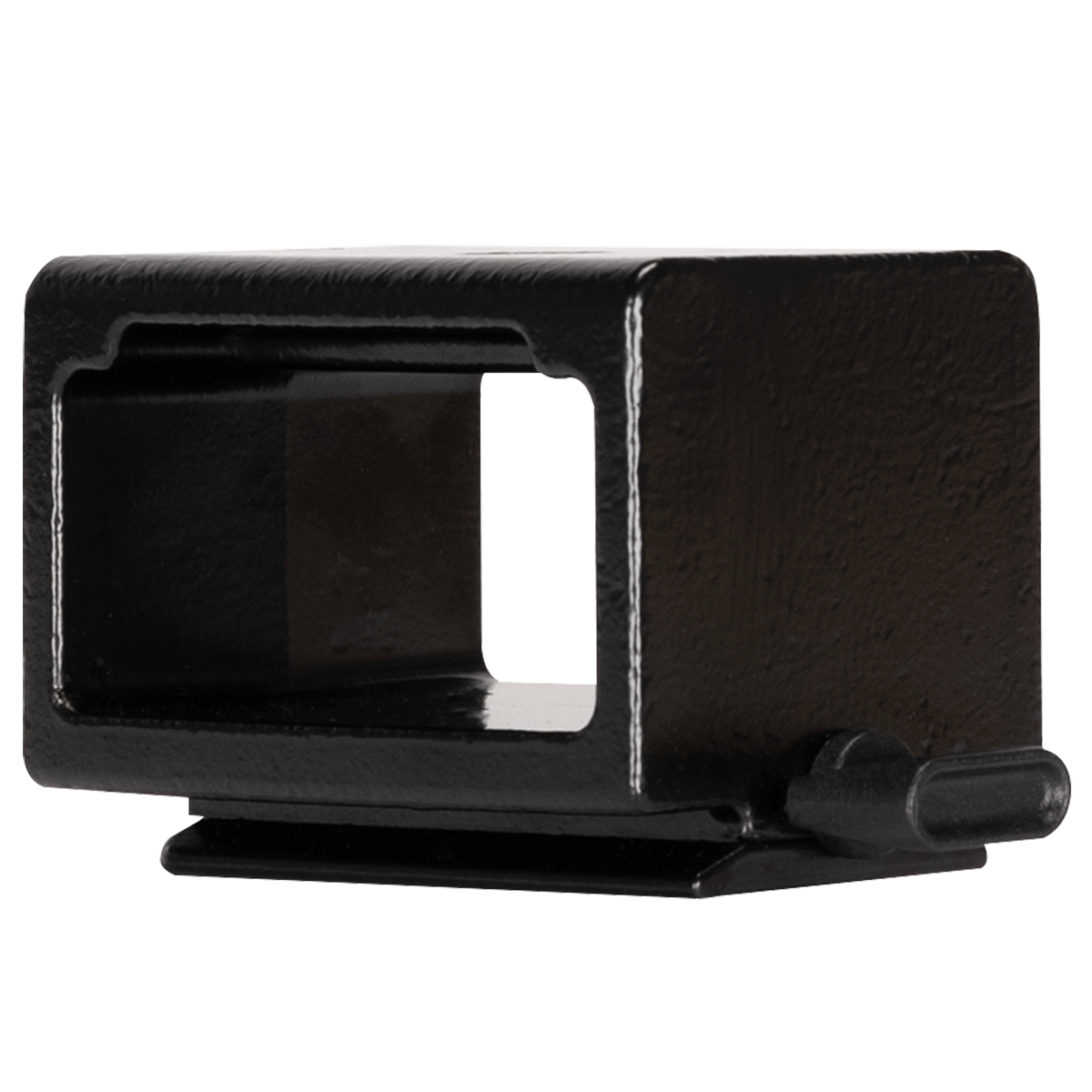

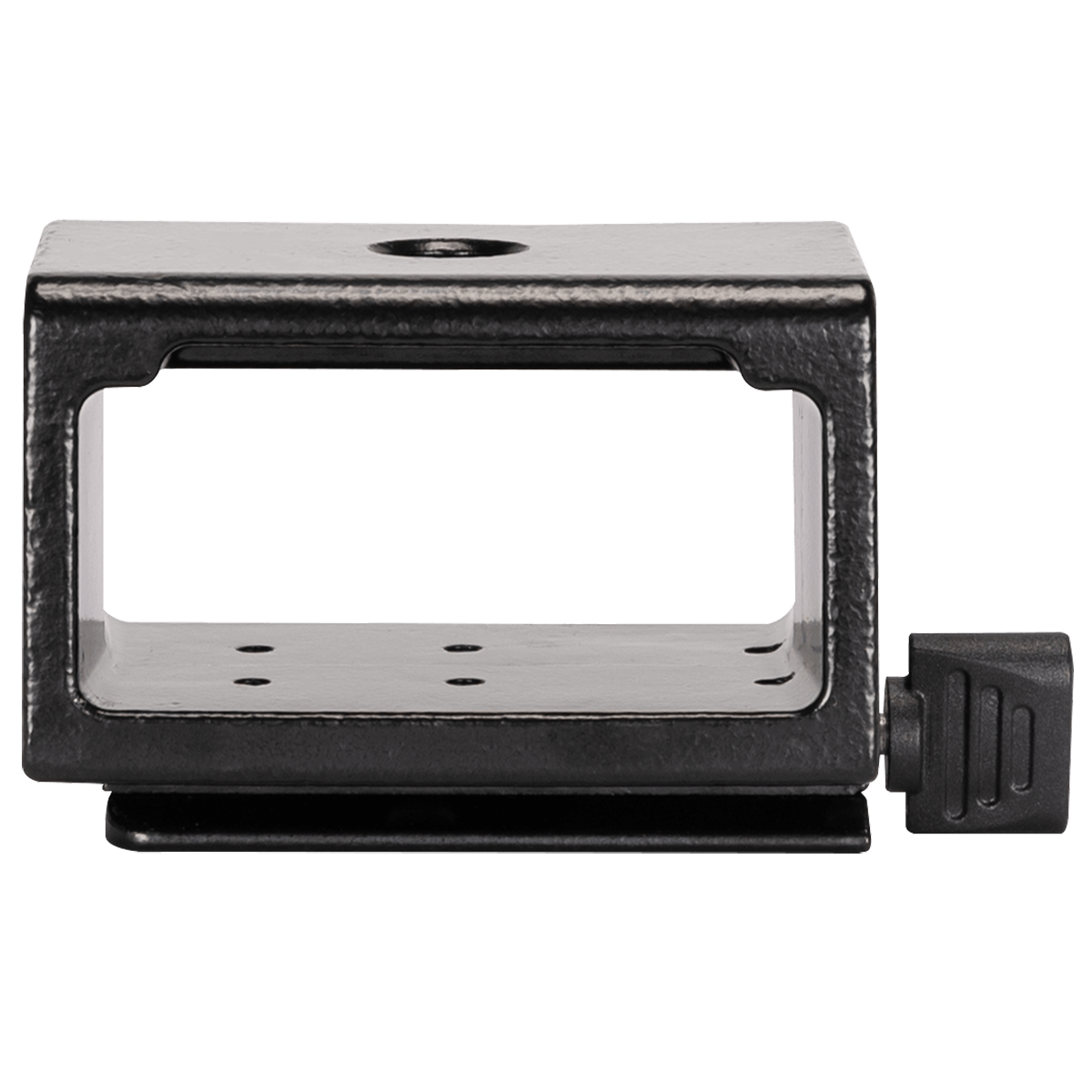

Interconnect Clamp AdapterInterconnect Clamp Adapter
Interconnect Clamp Adapter

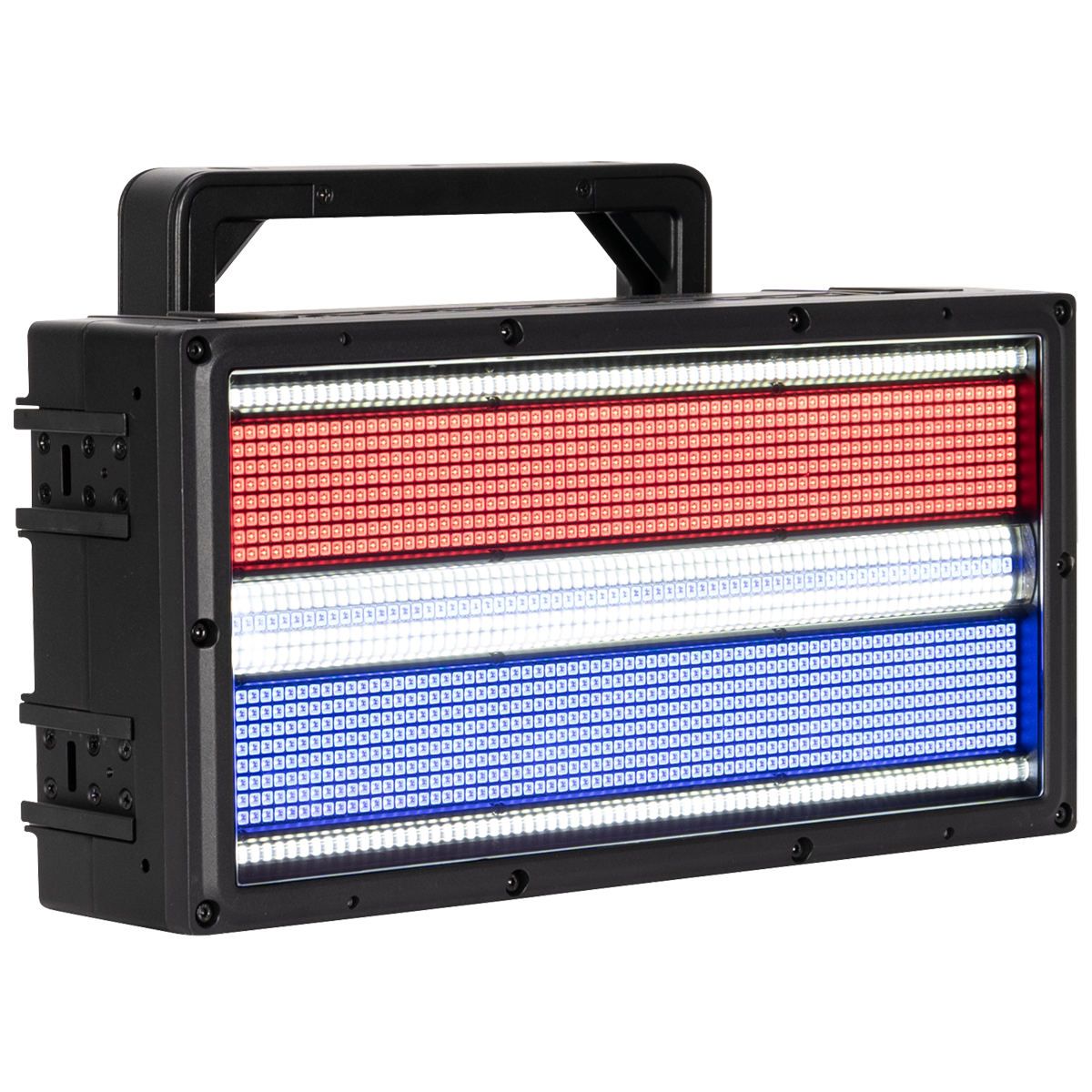

PULSE PANELPULSE PANEL

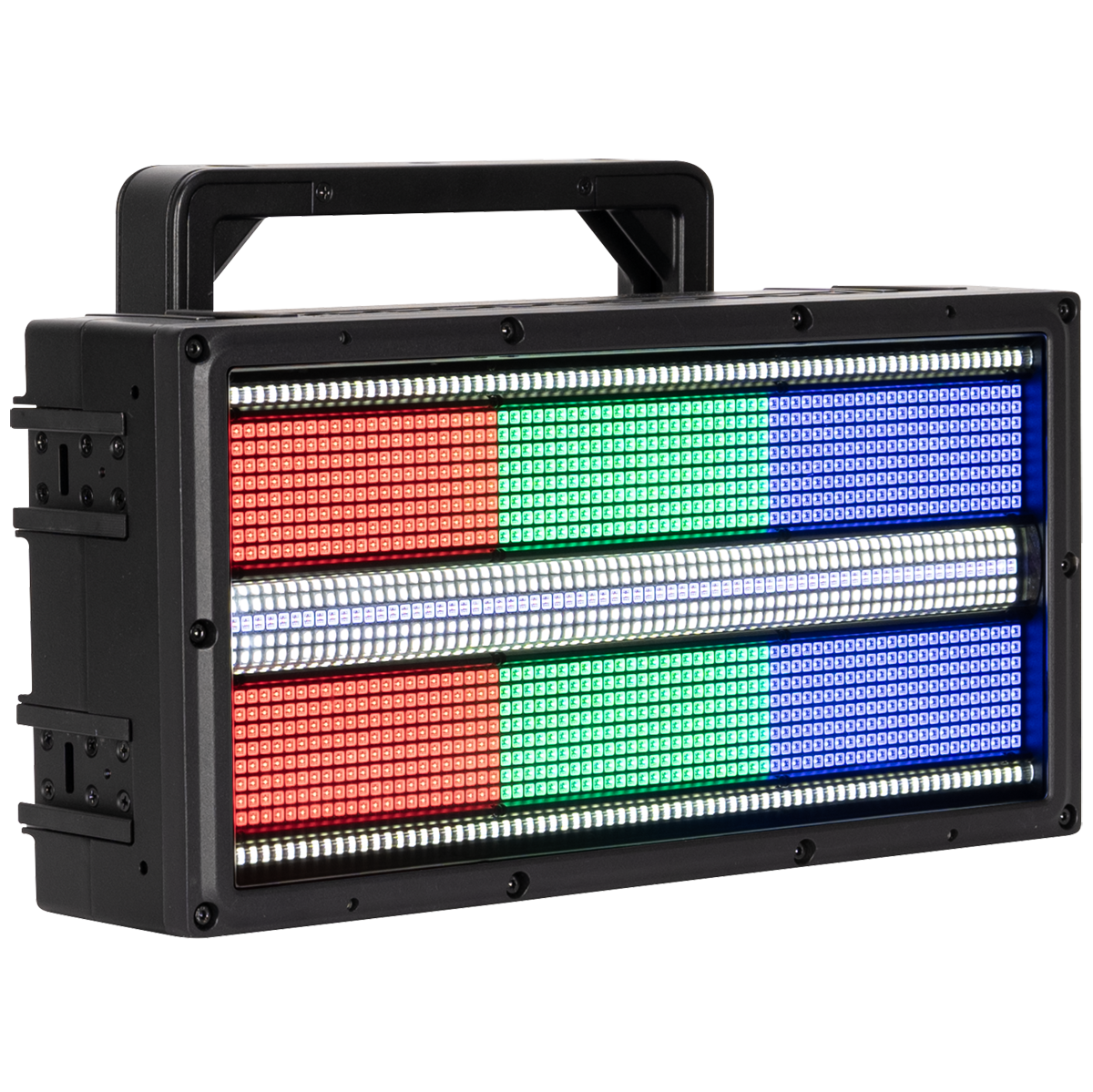

PULSE PANEL
SŌL I BLINDERSŌL I BLINDER
SŌL I BLINDER
SŌL I Blinder Frame KitSŌL I Blinder Frame Kit

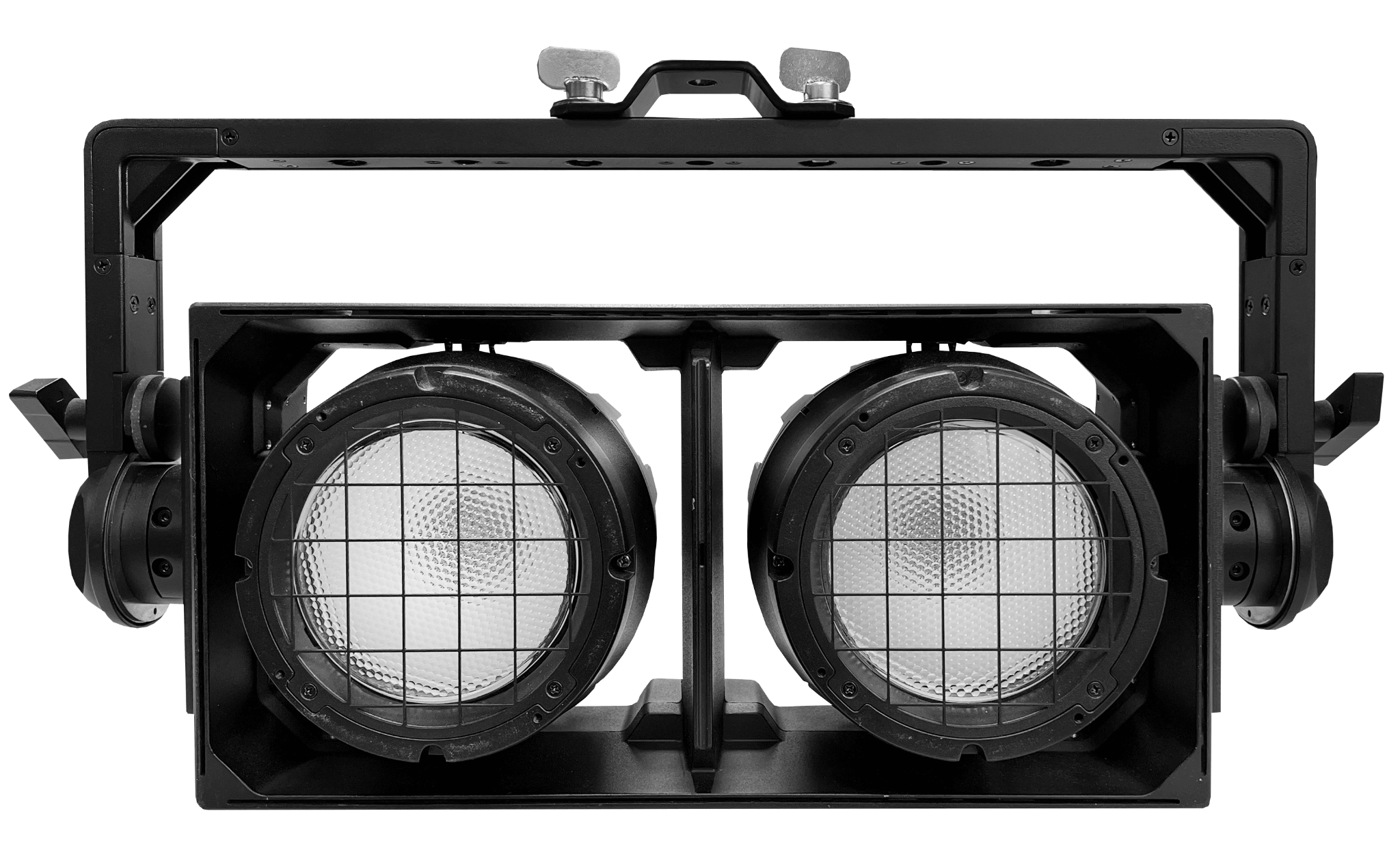

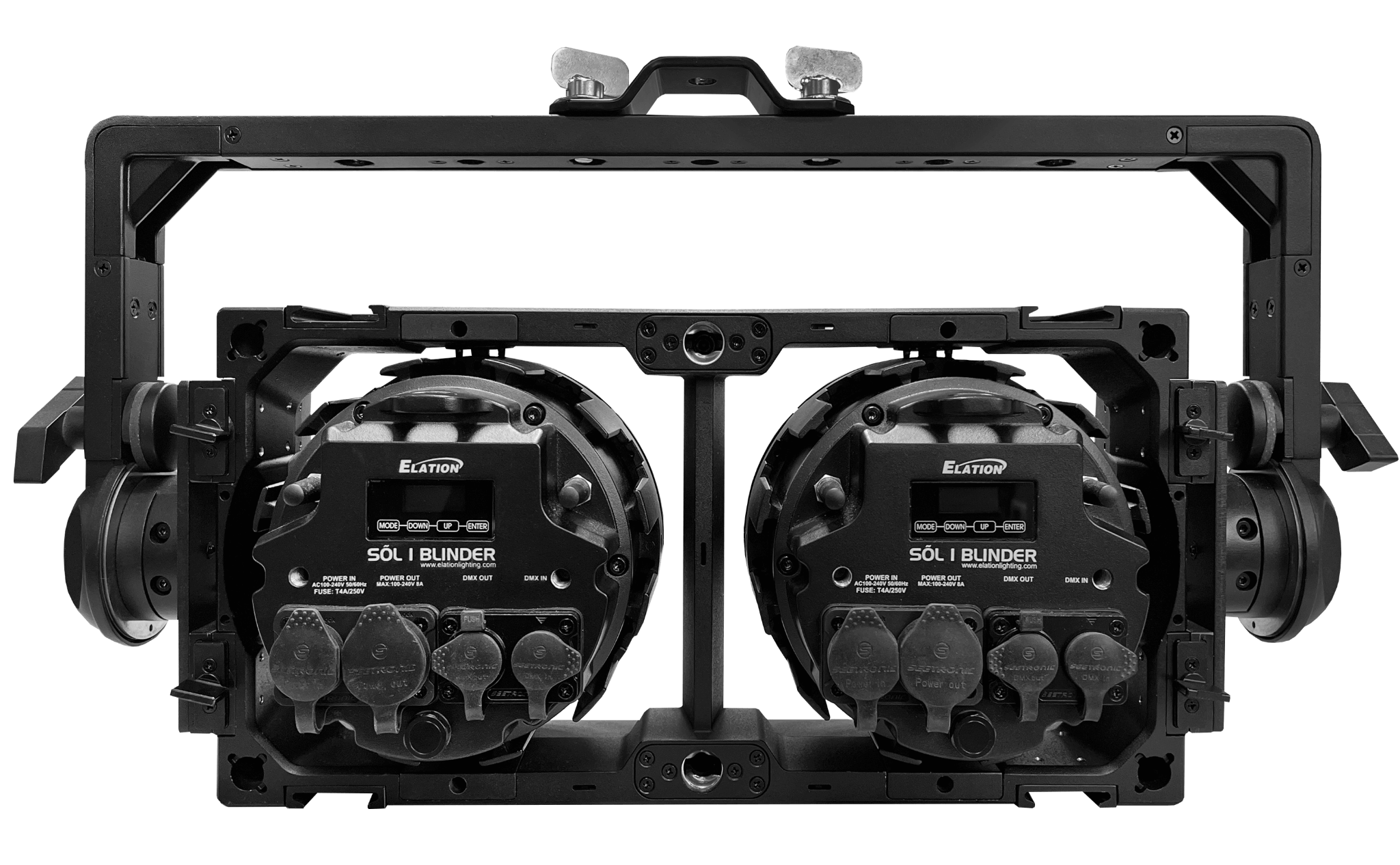

SŌL I Blinder Frame Kit
New
SŌL II BLINDERSŌL II BLINDER
SŌL II BLINDER

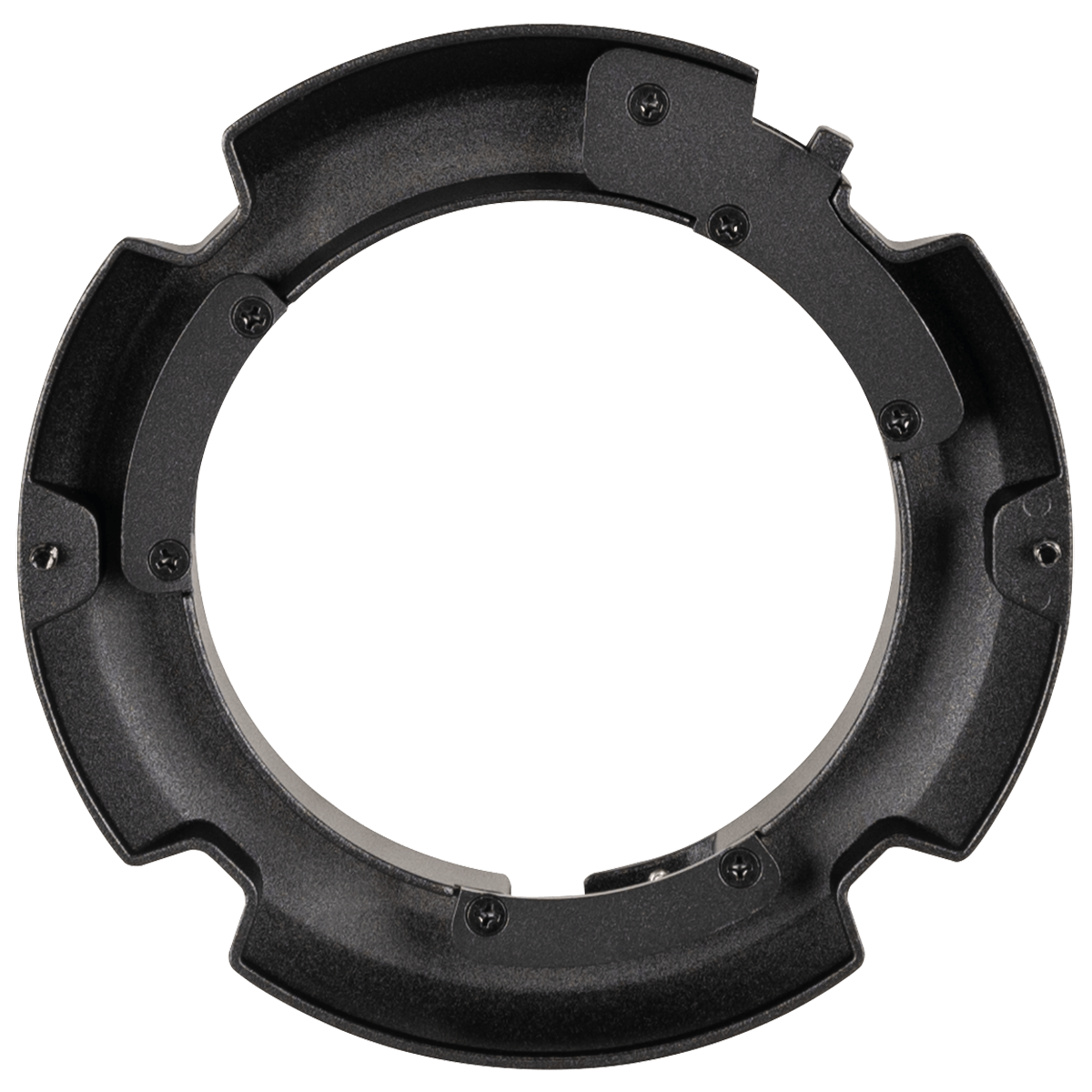

SŌL Bowens AdapterSŌL Bowens Adapter

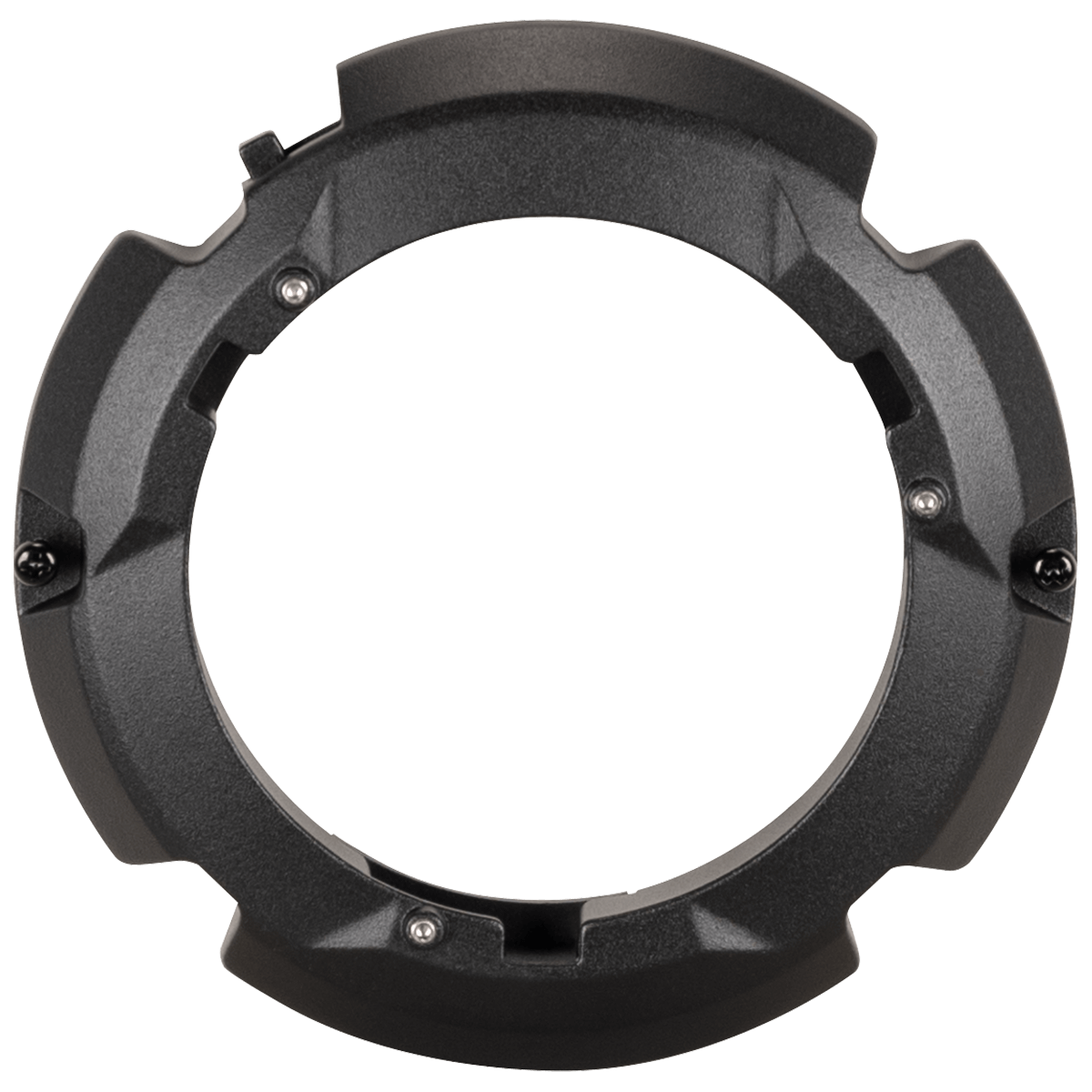

SŌL Bowens Adapter

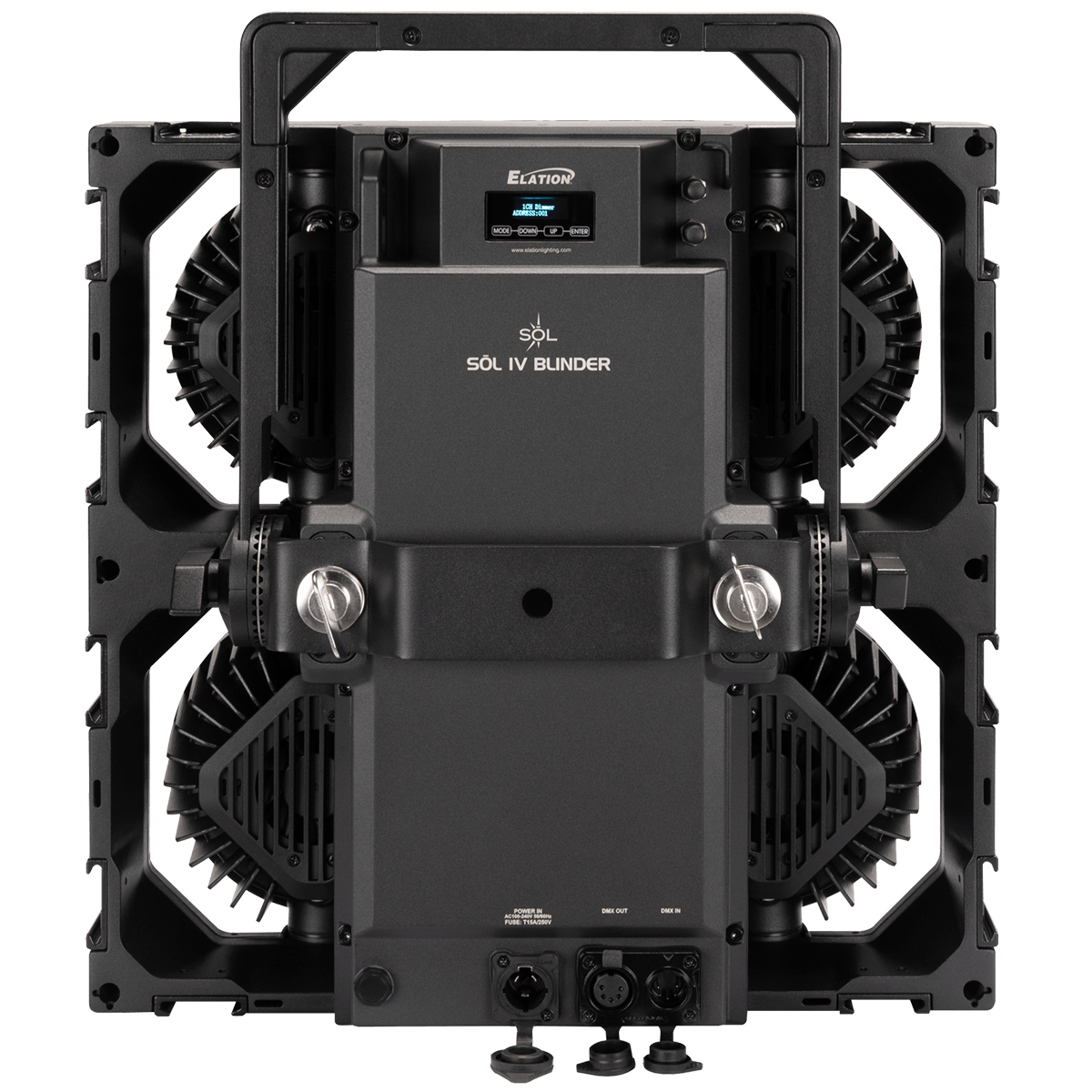

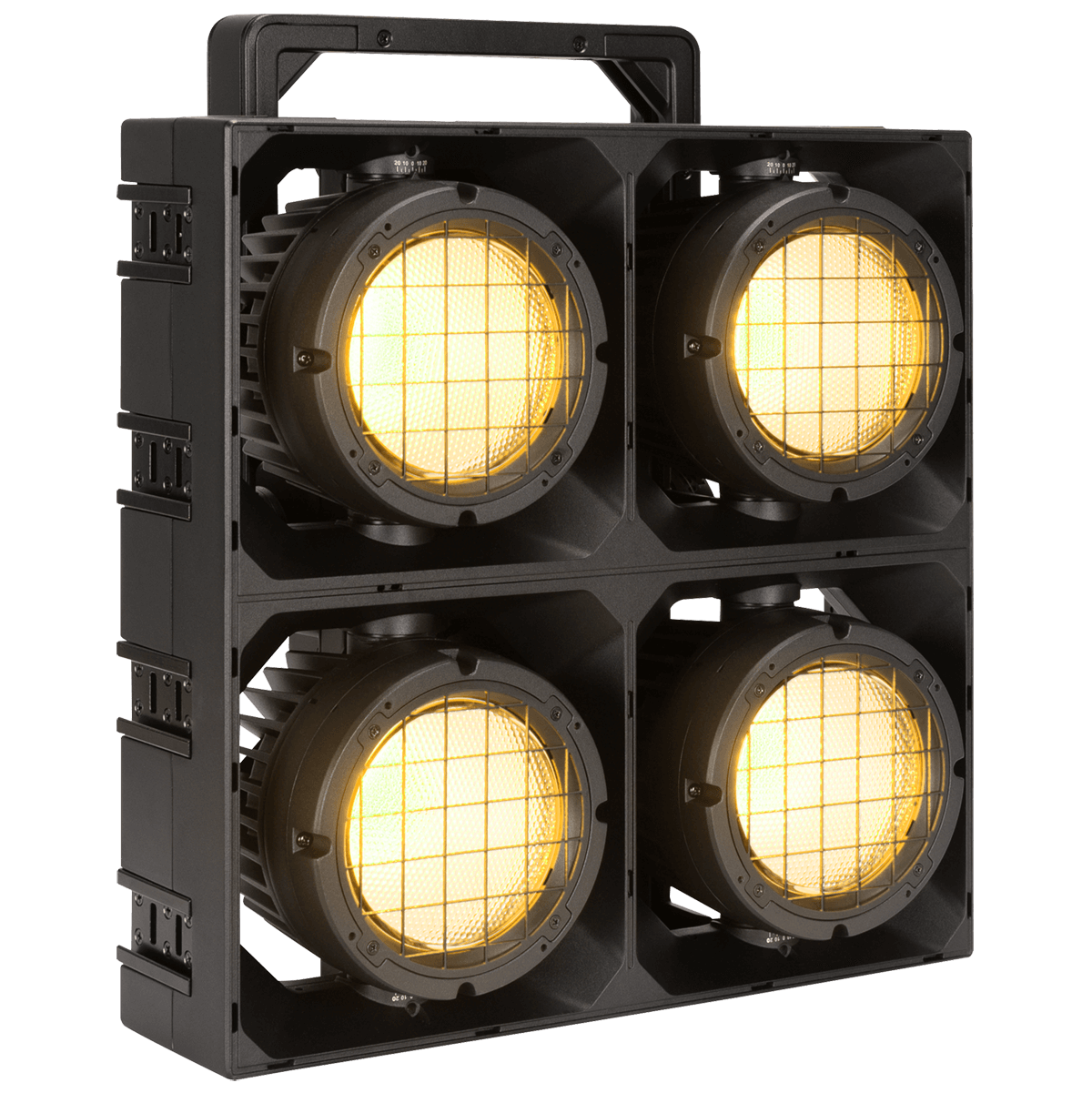

SŌL IV BLINDER

Introducing the SŌL IV BLINDER, the most versatile addition to the SŌL Series yet, featuring a grid of four fixtures in a single modular housing. Like the SŌL I and SŌL II, the SŌL IV offers the same cutting-edge technology and powerful LED engine but with even greater creative potential through its multi-fixture design.

The SŌL IV BLINDER can be used as a standalone fixture or interconnected in endless configurations with additional SŌL IV units, as well as the SŌL I and SŌL II models. This flexibility allows lighting professionals to craft expansive arrays, intricate shapes, and dynamic effects that adapt to any stage or event setup.

With the same 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and IP65-rated durability, the SŌL IV delivers unmatched brightness, color fidelity, and performance. Whether you’re looking for an impactful standalone solution or a fixture that integrates seamlessly into a larger lighting design, the SŌL IV BLINDER provides the ultimate canvas for your creativity.

Illuminate your vision with the boundless possibilities of the SŌL IV BLINDER – the next step in redefining stage lighting innovation.

4x 350W RGBLAW LED
59,830 Total Fixture Lumen Output (Sphere)
46° Beam Angle
Simple 'Array Mode' Addressing System
Individual Pan Adjustment with Lock
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options

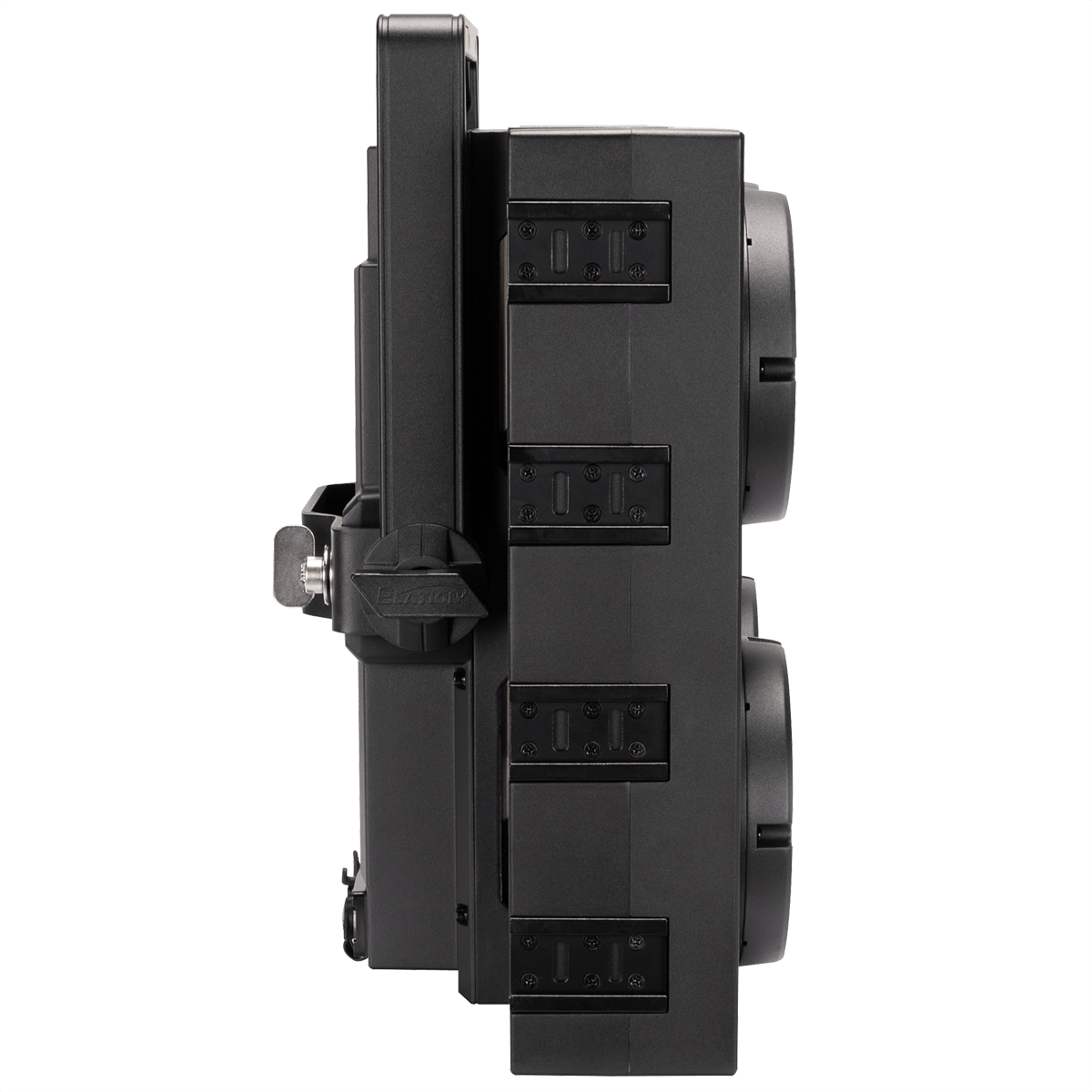

Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL II, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)
IP65 Rated

Specifications

SOURCE

4x 350W RGBLAW LED

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

59,830 (Integrating Sphere)

CRI TBA


Compound Lens

Beam Angle: 46°

Field Angle: 85°

No Lens

Beam Angle: 52°

Field Angle: 95°


EFFECTS

Variable Strobe Rate: 1- 20Hz

Dim-to-Warm/ Red Shift Emulation

Variable 16-bit Dimming Modes and Curves

High Output Blinder Mode or Constant Output Mode Options


COLOR

RGBLAW Color Array

CMY Emulation

Variable CCT 1800K - 8500K

Virtual Gel Swatch Book


CONTROL / CONNECTIONS

24 DMX Channel Modes (1ch, 2ch, 4ch, 2ch, 4ch, 8ch, 3ch, 5ch, 9ch, 4ch, 8ch, 16ch, 6ch, 12ch, 24ch, 7ch, 10ch, 16ch, 40ch, 69ch, 28ch, 45ch, 28ch 45ch)

Simple 'Array Mode' Addressing System

Manual and DMX Controlled Dimmer and Color

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

IP65 5pin DMX Cable In/Out

IP65 Locking Power Cable In


SIZE / WEIGHT (Without Accessories)

Length: 9.4" (240mm)

Width: 16.5” (420mm)

Vertical Height: 18.6” (471mm)

Weight (Fixture Only): 39 lbs (17.7 kg)

Weight (w/ Removable Yoke): 44 lbs (19.7 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

1300W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 4262.5


INCLUDED ITEMS

Removable Fixture Yoke / Omega Bracket

2x Fixture Interconnect Splices

Safety Cable

IP65 Locking Power Cable


OPTIONAL ITEMS

SŌL IV HD Yoke (SOL4HDY)

SŌL Fresnel Lens (SOLFL)

SŌL Frosted Lens (SOLFRO)

SŌL Bowens Adapter (SOLBA)

SŌL Dome Lens (SOLDL)

SŌL Blackout Lens (SOLBL)

SŌL Gel Frame Holder Kit (SOLGFHK)

SŌL Barndoor (SOLBD)

Fixture Interconnect Splice 6 Pack (FISP06)

Interconnect Clamp Adapter (FICA01)

# 8050000053 - Omega Bracket


APPROVALS / RATINGS

CE | IP65 | FCC | UKCA


FIRMWARE UPDATE

Current Update: V1.02

Click HERE for software update


Specifications and documentation subject to change without notice.
