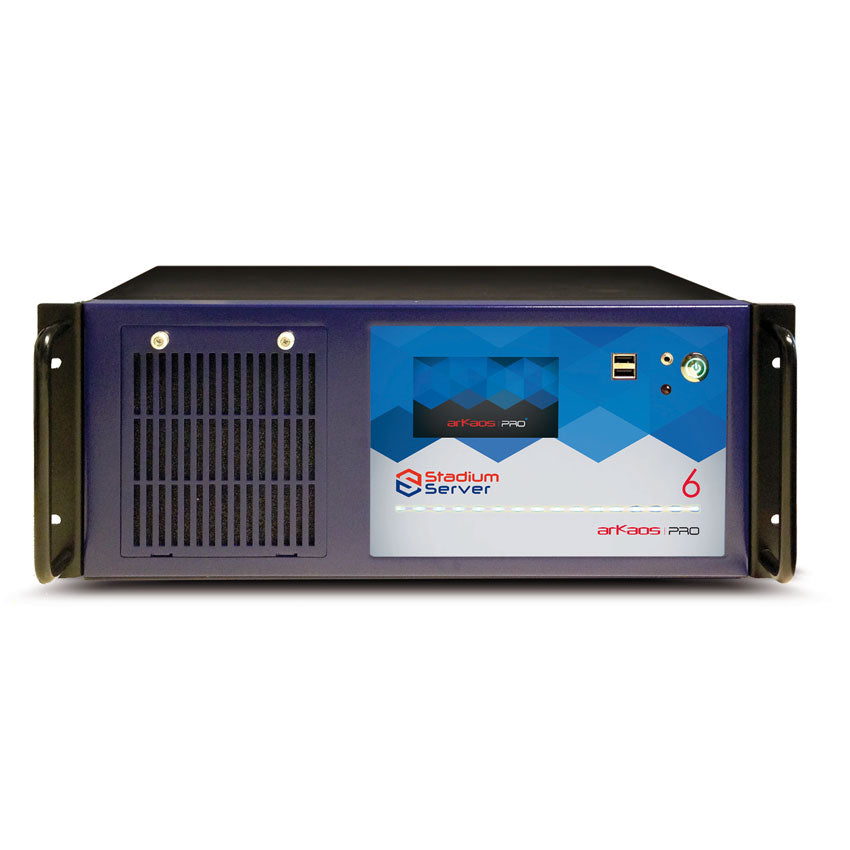

STADIUM SERVER
STADIUM SERVER is a professional-grade lighting solution. The ArKaos Stadium Server is the most powerful and versatile of the ArKaos Media Server Product Line designed for Professional Lighting Designers.
STADIUM SERVER
The ArKaos Stadium Server is the most powerful and versatile of the ArKaos Media Server Product Line designed for Professional Lighting Designers.
- Plug and Play Simplicity
- Vast library of high quality digital media from world's best visual content providers
- Comes installed with MediaMaster Pro
- Smart Design
- Full-option media server
- Runs full HD video on up to six EDID managed outputs
- Two HD-SDI inputs and fast SSD drives as standard
- Large LED status strip for quick visual feedback on the server's operation state
- Front display allows use of server without the need of additional screens
- Fast recovery system by Acronis allows extremely simple reset from the boot menu
- Pre-configured to work directly with all market-leading DMX lighting desks
- Blistering Performance
- Shock-resistant up to 2G
- Easy access to fans and filters
- Thoroughly tested in structural strength, and toleration of heat and vibration
- Totally road-ready
Specifications
Specifications

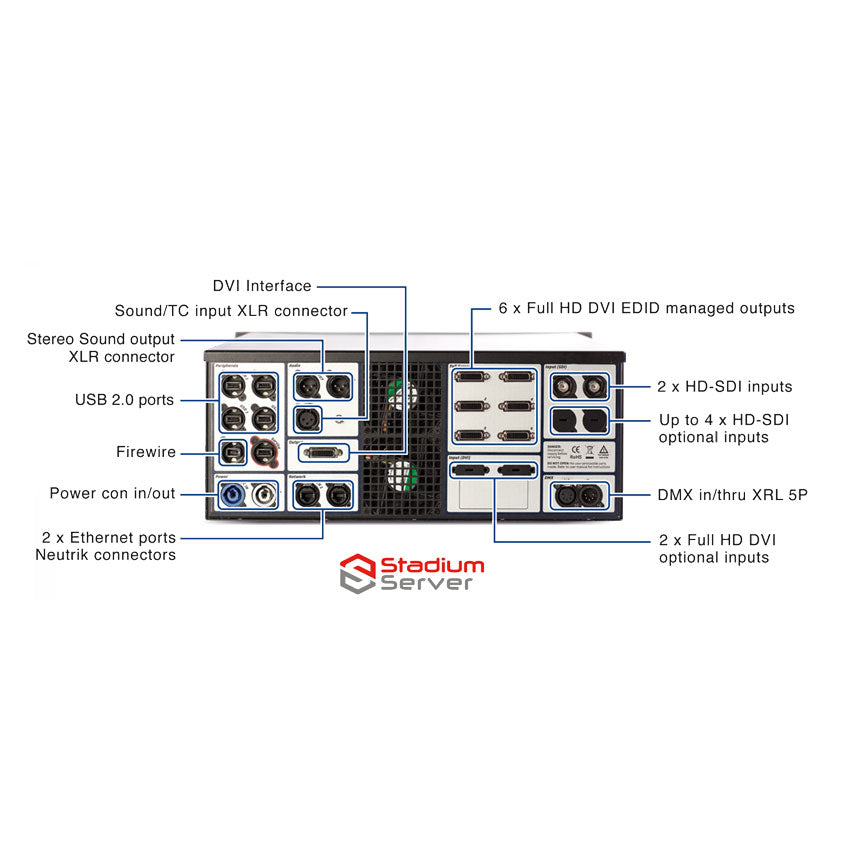

I/O
Interface Output: 1 (DVI)
Output: 6 (DVI)
EDID Management: Yes
Input (Standard): 2x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI 2 x DVI
Output Resolution: 6 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2
STORAGE
System Drive: SSD 128 GB
Separate Drive: SSD 480 GB
SOFTWARE
MediaMaster: Pro
CuePlayer (Theater mode): Yes
LED Mapper: Yes
Kling-Net Mapper: Yes
Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes
CONTROL
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes
RDM (Remote Device Management): Yes
HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes
SIZE / WEIGHT
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)
Specifications and documentation subject to change without notice.
