VOLT+ PAR BATTERY BASE


The VOLT+ PAR BATTERY BASE is an external, high-capacity battery base designed to seamlessly extend runtime for the VOLT+ PAR family. Engineered for effortless operation, the Battery Base wirelessly charges both the VOLT+ PAR S and VOLT+ PAR L—no cables, connectors, or downtime required.

UPC: 810008266120SKU: VOL402

VOLT+ PAR BATTERY BASE


The VOLT+ PAR BATTERY BASE is an external, high-capacity battery base designed to seamlessly extend runtime for the VOLT+ PAR family. Engineered for effortless operation, the Battery Base wirelessly charges both the VOLT+ PAR S and VOLT+ PAR L—no cables, connectors, or downtime required.

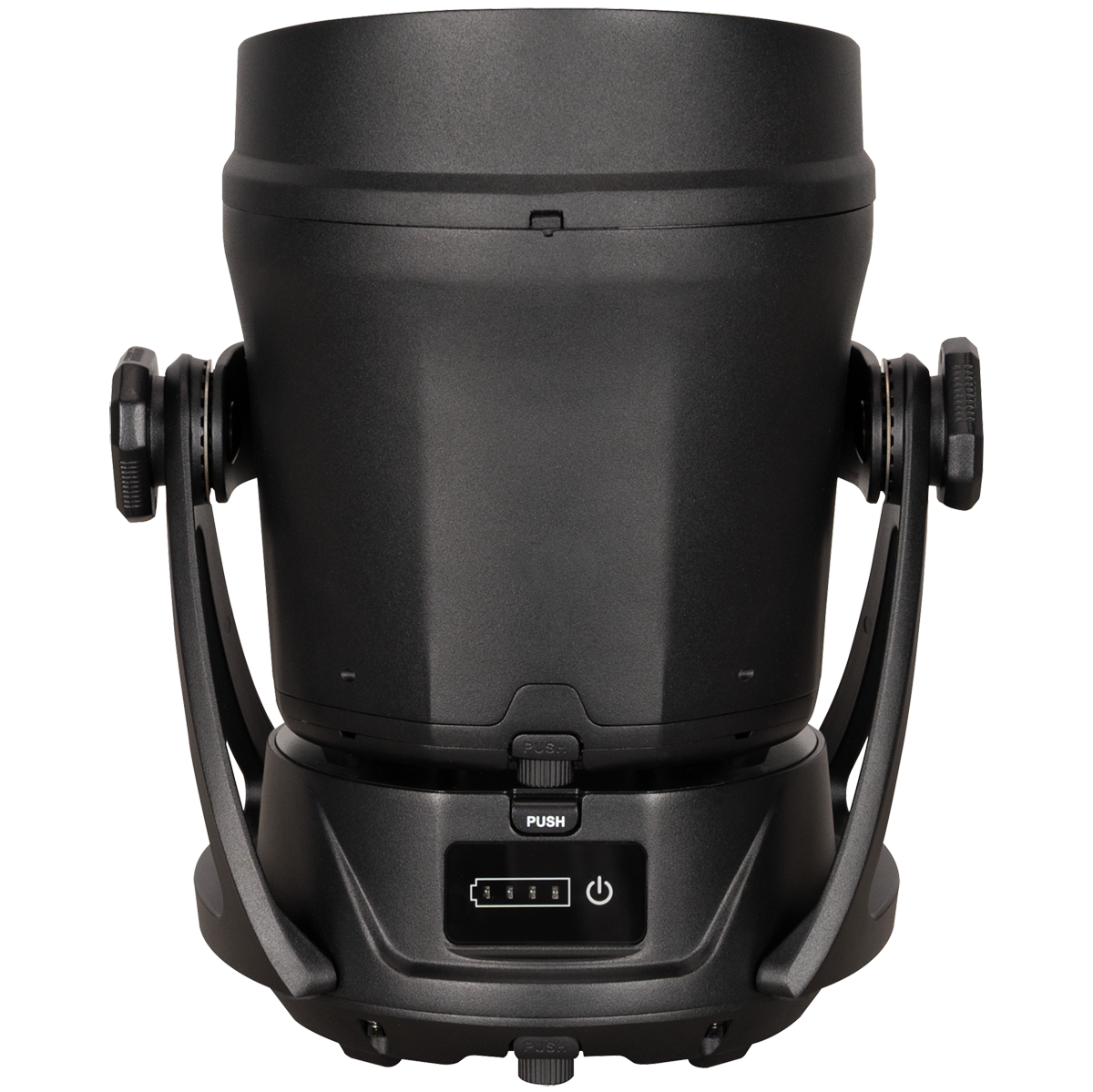

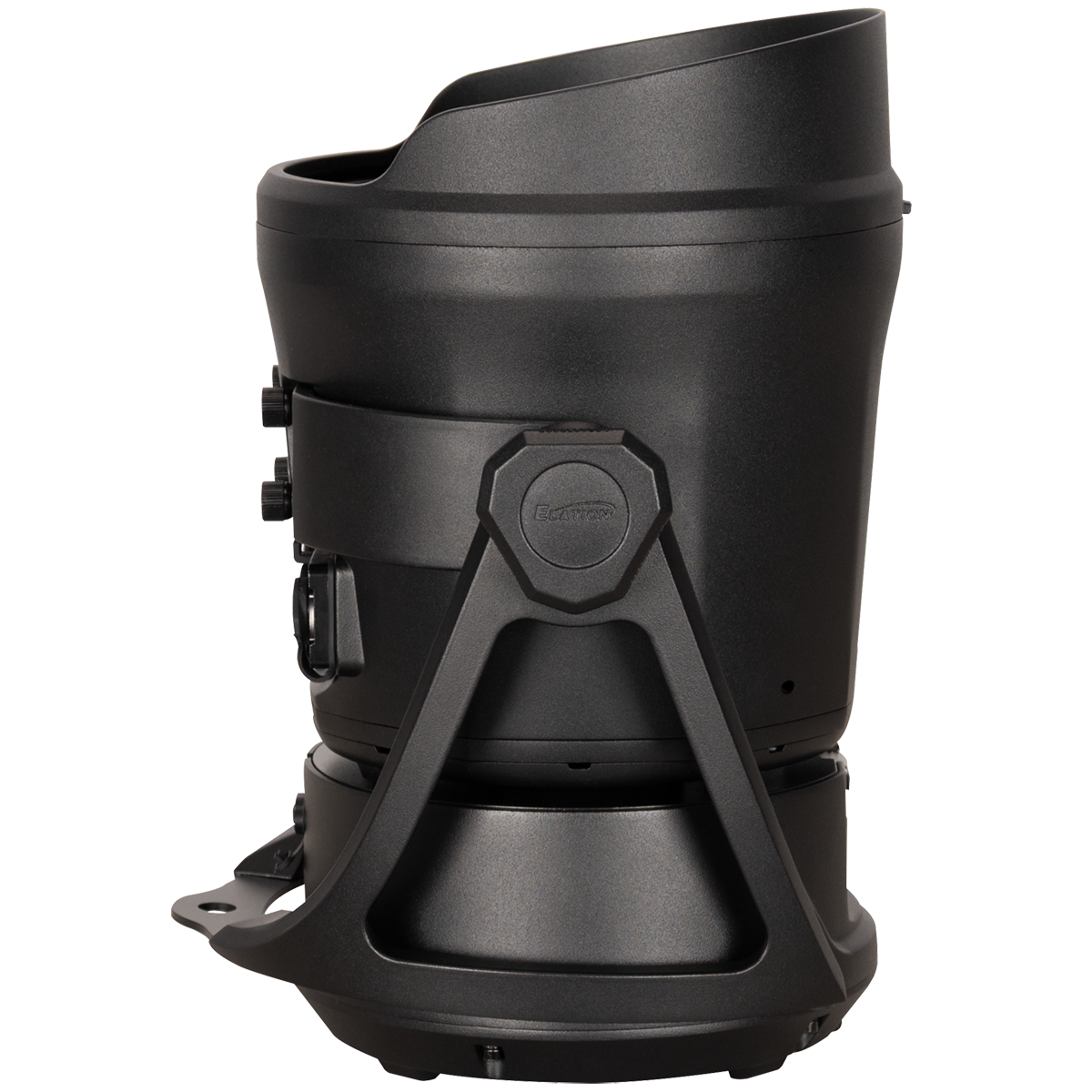

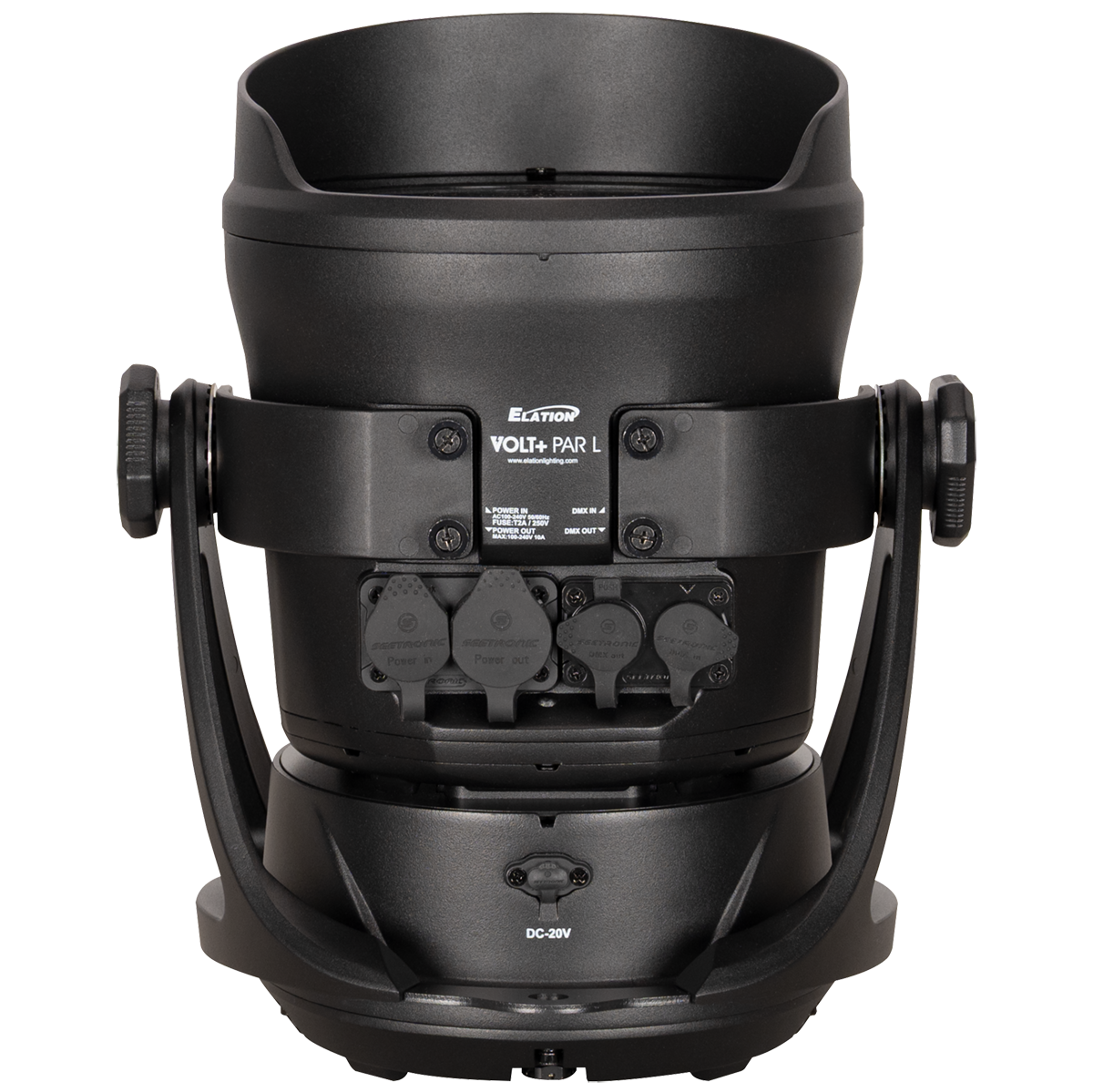

When paired with the fixture, the VOLT+ PAR BATTERY BASE can double the battery life of the VOLT+ PAR L and triple the battery life of the VOLT+ PAR S, making it ideal for long events, installations, and demanding applications. Purpose-built by Elation Lighting, the VOLT+ PAR BATTERY BASE delivers extended performance while maintaining the clean, flexible, and cable-free aesthetic of the VOLT+ Series.

Specifications

CONTROL / CONNECTIONS
USB-C Charging Connector
On/Off Button

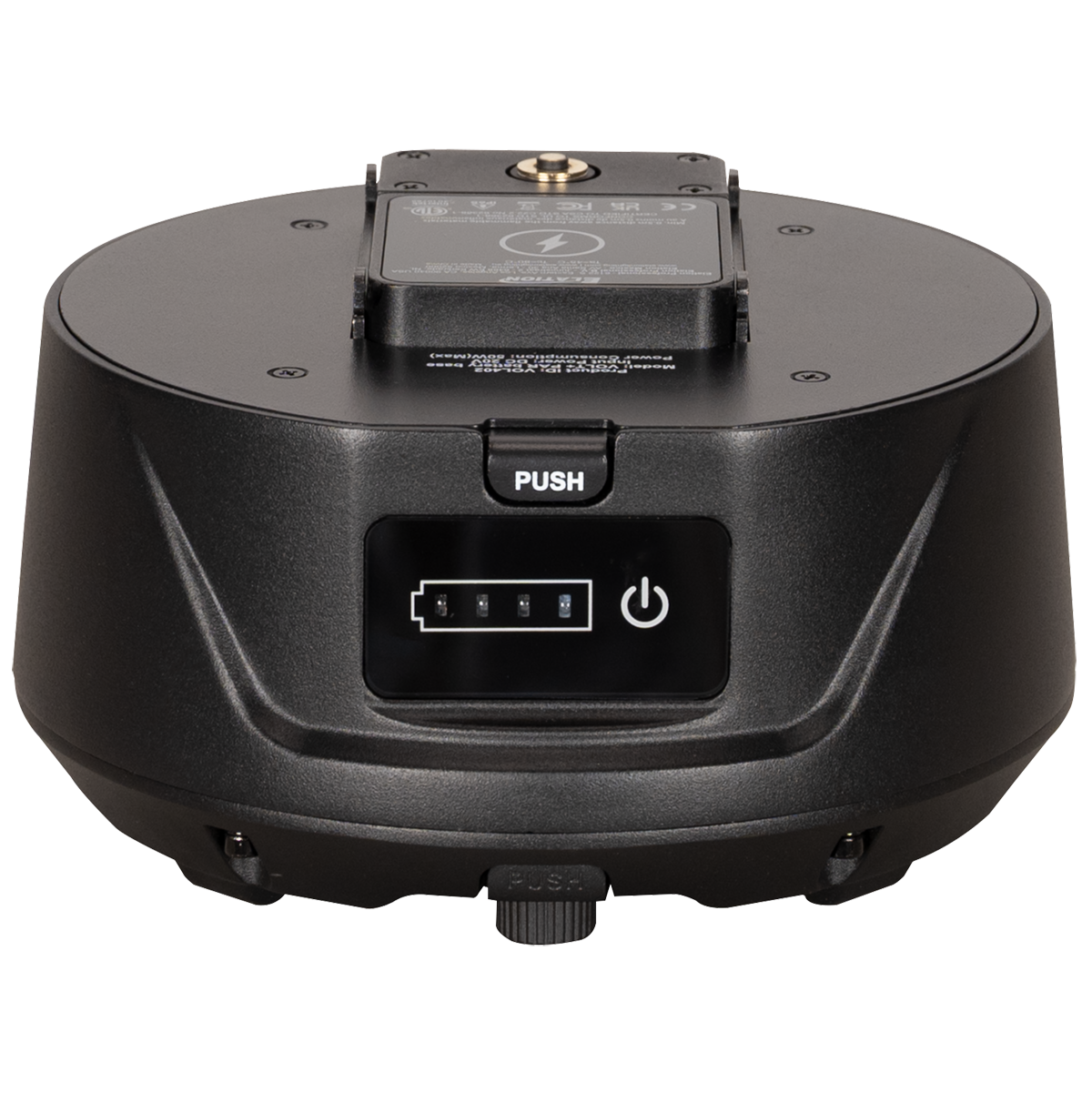

LED Battery Charge Indicator

SIZE / WEIGHT
Diameter: 7.6" (192mm)
Height: 4" (103mm)
Weight: 15lbs (6.8kg)

ELECTRICAL / THERMAL
Charging Voltage: AC 100-240V - 50/60Hz
5°F to 104°F (-15°C to 40°C)

BATTERY
Lithium Ion Rechargeable
Battery Capacity: 19.2Ah
Battery Voltage: 18V
Charge Time: 6hr
Battery Life: >12hr
Battery Recharge Cycles: >300 to 80% Capacity

INCLUDED ITEMS
USB-C Cable
AC Charging Adapter

APPROVALS / RATINGS
IP65
