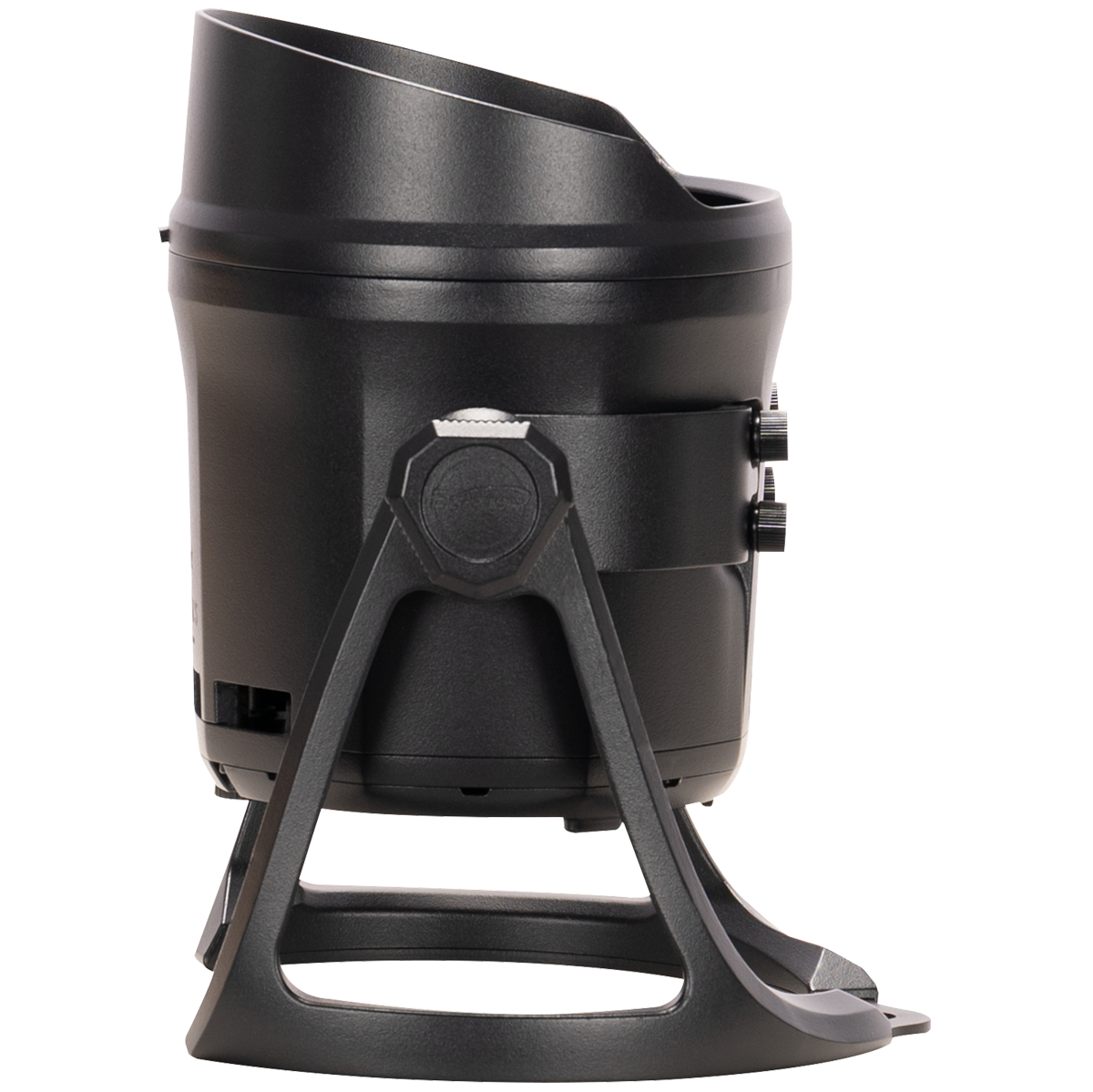

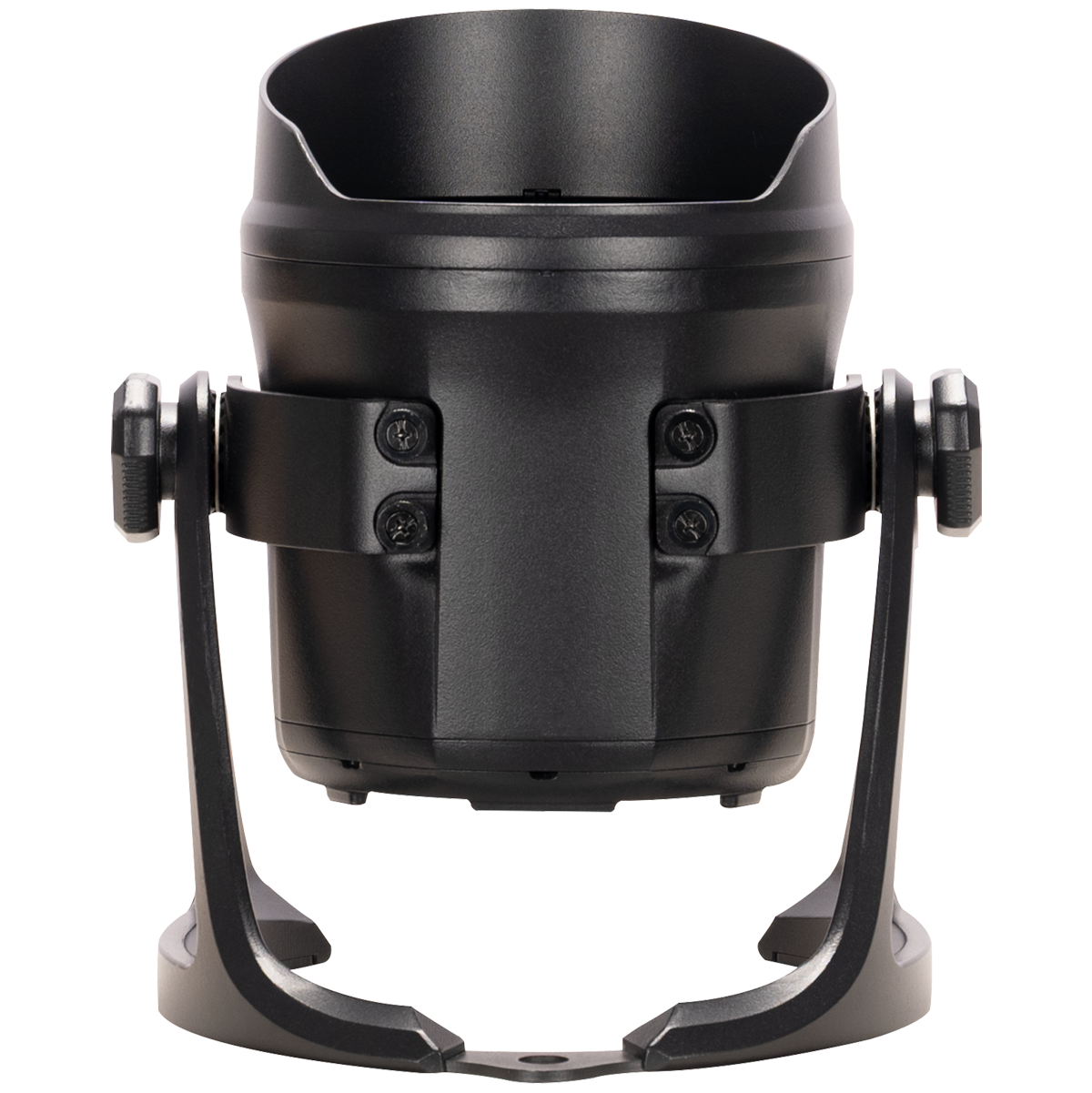

Introducing the VOLT+ PAR S, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a compact, sleek form factor.

SKU: VOL214

Replaced By

Related Products

VOLT+ PAR S

Introducing the VOLT+ PAR S, a next-generation replacement fixture in Elation’s popular VOLT Series that delivers the ultimate in battery-powered lighting performance with enhanced efficiency, versatility, and durability in a compact, sleek form factor.

Designed as a direct upgrade for previous VOLT models, the VOLT+ PAR S features cutting-edge RGB+Lime+Amber+UV LED technology, providing superior color mixing, increased output, and exceptional color rendering with a high CRI. Its fully homogenized beam ensures smooth, even coverage with no color separation, making it ideal for both wash and direct-view applications. The fixture’s sleek, connection-free design eliminates external cabling, ensuring a clean, professional look that seamlessly integrates into any setup.

Built with an IP65-rated housing and a rugged construction, the VOLT+ PAR S is ready for any environment, indoors or outdoors, making it the perfect solution for productions, installations, and events where mobility and reliability are key.

For added convenience and extended runtime, the VOLT+ PAR S offers an optional wired charging and DMX base, allowing users to operate the fixture while simultaneously charging, ensuring uninterrupted use for longer events or run DMX when wireless operation would prove difficult. Additionally, an optional external battery is available for extended wireless operation, giving users the flexibility to keep their designs untethered for even longer durations.

The optional Bowens mount adapter expands creative possibilities by allowing compatibility with a wide range of light-shaping modifiers, enabling precise beam control and customized visual effects.

Whether used as a wash light, uplight, accent fixture, or direct-view pixel effect, the VOLT+ PAR S delivers exceptional flexibility with numerous wireless control options, including an IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration.

With its advanced technology, effortless portability, and expanded accessory options, the VOLT+ PAR S is the ultimate choice for lighting professionals who demand uncompromising performance and adaptability.

30W RGBLA+UV LED
1975 Total Fixture Lumen Output (Sphere)
90.9 CRI
20° Beam Angle, Diffusion Lens Included
Removable Snoot Included
Optional Wired DMX & Power Charging Base
Optional Bowen Mount Adapter
>12hr Maximum Battery Run Time
IP65 Rated

Specifications

SOURCE

30W RGBLA+ UV LED

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

1,975 (Integrating Sphere)

CRI- 90.9

TLCI- 80

Beam Angle: 20°

Field Angle: 32°

EFFECTS

Prebuilt & Custom Standalone Effect Sequences

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves


COLOR

RGBLA+ UV Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Virtual Gel Swatch Book


CONTROL / CONNECTIONS

8 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

IR Remote

NFC Configuration

Wireless Power Charging

Optional Charging Base with:

5pin DMX and IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 6.14" (156mm)

Width: 6.14" (156mm)

Vertical Height (with Snoot): 7.77” (197.5mm)

Vertical Height (without Snoot): 5.9" (150 mm)

Weight: 10.7 lbs / 4.85kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

40W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 136.4


BATTERY

Type: Lithium

Weight: 1.7 lbs. (0.75 Kg)

Battery Capacity: 9.6 Ah

Battery Voltage: 18V (nominal); 21V (full)

Battery Run Time: > 12hrs

Lifetime: > 300 Cycles


INCLUDED ITEMS

Diffusion Filter

Concentric Ring

Removable Half Snoot


ORDERING INFORMATION

VOLT+ PAR S 6-PACK (VOL201)

(Kit Includes: 6x VOLT+ PAR S, 2x IR Remote, 1x Charging Roadcase)

VOLT+ PAR S Base Pack (VOL242)

(Kit Includes: 1x VOLT+ PAR S & 1x VOLT+ PAR S Connector Base)


OPTIONAL ITEMS

VOLT+ IR REMOTE (VOL555)
VOLT+ PAR S YOKE (VOL231)
VOLT+ PAR S LENS KIT (VOL256)
VOLT+ PAR S BOWENS ADAPTER (VOL243)
VOLT+ PAR S CONNECTOR BASE (VOL228)
VOLT+ PAR STAND ADAPTER
VOLT+ PAR BATTERY BASE (VOL402)

APPROVALS / RATINGS

CE | cETLus | IP65 | FCC | UKCA


FIRMWARE UPDATE

Current Update:


Specifications and documentation subject to change without notice.
