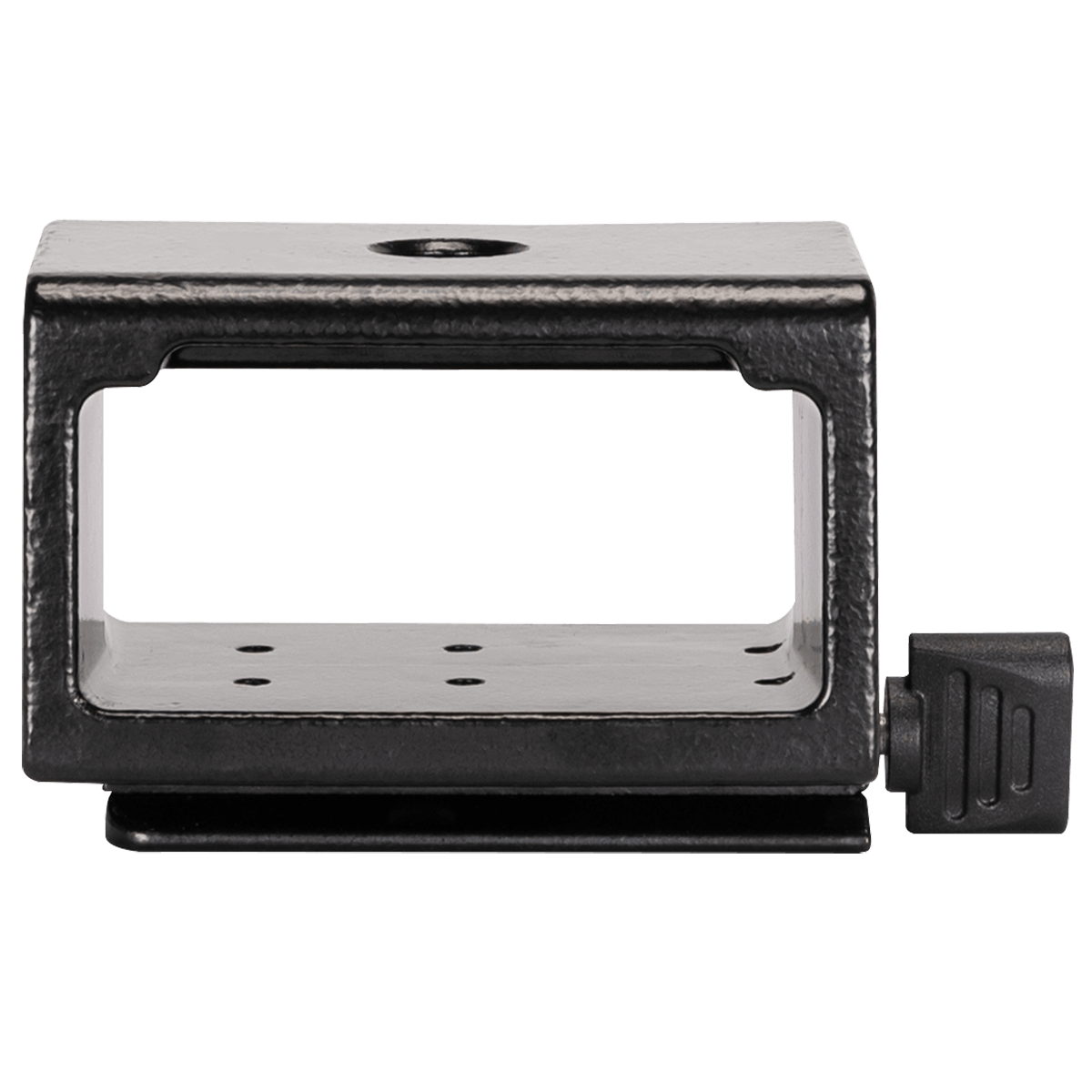

Interconnect Clamp AdapterInterconnect Clamp Adapter
Interconnect Clamp Adapter
PULSE PANELPULSE PANEL
PULSE PANEL
SŌL I BLINDERSŌL I BLINDER
SŌL I BLINDER
New

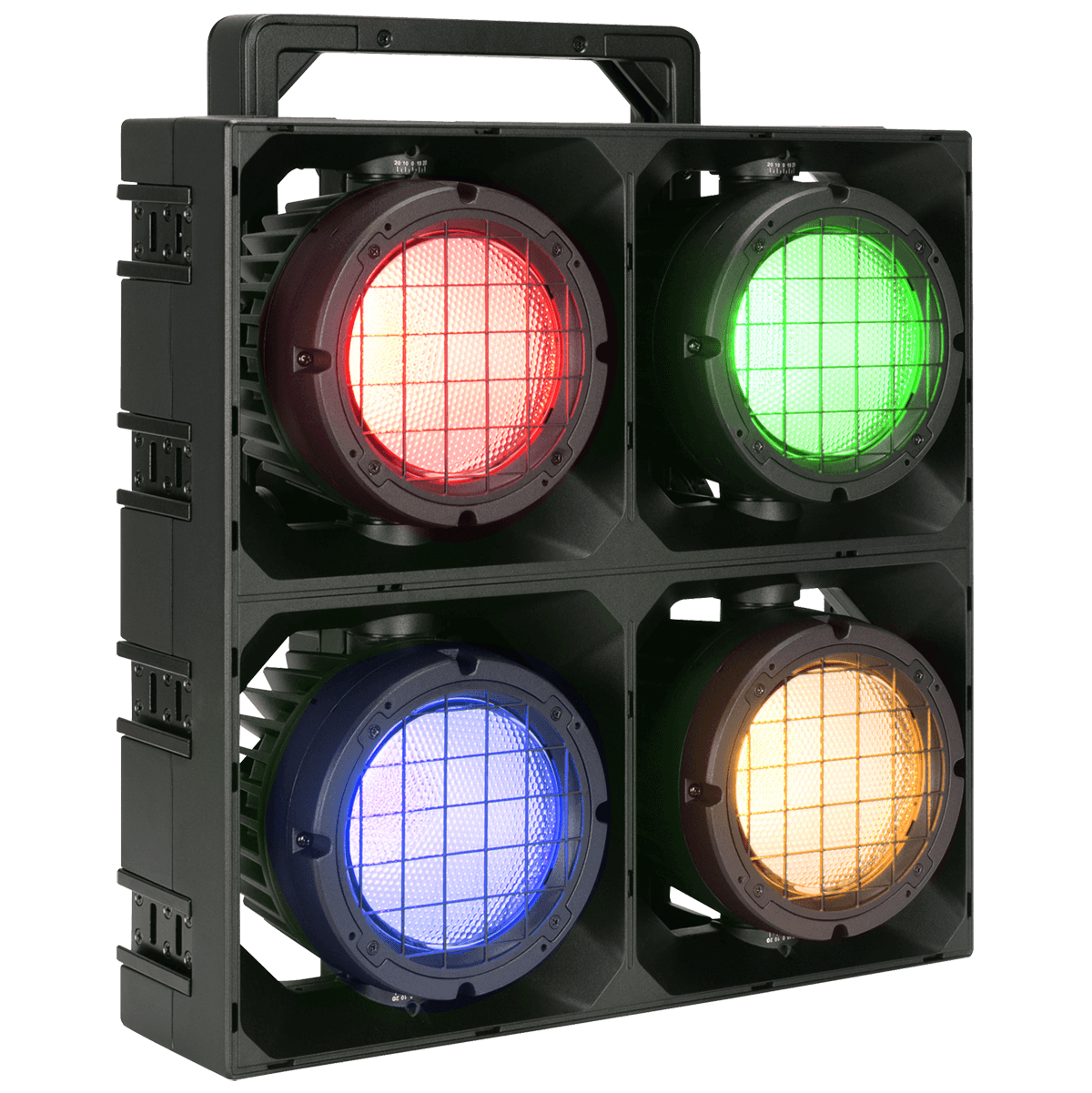

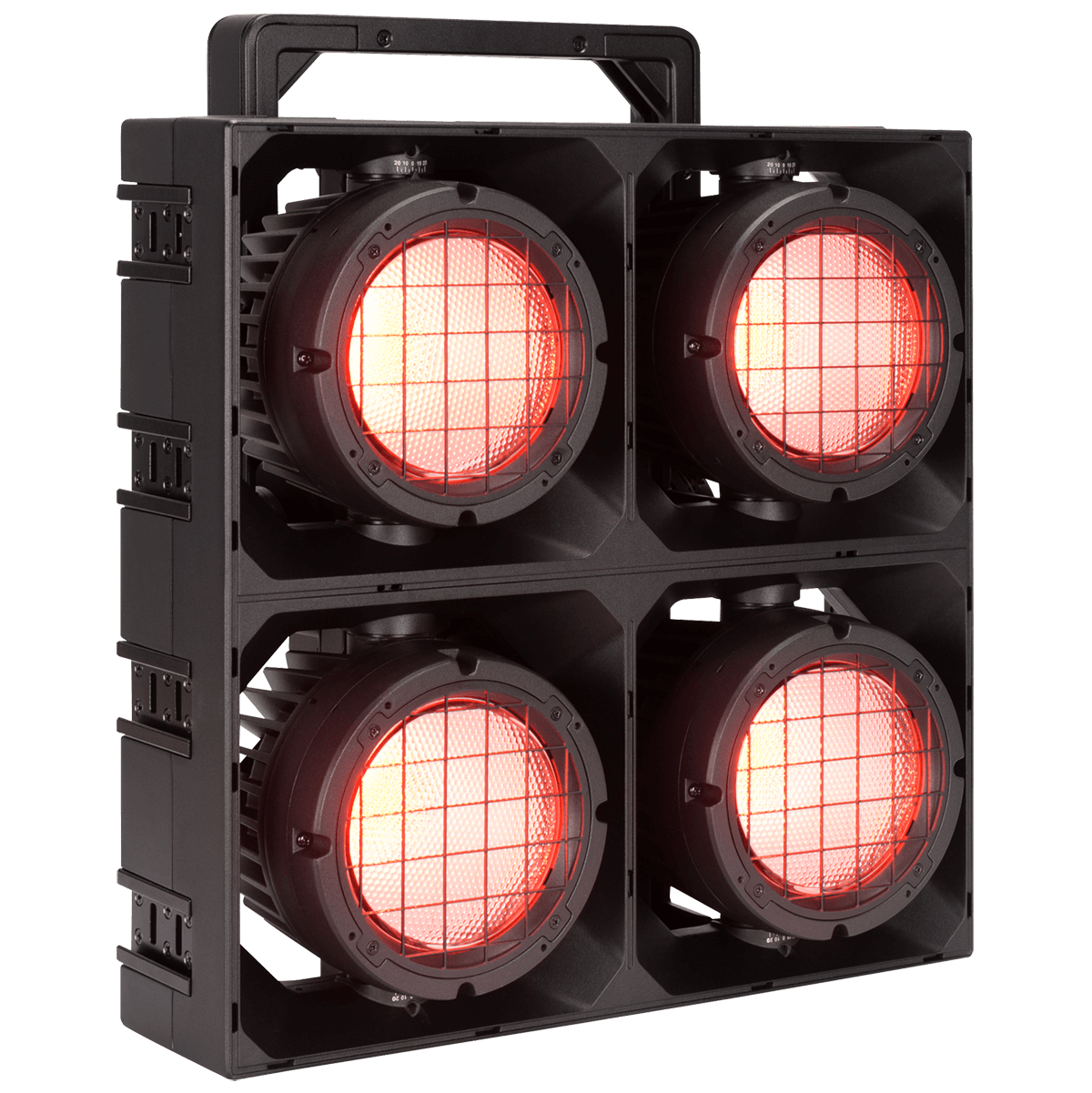

SŌL IV BLINDERSŌL IV BLINDER
SŌL IV BLINDER
SŌL Bowens AdapterSŌL Bowens Adapter
SŌL Bowens Adapter

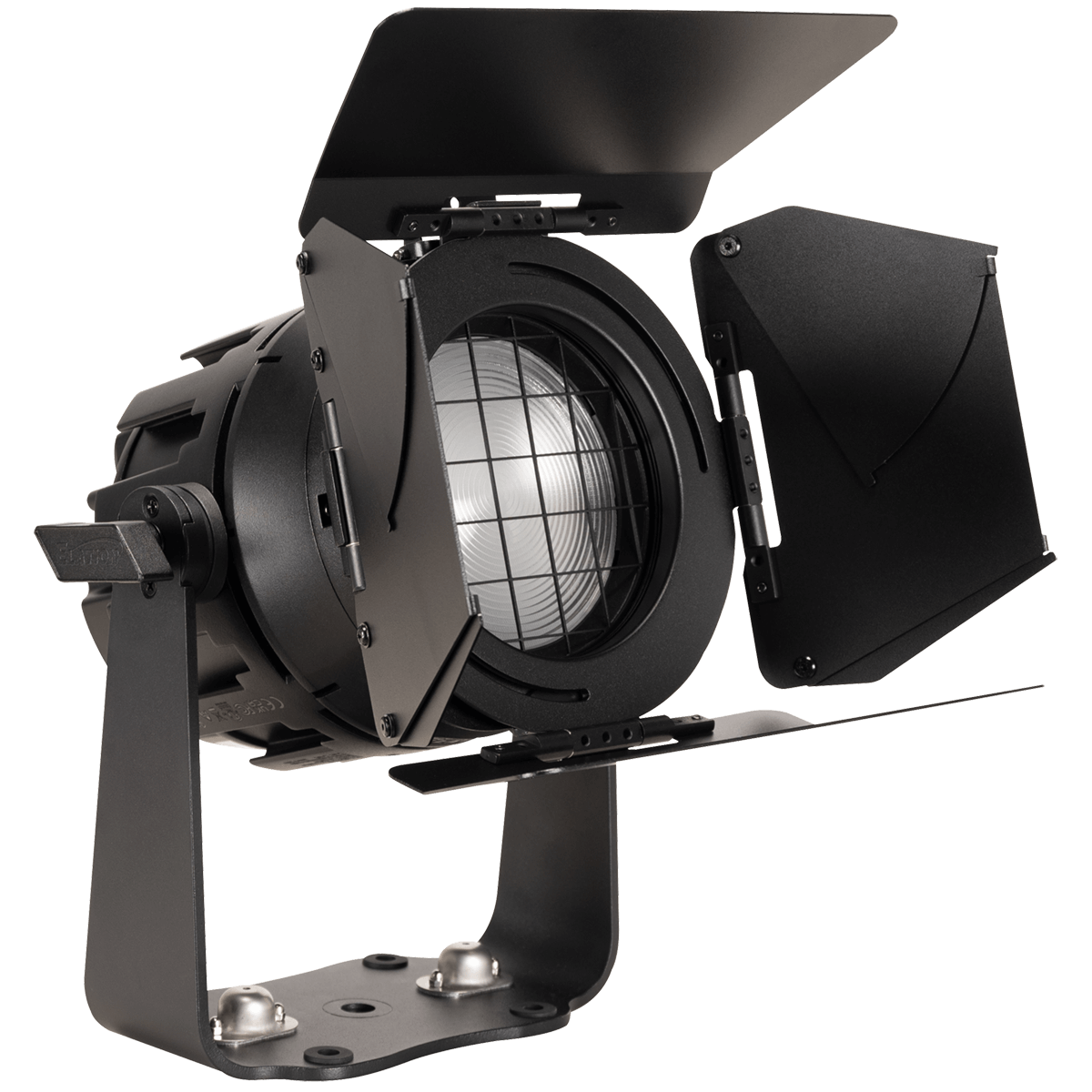

SŌL BarndoorSŌL Barndoor
SŌL Barndoor

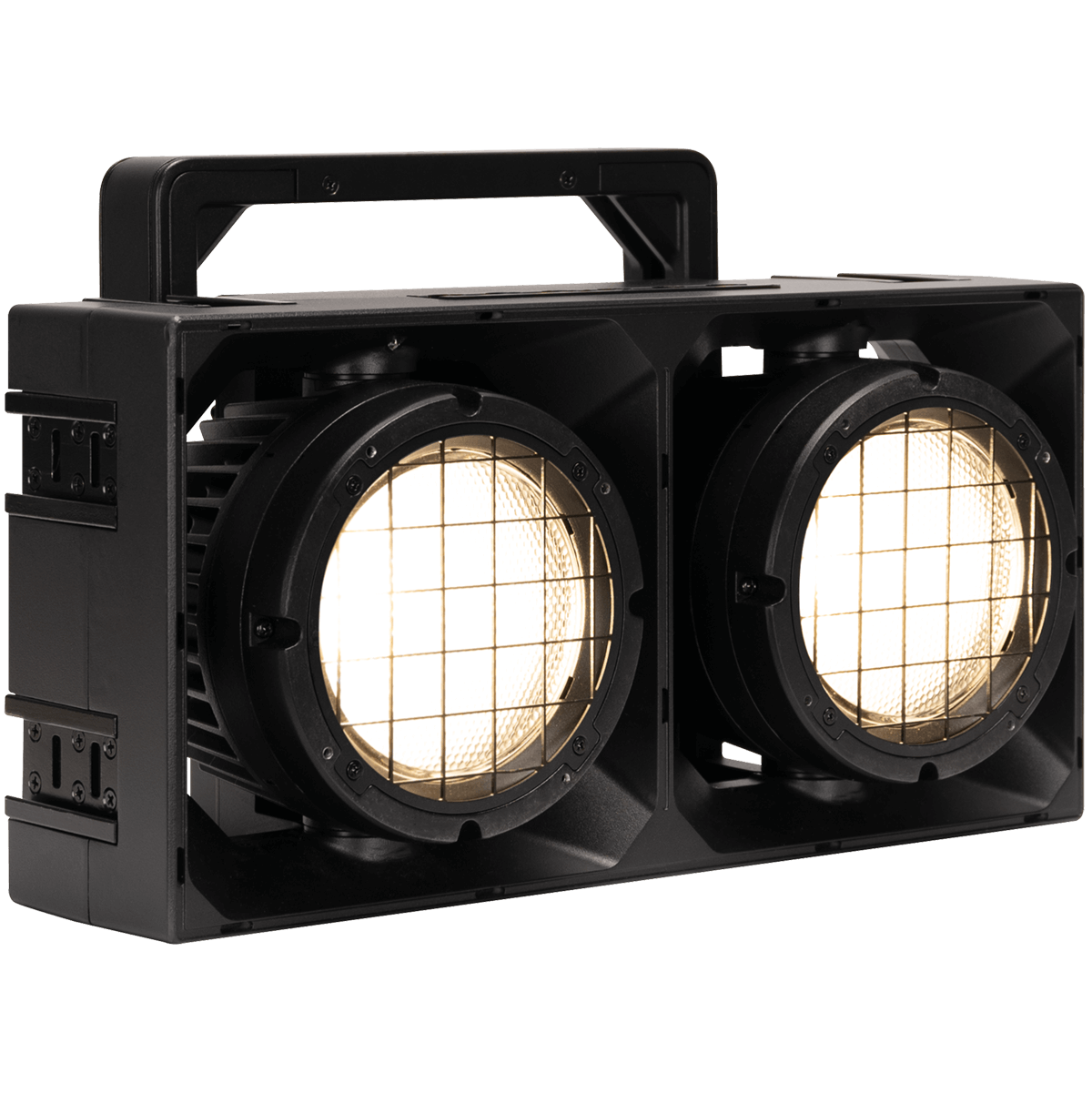

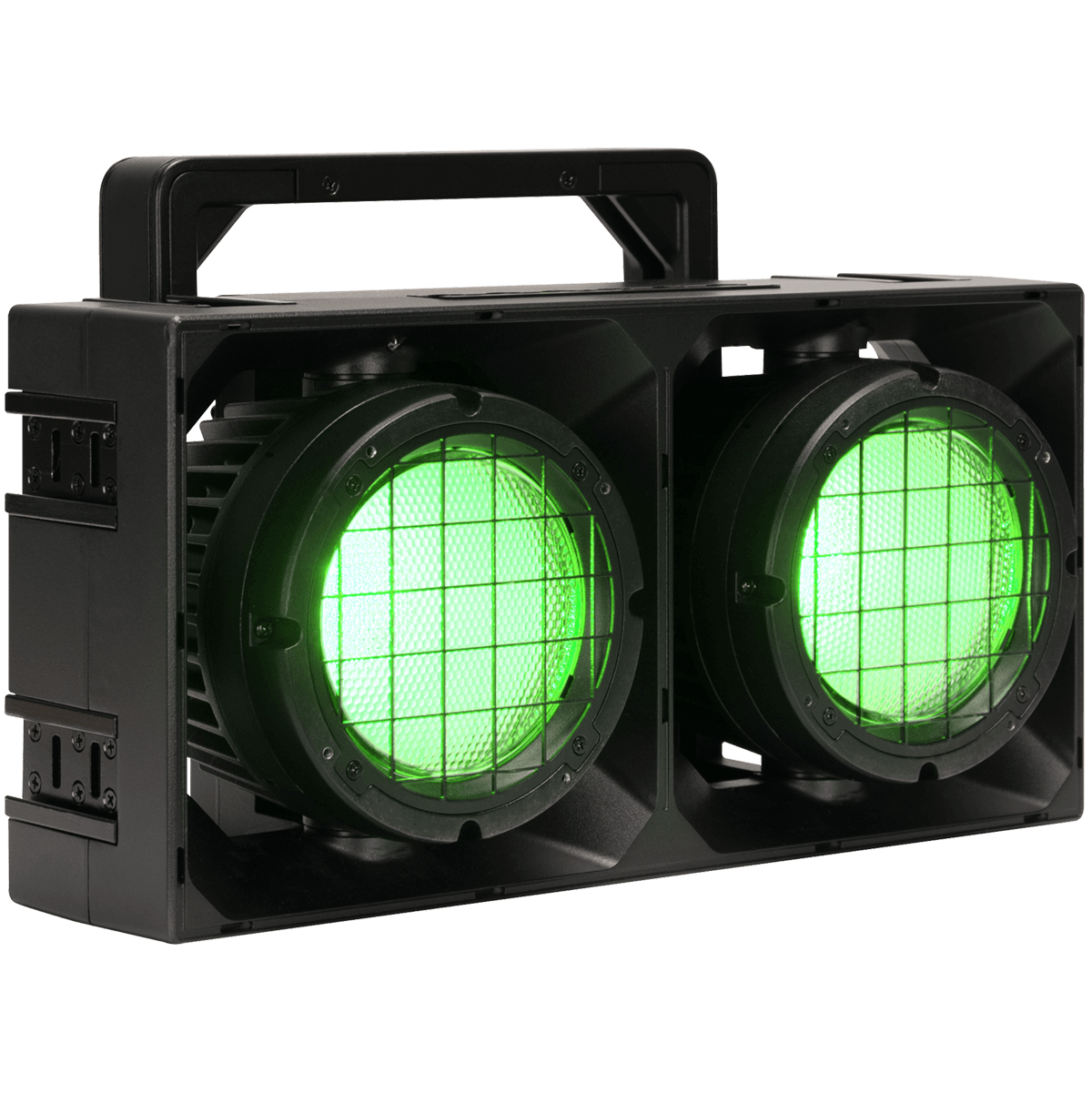

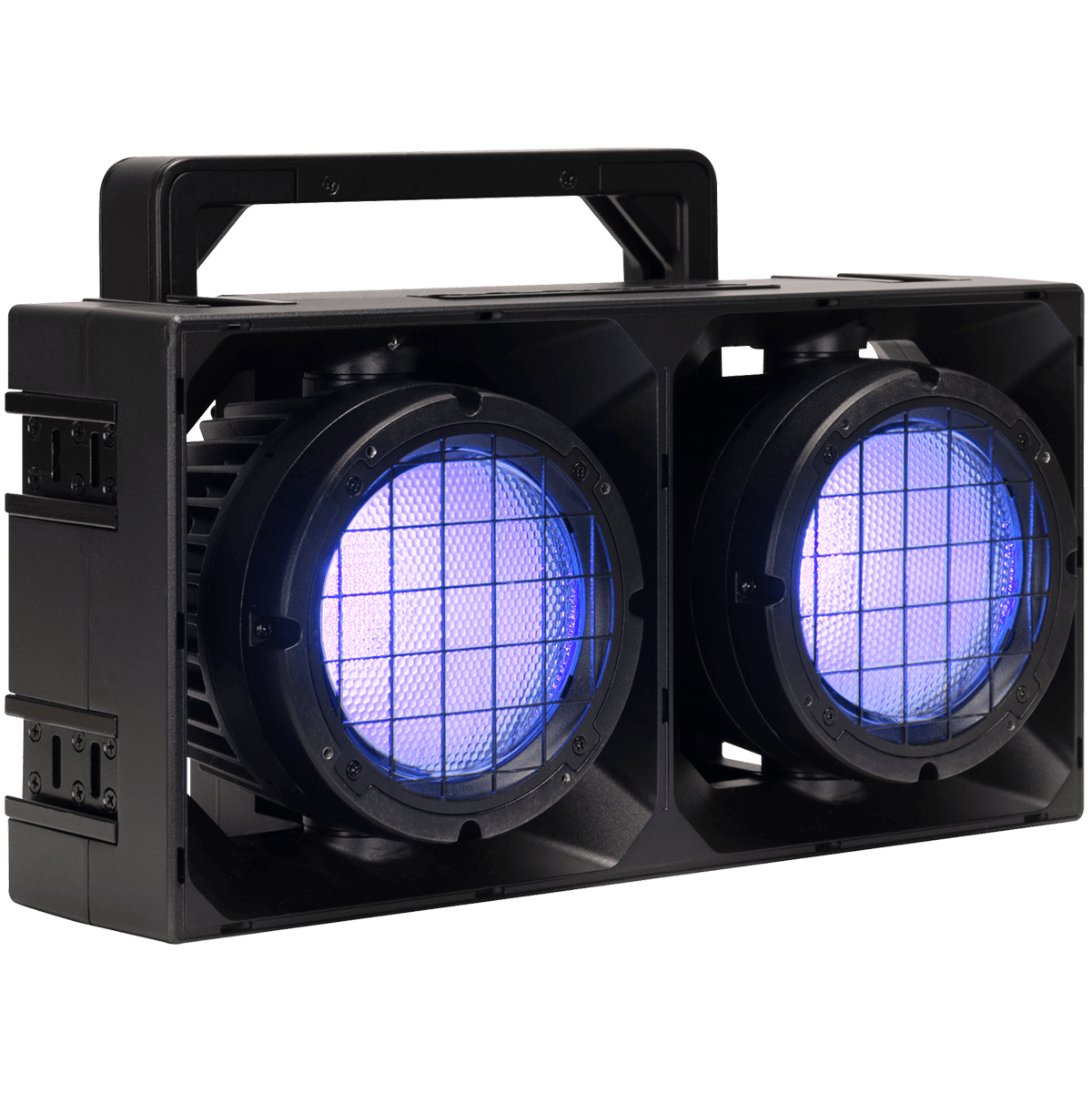

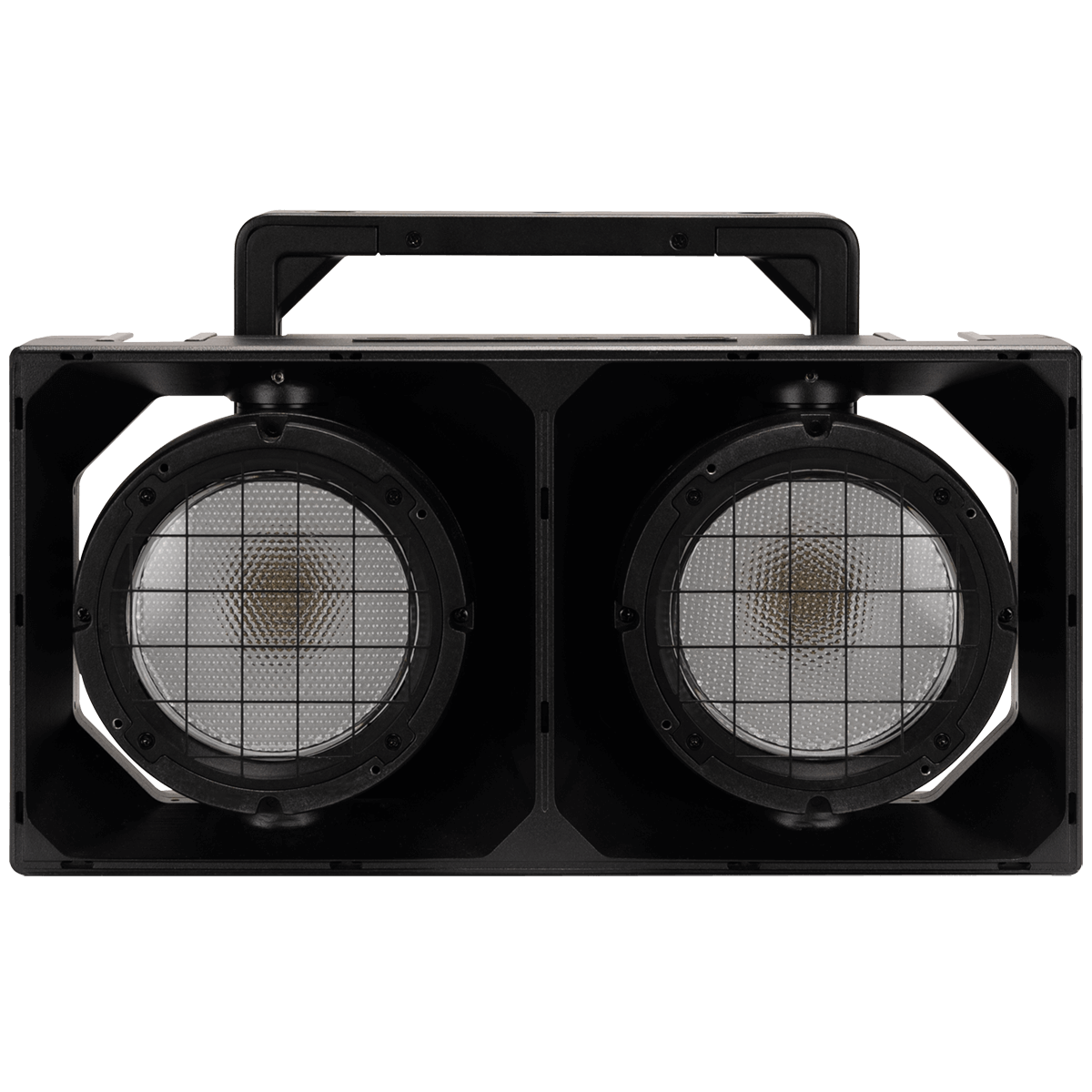

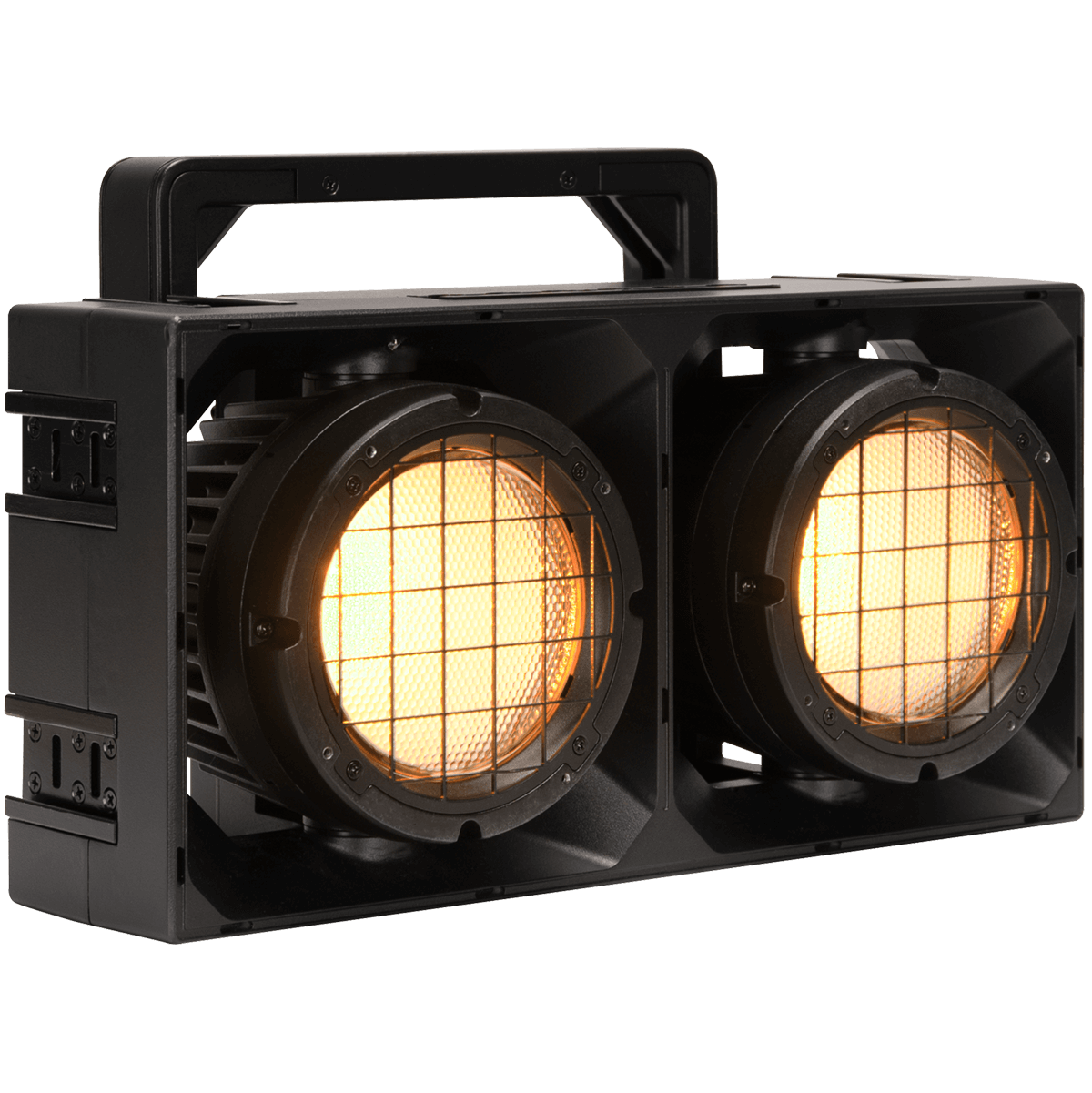

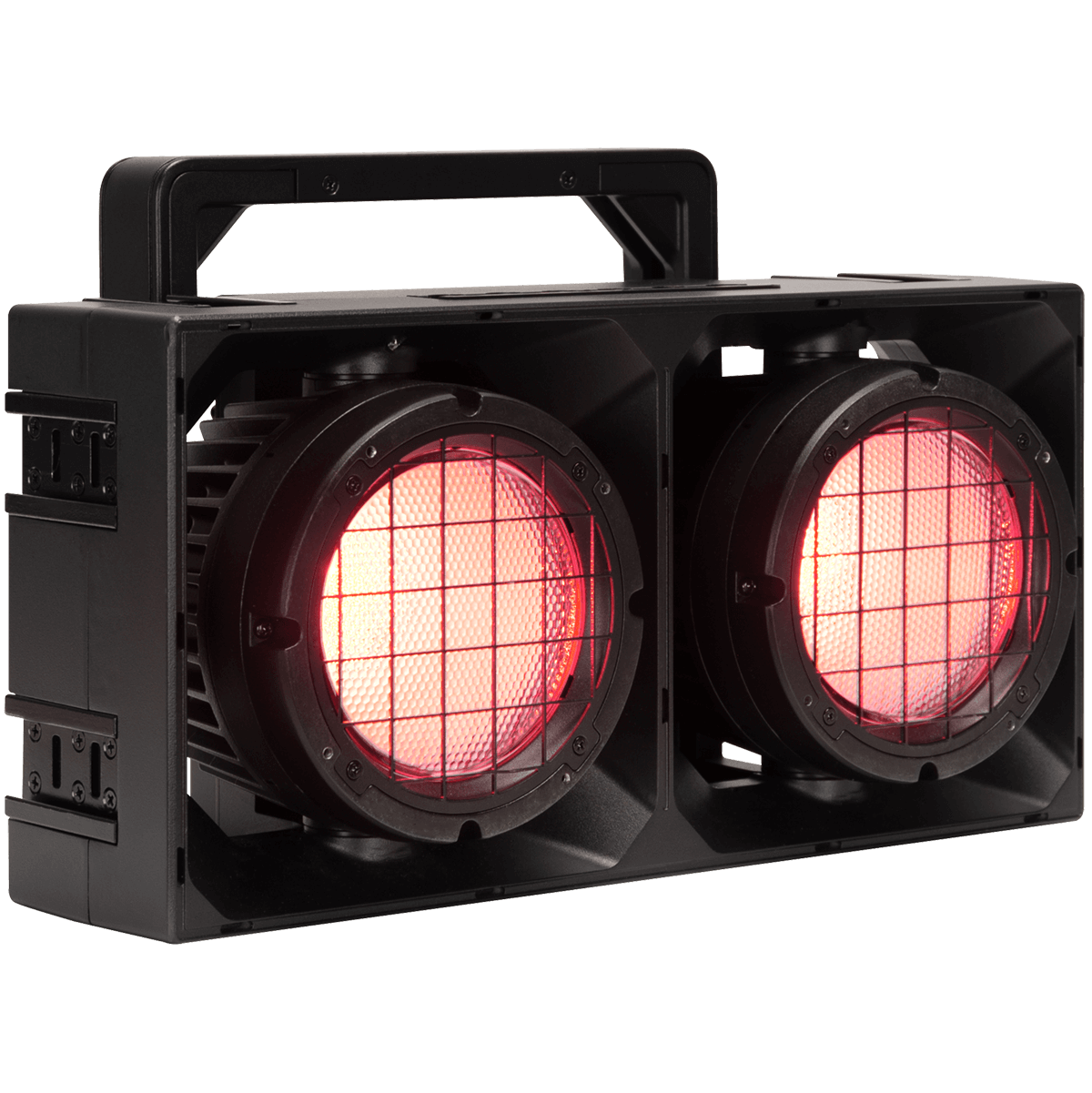

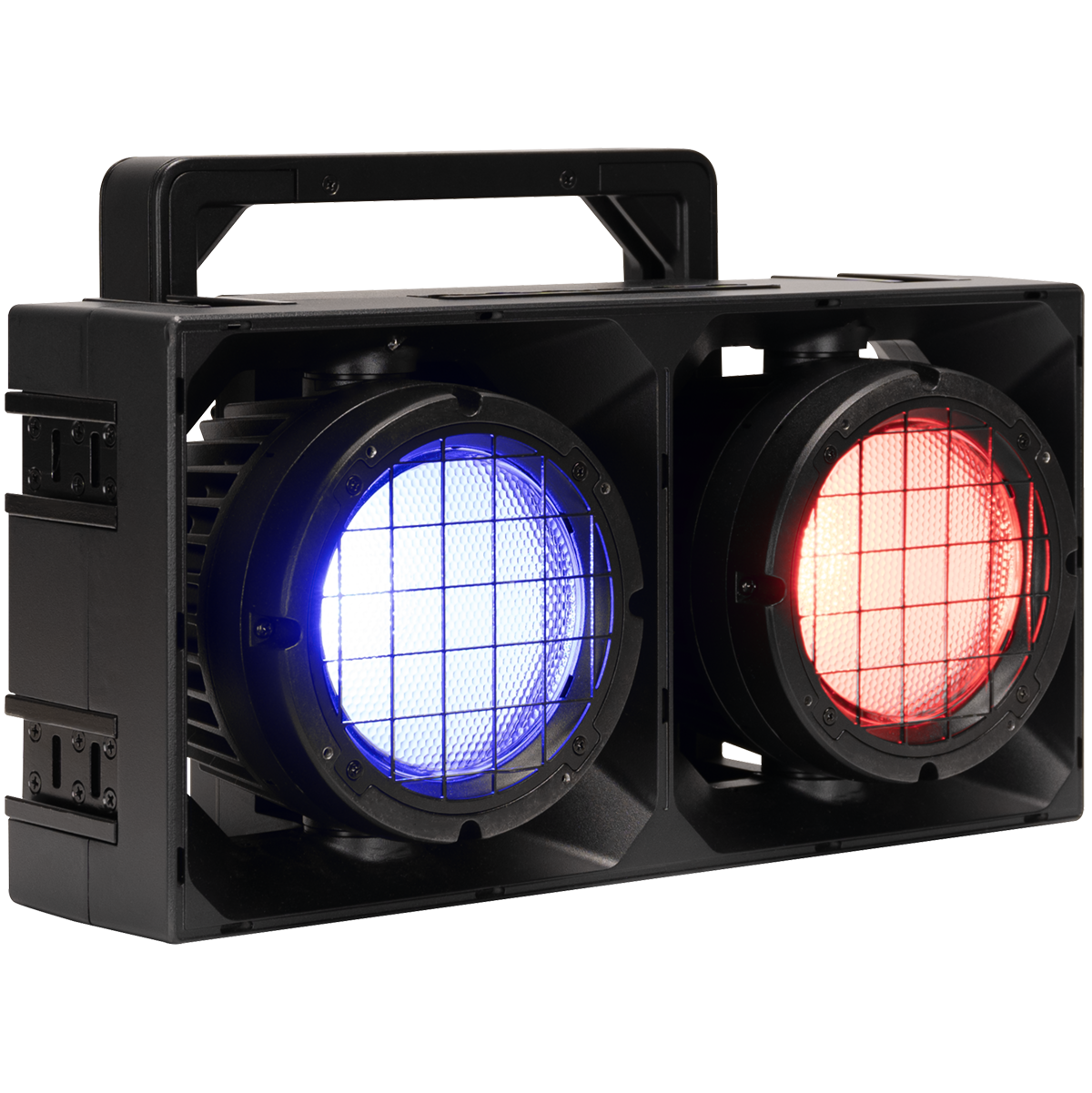

SŌL II BLINDER

Introducing the SŌL II BLINDER, the next evolution in the SŌL Series, offering double the impact with two fixtures housed in a single modular unit, arranged side-by-side. Maintaining all the innovative features of the SŌL I BLINDER, the SŌL II provides even greater flexibility for creative configurations and designs.

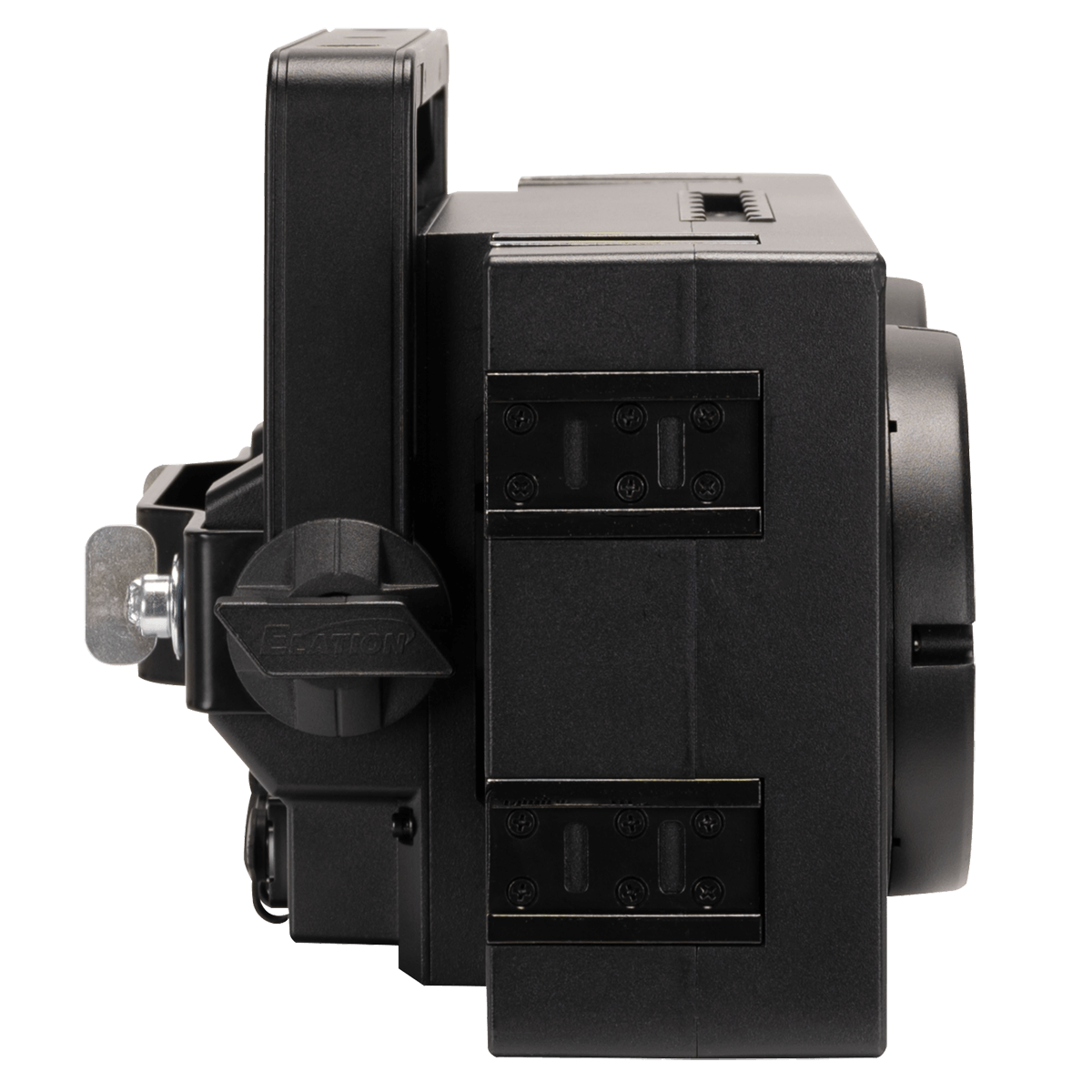

The SŌL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.
With the same powerful 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and robust IP65 rating, the SŌL II BLINDER delivers unmatched brightness, color fidelity, and durability, just like its single-fixture counterpart. Whether you’re using it as a standalone unit or integrating multiple fixtures into your design, the SŌL II BLINDER elevates your creative possibilities, offering limitless options for crafting unforgettable visual experiences.
Illuminate your stage with the enhanced power and flexibility of the SŌL II BLINDER – redefining what's possible in entertainment lighting design.

2x 350W RGBLAW LED
30,750 Total Fixture Lumen Output (Sphere)
46° Beam Angle
Simple 'Array Mode' Addressing System
Individual Pan Adjustment with Lock
Dim-to-Warm/ Red Shift Emulation
High Output Blinder Mode or Constant Output Mode Options
Unique Horizonal and Vertical Array Rigging Method (Compatible with SŌL IV, SŌL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)
IP65 Rated

Specifications

SOURCE

2x 350W RGBLAW LED

30,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

30,750 (Integrating Sphere)

CRI TBA


Compound Lens

Beam Angle: 46°

Field Angle: 85°

No Lens

Beam Angle: 52°

Field Angle: 95°


EFFECTS

Variable Strobe Rate: 1- 20Hz

Dim-to-Warm/ Red Shift Emulation

Variable 16-bit Dimming Modes and Curves

High Output Blinder Mode or Constant Output Mode Options


COLOR

RGBLAW Color Array

CMY Emulation

Variable CCT 1800K - 8500K

Virtual Gel Swatch Book


CONTROL / CONNECTIONS

18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch 25 ch)

Simple 'Array Mode' Addressing System

Manual and DMX Controlled Dimmer and Color

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

RDM (Remote Device Management)

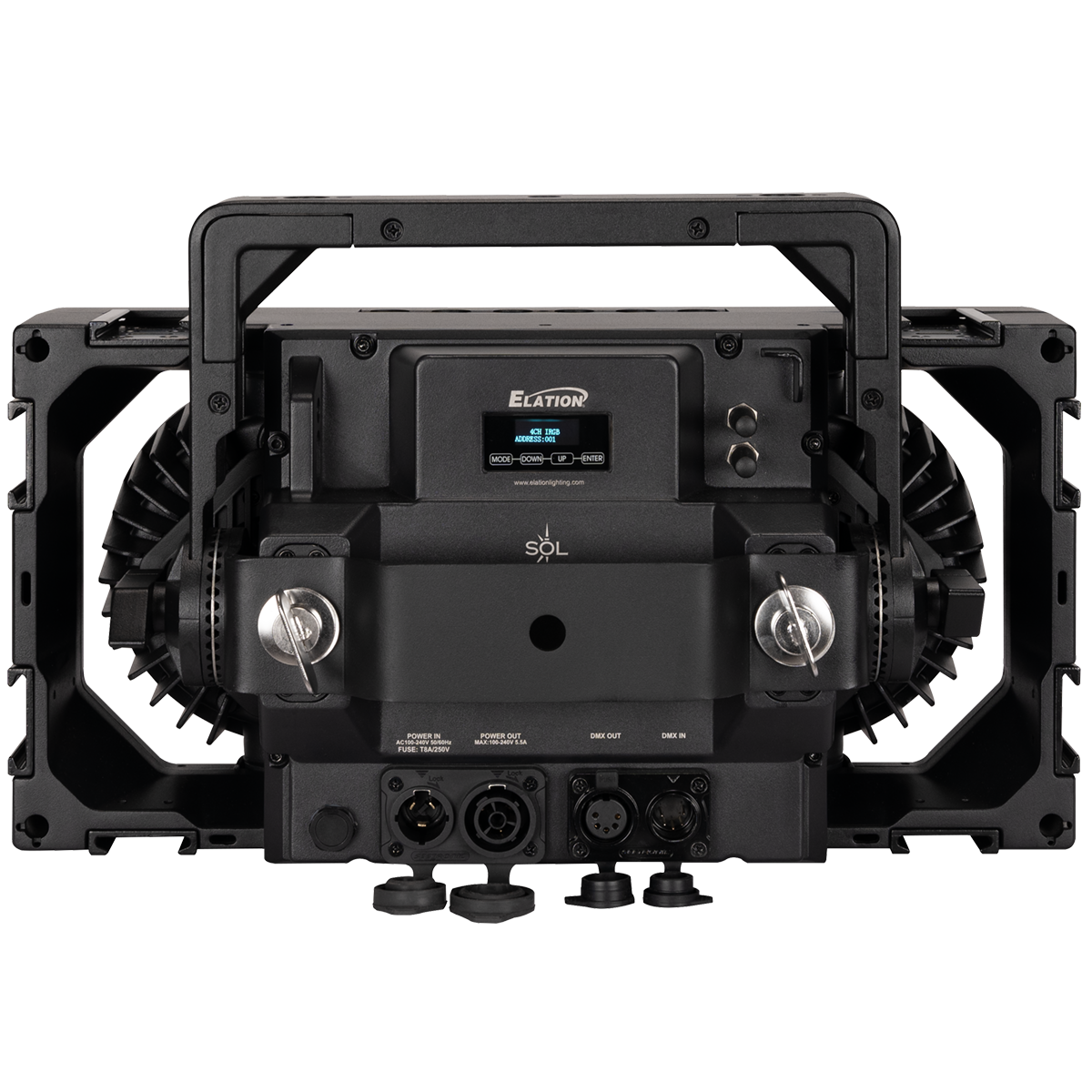

5pin DMX and IP65 Locking Power Cable In/Out


SIZE / WEIGHT (Without Accessories)

Length: 9.3" (236mm)

Width: 16.5” (420mm)

Vertical Height: 10.3” (261mm)

Weight (Fixture Only): 24.7 lbs (11.2 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

650W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hr (+/- 10%) 2216.5


INCLUDED ITEMS

Removable Fixture Yoke / Omega Bracket

2x Fixture Interconnect Splices

Safety Cable

IP65 Locking Power Cable


OPTIONAL ITEMS

SŌL/PULSE HD Yoke (SPHDY)

SŌL Fresnel Lens (SOLFL)

SŌL Frosted Lens (SOLFRO)

SŌL Bowens Adapter (SOLBA)

SŌL Dome Lens (SOLDL)

SŌL Blackout Lens (SOLBL)

SŌL Gel Frame Holder Kit (SOLGFHK)

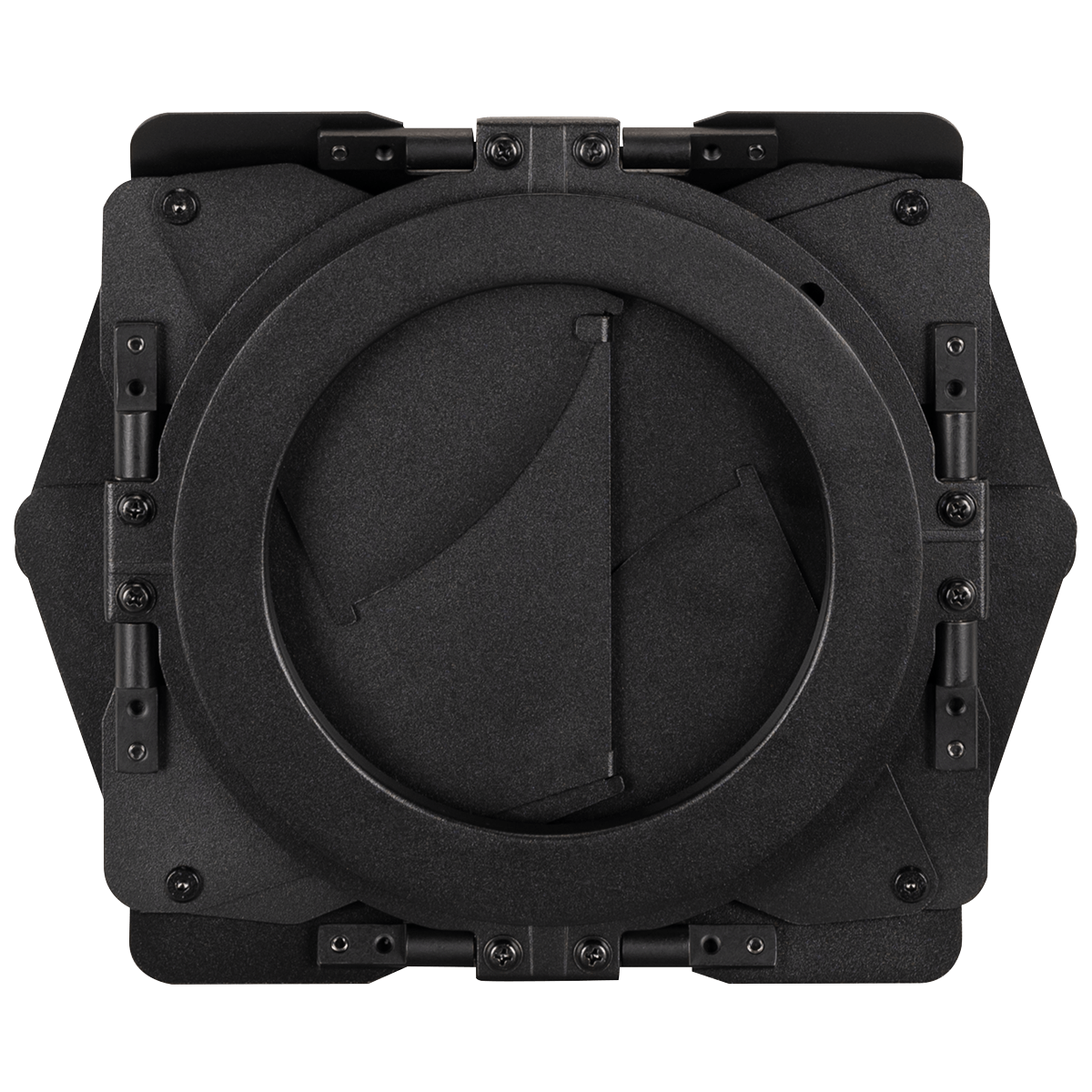

SŌL Barndoor (SOLBD)

Fixture Interconnect Splice Package (FISP06)

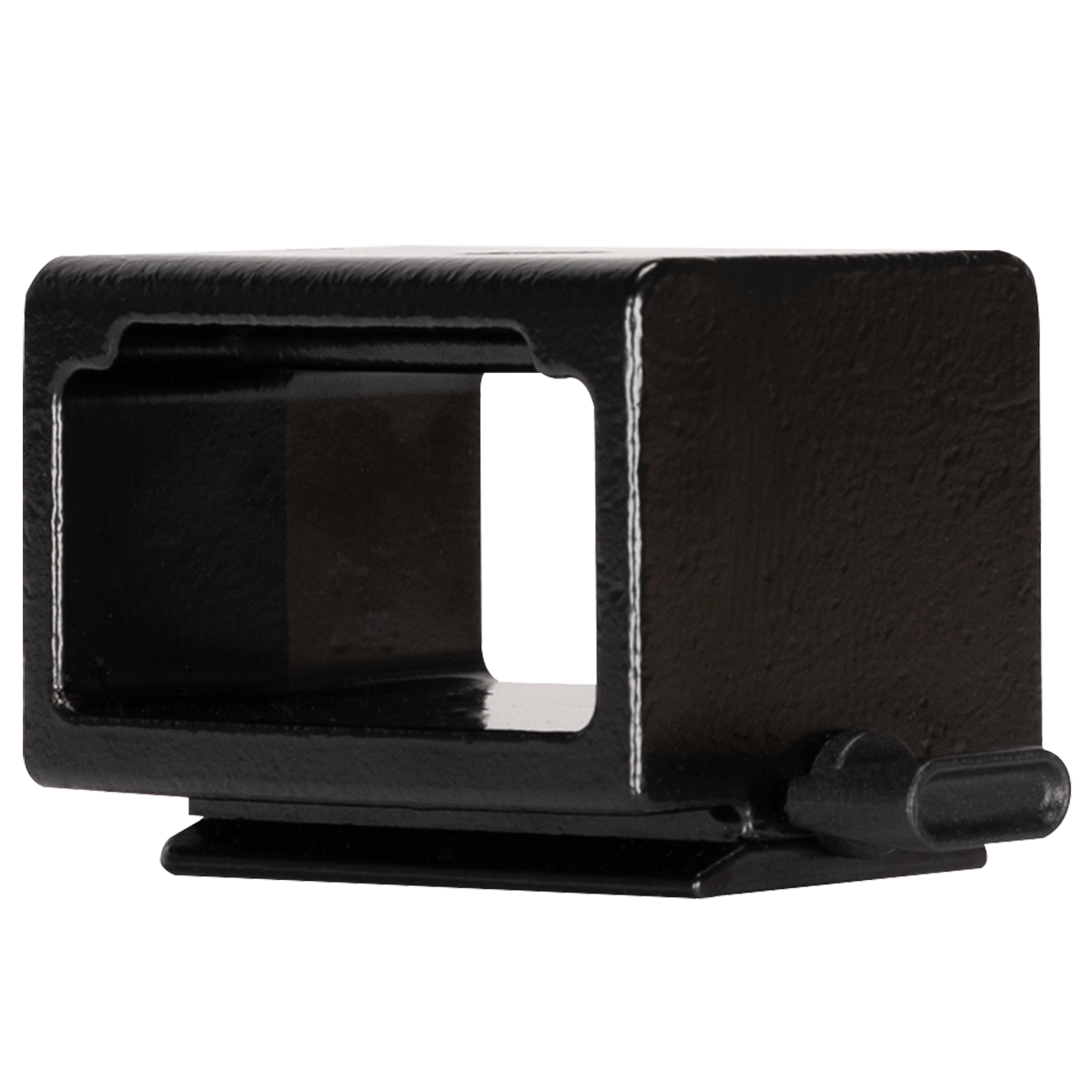

Interconnect Clamp Adapter (FICA01)

# 8050000053 - Omega Bracket


APPROVALS / RATINGS

CE | IP65 | FCC | UKCA | cETLus


FIRMWARE UPDATE

Current Update:


Specifications and documentation subject to change without notice.
