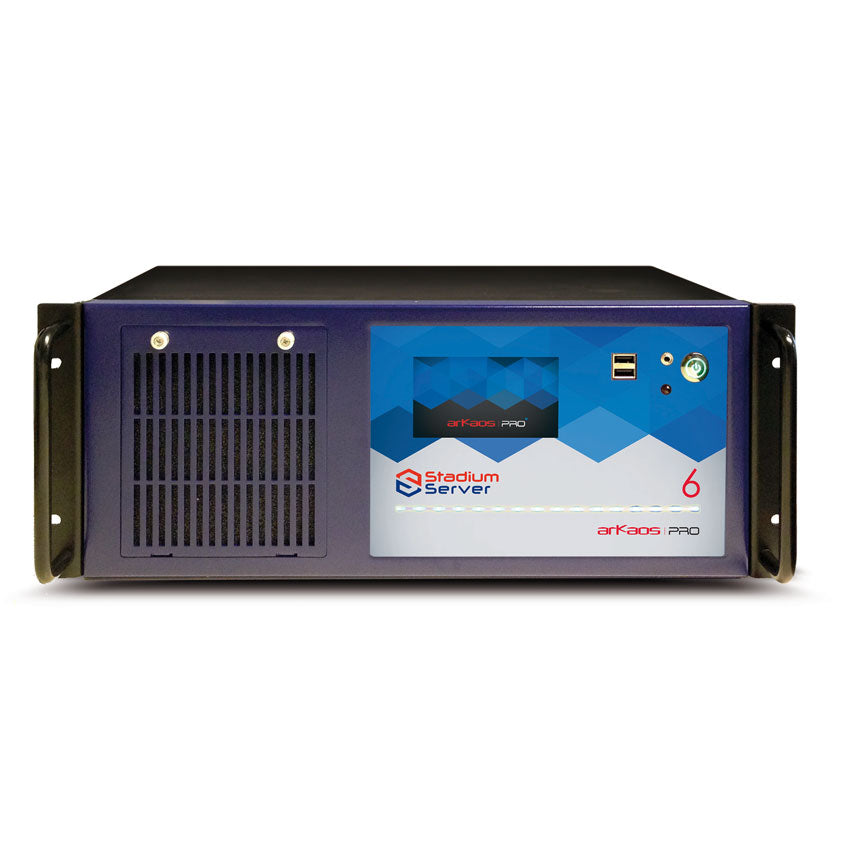

STADIUM SERVER

Features

Plug and Play Simplicity
Vast library of high quality digital media from world’s best visual content providers
Comes installed with MediaMaster Pro

Smart Design
Full-option media server
Runs full HD video on up to six EDID managed outputs
Two HD-SDI inputs and fast SSD drives as standard
Large LED status strip for quick visual feedback on the server’s operation state
Front display allows use of server without the need of additional screens
Fast recovery system by Acronis allows extremely simple reset from the boot menu
Pre-configured to work directly with all market-leading DMX lighting desks

Blistering Performance
Shock-resistant up to 2G
Easy access to fans and filters
Thoroughly tested in structural strength, and toleration of heat and vibration
Totally road-ready

Resources

Specification information

Guides/ Manuals

Software Downloads

Related Categories

Specifications

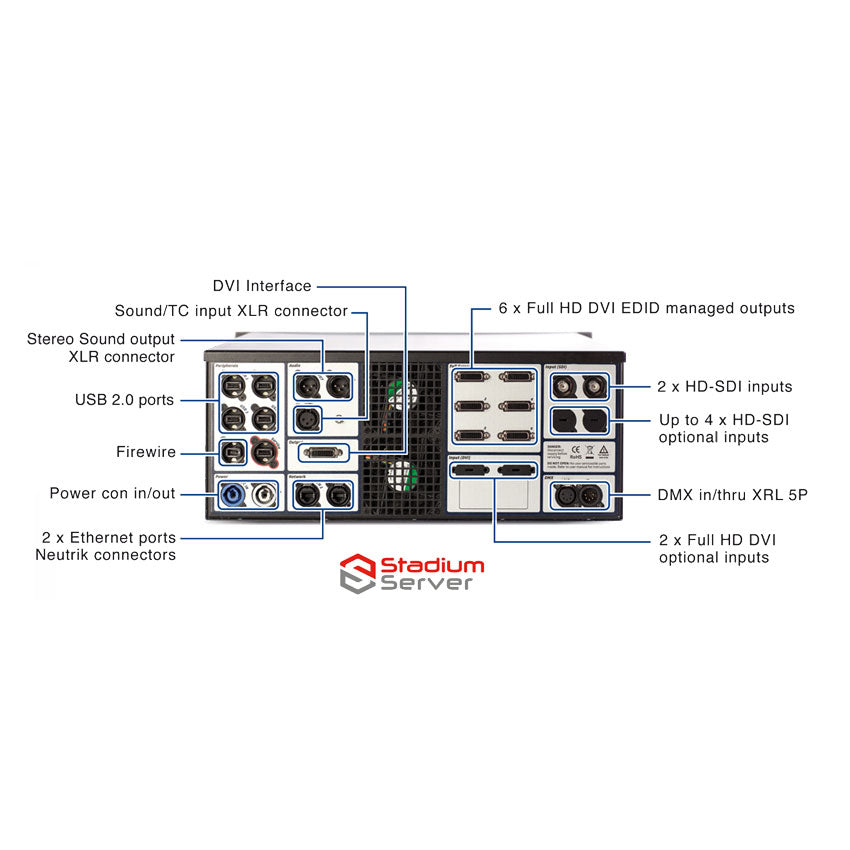

I/O
Interface Output: 1 (DVI)
Output: 6 (DVI)
EDID Management: Yes
Input (Standard): 2x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
Output Resolution: 6 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Framelock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2

STORAGE
System Drive: SSD 128 GB
Separate Drive: SSD 480 GB

SOFTWARE
MediaMaster: Pro
CuePlayer (Theater mode): Yes
LED Mapper: Yes
Kling-Net Mapper: Yes
Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction; Yes

CONTROL
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes

HARDWARE
Voltage: 107-240V Auto Switching
Professional Connectors: Yes

SIZE / WEIGHT
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight 55.1 lbs. (25kg)



Specifications and documentation subject to change without notice.
