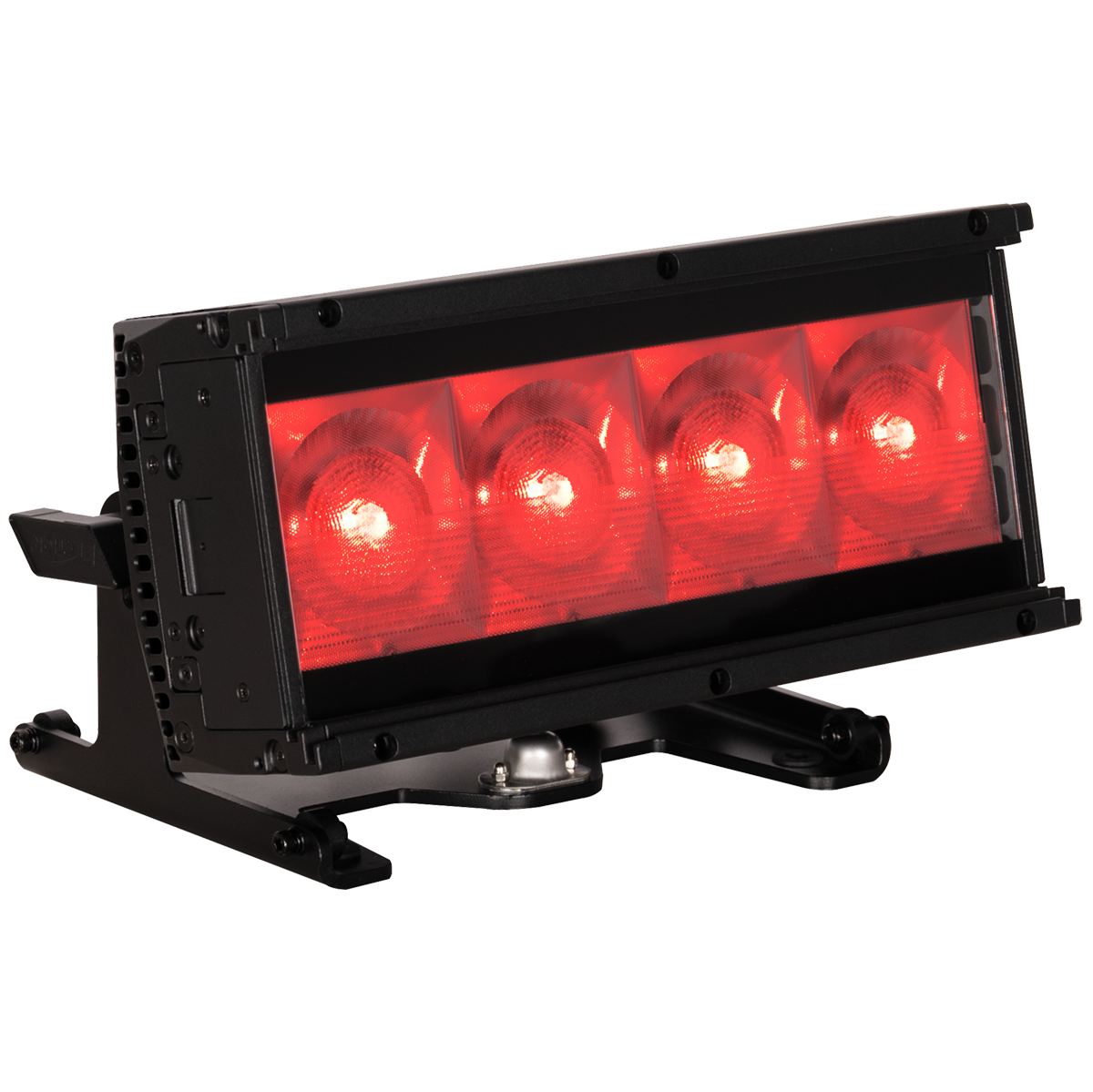

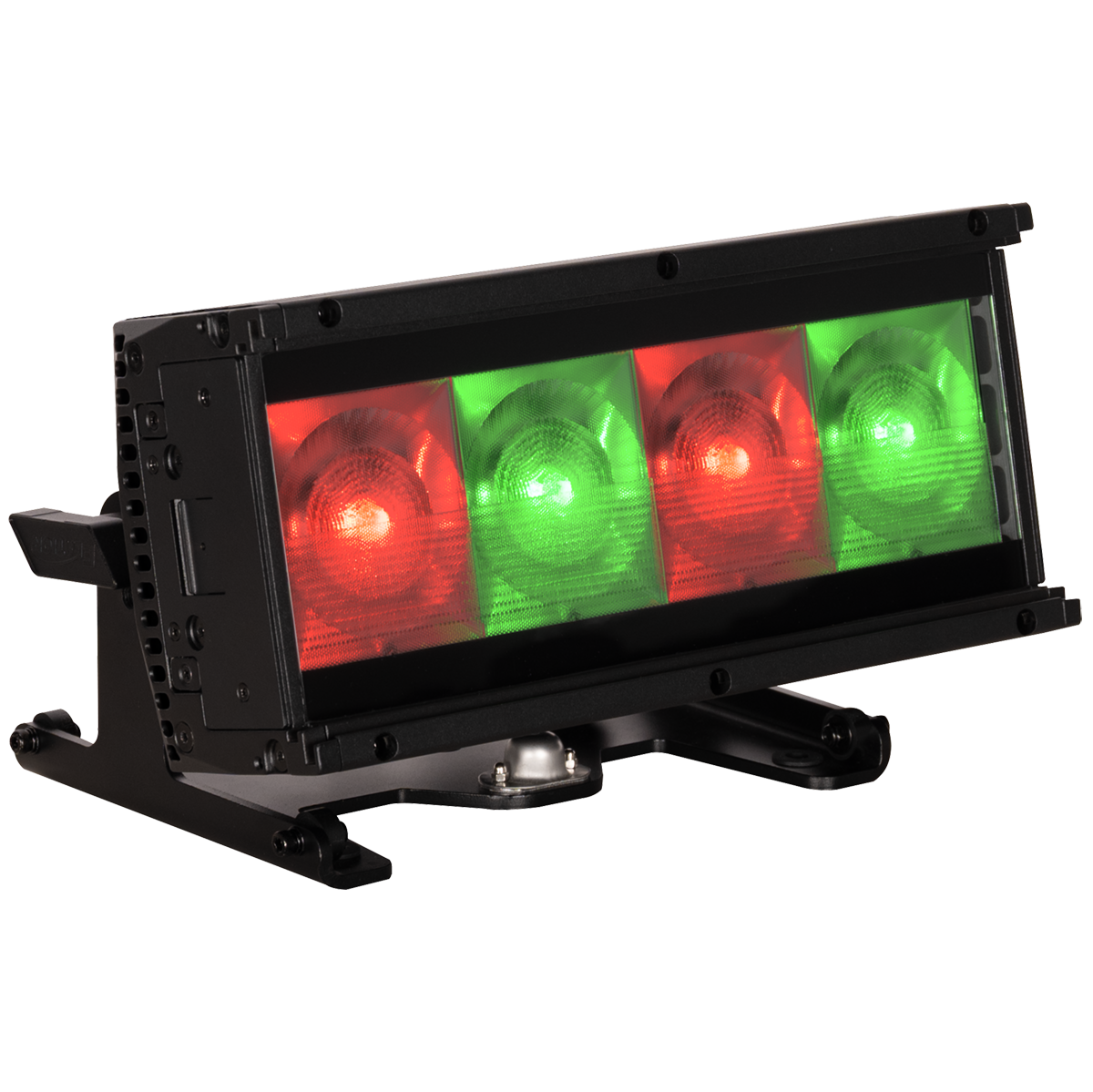

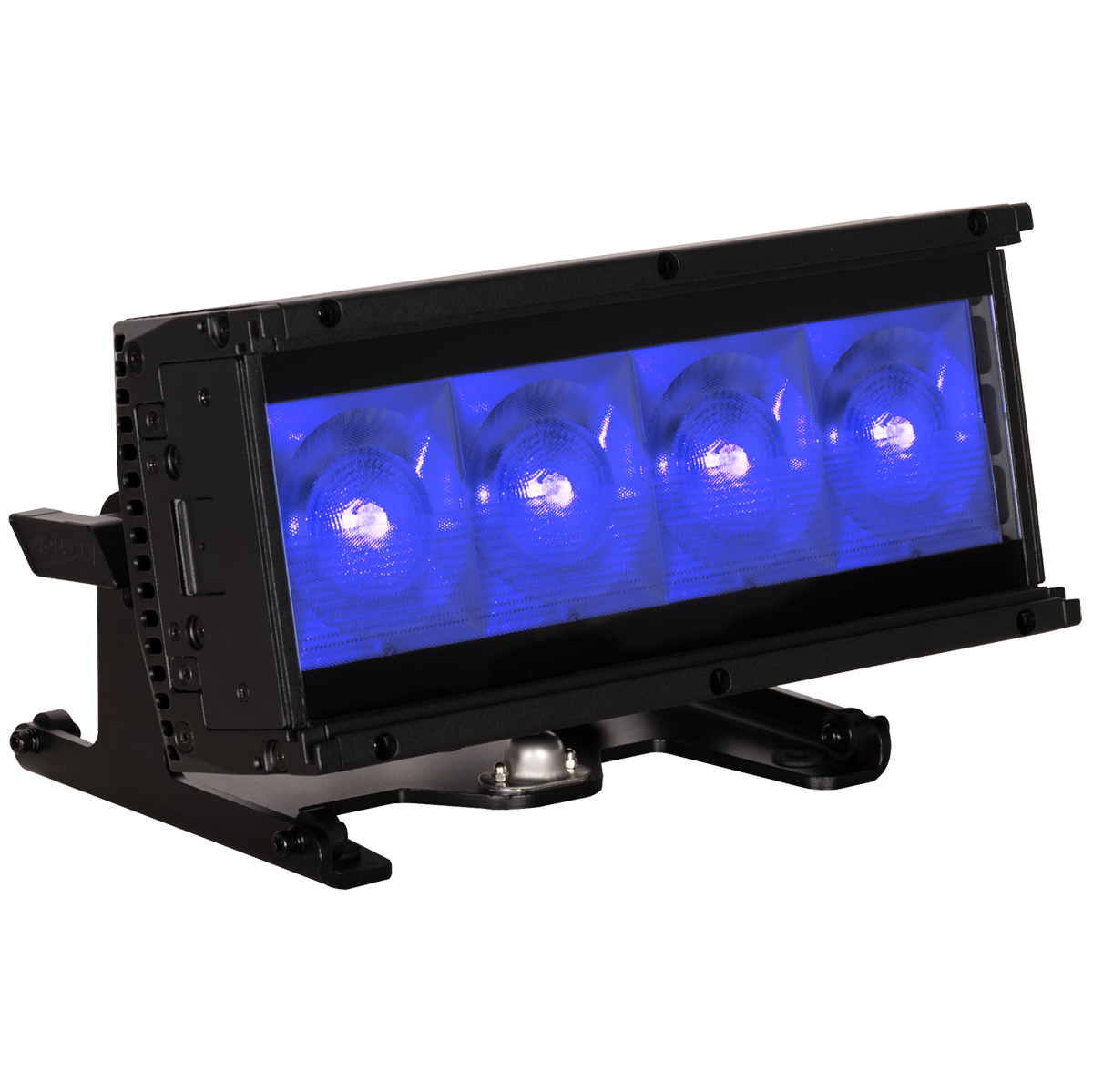

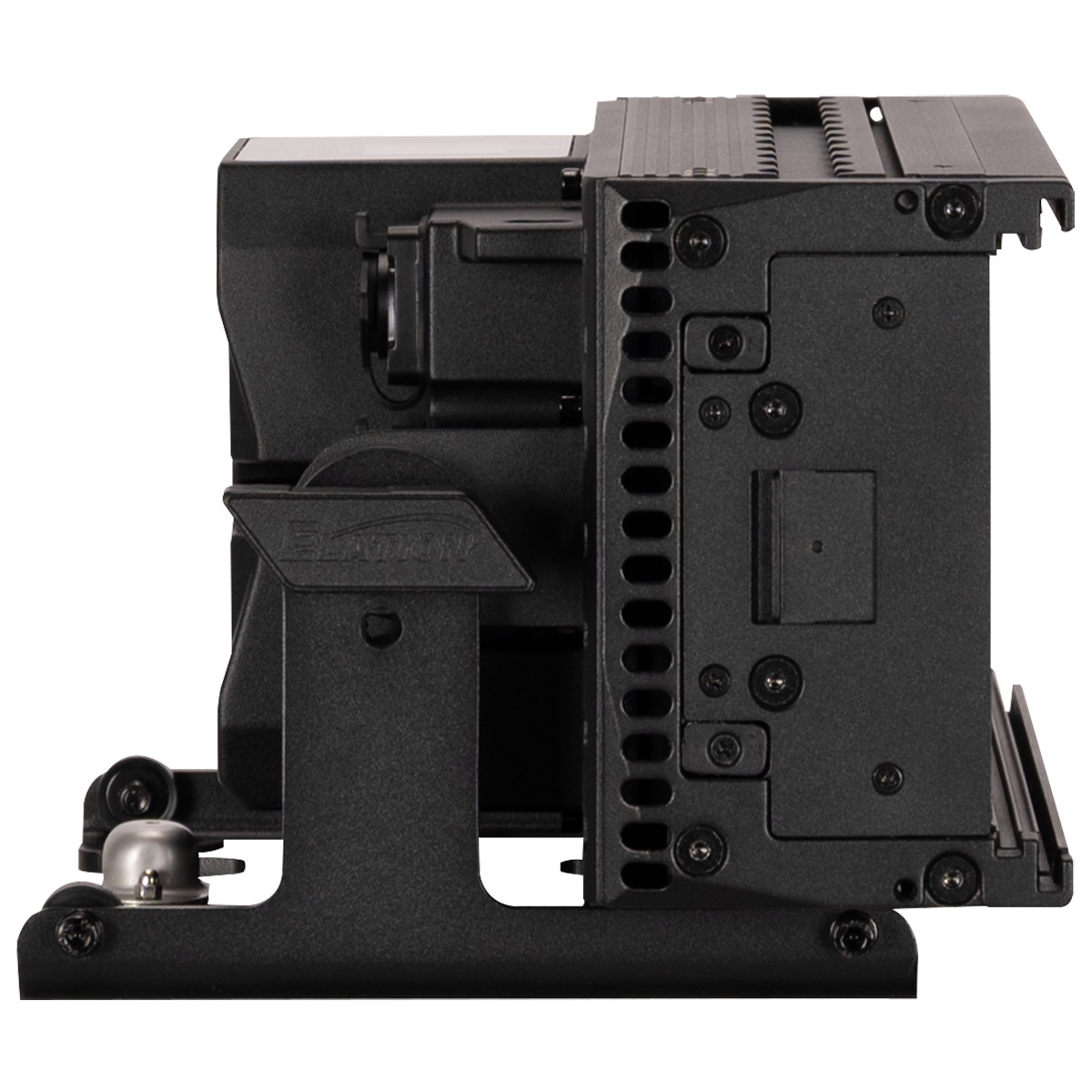

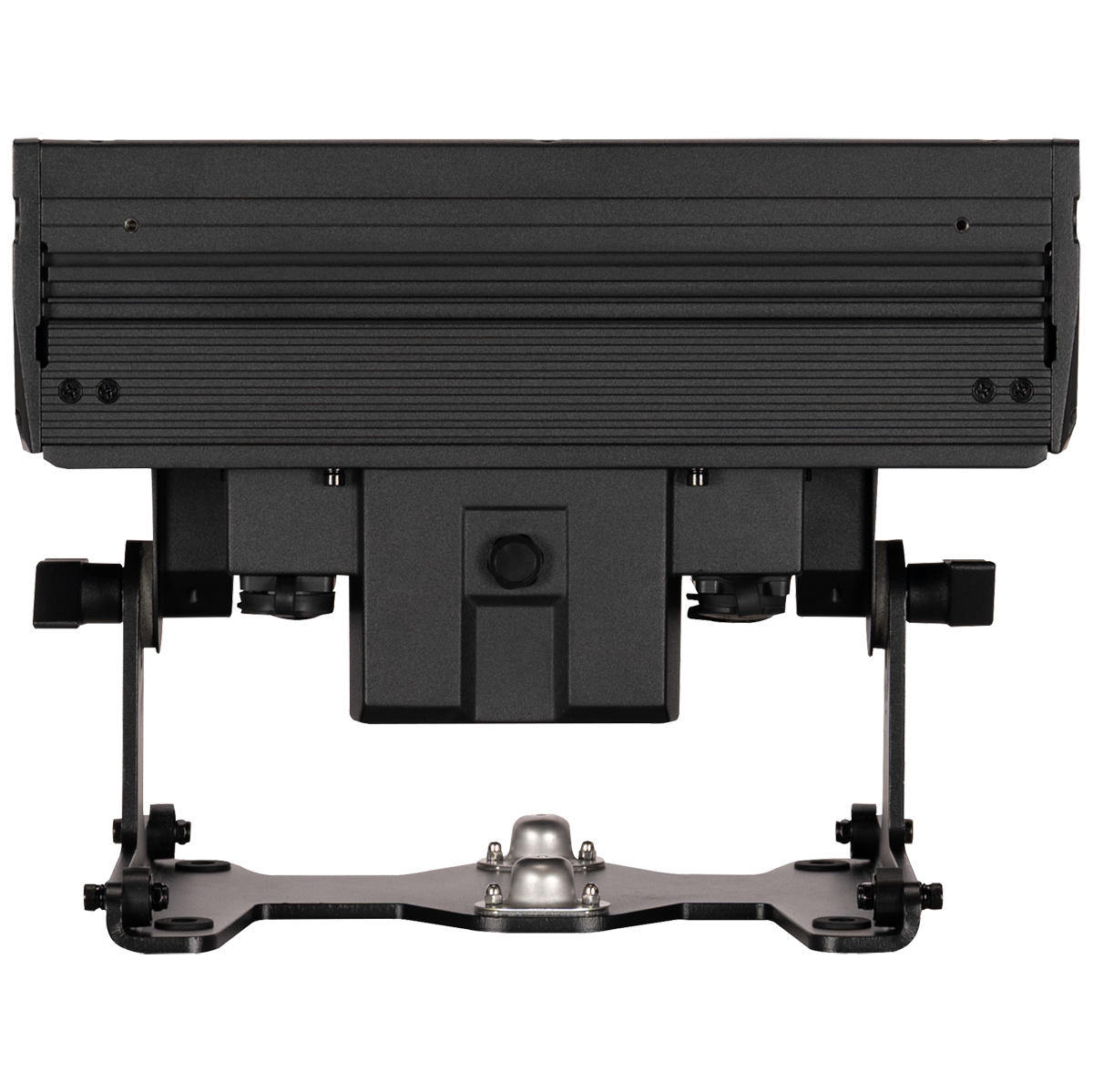

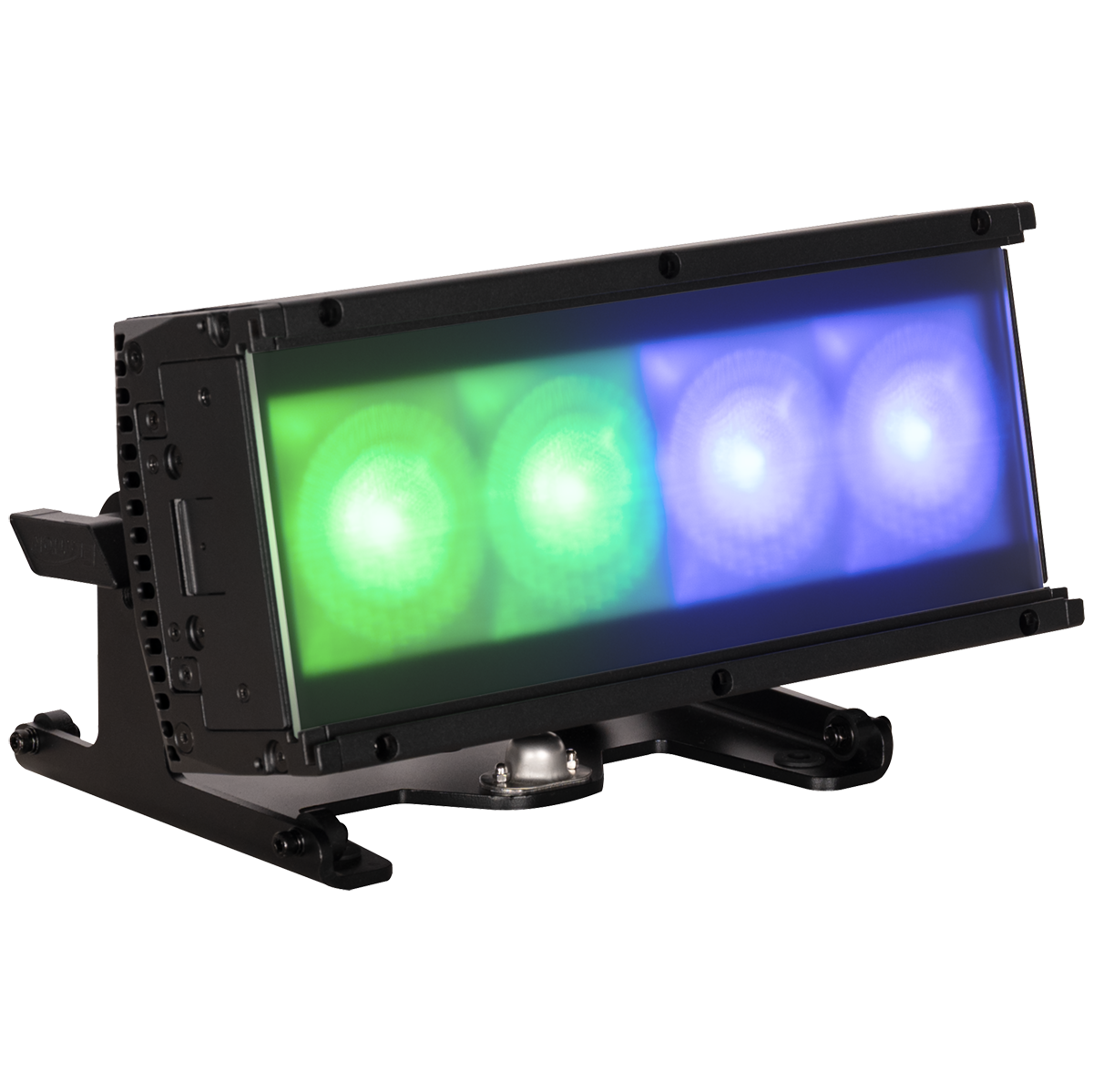

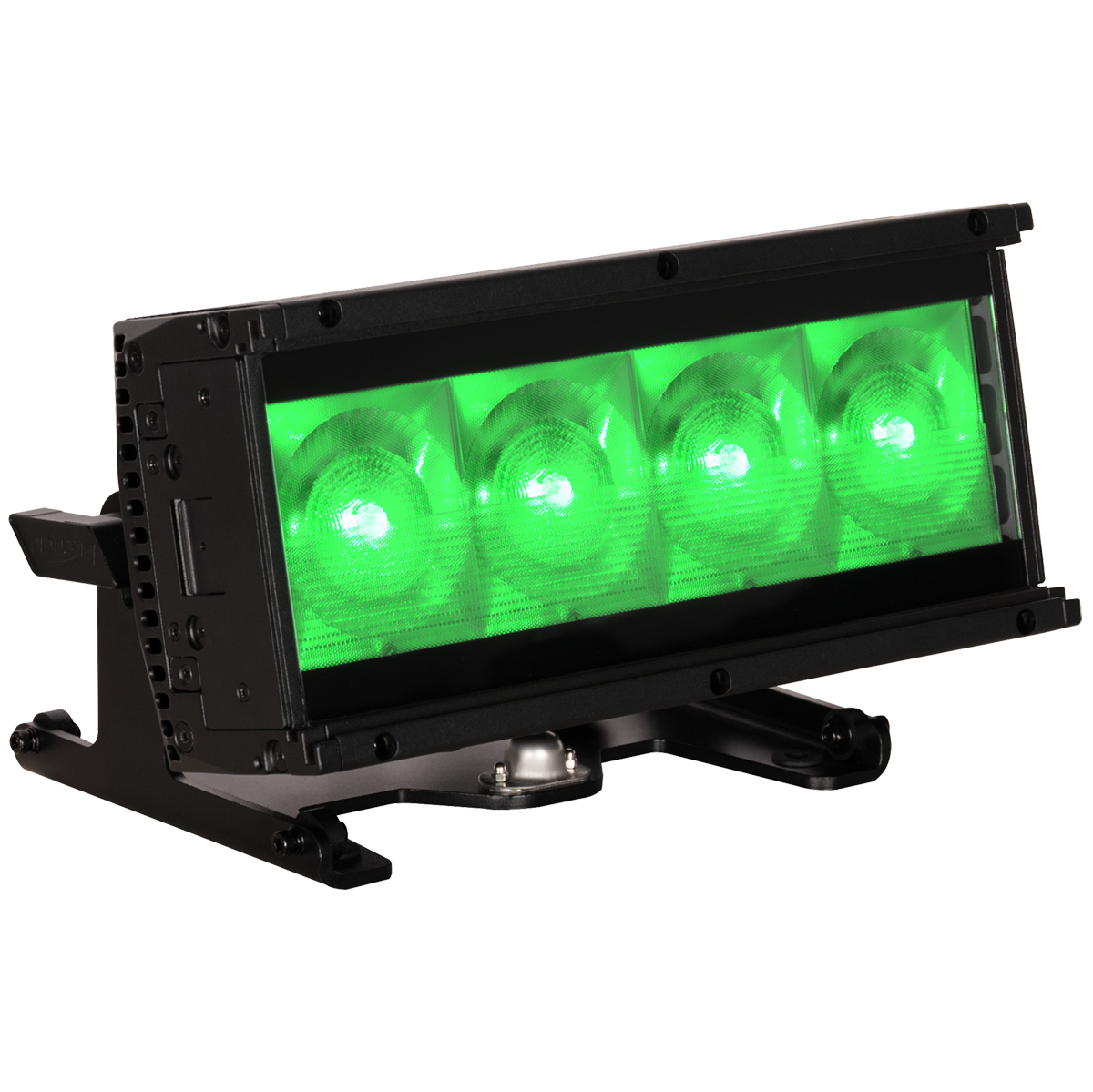

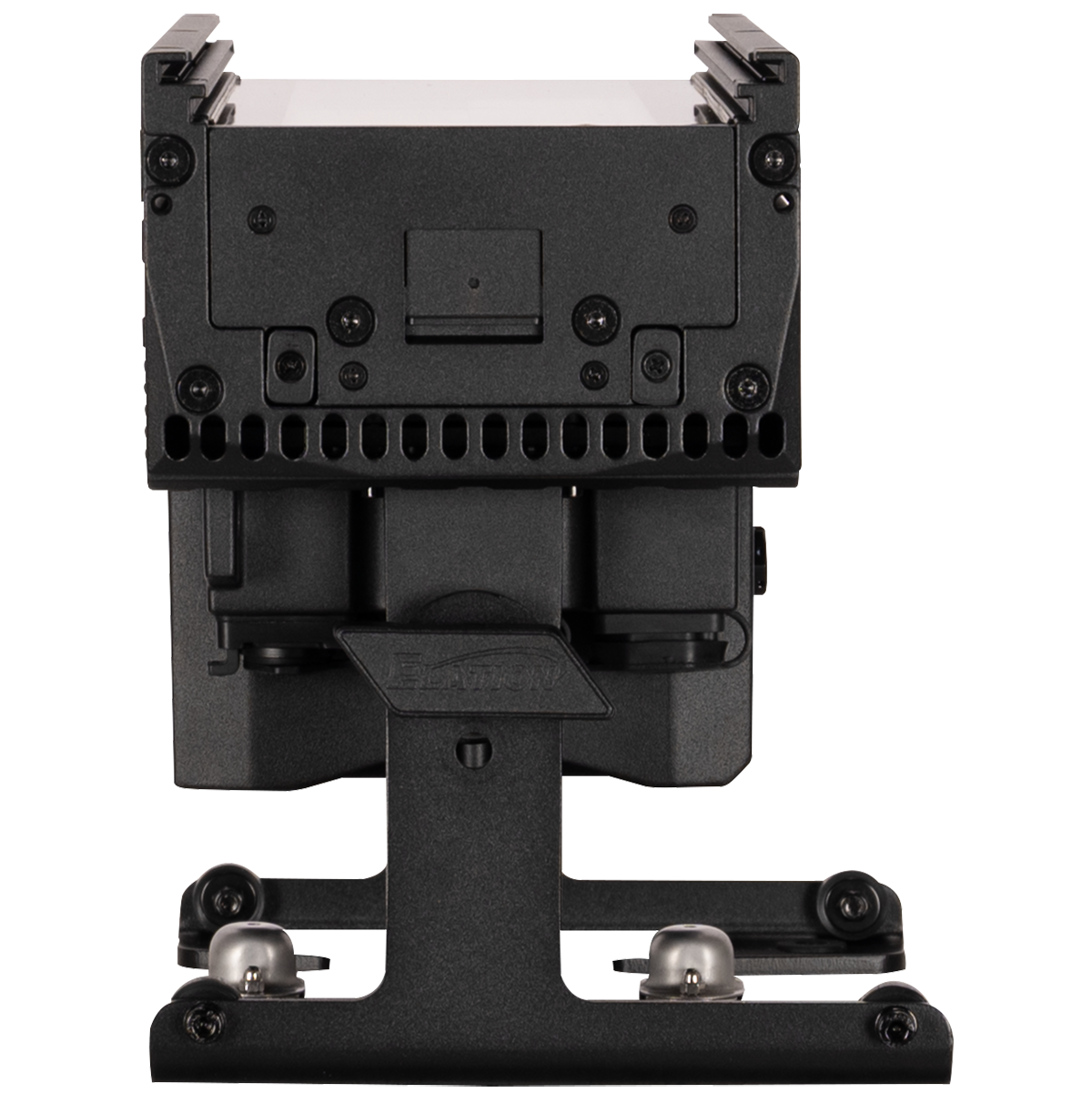

KL BATTEN 12
Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.
Related Products
KL BATTEN 12
(4) 100W RGBMA LED Array
Integrated Lens and Accessory Slots
Art-Net & sACN Support
Integrated L Track for Flexible Mounting
End-to-End Magnetic Alignment System
NFC & Aria x2 Wireless Device Management
IP65 Rated
Specifications
(4) x 100W RGBMA LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
10,300 (Integrating Sphere)
CRI- 94.9
TLCI- 95
Beam Angle: 22° x 20°
Field Angle: 44° x 42°
EFFECTS
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR

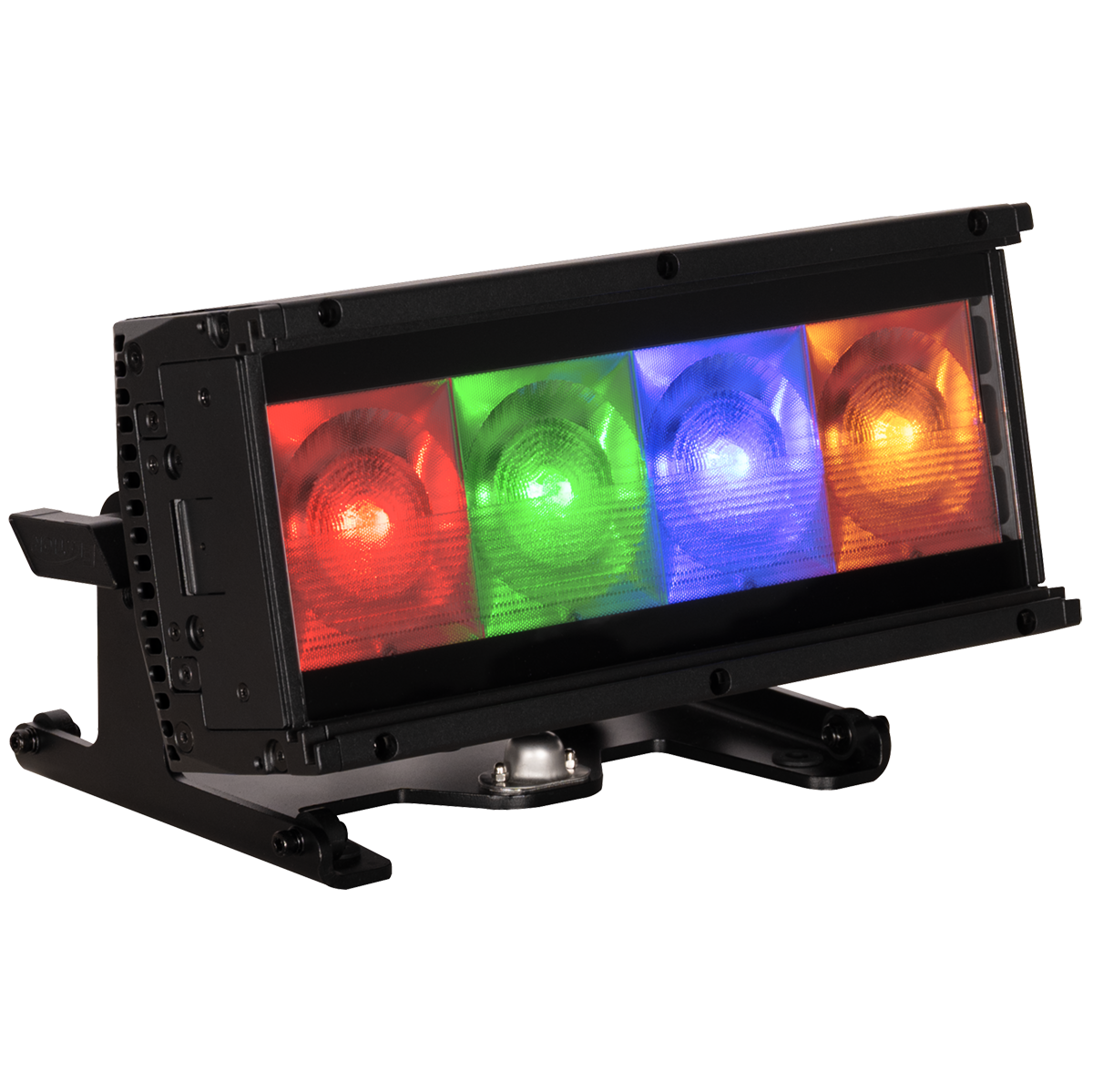

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
22 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 12ch-A, 16ch-B, 12ch-B, 40ch, 32ch, 61ch)

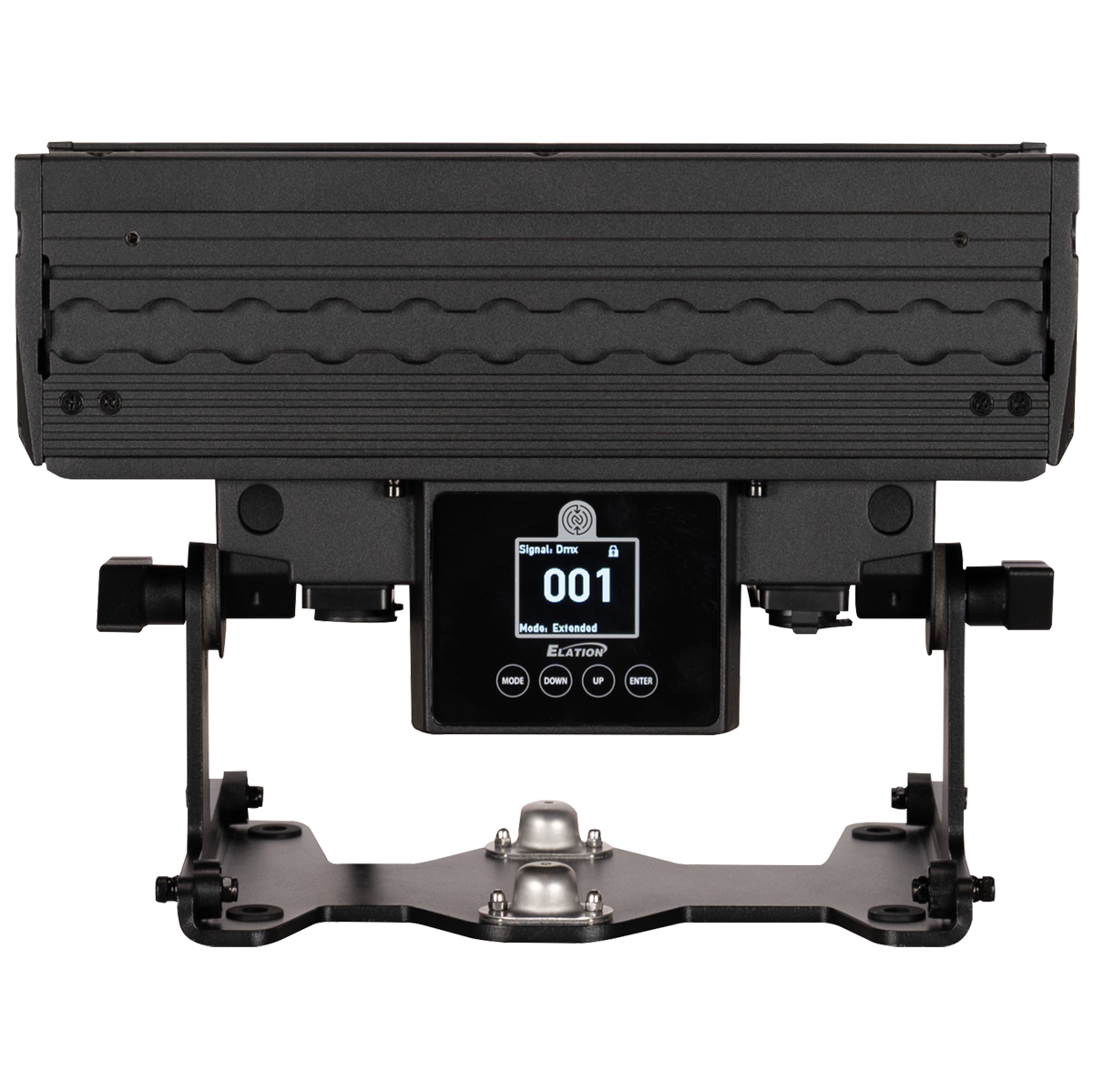

4 Button Control Panel, Color LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net sACN)
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 12.6" (321mm)
Width: 7.2" (184mm)
Vertical Height: 9.4” (239mm)
Vertical Height (Low Clearance): 8.6" (219mm)
Weight: 14.7 lbs / 6.7kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Power Thru Capacity: 10A ( 5 units @110V; 14 units @240V)
-40°F to 131°F (-40°C to 55°C)
BTU/hr (+/- 10%) 682

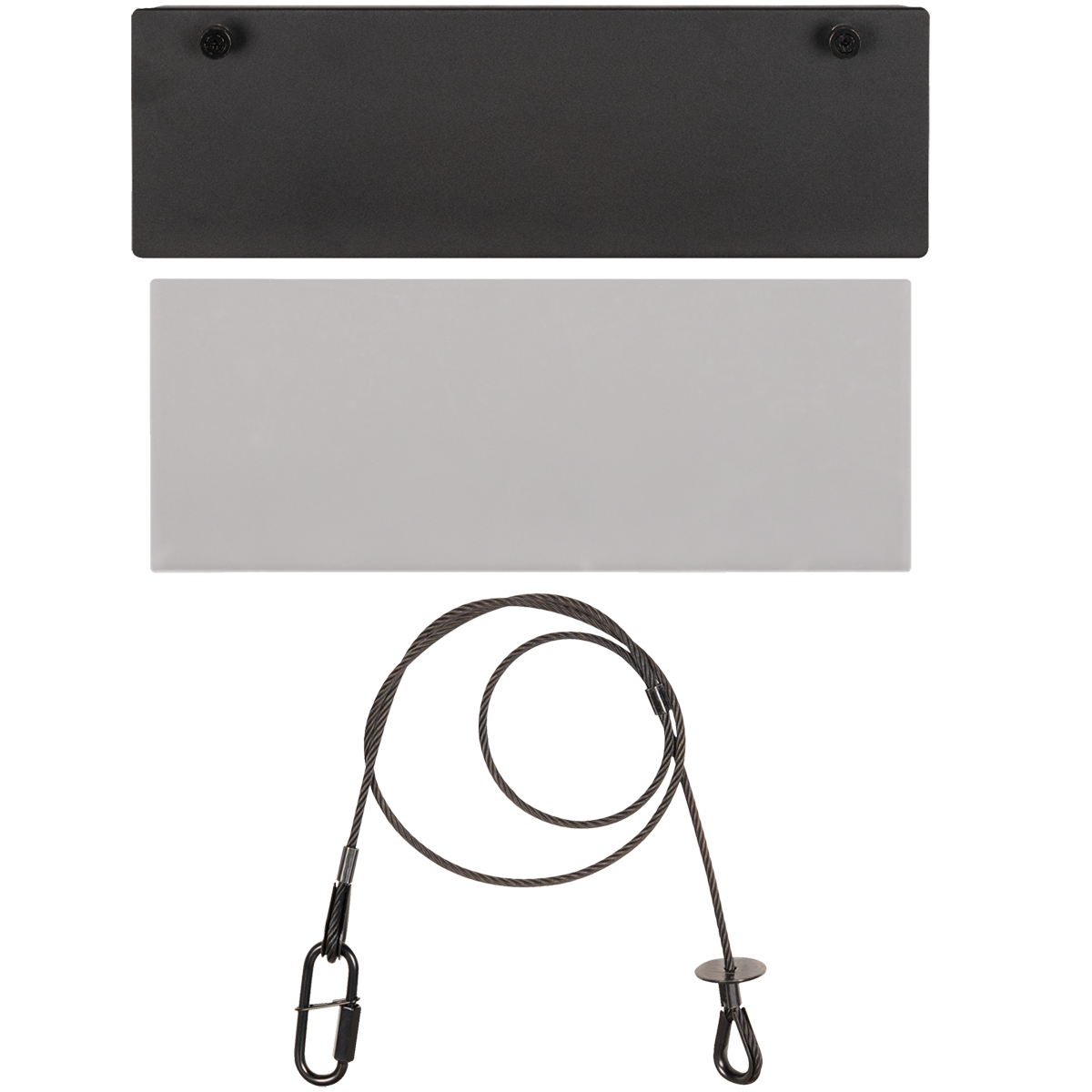

INCLUDED ITEMS
Glare Shield
Border Light Filter
Safety Cable
IP65 Locking Power Cable
OPTIONAL ITEMS
90deg Slotted Omega Bracket (OB-107-90B) (Qty.1)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp Adapter Assembly, 70mm (LTR100)
L Track C-Clamp Adapter Assembly, 44.5mm (LTR112)
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update:
Specifications and documentation subject to change without notice.
