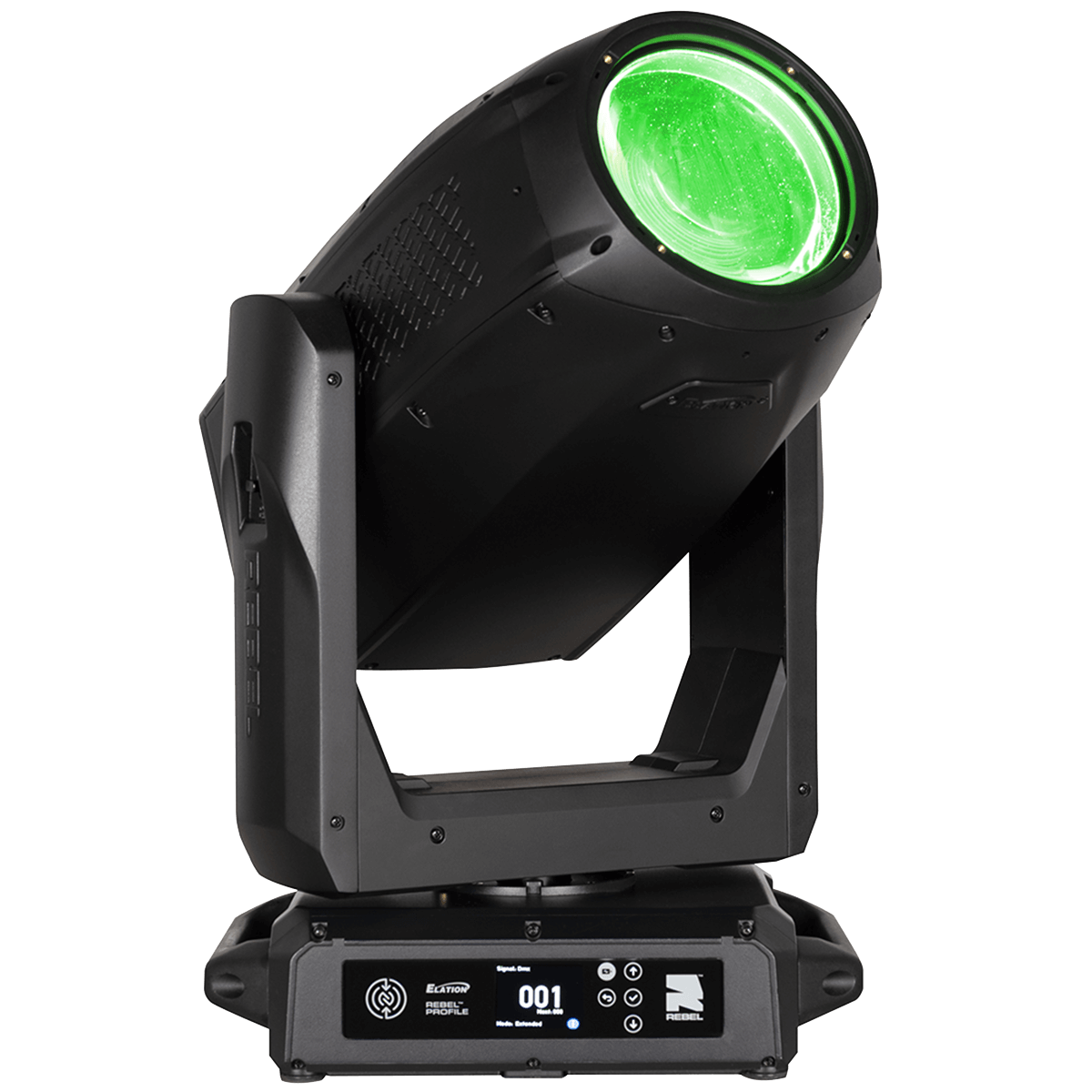

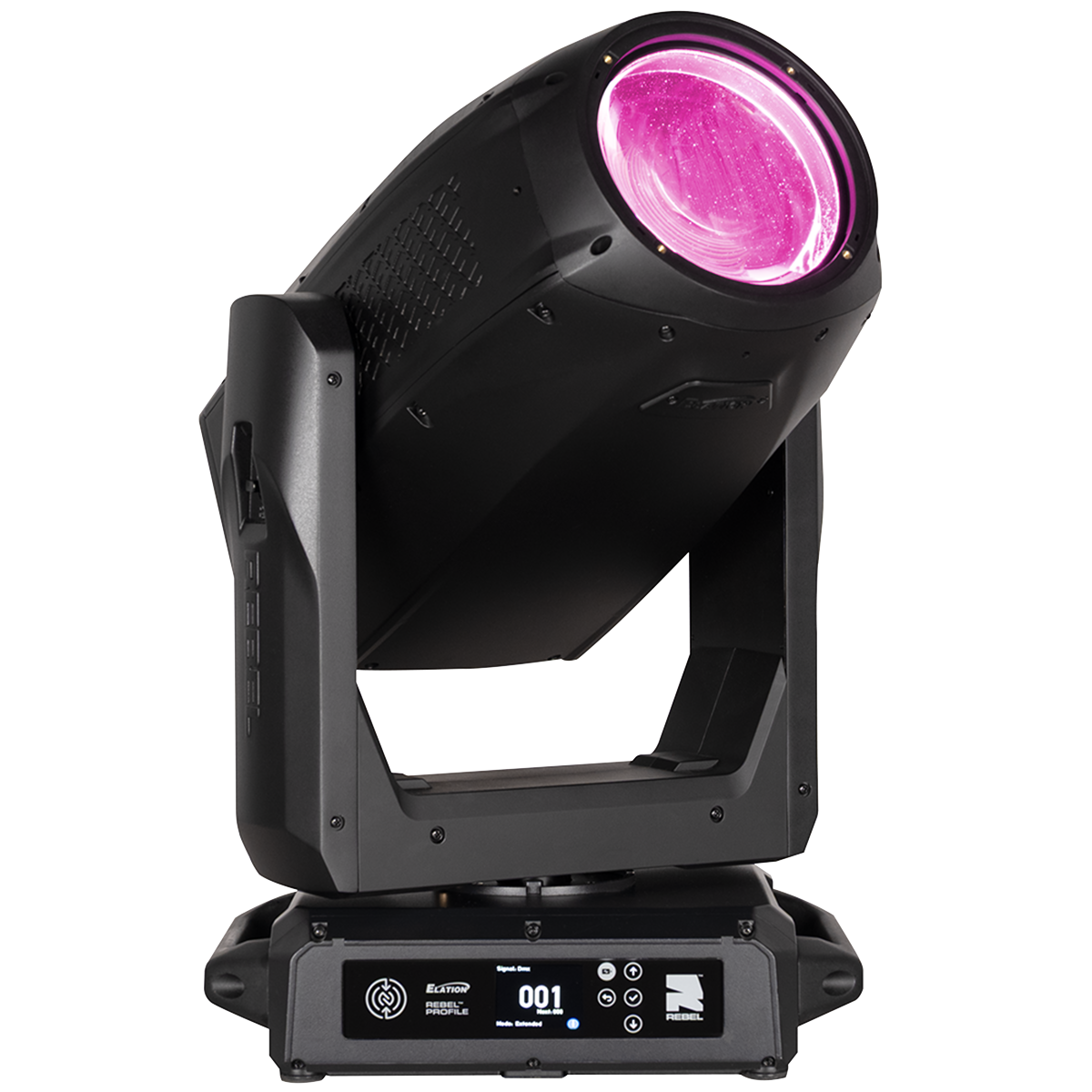

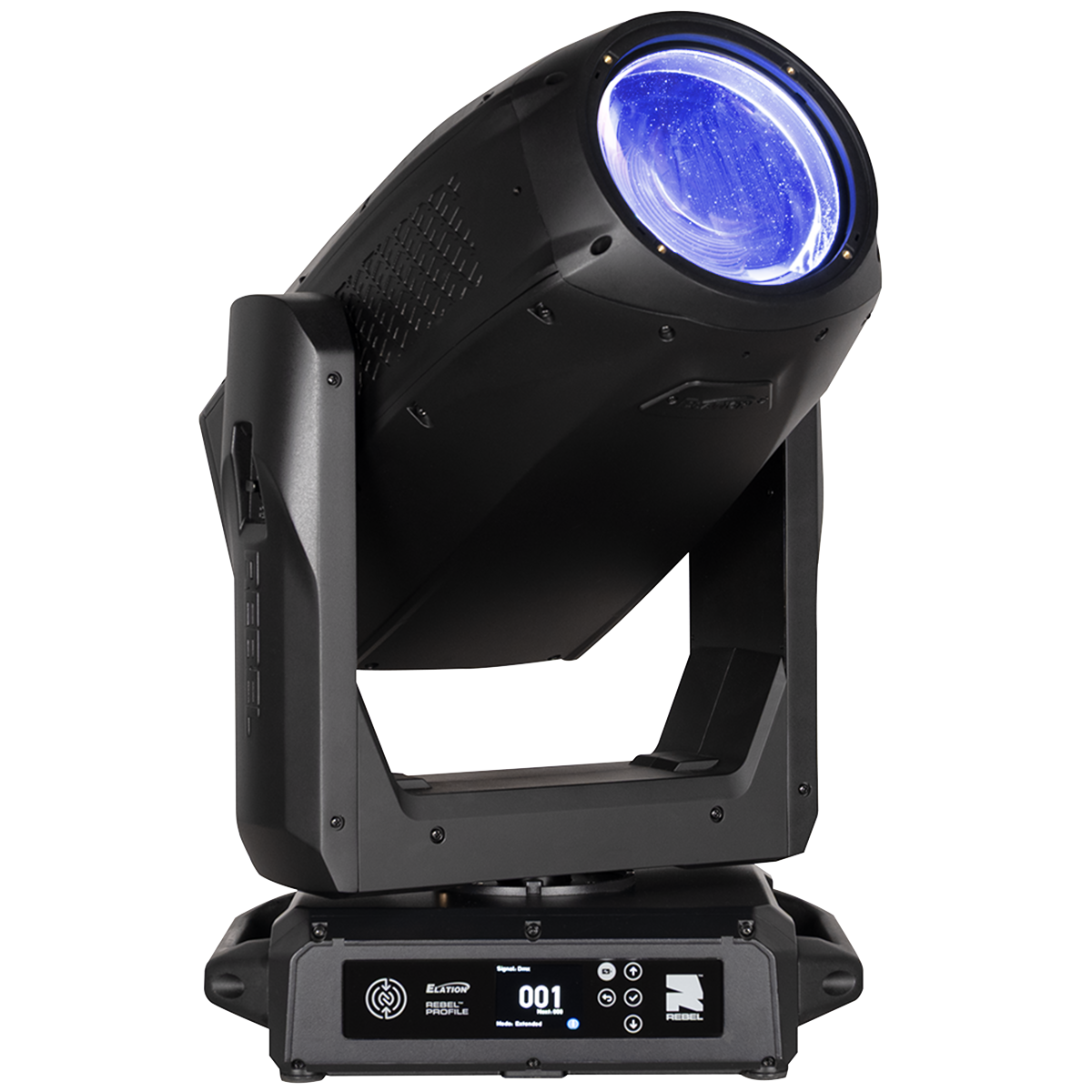

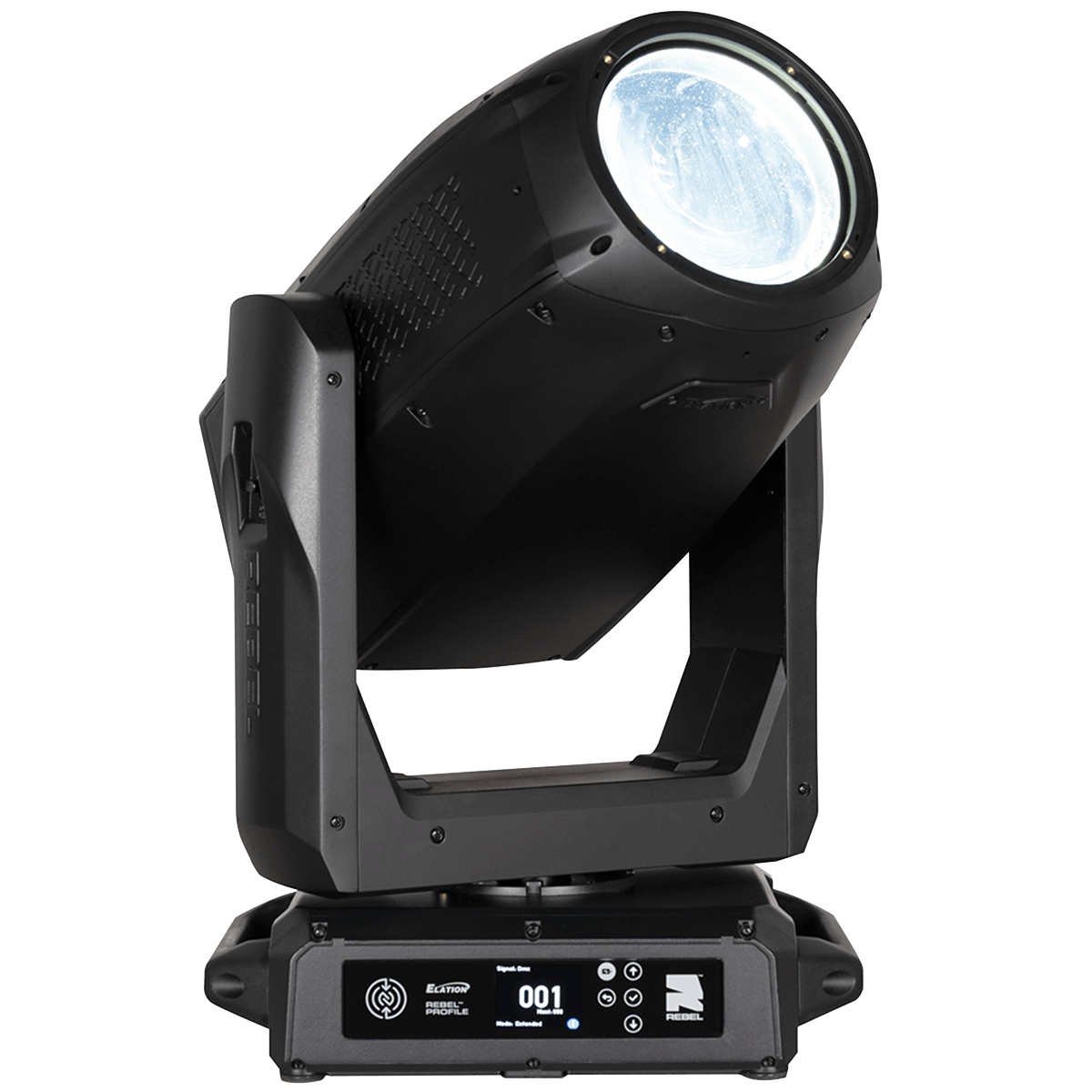

REBEL PROFILE
Compact 500W IP65 Framing Profile Fixture
The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.
REBEL PROFILE
The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.
A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.
The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.
IP65 for temporary outdoor applications
Peak field 600W 6,500K White LED Engine
Up to 22000 Total Lumens Fixture Output
CMY Color Mixing and Variable CTO
7-Position Color Wheel with dual High CRI Filters
Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 3.5° to 51°
Colors and Gobos
Color Flags
- Cyan
- Magenta
- Yellow
-
CTO
Color Wheel
- Green
- Red
- Blue
-
High CRI 80
-
High CRI 90
- Yellow
-
Quad color
Gobo Wheel 1
Gobo Wheel 2
Animation Wheel
Prisms
Framing
Specifications
SOURCE
600W 6,500K Bright White Peak Field LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
22000 Total Lumen Fixture Output
CRI 70+ (80 or 90 with HCRI Filter)
2:1Hotspot Ratio
Zoom Range 3.5° - 51°
Beam Angle
Field Angle
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-60° Framing Module Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and 6 Facet Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 270°
Continuous 360° Pan Rotation
COLOR
CMY Color Mixing
Linear CTO Color Correction (2400K)
7 Dichroic Colors, including CRI 80 and CRI90 filters
GOBOS
2 Gobo Wheels
7 Rotating Glass Gobos
8 Static Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes
DMX, RDM, Art-NET, sACN Protocol Support
(5) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

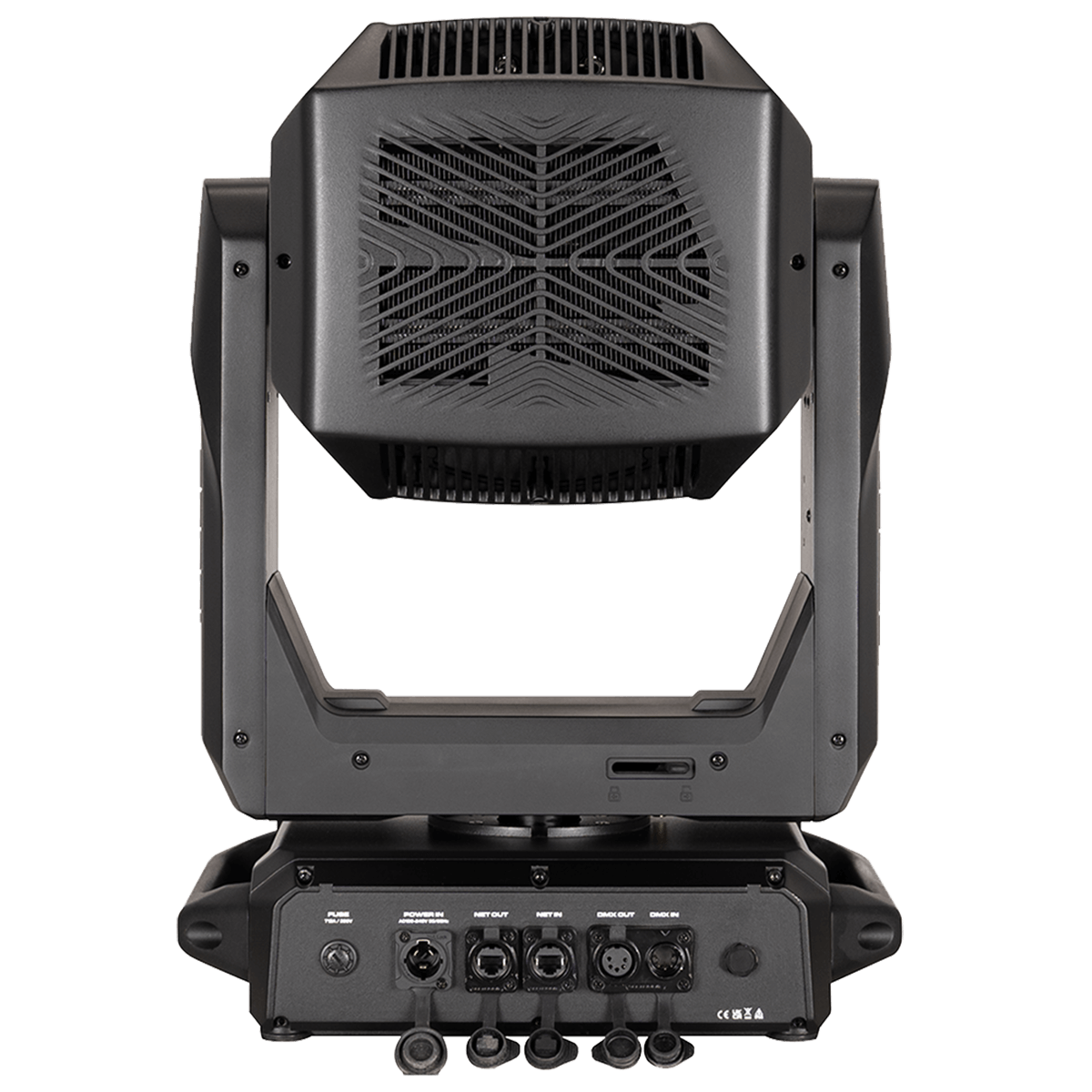

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
SIZE / WEIGHT
Length: 15.65 in (398mm)
Width: 11.06 in (281mm)
Height: 26.2 in (666mm)
Center-to-Center Spacing in (mm)
Weight: 66 lbs. (29.9 kg)
ELECTRICAL
AC 100-240V 50/60Hz
Max Power Consumption: 950W
-4° to 113°F (-20°C to 45°C)
3509 BTU/hr (+/- 10%)

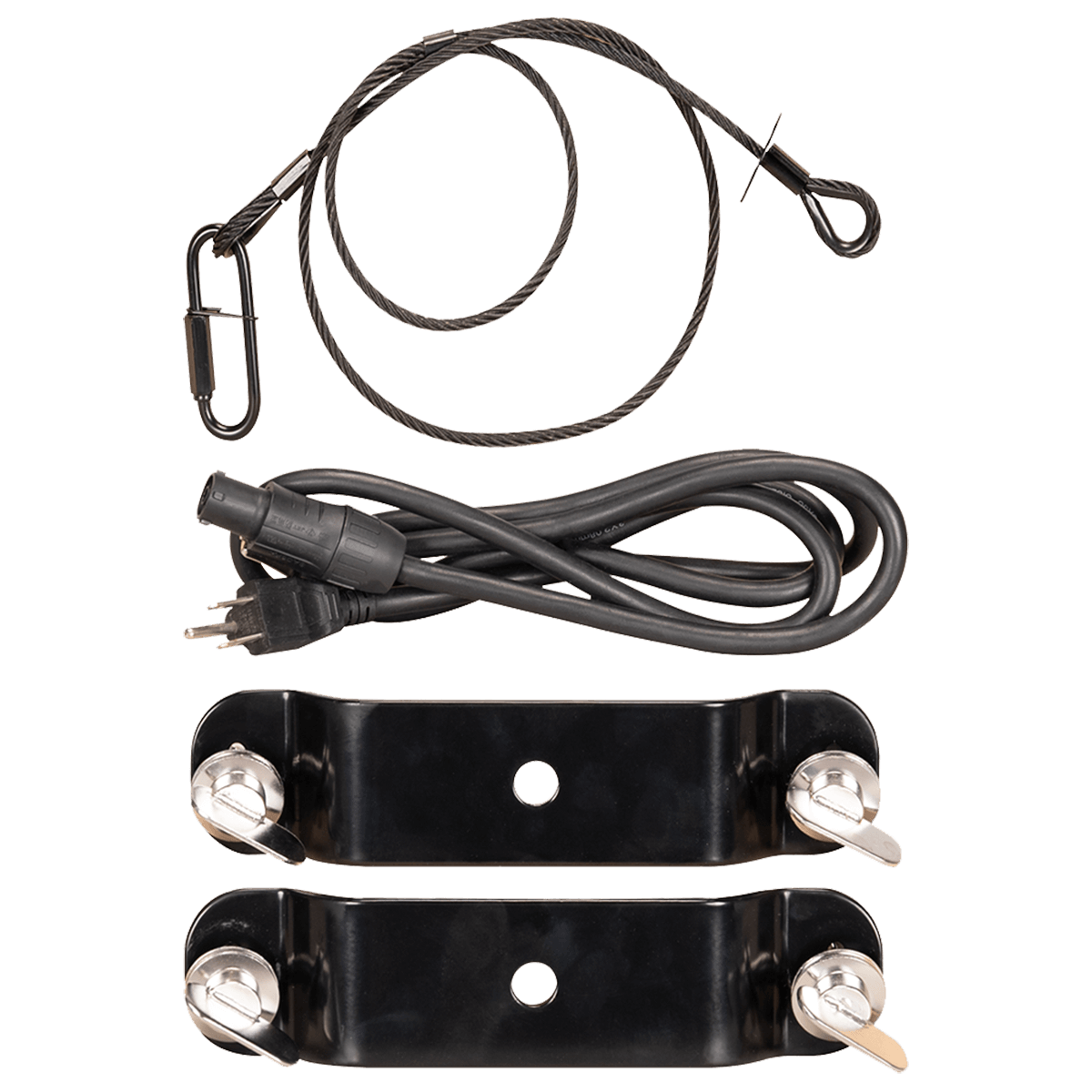

INCLUDED ITEMS

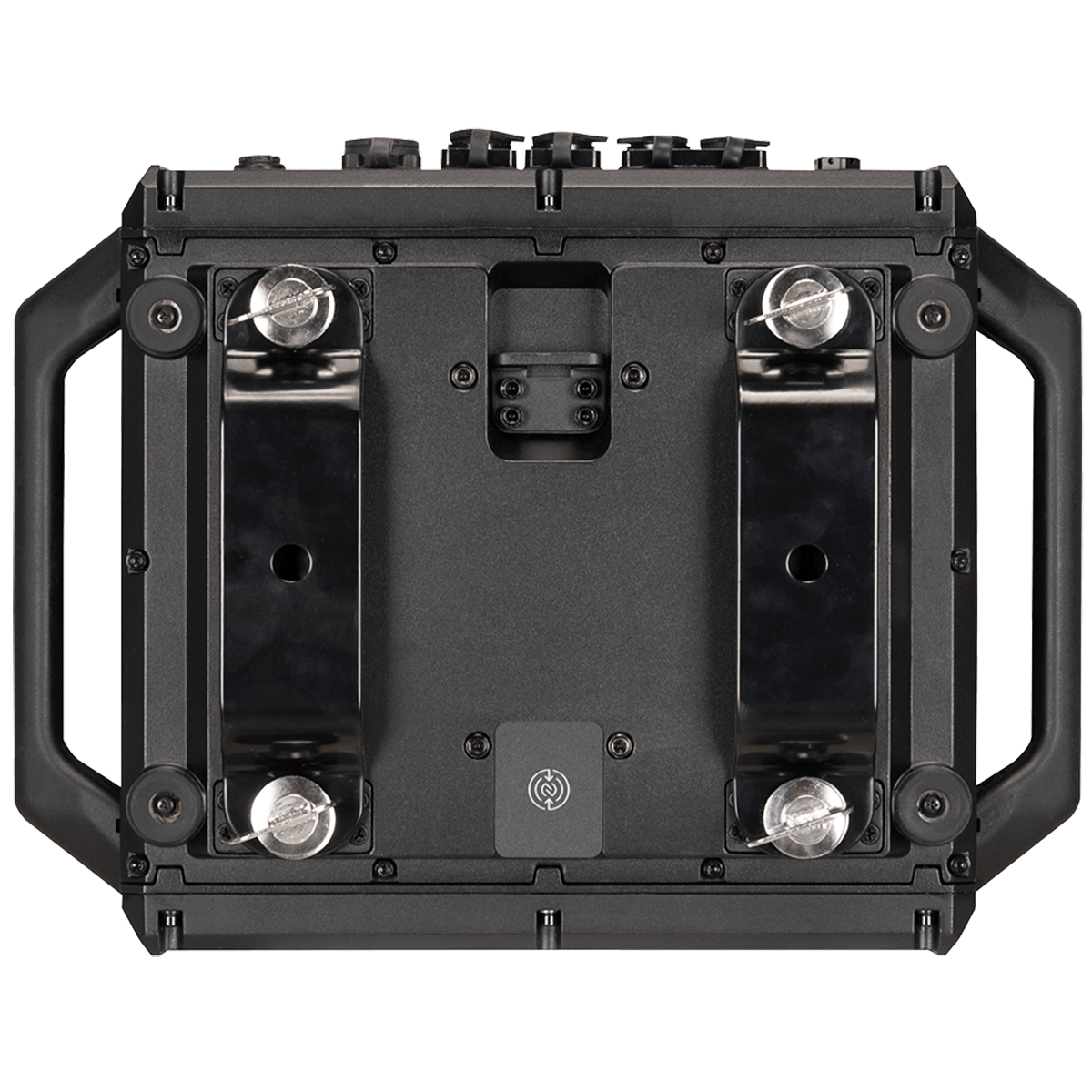

Omega Brackets (x2)
Safety Cable
IP65 Rated Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | FCC | UKCA | IP65
Specifications and documentation subject to change without notice.
