REBEL LINE 16

The REBEL LINE 16 amplifies the force of the Rebel Series with a commanding 16-cell format—delivering massive output, precision optics, and a rich, full-spectrum palette inside a rugged IP65 chassis. Sixteen high-intensity 60W RGBL engines and thirty-two CW SparkX pixels surge together to unleash 25,355 lumens of relentless color and cool-white punch for designers who push their rigs harder.
A seamless linear lensing system and fast 210° tilt movement drive dynamic, fluid looks—ranging from razor-sharp sub-4° beams that cut through the air to immersive 35°+ washes that fill a stage with ease. With integrated SparkX, the REBEL LINE 16 adds dimensional texture and atmospheric detail, its cool-white crossing beams carving crisp, unmistakable lines through the haze.
A built-in magnetic alignment system allows the REBEL LINE 16 to lock effortlessly with other LINE fixtures—including the LINE 8—forming continuous beams and high-resolution pixel arrays at any scale. With its tour-ready build and expansive pixel density, the REBEL LINE 16 is engineered for productions that demand bold intensity, sweeping kinetic motion, and advanced pixel artistry built to command the biggest stages.

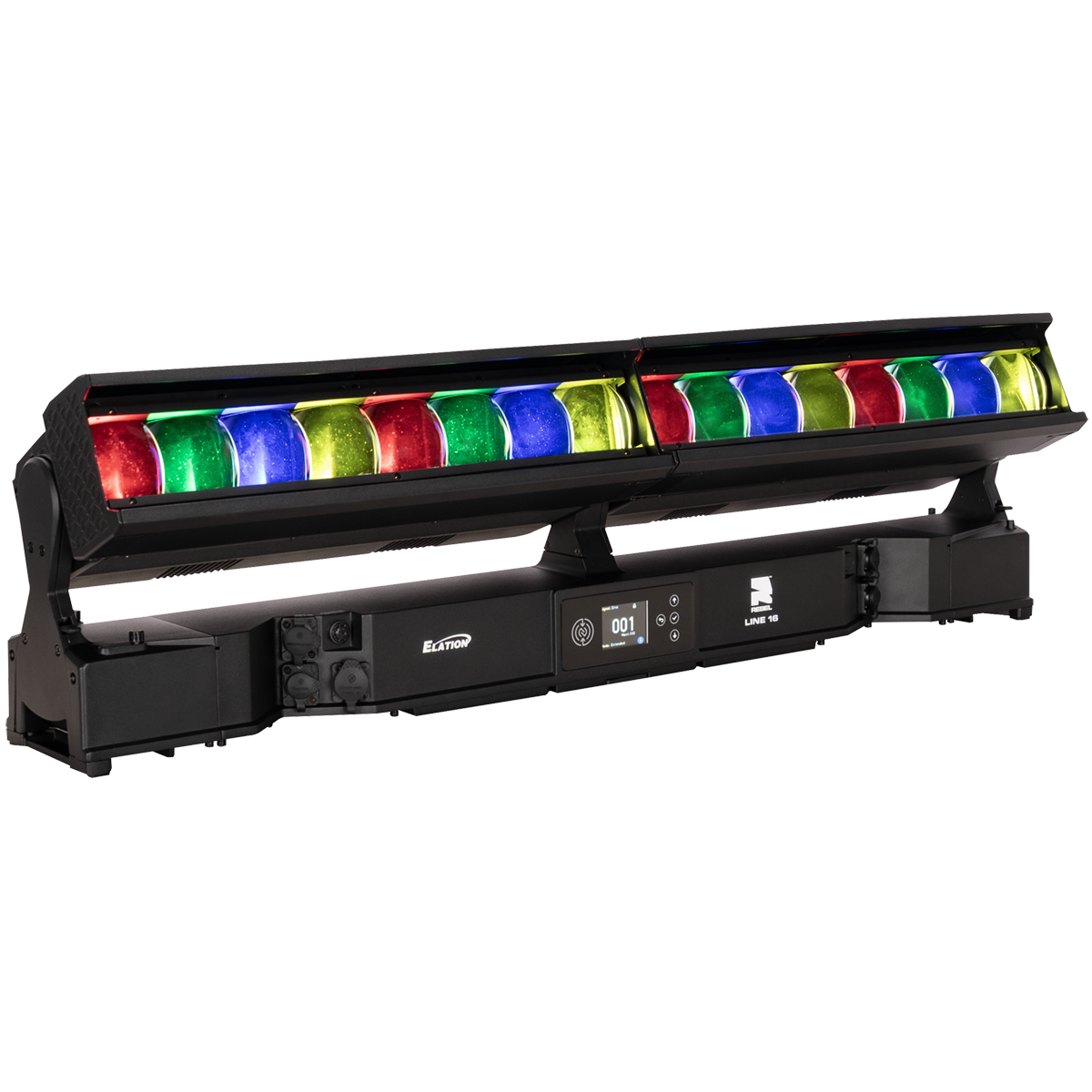

(16) 60W RGBL LEDs with Pixel Control
(32) 5W CW SparkX LEDs with Pixel Control
25,355 Total Fixture Lumen Output (Sphere)
4° - 35° Beam Angle
Fast and precise 210° Tilt Rotation
IP65 Tilt FX Fixture

Specifications

SOURCE

(16) 60W RGBL LEDs

(32) 5W CW SparkX LED Pixels

30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

Total Lumen Output:

Integrating Sphere

All LED: 25,355 Lumens

RGBL LED: 13,865 Lumens

CW LED: 11,546 Lumens


CRI 82

Zoom Range 4° - 35°



EFFECTS

Motorized Zoom

Full Pixel LED Control

SparkX LED Beam Effect

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves

Tilt Angle: 210°


COLOR

RGBL LED Array

CW SparkX LED Array

Variable CCT 2400K - 8500K

Virtual Gel Swatch Book


CONTROL / CONNECTIONS

6 DMX Channel Modes (24, 31, 122, 2x 22, 2x 30 & 2x 70 channels)

DMX Adjustable Refresh Rate (900 -25000 Hz)

4 Button Control Panel, LED Display

Aria x2 Wireless Device Management

NFC Configuration

DMX, RDM, Art-NET, sACN Protocol Support

IP65 Locking 5pin XLR Connector In/Out

IP65 Locking RJ45 Ethernet Connector In/Out

IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 39.4 in (1000mm)

Width: 6.1 in (168mm)

Height (head up): 13.4 in (342mm)

Height (head 90 degree): 10 in (254mm)

Weight: 55 lb (24.9 kg)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

1690W Max Power Consumption

Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)

BTU/hr (+/- 10%) 5,762.9

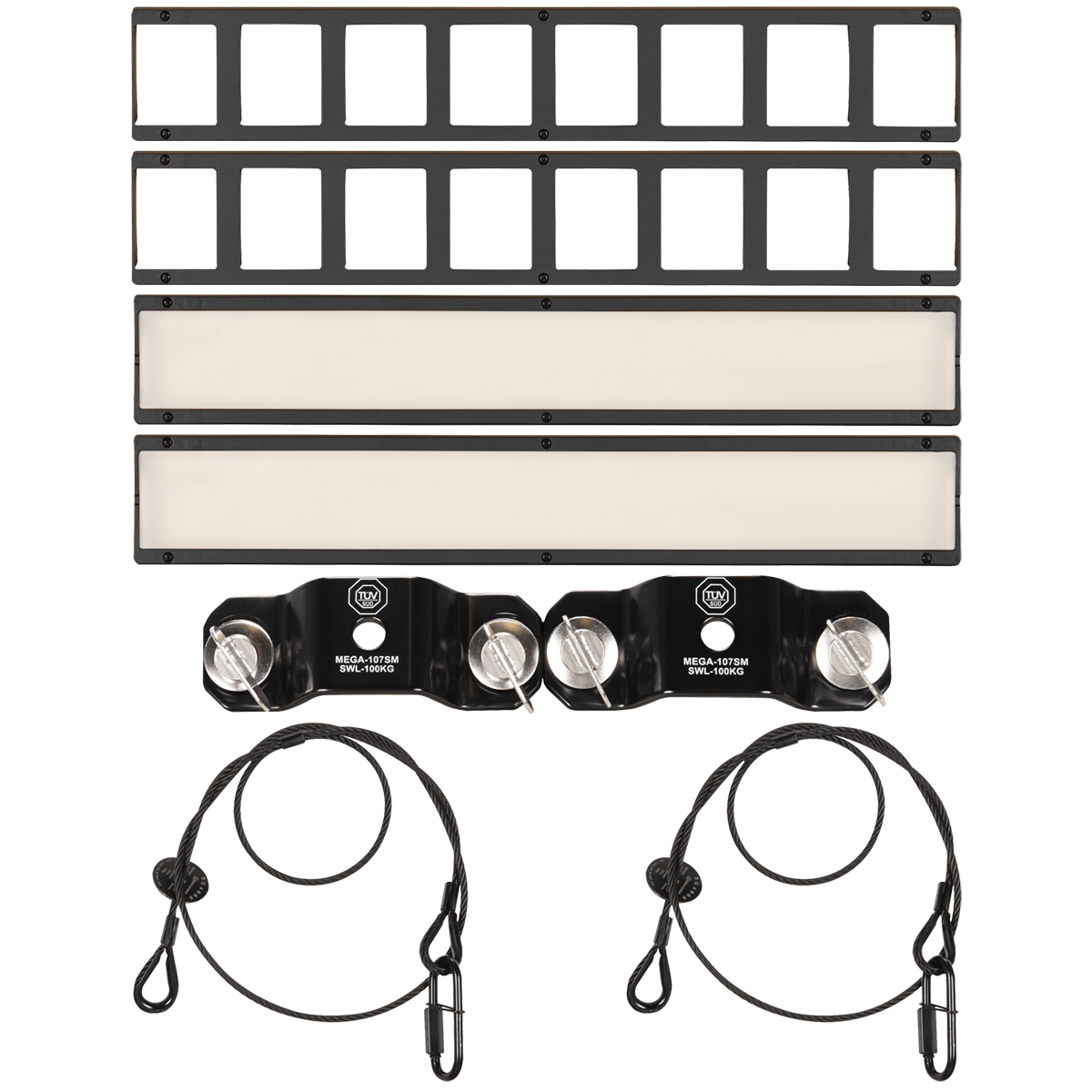

INCLUDED ITEMS

Omega Brackets (x2)

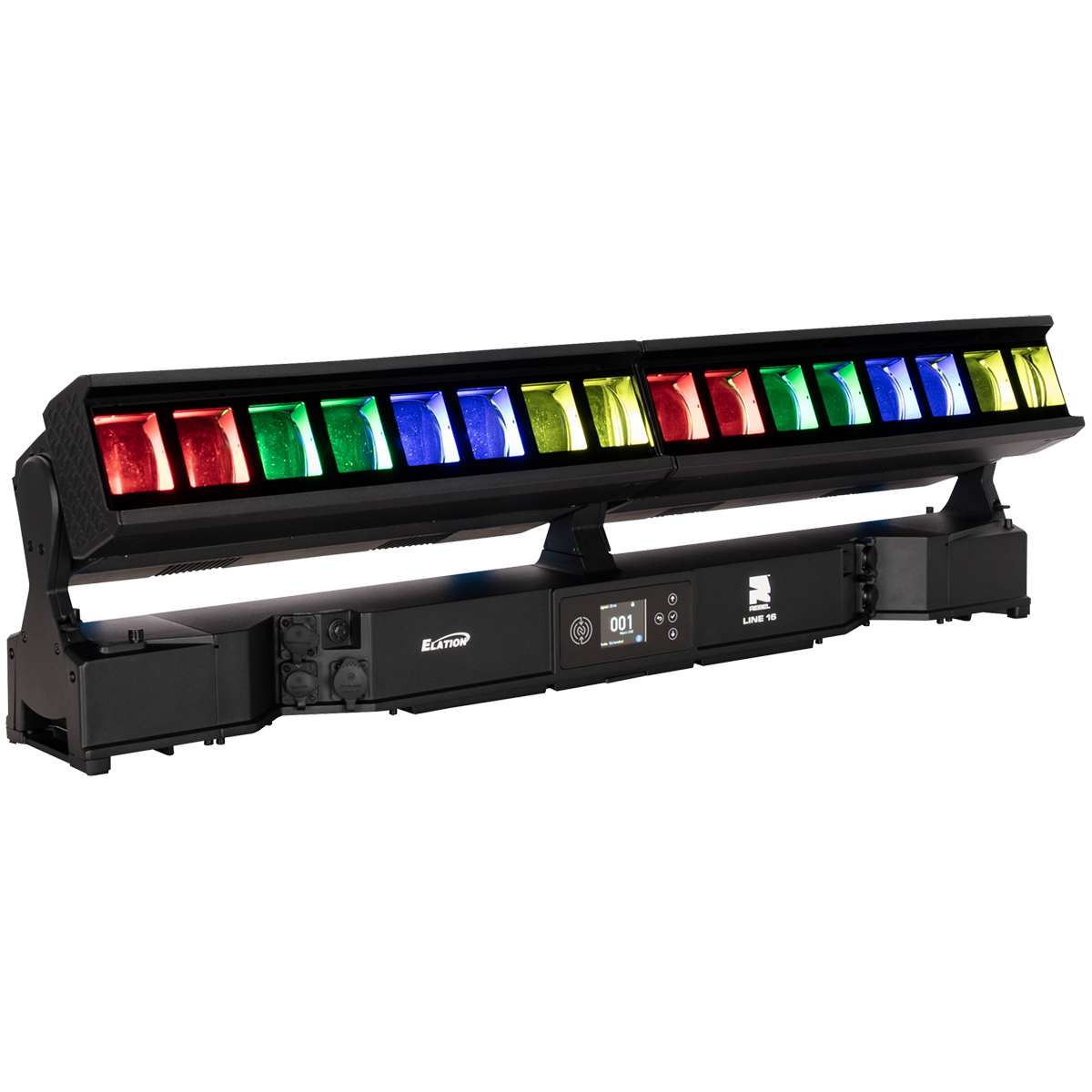

Front Louver/Grid

Safety Cable IP65 Rated

IP65 Locking Power Cable


APPROVALS / RATINGS

IP65


FIRMWARE UPDATES

Current Version:

Click HERE for software update


Specifications and documentation subject to change without notice.
