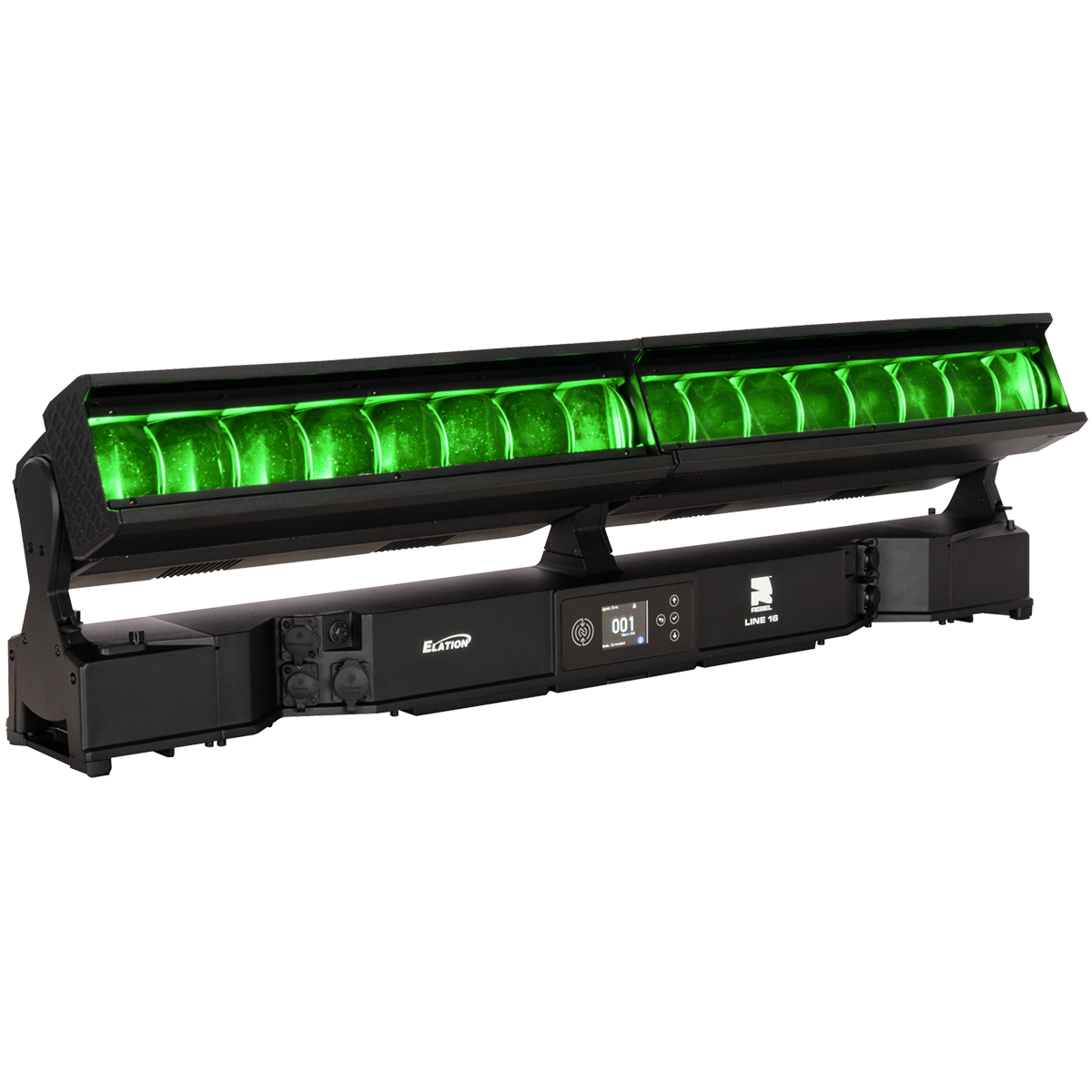

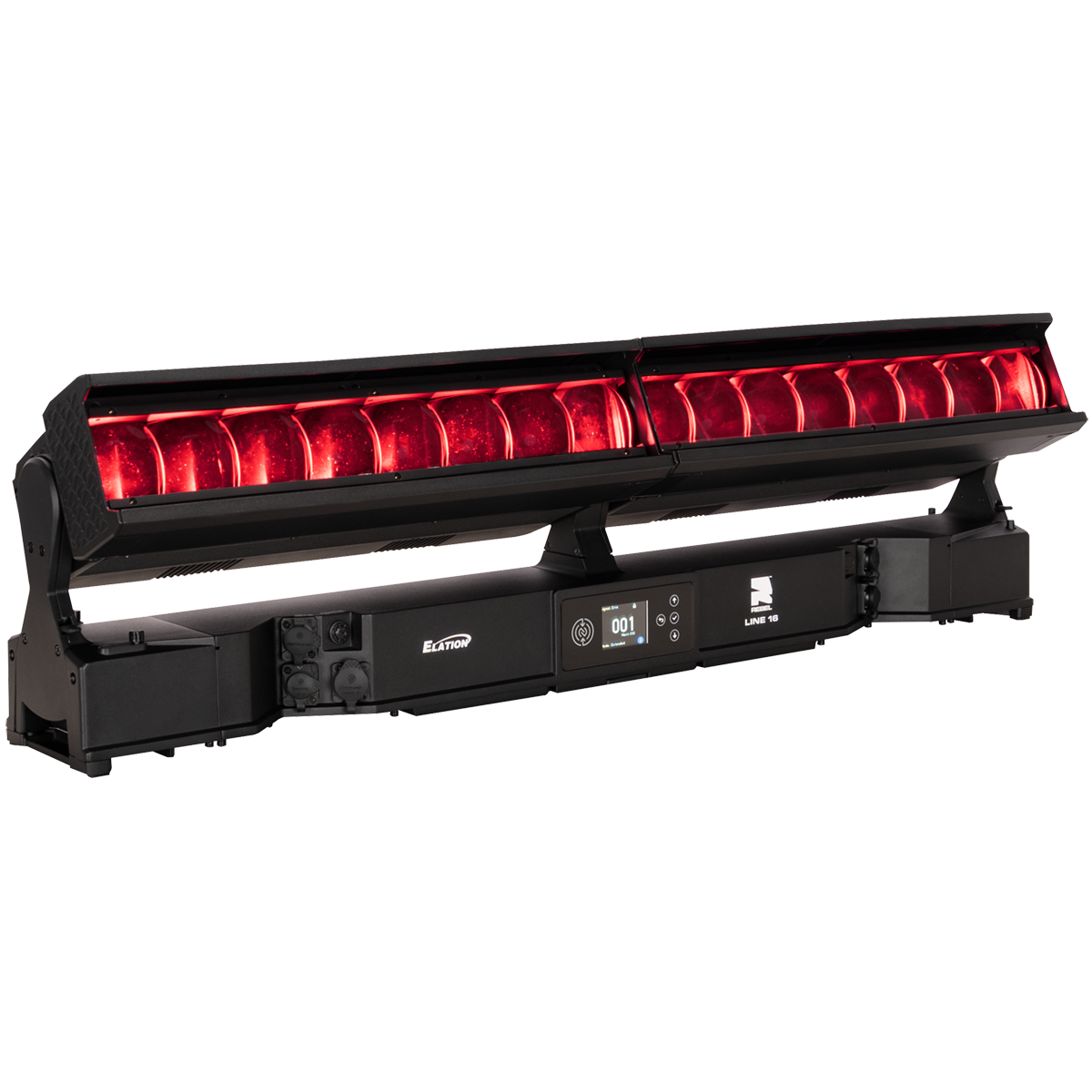

REBEL LINE 16REBEL LINE 16
REBEL LINE 16

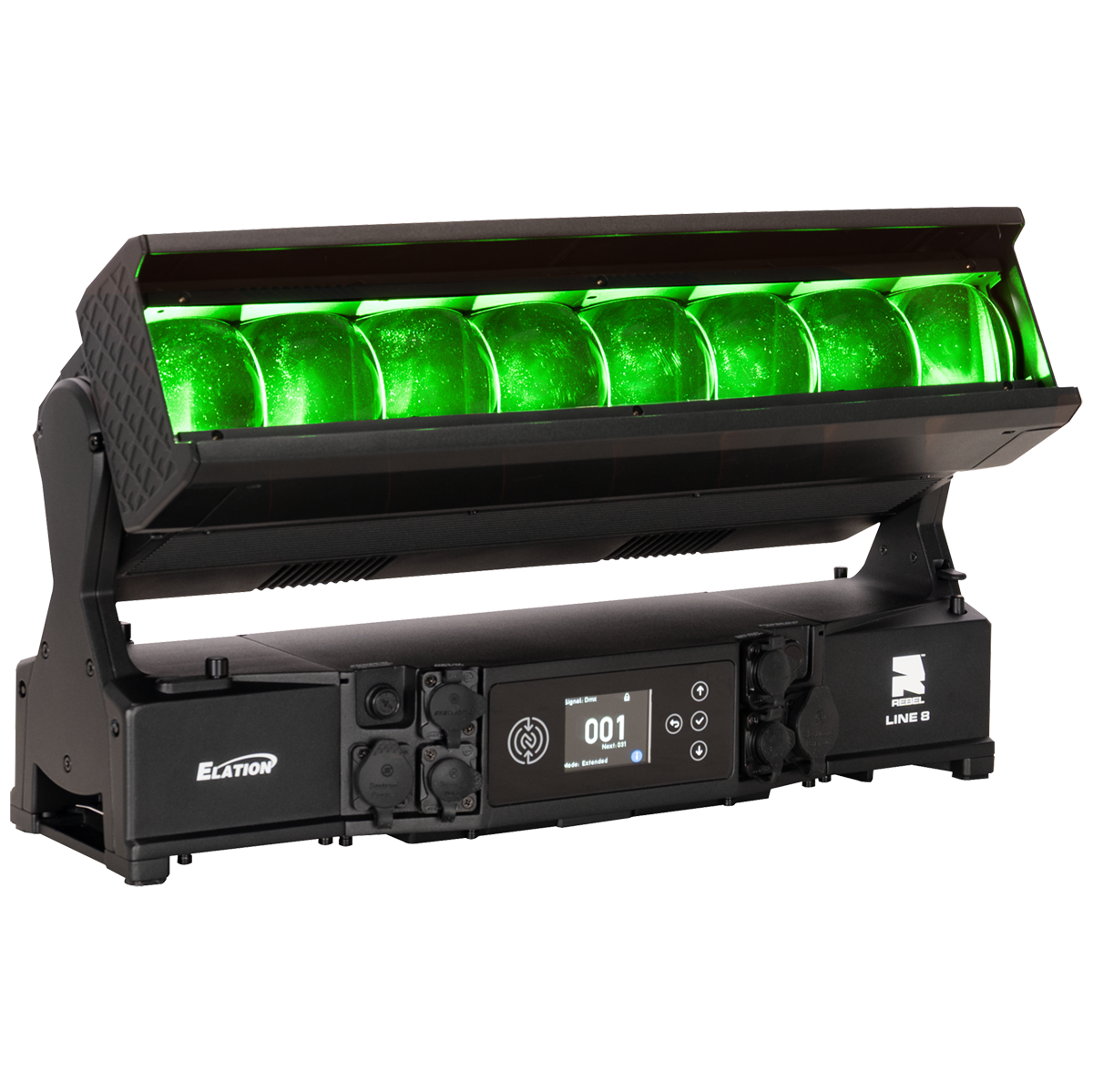

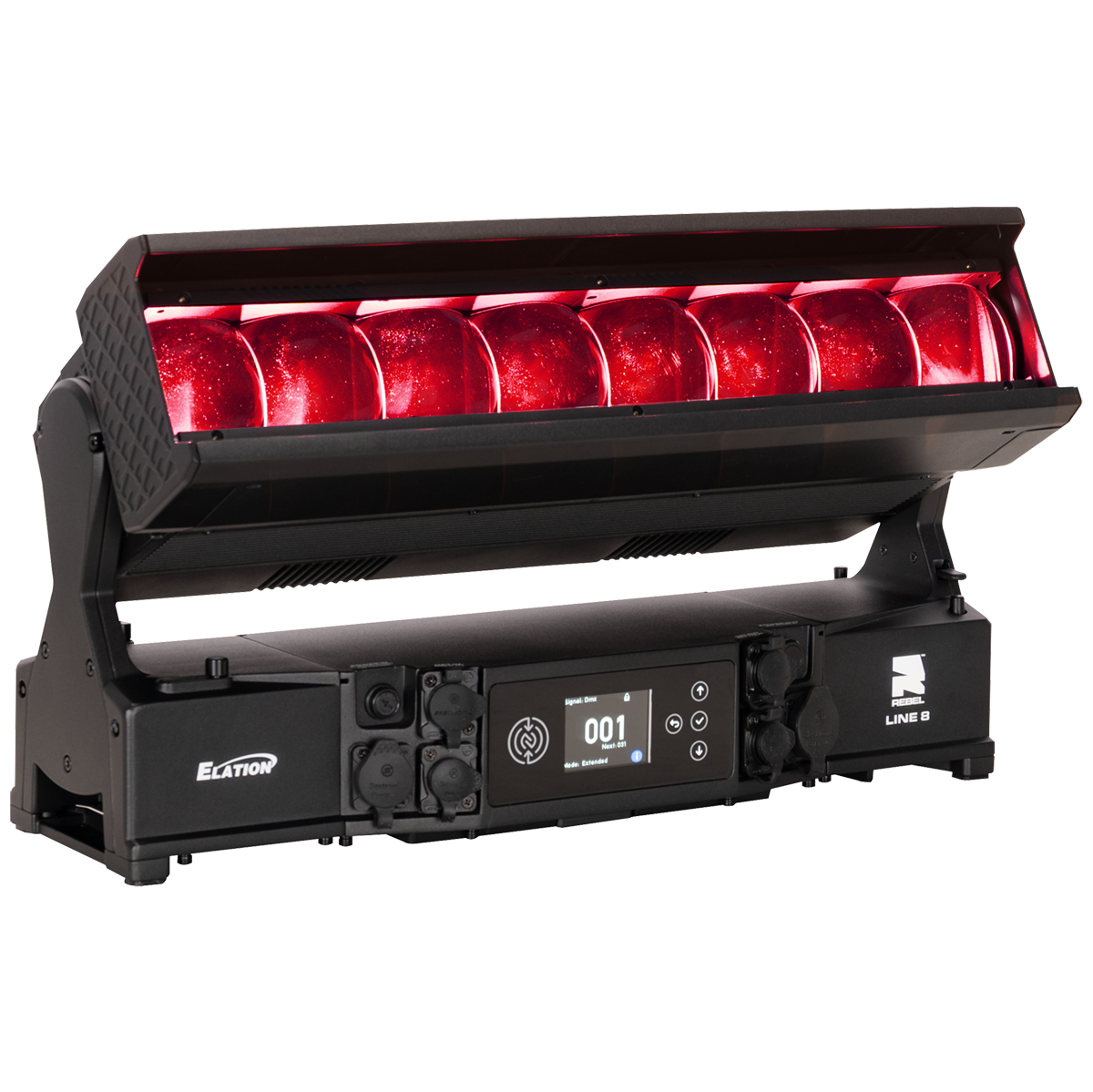

REBEL LINE 8REBEL LINE 8
REBEL LINE 8

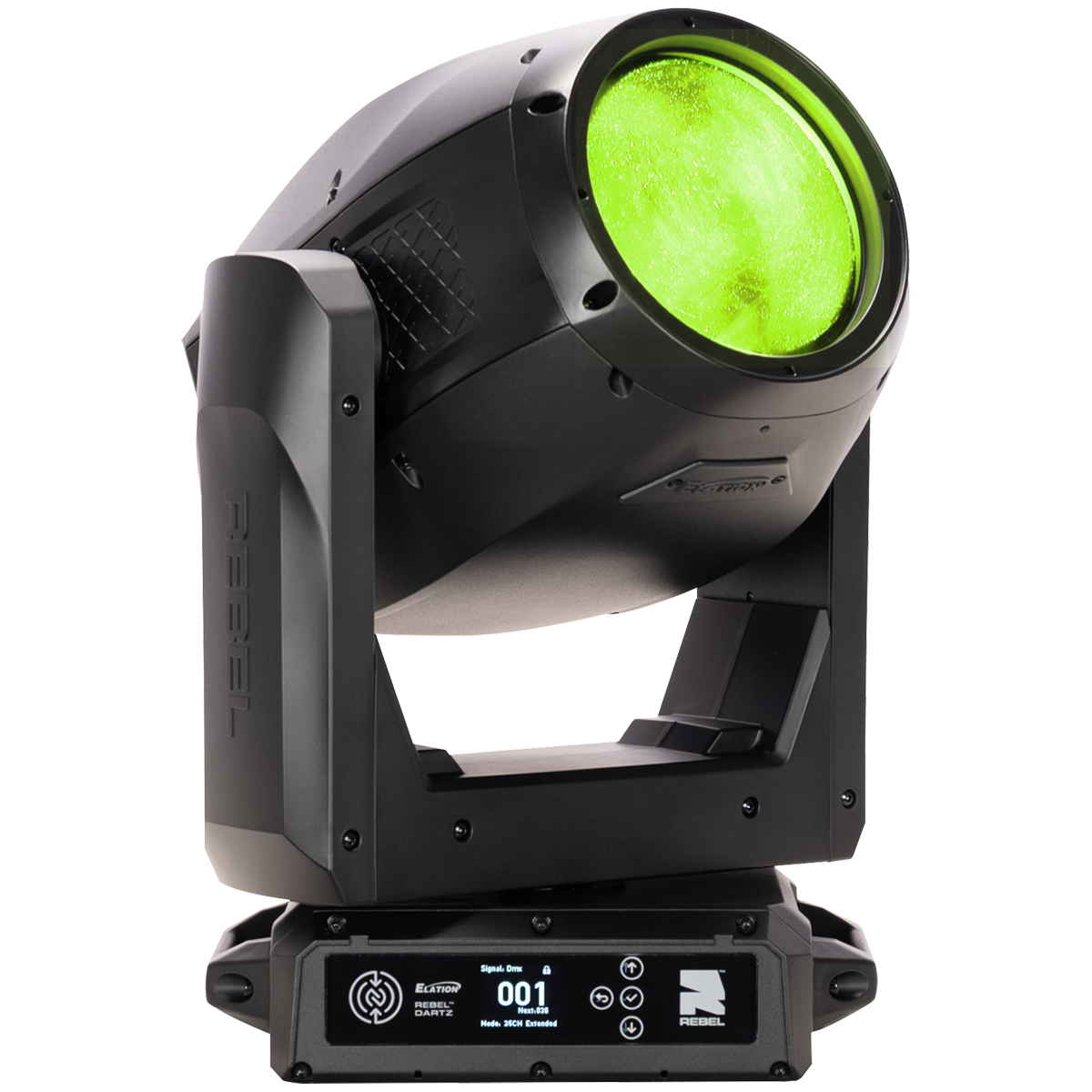

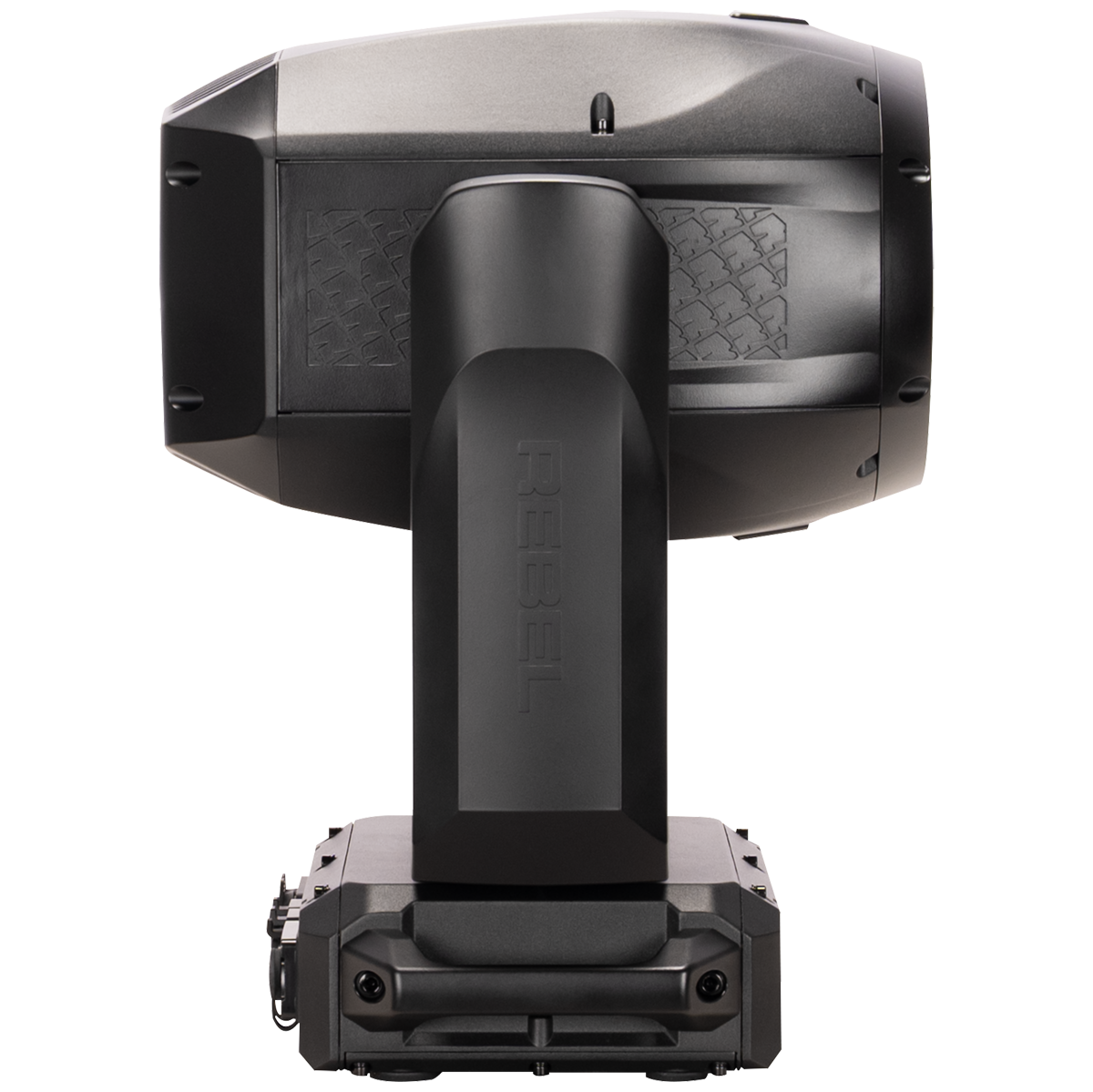

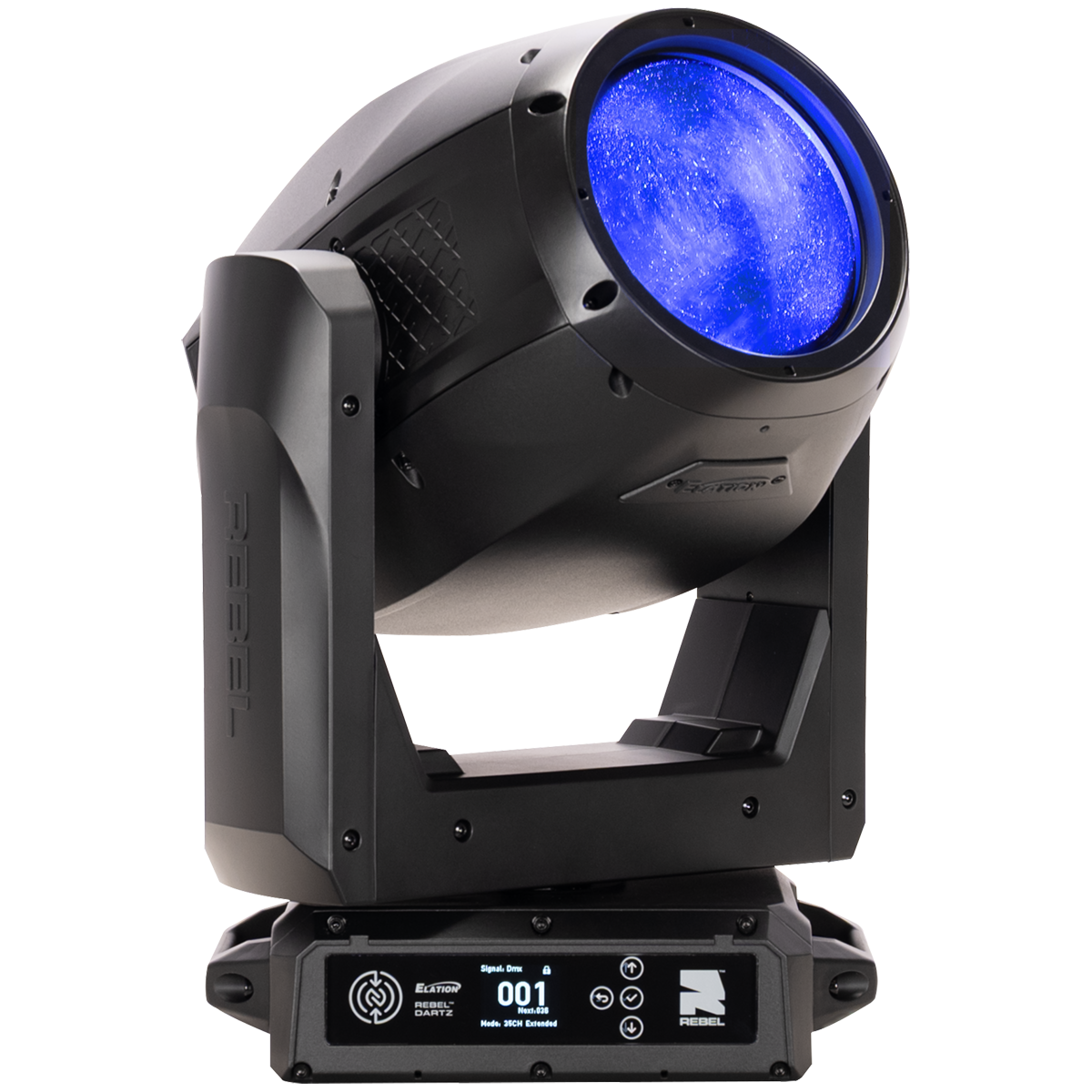

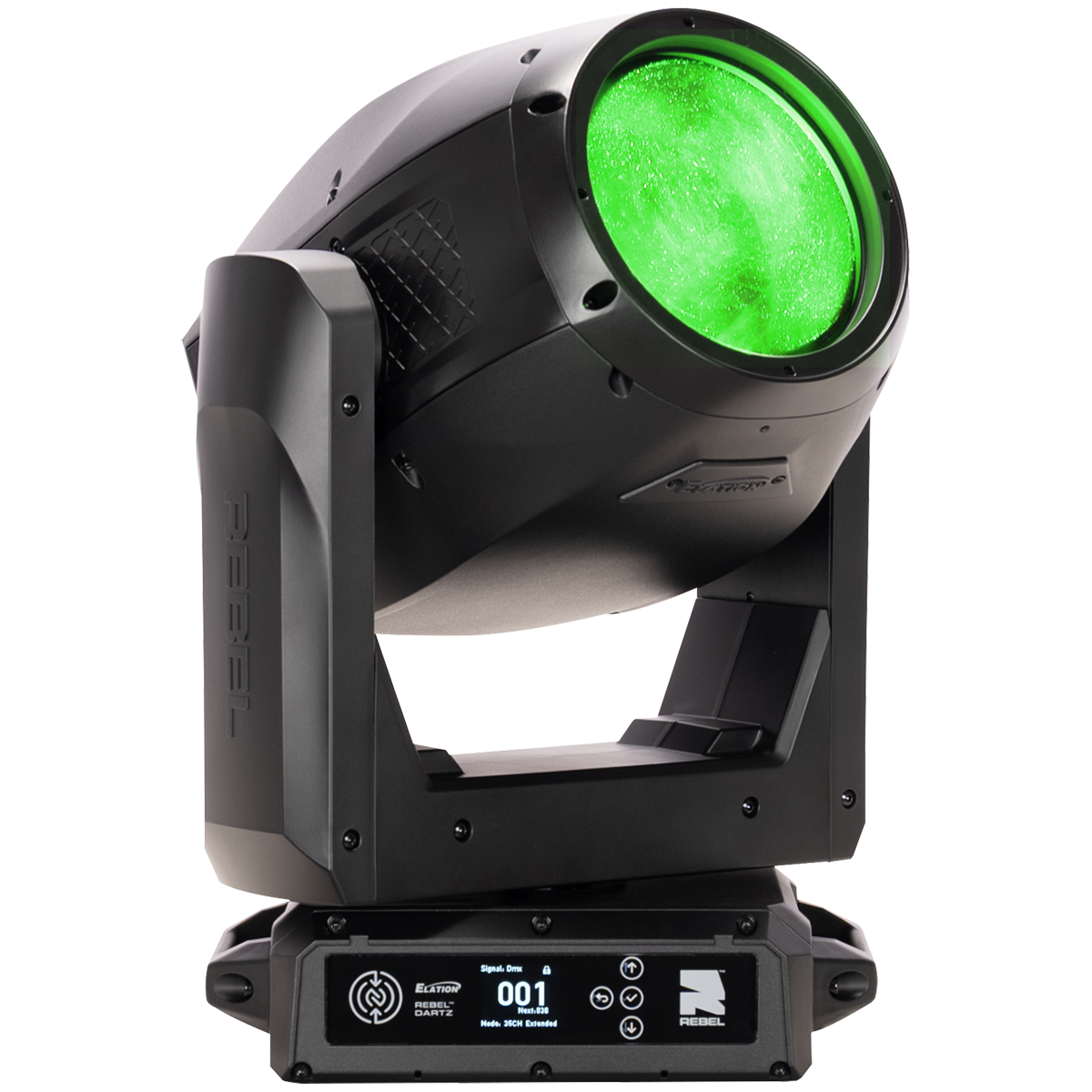

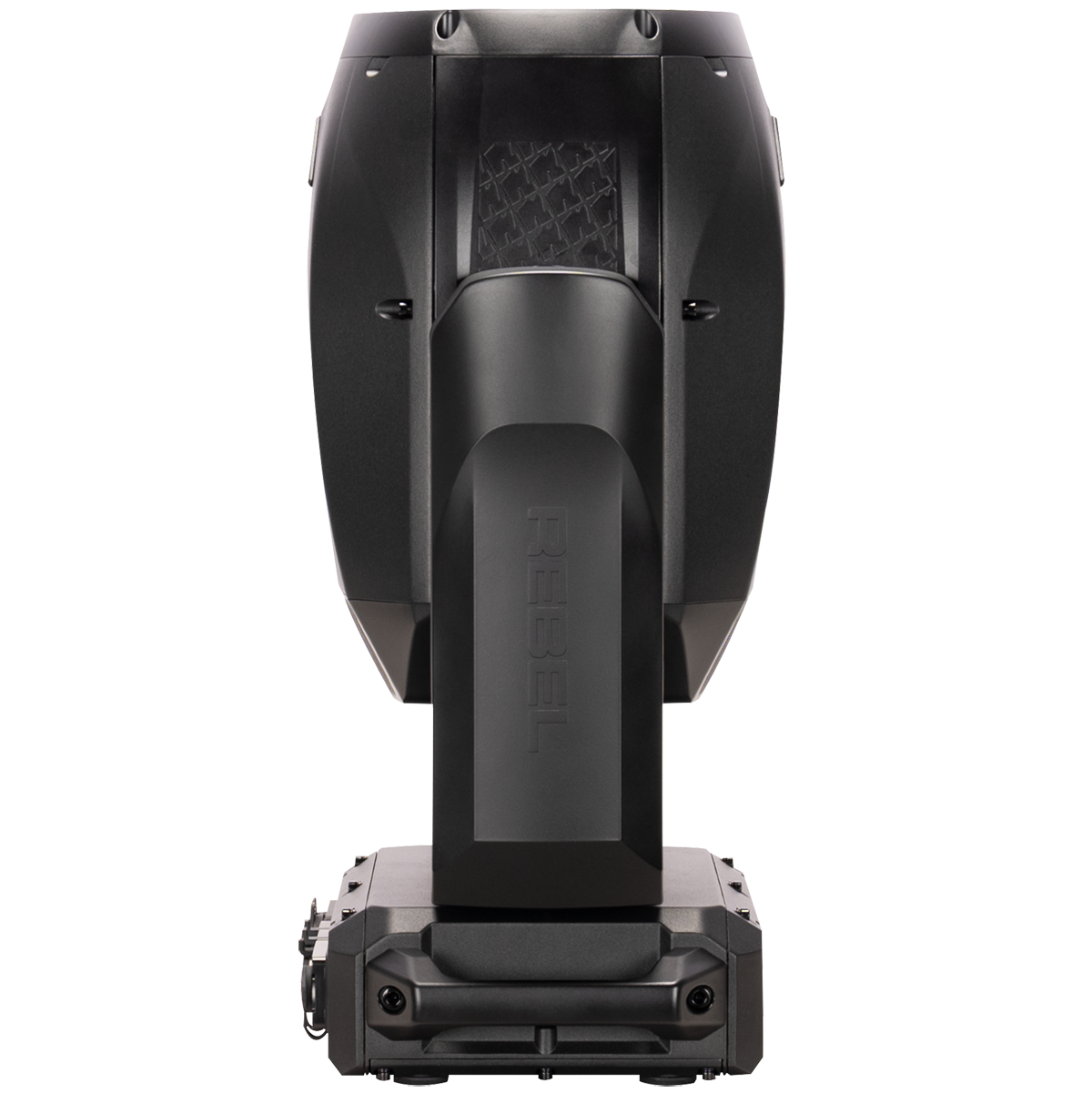

REBEL DARTZ

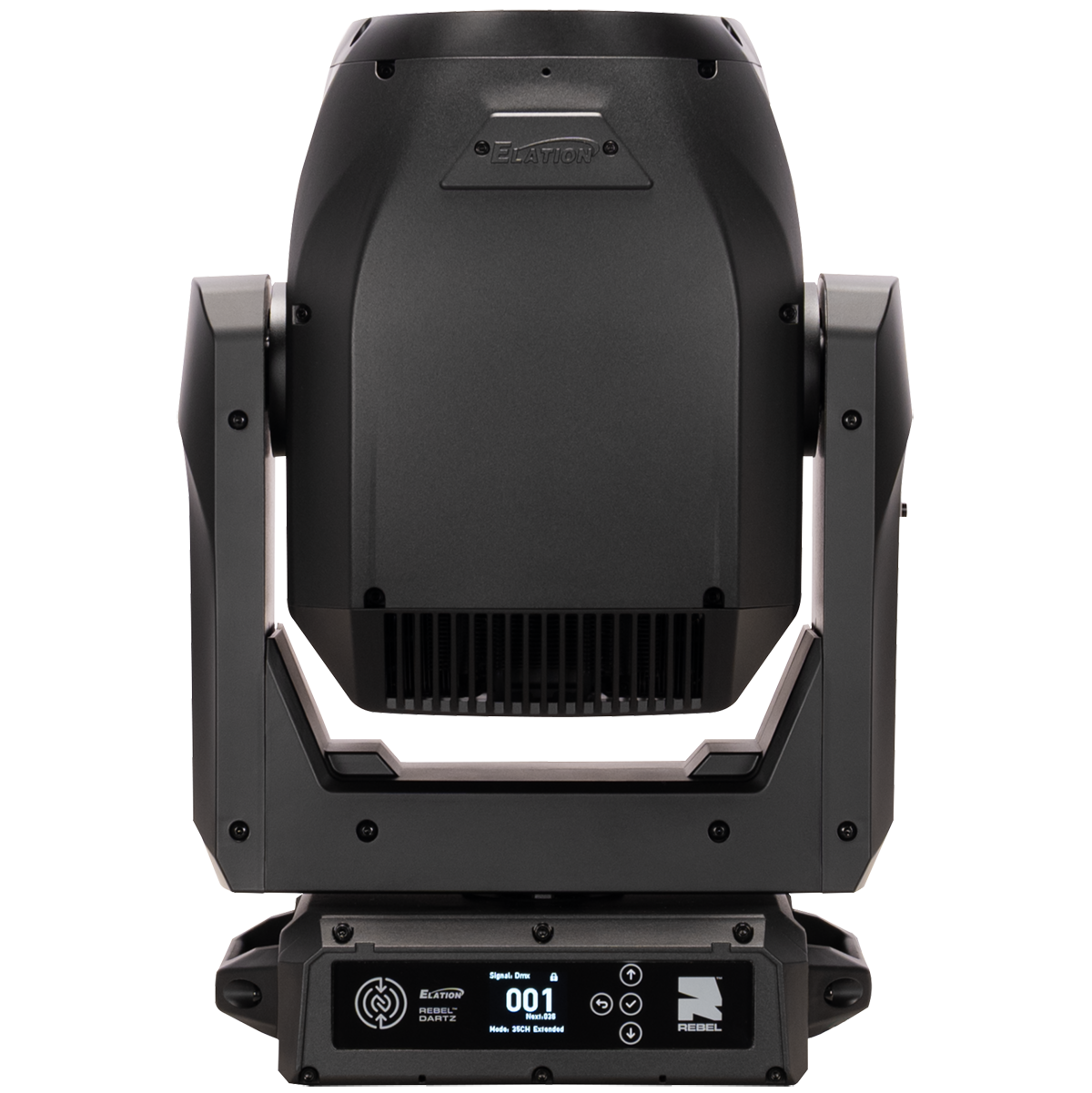

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment.
Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.
With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint.
With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.
As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands—and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.
Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.

150W RBL LED Engine
1.5˚ Beam
125,475 lux @ 5M
True Green Color Filter
FX Package with Rotating & Fixed Gobos, Dual Stacking Prisms & Frost
Variable CCT 6500K- 16000K
Endless High-Speed 360˚ Pan and Tilt Movements
NFC & Aria x2 Wireless Device Management
IP65


Specifications

SOURCE

150W RBL LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

TBA Lumen Total Fixture Output

125,475 lux @ 5M

Beam Angle 1.5˚


EFFECTS

Variable Strobe Rate: 1- 20Hz

Remote Focus

Heavy Frost Filter

Dual Independent Stacking Prisms (XXX Facet Linear & XXX Facet Circular)

Variable 16-bit Dim Curve Modes

DMX Controllable LED Refresh Rate

Pan Angle: 360/540°

Tilt Angle: 360/270°

Continuous 360° Pan and Tilt Rotation


COLOR

RBL Color Array

True Green Color Filter

Variable CCT 6500K- 16000K

Virtual Gel Swatch Book


GOBOS

2 Gobo Wheels

10 Interchangeable-Rotating / Indexing Metal Gobos

16 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS

2 DMX Channel Modes

(4) Button Touch Panel

180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

DMX, RDM, Art-Net and sACN Protocol Support

Aria x2 Wireless Device Management

NFC Configuration

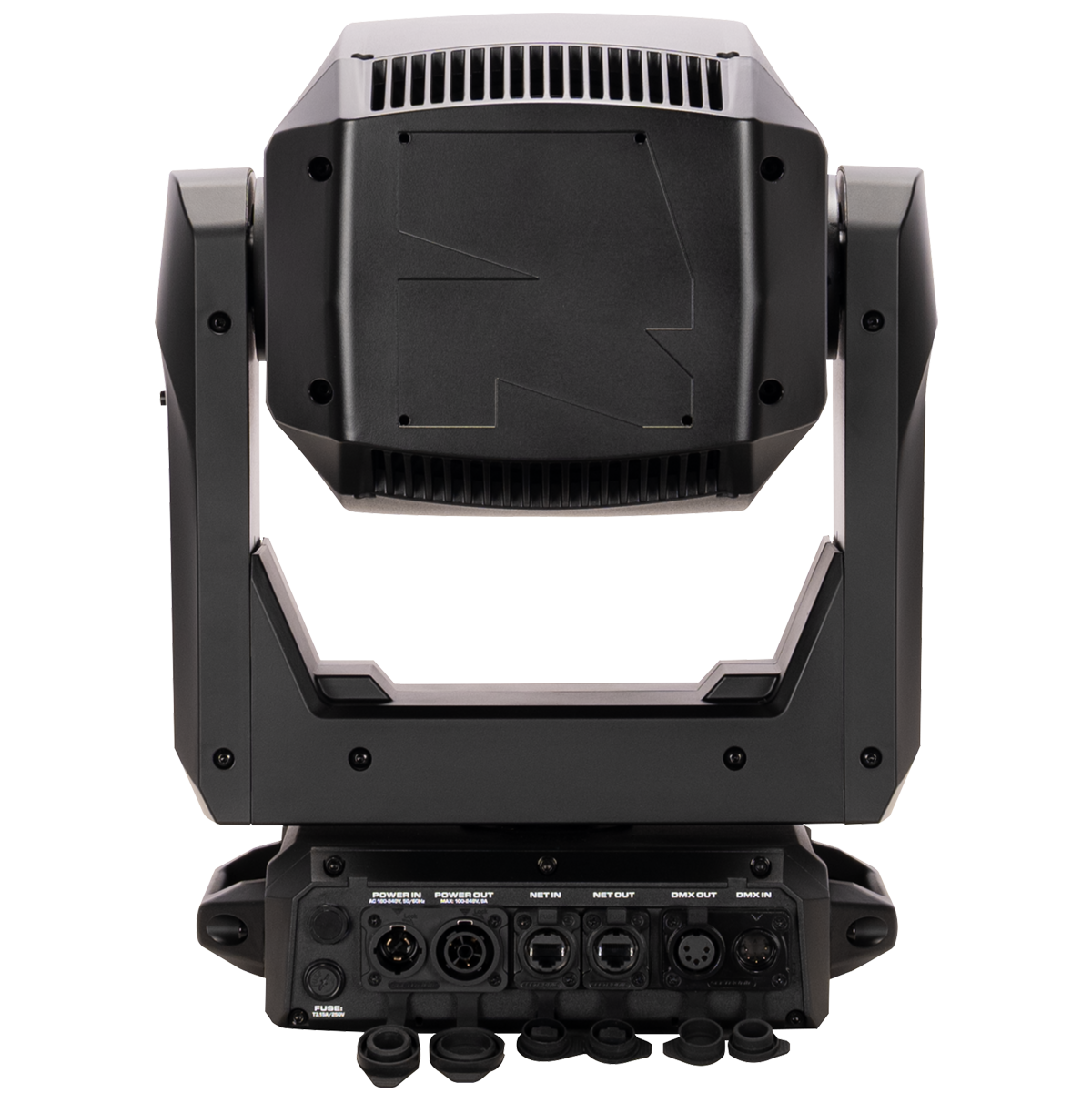

IP65 5pin DMX In/Out

IP65 RJ45 Ethernet In/Out

IP65 Locking Power In/Out


SIZE / WEIGHT

Length: 8.1" (205mm)

Width: 13.3” (337mm)

Height: 18.8” (478mm)

Weight: 35 lbs. (15.9kg)


ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

260W Max Power Consumption

Power Thru Capacity: 10A (4 units @115V, 9 units @240V)

-4°F to 113°F (-20°C to 45°C)


APPROVALS / RATINGS

CE | cETLus | IP66 | FCC


FIRMWARE UPDATES

FIRMWARE@ELATIONLIGHTING.COM



Specifications and documentation subject to change without notice.
