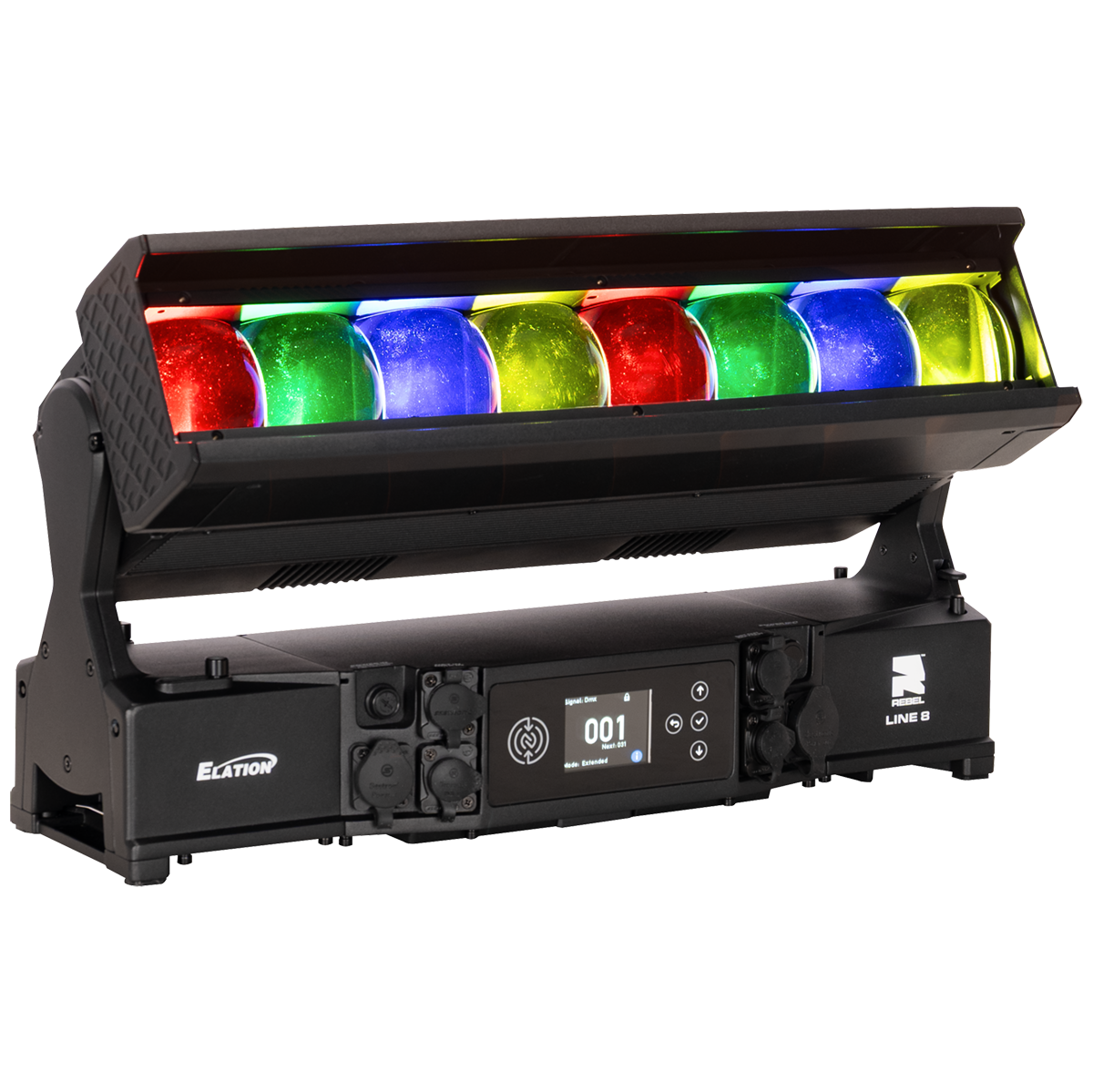

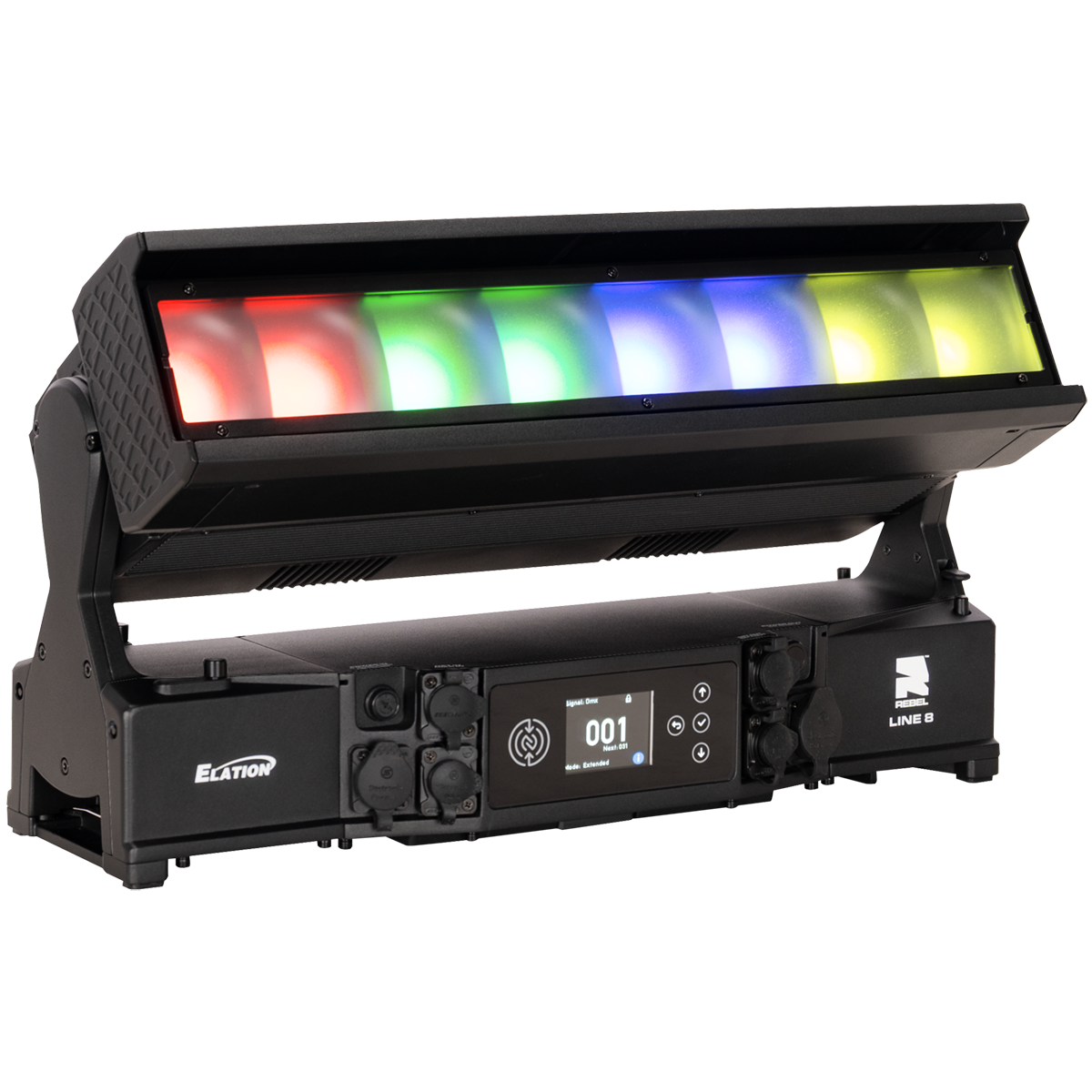

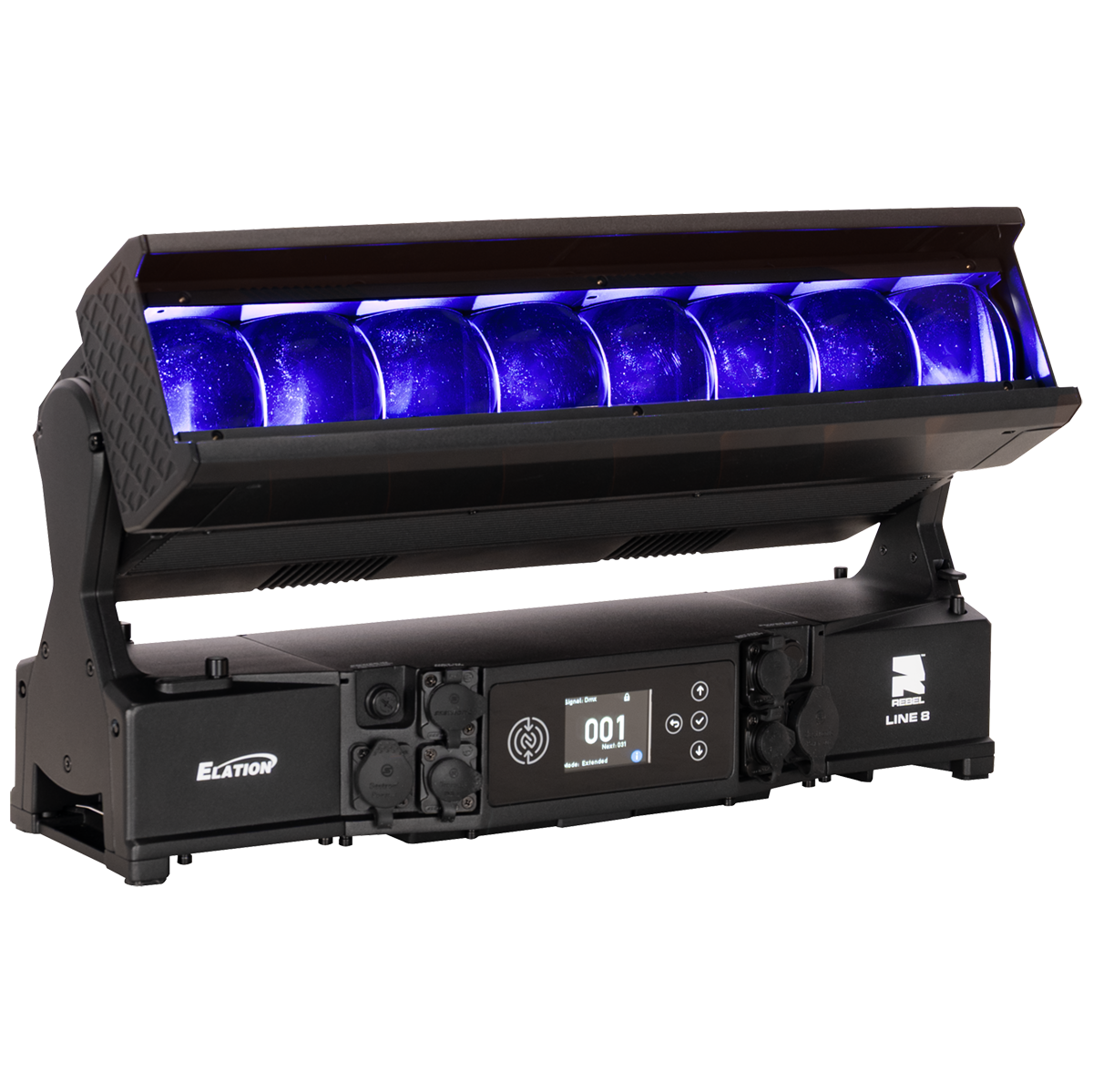

REBEL LINE 8
The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.
Related Products
REBEL LINE 8
(16) 5W CW SparkX LEDs with Pixel Control
11,548 Total Fixture Lumen Output (Sphere)
4° - 35° Beam Angle
Fast and precise 210° Tilt Rotation
IP55 Tilt FX Fixture
Specifications
SOURCE
(8) 60W RGBL LEDs
(16) 5W CW SparkX LED Pixels
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
Integrating Sphere
All LED: 11,548 Lumens
RGBL LED: 7,128 Lumens
CW LED: 4,752 Lumens
CRI 82
Zoom Range 4° - 35°
EFFECTS
Motorized Zoom
Full Pixel LED Control
SparkX LED Beam Effect
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Tilt Angle: 210°
COLOR
RGBL LED Array
CW SparkX LED Array
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
3 DMX Channel Modes (22/30/70 channels)
DMX Adjustable Refresh Rate (900 -25000 Hz)

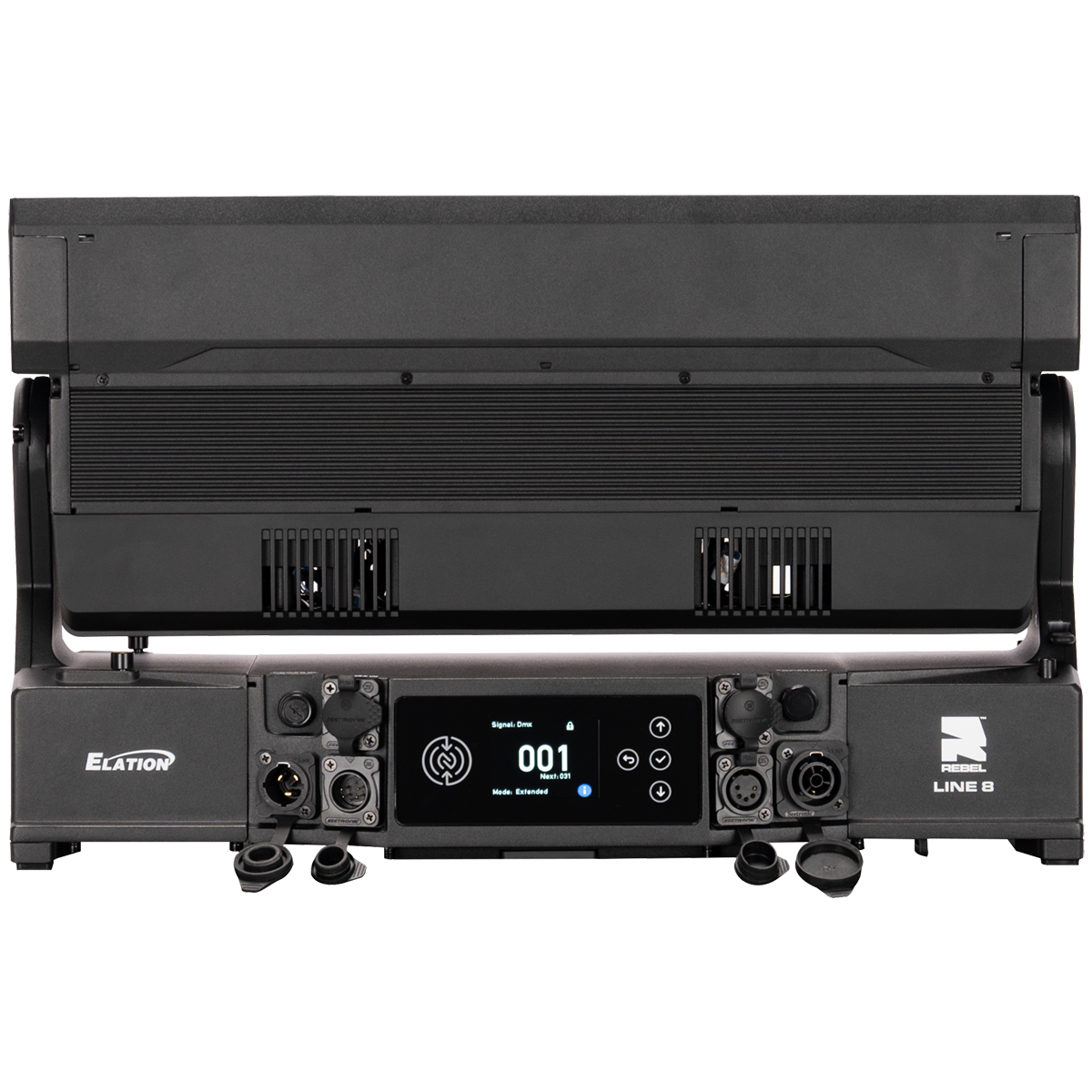

4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
NFC Configuration
DMX, RDM, Art-NET, sACN Protocol Support
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 19.8 in (502mm)
Width: 6.5 in (164mm)
Height (head up): 13.2 in (336mm)
Height (head 90 degree): 10 in (254mm)
Weight: 29.3 lb (13.3 kg)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
810W Max Power Consumption
Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
BTU/hr (+/- 10%) 2762.1

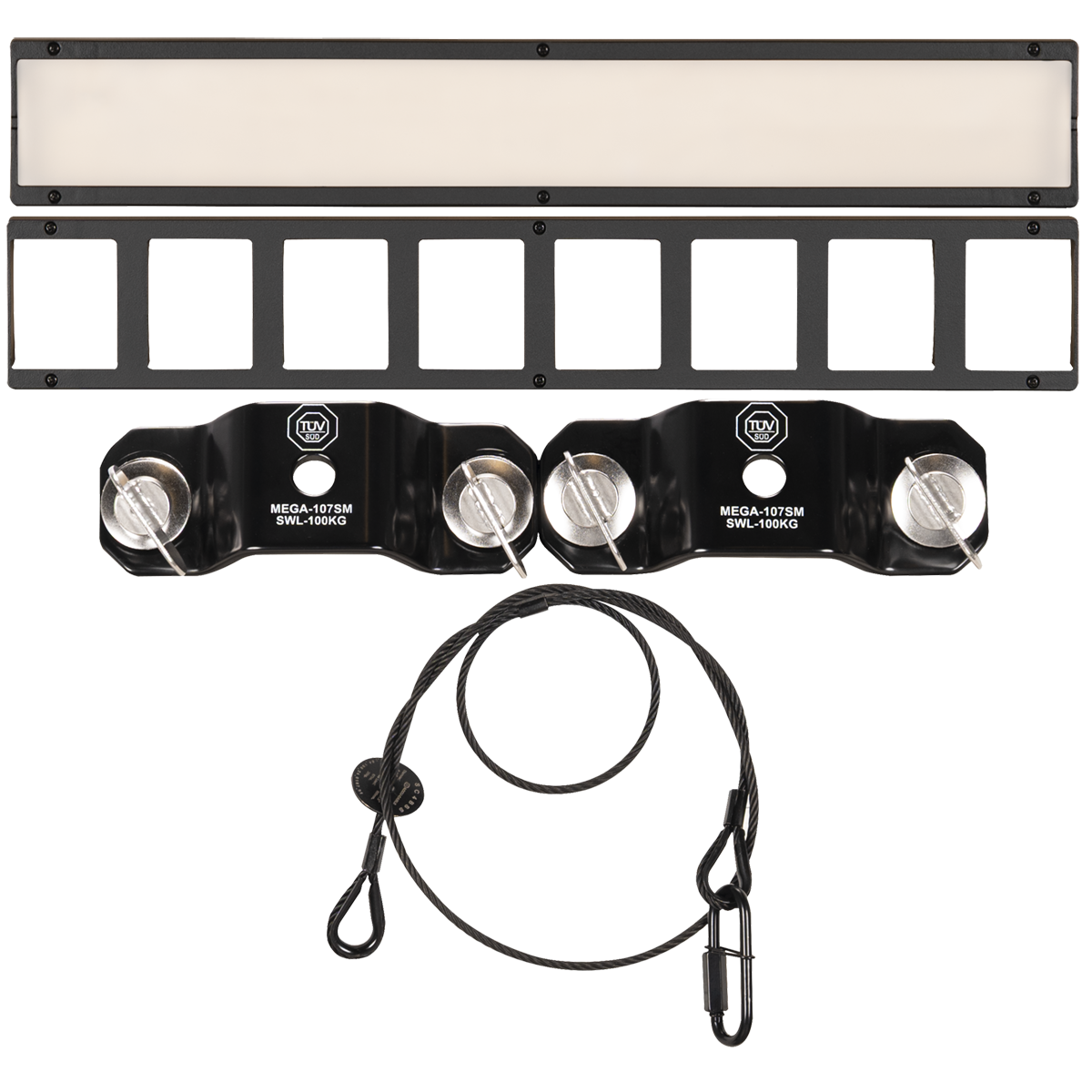

INCLUDED ITEMS

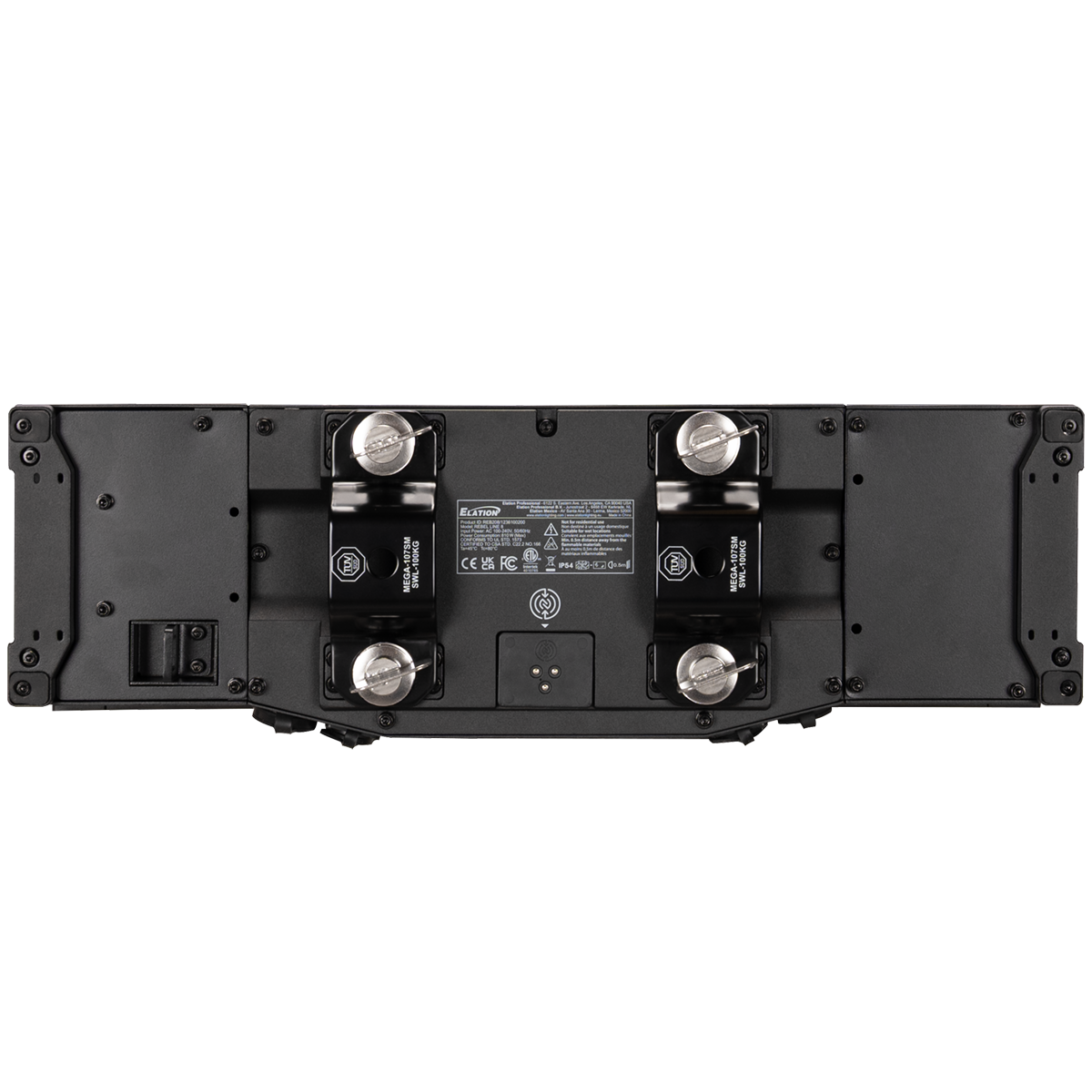

Omega Brackets (x2)
Blank Name Plate
Front Louver/Grid
Diffusion Filter
Safety Cable IP65 Rated
IP65 Locking Power Cable
APPROVALS / RATINGS
CE | cETLus | IP55 | FCC | UKCA
Specifications and documentation subject to change without notice.
