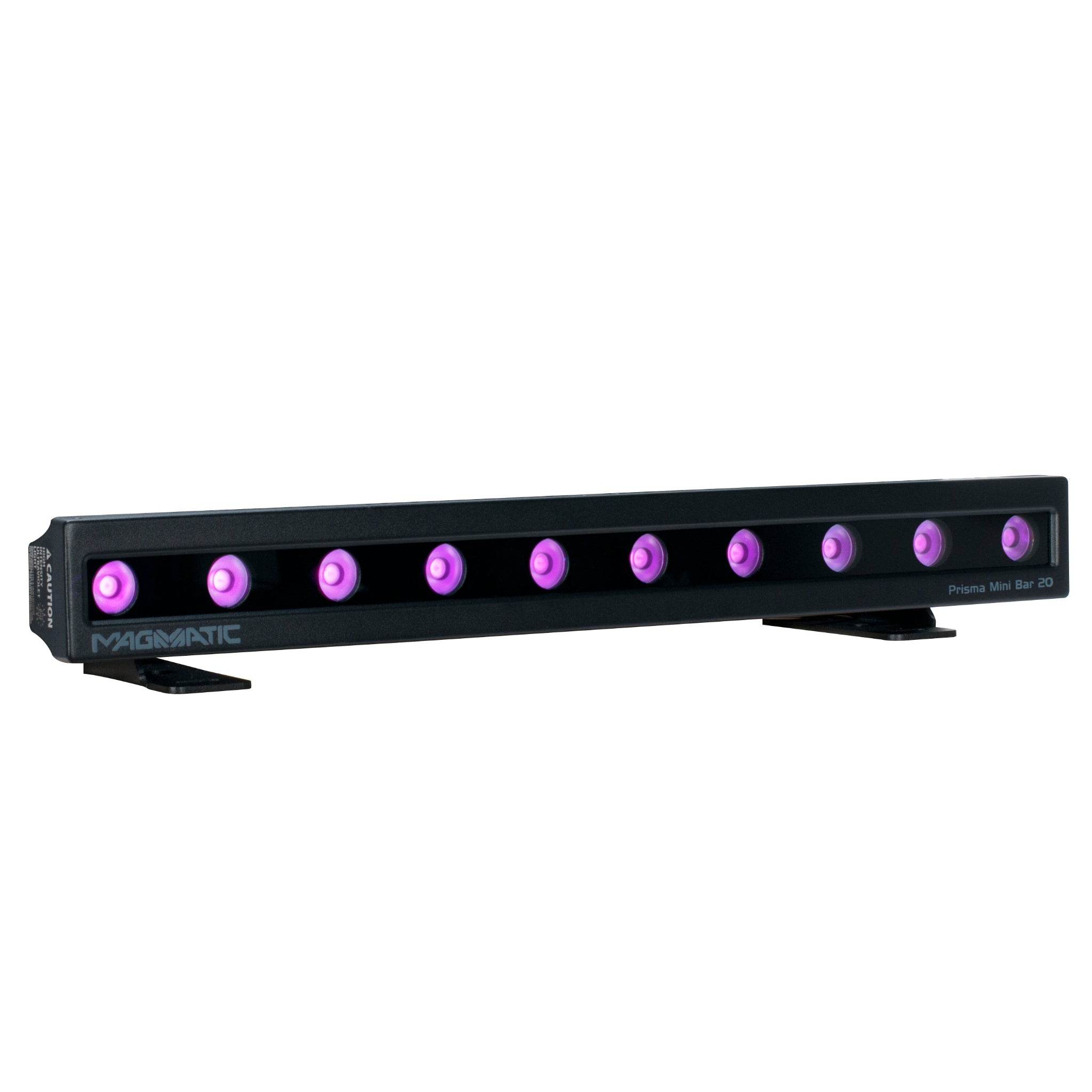

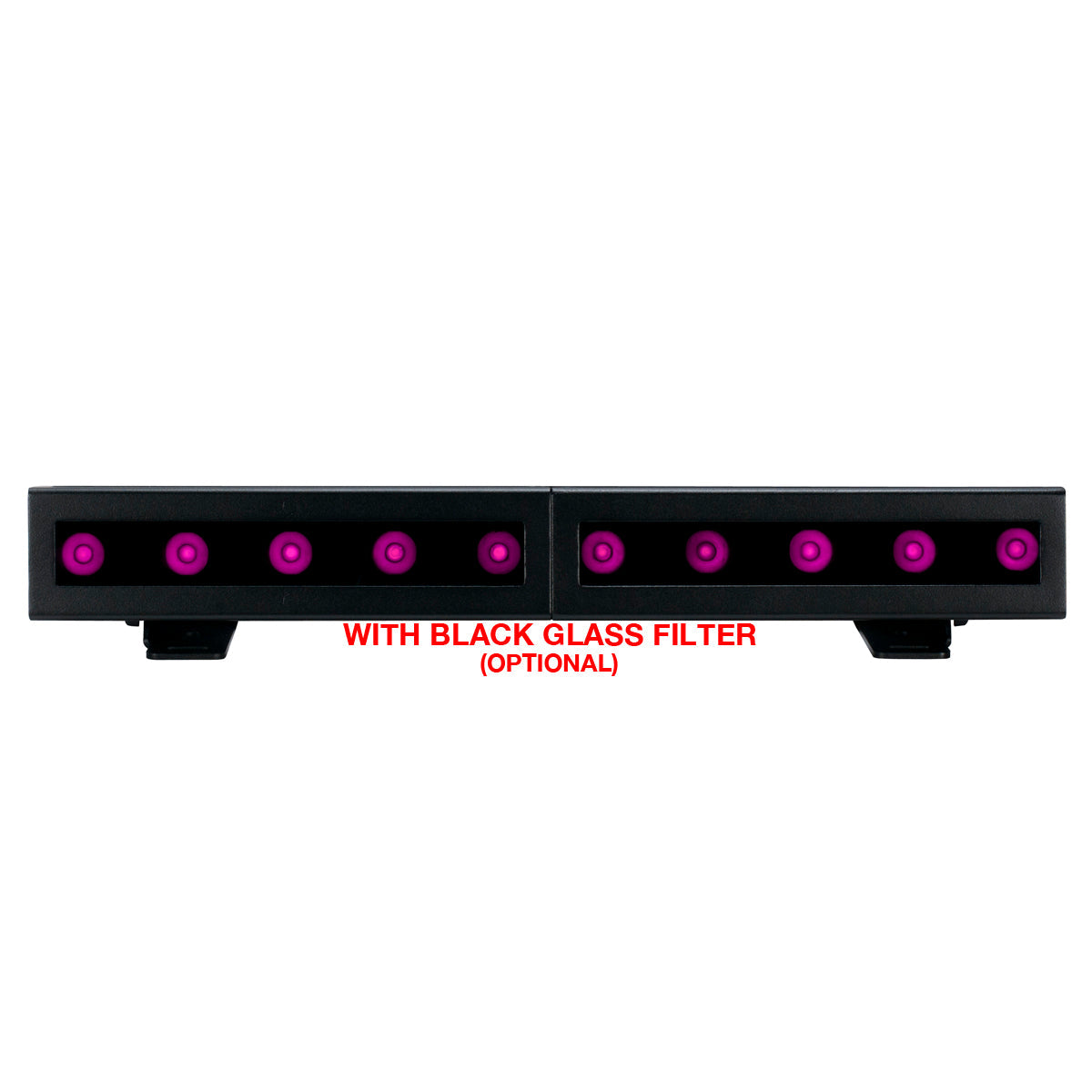

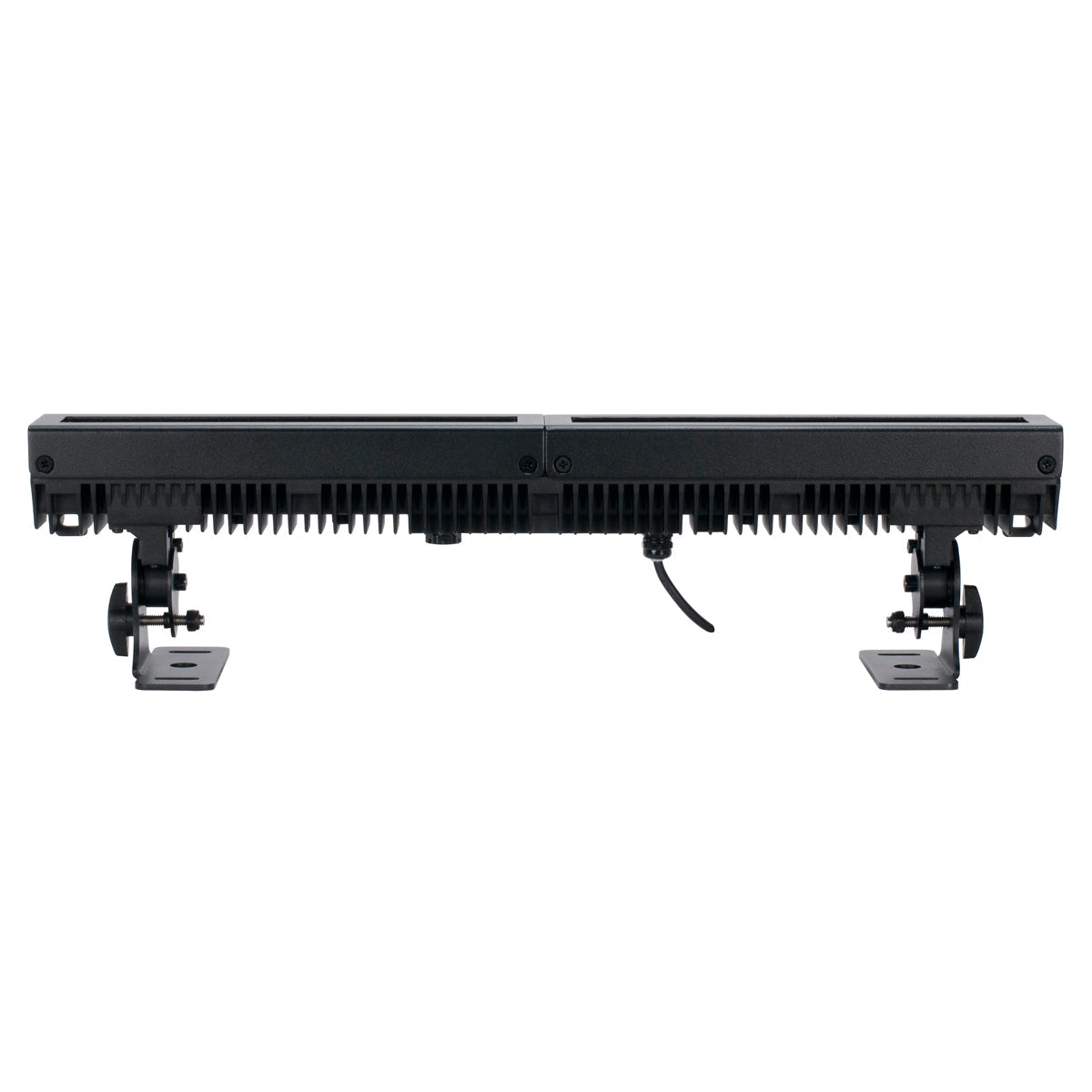

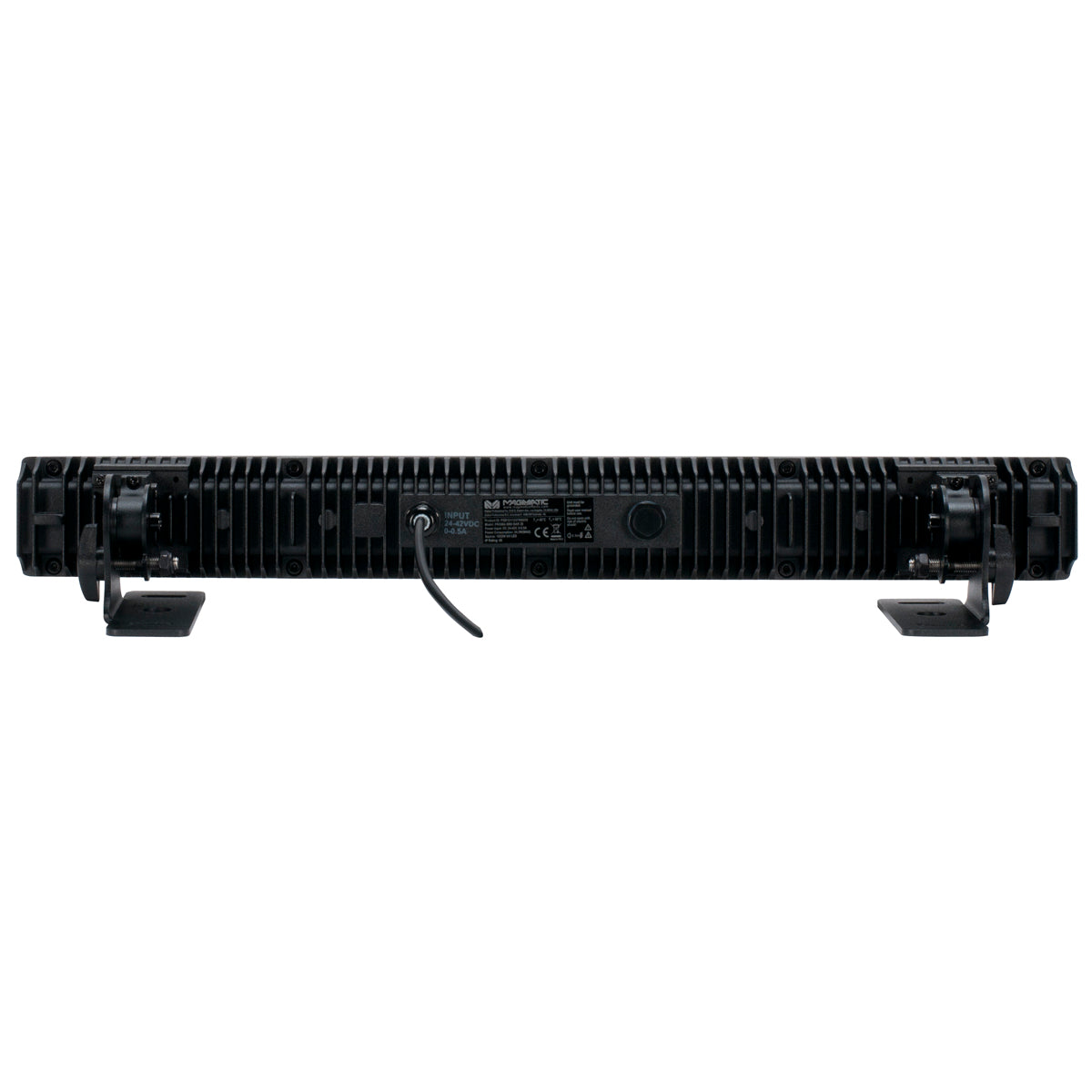

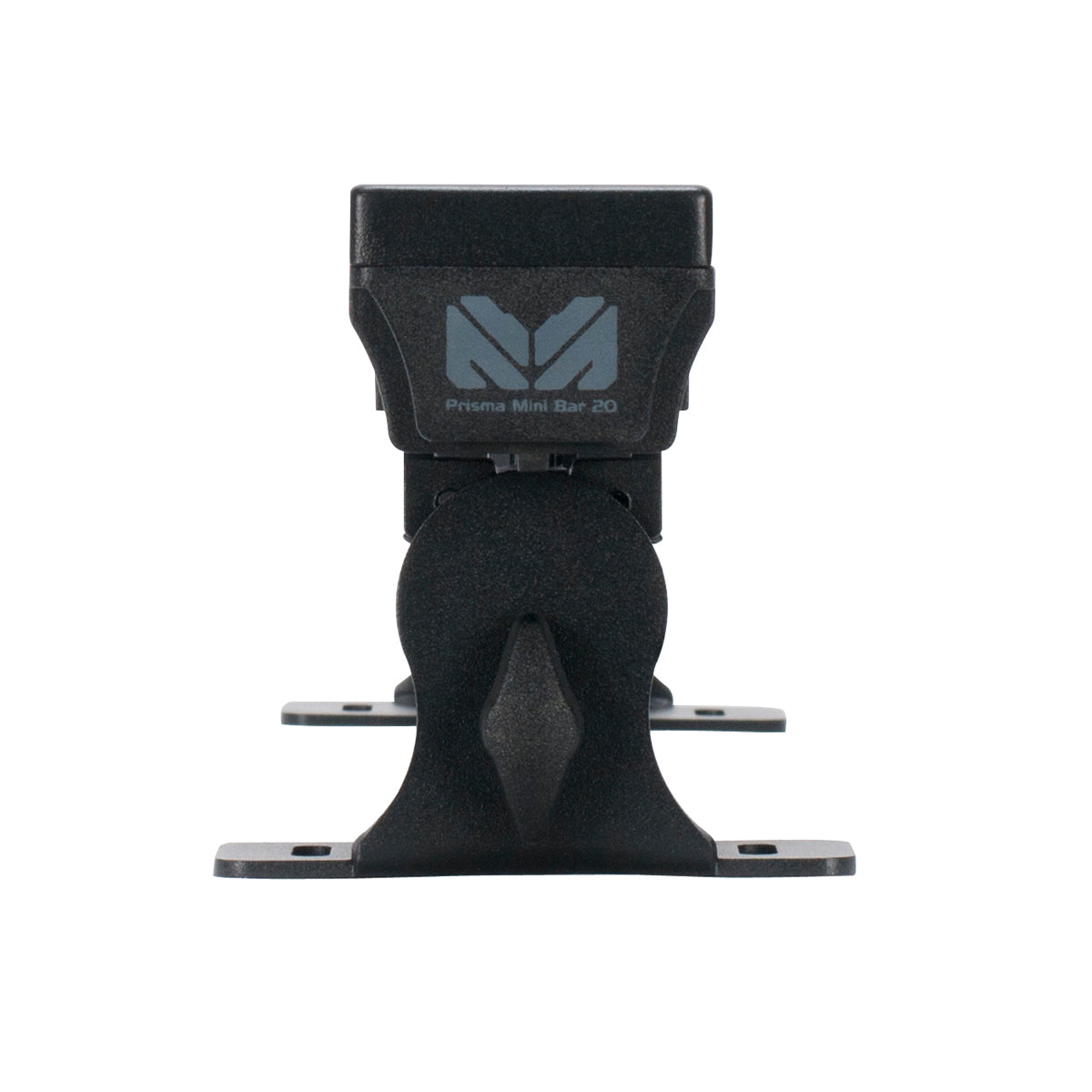

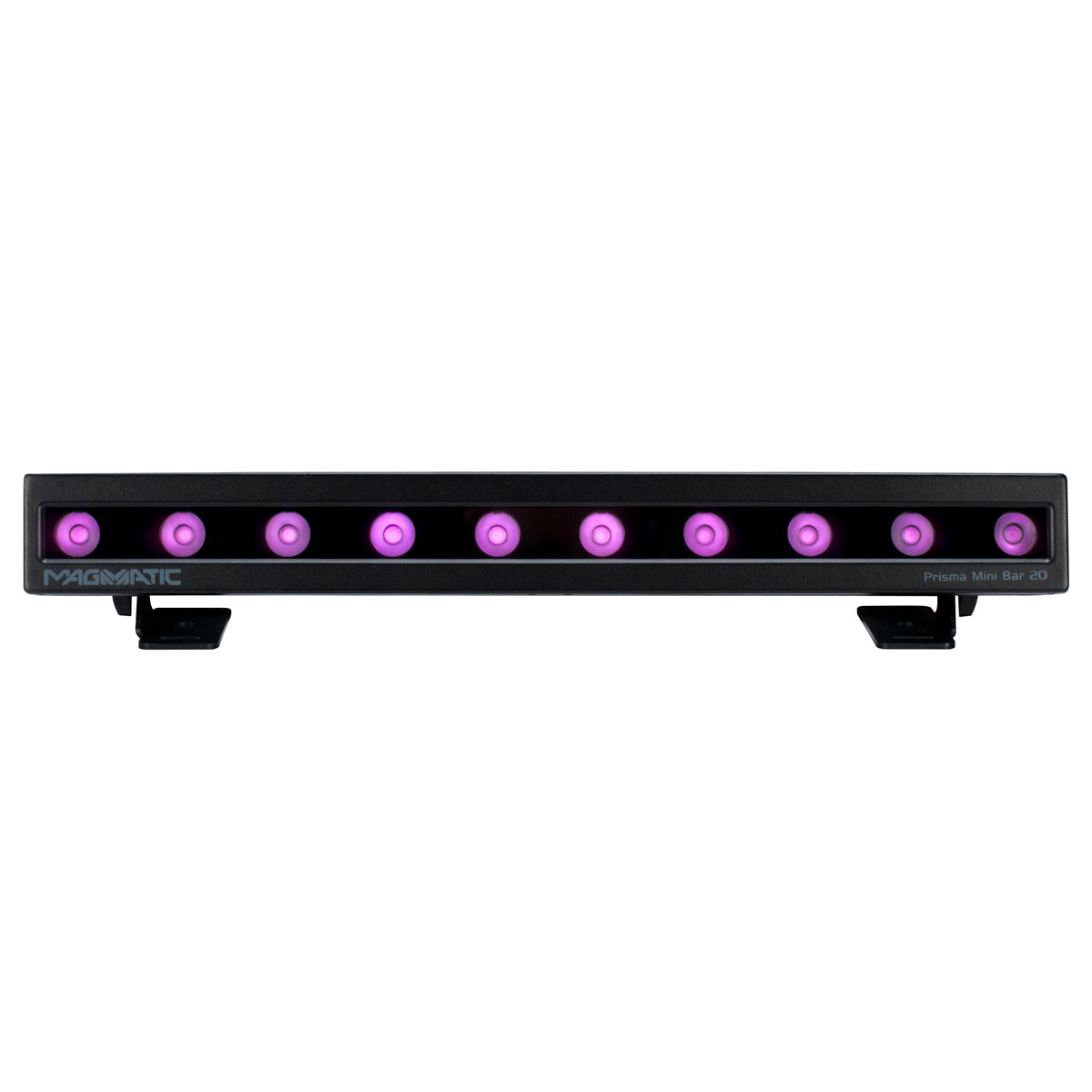

PRISMA MINI BAR 20
PRISMA MINI BAR 20
10x 2W 365nm LED IP65 20° Mini Linear Wash Fixture
SKU# PSB121
PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.

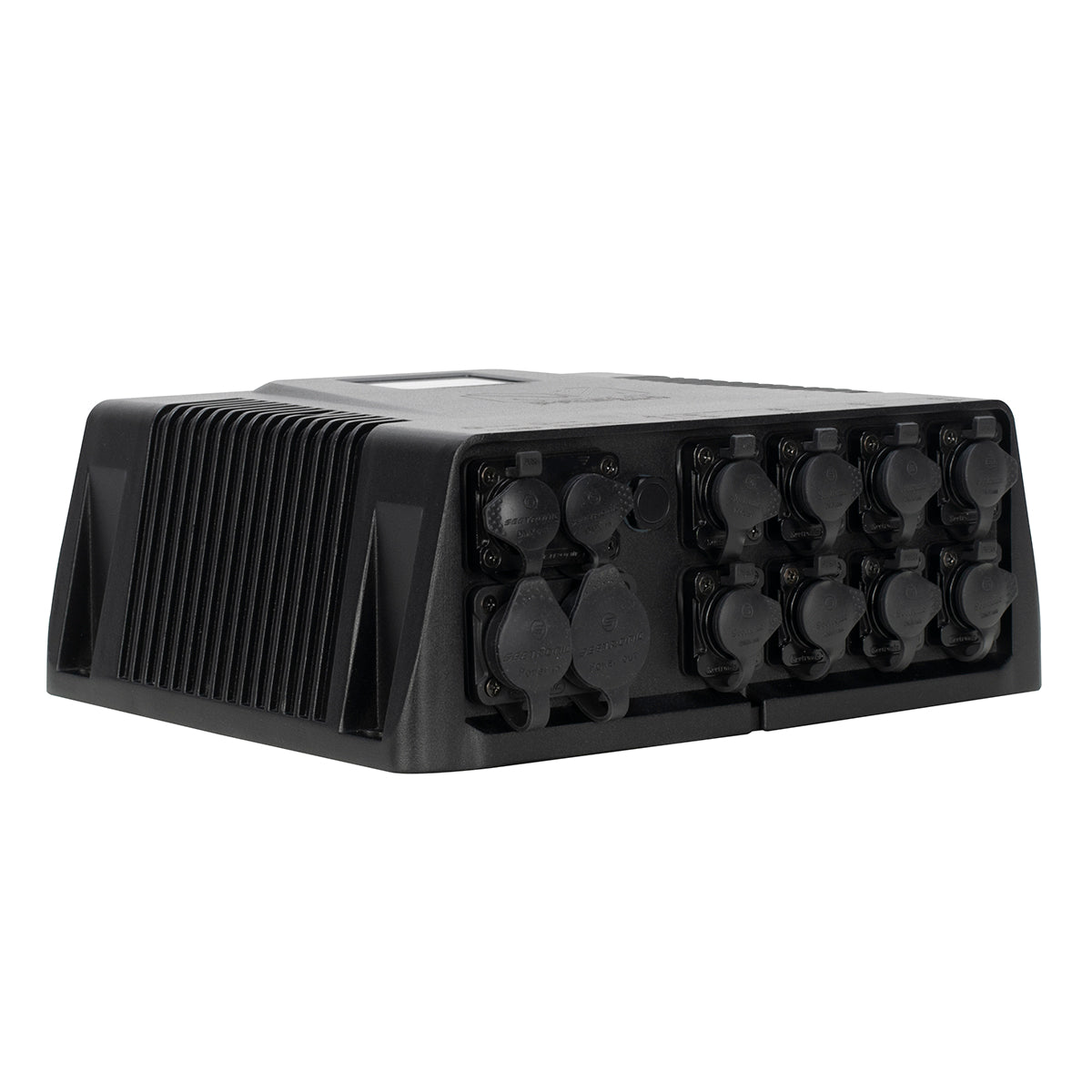

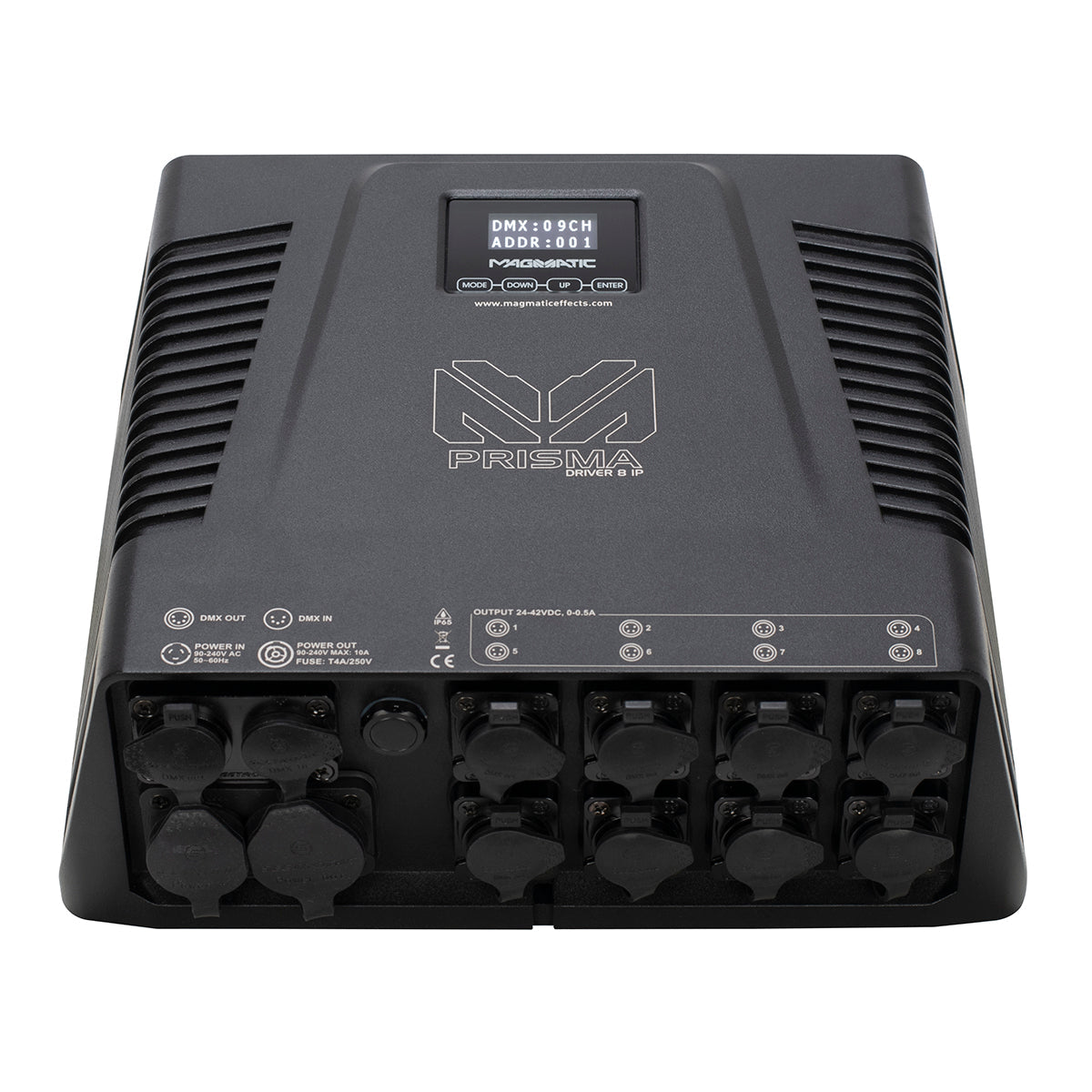

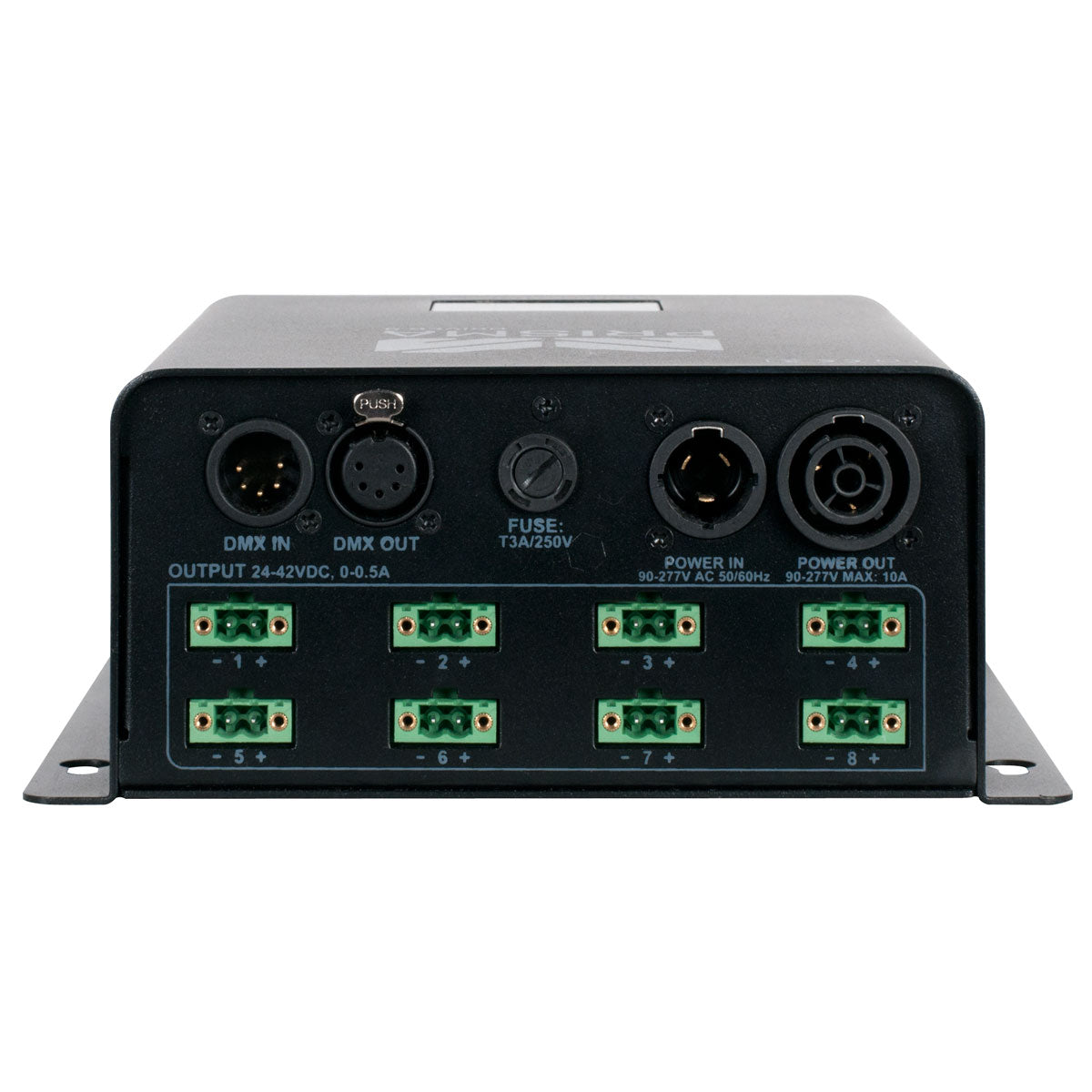

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™ 'Not Included'
Features
IP65 Rated Exterior High-Power UV Wash Bar Luminaire
10x 2 Watt LEDS
36.7 Volts
24.3W Max Power Consumption
20 Degree Narrow Beam Angle
19' 22 Gauge 2 Conductor wire with Phoenix connector
Zero Visible Light Output
Resources
Specification information
Guides/ Manuals
Drawings
CAD File
CAD File
Related Categories
Specifications
SOURCE
(10) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Brackets (x2)
CONTROL (Via PRISMA DRIVER 8 or PRISMA DRIVER 8IP)
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support
CONNECTIONS
19' 22 AWG 2 Conductor wire with Phoenix connector
Minimum Cable Requirement: 22 AWG
Maximum Distance From Driver to Fixture: 40'
SIZE / WEIGHT
Length: 3.97 in. (100mm)
Width: 18.9 in. (480mm)
Vertical Height: 4.19 in. (106.5mm)
Weight: 4.2 lbs. (1.90kg)
ELECTRICAL
DC 36.7V (Via Pixel Driver 8)
24.3W Max Power Consumption
THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
